Electronic shelf label system operation manual Applicable Models Product Name: ESL Model Name: S42，S21，S26，S29，S75，T15，T21，T26， T29，T42 FCC ID: 2BR6Z-S42 Product Name: AP Model Name: PG-4K，PG-5K，PG-6K，PG-7K，PG-8K FCC ID: 2BR6Z-PG-4K FCC Statement 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference. (2)This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body. Contents 1.1 Create Template ................................................................................................................. 1 1.1.1 Template market: copy template ............................................................................ 1 1.1.2 Custom templates .................................................................................................... 2 1.1.3 Associated templates ............................................................................................... 3 1.2 Create New Commodity ..................................................................................................... 6 1.2.1 Add a new commodity ............................................................................................. 6 1.2.2 Add new products in batches .................................................................................. 6 1.2.3 Add new product fields ............................................................................................ 8 1.3 Bind and Updated Tag ........................................................................................................ 9 1.3.1 Single binding and update tag ................................................................................. 9 1.3.2 Batch binding and send .......................................................................................... 10 1.3.3 Replacing a single template or base station .......................................................... 12 1.3.4 Replacing templates or base stations in batches................................................... 13 1.4 Tag Update Queue Reissue .............................................................................................. 16 1.4.1 Reissue a single queue ........................................................................................... 16 1.4.2 Reissuance by time ................................................................................................ 16 1.4.3 Checking the status of the update queue .............................................................. 16 1.5 Material ............................................................................................................................ 18 1.5.1 Material library (local upload) ............................................................................... 18 1.5.2 Product material (single add commodity material) ............................................... 18 1.5.3 Commodity material (batch automatic matching commodity material) .............. 19 1.6 Authority ........................................................................................................................... 21 1.6.1 Store management ................................................................................................ 21 1.6.2 Role management .................................................................................................. 21 1.6.3 User management .................................................................................................. 22 1.7 Base Station Allocation ..................................................................................................... 24 1.7.1 Electronic shelf label (base station) batch distribution ......................................... 24 1.8 ESL Timing Task ................................................................................................................. 27 1.8.1 ESL timing task ....................................................................................................... 27 1.9 Account Center ................................................................................................................. 29 1.9.1 Basic configuration ................................................................................................. 29 1.9.2 Change password ................................................................................................... 29 1.9.3 Page configuration ........................................................................................…

Text truncated - open the document above for the full version.

RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in ß1.1307(b) FCC ID: 2BR6Z-PG-4K EUT Specification EUT AP Frequency band (Operating) BLE: 2.402GHz ~ 2.480GHz Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power BLE BLE 1M: -24.8 dBm BLE 2M: -23.3 dBm Antenna gain (Max) 2.33dBi Evaluation applied MPE Evaluation SAR Evaluation Page 2 of 4 Limits for Maximum Permissible Exposure(MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 Friis transmission formula: P d =(P out *G)\(4*pi*R 2 ) Where P d = Power density in mW/cm 2 , P out =output power to antenna in mW. G= gain of antenna in linear scale, Pi=3.1416 R= distance between observation point and center of the radiator in cm=20cm P d the limit of MPE, 1mW/cm 2 . If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. For multiple RF sources: Multiple RF sources are exempt if: in the case of fixed RF sources operating in the same time-averaging period, or of multiple mobile or portable RF sources within a device operating in the same time averaging period, if the sum of the fractional contributions to the applicable thresholds is less than or equal to 1 as indicated in the following equation Evaluated k : the maximum reported SAR or MPE of fixed, mobile, or portable RF source k either in the device or at the transmitter site from an existing evaluation at the location of exposure. Exposure Limit k : either the general population/uncontrolled maximum permissible exposure (MPE) or specific Absorption rate (SAR) limit for each fixed, mobile, or portable RF source k. Page 3 of 4 Measurement Result BLE: Antenna 1 Mode Max Measured Power (dBm) Tune up tolerance (dBm) Max tune up conducted power(dBm) Output Peak power (mW) Ant. Gain (dBi) Ant. Gain (numeric) Power density at 20cm (mW/ cm 2 ) Power density Limits (mW/ cm 2 ) BLE 1M -26.18 -26±1 -25 0.003 2.33 1.710 0.000001 1 BLE 2M -25.57 -25±1 -24 0.004 2.33 1.710 0.000001 1 Antenna 2 Mode Max Measured Power (dBm) Tune up tolerance (dBm) Max tune up conducted power(dBm) Output Peak power (mW) Ant. Gain (dBi) Ant. Gain (numeric) Power density at 20cm (mW/ cm 2 ) Power density Limits (mW/ cm 2 ) BLE 1M -28.92 -28±1 -27 0.002 2.33 1.710 0.000001 1 BLE 2M -27.84 -27±1 -26 0.003 2.33 1.710 0.000001 1 Antenna 3 Mode Max Measured Power (dBm) Tune up tolerance (dBm) Max tune up conducted power(dBm) Output Peak power (mW) Ant. Gain (dBi) Ant. Gain (numeric) Power density at 20cm (mW/ cm 2 ) Power density Limits (mW/ cm 2 ) BLE 1M -26.84 -26±1 -25 0.003 2.33 1.710 0.000001 1 BLE 2M -28.46 -28±1 -27 0.002 2.33 1.710 0.000001 1 Antenna 4 Mode Max Measured Power (dBm) Tune up tolerance (dBm) Max tune up conducted power(dBm) Output Peak power (mW) Ant. Gain (dBi) Ant. Gain (numeric) Power density at 20cm (mW/ cm 2 ) Power density Limits (mW/ cm 2 ) BLE 1M -24.8 -24±1 -23 0.005 2.33 1.710 0.000002 1 BLE 2M -23.3 -23±1 -22 0.006 2.33 1.710 0.000002 1 Page 4 of 4 Maximum Simultaneous transmission MPE Ratio for Antenna 1 & Antenna 2 & Antenna 3 & Antenna 4 Maximum MPE ratio (Antenna 1) Maximum MPE ratio (Antenna 2) Maximum MPE ratio (Antenna 3) Maximum MPE ratio (Antenna 4) ∑ MPE ratios Limit Results 0.000001 0.000001 0.000001 0.000002 0.000005 1.000 Pass Signature: Shawn Wen Date: 2025-11-19

Setup Photographs AC Power Line Conducted Emission Radiated Band edge and Spurious Emission Page 2 of 2

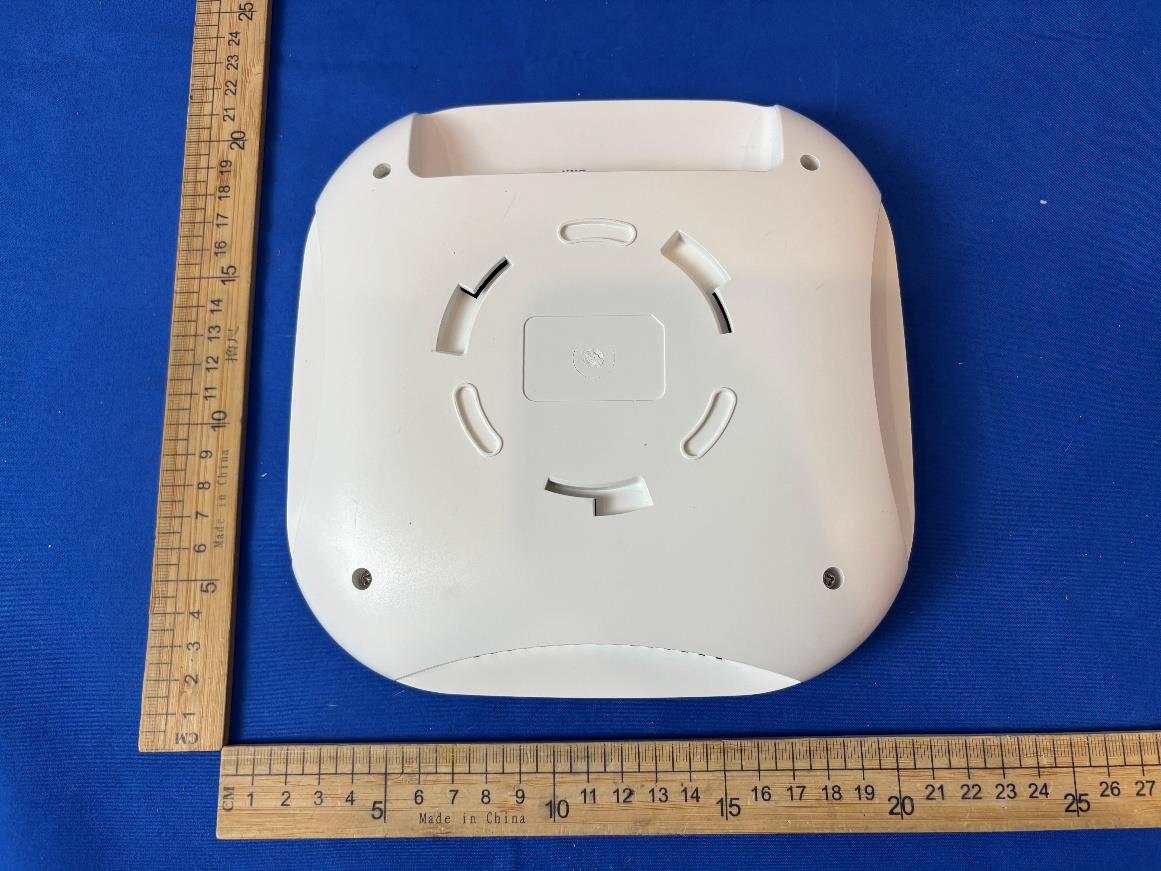

TRF No.: 04-E001-0B TRF Originator: GTG TRF Date: 2023-12-13 Web: www.gtggroup.com E-mail: [email protected] Tel.: 86-400 755 8988 CFR 47 FCC PART 15 SUBPART C(DTS) TEST REPORT For AP MODEL NUMBER: PG-4K, PG-5K, PG-6K, PG-7K, PG-8K REPORT NUMBER: E04A25080653F00101 ISSUE DATE: November 19, 2025 FCC ID: 2BR6Z-PG-4K Prepared for SUNLUX IOT Technology (Guangdong) INC Room 1201, Building A, No.76 Xinye Road, Huangpu District, Guangzhou City, Guangdong Province, China Prepared by Guangdong Global Testing Technology Co., Ltd. Room 101-105, 203-210, Building 1, No.2, Keji 8 Road, Songshan Lake Park, Dongguan city, Guangdong, People’s Republic of China, 523808 This report is based on a single evaluation of the submitted sample(s) of the above mentioned product, it does not imply an assessment of the production of the products. This report shall not be reproduced, except in full, without the written approval of Guangdong Global Testing Technology Co., Ltd. REPORT NO.: E04A25080653F00101 Page 2 of 76 TRF No.: 04-E001-0B Global Testing , Great Quality. Revision History Rev. Issue Date Revisions Revised By V0 November 19, 2025 Initial Issue REPORT NO.: E04A25080653F00101 Page 3 of 76 TRF No.: 04-E001-0B Global Testing , Great Quality. Summary of Test Results Test Item Clause Limit/Requirement Result Antenna Requirement N/A FCC Part 15.203/15.247 (c) Pass AC Power Line Conducted Emission ANSI C63.10-2020, Clause 6.2 FCC Part 15.207 Pass Conducted Output Power ANSI C63.10-2020, Clause 11.9.1.3 FCC Part 15.247 (b)(3) Pass 6dB Bandwidth and 99% Occupied Bandwidth ANSI C63.10-2020, Clause 11.8.1 FCC Part 15.247 (a)(2) Pass Power Spectral Density ANSI C63.10-2020, Clause 11.10.2 FCC Part 15.247 (e) Pass Conducted Band edge and spurious emission ANSI C63.10-2020, Clause 11.11 FCC Part 15.247(d) Pass Radiated Band edge and Spurious Emission ANSI C63.10-2020, Clause 11.11 & Clause 11.12 FCC Part 15.205/15.209 Pass Duty Cycle ANSI C63.10-2020, Clause 11.6 None; for reporting purposes only. Pass *This test report is only published to and used by the applicant, and it is not for evidence purpose in China. *The measurement result for the sample received is <Pass> according to <CFR 47 FCC PART 15 SUBPART C(DTS)> when <Accuracy Method> decision rule is applied. REPORT NO.: E04A25080653F00101 Page 4 of 76 TRF No.: 04-E001-0B Global Testing , Great Quality. CONTENTS 1. ATTESTATION OF TEST RESULTS ..................................................................................... 5 2. TEST METHODOLOGY ......................................................................................................... 6 3. FACILITIES AND ACCREDITATION ..................................................................................... 6 4. CALIBRATION AND UNCERTAINTY ................................................................................... 7 4.1. MEASURING INSTRUMENT CALIBRATION ........................................................... 7 4.2. MEASUREMENT UNCERTAINTY ............................................................................ 7 5. EQUIPMENT UNDER TEST .................................................................................................. 8 5.1. DESCRIPTION OF EUT ........................................................................................... 8 5.2. CHANNEL LIST ........................................................................................................ 8 5.3. MAXIMUM PEAK OUTPUT POWER ........................................................................ 9 5.4. TEST CHANNEL CONFIGURATION ........................................................................ 9 5.5. THE WORSE CASE POWER SETTING PARAMETER ............................................ 9 5.6. DESCRIPTION OF AVAILABLE ANTENNAS ........................................................... 9 5.7. SUPPORT UNITS FOR SYSTEM TEST ................................................................. 10 5.8. SETUP DIAGRAM .................................................................................................. 10 6. MEASURING EQUIPMENT AND SOFTWARE USED......................................................... 11 7. ANTENNA PORT TEST RESULTS ..................................................................................... 13 7.1. Conducted Output Power ........................................................................................ 13 7.2. 6dB Bandwidth and 99% Occupied Bandwidth ....................................................... 14 7.3. Power Spectral Density ........................................................................................... 16 7.4. Conducted Band edge and spurious emission ........................................................ 17 7.5. Duty Cycle .............................................................................................................. 19 8. RADIATED TEST RESULTS ............................................................................................... 20 8.1. Radiated Band edge and Spurious Emission .......................................................... 25 9. ANTENNA REQUIREMENT ................................................................................................ 73 10. AC POWER LINE CONDUCTED EMISSION ......................................................... 74 REPORT NO.: E04A25080653F00101 Page 5 of 76 TRF No.: 04-E001-0B Global Testing , Great Quality. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: SUNLUX IOT Technology (Guangdong) INC Address: Room 1201, Building A, No.76 Xinye Road, Huangpu District, Guangzhou City, Guangdong Province, China Manufacturer Information Company Name: SUNLUX IOT Technology (Guangdong) INC Address: Room 1201, Building A, No.76 Xinye Road, Huangpu District, Guangzhou City, Guangdong Province, China EUT Information Product Description: AP Model: PG-4K Series Model: PG-5K, PG-6K, PG-7K, PG-8K Brand: / Sample Received Date: August 19, 2025 Sample Status: Normal Sample ID: A…

Text truncated - open the document above for the full version.

1 / 32 Duty Cycle Condition Mode Frequency (MHz) Antenna On Time (ms) Period (ms) Duty Cycle (%) Correction Factor (dB) 1/T (kHz) NVNT BLE 1M 2402 Ant4 0.23 0.45 51.11 2.91 4.43 NVNT BLE 1M 2440 Ant4 0.23 0.45 51.11 2.91 4.43 NVNT BLE 1M 2480 Ant4 0.23 0.45 51.11 2.91 4.43 NVNT BLE 2M 2402 Ant4 0.14 0.36 38.89 4.1 7.35 NVNT BLE 2M 2440 Ant4 0.14 0.36 38.89 4.1 7.35 NVNT BLE 2M 2480 Ant4 0.14 0.36 38.89 4.1 7.35 2 / 32 Test Graphs Duty Cycle NVNT BLE 1M 2402MHz Ant4 Duty Cycle NVNT BLE 1M 2440MHz Ant4 3 / 32 Duty Cycle NVNT BLE 1M 2480MHz Ant4 Duty Cycle NVNT BLE 2M 2402MHz Ant4 4 / 32 Duty Cycle NVNT BLE 2M 2440MHz Ant4 Duty Cycle NVNT BLE 2M 2480MHz Ant4 5 / 32 Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Limit (dBm) Verdict NVNT BLE 1M 2402 Ant4 -24.8 30 Pass NVNT BLE 1M 2440 Ant4 -28.01 30 Pass NVNT BLE 1M 2480 Ant4 -26.9 30 Pass NVNT BLE 2M 2402 Ant4 -23.3 30 Pass NVNT BLE 2M 2440 Ant4 -27.99 30 Pass NVNT BLE 2M 2480 Ant4 -25.54 30 Pass 6 / 32 Test Graphs Power NVNT BLE 1M 2402MHz Ant4 Power NVNT BLE 1M 2440MHz Ant4 7 / 32 Power NVNT BLE 1M 2480MHz Ant4 Power NVNT BLE 2M 2402MHz Ant4 8 / 32 Power NVNT BLE 2M 2440MHz Ant4 Power NVNT BLE 2M 2480MHz Ant4 9 / 32 -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT BLE 1M 2402 Ant4 0.65 0.5 Pass NVNT BLE 1M 2440 Ant4 0.64 0.5 Pass NVNT BLE 1M 2480 Ant4 0.64 0.5 Pass NVNT BLE 2M 2402 Ant4 1.03 0.5 Pass NVNT BLE 2M 2440 Ant4 1.06 0.5 Pass NVNT BLE 2M 2480 Ant4 1.04 0.5 Pass 10 / 32 Test Graphs -6dB Bandwidth NVNT BLE 1M 2402MHz Ant4 -6dB Bandwidth NVNT BLE 1M 2440MHz Ant4 11 / 32 -6dB Bandwidth NVNT BLE 1M 2480MHz Ant4 -6dB Bandwidth NVNT BLE 2M 2402MHz Ant4 12 / 32 -6dB Bandwidth NVNT BLE 2M 2440MHz Ant4 -6dB Bandwidth NVNT BLE 2M 2480MHz Ant4 13 / 32 Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT BLE 1M 2402 Ant4 1.037 NVNT BLE 1M 2440 Ant4 1.042 NVNT BLE 1M 2480 Ant4 1.042 NVNT BLE 2M 2402 Ant4 2.071 NVNT BLE 2M 2440 Ant4 2.082 NVNT BLE 2M 2480 Ant4 2.09 14 / 32 Test Graphs OBW NVNT BLE 1M 2402MHz Ant4 OBW NVNT BLE 1M 2440MHz Ant4 15 / 32 OBW NVNT BLE 1M 2480MHz Ant4 OBW NVNT BLE 2M 2402MHz Ant4 16 / 32 OBW NVNT BLE 2M 2440MHz Ant4 OBW NVNT BLE 2M 2480MHz Ant4 17 / 32 Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Conducted PSD (dBm/3kHz) Limit (dBm/3kHz) Verdict NVNT BLE 1M 2402 Ant4 -40.38 8 Pass NVNT BLE 1M 2440 Ant4 -41.43 8 Pass NVNT BLE 1M 2480 Ant4 -41.29 8 Pass NVNT BLE 2M 2402 Ant4 -40.1 8 Pass NVNT BLE 2M 2440 Ant4 -41.21 8 Pass NVNT BLE 2M 2480 Ant4 -42.32 8 Pass 18 / 32 Test Graphs PSD NVNT BLE 1M 2402MHz Ant4 PSD NVNT BLE 1M 2440MHz Ant4 19 / 32 PSD NVNT BLE 1M 2480MHz Ant4 PSD NVNT BLE 2M 2402MHz Ant4 20 / 32 PSD NVNT BLE 2M 2440MHz Ant4 PSD NVNT BLE 2M 2480MHz Ant4 21 / 32 Band Edge Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT BLE 1M 2402 Ant4 -27.26 -20 Pass NVNT BLE 1M 2480 Ant4 -32.12 -20 Pass NVNT BLE 2M 2402 Ant4 -29.63 -20 Pass NVNT BLE 2M 2480 Ant4 -27.19 -20 Pass 22 / 32 Test Graphs Band Edge NVNT BLE 1M 2402MHz Ant4 Ref Band Edge NVNT BLE 1M 2402MHz Ant4 Emission 23 / 32 Band Edge NVNT BLE 1M 2480MHz Ant4 Ref Band Edge NVNT BLE 1M 2480MHz Ant4 Emission 24 / 32 Band Edge NVNT BLE 2M 2402MHz Ant4 Ref Band Edge NVNT BLE 2M 2402MHz Ant4 Emission 25 / 32 Band Edge NVNT BLE 2M 2480MHz Ant4 Ref Band Edge NVNT BLE 2M 2480MHz Ant4 Emission 26 / 32 Conducted RF Spurious Emission Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT BLE 1M 2402 Ant4 -25.36 -20 Pass NVNT BLE 1M 2440 Ant4 -32.2 -20 Pass NVNT BLE 1M 2480 Ant4 -30.89 -20 Pass NVNT BLE 2M 2402 Ant4 -31.71 -20 Pass NVNT BLE 2M 2440 Ant4 -29.69 -20 Pass NVNT BLE 2M 2480 Ant4 -31.39 -20 Pass 27 / 32 Test Graphs Tx. Spurious NVNT BLE 1M 2402MHz Ant4 Ref Tx. Spurious NVNT BLE 1M 2402MHz Ant4 Emission 28 / 32 Tx. Spurious NVNT BLE 1M 2440MHz Ant4 Ref Tx. Spurious NVNT BLE 1M 2440MHz Ant4 Emission 29 / 32 Tx. Spurious NVNT BLE 1M 2480MHz Ant4 Ref Tx. Spurious NVNT BLE 1M 2480MHz Ant4 Emission 30 / 32 Tx. Spurious NVNT BLE 2M 2402MHz Ant4 Ref Tx. Spurious NVNT BLE 2M 2402MHz Ant4 Emission 31 / 32 Tx. Spurious NVNT BLE 2M 2440MHz Ant4 Ref Tx. Spurious NVNT BLE 2M 2440MHz Ant4 Emission 32 / 32 Tx. Spurious NVNT BLE 2M 2480MHz Ant4 Ref Tx. Spurious NVNT BLE 2M 2480MHz Ant4 Emission

1 / 32 Duty Cycle Condition Mode Frequency (MHz) Antenna On Time (ms) Period (ms) Duty Cycle (%) Correction Factor (dB) 1/T (kHz) NVNT BLE 1M 2402 Ant3 0.23 0.45 51.11 2.91 4.43 NVNT BLE 1M 2440 Ant3 0.23 0.45 51.11 2.91 4.42 NVNT BLE 1M 2480 Ant3 0.23 0.45 51.11 2.91 4.43 NVNT BLE 2M 2402 Ant3 0.14 0.36 38.89 4.1 7.35 NVNT BLE 2M 2440 Ant3 0.14 0.36 38.89 4.1 7.38 NVNT BLE 2M 2480 Ant3 0.14 0.36 38.89 4.1 7.35 2 / 32 Test Graphs Duty Cycle NVNT BLE 1M 2402MHz Ant3 Duty Cycle NVNT BLE 1M 2440MHz Ant3 3 / 32 Duty Cycle NVNT BLE 1M 2480MHz Ant3 Duty Cycle NVNT BLE 2M 2402MHz Ant3 4 / 32 Duty Cycle NVNT BLE 2M 2440MHz Ant3 Duty Cycle NVNT BLE 2M 2480MHz Ant3 5 / 32 Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Limit (dBm) Verdict NVNT BLE 1M 2402 Ant3 -26.84 30 Pass NVNT BLE 1M 2440 Ant3 -31.64 30 Pass NVNT BLE 1M 2480 Ant3 -29.44 30 Pass NVNT BLE 2M 2402 Ant3 -28.46 30 Pass NVNT BLE 2M 2440 Ant3 -31.68 30 Pass NVNT BLE 2M 2480 Ant3 -31.31 30 Pass 6 / 32 Test Graphs Power NVNT BLE 1M 2402MHz Ant3 Power NVNT BLE 1M 2440MHz Ant3 7 / 32 Power NVNT BLE 1M 2480MHz Ant3 Power NVNT BLE 2M 2402MHz Ant3 8 / 32 Power NVNT BLE 2M 2440MHz Ant3 Power NVNT BLE 2M 2480MHz Ant3 9 / 32 -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT BLE 1M 2402 Ant3 0.64 0.5 Pass NVNT BLE 1M 2440 Ant3 0.64 0.5 Pass NVNT BLE 1M 2480 Ant3 0.64 0.5 Pass NVNT BLE 2M 2402 Ant3 1.04 0.5 Pass NVNT BLE 2M 2440 Ant3 1.05 0.5 Pass NVNT BLE 2M 2480 Ant3 1.03 0.5 Pass 10 / 32 Test Graphs -6dB Bandwidth NVNT BLE 1M 2402MHz Ant3 -6dB Bandwidth NVNT BLE 1M 2440MHz Ant3 11 / 32 -6dB Bandwidth NVNT BLE 1M 2480MHz Ant3 -6dB Bandwidth NVNT BLE 2M 2402MHz Ant3 12 / 32 -6dB Bandwidth NVNT BLE 2M 2440MHz Ant3 -6dB Bandwidth NVNT BLE 2M 2480MHz Ant3 13 / 32 Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT BLE 1M 2402 Ant3 1.043 NVNT BLE 1M 2440 Ant3 1.081 NVNT BLE 1M 2480 Ant3 1.12 NVNT BLE 2M 2402 Ant3 2.152 NVNT BLE 2M 2440 Ant3 2.179 NVNT BLE 2M 2480 Ant3 2.322 14 / 32 Test Graphs OBW NVNT BLE 1M 2402MHz Ant3 OBW NVNT BLE 1M 2440MHz Ant3 15 / 32 OBW NVNT BLE 1M 2480MHz Ant3 OBW NVNT BLE 2M 2402MHz Ant3 16 / 32 OBW NVNT BLE 2M 2440MHz Ant3 OBW NVNT BLE 2M 2480MHz Ant3 17 / 32 Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Conducted PSD (dBm/3kHz) Limit (dBm/3kHz) Verdict NVNT BLE 1M 2402 Ant3 -43.7 8 Pass NVNT BLE 1M 2440 Ant3 -45.77 8 Pass NVNT BLE 1M 2480 Ant3 -46.77 8 Pass NVNT BLE 2M 2402 Ant3 -44.57 8 Pass NVNT BLE 2M 2440 Ant3 -45.55 8 Pass NVNT BLE 2M 2480 Ant3 -46.38 8 Pass 18 / 32 Test Graphs PSD NVNT BLE 1M 2402MHz Ant3 PSD NVNT BLE 1M 2440MHz Ant3 19 / 32 PSD NVNT BLE 1M 2480MHz Ant3 PSD NVNT BLE 2M 2402MHz Ant3 20 / 32 PSD NVNT BLE 2M 2440MHz Ant3 PSD NVNT BLE 2M 2480MHz Ant3 21 / 32 Band Edge Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT BLE 1M 2402 Ant3 -27.75 -20 Pass NVNT BLE 1M 2480 Ant3 -24.15 -20 Pass NVNT BLE 2M 2402 Ant3 -25.63 -20 Pass NVNT BLE 2M 2480 Ant3 -23.76 -20 Pass 22 / 32 Test Graphs Band Edge NVNT BLE 1M 2402MHz Ant3 Ref Band Edge NVNT BLE 1M 2402MHz Ant3 Emission 23 / 32 Band Edge NVNT BLE 1M 2480MHz Ant3 Ref Band Edge NVNT BLE 1M 2480MHz Ant3 Emission 24 / 32 Band Edge NVNT BLE 2M 2402MHz Ant3 Ref Band Edge NVNT BLE 2M 2402MHz Ant3 Emission 25 / 32 Band Edge NVNT BLE 2M 2480MHz Ant3 Ref Band Edge NVNT BLE 2M 2480MHz Ant3 Emission 26 / 32 Conducted RF Spurious Emission Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT BLE 1M 2402 Ant3 -28.64 -20 Pass NVNT BLE 1M 2440 Ant3 -28.1 -20 Pass NVNT BLE 1M 2480 Ant3 -27.65 -20 Pass NVNT BLE 2M 2402 Ant3 -30.5 -20 Pass NVNT BLE 2M 2440 Ant3 -27.81 -20 Pass NVNT BLE 2M 2480 Ant3 -28.2 -20 Pass 27 / 32 Test Graphs Tx. Spurious NVNT BLE 1M 2402MHz Ant3 Ref Tx. Spurious NVNT BLE 1M 2402MHz Ant3 Emission 28 / 32 Tx. Spurious NVNT BLE 1M 2440MHz Ant3 Ref Tx. Spurious NVNT BLE 1M 2440MHz Ant3 Emission 29 / 32 Tx. Spurious NVNT BLE 1M 2480MHz Ant3 Ref Tx. Spurious NVNT BLE 1M 2480MHz Ant3 Emission 30 / 32 Tx. Spurious NVNT BLE 2M 2402MHz Ant3 Ref Tx. Spurious NVNT BLE 2M 2402MHz Ant3 Emission 31 / 32 Tx. Spurious NVNT BLE 2M 2440MHz Ant3 Ref Tx. Spurious NVNT BLE 2M 2440MHz Ant3 Emission 32 / 32 Tx. Spurious NVNT BLE 2M 2480MHz Ant3 Ref Tx. Spurious NVNT BLE 2M 2480MHz Ant3 Emission

1 / 32 Duty Cycle Condition Mode Frequency (MHz) Antenna On Time (ms) Period (ms) Duty Cycle (%) Correction Factor (dB) 1/T (kHz) NVNT BLE 1M 2402 Ant2 0.18 0.45 40 3.98 5.6 NVNT BLE 1M 2440 Ant2 0.23 0.45 51.11 2.91 4.43 NVNT BLE 1M 2480 Ant2 0.23 0.45 51.11 2.91 4.43 NVNT BLE 2M 2402 Ant2 0.14 0.36 38.89 4.1 7.35 NVNT BLE 2M 2440 Ant2 0.14 0.36 38.89 4.1 7.35 NVNT BLE 2M 2480 Ant2 0.14 0.36 38.89 4.1 7.33 2 / 32 Test Graphs Duty Cycle NVNT BLE 1M 2402MHz Ant2 Duty Cycle NVNT BLE 1M 2440MHz Ant2 3 / 32 Duty Cycle NVNT BLE 1M 2480MHz Ant2 Duty Cycle NVNT BLE 2M 2402MHz Ant2 4 / 32 Duty Cycle NVNT BLE 2M 2440MHz Ant2 Duty Cycle NVNT BLE 2M 2480MHz Ant2 5 / 32 Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Limit (dBm) Verdict NVNT BLE 1M 2402 Ant2 -30.82 30 Pass NVNT BLE 1M 2440 Ant2 -29.47 30 Pass NVNT BLE 1M 2480 Ant2 -28.92 30 Pass NVNT BLE 2M 2402 Ant2 -28.07 30 Pass NVNT BLE 2M 2440 Ant2 -27.84 30 Pass NVNT BLE 2M 2480 Ant2 -32.03 30 Pass 6 / 32 Test Graphs Power NVNT BLE 1M 2402MHz Ant2 Power NVNT BLE 1M 2440MHz Ant2 7 / 32 Power NVNT BLE 1M 2480MHz Ant2 Power NVNT BLE 2M 2402MHz Ant2 8 / 32 Power NVNT BLE 2M 2440MHz Ant2 Power NVNT BLE 2M 2480MHz Ant2 9 / 32 -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT BLE 1M 2402 Ant2 0.65 0.5 Pass NVNT BLE 1M 2440 Ant2 0.64 0.5 Pass NVNT BLE 1M 2480 Ant2 0.65 0.5 Pass NVNT BLE 2M 2402 Ant2 1.05 0.5 Pass NVNT BLE 2M 2440 Ant2 1.05 0.5 Pass NVNT BLE 2M 2480 Ant2 1.04 0.5 Pass 10 / 32 Test Graphs -6dB Bandwidth NVNT BLE 1M 2402MHz Ant2 -6dB Bandwidth NVNT BLE 1M 2440MHz Ant2 11 / 32 -6dB Bandwidth NVNT BLE 1M 2480MHz Ant2 -6dB Bandwidth NVNT BLE 2M 2402MHz Ant2 12 / 32 -6dB Bandwidth NVNT BLE 2M 2440MHz Ant2 -6dB Bandwidth NVNT BLE 2M 2480MHz Ant2 13 / 32 Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT BLE 1M 2402 Ant2 1.057 NVNT BLE 1M 2440 Ant2 1.048 NVNT BLE 1M 2480 Ant2 1.049 NVNT BLE 2M 2402 Ant2 2.041 NVNT BLE 2M 2440 Ant2 2.104 NVNT BLE 2M 2480 Ant2 2.25 14 / 32 Test Graphs OBW NVNT BLE 1M 2402MHz Ant2 OBW NVNT BLE 1M 2440MHz Ant2 15 / 32 OBW NVNT BLE 1M 2480MHz Ant2 OBW NVNT BLE 2M 2402MHz Ant2 16 / 32 OBW NVNT BLE 2M 2440MHz Ant2 OBW NVNT BLE 2M 2480MHz Ant2 17 / 32 Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Conducted PSD (dBm/3kHz) Limit (dBm/3kHz) Verdict NVNT BLE 1M 2402 Ant2 -41.12 8 Pass NVNT BLE 1M 2440 Ant2 -42.41 8 Pass NVNT BLE 1M 2480 Ant2 -43.59 8 Pass NVNT BLE 2M 2402 Ant2 -40.54 8 Pass NVNT BLE 2M 2440 Ant2 -42.17 8 Pass NVNT BLE 2M 2480 Ant2 -43.27 8 Pass 18 / 32 Test Graphs PSD NVNT BLE 1M 2402MHz Ant2 PSD NVNT BLE 1M 2440MHz Ant2 19 / 32 PSD NVNT BLE 1M 2480MHz Ant2 PSD NVNT BLE 2M 2402MHz Ant2 20 / 32 PSD NVNT BLE 2M 2440MHz Ant2 PSD NVNT BLE 2M 2480MHz Ant2 21 / 32 Band Edge Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT BLE 1M 2402 Ant2 -30.89 -20 Pass NVNT BLE 1M 2480 Ant2 -26.81 -20 Pass NVNT BLE 2M 2402 Ant2 -30.7 -20 Pass NVNT BLE 2M 2480 Ant2 -27.27 -20 Pass 22 / 32 Test Graphs Band Edge NVNT BLE 1M 2402MHz Ant2 Ref Band Edge NVNT BLE 1M 2402MHz Ant2 Emission 23 / 32 Band Edge NVNT BLE 1M 2480MHz Ant2 Ref Band Edge NVNT BLE 1M 2480MHz Ant2 Emission 24 / 32 Band Edge NVNT BLE 2M 2402MHz Ant2 Ref Band Edge NVNT BLE 2M 2402MHz Ant2 Emission 25 / 32 Band Edge NVNT BLE 2M 2480MHz Ant2 Ref Band Edge NVNT BLE 2M 2480MHz Ant2 Emission 26 / 32 Conducted RF Spurious Emission Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT BLE 1M 2402 Ant2 -30.62 -20 Pass NVNT BLE 1M 2440 Ant2 -26.74 -20 Pass NVNT BLE 1M 2480 Ant2 -25.72 -20 Pass NVNT BLE 2M 2402 Ant2 -20.16 -20 Pass NVNT BLE 2M 2440 Ant2 -28.18 -20 Pass NVNT BLE 2M 2480 Ant2 -28.16 -20 Pass 27 / 32 Test Graphs Tx. Spurious NVNT BLE 1M 2402MHz Ant2 Ref Tx. Spurious NVNT BLE 1M 2402MHz Ant2 Emission 28 / 32 Tx. Spurious NVNT BLE 1M 2440MHz Ant2 Ref Tx. Spurious NVNT BLE 1M 2440MHz Ant2 Emission 29 / 32 Tx. Spurious NVNT BLE 1M 2480MHz Ant2 Ref Tx. Spurious NVNT BLE 1M 2480MHz Ant2 Emission 30 / 32 Tx. Spurious NVNT BLE 2M 2402MHz Ant2 Ref Tx. Spurious NVNT BLE 2M 2402MHz Ant2 Emission 31 / 32 Tx. Spurious NVNT BLE 2M 2440MHz Ant2 Ref Tx. Spurious NVNT BLE 2M 2440MHz Ant2 Emission 32 / 32 Tx. Spurious NVNT BLE 2M 2480MHz Ant2 Ref Tx. Spurious NVNT BLE 2M 2480MHz Ant2 Emission

1 / 32 Duty Cycle Condition Mode Frequency (MHz) Antenna On Time (ms) Period (ms) Duty Cycle (%) Correction Factor (dB) 1/T (kHz) NVNT BLE 1M 2402 Ant1 0.23 0.45 51.11 2.91 4.43 NVNT BLE 1M 2440 Ant1 0.23 0.45 51.11 2.91 4.43 NVNT BLE 1M 2480 Ant1 0.23 0.45 51.11 2.91 4.43 NVNT BLE 2M 2402 Ant1 0.14 0.36 38.89 4.1 7.35 NVNT BLE 2M 2440 Ant1 0.14 0.36 38.89 4.1 7.35 NVNT BLE 2M 2480 Ant1 0.14 0.36 38.89 4.1 7.33 2 / 32 Test Graphs Duty Cycle NVNT BLE 1M 2402MHz Ant1 Duty Cycle NVNT BLE 1M 2440MHz Ant1 3 / 32 Duty Cycle NVNT BLE 1M 2480MHz Ant1 Duty Cycle NVNT BLE 2M 2402MHz Ant1 4 / 32 Duty Cycle NVNT BLE 2M 2440MHz Ant1 Duty Cycle NVNT BLE 2M 2480MHz…
