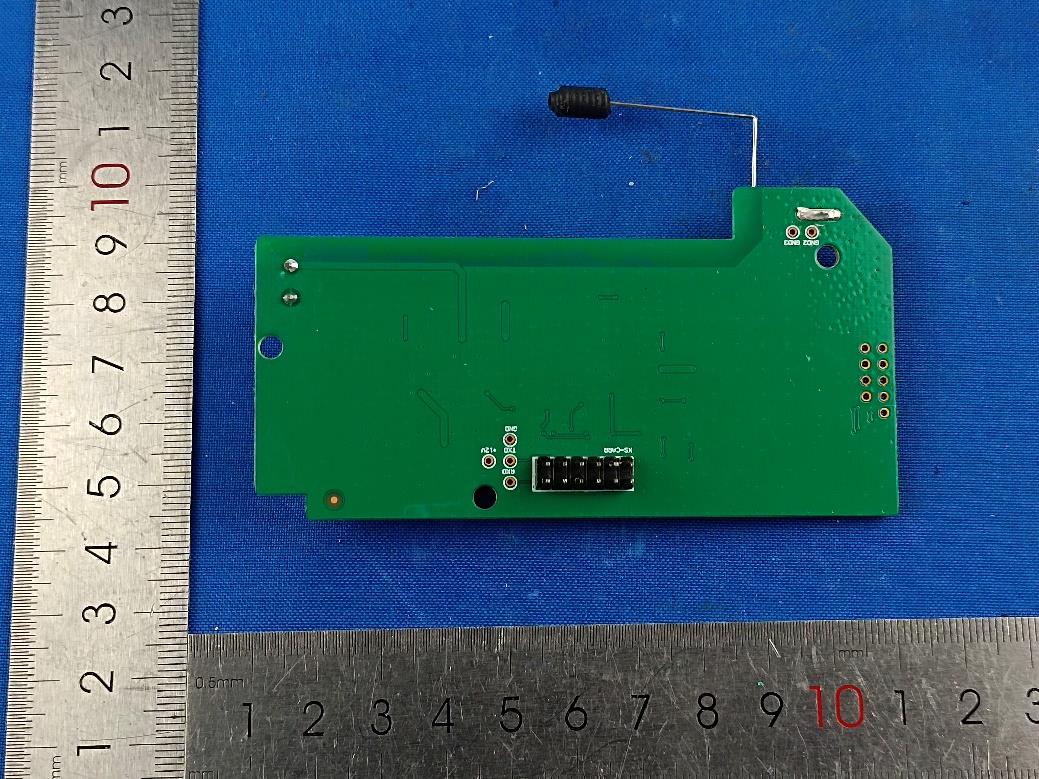

2BRB5-HL-2SYBWISUN module

1 ESWL67-WISUN-HL-2SYB-917M UserManual DATE：2024/09/10 QingdaoEastsoftCommunicationTechnologyCo.Ltd Copyright2018QingdaoEastsoftCommunication TechnologyCo.Ltd Address:No.16AShangqingRoad,ShibeiDistrict,Qingdao, District,Qingdao,China 2 目录 1.Introduction .................................................................................................................................3 1.1.Purpose ..............................................................................................................................3 2.Overview .......................................................................................................................................3 3.Specifications ...............................................................................................................................3 4.InterfacePinout ...........................................................................................................................3 5.PinHeaderSpecifications .........................................................................................................5 Copyright2018 QingdaoEastsoftCommunication TechnologyCo.Ltd Address:No.16AShangqingRoad, Shibei Di strict, Qingdao, Di strict, Qingdao,China 3 1. Introduction 1.1. Purpose This documentis intendedto assistmeterdevelopersin familiarizingthemselves with and correctlyusingthe ESWL67-WISUN-HL-2SYB-917Mwirelessmoduleprovided by QingdaoEastsoft. 2. Overview The ESWL67-WISUN-HL-2SYB-917Mis a Wi-SUNmodule,in whichthe Wi-SUN functionalcircuitis separatelymountedonto the mainmodulein a modularform. 3. Specifications PowerSupply:DC 12V ±1V; Complieswith the EMC test requirementsspecifiedin the StateGrid standards. RF Performance Frequency Band: 915.2-925 MHz; Communication Protocol: Supports IEEE 802.15.4g / Wi-SUN; TX Power: Supports up to 27 dBm, configurable. 4. InterfacePinout The low-voltageinterfaceof the moduleuses a 2×6-pindual-rowright-anglepin headeras the connector.A schematicdiagramof the interfacepin definitionsis shown below: Copyright2018QingdaoEastsoftCommunication TechnologyCo.Ltd Address:No.16AShangqingRoad,ShibeiDistrict,Qingdao, District,Qingdao,China 4 No.SignalTypeSignalNameDescription 1、2Power+12VinThecommunicationmodule'sanalogpower supplyisprovidedbytheelectricitymeter, withavoltagerangeof+12V±1V(maximum loadcurrent:700mA).Apowerfaultorshort circuitinthecommunicationmodulemustnot affectthebasicfunctionsoftheelectricity meter(protectivemeasuresshallbe implementedbythemeter). 3、4PowerGNDGND 5、6SignalSTAReserved 7、8SignalRSTResetpin,activelow. 9、10SignalTXDThemodule'sserialportoutputsignalisan open-drainoutput. 11、12SignalRXDThemodule'sserialportinputsignalis open-drainandisinahigh-impedancestateby default. Copyright2018QingdaoEastsoftCommunication TechnologyCo.Ltd Address:No.16AShangqingRoad,ShibeiDistrict,Qingdao, District,Qingdao,China 5 5.PinHeaderSpecifications FederalCommunicationCommissionStatement(FCC,U.S.) ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice, pursuanttoPart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotection againstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates,usesandcan radiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions, maycauseharmfulinterferencetoradiocommunications.However,thereisnoguaranteethat interferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmful interferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoff andon,theuserisencouragedtotrytocorrecttheinterferencebyoneofthefollowingmeasures: -Reorientorrelocatethereceivingantenna. -Increasetheseparationbetweentheequipmentandreceiver. -Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris connected. -Consultthedealeroranexperiencedradio/TVtechnicianforhelp. ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwo conditions: (1)Thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptany interferencereceived,includinginterferencethatmaycauseundesiredoperation. FCCCaution: Anychangesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliance couldvoidtheuser'sauthoritytooperatethisequipment. FCCRadiationExposureStatement: ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforanuncontrolled Copyright2018QingdaoEastsoftCommunication TechnologyCo.Ltd Address:No.16AShangqingRoad,ShibeiDistrict,Qingdao, District,Qingdao,China 6 environment.Thisequipmentshouldbeinstalledandoperatedwithminimumdistance20cm betweentheradiator&yourbody. IMPORTANTNOTES Co-locationwarning: Thistransmittermustnotbeco-locatedoroperatinginconjunctionwithanyotherantennaor transmitter. OEMintegrationinstructions: ThisdeviceisintendedonlyforOEMintegratorsunderthefollowingconditions: Thetransmittermodulemaynotbeco-locatedwithanyothertransmitterorantenna.Themodule shallbeonlyusedwiththeexternalantenna(s)thathasbeenoriginallytestedandcertifiedwith thismodule. Aslongastheconditionsabovearemet,furthertransmittertestwillnotberequired.However,the OEMintegratorisstillresponsiblefortestingtheirend-productforanyadditionalcompliance requirementsrequiredwiththismoduleinstalled(forexample,digitaldeviceemissions,PC peripheralrequirements,etc.). Validityofusingthemodulecertification: Intheeventthattheseconditionscannotbemet(forexamplecertainlaptopconfigurationsor co-locationwithanothertransmitter),thentheFCCauthorizationforthismoduleincombination withthehostequipmentisnolongerconsideredvalidandtheFCCIDofthemodulecannotbe usedonthefinalproduct.Inthesecircumstances,theOEMintegratorwillberesponsiblefor re-evaluatingtheendproduct(includingthetransmitter)andobtainingaseparateFCC authorization. Endproductlabeling: Thefinalendproductmustbelabeledinavisibleareawiththefollowing:“ContainsTransmitter ModuleFCCID:2BRB5-HL-2SYB”. Informationthatmustbeplacedintheendusermanual: TheOEMintegratorhastobeawarenottoprovideinformationtotheenduserregardinghowto installorre…

Text truncated - open the document above for the full version.

Page 1 of 1 Report No.: MTi250716001-0102 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China. Tel: 0755-88850135-1439 Mobile: 131-4343-1439 (Wechat same number) Web: http://www.mtitest.cn E-mail: [email protected] Photographs of the test setup Model: ESWL67-WISUN-HL-2SYB Radiated emissions (below 1GHz) Radiated emissions (above 1GHz)

TEST REPORT Report No.: MTi250716001-0102E1 Tel: 0755-88850135-1439 Mobile: 131-4343-1439 (Wechat same number) Web: http://www.mtitest.cn E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong,China Q/MTI-QP-12-FE038 Ver./Rev.：A1 Page 46 of 59 Appendix C: Carrier frequency separation Test Result Test Mode Antenna Frequency [MHz] Result [MHz] Limit [MHz] Verdict GFSK Ant1 Hop 0.250 >= 20 dB bandwidth PASS Notes:All channel are tested,the test report is only shown the worst test mode. TEST REPORT Report No.: MTi250716001-0102E1 Tel: 0755-88850135-1439 Mobile: 131-4343-1439 (Wechat same number) Web: http://www.mtitest.cn E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong,China Q/MTI-QP-12-FE038 Ver./Rev.：A1 Page 47 of 59 Test Graphs GFSK_Ant1_Hop TEST REPORT Report No.: MTi250716001-0102E1 Tel: 0755-88850135-1439 Mobile: 131-4343-1439 (Wechat same number) Web: http://www.mtitest.cn E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong,China Q/MTI-QP-12-FE038 Ver./Rev.：A1 Page 48 of 59 Appendix D: Time of occupancy Test Result Mode Test Channel (MHz) Pulse width (ms) Number of pulses in 6 s Average time of occupancy (s) Limit (s) Result GFSK 915.2 10.92 34 0.37 <=0.4 Pass 920 10.89 34 0.37 <=0.4 Pass 925.0 10.92 34 0.37 <=0.4 Pass Notes: 1. Result (Time of occupancy) = BurstWidth[ms] * Hops in 20s [Num] TEST REPORT Report No.: MTi250716001-0102E1 Tel: 0755-88850135-1439 Mobile: 131-4343-1439 (Wechat same number) Web: http://www.mtitest.cn E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong,China Q/MTI-QP-12-FE038 Ver./Rev.：A1 Page 49 of 59 Test Graphs 915.2 MHz - Pulse width 915.2 MHz - Number of pulses in 20 s 920 MHz - Pulse width 920 MHz - Number of pulses in 20 s 925 MHz - Pulse width 925 MHz - Number of pulses in 20 s TEST REPORT Report No.: MTi250716001-0102E1 Tel: 0755-88850135-1439 Mobile: 131-4343-1439 (Wechat same number) Web: http://www.mtitest.cn E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong,China Q/MTI-QP-12-FE038 Ver./Rev.：A1 Page 50 of 59 Appendix E: Number of hopping channels Test Result Test Mode Antenna Frequency [MHz] Result [Num] Limit [Num] Verdict GFSK Ant1 Hop 50 ≥50 PASS TEST REPORT Report No.: MTi250716001-0102E1 Tel: 0755-88850135-1439 Mobile: 131-4343-1439 (Wechat same number) Web: http://www.mtitest.cn E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong,China Q/MTI-QP-12-FE038 Ver./Rev.：A1 Page 51 of 59 Test Graphs GFSK_Ant1_Hop TEST REPORT Report No.: MTi250716001-0102E1 Tel: 0755-88850135-1439 Mobile: 131-4343-1439 (Wechat same number) Web: http://www.mtitest.cn E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong,China Q/MTI-QP-12-FE038 Ver./Rev.：A1 Page 52 of 59 Appendix F: Band edge measurements Test Graphs GFSK_Ant1_Low_915.2 GFSK_Ant1_High_925.0 TEST REPORT Report No.: MTi250716001-0102E1 Tel: 0755-88850135-1439 Mobile: 131-4343-1439 (Wechat same number) Web: http://www.mtitest.cn E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong,China Q/MTI-QP-12-FE038 Ver./Rev.：A1 Page 53 of 59 GFSK_Ant1_Low_Hop 915.2 GFSK_Ant1_High_Hop 925.0 TEST REPORT Report No.: MTi250716001-0102E1 Tel: 0755-88850135-1439 Mobile: 131-4343-1439 (Wechat same number) Web: http://www.mtitest.cn E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong,China Q/MTI-QP-12-FE038 Ver./Rev.：A1 Page 54 of 59 Appendix G: Conducted Spurious Emission Test Graphs GFSK_Ant1_915.2_0~Reference GFSK_Ant1_915.2_30~1000 GFSK_Ant1_915.2_1000~26500 TEST REPORT Report No.: MTi250716001-0102E1 Tel: 0755-88850135-1439 Mobile: 131-4343-1439 (Wechat same number) Web: http://www.mtitest.cn E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong,China Q/MTI-QP-12-FE038 Ver./Rev.：A1 Page 55 of 59 GFSK_Ant1_920_0~Reference GFSK_Ant1_920_30~1000 TEST REPORT Report No.: MTi250716001-0102E1 Tel: 0755-88850135-1439 Mobile: 131-4343-1439 (Wechat same number) Web: http://www.mtitest.cn E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong,China Q/MTI-QP-12-FE038 Ver./Rev.：A1 Page 56 of 59 GFSK_Ant1_920_1000~26500 GFSK_Ant1_925~Reference TEST REPORT Report No.: MTi250716001-0102E1 Tel: 0755-88850135-1439 Mobile: 131-4343-1439 (Wechat same number) Web: http://www.mtitest.cn E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong,China Q/MTI-QP-12-FE038 Ver./Rev.：A1 Page 57 of 59 GFSK_Ant1_925_30~1000 GFSK_Ant1_925_1000~26500 TEST REPORT Report No.: MTi250716001-0102E1 Tel: 0755-88850135-1439 Mobile: 131-4343-1439 (Wechat same number) Web: http://www.mtitest.cn E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong,China Q/MTI-QP-12-FE038 Ver./Rev.：A1 Page 58 of 59 TEST REPORT Report No.: MTi250716001-0102E1 Tel: 0755-88850135-1439 Mobile: 131-4343-1439 (Wechat same number) Web: http://www…

Text truncated - open the document above for the full version.

TEST REPORT Report No.: MTi250716001-0102E1 Tel: 0755-88850135-1439 Mobile: 131-4343-1439 (Wechat same number) Web: http://www.mtitest.cn E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong,China Q/MTI-QP-12-FE038 Ver./Rev.：A1 Page 26 of 59 6.8 Radiated emissions (below 1GHz) Test Requirement: Refer to 47 CFR 15.247(d), In addition, radiated emissions which fall in the restricted bands, as defined in § 15.205(a), must also comply with the radiated emission limits specified in § 15.209(a)(see § 15.205(c)).` Test Limit: Frequency (MHz) Field strength (microvolts/meter) Measuremen t distance (meters) 0.009-0.490 2400/F(kHz) 300 0.490-1.705 24000/F(kHz) 30 1.705-30.0 30 30 30-88 100 ** 3 88-216 150 ** 3 216-960 200 ** 3 Above 960 500 3 ** Except as provided in paragraph (g), fundamental emissions from intentional radiators operating under this section shall not be located in the frequency bands 54-72 MHz, 76-88 MHz, 174-216 MHz or 470-806 MHz. However, operation within these frequency bands is permitted under other sections of this part, e.g., §§ 15.231 and 15.241. In the emission table above, the tighter limit applies at the band edges. The emission limits shown in the above table are based on measurements employing a CISPR quasi-peak detector except for the frequency bands 9–90 kHz, 110–490 kHz and above 1000 MHz. Radiated emission limits in these three bands are based on measurements employing an average detector. Test Method: ANSI C63.10-2020 section 6.6.4 KDB 558074 D01 15.247 Meas Guidance v05r02 Procedure: ANSI C63.10-2020 section 6.6.4 6.8.1 E.U.T. Operation: Operating Environment: Temperature: 23.5 °C Humidity: 56 % Atmospheric Pressure: 101 kPa Pre test mode: Mode1 Final test mode: Mode1 Note: The amplitude of spurious emissions which are attenuated more than 20 dB below the limits are not reported. All modes of operation of the EUT were investigated, and only the worst-case results are reported. There were no emissions found below 30MHz within 20dB of the limit. 6.8.2 Test Setup Diagram: TEST REPORT Report No.: MTi250716001-0102E1 Tel: 0755-88850135-1439 Mobile: 131-4343-1439 (Wechat same number) Web: http://www.mtitest.cn E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong,China Q/MTI-QP-12-FE038 Ver./Rev.：A1 Page 27 of 59 TEST REPORT Report No.: MTi250716001-0102E1 Tel: 0755-88850135-1439 Mobile: 131-4343-1439 (Wechat same number) Web: http://www.mtitest.cn E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong,China Q/MTI-QP-12-FE038 Ver./Rev.：A1 Page 28 of 59 6.8.3 Test Data: Mode1 / Polarization: Horizontal / CH: L fundamental wave TEST REPORT Report No.: MTi250716001-0102E1 Tel: 0755-88850135-1439 Mobile: 131-4343-1439 (Wechat same number) Web: http://www.mtitest.cn E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong,China Q/MTI-QP-12-FE038 Ver./Rev.：A1 Page 29 of 59 Mode1 / Polarization: Vertical / CH: L fundamental wave TEST REPORT Report No.: MTi250716001-0102E1 Tel: 0755-88850135-1439 Mobile: 131-4343-1439 (Wechat same number) Web: http://www.mtitest.cn E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong,China Q/MTI-QP-12-FE038 Ver./Rev.：A1 Page 30 of 59 Mode1 / Polarization: Horizontal / CH: M fundamental wave TEST REPORT Report No.: MTi250716001-0102E1 Tel: 0755-88850135-1439 Mobile: 131-4343-1439 (Wechat same number) Web: http://www.mtitest.cn E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong,China Q/MTI-QP-12-FE038 Ver./Rev.：A1 Page 31 of 59 Mode1 / Polarization: Vertical / CH: M fundamental wave TEST REPORT Report No.: MTi250716001-0102E1 Tel: 0755-88850135-1439 Mobile: 131-4343-1439 (Wechat same number) Web: http://www.mtitest.cn E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong,China Q/MTI-QP-12-FE038 Ver./Rev.：A1 Page 32 of 59 Mode1 / Polarization: Horizontal / CH: H fundamental wave TEST REPORT Report No.: MTi250716001-0102E1 Tel: 0755-88850135-1439 Mobile: 131-4343-1439 (Wechat same number) Web: http://www.mtitest.cn E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong,China Q/MTI-QP-12-FE038 Ver./Rev.：A1 Page 33 of 59 Mode1 / Polarization: Vertical / CH: H fundamental wave TEST REPORT Report No.: MTi250716001-0102E1 Tel: 0755-88850135-1439 Mobile: 131-4343-1439 (Wechat same number) Web: http://www.mtitest.cn E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong,China Q/MTI-QP-12-FE038 Ver./Rev.：A1 Page 34 of 59 6.9 Radiated emissions (above 1GHz) Test Requirement: Refer to 47 CFR 15.247(d), in addition, radiated emissions which fall in the restricted bands, as defined in § 15.205(a), must also comply with the radiated emission limits specified in § 15.209(a)(see § 15.205(c)).` Test Limit: Frequency (MHz) Field strength (microvolts/meter) Measuremen t distance (meters) 0.009-0.490 2400/F(kHz) 300 0.490-1.705 24000/F(kHz) 30 1.705-30.0 30 30 30-88 100 ** 3 88-216 150 ** 3 216-960 200 ** 3 Above 960 500 3 ** Except as provided in paragraph (g), fundamental emissions from intentional radiators operating under this section shall not be located in the frequency bands 54-72 MHz, 76-88 MHz, 174-216 MHz or 470-806 MHz. However, operati…

Text truncated - open the document above for the full version.

第1页 SPECIFICATIONFORAPPROVALS CUSTOMER： CUSPARTNO: PARTNAME:SPRINGANTENNA TPTPARTNO:WWXLTH1359-1 REV：1.0 CUSSTAMP：DATE： PurchasingDept EngineeringDept Approval WWXL：Date:September23,2025 EngineeringDept SalesDeptApproval HongboDai XianyanTong ShenzhenallthingsconnectedCommunicationCo.,Ltd. AllthingsconnectedCommunicationCo.,Ltd. Pleasereturnonespecificationoronecopyofitwithyourchopandsignatureofapprovalandretain theothersforyourrecord.Intheeventofanorderbeingplacedforthispartnumberbeforethe chopandsignedwithspecification(orcopy)isreturnedandwithoutspecialexplanation,itwillbe assumedthatfullapprovalhavebeengiven. ShenzhenallthingsconnectedCommunicationCo.,Ltd. AllthingsconnectedCommunicationsXiangyangLimited Add：Room1101-1112,Building4,FangdaCity,No.2LongzhuFourthRoad,Taoyuan-district,NanshanDistrict,ShenzhenCity Add:WanwuLianxianCommunicationIndustrialPark,No.1-3ShuangyangRoad,EconomicDevelopmentZone,GuchengCounty, XyangCity,HubeiProvince mobile：13662684409 URL：www.wwxltx.cn 车 第 2 页 INDEX cover ............................................................................................................. 1 Index ............................................................................................................. 2 1、Productpictures ................................................................................. 3 2、Testparameters ................................................................................... 3 3、Theantennatestenvironment： ................................................... 4 4、AntennaPassiveParameters： ....................................................... 5 a、VSWR .................................................................................................... 5 b、Directionmap ................................................................................. 5 5、Productcharacteristics .................................................................. 5 6、Drawing .................................................................................................... 6 7、Reliabilitytesting ........................................................................... 7 a、Environmentalexperiment .......................................................... 7 b、Saltspraytest ............................................................................. 8 8、Packinginstructions ........................................................................ 9 ShenzhenallthingsconnectedCommunicationCo.,Ltd. AllthingsconnectedCommunicationsXiangyangLimited Add：Room1101-1112,Building4,FangdaCity,No.2LongzhuFourthRoad,Taoyuan-district,NanshanDistrict,ShenzhenCity Add:WanwuLianxianCommunicationIndustrialPark,No.1-3ShuangyangRoad,EconomicDevelopmentZone,GuchengCounty, XyangCity,HubeiProvince mobile：13662684409 URL：www.wwxltx.cn 第 3 页 All thingsconnectedCommunicationsXiangyangLimited Add：Room1101-1112,Building4, FangdaCity,No. 2 LongzhuFourth Road,Taoyuan-district,NanshanDistrict,ShenzhenCity Add:WanwuLianxianCommunicationIndustrialPark,No.1-3ShuangyangRoad,EconomicDevelopmentZone,GuchengCounty, XyangCity,HubeiProvince mobile ：136 62684409 URL ：www.wwxltx.cn Springantennaspecification 1.Productpictures 2.Testparameters Namespringantenna（WWXLTH1359-1) ModelType ELECTRICALSPECTFICATIONSMECHANICALSPECTFICATIONS FrenquencyRange915MHz Dimensions Diameter 4.6*33.34mm Impedance 50Ω Connector weld VSWR ≤2.5 RadomeMaterial Carbonsteelnickel- platedwire0.6 Gain 0dBi RadomeColor Silver PolarizationVertical WorkingTemperature -45°C-+85 °C Radiation Omnidirectional LimitTemperature -45°C-+85°C Power 50W Shenzhenall thingscon nectedCommunicationCo.,Ltd. 第 4 页 All thingsconnectedCommunicationsXiangyangLimited Add：Room1101-1112,Building4, FangdaCity,No. 2 LongzhuFourth Road,Taoyuan-district,NanshanDistrict,ShenzhenCity Add:WanwuLianxianCommunicationIndustrialPark,No.1-3ShuangyangRoad,EconomicDevelopmentZone,GuchengCounty, XyangCity,HubeiProvince mobile ：136 62684409 URL ：www.wwxltx.cn 3.The antennatest environment test macro： SY-16M/MPS4843multi-probeOTA Antennameasurementsystem testing environment : temperature22°C± 3°C, humidity50% ±15% testing equipment ： Agilent5071C Agilent8960networkanalyzer AgilentCMW5004G networkanalyzer Shenzhenall thingscon nectedCommunicationCo.,Ltd. 第 5 页 4.Antenna Passive Parameters： a.VSWR： Shenzhen all things connected Communication Co.,Ltd. All things connected Communications Xiangyang Limited Add：Room 1101-1112, Building 4, Fangda City,No. 2 Longzhu Fourth Road, Taoyuan-district,Nanshan District, Shenzhen City Add: Wanwu Lianxian Communication Industrial Park,No.1-3 Shuangyang Road, Economic Development Zone, Gucheng County, Xyang City, HubeiProvince mobile ：136 6268 4409 URL：www.wwxltx.cn 第 6 页 5.. Productcharacteristics 1. First use high-quality carbon steel plated nickel wire, self-decay is small; 2. Stable performance, long service life 3. Good standing wave in the band. Shenzhen all things connected Communication Co.,Ltd. All things connected Communications Xiangyang Limited Add：Room 1101-1112, Building 4, Fangda City,No. 2 Longzhu Fourth Road, Taoyuan-district,Nanshan District, Shenzhen City Add: Wanwu Lianxian Communication Industrial Park, No.1-3 Shuangyang Road, Economic Development Zone, Gucheng County, Xyang City, HubeiProvince mobile ：136 6268 4409 URL：www.wwxltx.cn (920MHz) Unit:dBi 第 7 页 6.Drawing ShenzhenallthingsconnectedCommunicationCo.,Ltd. AllthingsconnectedCommunicationsXiangyangLimited Add：Room1101-1112,Building4,FangdaCity,No.2LongzhuFourthRoad,Taoyuan-district,NanshanDistrict,ShenzhenCity Add:WanwuLianxianCommunicationIndustrialPark,No.1-3ShuangyangRoad,EconomicDevelopmentZone,GuchengCounty, XyangCity,HubeiProvince mobile：13662684409 URL：www.wwxltx.cn 第 8 页 AllthingsconnectedCommunicationsXiangyangLimited Add：Room1101-1112,Building4,FangdaCity,No.2LongzhuFourthRoad,Taoyuan-district,NanshanDistrict,ShenzhenCity Add:WanwuLianxianCommunicationIndustrialPark,No.1-3ShuangyangRoad,EconomicDevelopmentZone,GuchengCounty, XyangCity,HubeiProvince mobile ：13…

Text truncated - open the document above for the full version.

Tel:0755-88850135-1439 Mobile: 131-4343-1439（Wechat same number） Web: http://www.mtitest.cn E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong,China Q/MTI-QP-12-FE038 Ver./Rev.：A1 Page 1 of 59 Test Report Report No. : MTi250716001-0102E1 Date of issue : 2025-11-06 Applicant : Holley Technology Ltd. Product : WISUN module Model(s) : ESWL67-WISUN-HL-2SYB FCC ID : 2BRB5-HL-2SYB Shenzhen Microtest Co., Ltd. TEST REPORT Report No.: MTi250716001-0102E1 Tel: 0755-88850135-1439 Mobile: 131-4343-1439 (Wechat same number) Web: http://www.mtitest.cn E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong,China Q/MTI-QP-12-FE038 Ver./Rev.：A1 Page 2 of 59 Table of contents 1 General Description ..................................................................................................................... 4 1.1 Description of the EUT ........................................................................................................ 4 1.2 Description of test modes.................................................................................................... 4 1.3 Environmental Conditions ................................................................................................... 7 1.4 Description of support units ................................................................................................ 7 1.5 Measurement uncertainty.................................................................................................... 7 2 Summary of Test Result .............................................................................................................. 8 3 Test Facilities and accreditations ............................................................................................... 9 3.1 Test laboratory ..................................................................................................................... 9 4 List of test equipment ................................................................................................................ 10 5 Evaluation Results (Evaluation) ............................................................................................... 12 5.1 Antenna requirement ......................................................................................................... 12 6 Radio Spectrum Matter Test Results (RF) ............................................................................... 13 6.1 20dB Bandwidth ................................................................................................................ 13 6.2 Maximum Conducted Output Power ................................................................................. 15 6.3 Channel Separation .......................................................................................................... 17 6.4 Number of Hopping Frequencies ...................................................................................... 18 6.5 Dwell Time ......................................................................................................................... 20 6.6 RF conducted spurious emissions and band edge measurement ................................... 22 6.7 Band edge emissions (Radiated) ...................................................................................... 24 6.8 Radiated emissions (below 1GHz).................................................................................... 26 6.9 Radiated emissions (above 1GHz) ................................................................................... 34 Photographs of the test setup ......................................................................................................... 38 Photographs of the EUT ................................................................................................................... 39 Appendix A: 20dB Emission Bandwidth ......................................................................................... 41 Appendix B: Maximum conducted output power .......................................................................... 43 Appendix C: Carrier frequency separation ..................................................................................... 46 Appendix D: Time of occupancy ..................................................................................................... 48 Appendix E: Number of hopping channels .................................................................................... 50 Appendix F: Band edge measurements ......................................................................................... 52 Appendix G: Conducted Spurious Emission ................................................................................. 54 TEST REPORT Report No.: MTi250716001-0102E1 Tel: 0755-88850135-1439 Mobile: 131-4343-1439 (Wechat same number) Web: http://www.mtitest.cn E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong,China Q/MTI-QP-12-FE038 Ver./Rev.：A1 Page 3 of 59 Test Result Certification Applicant Holley Technology Ltd. Applicant Address No.181 Wuchang Avenue, Yuhang District, Hangzhou, China Manufacturer Holley Technology Ltd. Manufacturer Address No.181 Wuchang Avenue, Yuhang District, Hangzhou, China Factory Holley Technology Ltd. Factory Address No.181 Wuchang…
