2BRD6-V1711ARWireless 1080p HDMI Transmitter with Dual Receivers (RX)

Tech-Top Technology Limited
Wireless 1080p HDMI Transmitter with Dual Receivers (RX) - FCC ID 2BRD6-V1711AR - Tech-Top Technology Limited
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Apr 16, 2026
Application Purpose
Original Equipment
Equipment Note
Wireless 1080p HDMI Transmitter with Dual Receivers (RX)
Frequency Range
2412.00000000 - 2462.00000000
Company
Tech-Top Technology Limited
Country
China

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗
↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Cover Letter(s)

Tech-Top Technology Limited FCC ID: 2BRD6-V1711AR Date: 3/25/2026 Subject: authorization for adding family models To whom it May concern, Statement We would like to confirm the product Smart cooking machine with models V1711, V1711A, V1711B, V1711C, V1711D, V1711E, V1711F, V1710A, V1710B, V1710C, V1710D, V1705A, V1707A, V1711ABK, V1711ABK01, V1711ABK02, V1711FBK, V1711FBK01, V1711FBK02 are same in all respects. Only the model names and appearance color are different for different market requirement. Yours sincerely, Ta l e n G u Manager Tech-Top Technology Limited

External Photos

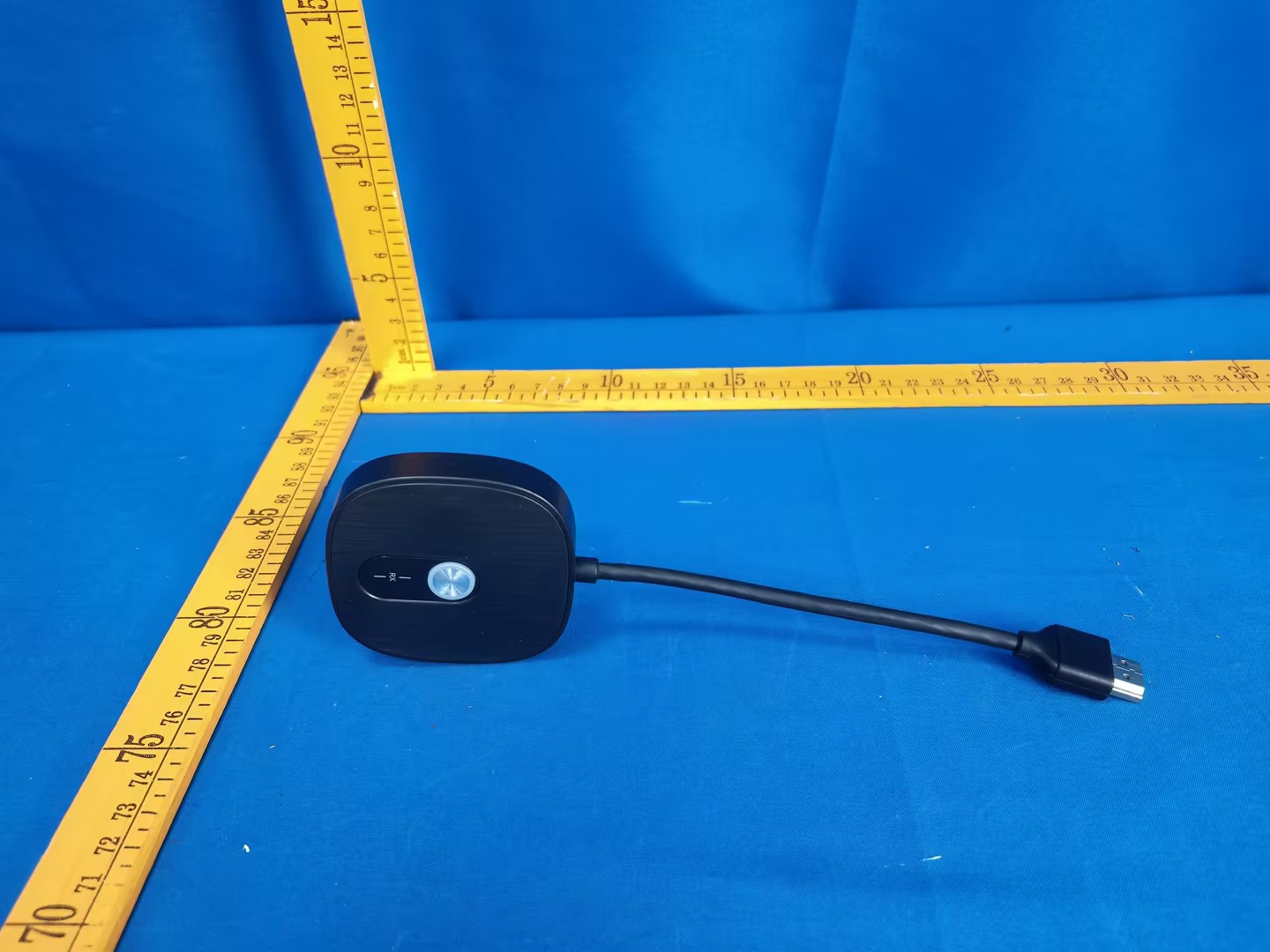

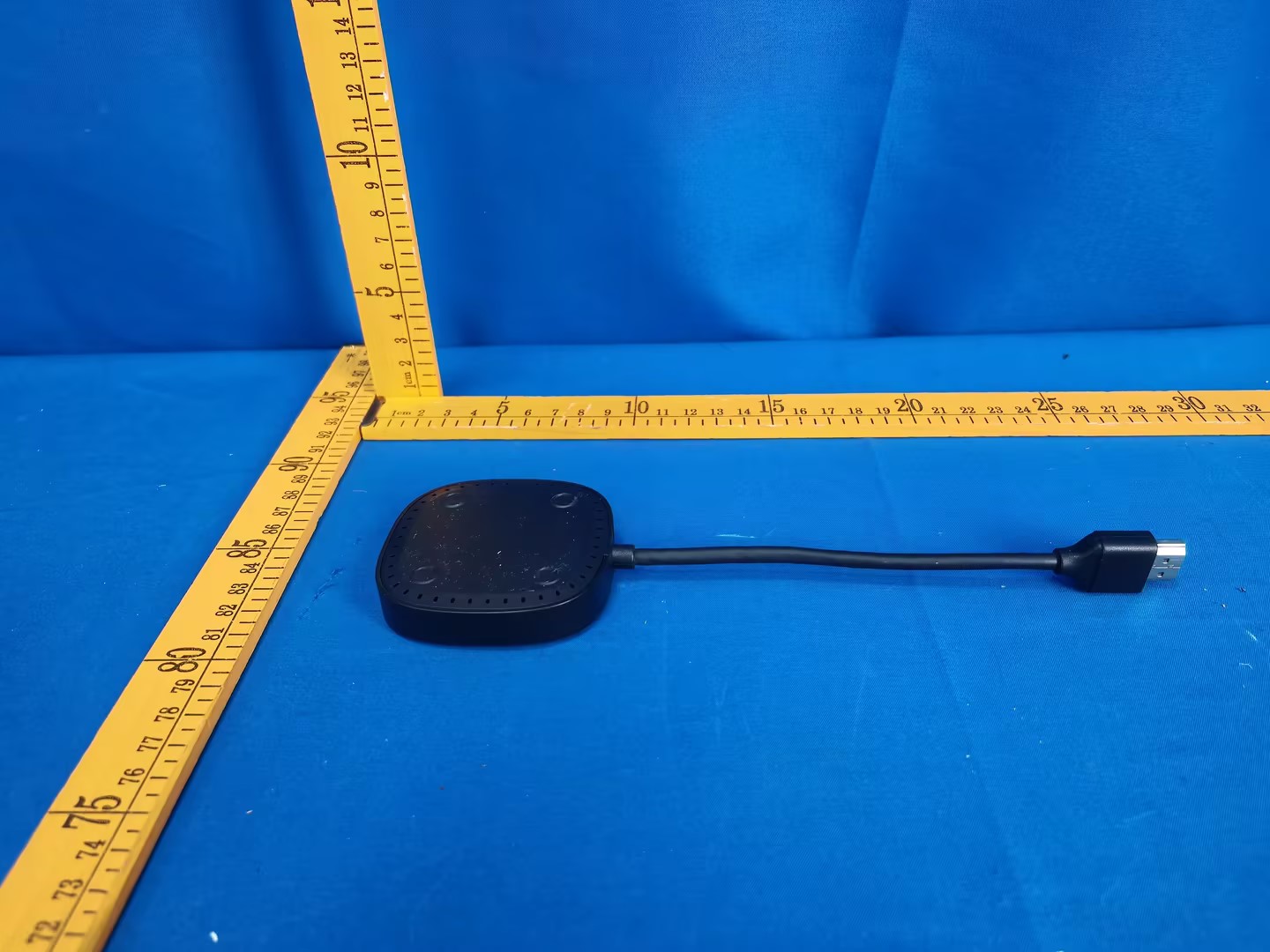

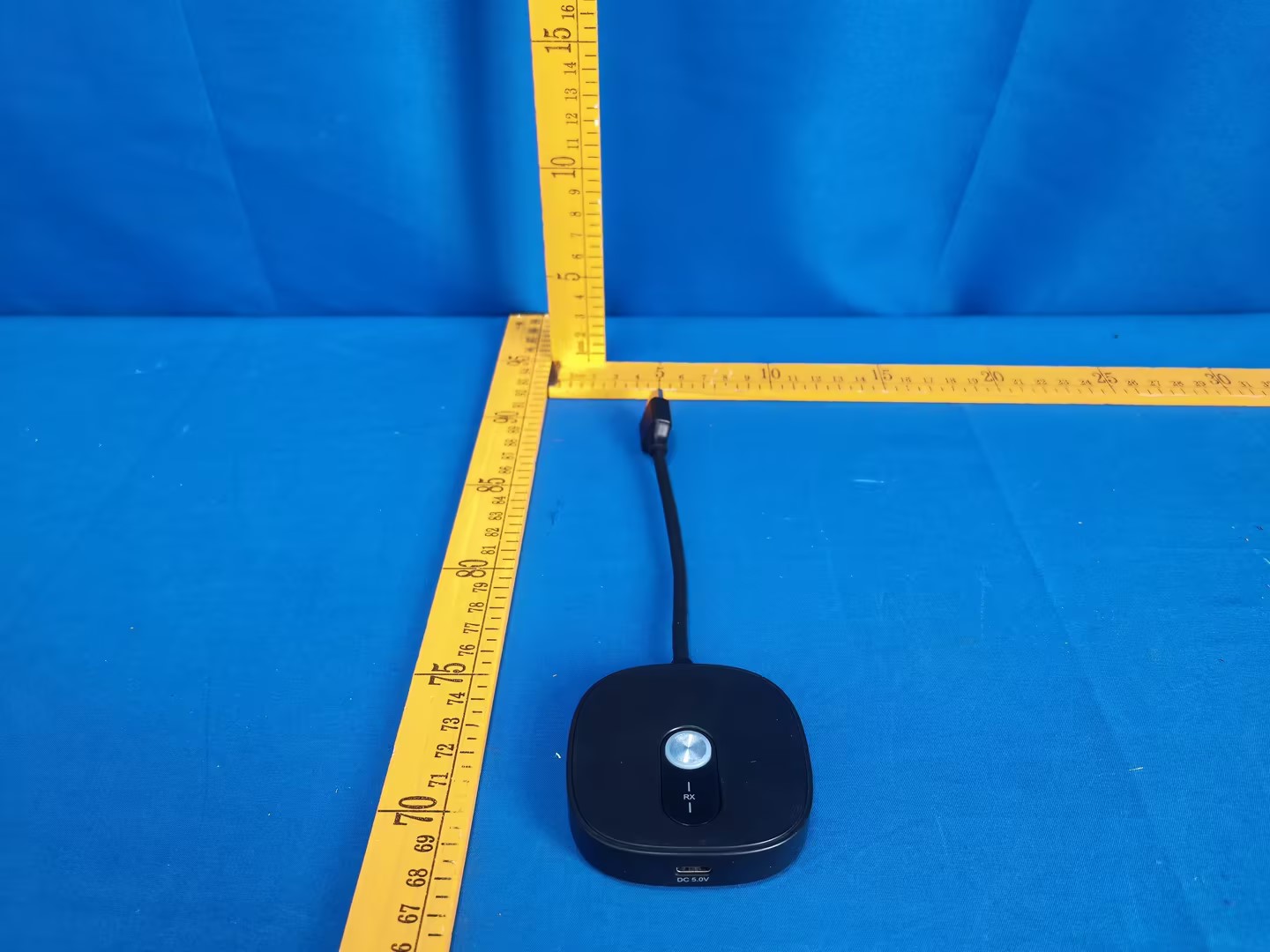

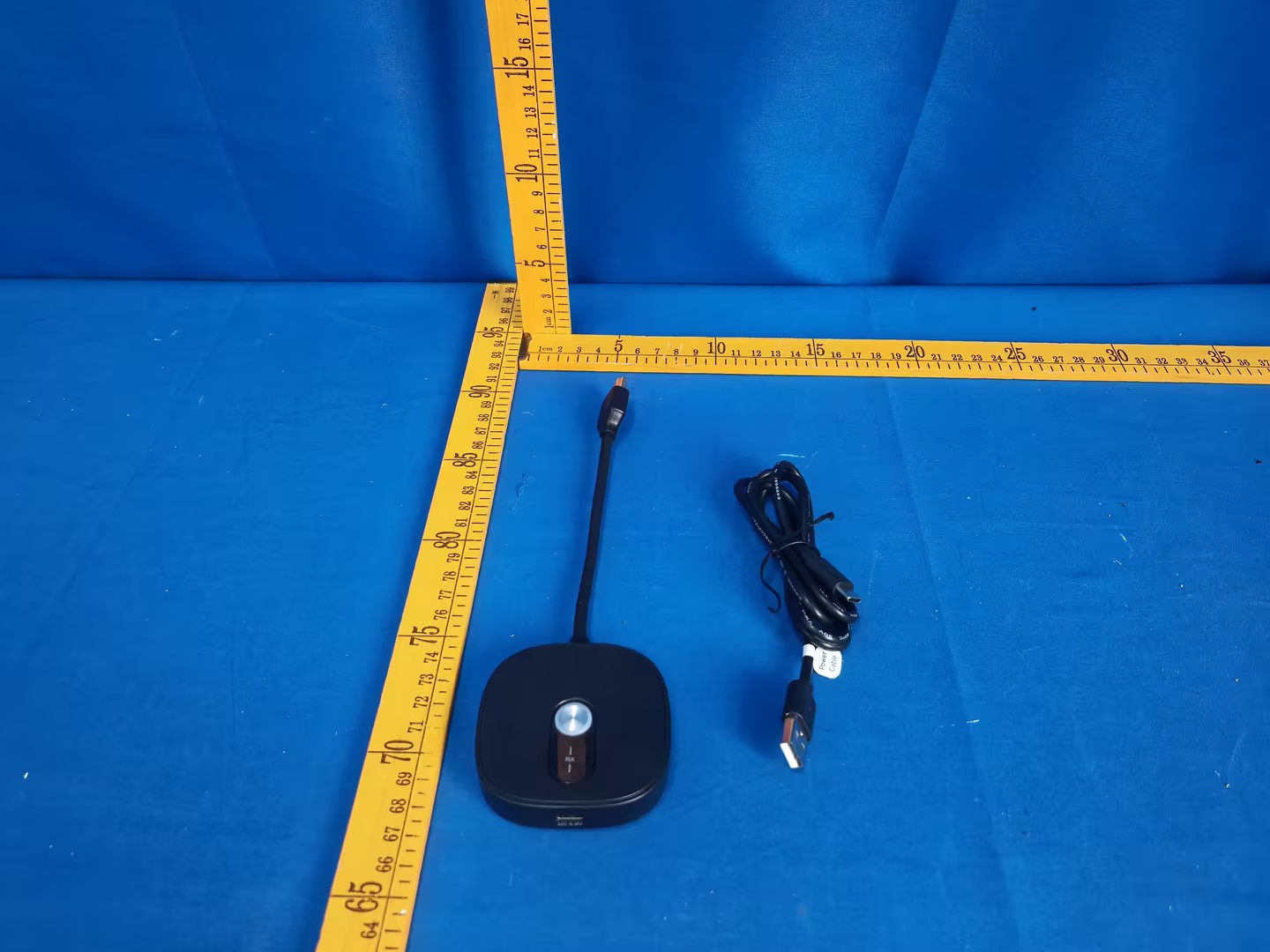

Appendix-V1711-Photos Page 3 of 8 2. Photographs –Constructional Details 2.1. EUT – External View Model V1711 FCC ID: 2BRD6-V1711AR Appendix-V1711-Photos Page 4 of 8 Appendix-V1711-Photos Page 5 of 8 Appendix-V1711-Photos Page 6 of 8

ID Label/Location Info

底壳颜色:黑色 工 艺:丝印 丝印颜色:Pantone Cool Gray 4 C 64.6±0.20 63.2±0.20 34.3x21.5mm V1711A(RX) 底壳丝印示意图 ABS+PC 黑色 细哑纹 20.7mm 14.4mm Wireless 1080p HDMI Transmitter with Dual Receivers (RX) Model: V1711 Unitek International Group Ltd. Designed in Hong Kong | Made in China FCC ID: 2BRD6-V1711AR 217-252923

Internal Photos

Appendix-V1711-Photos Page 7 of 8 2.2. EUT – Internal View Model V1711 FCC ID: 2BRD6-V1711AR ANT Appendix-V1711-Photos Page 8 of 8 ======End======

RF Exposure Info

Waltek Testing Group Co., Ltd. http://www.waltek.com.cn Page 1 of 8 TEST REPORT Referen ce No. .................... : WTD25D12325825W005 FCC ID ................................ : 2BRD6-V1711AR Applicant ............................ : Tech-Top Technology Limited Address .............................. : Unit 1602, 16/F, Enterprise Square III, 39 Wang Chiu Road, Kowloon Bay, Kowloon, Hong Kong Manufacturer .................... : Tech-Top Technology Limited Address .............................. : Unit 1602, 16/F, Enterprise Square III, 39 Wang Chiu Road, Kowloon Bay, Kowloon, Hong Kong Product ............................... : Wireless 1080p HDMI Transmitter with Dual Receivers (RX) Model(s). ............................ : V1711, V1711A, V1711B, V1711C, V1711D, V1711E, V1711F, V1710A, V1710B, V1710C, V1710D, V1705A, V1707A, V1711ABK, V1711ABK01, V1711ABK02, V1711FBK, V1711FBK01, Standards........................... : FCC 47CFR Part 2 Subpart J Section 2.1091 Date of Receipt Sample .... : 2025-12-15 Date of Test ....................... : 2025-12-18 to 2026-03-12 Date of Issue ...................... : 2026-03-18 Test Result ......................... : Pass Remarks: The re sults shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Testing Group Co., Ltd. Address: No. 77, Houjie Section, Guantai Road, Houjie Town, Dongguan City, Guangdong, China Tel: +86-769-2267 6998 Fax: +86-769-2267 6828 Compiled by: Approved by: Estel Qian / Project Engineer Deval Qin / Designated Reviewer Reference No.: WTD25D12325825W005 Page 2 of 8 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 2. Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2. CONTENTS ............................................................................................................................................... 2 3. REVISION HISTORY ................................................................................................................................. 3 4. GENERAL INFORMATION ....................................................................................................................... 4 4.1. GENERAL DESCRIPTION OF E.U.T.................................................................................................... 4 4.2. DETAILS OF E.U.T. ......................................................................................................................... 4 4.3. TEST FACILITY ................................................................................................................................ 5 4.4. SUBCONTRACTED ........................................................................................................................... 5 4.5. ABNORMALITIES FROM STANDARD CONDITIONS ................................................................................ 5 5. TEST SUMMARY ...................................................................................................................................... 6 6. RF EXPOSURE ......................................................................................................................................... 7 6.1. REQUIREMENTS .............................................................................................................................. 7 6.2. THE PROCEDURES / LIMIT ................................................................................................................ 7 6.3. MPE CALCULATION METHOD........................................................................................................... 8 6.4. RADIO FREQUENCY RADIATION EXPOSURE EVALUATION ................................................................... 8 Reference No.: WTD25D12325825W005 Page 3 of 8 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 3. Revision History Test Report No. Date of Receipt Sample Date of Test Date of Issue Purpose Comment Approved WTD25D12325825W005 2025-12-15 2025-12-18 to 2026-03-12 2026-03-18Original - Valid Reference No.: WTD25D12325825W005 Page 4 of 8 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 4. General Information 4.1. General Description of E.U.T. Product: Wireless 1080p HDMI Transmitter with Dual Receivers (RX) Model(s): V1711, V1711A, V1711B, V1711C, V1711D, V1711E, V1711F, V1710A, V1710B, V1710C, V1710D, V1705A, V1707A, V1711ABK, V1711ABK01, V1711ABK02, V1711FBK, V1711FBK01, V1711FBK02 Model Description: Only the model names and appearance color are different. The model V1711 was tested in this report. Test Sample No.: 1-1/1 Wi-Fi Specification: 2.4G-802.11b/g/n HT20/n HT40 5G-802.11a/ n(HT20/40) Hardware Version: V1705A_RX(TECH)_4LPCB1.0 Software Version: Win7_MP_Kit_RTL11n_8733BU_USB_v0.45_2023... 4.2. Details of E.U.T. Operation Frequency: 2.4G Wi-Fi: 802.11b/g/n HT20: 2412~2462MHz 802.11n HT40: 2422~2452MHz 5G Wi-Fi: 802.11a/n(HT20): U-NII-1: 5180-5240MHz, U-NII-2A: 5260-5320MHz(DFS), U-NII-2C: 5500-5700MHz(DFS), U-NII-3: 5745-5825MHz 802.11n(HT40): U-NII-1: 5190-5230MHz, U-NII-2A: 5270-5310MHz(DFS), U-NII-2C: 5510-5670MHz(DFS), U-NII-3: 5755-5795MHz Max. RF output power: 2.4G Wi-Fi: 15.96dBm 5G Wi-Fi: U-NII-1: 15.40dBm U-NII-2A: 14.98dBm U-NII-2C: 12.40dBm U-NII-3: 9.39dBm Modulation Technology: 2.4G Wi-Fi: DSSS, OFDM 5G Wi-Fi: OFDM Antenna installation: 2.4G/5G Dual Frequency Antenna Antenna Gain: 2.4G Wi-Fi: 0.56dBi 5G Wi-Fi: U-NII-1: 1.27dBi U-NII-2A: 1.23dBi U-NII-2C: 1.52dBi U-NII-3: 0.54dBi Note: #: The antenna gain is provided by the applicant, and the applicant should be responsible for its authenticity, WALTEK lab has not verified the authenticity of its information. Ratings: DC 5.0V Reference No.: WTD25D12325825W0…

Text truncated - open the document above for the full version.

Test Report

PRODUCT SPECIFICATION Customer: Shenzhen Xianzhi IOT Technology Co., Ltd. Customer’s part number: RBT-ANT-245-PS-V1.0 Product description: 2.4G/5G Dual Frequency Antenna Manufacturer: Shenzhen RedbirdTek Technology Co., Ltd. 1、PRODUCT TECHNICAL SPECIFICATION Electrical Specifications Frequency Range (MHz) 2400-2500/5150-5850 Bandwidth (MHz) 2.4G:100 5G:700 Input Impendence (Ω) 50 V.S.W.R≤2.0 Gain (dBi) 2.4G:<0.56 5G:<1.52 Polarization Type Vertical Mechanical Specifications Antenna Length (mm) 11.1*6.2*3mm Radiator Steel Connect Type DIP Radome Color Silver Weight (g) 0.3 Product introduction: The antenna is specially designed and produced for wireless built-in antenna equipment. The antenna has the advantages of beautiful appearance, compact structure and convenient installation. The material is nickel-plated stainless steel with sufficient hardness. 2、PRODUCT PICTURE 3、PRODUCT SPECIFICATION CHART 4、STATIONARY WAVE PATTERN 5.Gain and Efficiency: 2.4G 5G 6. Field Pattern: 2.4G 5G

Test Report

Waltek Testing Group Co., Ltd. http://www.waltek.com.cn Page 1 of 56 TEST REPORT Referen ce No. .................... : WTD25D12325825W002 FCC ID ................................ : 2BRD6-V1711AR Applicant ............................ : Tech-Top Technology Limited Address .............................. : Unit 1602, 16/F, Enterprise Square III, 39 Wang Chiu Road, Kowloon Bay, Kowloon, Hong Kong Manufacturer .................... : Tech-Top Technology Limited Address .............................. : Unit 1602, 16/F, Enterprise Square III, 39 Wang Chiu Road, Kowloon Bay, Kowloon, Hong Kong Product ............................... : Wireless 1080p HDMI Transmitter with Dual Receivers (RX) Model(s). ............................ : V1711, V1711A, V1711B, V1711C, V1711D, V1711E, V1711F, V1710A, V1710B, V1710C, V1710D, V1705A, V1707A, V1711ABK, V1711ABK01, V1711ABK02, V1711FBK, V1711FBK01, V1711FBK02 Standards........................... : FCC 47CFR Part 15.247 Date of Receipt Sample .... : 2025-12-15 Date of Test ....................... : 2025-12-18 to 2026-03-12 Date of Issue ...................... : 2026-03-18 Test Result ......................... : Pass Remarks: The re sults shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Testing Group Co., Ltd. Address: No. 77, Houjie Section, Guantai Road, Houjie Town, Dongguan City, Guangdong, China Tel: +86-769-2267 6998 Fax: +86-769-2267 6828 Compiled by: Approved by: Estel Qian / Project Engineer Deval Qin / Designated Reviewer Reference No.: WTD25D12325825W002 Page 2 of 56 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 2 Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2 CONTENTS ............................................................................................................................................... 2 3 REVISION HISTORY ................................................................................................................................. 4 4 GENERAL INFORMATION ....................................................................................................................... 5 4.1 GENERAL DESCRIPTION OF E.U.T. ....................................................................................................... 5 4.2 DETAILS OF E.U.T. .............................................................................................................................. 5 4.3 CHANNEL LIST ..................................................................................................................................... 5 4.4 TEST FACILITY .................................................................................................................................... 6 4.5 SUBCONTRACTED ................................................................................................................................ 6 4.6 ABNORMALITIES FROM STANDARD CONDITIONS .................................................................................... 6 4.7 TEST MODE ........................................................................................................................................ 7 5 TEST SUMMARY ...................................................................................................................................... 8 6 EQUIPMENT USED DURING TEST ......................................................................................................... 9 6.1 EQUIPMENTS LIST ............................................................................................................................... 9 6.2 DESCRIPTION OF SUPPORT UNITS ...................................................................................................... 10 6.3 MEASUREMENT UNCERTAINTY ........................................................................................................... 10 6.4 TEST EQUIPMENT CALIBRATION ......................................................................................................... 10 7 DUTY CYCLE .......................................................................................................................................... 11 8 CONDUCTED EMISSION ....................................................................................................................... 13 8.1 E.U.T. OPERATION ............................................................................................................................ 13 8.2 EUT SETUP ...................................................................................................................................... 13 8.3 MEASUREMENT DESCRIPTION ............................................................................................................ 13 8.4 CONDUCTED EMISSION TEST RESULT ................................................................................................ 14 9 RADIATED EMISSIONS ......................................................................................................................... 16 9.1 EUT OPERATION ............................................................................................................................... 16 9.2 TEST SETUP ..................................................................................................................................... 17 9.3 SPECTRUM ANALYZER SETUP ............................................................................................................ 18 9.4 TEST PROCEDURE ............................................................................................................................. 19 9.5 CORRECTED AMPLITUDE & MARGIN CALCULATION…

Text truncated - open the document above for the full version.

Test Setup Photos

Appendix-V1711-Photos Page 1 of 8 1. Test Setup photos Model V1711 FCC ID: 2BRD6-V1711AR 1.1 Photograph – Conducted Emission For Conducted Emission Test Site 1# 1.2 Photograph – Radiated Emissions For 9kHz-30MHz Test Site 2# Appendix-V1711-Photos Page 2 of 8 For 30MHz-1000MHz Test Site 2# For Above 1GHz Test Site 1#

Contact Information

Applicant

Talen Gu
[email protected]Fax: (86)-0752-2510980

Technical Contact

FCC US Agent, LLCTim Payne
[email protected]

3722 Illinois Avenue, · Saint Charles, Illinois, 60174

Test Firm

WALTEK TESTING GROUP CO., LTD.Joy Zhou
[email protected]

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz39.40 mW
Confidentiality
Long Term
Grant Notes
Output power listed is conducted. The device supports 20MHz and 40MHz bandwidth. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures.
