2BRG4-FLU01FUNLOGY Earbuds SE

Covered Equipment Attestation Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(5)(i)-(ii) of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC ID Model name 2BRG4-FLU01 FLU01 We, Applicant Company Name: FUNLOGY Inc. Address: Ereruchibaminato Building 6F, 1-1 Tonyacho Chuo-ku Chiba 2600025, Japan Phone: +81-70-92309675 certify that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. This includes the cybersecurity and anti-virus software produced or provided by Kaspersky Lab, Inc. or any of ist successors and assignees. We certify that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. If you have any questions, please feel free to contact us at the address shown below. Sincerely, 2026-03-10 Signature Date Name / Title: Taira Yajima / Marketing Manager Company: FUNLOGY Inc. Address: Ereruchibaminato Building 6F, 1-1 Tonyacho Chuo-ku Chiba 2600025, Japan Phone: +81-70-92309675 Fax: +81-50-35881264 E-Mail: [email protected]

Due Diligence Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern FCC ID Model name 2BRG4-FLU01 FLU01 Pursuant to KDB 986446 D01 Covered Equipment Guidance the evaluation of the product above shows compliance for the following reasons: Compliance Evaluation process Results Inherent compliance The chipset(s) used is not capable of running the cybersecurity and/or anti-virus software Compliance The memory used does not allow the running the cybersecurity and/or anti-virus software Compliance The storage capacity does not allow the running the cybersecurity and/or anti-virus software Compliance The operating system used is not capable of running the cybersecurity and/or anti-virus software Compliance No inherent compliance Based on software bill of material Based on scan for running software on the device Based on filesystem scan for cybersecurity and/or anti-virus software The equipment for which authorization is sought complies with the rules and fulfils the requirements as detailed in the above mentioned KDB. Evaluation performed by Company Name: Shenzhen LCS Compliance Testing Laboratory Ltd. Contact Name: Martion Lee Address: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Phone: +86-755-82591330 Email: [email protected] Signature: Date: 2026-02-05

Confidentiality Request Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we request confidentiality for the documentation of the following products: FCC ID Model name 2BRG4-FLU01 FLU01 For the products listed above, we request permanent confidentiality for all applicable exhibits as there are: • the Operational Description • the Block Diagram • the Schematics • the Part List • the Tune up Information The above listed exhibits contain trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact us at the address shown below. Sincerely, 2026-03-10 Signature Date Name / Title: Taira Yajima / Marketing Manager Company: FUNLOGY Inc. Address: Ereruchibaminato Building 6F, 1-1 Tonyacho Chuo-ku Chiba 2600025, Japan Phone: +81-70-92309675 Fax: +81-50-35881264 E-Mail: [email protected]

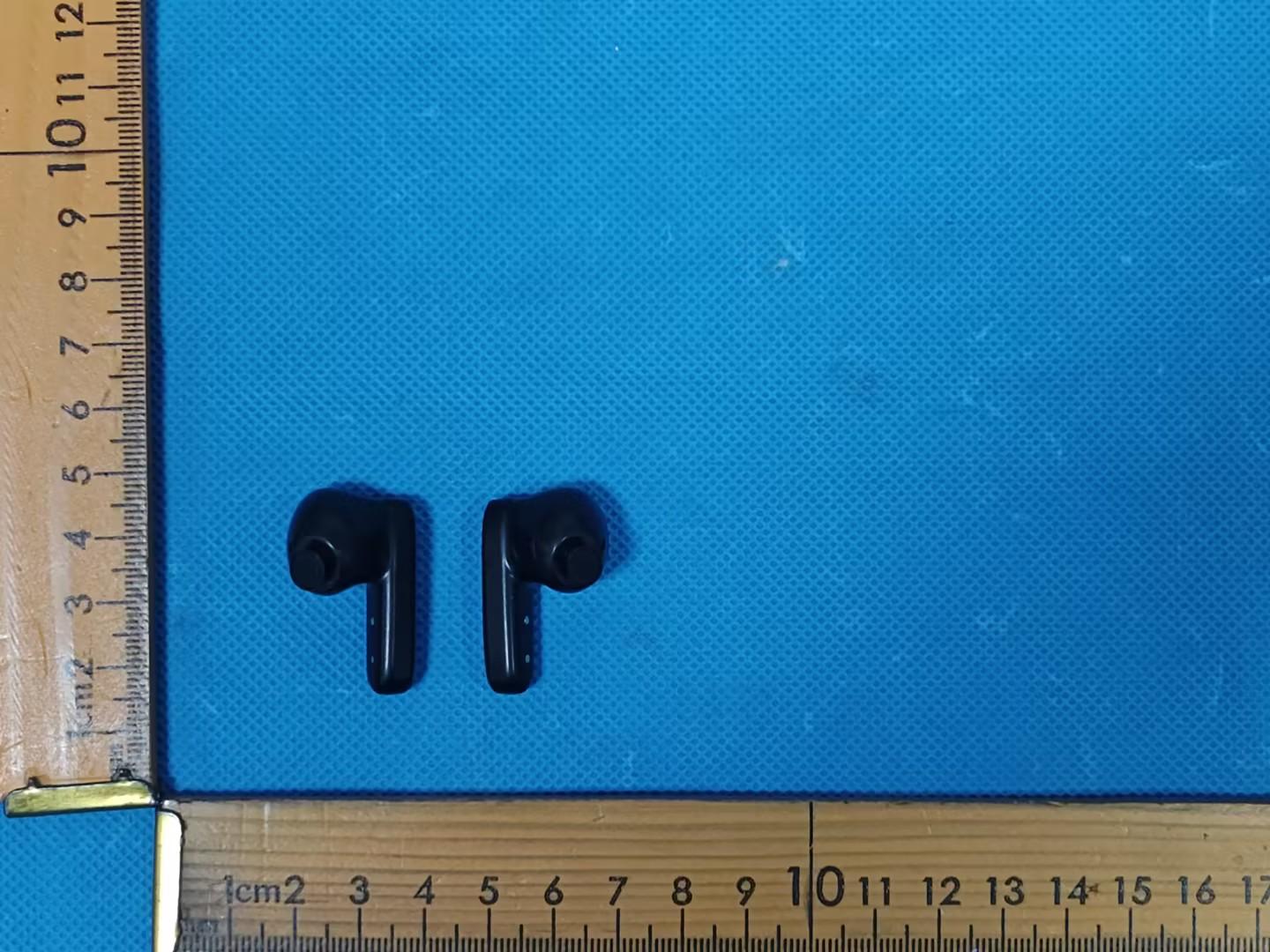

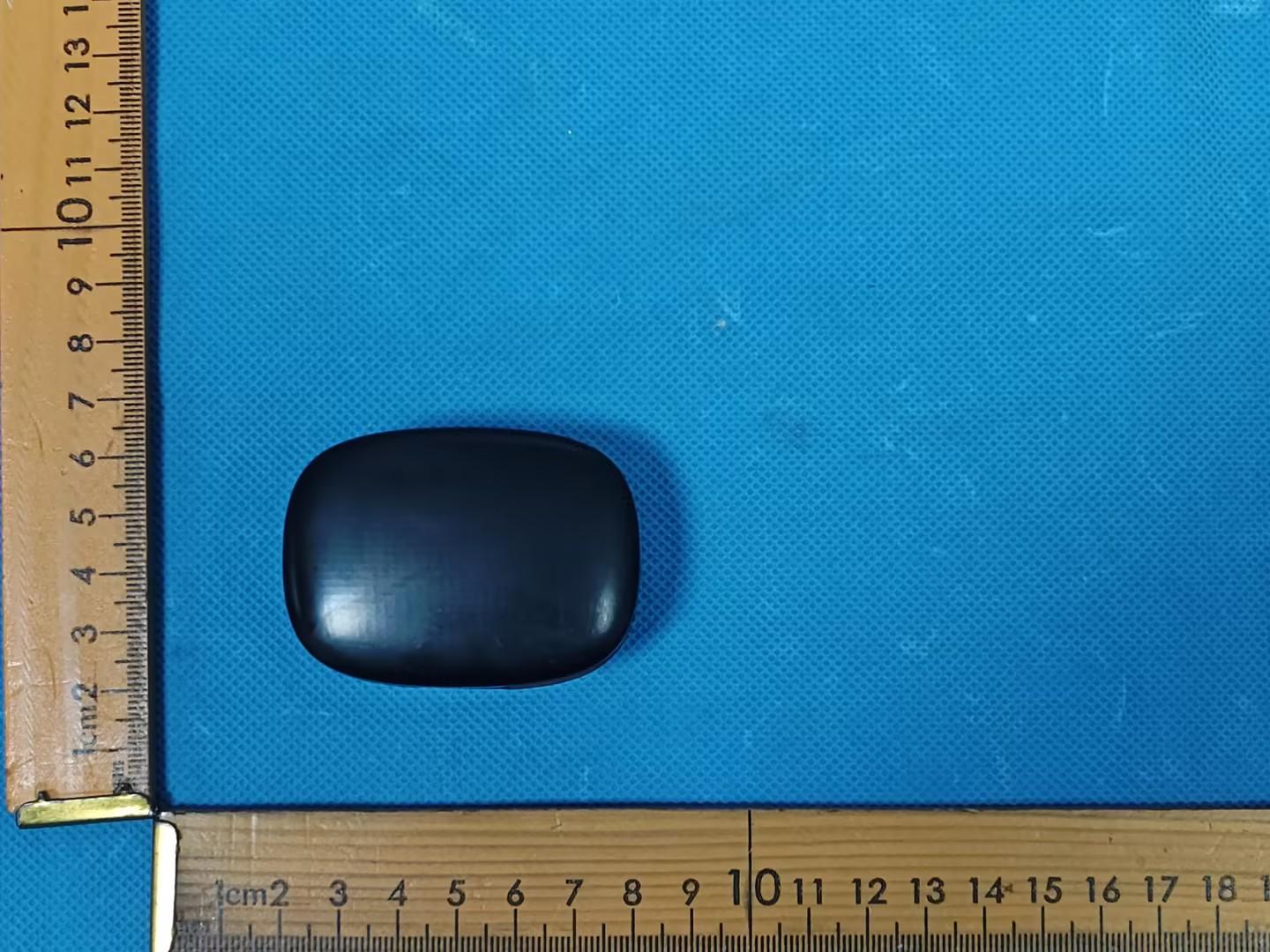

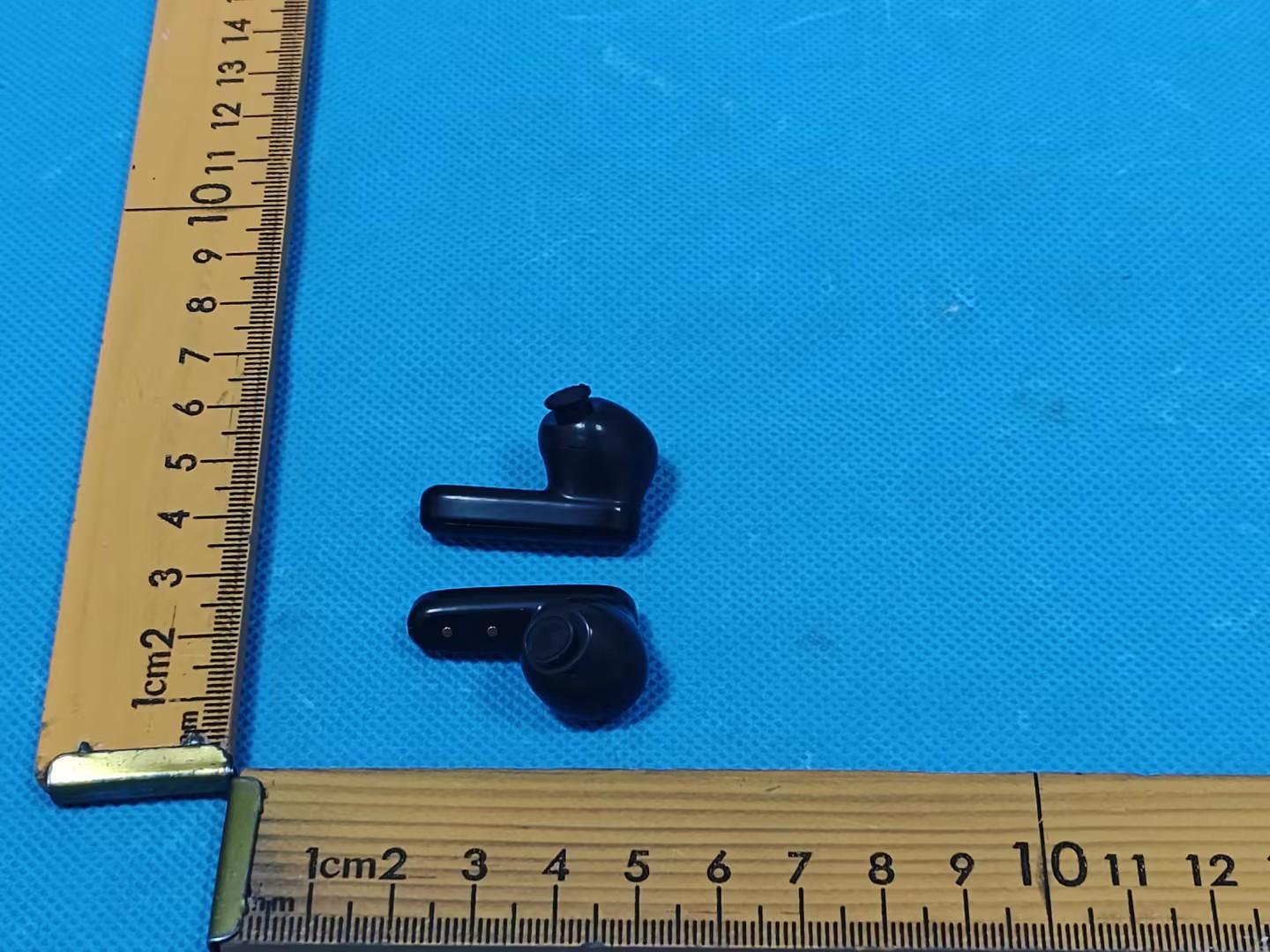

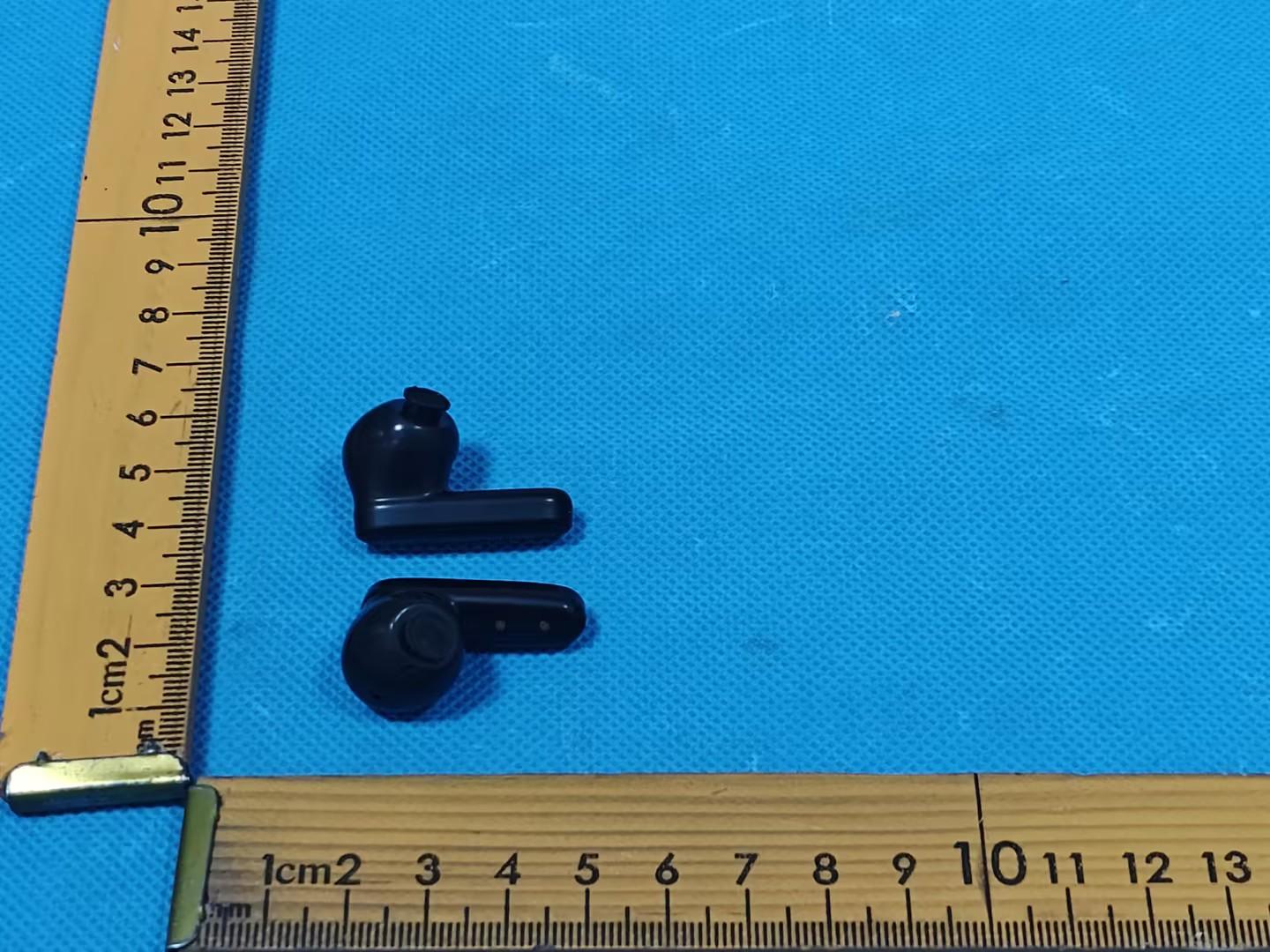

Page1of5FCCID:2BRG4-FLU01 GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com ExternalPhotosoftheEUT Fig.1 Fig.2 Page2of5FCCID:2BRG4-FLU01 GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com Fig.3 Fig.4 Page3of5FCCID:2BRG4-FLU01 GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com Fig.5 Fig.6 Page4of5FCCID:2BRG4-FLU01 GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com Fig.7 Fig.8 Page5of5FCCID:2BRG4-FLU01 GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com Fig.9 Fig.10

Page1of1FCCID:2BRG4-FLU01 GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com LabelandLocation (Size:L:1.0cmxW:0.5cm) LabelLocation FUNLOGYEarbudsSE Model:FLU01 FCCID:2BRG4-FLU01

Page 1 of 13 FCC ID: 2BRG4-FLU01 Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Internal Photos of the EUT Fig. 1 Fig. 2 Antenna Page 2 of 13 FCC ID: 2BRG4-FLU01 Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 3 Fig. 4 Page 3 of 13 FCC ID: 2BRG4-FLU01 Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 5 Fig. 6 Page 4 of 13 FCC ID: 2BRG4-FLU01 Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 7 Fig. 8 Page 5 of 13 FCC ID: 2BRG4-FLU01 Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 9 Fig. 10 Page 6 of 13 FCC ID: 2BRG4-FLU01 Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 11 Fig. 12 Antenna Page 7 of 13 FCC ID: 2BRG4-FLU01 Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 13 Fig. 14 Page 8 of 13 FCC ID: 2BRG4-FLU01 Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 15 Fig. 16 Page 9 of 13 FCC ID: 2BRG4-FLU01 Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 17 Fig. 18 Page 10 of 13 FCC ID: 2BRG4-FLU01 Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 19 Fig. 20 Page 11 of 13 FCC ID: 2BRG4-FLU01 Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 21 Fig. 22 Page 12 of 13 FCC ID: 2BRG4-FLU01 Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 23 Fig. 24 Page 13 of 13 FCC ID: 2BRG4-FLU01 Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 25

Page 1 of 10 FCC ID: 2BRG4-FLU01 Report No.: LCSC01286007EC Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com RF Exposure Evaluation For FUNLOGY Inc FUNLOGY Earbuds SE Test Model: FLU01 Prepared for : FUNLOGY Inc Address : Ereruchibaminato building 6F, 1-1 Tonyacho Chuo-ku, Chiba-shi, Chilba-ken, Japan Prepared by : Guangzhou LCS Compliance Testing Laboratory Ltd. Address : No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel : (+86) 020-39166689 Fax : (+86) 020-39166619 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : January 28, 2026 Number of tested samples : 2 Sample No. : C260128004-1, C260128004-2 Serial number : Prototype Date of Test : January 28, 2026 ~ February 04, 2026 Date of Report : February 05, 2026 Page 2 of 10 FCC ID: 2BRG4-FLU01 Report No.: LCSC01286007EC Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com RF Exposure Evaluation Report Reference No. .......... : LCSC01286007EC Date of Issue ........................... : February 05, 2026 Testing Laboratory Name ..... : Guangzhou LCS Compliance Testing Laboratory Ltd. Address ................................... : No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Testing Location/ Procedure ... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .................. : FUNLOGY Inc Address ................................... : Ereruchibaminato building 6F, 1-1 Tonyacho Chuo-ku, Chiba-shi, Chilba-ken, Japan Test Specification Standard.................................. : FCC KDB publication 447498 D01 General RF Exposure Guidance v06 FCC CFR 47 part1 1.1310 FCC CFR 47 part2 2.1093 Test Report Form No............. : TRF-4-E-215 A/0 TRF Originator ........................ : Guangzhou LCS Compliance Testing Laboratory Ltd. Master TRF ............................. : Dated 2011-03 Guangzhou LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Guangzhou LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Guangzhou LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. ........... : FUNLOGY Earbuds SE Trade Mark .............................. : FUNLOGY Test Model .............................. : FLU01 Ratings .................................... : Please Refer to Page 6 Result .................................... : PASS Compiled by: Supervised by: Approved by: Ace Yao/ Administrator Justin Zhu/ Technique Director Gavin Liang/ Manager Page 3 of 10 FCC ID: 2BRG4-FLU01 Report No.: LCSC01286007EC Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com RF Exposure Evaluation EUT.................................... : FUNLOGY Earbuds SE Test Model........................ : FLU01 Applicant.......................... : FUNLOGY Inc Address............................. : Ereruchibaminato building 6F, 1-1 Tonyacho Chuo-ku, Chiba-shi, Chilba-ken, Japan Telephone......................... : / Fax.................................... : / Manufacturer.................... : Shenzhen Kaishi Hongbo Technology Co., LTD Address............................. : Room A1102, Building 3, Hongfa Juncheng Garden, No.439,Songgang Section, Guangkong Road, Xitou Community, Songgang Subdistrict, Bao'an District, Shenzhen City, China Telephone......................... : Fax.................................... : Factory....................... : / Address............................ : / Telephone........................ : / Fax................................... : / Test Result PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCSC01286007EC February 05, 2026 Date of issue Page 4 of 10 FCC ID: 2BRG4-FLU01 Report No.: LCSC01286007EC Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Revision History Report Version Issue Date Revision Content Revised By 000 February 05, 2026 Initial Issue --- Page 5 of 10 FCC ID: 2BRG4-FLU01 Report No.: LCSC01286007EC Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com TABLE OF CONTENTS Description Page 1. PRODUCT INFORMATION ........................................................................................................................ 6 2. EVALUATION METHOD AND LIMIT ........................................................................................................ 7 3. REFER EVALUATION METHOD............................................................................................................... 7 4. CONDUCTED POWER RESULTS ............................................................................................................ 8 5. MANUFACTURING TOLERANCE ...........................................................................................................…

Text truncated - open the document above for the full version.

RAIN 电话：1353057660 Shenzhen Yongcheng International Technology Co., LTD 6 第1页 天 线 规 格 书 Antenna specification for approval 客户名称 Customer name 机型 Model 天线频段 Antenna band 2.4GHZ 天线类型 Antenna type 天线材质 Antenna materia FUL01-FPC-V1.1 l FPC FPC 颜色 FPC color 料号 Material numbe black r FUL01-FPC-V1.1 FUL01-ANT Shenzhen Yongcheng International Technology Co., LTD address: RAIN 电话：1353057660 Shenzhen Yongcheng International Technology Co., LTD 6 第2页 目录 一:Device support & can test antenna types.......1 二:summariz.........................................2 三:Match circuit diagram & machine picture & anten na picture.......................................3 四:Antenna Standing Wave Ratio & Antenna Efficiency (VSWR)............................................ 4 五:3D pattern .......................................5 六:Structural drawing...............................6 RAIN Shenzhen Yongcheng International Technology Co., LTD 第3 13530576606 页 一:Device support & can test antenna types RAIN Shenzhen Yongcheng International Technology Co., LTD 第4 13530576606 页 (1)Antenna performanc 二:summarize e Descriptio 1.This approval sheet supports for MID project. FPC antennas include in this project. This report is for the performance of BT antenna. 2.Antenna shape size：Meet the requirement of MID 3.Antenna band：2400MHz~2500MHz 4.Antenna material：Antenna material meet the requirement of MID 5.Adhesive performance：Adhesive performance meet the requirement of MID 6.Antenna performance meet the spec below： n2.4GHZ~2.5GHzUnits VSWR ≤2 .0 Peak Antenna Gain 2.69 max dBi Antenna Efficiency≥40 Feed Impedance50 ohms Operating Temperature-40 to +85 deg C Polarization / AzimuthLinear / Omni-directional (2)Mechanical Information Mechanical Dimension Cable LengthNA DescriptionBT antenna MaterialFPC Coaxial CableNA Environmental Operation Temperature-40 to +85 deg C Storage Temperature-40 to +85 deg C RAIN 第5 Shenzhen Yongcheng International Technology Co., LTD 13530576606 页 三:Match circuit diagram & machine picture & antenna picture (2) Machine picture & antenna picture 1: gold plating; 3: Surface black matte ink; 4: Meet the latest environmental requirements: RoHS&REACH; 5: The whole board shipment; RAIN Shenzhen Yongcheng International Technology Co., LTD 第6 13530576606 页 Frequency(MHz 四:Antenna Standing Wave Ratio & Antenna Efficiency (VSWR) )VSWR 24001.29 24401.02 24801.38 RAIN 电话：1353057660 Shenzhen Yongcheng International Technology Co., LTD 6 第7页 五:3Dpattern RAIN 电话：1353057660 Shenzhen Yongcheng International Technology Co., LTD 6 第8页 六:Structural drawing

Page 1 of 61 FCC ID: 2BRG4-FLU01 Report No.: LCSC01286007EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Appendix A RF Test Data for BT (Conducted Measurement) Product Name: FUNLOGY Earbuds SE Test Model: FLU01 Environmental Conditions Temperature: 24.1C Relative Humidity: 52.2% ATM Pressure: 100.0 kPa Test Engineer: Yan Chen Supervised by: Fengliu Tang Page 2 of 61 FCC ID: 2BRG4-FLU01 Report No.: LCSC01286007EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com A.1 20dB Emission Bandwidth Test Result TestMode Antenna Freq (MHz) 20dB EBW[MHz] FL[MHz] FH[MHz] Limit [MHz] Verdict DH5 Ant1 2402 0.954 2401.556 2402.510 --- --- 2441 0.954 2440.556 2441.510 --- --- 2480 0.954 2479.559 2480.513 --- --- 2DH5 Ant1 2402 1.284 2401.394 2402.678 --- --- 2441 1.287 2440.394 2441.681 --- --- 2480 1.290 2479.394 2480.684 --- --- 3DH5 Ant1 2402 1.305 2401.376 2402.681 --- --- 2441 1.296 2440.379 2441.675 --- --- 2480 1.308 2479.376 2480.684 --- --- Page 3 of 61 FCC ID: 2BRG4-FLU01 Report No.: LCSC01286007EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 Page 4 of 61 FCC ID: 2BRG4-FLU01 Report No.: LCSC01286007EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 2DH5_Ant1_2402 2DH5_Ant1_2441 Page 5 of 61 FCC ID: 2BRG4-FLU01 Report No.: LCSC01286007EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 2DH5_Ant1_2480 3DH5_Ant1_2402 Page 6 of 61 FCC ID: 2BRG4-FLU01 Report No.: LCSC01286007EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 3DH5_Ant1_2441 3DH5_Ant1_2480 Page 7 of 61 FCC ID: 2BRG4-FLU01 Report No.: LCSC01286007EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Page 8 of 61 FCC ID: 2BRG4-FLU01 Report No.: LCSC01286007EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com A.2 Maximum Peak conducted output power Test Result Peak Test Mode Antenna Freq (MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict DH5 Ant1 2402 2.55 ≤20.97 PASS 2441 3.03 ≤20.97 PASS 2480 3.43 ≤20.97 PASS 2DH5 Ant1 2402 3.33 ≤30 PASS 2441 3.78 ≤30 PASS 2480 4.22 ≤30 PASS 3DH5 Ant1 2402 3.71 ≤20.97 PASS 2441 4.13 ≤20.97 PASS 2480 4.64 ≤20.97 PASS Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 Page 9 of 61 FCC ID: 2BRG4-FLU01 Report No.: LCSC01286007EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com DH5_Ant1_2480 2DH5_Ant1_2402 Page 10 of 61 FCC ID: 2BRG4-FLU01 Report No.: LCSC01286007EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 2DH5_Ant1_2441 2DH5_Ant1_2480 Page 11 of 61 FCC ID: 2BRG4-FLU01 Report No.: LCSC01286007EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 3DH5_Ant1_2402 3DH5_Ant1_2441 Page 12 of 61 FCC ID: 2BRG4-FLU01 Report No.: LCSC01286007EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 3DH5_Ant1_2480 Page 13 of 61 FCC ID: 2BRG4-FLU01 Report No.: LCSC01286007EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com A.3 Carrier frequency separation Test Result TestMode Antenna Freq (MHz) Result [MHz] Limit [MHz] Verdict DH5 Ant1 Hop 0.992 ≥0.636 PASS 2DH5 Ant1 Hop 0.988 ≥0.860 PASS 3DH5 Ant1 Hop 1.014 ≥0.872 PASS Page 14 of 61 FCC ID: 2BRG4-FLU01 Report No.: LCSC01286007EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 3DH5_Ant1_Hop Page 15 of 61 FCC ID: 2BRG4-FLU01 Report No.: LCSC01286007EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Page 16 of 61 FCC ID: 2BRG4-FLU01 Report No.: LCSC01286007EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 …

Text truncated - open the document above for the full version.

Page 36 of 61 FCC ID: 2BRG4-FLU01 Report No.: LCSC01286007EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 2DH5_Ant1_2402_1000~26500 2DH5_Ant1_2441_0~Reference Page 37 of 61 FCC ID: 2BRG4-FLU01 Report No.: LCSC01286007EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 2DH5_Ant1_2441_30~1000 2DH5_Ant1_2441_1000~26500 Page 38 of 61 FCC ID: 2BRG4-FLU01 Report No.: LCSC01286007EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 2DH5_Ant1_2480_0~Reference 2DH5_Ant1_2480_30~1000 Page 39 of 61 FCC ID: 2BRG4-FLU01 Report No.: LCSC01286007EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 2DH5_Ant1_2480_1000~26500 3DH5_Ant1_2402_0~Reference Page 40 of 61 FCC ID: 2BRG4-FLU01 Report No.: LCSC01286007EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 3DH5_Ant1_2402_30~1000 3DH5_Ant1_2402_1000~26500 Page 41 of 61 FCC ID: 2BRG4-FLU01 Report No.: LCSC01286007EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 3DH5_Ant1_2441_0~Reference 3DH5_Ant1_2441_30~1000 Page 42 of 61 FCC ID: 2BRG4-FLU01 Report No.: LCSC01286007EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 3DH5_Ant1_2441_1000~26500 3DH5_Ant1_2480_0~Reference Page 43 of 61 FCC ID: 2BRG4-FLU01 Report No.: LCSC01286007EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 3DH5_Ant1_2480_30~1000 3DH5_Ant1_2480_1000~26500 Page 44 of 61 FCC ID: 2BRG4-FLU01 Report No.: LCSC01286007EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Page 45 of 61 FCC ID: 2BRG4-FLU01 Report No.: LCSC01286007EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com A.8 Duty Cycle Test Result TestMode Antenna Freq (MHz) ON Time [ms] Period [ms] DC [%] xFactor Limit Verdict DH5 Ant1 2402 2.89 3.75 77.07 1.13 --- --- 2441 2.89 3.75 77.07 1.13 --- --- 2480 2.89 3.75 77.07 1.13 --- --- 2DH5 Ant1 2402 2.89 3.75 77.07 1.13 --- --- 2441 2.89 3.75 77.07 1.13 --- --- 2480 2.90 3.76 77.13 1.13 --- --- 3DH5 Ant1 2402 2.89 3.75 77.07 1.13 --- --- 2441 2.90 3.76 77.13 1.13 --- --- 2480 2.90 3.75 77.33 1.12 --- --- Page 46 of 61 FCC ID: 2BRG4-FLU01 Report No.: LCSC01286007EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 Page 47 of 61 FCC ID: 2BRG4-FLU01 Report No.: LCSC01286007EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 2DH5_Ant1_2402 2DH5_Ant1_2441 Page 48 of 61 FCC ID: 2BRG4-FLU01 Report No.: LCSC01286007EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 2DH5_Ant1_2480 3DH5_Ant1_2402 Page 49 of 61 FCC ID: 2BRG4-FLU01 Report No.: LCSC01286007EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 3DH5_Ant1_2441 3DH5_Ant1_2480 Page 50 of 61 FCC ID: 2BRG4-FLU01 Report No.: LCSC01286007EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Page 51 of 61 FCC ID: 2BRG4-FLU01 Report No.: LCSC01286007EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com A.9 Emissions in Restricted Bands Test Result TestMode Antenna ChName Freq (MHz) Detector Freq [MHz] Result [dBm] Limit [dBm] Gain [dBi] DC Factor [dB] Result [dBuV/m] Limit [dBuV/m] Verdict DH5 Ant1 Low 2402 AV 2310.000 -61.13 ≤-45.02 2.69 1.13 37.89 ≤54 PASS AV 2388.830 -59.42 ≤-45.02 2.69 1.13 39.60 ≤54 PASS AV 2390.000 -60.21 ≤-45.02 2.69 1.13 38.81 ≤54 PASS Peak 2310.000 -53.32 ≤-23.89 2.69 0.00 44.57 ≤74 PASS Peak 2384.525 -49.4 ≤-23.89 2.69 0.00 48.49 ≤74 PASS Peak 2390.000 -52.71 ≤-23.89 2.69 0.00 45.18 ≤74 PASS High 2480 AV 2483.500 -55.11 ≤-45.02 2.69 1.13 4…
