2BRGE-W01Szsmartglasses

① 音乐增/减音量：单击左/右腿触摸区域。 ② 音乐播放/暂停：双击左/右腿触摸区域。 ③ 音乐切换上一首/下一首：长按左/右触摸区域一秒。 3. 清除并重新配对 8. 中英文切换 ① 五击任意腿触摸区域切换中英文提示音。 1)Increase/decrease the volume of sound: Tap the left / right temple touch area. 2)Play/pause music: Double-tap the left / right temple touch area. 3)Previous/next song: Press and hold the left / right temple touch area for 1 second. 4)Voice control: Triple-tap the any temple touch area to activate the voice assistant (e.g., Siri, etc.). 5)Answer a call: Tap any temple touch area once. 6)End a call: Double-tap any temple touch area. 7)Reject a call:Double-tap any temple touch area. 8)Switch between Chinese and English: tap the touch area five times. * 兼容主流品牌手机和平板电脑等蓝牙设备。 ① 接听电话，单击任意腿触摸区域。 ② 挂断电话，双击任意腿触摸区域。 ③ 拒接来电，双击任意腿触摸区域。 拔下磁吸线自动开机。 同时长按左右腿触控区域3秒开机，播报提示音“开机”。 左右腿自动配对，左右腿配对提示音“对耳已连接”。 手机端或其他设备搜索并连接蓝牙设备” W01” ，等待弹出 蓝牙配对窗口，点击配对，蓝牙配对提示音“蓝牙已连接”。 W01 W01 EYE WEARER 开放式定向音频智能眼镜，本产品 是具有立体声功能的蓝牙眼镜，操作简单，便于携带 充电时间120分钟 充电电压 ①智能眼镜②收纳袋 ③包装盒④磁吸式充电线 ⑤产品说明书⑤眼镜布 充电电压 眼镜开机后，镜腿指示灯区域红蓝灯交替闪烁，打开要连接的设备（如手机，电脑 等），搜索并连接蓝牙：W01并自动弹出蓝牙配对窗口，点击“配对”，蓝牙连 接成功后播报提示音“蓝牙已连接”。 ①拔下充电器自动开机。或在关机状态,同时长按左右镜腿触控区域3秒开机， 播报提示音“开机”。 ②在开机状态, 长按任意镜腿触控区域5秒关机;或蓝牙断开5分钟自动关机， 播报提示音“关机”。 四击任意触控区域，蓝牙重新配对，播报提示音“蓝牙配对中”。 ①低电报警, 每隔1分钟播报提示音“咚咚”。 ②低电关机,播报提示音"关机"。 ③充电时,指示灯常亮红灯;充电完成,红灯熄灭，蓝灯常亮。 W01 Connect the magnetic cable to turn on automatically. Or press and hold the touch area on either side for 3 seconds until you hear “Power on.” On your phone or other device, search for “W01” and select it. When the pairing window appears, tap “Pair.” You will hear “Bluetooth connected.” W01 EYE WEARER, Open-ear directional audio smart glasses. This product is a Bluetooth headset with stereo sound, easy to use and portable. DC5V *Compatible with mainstream brand smartphones, tablets, and computers with Bluetooth. No.1 Smart GlassesNo.2 Storage Pouch No.3 Packaging BoxNo.4 Magnetic Charging Cable No.5 User ManualNo.6 Cleaning Cloth 1)Connect the charger to turn on automatically. Or, when powered off, press and hold the touch area on either side for 3 seconds to turn on. Voice prompt: “Power on.” 2)When powered on, press and hold any touch area for 5 seconds to turn off, or the device will turn off automatically after 5 minutes without Bluetooth connection. Voice prompt: “Power off.” 1)After turning on the glasses, the indicator light will flash red and blue alternately. On the device you want to connect (phone, computer, etc.), search for and select “W01.” A Bluetooth pairing window will pop up, tap “Pair.” Once connected, you will hear the voice prompt: “Bluetooth connected.” 2)Double-tap any touch area to reset pairing. Voice prompt: “Pairing.” 1)Low battery warning: a beep sounds every 1 minute. 2) When the battery is too low, the device powers off with a prompt “Power off.” 3) While charging, the indicator light stays red. When fully charged, the red light turns off and the blue light stays on. * 连接手机时有效。三击任意触控区域启用手机语音助手，例如Siri 、 小艺、小爱同学等。 左/右镜腿均90mAh 90mAh for each temple SZ smartglasses

Covered Equipment Attestation Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(5)(i)-(ii) of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC ID Model name 2BRGE-W01 W01, W02, W03, W04 We, Applicant Company Name: Deep Intelligence Technology (Wenzhou) Co., Ltd. Address: Room 201, 2nd Floor, Building A7, Phase II, Wenzhou Fintech & Cultural Center, Qidu Subdistrict, Lucheng District, Wenzhou, Zhejiang Province, China Phone: +86-755-26648642 certify that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. This includes the cybersecurity and anti-virus software produced or provided by Kaspersky Lab, Inc. or any of ist successors and assignees. We certify that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. If you have any questions, please feel free to contact us at the address shown below. Sincerely, 2026-01-14 Signature Date Name / Title: Haoqian He / Manager Company: Deep Intelligence Technology (Wenzhou) Co., Ltd. Address: Room 201, 2nd Floor, Building A7, Phase II, Wenzhou Fintech & Cultural Center, Qidu Subdistrict, Lucheng District, Wenzhou, Zhejiang Province, China Phone: +86-755-26648642 Fax: +86-755-26648642 E-Mail: [email protected]

Due Diligence Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern FCC ID Model name 2BRGE-W01 W01, W02, W03, W04 Pursuant to KDB 986446 D01 Covered Equipment Guidance the evaluation of the product above shows compliance for the following reasons: Compliance Evaluation process Results Inherent compliance The chipset(s) used is not capable of running the cybersecurity and/or anti-virus software Compliance The memory used does not allow the running the cybersecurity and/or anti-virus software Compliance The storage capacity does not allow the running the cybersecurity and/or anti-virus software Compliance The operating system used is not capable of running the cybersecurity and/or anti-virus software Compliance No inherent compliance Based on software bill of material Based on scan for running software on the device Based on filesystem scan for cybersecurity and/or anti-virus software The equipment for which authorization is sought complies with the rules and fulfils the requirements as detailed in the above mentioned KDB. Evaluation performed by Company Name: Shenzhen Huaxia Testing Technology Co., Ltd Contact Name: Yoyo Zhou Address: 1F., Block A of Tongsheng Technology Building, Huahui Road, Dalang Street, Longhua District, Shenzhen, China Phone: +86-755-26648642 Email: [email protected] Signature: Date: 2026-01-14

Confidentiality Request Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we request confidentiality for the documentation of the following products: FCC ID Model name 2BRGE-W01 W01, W02, W03, W04 For the products listed above, we request permanent confidentiality for all applicable exhibits as there are: • the Operational Description • the Block Diagram • the Schematics • the Part List • the Tune up Information The above listed exhibits contain trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact us at the address shown below. Sincerely, 2026-01-14 Signature Date Name / Title: Haoqian He / Manager Company: Deep Intelligence Technology (Wenzhou) Co., Ltd. Address: Room 201, 2nd Floor, Building A7, Phase II, Wenzhou Fintech & Cultural Center, Qidu Subdistrict, Lucheng District, Wenzhou, Zhejiang Province, China Phone: +86-755-26648642 Fax: +86-755-26648642 E-Mail: [email protected]

DeepIntelligenceTechnology(Wenzhou)Co., Ltd. ModelConfirmationLetter We,DeepIntelligenceTechnology(Wenzhou)Co.,Ltd.certifytheproduct: SZsmartglasses ModelNo.:W01,W02,W03,W04 FCCID:2BRGE-W01 Theirelectricalcircuitdesign,layout,componentsusedandinternalwiringareidentical, Onlytheappearanceandmodelweredifferent. Signiture: GranteeContact:HaoqianHe CompanyName:DeepIntelligenceTechnology(Wenzhou)Co.,Ltd. Date:January14,2026

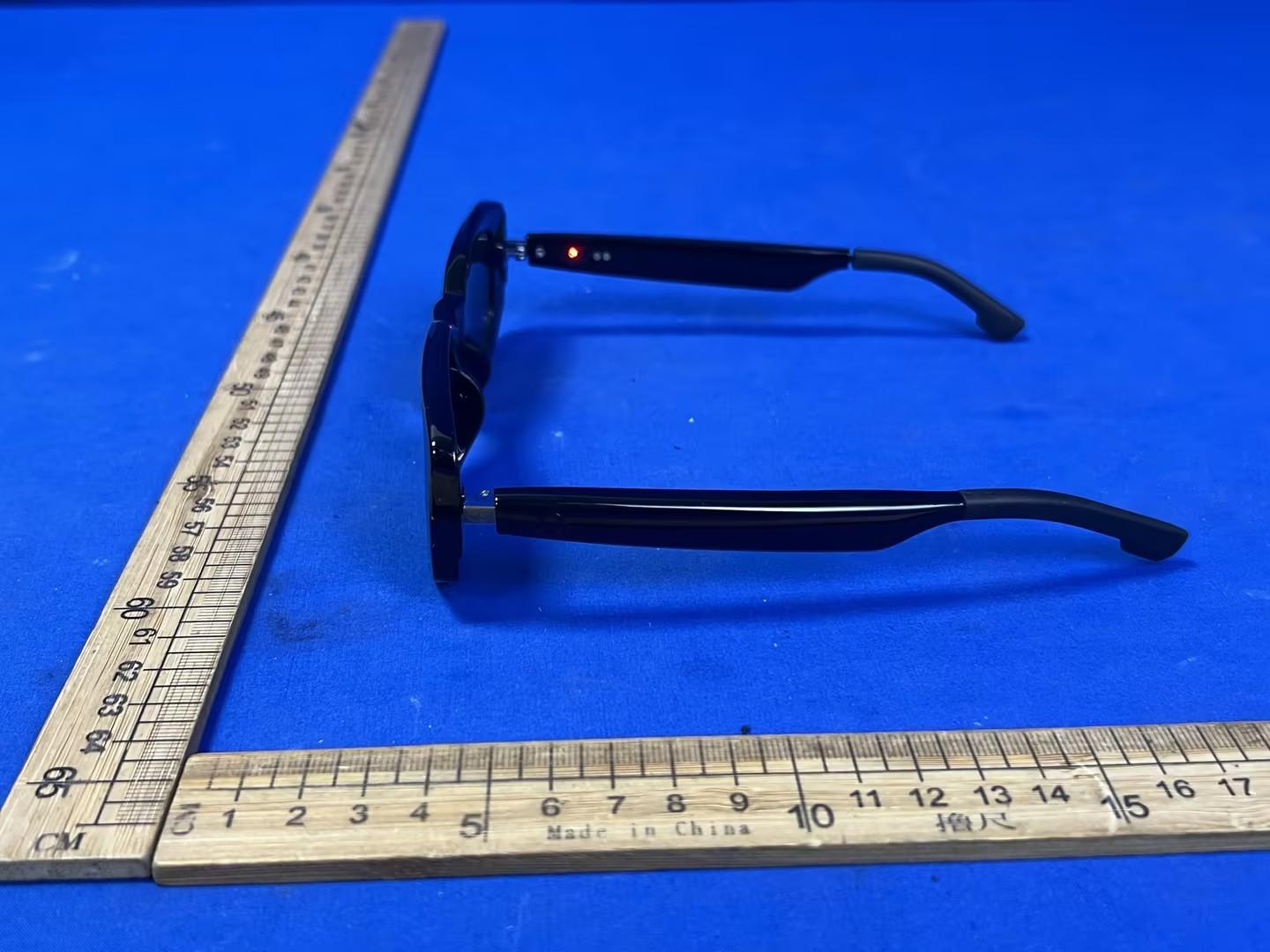

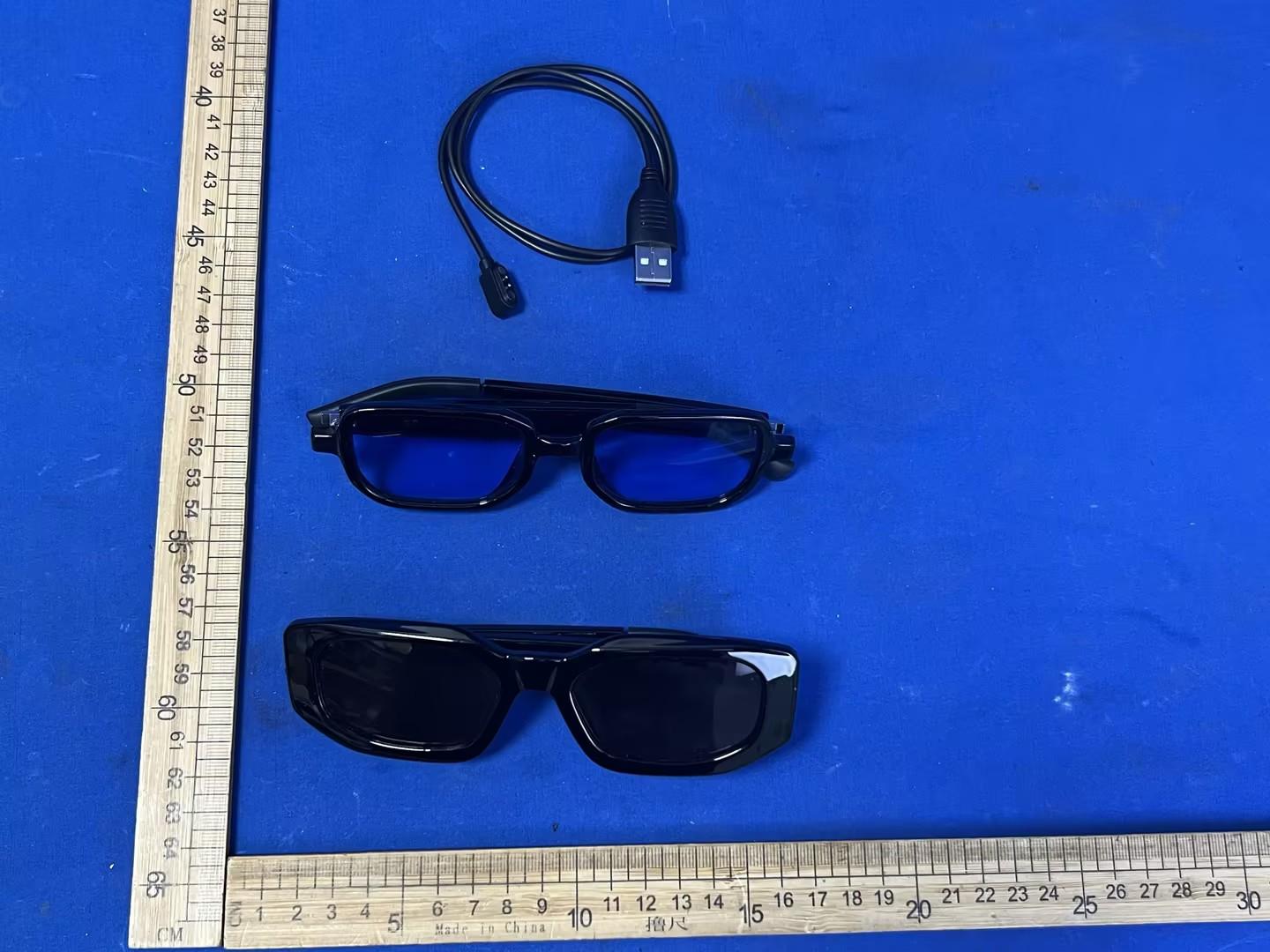

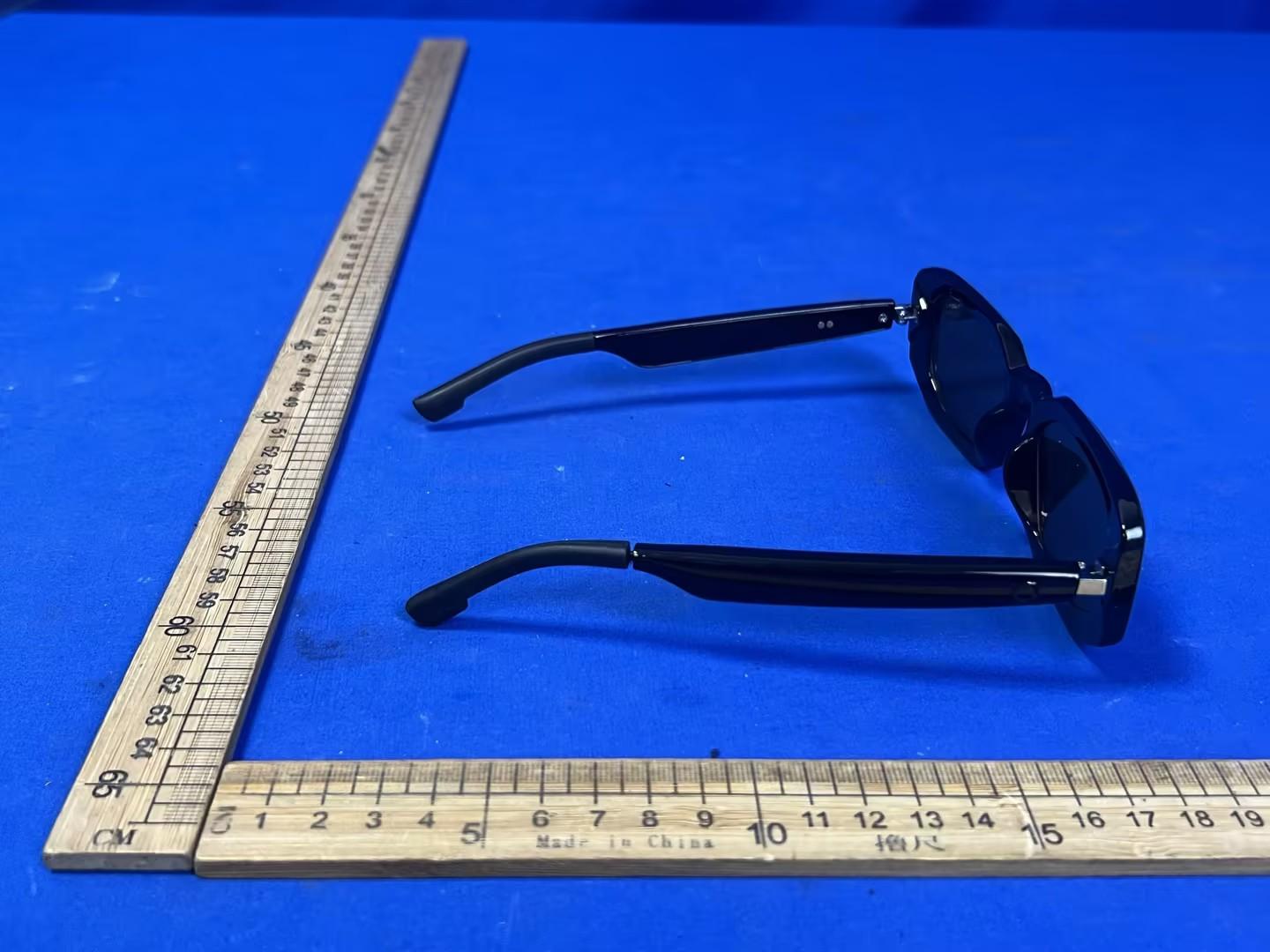

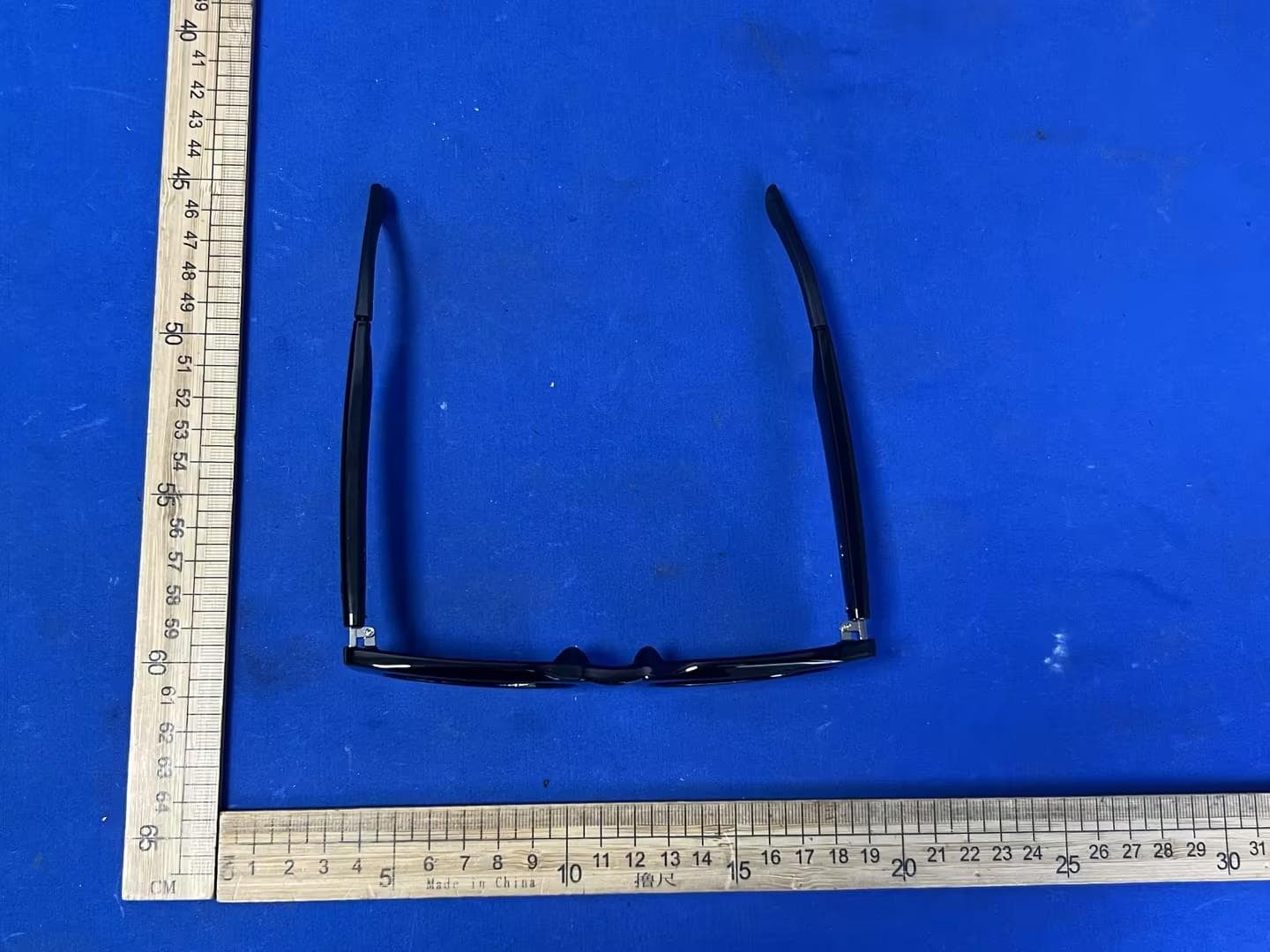

Externalphotos FCC ID: 2BRGE-W01

FCCID:2BRGE-W01 Size:5*10mm

Internalphotos FCC ID: 2BRGE-W01 ANT

ShenzhenHuaxiaTestingTechnologyCo.,Ltd. 1F.,BlockAofTongshengTechnologyBuilding,HuahuiRoad,DalangStreet,LonghuaDistrict, Shenzhen,China Telephone:+86-755-26648640 Fax:+86-755-26648637 Website:www.cqa-cert.com ReportTemplateVersion:V04 ReportTemplateRevisionDate:2018-07-06 TESTREPORT Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp,Theresult(s)showninthisreportreferonlytothe sample(s)tested.WithoutwrittenapprovalofCQA,thisreportcan’tbereproducedexceptinfull. ReportNo.: CQASZ20251202918E-03 Applicant:DeepIntelligenceTechnology(Wenzhou)Co.,Ltd. AddressofApplicant:Room201,2ndFloor,BuildingA7,PhaseII,WenzhouFintech&CulturalCenter, QiduSubdistrict,LuchengDistrict,Wenzhou,ZhejiangProvince,China EquipmentUnderTest(EUT): EUTName:SZsmartglasses ModelNo.:W01,W02,W03,W04 TestModelNo.:W01 BrandName:N/A FCCID: 2BRGE-W01 Standards: 47CFRPart1.1307 47CFRPart1.1310 KDB447498D01GeneralRFExposureGuidancev06 DateofReceipt:2025-12-15 DateofTest: 2025-12-15to2025-12-29 DateofIssue: 2026-01-14 TestResult:PASS TestedBy: (LewisZhou) ReviewedBy: (TimoLei) ApprovedBy: (JackAi) ShenzhenHuaxiaTestingTechnologyCo.,Ltd ReportNo.:CQASZ20251202918E-03 Page: 2 of 9 1.Version RevisionHistoryOfReport ReportNo.Version Description IssueDate CQASZ20251202918E-03Rev.01 Initialreport 2026-01-14 ShenzhenHuaxiaTestingTechnologyCo.,Ltd ReportNo.:CQASZ20251202918E-03 Page: 3 of 9 2.Contents 1.VERSION....................................................................................................................................................................................2 2.CONTENTS................................................................................................................................................................................3 3.GENERALINFORMATION....................................................................................................................................................4 4.CLIENTINFORMATION........................................................................................................................................................4 5.GENERALDESCRIPTIONOFEUT......................................................................................................................................4 6.GENERALDESCRIPTIONOFBT(RIGHT).........................................................................................................................4 7.GENERALDESCRIPTIONOFBT(LEFT)............................................................................................................................4 RFEXPOSUREEVALUATION..................................................................................................................................................6 RFEXPOSURECOMPLIANCEREQUIREMENT.............................................................................................................................6 StandardRequirement........................................................................................................................................................6 Limits......................................................................................................................................................................................6 EUTRFExposure................................................................................................................................................................7 ShenzhenHuaxiaTestingTechnologyCo.,Ltd ReportNo.:CQASZ20251202918E-03 Page: 4 of 9 3.GeneralInformation 4.ClientInformation Applicant: DeepIntelligenceTechnology(Wenzhou)Co.,Ltd. AddressofApplicant: Room201,2ndFloor,BuildingA7,PhaseII,WenzhouFintech&Cultural Center,QiduSubdistrict,LuchengDistrict,Wenzhou,ZhejiangProvince, China Manufacturer: DeepIntelligenceTechnology(Wenzhou)Co.,Ltd. AddressofManufacturer: Room201,2ndFloor,BuildingA7,PhaseII,WenzhouFintech&Cultural Center,QiduSubdistrict,LuchengDistrict,Wenzhou,ZhejiangProvince, China Factory: DeepIntelligenceTechnology(Wenzhou)Co.,Ltd. AddressofFactory: Room201,2ndFloor,BuildingA7,PhaseII,WenzhouFintech&Cultural Center,QiduSubdistrict,LuchengDistrict,Wenzhou,ZhejiangProvince, China 5.GeneralDescriptionofEUT ProductName: SZsmartglasses ModelNo.: W01,W02,W03,W04 TestModelNo.: W01 TradeMark: N/A SoftwareVersion: V1.0.0 HardwareVersion: V1.0.0 PowerSupply: Li-ionbattery:DC3.8V90mAh,ChargebyDC5Vforadapter SimultaneousTransmissionSimultaneousTXissupportedandevaluatedinthisreport. SimultaneousTXisnotsupported. 6.GeneralDescriptionofBT(Right) OperationFrequency:2402MHz~2480MHz ModulationType:GFSK,π/4DQPSK,8DPSK TransferRate:1Mbps/2Mbps/3Mbps NumberofChannel:79 ProductType:MobilePortableFixLocation AntennaType: SMDantenna AntennaGain: 1.54dBi 7.GeneralDescriptionofBT(Left) OperationFrequency:2402MHz~2480MHz ModulationType:GFSK,π/4DQPSK,8DPSK TransferRate:1Mbps/2Mbps/3Mbps NumberofChannel:79 ShenzhenHuaxiaTestingTechnologyCo.,Ltd ReportNo.:CQASZ20251202918E-03 Page: 5 of 9 ProductType:MobilePortableFixLocation AntennaType: SMDantenna AntennaGain: 1.54dBi ShenzhenHuaxiaTestingTechnologyCo.,Ltd ReportNo.:CQASZ20251202918E-03 Page: 6 of 9 RFExposureEvaluation RFExposureComplianceRequirement StandardRequirement AccordingtoKDB447498D01GeneralRFExposureGuidancev06 4.3.1.StandaloneSARtestexclusionconsiderations UnlessspecificallyrequiredbythepublishedRFexposureKDBprocedures,standalone1- gheadorbodyand10-gextremitySARevaluationforgeneralpopulationexposure conditions,bymeasurementornumericalsimulation,isnotrequiredwhenthe correspondingSARExclusionThresholdcondition,listedbelow,issatisfied. Limits The1-gand10-gSARtestexclusionthresholdsfor100MHzto6GHzattestseparation distances≤50mmaredeterminedby: [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance, mm)]·[√f(GHz)]≤3.0for1-gSARand≤7.5for10-gextremitySAR,where f(GHz)istheRFchanneltransmitfrequencyinGHz PoweranddistanceareroundedtothenearestmWandmmbeforecalculation17 Theresultisroundedtoonedecimalplaceforco…

Text truncated - open the document above for the full version.

OA-C15 Specification 广州寒武纪电子科技有限公司 OA-C15 1 SMD 天线规格书 OverAir TM SMD Antenna Series RoHS Compliant PN: OA-C15 2.4 GHz ISM Band Antenna Guangzhou Cambrian Electronic Technology Co., Ltd. Room 1119, Building 1, Hongda Trade and Creativity Park, No. 96, Yuanxiang Road, Yunpu Street, Huangpu District, Guangzhou City Guangzhou Cambricon Electronic Technology Co., LTD OA-C15 Specification 广州寒武纪电子科技有限公司 OA-C15 2 Features 1. Antenna applications in the 2.4 GHz ISM band. 2. Bluetooth, wireless, smart-home applications. Applications Structure 1 Symmetrical dual-feed terminals. Dimensions 三视图符号尺寸 (mm) L1.6 ±0.1 w0.8 ±0.1 T0.8 ±0.1 WB0.3 ±0.1 1. Ultra-compact SMD antenna with dimensions of only 1.6 × 0.8 × 0.8 mm³. 2. Low energy loss and high antenna efficiency. 3. High stability under temperature and humidity variations. OA-C15 Specification 广州寒武纪电子科技有限公司 OA-C15 3 Electrical Characteristics OA-C15Specification Working Frequency2450±50MHz Band Width >100MHz Impedance50Ω Gain(dBi) 1.54 VSWR <2.5 Operation Temperature-40°C~+85°C Power Capacity 3W Note: An impedance matching network is required to achieve the 2.45 GHz working frequency. Antenna Pad and PCB Routing Design PCB Schematic reference design PCB reference design OA-C15 Specification 广州寒武纪电子科技有限公司 OA-C15 4 *Empty Area 50Ω Feed line Unit : mm Ground 50Ω Transmission line Soldering Pad *Empty Area ： A 6.2 mm × 4.6 mm area must be cleared on all layers—no copper, no traces. *50 Ω Feed line Requires ground plane underneath and 50 Ω impedance control. Top layer PCB pattern (size mm) OA-C15 Shunt 1 Series 1 Series 2 Shunt 2 OA-C15 Specification 广州寒武纪电子科技有限公司 OA-C15 5 BotLayerPCBDiagram (Dimensions mm): Matching component value Series 1 2pF Shunt 1 6.2nH Series 2 0 Ω Shunt 2 NC Antenna Testing on Test Board(Board Thickness 1.0 mm). OA-C15 Specification 广州寒武纪电子科技有限公司 OA-C15 6 Antenna S11 Characteristics Antenna VSWR Characteristics OA-C15 Specification 广州寒武纪电子科技有限公司 OA-C15 7 Efficiency and Radiation PatternEfficiency Radiation Pattern, Gain and other performance are based on the test PCB board design. OA-C15Antenna Specification Characteristic Test Data is based on the test PCB board size and the test directions shown in the figure below. + OA-C15Antenna Gain Efficiency Test Table Frequency/MhzMaxGain/dBiEfficiency / % 2400-0.0147.42 24100.3952.6 24201.0762.23 24301.2866.37 24401.5470.79 24501.3171.29 24600.967.45 24700.5162.09 2480054.08 2490-0.8349.89 2500-2.2137.58 2.45GHz 3DRadiation PatternZYX. Z Y X OA-C15 Specification 广州寒武纪电子科技有限公司 OA-C15 8 OA-C15 Specification 广州寒武纪电子科技有限公司 OA-C15 9 Welding Conditions Reliable and non-destructive typical welding specifications are shown in the figure below: OA-C15 Specification 广州寒武纪电子科技有限公司 OA-C15 10 Packaging Plastic carrier tape specifications (Unit: mm) IndexABCDJ Dimension (mm) 1.10 ± 0.101.90 ± 0.18.00 ± 0.103.50 ± 0.05 1.500/+0.10 IndexEFGHT Dimension (mm) 1.75 ± 0.104.00 ± 0.12.00 ± 0.104.00 ± 0.10 1.10Max Reel size. OA-C15 Specification 广州寒武纪电子科技有限公司 OA-C15 11 IndexABC Dimension(mm)17850 13 ± 0.5 Standard Quantity:4 000 PCS / tray. Storage Environment The product storage should meet the following conditions: 1.Temperature: -10 °C ~ +40 °C 2.Humidity: 30% to 70% relative humidity 3.The location where the product is placed should not come into contact with corrosive gases such as sulfur. Chlorine gas or acid may cause oxidation of the product electrodes.This leads to a deterioration in weldability. 4.The product should be placed in a toolbox and protected from moisture and dust. 5.The product should be stored in a warehouse and protected from heat, vibration, and direct sunlight. 6.The product should be stored under sealed conditions.

ShenzhenHuaxiaTestingTechnologyCo.,Ltd. 1F.,BlockAofTongshengTechnologyBuilding,HuahuiRoad,DalangStreet,LonghuaDistrict, Shenzhen,China Telephone:+86-755-26648640 Fax:+86-755-26648637 Website:www.cqa-cert.com ReportTemplateVersion:V05 ReportTemplateRevisionDate:2021-11-03 TestReport Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp,Theresult(s)showninthisreportreferonlyto thesample(s)tested.WithoutwrittenapprovalofCQA,thisreportcan’tbereproducedexceptinfull. ReportNo.:CQASZ20251202918E-01 Applicant:DeepIntelligenceTechnology(Wenzhou)Co.,Ltd. AddressofApplicant:Room201,2ndFloor,BuildingA7,PhaseII,WenzhouFintech&CulturalCenter, QiduSubdistrict,LuchengDistrict,Wenzhou,ZhejiangProvince,China EquipmentUnderTest(EUT): Product: SZsmartglasses ModelNo.: W01,W02,W03,W04 TestModelNo.:W01 BrandName: N/A FCCID: 2BRGE-W01 Standards:47CFRPart15,SubpartC KDB558074D0115.247MeasGuidancev05r02 ANSIC63.10:2020 DateofReceipt:2025-12-15 DateofTest: 2025-12-15to2025-12-29 DateofIssue:2026-01-14 TestResult:PASS* *Intheconfigurationtested,theEUTcompliedwiththestandardsspecifiedabove. TestedBy: (LewisZhou) ReviewedBy: (TimoLei) ApprovedBy: (JackAi) ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20251202918E-01 Page:2of84 1Version RevisionHistoryOfReport ReportNo.Version Description IssueDate CQASZ20251202918E-01Rev.01 Initialreport 2026-01-14 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20251202918E-01 Page:3of84 2TestSummary TestItemTestRequirementTestmethodResult AntennaRequirement47CFRPart15.203/PASS ACPowerLineConducted Emission 47CFRPart15,SubpartCSection 15.207 ANSIC63.10-2020PASS ConductedPeakOutput Power 47CFRPart15.247ANSIC63.10-2020PASS 20dBOccupiedBandwidth47CFRPart15.247ANSIC63.10-2020PASS CarrierFrequencies Separation 47CFRPart15.247ANSIC63.10-2020PASS HoppingChannelNumber47CFRPart15.247ANSIC63.10-2020PASS DwellTime47CFRPart15.247ANSIC63.10-2020PASS PseudorandomFrequency HoppingSequence 47CFRPart15.247ANSIC63.10-2020PASS Band-edgeforRF ConductedEmissions 47CFRPart15.247ANSIC63.10-2020PASS RFConductedSpurious Emissions 47CFRPart15.247ANSIC63.10-2020PASS RadiatedSpurious emissions 47CFRPart15.209ANSIC63.10-2020PASS Restrictedbandsaround fundamentalfrequency (RadiatedEmission) 47CFRPart15.205/15.209ANSIC63.10-2020PASS Remark: Thetestedsample(s)andthesampleinformationareprovidedbytheclient. Tx:InthiswholereportTx(ortx)meansTransmitter. Rx:InthiswholereportRx(orrx)meansReceiver. RF:InthiswholereportRFmeansRadiatedFrequency. CH:InthiswholereportCHmeanschannel. Volt:InthiswholereportVoltmeansVoltage. Temp:InthiswholereportTempmeansTemperature. Humid:InthiswholereportHumidmeanshumidity. Press:InthiswholereportPressmeansPressure. N/A:Inthiswholereportnotapplication ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20251202918E-01 Page:4of84 3Contents Page 1VERSION..........................................................................................................................................................................2 2TESTSUMMARY............................................................................................................................................................3 3CONTENTS......................................................................................................................................................................4 4GENERALINFORMATION...........................................................................................................................................5 4.1CLIENTINFORMATION.................................................................................................................................................5 4.2GENERALDESCRIPTIONOFEUT.................................................................................................................................5 4.3ADDITIONALINSTRUCTIONS........................................................................................................................................7 4.4TESTENVIRONMENT...................................................................................................................................................8 4.5DESCRIPTIONOFSUPPORTUNITS...............................................................................................................................8 4.6TESTCONFIGURATION................................................................................................................................................8 4.7STATEMENTOFTHEMEASUREMENTUNCERTAINTY....................................................................................................9 4.8TESTLOCATION........................................................................................................................................................10 4.9TESTFACILITY..........................................................................................................................................................10 4.10ABNORMALITIESFROMSTANDARDCONDITIONS....................................................................................................10 4.11OTHERINFORMATIONREQUESTEDBYTHECUSTOMER..........................................................................................10 4.12EQUIPMENTLIST.....................................................................................................................................................11 5TESTRESULTSANDMEASUREMENTDATA.....................................................................................................12 5.1ANTENNAREQUIREMENT..........................................................................................................................................12 5.2CONDUCTEDEMISSIONS............................................................................................................................................13 5.3CONDUCTEDPEAKOUTPUTPOWER.................................................................................................…

Text truncated - open the document above for the full version.

ShenzhenHuaxiaTestingTechnologyCo.,Ltd. 1F.,BlockAofTongshengTechnologyBuilding,HuahuiRoad,DalangStreet,LonghuaDistrict, Shenzhen,China Telephone:+86-755-26648640 Fax:+86-755-26648637 Website:www.cqa-cert.com ReportTemplateVersion:V05 ReportTemplateRevisionDate:2021-11-03 TestReport Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp,Theresult(s)showninthisreportreferonlyto thesample(s)tested.WithoutwrittenapprovalofCQA,thisreportcan’tbereproducedexceptinfull. ReportNo.:CQASZ20251202918E-02 Applicant:DeepIntelligenceTechnology(Wenzhou)Co.,Ltd. AddressofApplicant:Room201,2ndFloor,BuildingA7,PhaseII,WenzhouFintech&CulturalCenter, QiduSubdistrict,LuchengDistrict,Wenzhou,ZhejiangProvince,China EquipmentUnderTest(EUT): Product: SZsmartglasses ModelNo.: W01,W02,W03,W04 TestModelNo.:W01 BrandName: N/A FCCID: 2BRGE-W01 Standards:47CFRPart15,SubpartC KDB558074D0115.247MeasGuidancev05r02 ANSIC63.10:2020 DateofReceipt:2025-12-15 DateofTest: 2025-12-15to2025-12-29 DateofIssue:2026-01-14 TestResult:PASS* *Intheconfigurationtested,theEUTcompliedwiththestandardsspecifiedabove. TestedBy: (LewisZhou) ReviewedBy: (TimoLei) ApprovedBy: (JackAi) ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20251202918E-02 Page:2of78 1Version RevisionHistoryOfReport ReportNo.Version Description IssueDate CQASZ20251202918E-02Rev.01 Initialreport 2026-01-14 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20251202918E-02 Page:3of78 2TestSummary TestItemTestRequirementTestmethodResult AntennaRequirement47CFRPart15.203/PASS ACPowerLineConducted Emission 47CFRPart15,SubpartCSection 15.207 ANSIC63.10-2020PASS ConductedPeakOutput Power 47CFRPart15.247ANSIC63.10-2020PASS 20dBOccupiedBandwidth47CFRPart15.247ANSIC63.10-2020PASS CarrierFrequencies Separation 47CFRPart15.247ANSIC63.10-2020PASS HoppingChannelNumber47CFRPart15.247ANSIC63.10-2020PASS DwellTime47CFRPart15.247ANSIC63.10-2020PASS PseudorandomFrequency HoppingSequence 47CFRPart15.247ANSIC63.10-2020PASS Band-edgeforRF ConductedEmissions 47CFRPart15.247ANSIC63.10-2020PASS RFConductedSpurious Emissions 47CFRPart15.247ANSIC63.10-2020PASS RadiatedSpurious emissions 47CFRPart15.209ANSIC63.10-2020PASS Restrictedbandsaround fundamentalfrequency (RadiatedEmission) 47CFRPart15.205/15.209ANSIC63.10-2020PASS Remark: Thetestedsample(s)andthesampleinformationareprovidedbytheclient. Tx:InthiswholereportTx(ortx)meansTransmitter. Rx:InthiswholereportRx(orrx)meansReceiver. RF:InthiswholereportRFmeansRadiatedFrequency. CH:InthiswholereportCHmeanschannel. Volt:InthiswholereportVoltmeansVoltage. Temp:InthiswholereportTempmeansTemperature. Humid:InthiswholereportHumidmeanshumidity. Press:InthiswholereportPressmeansPressure. N/A:Inthiswholereportnotapplication ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20251202918E-02 Page:4of78 3Contents Page 1VERSION..........................................................................................................................................................................2 2TESTSUMMARY............................................................................................................................................................3 3CONTENTS......................................................................................................................................................................4 4GENERALINFORMATION...........................................................................................................................................5 4.1CLIENTINFORMATION.................................................................................................................................................5 4.2GENERALDESCRIPTIONOFEUT.................................................................................................................................5 4.3ADDITIONALINSTRUCTIONS........................................................................................................................................7 4.4TESTENVIRONMENT...................................................................................................................................................8 4.5DESCRIPTIONOFSUPPORTUNITS...............................................................................................................................8 4.6TESTCONFIGURATION................................................................................................................................................8 4.7STATEMENTOFTHEMEASUREMENTUNCERTAINTY....................................................................................................9 4.8TESTLOCATION........................................................................................................................................................10 4.9TESTFACILITY..........................................................................................................................................................10 4.10ABNORMALITIESFROMSTANDARDCONDITIONS....................................................................................................10 4.11OTHERINFORMATIONREQUESTEDBYTHECUSTOMER..........................................................................................10 4.12EQUIPMENTLIST.....................................................................................................................................................11 5TESTRESULTSANDMEASUREMENTDATA.....................................................................................................12 5.1ANTENNAREQUIREMENT..........................................................................................................................................12 5.2CONDUCTEDEMISSIONS............................................................................................................................................13 5.3CONDUCTEDPEAKOUTPUTPOWER.................................................................................................…

Text truncated - open the document above for the full version.

Setupphotos 1Photographs-EUTTestSetup 1.1RadiatedEmission 9KHz~30MHz: 30MHz~1GHz: FCC ID: 2BRGE-W01 Above1GHz: 1.2ConductedEmission 1.3RFConductedmeasurement
