2BRGN-DL-BTSWBluetooth switch module

东莞市达锂电子有限公司 DongguanDalyElectronicsCo.,Ltd 地址：东莞市松山湖区工业南路14号天安云谷7号楼21层电话：0769-82822953 Address：21/F,building7,Tian'anYungu,No.14,GongyeSouthRoad,SongshanhuDistrict,DongguanTEL：0769-82822953 产品规格承认书 ProductSpecificationApproval 产品名称（ProductName）蓝牙开关模块 产品型号（ProductNumber）DL-BTSW 客户名（CustomerName） 客户料号（CustomerP/N） 送样日期Sampledeliverydate版次Version文件编号DocumentNo. A2 编制(Preparedby)核准(Approved)审核(Audit) 莫业鹏杨伟滈闫连红 客户确认栏CustomerConfirmationColumn 确认意见Confirmopinion： 客户签章Customersignature: 日期Date: 注意（Notice）： 1.收到样机确认OK后请及时回签，7天内没有回签及问题反馈，我司默认客户测试合格；规格书中的图片为通用机型图片，可 能与送样样机有差异，此份规格书达锂电子保留最终解释权 Afterreceivingtheprototypeconfirmation,pleasesignbackintime.Ifthereisnosignbackandproblemfeedback within7days,ourcompanydefaultsthatthecustomertestisqualified;Supplierreservestherightoffinal interpretationofthisspecification. 2.客户批量前，请在规格书中签字回传，并说明详细功能说明，我司才安排批量 Beforethecustomerbatches,pleasesignthespecificationandreturnit,andexplainthedetailedfunctiondescription, andourcompanywillarrangethebatch 东莞市达锂电子有限公司 DongguanDalyElectronicsCo.,Ltd 地址：东莞市松山湖区工业南路14号天安云谷7号楼21层电话：0769-82822953 Address：21/F,building7,Tian'anYungu,No.14,GongyeSouthRoad,SongshanhuDistrict,DongguanTEL：0769-82822953 产品修订记录 Productrevisionrecord 日期 Date 版本号 Ver. 修订说明 Revisionnote 制定人 Madeby 核准人 authorizer 2024-11-06A0初版发行Initialrelease莫业鹏杨伟滈 2024-12-27A11、修正LED指示说明FixedLEDinstruction 2、更新注意事项UpdatePrecaution 莫业鹏杨伟滈 2026-2-3A2尺寸新增螺母扭矩为：5~6N.m黄燕珊蒋慧明 东莞市达锂电子有限公司 DongguanDalyElectronicsCo.,Ltd 地址：东莞市松山湖区工业南路14号天安云谷7号楼21层电话：0769-82822953 Address：21/F,building7,Tian'anYungu,No.14,GongyeSouthRoad,SongshanhuDistrict,DongguanTEL：0769-82822953 目录Content 产品规格承认书ProductSpecificationApproval......................................................................................................1 产品修订记录Productrevisionrecord.........................................................................................................................2 1.简介Briefintroduction................................................................................................................................................4 2.系统框图systemchart.................................................................................................................................................4 3.配置&参数Configuration&parameters..............................................................................................................4 4.尺寸图参考Dimensionaldrawingreference........................................................................................................5 5.产品图参考Productpicturereference...................................................................................................................5 6.LED指示说明LEDinstruction...................................................................................................................................6 7.按键说明Buttondescription.....................................................................................................................................6 8.接线说明Cableconnectioninstructions...............................................................................................................7 9.SmartBMS.......................................................................................................................................................................7 10.接口定义Interfacedefinition.................................................................................................................................8 11.休眠与唤醒Sleepandwakeup..............................................................................................................................9 12.线材说明Wirespecification.....................................................................................................................................9 13.注意事项Precaution...................................................................................................................................................9 东莞市达锂电子有限公司 DongguanDalyElectronicsCo.,Ltd 地址：东莞市松山湖区工业南路14号天安云谷7号楼21层电话：0769-82822953 Address：21/F,building7,Tian'anYungu,No.14,GongyeSouthRoad,SongshanhuDistrict,DongguanTEL：0769-82822953 1.简介Briefintroduction ●DL-BTSW是一款集成按键唤醒功能、按键强启功能、指示灯功能于一体的低功耗蓝牙产品，简称蓝牙开关模块；它支持达 锂家族多款产品，包括启动板、智能保护板HKMS、R32D等；它顶部满足IP54的防尘防水要求，加上精致的外观，相 对于传统的达锂蓝牙产品，它更适用于装在电池箱外； ●DL-BTSWisanintegratedkeywake-upfunction,keyforcestartfunction,indicatorfunctioninoneofthe low-powerBluetoothproduct,referredtoasBluetoothswitchmodule;ItiscompatiblewithaseriesofDALY products.,includingcarstartingBMS,HKMSsmartBMS,R32D,etc.Itstopmeetsthedust-proofandwaterproof requirementsofIP54,andithasexquisiteappearance.Hence,comparedwithordinaryDALYbluetooth，itismore suitabletobeinstalledoutsidethebatterycasing. 2.系统框图systemchart 3.配置&参数Configuration&parameters 内容Item说明description LED绿灯GreenLED2pcs LED红灯REDLED2pcs 工作自耗电Operatingpowerconsumption＜7mA 休眠自耗电sleepmodeconsumption＜5uA 重量Weight（含通讯线Includedcommunicationcable）26g±3g 东莞市达锂电子有限公司 DongguanDalyElectronicsCo.,Ltd 地址：东莞市松山湖区工业南路14号天安云谷7号楼21层电话：0769-82822953 Address：21/F,building7,Tian'anYungu,No.14,GongyeSouthRoad,SongshanhuDistrict,DongguanTEL：0769-82822953 4.尺寸图参考Dimensionaldrawingreference 5.产品图参考Productpicturereference 尺寸 Dimensions 直径*高（mm）Diameter*High(mm)=φ33±0.1*10.9±0.1 请注意：1、需预留空间，用于连接线/螺母的安装；2、安装板厚最大2.5mm，安装孔直径29.5mm； 3、螺母扭矩为：5~6N.m； Pleasenote:1,needtoreservespacefortheinstallationofthecable/nut; 2,themaximumthicknessofthemountingplate2.5mm,thediameterofthemountinghole29.5mm; 3、Thetighteningtorqueforthenutshallbe5to6N·m; 东莞市达锂电子有限公司 DongguanDalyElectronicsCo.,Ltd 地址：东莞市松山湖区工业南路14号天安云谷7号楼21层电话：0769-82822953 Address：21/F,building7,Tian'anYungu,No.14,GongyeSouthRoad,SongshanhuDistrict,DongguanTEL：0769-82822953 6.LED指示说明LEDinstruction 板型 plateshape 绿灯 GreenLED 红灯 RedLED 定义 definition 描述Description 启动板 Startingplate 交替闪3次，共3s； Blinkalternately3times foratotalof3s 开机 poweron 上电开机提示Power-onprompts 亮30s On30s 灭 Off 静置 standing 电池电量≥10%，且保护板正常工作； Batterypower≥10%,andtheprotectionboardisworkingnormally; 灭 Off 亮30s On30s 故障 fa…

Text truncated - open the document above for the full version.

* theapplicantmustdesignateacontactlocatedintheUnitedStatesforpurposesofactingasthe applicant’sagentforserviceofprocess,regardlessofwhethertheapplicantisadomesticorforeign entity.AnapplicantlocatedintheUnitedStatesmaydesignateitselfastheagentforserviceofprocess. SC6031147 U.S.AgentDesignationforServiceofProcess- CertificationAttestationLetter 3/10/2026 TO:FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 ATTN.:ReviewingEngineer FCCID:2BRGN-DL-BTSW FRNofapplicant:0037368628 Persection2.911(d)(7)oftheFCCrules,DongguanDalyElectronicsCo.,Ltd. FRN:0037368628(“theapplicant”)certifiesthattheequipmentforwhichauthorizationissought isdesignatedtothefollowingU.S.agent*forserviceofprocess: CompanyName:GlobalProductServicesandConsultationLLC FCCRegistrationNumber(FRN):0033406703 PhysicalU.S.CompanyAddress:328WPalmAve.Monrovia,CA91016 ContactPerson:MichaelChan Tel:+16263664358 AgentEmailAddress:[email protected] Theabovecontactpersonacceptstheobligationforserviceofprocess. Theapplicantacceptstomaintainanagentfornolessthanoneyearafterthegranteehas terminatedallmarketingandimportationortheconclusionofanyCommission-related proceedinginvolvingtheequipment. ApplicantSigned:AgentSigned(ifdifferentfromApplicant): Signed: Printedname:PaulHuang Title:Engineer CompanyName:DongguanDalyElectronics Co.,Ltd. Date:3/10/2026 Signed: Printedname:MichaelChan Title:TechnicalDirector CompanyName:GlobalProductServicesand ConsultationLLC Date:3/12/2026

Dongguan Daly Electronics Co., Ltd. 2026-03-10 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2BRGN-DL-BTSW) [Dongguan Daly Electronics Co., Ltd.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, the equipment does not utilize cyber-security or anti-virus software from Kaspersky Lab, Inc, or any of its successors and assignees, which is also on the “covered list”. Sincerely, Paul Huang Engineer Dongguan Daly Electronics Co., Ltd. Room 901, Building 2, No.14 Gongye South Road, Songshan LakePark, Dongguan City, Guangdong Province Dongguan Daly Electronics Co., Ltd. 2026-03-10 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID: 2BRGN-DL-BTSW) [Dongguan Daly Electronics Co., Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Paul Huang Engineer Dongguan Daly Electronics Co., Ltd. Room 901, Building 2, No.14 Gongye South Road, Songshan LakePark, Dongguan City, Guangdong Province

Dongguan Daly Electronics Co., Ltd. 2026-03-10 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Guangdong Global Testing Technology Co., Ltd. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Paul Huang Engineer Dongguan Daly Electronics Co., Ltd. Room 901, Building 2, No.14 Gongye South Road, Songshan LakePark, Dongguan City, Guangdong Province

Dongguan Daly Electronics Co., Ltd. 2026-03-10 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (EUT Name: Bluetooth switch module /Model: DL-BTSW /FCC ID: 2BRGN-DL-BTSW) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the (Block Diagram, Operational Description, Schematics) required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Paul Huang Engineer Dongguan Daly Electronics Co., Ltd. Room 901, Building 2, No.14 Gongye South Road, Songshan LakePark, Dongguan City, Guangdong Province

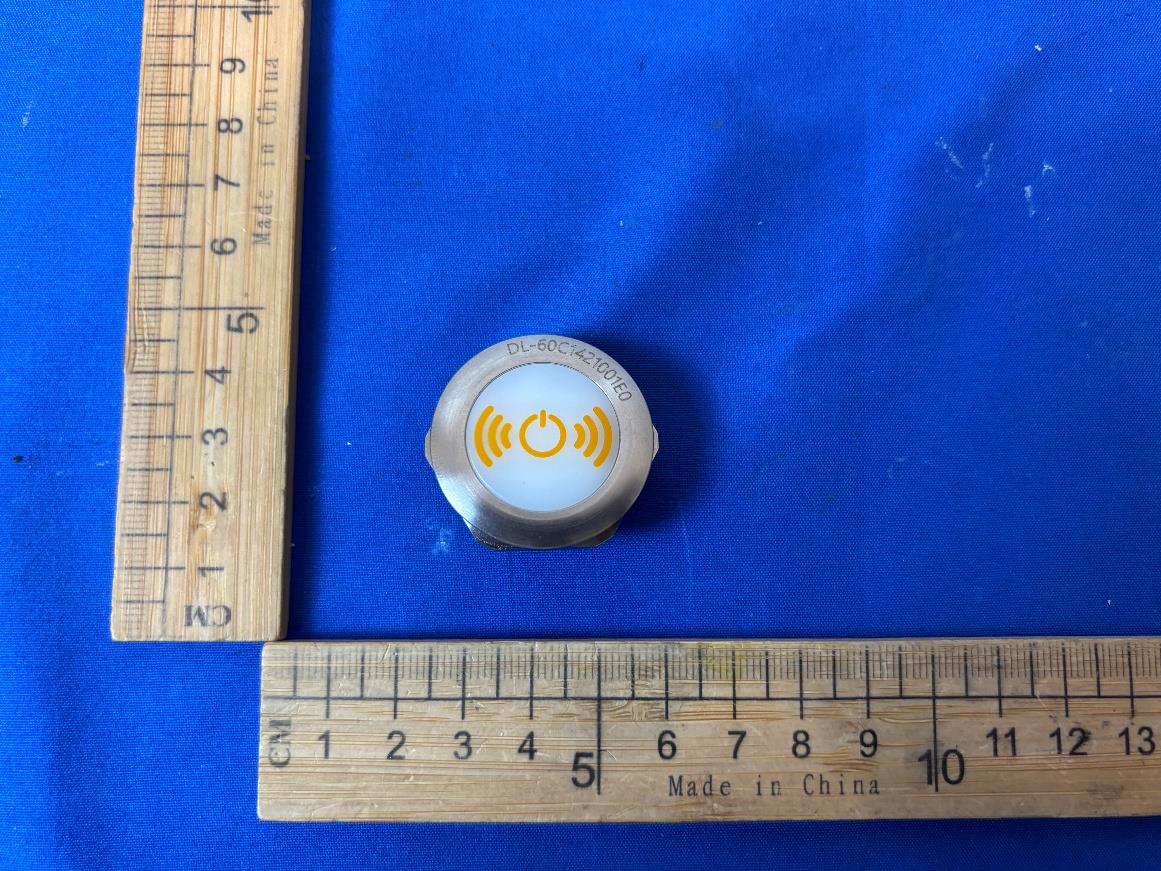

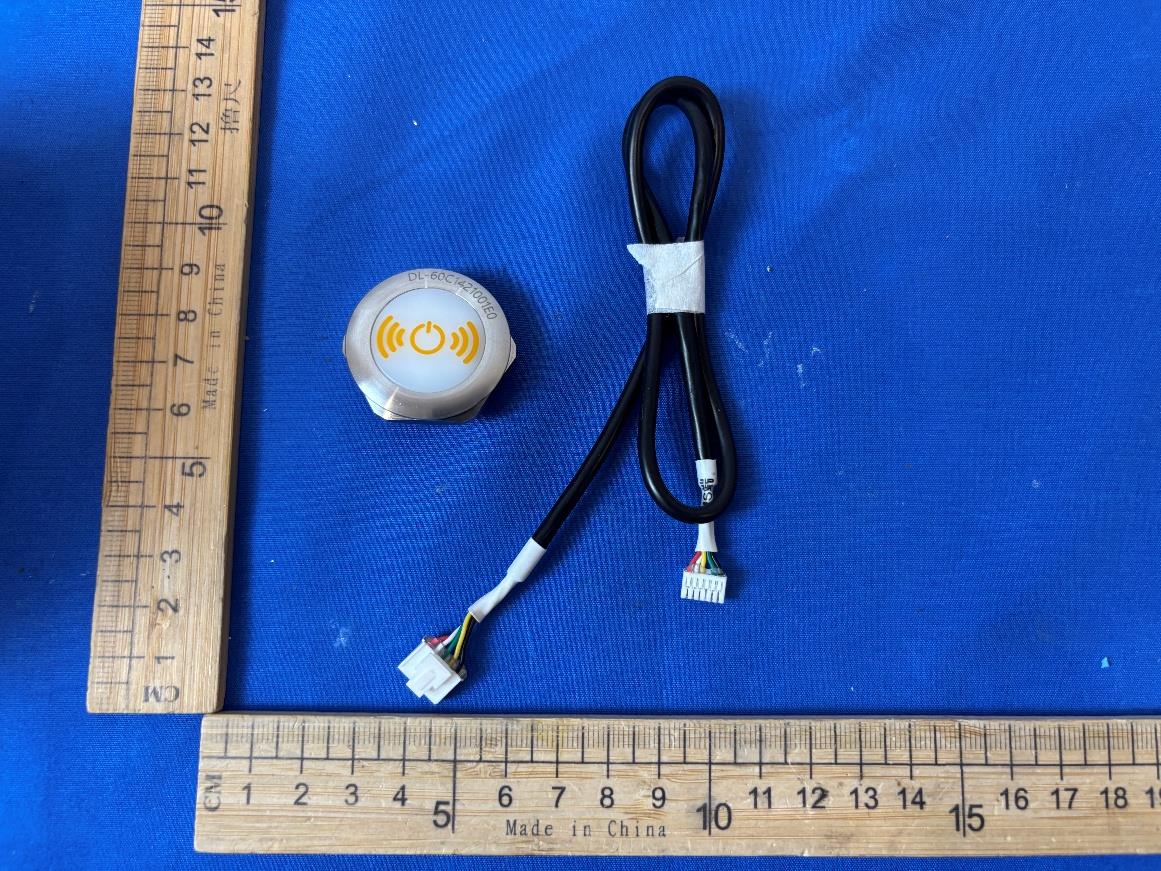

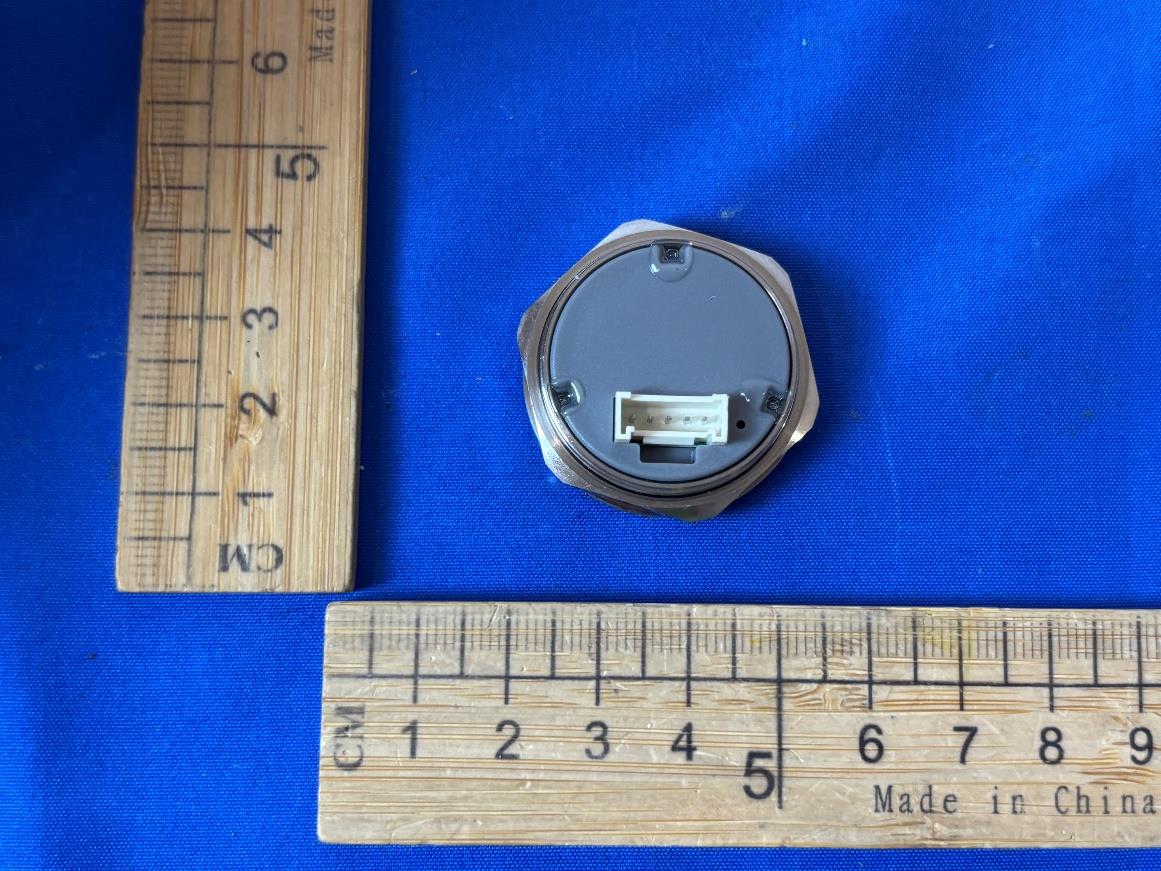

External Photographs View of EUT-1 View of EUT-2 Page 2 of 4 View of EUT-3 View of EUT-4 Page 3 of 4 View of EUT-5 View of EUT-6 Page 4 of 4 View of EUT-7

Size:20mm*10mm Material:decals Model: DL-BTSW FCC ID: 2BRGN-DL-BTSW

Internal Photographs Internal View of EUT-1 Internal View of EUT-2 Page 2 of 2 Internal View of EUT-3 Internal View of EUT-4 Antenna

RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in ß1.1307(b) FCC ID: 2BRGN-DL-BTSW EUT Specification EUT Bluetooth switch module Frequency band (Operating) BLE: 2.402GHz ~ 2.480GHz Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power BLE BLE 1M: 2.86 dBm BLE 2M: 2.87 dBm Antenna gain (Max) -0.58dBi Evaluation applied MPE Evaluation SAR Evaluation Page 2 of 3 Limits for Maximum Permissible Exposure(MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 Friis transmission formula: P d =(P out *G)\(4*pi*R 2 ) Where P d = Power density in mW/cm 2 , P out =output power to antenna in mW. G= gain of antenna in linear scale, Pi=3.1416 R= distance between observation point and center of the radiator in cm=20cm P d the limit of MPE, 1mW/cm 2 . If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. For multiple RF sources: Multiple RF sources are exempt if: in the case of fixed RF sources operating in the same time-averaging period, or of multiple mobile or portable RF sources within a device operating in the same time averaging period, if the sum of the fractional contributions to the applicable thresholds is less than or equal to 1 as indicated in the following equation Evaluated k : the maximum reported SAR or MPE of fixed, mobile, or portable RF source k either in the device or at the transmitter site from an existing evaluation at the location of exposure. Exposure Limit k : either the general population/uncontrolled maximum permissible exposure (MPE) or specific Absorption rate (SAR) limit for each fixed, mobile, or portable RF source k. Page 3 of 3 Measurement Result BLE: Mode Max Measured Power (dBm) Tune up tolerance (dBm) Max tune up conducted power(dBm) Output Peak power (mW) Ant. Gain (dBi) Ant. Gain (numeric) Power density at 20cm (mW/ cm 2 ) Power density Limits (mW/ cm 2 ) BLE 1M 2.86 2±1 3 1.995 -0.58 0.875 0.00035 1 BLE 2M 2.87 2±1 3 1.995 -0.58 0.875 0.00035 1 According to KDB 447498, no stand-alone required for BLE antenna, and no simultaneous SAR measurement is required. Signature: Shawn Wen Date: 2026-3-10

InvertedFAntennaSpecification Summary ITEMANTSPEC ModelName 2.4GANT Center Frequency HorizontalVertical 2400MHz2400MHz2500MHz2400MHz2400MHz2500MHz -1.26-0.76-0.58-5.25-2.46-1.86 MAX.Gain-0.58dB Polarization HorizontalandVertical AzimuthBeam Pattern Omni-directional Impedance 50Ohm AntennaTypePCBantenna ManufactureJiangxiXushengElectronicsCo AntennaPhoto&Length(mm) Horizontal:2400MHz2450MHz2500MHz Power(dBm) Max:0Min:-40Scale:5/div Frequency (MHz) Gain(dB) Max Min Avg 2400-1.26174-30.0801-7.18716 2450-0.765802-36.5604-7.48023 2500-0.585582-22.0315-6.59127 Vertical:2400MHz2450MHz2500MHz Power(dBm) Max:0Min:-30Scale:5/div Frequency (MHz) Gain(dB) Max Min Avg 2400-5.2537-22.1424-12.4294 2450-2.4652-24.5837-10.4702 2500-1.86120-29.5214-9.20432 ANTTestLabs ： AttestationofGlobalComplianceCo.,Ltd.

1 / 32 Duty Cycle Condition Mode Frequency (MHz) Antenna On Time (ms) Period (ms) Duty Cycle (%) Correction Factor (dB) 1/T (kHz) NVNT BLE 1M 2402 Ant1 - - 100 0 0 NVNT BLE 1M 2440 Ant1 - - 100 0 0 NVNT BLE 1M 2480 Ant1 - - 100 0 0 NVNT BLE 2M 2402 Ant1 - - 100 0 0 NVNT BLE 2M 2440 Ant1 - - 100 0 0 NVNT BLE 2M 2480 Ant1 - - 100 0 0 2 / 32 Test Graphs Duty Cycle NVNT BLE 1M 2402MHz Ant1 Duty Cycle NVNT BLE 1M 2440MHz Ant1 3 / 32 Duty Cycle NVNT BLE 1M 2480MHz Ant1 Duty Cycle NVNT BLE 2M 2402MHz Ant1 4 / 32 Duty Cycle NVNT BLE 2M 2440MHz Ant1 Duty Cycle NVNT BLE 2M 2480MHz Ant1 5 / 32 Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Limit (dBm) Verdict NVNT BLE 1M 2402 Ant1 2.75 30 Pass NVNT BLE 1M 2440 Ant1 2.86 30 Pass NVNT BLE 1M 2480 Ant1 2.86 30 Pass NVNT BLE 2M 2402 Ant1 2.77 30 Pass NVNT BLE 2M 2440 Ant1 2.87 30 Pass NVNT BLE 2M 2480 Ant1 2.87 30 Pass 6 / 32 Test Graphs Power NVNT BLE 1M 2402MHz Ant1 Power NVNT BLE 1M 2440MHz Ant1 7 / 32 Power NVNT BLE 1M 2480MHz Ant1 Power NVNT BLE 2M 2402MHz Ant1 8 / 32 Power NVNT BLE 2M 2440MHz Ant1 Power NVNT BLE 2M 2480MHz Ant1 9 / 32 -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT BLE 1M 2402 Ant1 0.68 0.5 Pass NVNT BLE 1M 2440 Ant1 0.66 0.5 Pass NVNT BLE 1M 2480 Ant1 0.69 0.5 Pass NVNT BLE 2M 2402 Ant1 1.37 0.5 Pass NVNT BLE 2M 2440 Ant1 1.45 0.5 Pass NVNT BLE 2M 2480 Ant1 1.41 0.5 Pass 10 / 32 Test Graphs -6dB Bandwidth NVNT BLE 1M 2402MHz Ant1 -6dB Bandwidth NVNT BLE 1M 2440MHz Ant1 11 / 32 -6dB Bandwidth NVNT BLE 1M 2480MHz Ant1 -6dB Bandwidth NVNT BLE 2M 2402MHz Ant1 12 / 32 -6dB Bandwidth NVNT BLE 2M 2440MHz Ant1 -6dB Bandwidth NVNT BLE 2M 2480MHz Ant1 13 / 32 Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT BLE 1M 2402 Ant1 1.017 NVNT BLE 1M 2440 Ant1 1.023 NVNT BLE 1M 2480 Ant1 1.019 NVNT BLE 2M 2402 Ant1 2.063 NVNT BLE 2M 2440 Ant1 2.059 NVNT BLE 2M 2480 Ant1 2.054 14 / 32 Test Graphs OBW NVNT BLE 1M 2402MHz Ant1 OBW NVNT BLE 1M 2440MHz Ant1 15 / 32 OBW NVNT BLE 1M 2480MHz Ant1 OBW NVNT BLE 2M 2402MHz Ant1 16 / 32 OBW NVNT BLE 2M 2440MHz Ant1 OBW NVNT BLE 2M 2480MHz Ant1 17 / 32 Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Conducted PSD (dBm/3kHz) Limit (dBm/3kHz) Verdict NVNT BLE 1M 2402 Ant1 -13.84 8 Pass NVNT BLE 1M 2440 Ant1 -12.8 8 Pass NVNT BLE 1M 2480 Ant1 -10.69 8 Pass NVNT BLE 2M 2402 Ant1 -14.29 8 Pass NVNT BLE 2M 2440 Ant1 -13.57 8 Pass NVNT BLE 2M 2480 Ant1 -14.21 8 Pass 18 / 32 Test Graphs PSD NVNT BLE 1M 2402MHz Ant1 PSD NVNT BLE 1M 2440MHz Ant1 19 / 32 PSD NVNT BLE 1M 2480MHz Ant1 PSD NVNT BLE 2M 2402MHz Ant1 20 / 32 PSD NVNT BLE 2M 2440MHz Ant1 PSD NVNT BLE 2M 2480MHz Ant1 21 / 32 Band Edge Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT BLE 1M 2402 Ant1 -58.39 -20 Pass NVNT BLE 1M 2480 Ant1 -57.67 -20 Pass NVNT BLE 2M 2402 Ant1 -32.93 -20 Pass NVNT BLE 2M 2480 Ant1 -57.18 -20 Pass 22 / 32 Test Graphs Band Edge NVNT BLE 1M 2402MHz Ant1 Ref Band Edge NVNT BLE 1M 2402MHz Ant1 Emission 23 / 32 Band Edge NVNT BLE 1M 2480MHz Ant1 Ref Band Edge NVNT BLE 1M 2480MHz Ant1 Emission 24 / 32 Band Edge NVNT BLE 2M 2402MHz Ant1 Ref Band Edge NVNT BLE 2M 2402MHz Ant1 Emission 25 / 32 Band Edge NVNT BLE 2M 2480MHz Ant1 Ref Band Edge NVNT BLE 2M 2480MHz Ant1 Emission 26 / 32 Conducted RF Spurious Emission Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT BLE 1M 2402 Ant1 -25.78 -20 Pass NVNT BLE 1M 2440 Ant1 -25.88 -20 Pass NVNT BLE 1M 2480 Ant1 -29.37 -20 Pass NVNT BLE 2M 2402 Ant1 -27.19 -20 Pass NVNT BLE 2M 2440 Ant1 -28.27 -20 Pass NVNT BLE 2M 2480 Ant1 -29.04 -20 Pass 27 / 32 Test Graphs Tx. Spurious NVNT BLE 1M 2402MHz Ant1 Ref Tx. Spurious NVNT BLE 1M 2402MHz Ant1 Emission 28 / 32 Tx. Spurious NVNT BLE 1M 2440MHz Ant1 Ref Tx. Spurious NVNT BLE 1M 2440MHz Ant1 Emission 29 / 32 Tx. Spurious NVNT BLE 1M 2480MHz Ant1 Ref Tx. Spurious NVNT BLE 1M 2480MHz Ant1 Emission 30 / 32 Tx. Spurious NVNT BLE 2M 2402MHz Ant1 Ref Tx. Spurious NVNT BLE 2M 2402MHz Ant1 Emission 31 / 32 Tx. Spurious NVNT BLE 2M 2440MHz Ant1 Ref Tx. Spurious NVNT BLE 2M 2440MHz Ant1 Emission 32 / 32 Tx. Spurious NVNT BLE 2M 2480MHz Ant1 Ref Tx. Spurious NVNT BLE 2M 2480MHz Ant1 Emission

TRF No.: 04-E001-0B TRF Originator: GTG TRF Date: 2023-12-13 Web: www.gtggroup.com E-mail: [email protected] Tel.: 86-400 755 8988 CFR 47 FCC PART 15 SUBPART C, TEST REPORT For Bluetooth switch module MODEL NUMBER: DL-BTSW REPORT NUMBER: E04A25120555F01301 ISSUE DATE: March 10, 2026 FCC ID: 2BRGN-DL-BTSW Prepared for Dongguan Daly Electronics Co., Ltd. Room 901, Building 2, No.14 Gongye South Road, Songshan LakePark, Dongguan City, Guangdong Province Prepared by Guangdong Global Testing Technology Co., Ltd. Room 101-105, 203-210, Building 1, No.2, Keji 8 Road, Songshan Lake Park, Dongguan city, Guangdong, People’s Republic of China, 523808 This report is based on a single evaluation of the submitted sample(s) of the above mentioned product, it does not imply an assessment of the production of the products. This report shall not be reproduced, except in full, without the written approval of Guangdong Global Testing Technology Co., Ltd. REPORT NO.: E04A25120555F01301 Page 2 of 37 TRF No.: 04-E001-0B Global Testing , Great Quality. Revision History Rev. Issue Date Revisions Revised By V0 March 10, 2026 Initial Issue REPORT NO.: E04A25120555F01301 Page 3 of 37 TRF No.: 04-E001-0B Global Testing , Great Quality. Summary of Test Results Test Item Limit/Requirement Result Antenna Requirement FCC Part 15.203/15.247 (c) Pass AC Power Line Conducted Emission FCC Part 15.207 N/A 1 Conducted Output Power FCC Part 15.247 (b)(3) Pass 6dB Bandwidth and 99% Occupied Bandwidth FCC Part 15.247 (a)(2) Pass Power Spectral Density FCC Part 15.247 (e) Pass Conducted Band edge and spurious emission FCC Part 15.247(d) Pass Radiated Band edge and Spurious Emission FCC Part 15.247 (d) FCC Part 15.205/15.209 Pass Duty Cycle None; for reporting purposes only. Pass 1. The EUT is powered by DC 3.3V. *This test report is only published to and used by the applicant, and it is not for evidence purpose in China. *The measurement result for the sample received is <Pass> according to <CFR 47 FCC PART 15 SUBPART C> when <Accuracy Method> decision rule is applied. REPORT NO.: E04A25120555F01301 Page 4 of 37 TRF No.: 04-E001-0B Global Testing , Great Quality. CONTENTS 1. ATTESTATION OF TEST RESULTS ..................................................................................... 5 2. TEST METHODOLOGY ......................................................................................................... 6 3. FACILITIES AND ACCREDITATION ..................................................................................... 6 4. CALIBRATION AND UNCERTAINTY ................................................................................... 7 4.1. MEASURING INSTRUMENT CALIBRATION ........................................................... 7 4.2. MEASUREMENT UNCERTAINTY ............................................................................ 7 5. EQUIPMENT UNDER TEST .................................................................................................. 8 5.1. DESCRIPTION OF EUT ........................................................................................... 8 5.2. CHANNEL LIST ........................................................................................................ 8 5.3. MAXIMUM PEAK OUTPUT POWER ........................................................................ 9 5.4. TEST CHANNEL CONFIGURATION ........................................................................ 9 5.5. THE WORSE CASE POWER SETTING PARAMETER ............................................ 9 5.6. DESCRIPTION OF AVAILABLE ANTENNAS ........................................................... 9 5.7. SUPPORT UNITS FOR SYSTEM TEST ................................................................... 9 5.8. SETUP DIAGRAM .................................................................................................. 10 6. MEASURING EQUIPMENT AND SOFTWARE USED......................................................... 11 7. ANTENNA PORT TEST RESULTS ..................................................................................... 13 7.1. Conducted Output Power ........................................................................................ 13 7.2. 6dB Bandwidth and 99% Occupied Bandwidth ....................................................... 14 7.3. Power Spectral Density ........................................................................................... 16 7.4. Conducted Band edge and spurious emission ........................................................ 17 7.5. Duty Cycle .............................................................................................................. 19 8. RADIATED TEST RESULTS ............................................................................................... 20 8.1. Radiated Band edge and Spurious Emission .......................................................... 25 9. ANTENNA REQUIREMENT ................................................................................................ 37 REPORT NO.: E04A25120555F01301 Page 5 of 37 TRF No.: 04-E001-0B Global Testing , Great Quality. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: Dongguan Daly Electronics Co., Ltd. Address: Room 901, Building 2, No.14 Gongye South Road, Songshan LakePark, Dongguan City, Guangdong Province Manufacturer Information Company Name: Dongguan Daly Electronics Co., Ltd. Address: Room 901, Building 2, No.14 Gongye South Road, Songshan LakePark, Dongguan City, Guangdong Province EUT Information Product Description: Bluetooth switch module Model: DL-BTSW Series Model: / Brand: Sample Received Date: January 22, 2026 Sample Status: Normal Sample ID: A25120555 001 Date of Tested: January 22, 2026 to March 10, 2026 APPLICABLE STANDARDS STANDARD TEST RESULTS CFR 47 FCC PART 15 SUBPART C Pass Prepared By: Checked By: Jok Yang Alan He Project Engineer Laboratory Leader Approved By: Shawn Wen Laboratory Manager REPORT NO.: E04A25120555F01301 Page 6 of 37 TRF No.: 04-E0…

Text truncated - open the document above for the full version.

Setup Photographs Radiated Band edge and Spurious Emission Page 2 of 2
