2BRLK-1327-42WOWCUBE

FCC ID:2BRLK-1327-42S FCC WARNING This device complies with part 15 of the FCC Rules. Operat ion is subject to the follo wing two condit ions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, in cluding interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsib le for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the lim its for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordan ce with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particula r installat ion. If th is equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of t he following measures: -- Reorient or relocate the receiv ing antenna. -- Increase the separat ion between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the deale r or an experienced radio/TV technician for help. To maintain compliance w ith FCC’s RF Exposure guidel ines, Th is equ ipment should be instal led and operated with minimum distance between 20cm the radiator your body: Use on ly the supplied antenna. FCC Caution This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses andcan radiate radio frequency energy and,if not installed and used in accordance withthe instructions, may cause harmfulinterference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. Ifthis equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. FCC ID:2BRLK-132-42

(Cubios Inc.) (2025.09.12) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2BRLK-1327-42) [Cubios Inc.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, the equipment does not utilize cyber-security or anti-virus software from Kaspersky Lab, Inc, or any of its successors and assignees, which is also on the “covered list”. Sincerely, (Applicant signature) (Applicant printed name) Amy Hu (Cubios Inc.) (2025.09.12) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID: 2BRLK-1327-42) [Cubios Inc.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Amy Hu

Cubios Inc. U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: Cubios Inc. FRN: 0037382397 Contact Name: Amy Hu Address: 4152 Independence Ct, unit C-4, Sarasota, FL 34234 Telephone No: 15817285228 Email: [email protected] This letter is to confirm that we (“the Designated U.S. Agent) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date: 2025-09-27 Signed by (Printed Name/Title): The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company Name: Cubios Inc. FRN: 0037382397 FCC ID: 2BRLK-1327-42 Contact Name: Amy Hu Address: 4152 Independence Ct, unit C-4, Sarasota, FL 34234 Telephone No: 15817285228 Email: [email protected] Applicant Signature: Date: 2025-09-27 Signed by (Printed Name/Title): Amy Hu /Manager

Cubios Inc. 2025.09.12 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: WOWCUBE Trademark: WOWCUBE MODEL : DOS1327-42 FCC ID: 2BRLK-1327-42 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : Amy Hu/Manager Contact information / address: 4152 Independence Ct, unit C-4, Sarasota, FL 34234

Cubios Inc. 2025.09.12 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : Amy Hu/Manager Contact information / address: 4152 Independence Ct, unit C-4, Sarasota, FL 34234

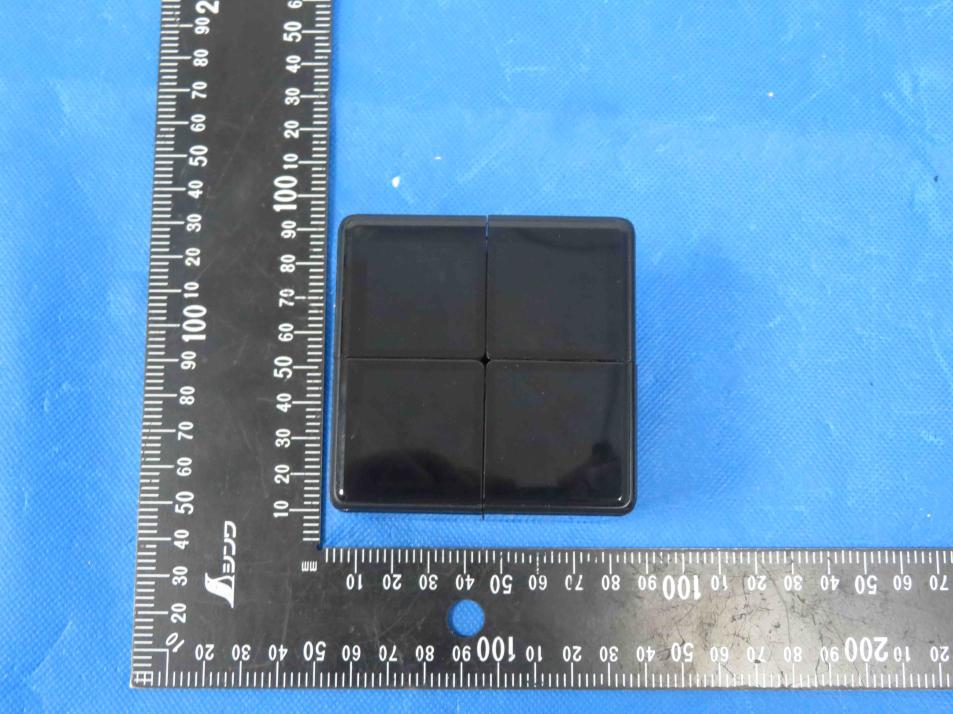

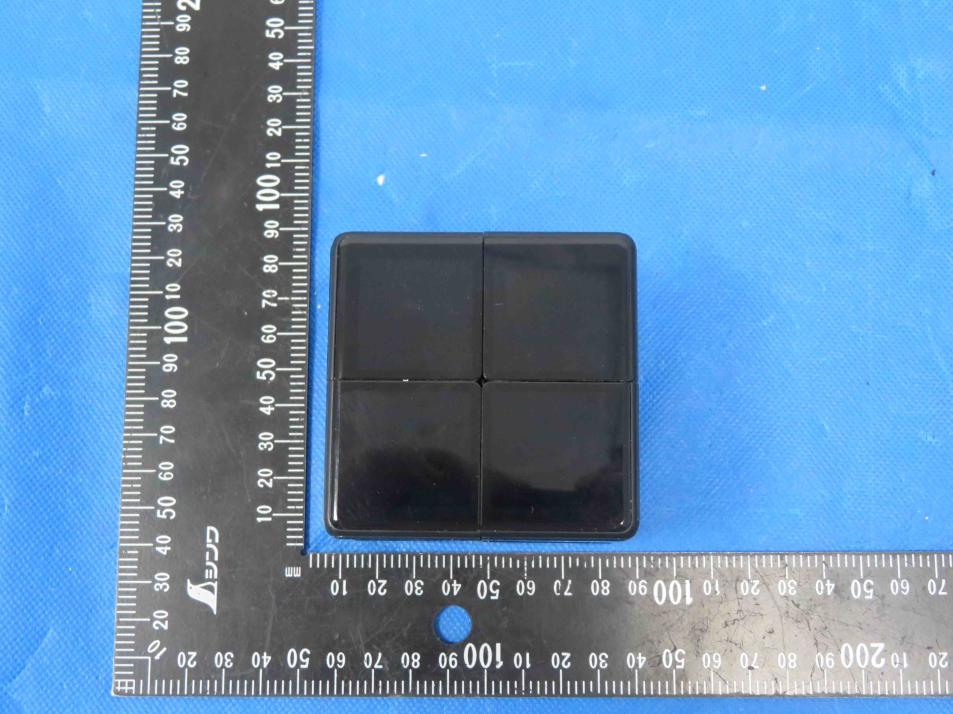

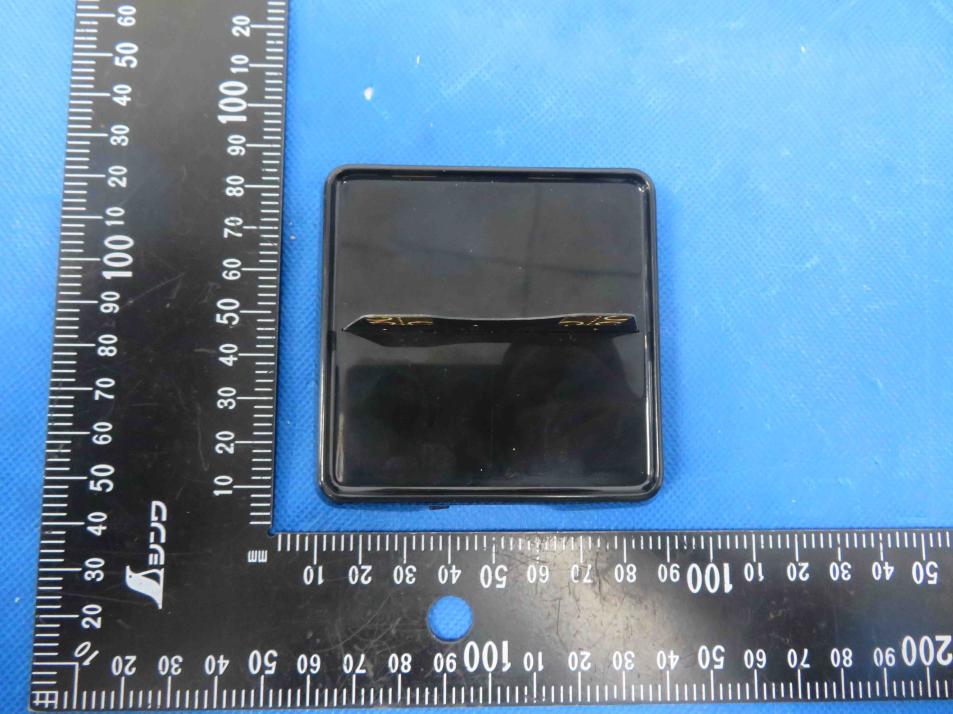

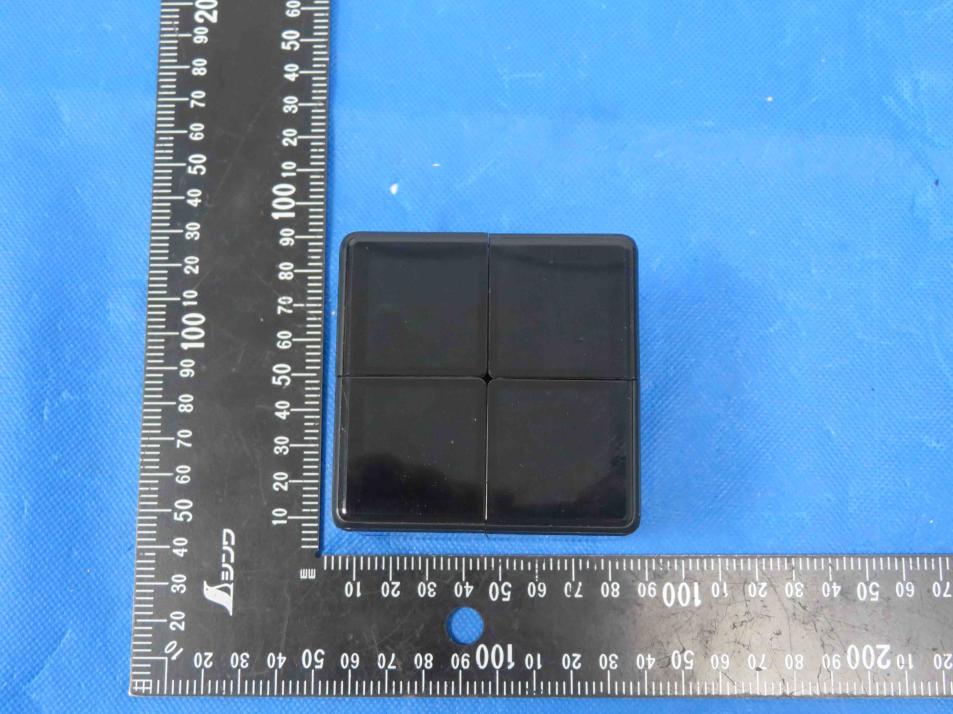

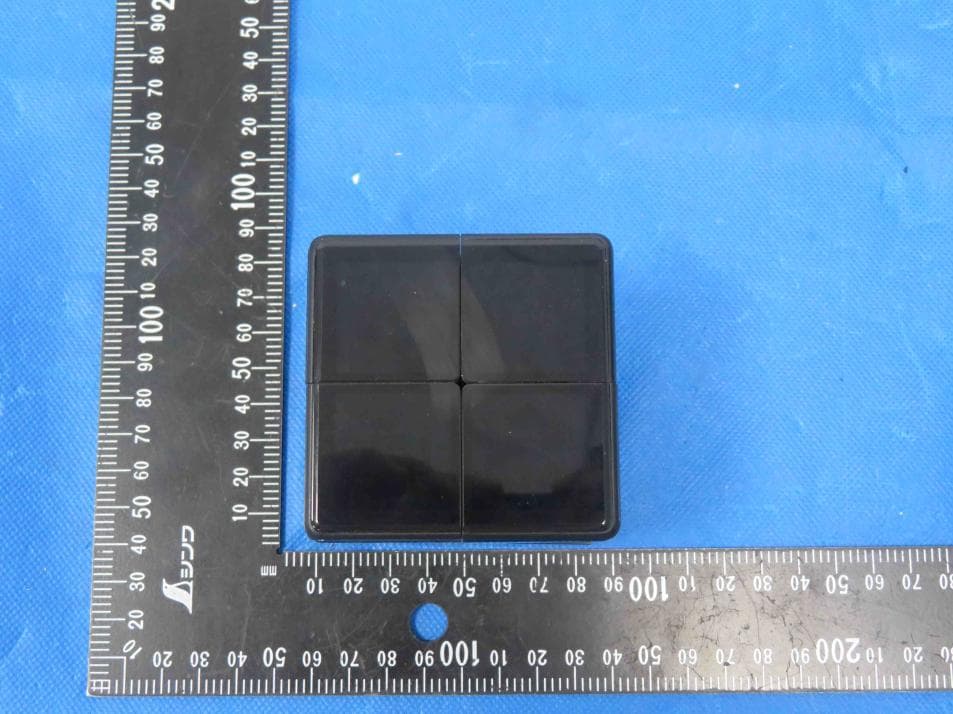

Report No.: BCTC2507480578E External Photos Report No.: BCTC2507480578E Report No.: BCTC2507480578E

Label & label location Since all six sides of the product are screens, labels cannot be affixed. Therefore, the label is placed in the User Manual, and the corresponding FCC ID of the product can also be viewed on the phone APP. User Manual： Phone：

Report No.: BCTC2507480578E Internal Photos Report No.: BCTC2507480578E Antenna Report No.: BCTC2507480578E Report No.: BCTC2507480578E

RF EXPOSURE EVALUATION METHOD FCC ID: 2BRLK-1327-42 Applicable standard： In accordance with FCC 47 CFR part 2 (2.1093) this device has been defined as a portable device which is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable devices must be evaluated using the specified in FCC 47 CFR part 2 (2.1093) and ANSI/IEEEC95.1-1992. and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528-2003. Per FCC KDB 447498 D01 v06, the 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances s 50 mm are determined by: SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. BLE Mode Frequency(MHz) Maximum Conducted Output Power(PK) (dBm) Conducted Output Power Limit(dBm) GFSK(1Mbps) 2402 -10.92 30 2440 -10.49 30 2480 -10.30 30 GFSK(2Mbps) 2402 -10.97 30 2440 -10.47 30 2480 -10.19 30 max possible output power (PK, conducted)：-11±1dBm -10dBm=0.10mW 2402MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 0.10/5*√2.402=0.03≤3.0 2440MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 0.10/5*√2.440=0.03≤3.0 2480MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 0.10/5*√2.48=0.03≤3.0 BT Condition Mode Frequency (MHz) Conducted Power (dBm) Limit (dBm) Verdict NVNT 1-DH1 2402 -1.92 21 Pass NVNT 1-DH1 2441 -0.85 21 Pass NVNT 1-DH1 2480 -0.26 21 Pass NVNT 2-DH1 2402 -3.37 21 Pass NVNT 2-DH1 2441 -2.27 21 Pass NVNT 2-DH1 2480 -1.61 21 Pass NVNT 3-DH1 2402 -3.16 21 Pass NVNT 3-DH1 2441 -1.7 21 Pass NVNT 3-DH1 2480 -1.13 21 Pass max possible output power (PK, conducted)：-1±1dBm 0dBm=1.00mW 2402MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 1.00/5*√2.402=0.31≤3.0 2441MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 1.00/5*√2.441=0.31≤3.0 2480MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 1.00/5*√2.48=0.31≤3.0 For Multi TX: BT Max Tune up power: Part 1: -1±1dBm=0dBm=1.00mW Part 2: -1±1dBm=0dBm=1.00mW Part 3: -1±1dBm=0dBm=1.00mW Part 4: -1±1dBm=0dBm=1.00mW Part 5: -1±1dBm=0dBm=1.00mW Part 6: -1±1dBm=0dBm=1.00mW Part 7: -1±1dBm=0dBm=1.00mW Part 8: -1±1dBm=0dBm=1.00mW Max Multi ratio=0.31/3+0.31/3+0.31/3+0.31/3+0.31/3+0.31/3+0.31/3+0.31/3=0.83≤1.0 BLE Max Tune up power: Part 1: -11±1dBm=-10dBm=0.10mW Part 2: -11±1dBm=-10dBm=0.10mW Part 3: -11±1dBm=-10dBm=0.10mW Part 4: -11±1dBm=-10dBm=0.10mW Part 5: -11±1dBm=-10dBm=0.10mW Part 6: -11±1dBm=-10dBm=0.10mW Part 7: -11±1dBm=-10dBm=0.10mW Part 8: -11±1dBm=-10dBm=0.10mW Max Multi ratio=0.03/3+0.03/3+0.03/3+0.03/3+0.03/3+0.03/3+0.03/3+0.03/3=0.08≤1.0 Conclusion: 1. [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] < 3.0. 2. SAR Test Exclusion Thresholds is 3.0 for separation distance 5mm. Therefore, SAR test is not required.

No.：BCTC/RF-ICT-005 Page: 1 of 53 Edition：C.0 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2507480578-2E Applicant: Cubios Inc. Product Name: WOWCUBE Test Model: DOS1327-42 Tested Date: 2025-07-16 to 2025-08-22 Issued Date: 2025-08-22 Report No.: BCTC2507480578-2E No.：BCTC/RF-ICT-005 Page: 2 of 53 Edition：C.0 FCC ID:2BRLK-1327-42 The test report is effective only with both signature and specialized stamp.This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full.The tested sample(s) and the sample information are provided by the client. Product Name: WOWCUBE Trademark: WOWCUBE Model/Type Reference: DOS1327-42 Prepared For: Cubios Inc. Address: 4152 Independence Ct, unit C-4, Sarasota, FL 34234 Manufacturer: Minewing (Shenzhen) Electronics Integrated Co., Ltd Address: Floor #2, Building H2, Hongfa Tech Park, No 32, Tangtou Road, Shiyan Town, Bao'an District, Shenzhen, China, 518108 Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2025-07-16 Sample Tested Date: 2025-07-16 to 2025-08-22 Issue Date: 2025-08-22 Report No.: BCTC2507480578-2E Test Standards: FCC Part15.247 ANSI C63.10:2013 Test Results: PASS Remark: This is Bluetooth BLE radio test report. Tested by: Approved by: Kelsey Tan/ Project Handler Zero Zhou/Reviewer Report No.: BCTC2507480578-2E No.：BCTC/RF-ICT-005 Page: 3 of 53 Edition：C.0 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 9 4.3 Support Equipment ............................................................................................... 9 4.4 Channel List ........................................................................................................ 10 4.5 Test Mode ........................................................................................................... 10 4.6 Table of parameters of text software setting ....................................................... 10 5. Test Facility And Test Instrument Used ............................................................... 11 5.1 Test Facility ......................................................................................................... 11 5.2 Test Instrument Used .......................................................................................... 11 6. Conducted Emissions .......................................................................................... 13 6.1 Block Diagram Of Test Setup .............................................................................. 13 6.2 Limit .................................................................................................................... 13 6.3 Test procedure .................................................................................................... 13 6.4 EUT Operating Conditions .................................................................................. 13 6.5 Test Result .......................................................................................................... 14 7. Radiated Emissions ............................................................................................. 16 7.1 Block Diagram Of Test Setup .............................................................................. 16 7.2 Limit .................................................................................................................... 17 7.3 Test procedure .................................................................................................... 18 7.4 EUT operating Conditions ................................................................................... 19 7.5 Test Result .......................................................................................................... 19 8. Radiated Band Emission Measurement And Restricted Bands Of Operation ..... 24 8.1 Block Diagram Of Test Setup .............................................................................. 24 8.2 Limit .................................................................................................................... 24 8.3 Test Procedure ................................................................................................... 25 8.4 EUT Operating Conditions .................................................................................. 26 8.5 Test Result .......................................................................................................... 26 9. Power Spectral Density Test ............................................................................... 27 9.1 Block Diagram Of Test Setup .............................................................................. 27 9.2 Limit .................................................................................................................... 27 9.3 Test procedure .................................................................................................... 27 9.4 EUT Operating Conditions .................................................................................. 27 9.5 Test Result ...............................…

Text truncated - open the document above for the full version.

Customer:同集 Project Name:魔方 RF Engineer:向工 Testing Date:2025-06-23 Operating band: WIFI Antenna test Report 深圳市云希科技有限公司 ShenZhen Yunxi Technology Co.,Ltd. NO. ITEMS DETAILS 1 工作频段 Operating band WIFI 2 频率范围 Frequency range 2400~2500MHz 3 天线类型 Antenna Type 内置 4 天线材质及实现形式 贴片天线 5 天线料号 Antenna part number F245M01ZYL-3216-1.2 天线料号 Antenna part number 6 输入阻抗 Input Impedance 50 （ Ω ） 7 增益 Gain RF 向工 ME 张工 Project brief Test system and equipment 测试项目 设备 1. S参数 1. 回波损耗 2. 驻波比 网络分析仪: HP E5071C/Agilent8753D 2. 耦合功率测试 1. 发射功率 2. 接收灵敏度 GSM 测试仪: Agilent 8960 LTE 测试仪: CMW500 3. 辐射模式与增益 1. 辐射模式 2. 天线增益 1. 暗室： 7x4x3 m (ETS-3D) 2. 网络分析仪：HP Agilent8753ES 天线匹配 Matching Circuits Antenna assembly environment processing diagram BT Ant. Size Code 1.6x0.8mm( ± 0.1mm) Antenna Performance Test 整机 Antenna Performance Test 裸板 Passive Test For BT(整机) Freq Effi Effi Gain (MHz) (%) (dB) (dBi) 2400 8.7 -10.6 -11.4 2410 8.5 -10.7 -11.5 2420 8.4 -10.7 -11.5 2430 8.5 -10.7 -11.4 2440 8.4 -10.7 -11.4 2450 8.7 -10.6 -11.2 2460 8.7 -10.6 -11.1 2470 8.7 -10.6 -11.1 2480 8.3 -10.8 -11.6 2490 8.2 -10.9 -11.7 2500 8.4 -10.7 -11.3 Antenna Passive Test Passive Test For BT(裸板) Freq Effi Effi Gain (MHz) (%) (dB) (dBi) 2400 22.0 -6.6 -4.9 2410 22.7 -6.4 -4.3 2420 24.0 -6.2 -3.5 2430 25.3 -6.0 -3.4 2440 26.2 -5.8 -3.4 2450 26.3 -5.8 -3.6 2460 26.7 -5.7 -3.6 2470 26.3 -5.8 -3.7 2480 28.4 -5.5 -3.5 2490 26.8 -5.7 -2.9 2500 25.4 -5.9 -2.8 Antenna Passive Test

Report No.: BCTC2507480578-2E No.：BCTC/RF-ICT-005 Page: 51 of 53 Edition：C.0 15. EUT Test Setup Photographs Conducted emissions Radiated Measurement Photos Report No.: BCTC2507480578-2E No.：BCTC/RF-ICT-005 Page: 52 of 53 Edition：C.0 Spurious emissions
