2BRLM-X19Wireless Sport Earphone

USER MANUAL Packing List Earphones ×1 Pair Charging Case ×1 Type-C Charging Cable ×1 Ear Tips ×4 Pairs User Manual ×1 01 Product Overview Charging Case Power Display Earbud Power Display Charging Pins Type-C Charging Port Reset Button 02 * Please kindly note that the wireless charging area is on the bottom of the charging case. Multi-function Button(MFB) Volume +/- Button Earbud LED Light/ Built-in Mic Flexible Ear Hook Ear Tips Charging Contact 03 Click MFB Button Once on L/R Earbud Multi-function Operations MFB ButtonMFB Button LR For Music Play/Pause Click "+" once on L/R Earbud Click "-" once on L/R Earbud Long Press "+" Button on L/R Earbud Long Press "-" Button on L/R Earbud Next Track Volume- Volume+ Last Song 04 For Call Voice Assistance Click MFB Button Once on L/R Earbud Long Press MFB Button 2s on L/R Earbud Double-click MFB Button on L/R Earbud Answer/End Call Reject Call Siri (Non-Playing and Non-Calling) Caution Tear off the protective film Remove me Protective Grille 4. Please clean the protective grille of both earbuds if the sound becomes low. * To make sound louder 05 2. Choose suitable ear tips & Wear correctly to enhance sound quality. 3. Please clean the magnet charging contact on earbud and charging pin on the charging case with alcohol wipes if the headphones can't be charged. Charging PinCharging Contacts * To fix charging issue + S M L XS Type-C Charging Place earbuds into charging case properly, then use the included USB-C charging cable to connect the charging case, and plug the other end into power supply with a 5V/1A adapter (not included), they will start charging. 06 How to Charge ? (* The USB-C charging cable is in the black paper box.) Show the remaining battery percentage of charging case from 0-100. "0" means charging case need charging while "100" means the charging case is fully charged. Flash down and up when earbud is charging; Stop flashing when earbud is fully charged. LED Power Display Earbud’s LED light: Red light up means "being charged", Red light go off means “fully charged". 07 How to power on/off & pair? (Make sure the earbuds and charging case have power.) Automatically Power on/off & Pairing 1. Take out earbuds from the charging case, the earbuds will auto power on and enter pairing mode. 3. Put the earbuds back into the charging case, the earbuds will disconnect & power off automatically. Note: If the earbuds are not connected to your device over 5 minutes, the earbuds will power off automatically. X19 2. For first time pairing: Activate Bluetooth setting on your phone, search and connect "X19". For the second time use, when you take out the earbuds from the charging case, they will connect to your device automatically. Specification Product Name: ANC Wireless Sport Earphone Model Name: X19 Bluetooth Version: V5.3 Support: AAC/A2DP/HFP/HSP/AVRCP Transmission Range: 33 feet(without obstacle) FCC ID: 2ATJ2-X19 Input: 5V 500mA Charging Time: about 2H Headphones Battery Capacity: 3.7V 50mAh/0.185Wh Charging Case Battery Capacity: 3.7V 600mAh/2.22Wh 08 Manually Power on/off If the earbuds are out of the charging case and power off, just press & hold then ( both earbuds ) for 2s, they will power on. Disconnect the bluetooth on your device, press & hold either earbud for 5s, both earbuds will power off at the same time. Pair with Other Device X19 Sports Headphones have memory connect function, they always auto connect to the last paired device. Thus, if you want to pair them with other device, you should disconnected "X19" from the last paired device, then search and connect "X19" on your new device, it will work properly. Single Mode You can leave one earbud in the charging case and use one earbud alone. Only take one earbud out of the charging case, then search & connect "X19" on your device. When in Dual mode, put one earbud into the charging case. 09 X19 10 Factory Restore Setting When only one side play music When you can’t find "X19" on your device Occur connection issues. When should I reset? How to reset? 1. Delete all "X19" on your phone and deactive the bluetooth setting. 2. Put the two earbuds in the charging case, keep them in the charging statu. 10 3. Long press the Reset Button on the charging case for about 10s, the LED display flash 3 times and the earbuds flash red and green alternately, which means both earbuds have reset completely. 4. Now, pick up the earbuds to turn them on, activate the bluetooth setting on your device and select "X19" to connect, it should work properly. If not, please put the earbuds back to the charging case and repeat the steps above. 1312 How to sync volume on Android? To protect users from potential hearing damage, Android’s limit on max volume is quite low for Bluetooth audio devices. If you feel the volume is too low, please access developer options and enable absolute volume, so you ‘ll able to max the volume at your own volition and to the full capabilities of your Bluetooth earphones. (Scan this QR code to watch a video to learn more details.) 11 Battery Warning FCC Caution ISED Warning Caution Using the wrong battery can cause fire and other hazards (for example, in the case of some lithium battery types) 1. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion 2. Do not leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas. 3. A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference,and (2) This device must accept any interference received,including interfere…

Text truncated - open the document above for the full version.

Rev 1/26/2023 DongGuan HeZhong Acoustics Technology Co.,Ltd Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: June 30, 2026 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: 2BRLM-X19 [DongGuan HeZhong Acoustics Technology Co.,Ltd] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. [DongGuan HeZhong Acoustics Technology Co.,Ltd] (“the applicant”) certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Device is inherently compliant based on hardware limitations or software controls. or A Software Bill of Materials (SBOM) is provided to the TCB for review, and The end-user or third parties cannot install additional software on this device. Sincerely, Name: Shirley Cao Signature: Rev 1/26/2023 DongGuan HeZhong Acoustics Technology Co.,Ltd Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: June 30, 2026 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: 2BRLM-X19 [DongGuan HeZhong Acoustics Technology Co.,Ltd] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, Name: Shirley Cao Signature:

DongGuan HeZhong Acoustics Technology Co.,Ltd Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Date: June 30, 2026 SUBJECT: FCC SDoC declaration for FCC ID: 2BRLM-X19 To Whom It May Concern: I, the undersigned, hereby states this equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules, and will apply the Supplier's Declaration of Conformity procedure to the class B computer peripheral portion of this composite device. I understand the following FCC requirements: 1. Devices subject to the SDoC procedure are required to be tested to show compliance with the FCC technical regulations by a recognized accredited testing laboratory. The testing laboratory must be accredited by a Commission approved accreditation body or designated under the terms of a government-to-government Mutual Recognition Agreement (MRA). A listing of those accredited testing laboratories that have been recognized by the Commission is published on the FCC Webpage: https://apps.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm (Select the "accredited" option to search for FCC recognized accredited test firms.) 2. Pt 2.1077 contains the list of information that must be included in the Supplier's Declaration of Conformity, which must be supplied with each product sold. The SDoC compliance info shall be included in the User’s Manual or as a separate sheet. The info must contain the name, address, and phone number of the responsible party, which must be located within the United States. According to 2.909(b), the responsible party is either the Manufacturer or if the product is imported the Importer. Regards, DongGuan HeZhong Acoustics Technology Co.,Ltd Name: Shirley Cao Signature:

DongGuan HeZhong Acoustics Technology Co.,Ltd U.S. Agent Letter of Attestation To: Federal Communications Commission 7435 Oakland Mills Road, Columbia, MD 21046, USA Date: June 30, 2026 Ref: Attestation Statement – Part 2.911(d)(7) filing FCC ID: 2BRLM-X19 DongGuan HeZhong Acoustics Technology Co.,Ltd (“the applicant”) certifies that, as of the date of the filing of the application, CLF Import and Export Limited (“the agent”) is our designated U.S. agent for service of process for the above reference FCC ID. The applicant accepts to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. The applicant further acknowledges it is our responsibility to inform the FCC whenever the agent information changes. CLF Import and Export Limited ("the agent) understand it is the agent's obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address. Designated U.S. Agent Company Name: CLF Import and Export Limited FRN: 0033489683 Address: 1312 17th Street #692, Denver, CO 80202, United States Signature: Contact Person: David Chen Tel: +1 949 254 2565 Email: [email protected] Applicant Company Name: DongGuan HeZhong Acoustics Technology Co.,Ltd FRN: 0037386950 Address: Room 607-609, Shunhong Building #1, Hengkeng, Liabu Town, DongGuan, GuangDong, China Signature: Contact Person: Shirley Cao Tel: 86-136 8627 6949 Email: [email protected]

Rev 11/20/07 DongGuan HeZhong Acoustics Technology Co.,Ltd Date: June 30, 2026 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2BRLM-X19 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name (Block Diagram, Schematics, Operational Description) (Block Diagram.pdf, Schematics.pdf, Operational Description.pdf) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Pursuant to DA04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Name: Shirley Cao Signature:

DongGuan HeZhong Acoustics Technology Co.,Ltd Model Difference Statement DATE: June 30, 2026 FCC ID: 2BRLM-X19 Dear Sir/Madam, Added models L1, L2, L3, L4, T26 basis of the original product X19 The color of appearance and model name of series models listed are different from the main model, but the circuit and the electronic construction are the same, declared by the manufacturer. Sincerely, Name: Shirley Cao Title: Manager Company name: DongGuan HeZhong Acoustics Technology Co.,Ltd Address: Room 607-609, Shunhong Building #1, Hengkeng, Liabu Town, DongGuan, GuangDong, China

DongGuan HeZhong Acoustics Technology Co.,Ltd Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Date: June 30, 2026 SUBJECT: FCC Application for FCC ID: 2BRLM-X19 To Whom It May Concern: We, the undersigned, hereby authorize Lahm Peng at Shenzhen CCUT Quality Technology Co., Ltd. on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Lahm Peng at Shenzhen CCUT Quality Technology Co., Ltd. on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, Name: Shirley Cao Signature:

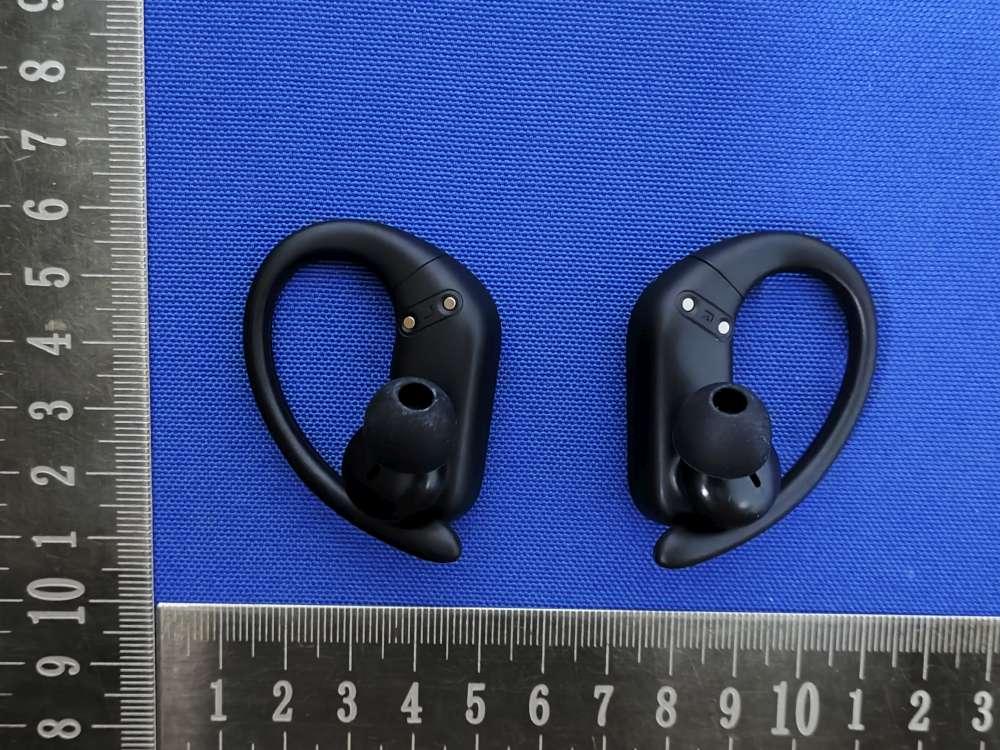

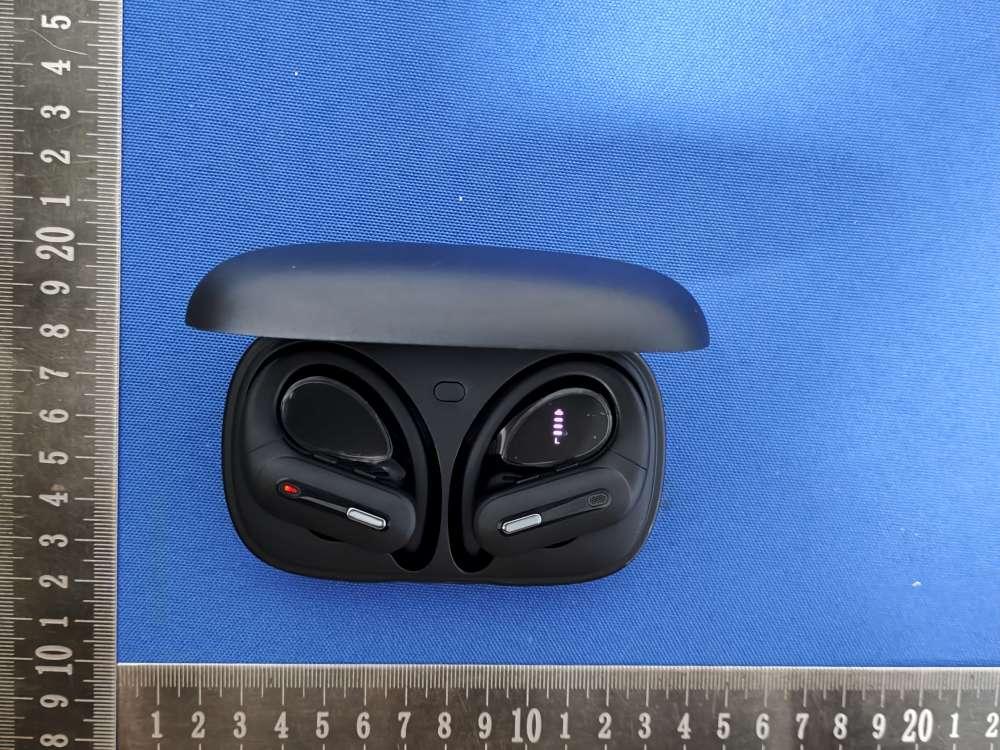

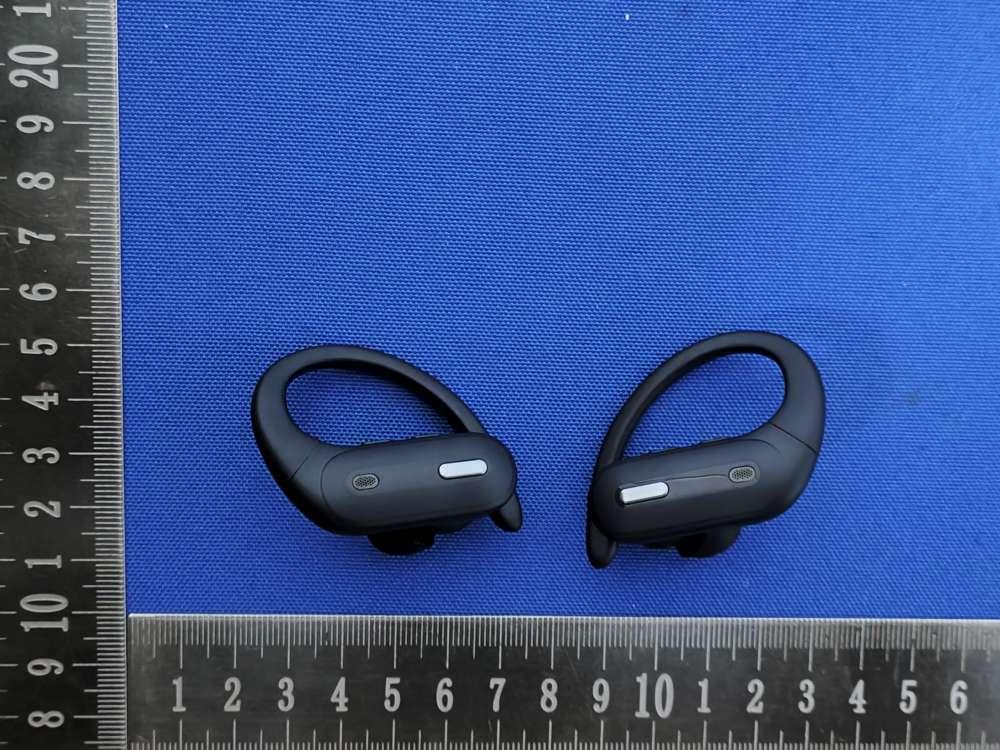

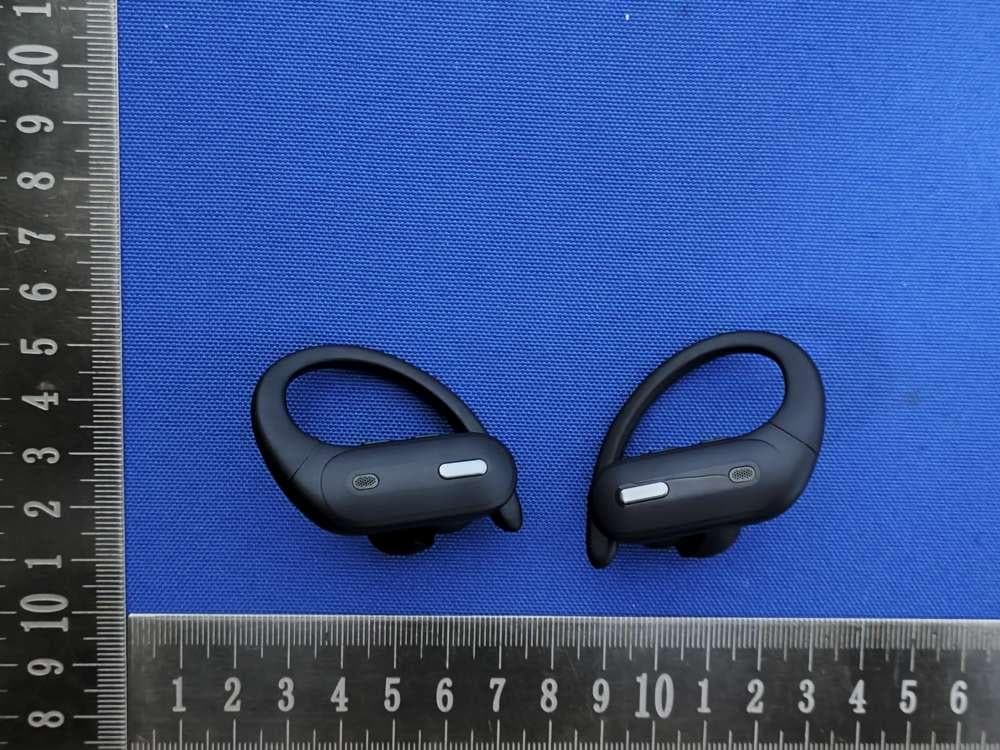

Report No: DSP26060488-1E FCC ID: 2BRLM-X19 Annex A. EUT External Photos Model: X19 EUT View 1 EUT View 2 Report No: DSP26060488-1E FCC ID: 2BRLM-X19 EUT View 3 EUT View 4 Report No: DSP26060488-1E FCC ID: 2BRLM-X19 EUT View 5 EUT View 6 Report No: DSP26060488-1E FCC ID: 2BRLM-X19 EUT View 7

Report No: DSP26060488-1E FCC ID: 2BRLM-X19 Annex D. Label and Information FCC Label Sample FCC Labe Size: 0.5cm x 0.5cm FCC Label Specifications Text is Black in color and is justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Where the EUT is constructed in two or more sections connected by wires and marketed together, the above statement is required to be affixed only to the main control unit. When the EUT is so small or for such use that it is not practicable to place the statement on it, the above information shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. FCC Label Location Label Location

Report No: DSP26060488-1E FCC ID: 2BRLM-X19 Annex B. EUT Internal Photos EUT Internal View 1 EUT View 2 SMD ANT1 SMD ANT1 Report No: DSP26060488-1E FCC ID: 2BRLM-X19 EUT View 3 EUT View 4 Report No: DSP26060488-1E FCC ID: 2BRLM-X19 EUT View 5

FCC ID: 2BRLM-X19 RF Exposure Evaluation According to KDB 447498 D01 General RF Exposure Guidance v06 and part 2.1093，Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition(s), listed below, is (are) satisfied. For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Here, The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. For BR+EDR Max Conducted Power(dBm) Tune-up Power(dBm) Max Tune-up Power(dBm) Max Power(mW) Frequency(MHz) Min. distance(mm) Calc. thresholds limit 6.11 6(±1) 7 5.01 2402 5 1.552938 3.0 So a SAR test is not required

2.4GHz2012ChipAntenna:RANT2012F245C07 Dimension(mm) L2.05+-0.10 W1.20+-0.10 T0.65+-0.10 No.TerminalName 1Feeding/GNG 2GND Application: WLAN,802.11b/g,Bluetooth,WLAN,etc... Features SMD,highreliability,ultraImpact,Omni-directional... PartnumberInformation RANT2012F245C07 (A)(B)(C)(D)(E)(F) (A)ProductTypeChipAntenna (B)SizeCode2.0x1.2mm(+-0.2mm) (C)MaterialHighKmaterial (D)Frequency2.4~2.5GHz (E)FeedingmodePIFA&SingleFeeding (F)AntennatypeType=07 ElectricalSpecification WorkingFrequencyRange2400~2484MHz Bandwidth84(Min.) PeakGain2.7 dBi (Typ.) Impedance50Ohm Returnloss10dB(Min) PolarizationLinear AzimuthBeamwidthOmni-directional OperationTemperature( °C )-40~85 °C ResistancetoSolderingHeats 10sec.(@280°C) TerminationNi/Au(Leadless) ThespecificationisdefinedonEVB. DimensionandTerminalConfiguration 咏成國際科技有限公司電話:13530576606 RAINInternationalTechnologyCo.,Ltd. 7/F,BuildingF,ZhichuangPark,Tong'an,Gushu,Shenzhen 2.4GHz2012ChipAntenna:RANT2012F245C07 EvaluationBoardReference PCBDimensionAntennaLayoutReferenceUnit:mm ElectricalCharacteristics ReturnLoss ReturnLoss&Radiation 1 Frequency(MHz) S11(dB) 2400-10.77 2450-24.81 2484-10.243 Radiation Z Y X 2400MHz2450MHz2500MHz Efficiency70.56%75.25%71.01% 2.4GHz2012ChipAntenna:RANT2012F245C07 TapingSpecifications ReelandTapingSpecification ReelSpecification TYPESIZEABCD 20127”5K/Reel 9.0±0.5 60±213.5±0.5178±2 TappingSpecification PackagingTypeABWEFGHTDP PaperType2012 1.50±0.202.30±0.208.0±0.201.75±0.103.5±0.054.0±0.102.0±0.050.75±0.101.57±0.104.0±0.1 2.4GHz2012ChipAntenna:RANT2012F245C07 ReliabilityTable TestItemProcedure Requirements CeramicType Remark (Reference) Electrical Characterization Fulfilltheelectrical specification UserSpec. Thermal Shock 1.Preconditioning: 50±10°C/1hr,thenkeepfor24±1hrsatroomtemp. 2.Initialmeasure:Spec:referInitialspec. 3.Rapidchangeoftemperaturetest: -30°Cto+85°C;100cycles; 15minutesatLowercategorytemperature; 15minutesatUppercategorytemperature. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 107 Temperature Cycling 1.Initialmeasure:Spec:referInitialspec. 2.100Cycles(-30°Cto+85°C),SoakMode=1(2Cycle/hours). 3.Measurementat24±2Hoursaftertestcondition. NoVisibleDamage. Fulfilltheelectrical specification. JESD22 JA104 HighTemperature Exposure 1.Initialmeasure:Spec:referInitialspec. 2.Unpowered;500hours@T=+85°C. 3.Measurementat24±2hoursaftertest. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 108 LowTemperature Storage 1.Initialmeasure:Spec:referInitialspec. 2.Unpowered:500hours@T=-30°C. 3.Measurementat24±2hoursaftertest. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 108 Solderability (SMDBottomSide) Dippingmethod: a.Temperature:235±5°C b.Dippingtime:3±0.5s Thesoldershouldcover over95%ofthecritical areaofbottomside. IEC60384-21/22 4.10 SolderingHeat Resistance (RSH) Preheatingtemperature:150±10°C. Preheatingtime:1~2min. Soldertemperature:260±5°C. Dippingtime:5±0.5s NoVisibleDamage.IEC60384-21/22 4.10 Vibration5g'sfor20min.,12cycleseachof3orientations Note:Use8"X5"PCB.031"thick7securepointson,onelong sideand2securepointsatcornersofoppositesides.Parts mountedwithin2"fromanysecurepoint.Testfrom10-2000 Hz. NoVisibleDamage.MIL-STD-202 Method204 Mechanical Shock Threeshocksineachdirectionshallbeappliedalongthethree mutuallyperpendicularaxesofthetestspecimen(18shocks) Peakvalue:1,500g’s Duration:0.5ms Velocitychange:15.4ft/s Waveform:Half-sine NoVisibleDamage.MIL-STD-202 Method213 Humidity Bias 1.Humidity:85%R.H.,Temperature:85±2°C. 2.Time:500±24hours. 3.Measurementat24±2hrsaftertestcondition. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 Method106 2.4GHz2012ChipAntenna:RANT2012F245C07 2.4GHz2012ChipAntenna:RANT2012F245C07 _ Board Flex (SMD) 1.Mountingmethod: IR-Reflow.PCBSize(L:100×W:40×T:1.6mm) 2.Applytheloadindirectionofthearrowuntilbendingreaches 2mm. NoVisibleDamage.AEC-Q200 005 AdhesionForceof1.8Kgfor60seconds.NoVisibleDamage Magnificationof20Xor greatermaybeemployed forinspectionofthe mechanicalintegrityofthe devicebodyterminalsand body/terminaljunction. AEC-Q200 006 Physical Dimension Anyapplicablemethodusingx10magnification,micrometers, calipers,gauges,contourprojectors,orothermeasuring equipment,capableofdeterminingtheactualspecimen dimensions. Inaccordancewith specification. JESD22 JB100 RevisionHistory RevisionDateContent 12020/10/15NewDatasheet

Report No: DSP26060488-1E FCC Test Report Page 1 of 75 FCC TEST REPORT FCC ID: 2BRLM-X19 Report No. : DSP26060488-1E Applicant : DongGuan HeZhong Acoustics Technology Co.,Ltd Product Name : Wireless Sport Earphone Model Name : X19 Test Standard : FCC Part 15.247 Date of Issue : 2026-06-24 Shenzhen CCUT Quality Technology Co., Ltd. 1F, Building 35, Changxing Technology Industrial Park, Yutang Street, Guangming District, Shenzhen, Guangdong, China; (Tel.:+86-755-23406590 website: www.ccuttest.com) This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd. Report No: DSP26060488-1E FCC Test Report Page 2 of 75 Test Report Basic Information Applicant..................................: DongGuan HeZhong Acoustics Technology Co.,Ltd Address of Applicant...............: Room 607-609, Shunhong Building #1, Hengkeng, Liabu Town, DongGuan, GuangDong, China Manufacturer..........................: DongGuan HeZhong Acoustics Technology Co.,Ltd Address of Manufacturer........: Room 607-609, Shunhong Building #1, Hengkeng, Liabu Town, DongGuan, GuangDong, China Product Name.........................: Wireless Sport Earphone Brand Name.............................: - Main Model..............................: X19 Series Models..........................: L1, L2, L3, L4, T26 Test Standard..........................: FCC Part 15 Subpart C ANSI C63.4-2014 ANSI C63.10-2020 + Cor.1-2023 Date of Test .............................: 2026-06-02 to 2026-06-18 Test Result...............................: PASS Tested By ................................: (Colin Chen) Reviewed By............................: (Lorzix Luo) Authorized Signatory............: (Lahm Peng) Note : This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd.. All test data presented in this test report is only applicable to presented test sample. Report No: DSP26060488-1E FCC Test Report Page 3 of 75 CONTENTS 1. General Information ....................................................................................................................................................5 1.1 Product Information .............................................................................................................................................5 1.2 Test Setup Information..........................................................................................................................................6 1.3 Compliance Standards ...........................................................................................................................................7 1.4 Test Facilities ........................................................................................................................................................7 1.5 List of Measurement Instruments ..........................................................................................................................8 1.6 Measurement Uncertainty .....................................................................................................................................9 2. Summary of Test Results ........................................................................................................................................... 10 3. Antenna Requirement ............................................................................................................................................... 11 3.1 Standard and Limit.............................................................................................................................................. 11 3.2 Test Result .......................................................................................................................................................... 11 4. Conducted Emissions ................................................................................................................................................ 12 4.1 Standard and Limit.............................................................................................................................................. 12 4.2 Test Procedure.................................................................................................................................................... 12 4.3 Test Data and Results .......................................................................................................................................... 13 5. Radiated Emissions ................................................................................................................................................... 16 5.1 Standard and Limit.............................................................................................................................................. 16 5.2 Test Procedure.................................................................................................................................................... 16 5.3 Test Data and Results .......................................................................................................................................... 18 6. Band-edge Emissions(Radiated) ............................................................................................................................... 22 6.1 Standard and Limit.............................................................................................................................................. 22 6.2 Test Procedure.................................................................................................................................................... 22 6.3 Test Data and Results .......................................................................................................................................... 22 7. F…

Text truncated - open the document above for the full version.

Report No: DSP26060488-1E FCC ID: 2BRLM-X19 Annex C. Test Photos Conducted Emission Test View 1 Radiated Emission Test View Below 1GHz (Left earphone) Report No: DSP26060488-1E FCC ID: 2BRLM-X19 Radiated Emission Test View Above 1GHz (Left earphone)
