2BRNI-21SL03Wireless Bluetooth temperature sensor

Connecting the wireless tempera- ture probe APP interface introduction Custom temperaturetimer Custom temperature and duration settings can be set according to your needs in the "COOKING DANCE" APP Click the cooking icon in the APP to select different Cooking modes 2 2 Food temperatureRemaining time connected 00�0027.0 °C Food temperatureRemaining time Connecting Download"COOKING DANCE"APP first, open the APP and connect the Bluetooth. Status light is green, Can be connected status Status light is blue, connection successful power button status light Press the power button for more than 3 seconds. The status light flashes white for 1 second. The same goes for turning off. The probe will automatical- ly switch off if disconnected for one hour. After the connection is successful, place the probe in the temperature measurement position and select cooking on the APP to start temperature measurement. power button status light Turn the battery cover of the wireless temperature sensor counter clockwise. Remove the installed battery case and installa new battery as shown in the image. Turn the detached battery cover back clockwise to install it. When the status light flashes red and green or red and blue, please replace the battery. A short press of the button will cancel the red light alarm. Product composi- tion and name Things to check before requesting service Before cleaning, the following precautions you must know LR44 Batteries purchased separately Battery specifica- tion information: LR44-2 pcs Inserting / ex- changing batteries ● After use, the probe still has residual heat, leave it to cool down before cleaning. ● Do not wash it in a dishwasher. ● Be careful not to let water get into the handheld part. ● Never use benzene,thin- ner, abrasives,corrosive detergents, or metal scrubbers. ● Use a rag for cleaning, do not use wire balls, wire brushes or other sharp tools. If dirt is difficult to remove, soak the probe part in warm water. Status light is off ● Power off the Wireless thermometer probe. Clean the probe part with tapwater or general dishwashing liquid, and avoid water getting into the handheld part. How to clean a Wireless thermom- eter probe part Wipe the probe part and the handheld part with a dry rag. Keep phone and the probe within 1m. ● Check if the Bluetooth is abnormal. ● Replace new batteries. ● Check that the batteries are correctly assembled. ● battery cover probe part temperature sensor fixture 反面 1 1 1 2 3 3 Store in a ventilated, dry place out of reach of children. 4 Before use, the following precautions you must know Compatible battery model: LR44 Number of batteries: 2 PCS Please read this instruction manual before use and keep it for proper use. Please search the keyword “COOKING DANCE” in App store or Google Play, or scan the following QR code with your phone. Applicable to ios9.0 or above and Android 5.0 or above. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifica- tions not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interfer- ence in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. Wireless Thermometer Probe Instruction Manual 正面 Download the APP Google Play App Store Product specifications Precautions FCC Caution Please use it at least 30 cm away from the installation site of the artificial pacemaker. ● The product is sharp, please take care to avoid injury. ● ● If the product is damaged or abnormal- ities occur, stop using it. ● This product has stainless steel material, and the handheld position has precision instruments, can not be used in microwave ovens, ovens, air fryers, barbecue ovens and other confined spaces. ● Do not modify, disassemble, or repair the product arbitrarily. ● Keep out of reach of children. Model Name Product name Wireless Thermometer Probe AW-R80 3V/65uA 0.000195W 0°C-300°C (±0.5°C) Input power consump- tion Accuracy range Input voltage / current ● ●

(Zhongshan Yingda Xin Electric Co., LTD) (2025/9/17) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2BRNI-21SL03) [Zhongshan Yingda Xin Electric Co., LTD] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, the equipment does not utilize cyber-security or anti-virus software from Kaspersky Lab, Inc, or any of its successors and assignees, which is also on the “covered list”. Sincerely, (Applicant signature) (Applicant printed name) Ming mei (Zhongshan Yingda Xin Electric Co., LTD) (2025/9/17) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID: 2BRNI-21SL03) [Zhongshan Yingda Xin Electric Co., LTD] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Ming mei

Zhongshan Yingda Xin Electric Co., LTD 2025/9/17 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : Ming mei / Manager Contact information / address: A1 Building 1 Floor 3 Card, Jinsan Road East 45, Sanjiao Town, Zhongshan City, Guangdong, China

Zhongshan Yingda Xin Electric Co., LTD 2025/9/17 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: Wireless Bluetooth temperature sensor Trademark: GIONIEN SINGLEHOMIE SAMVOM MODEL: JXBTS-3225-21SL03 FCC ID: 2BRNI-21SL03 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : Ming mei / Manager Contact information / address: A1 Building 1 Floor 3 Card, Jinsan Road East 45, Sanjiao Town, Zhongshan City, Guangdong, China

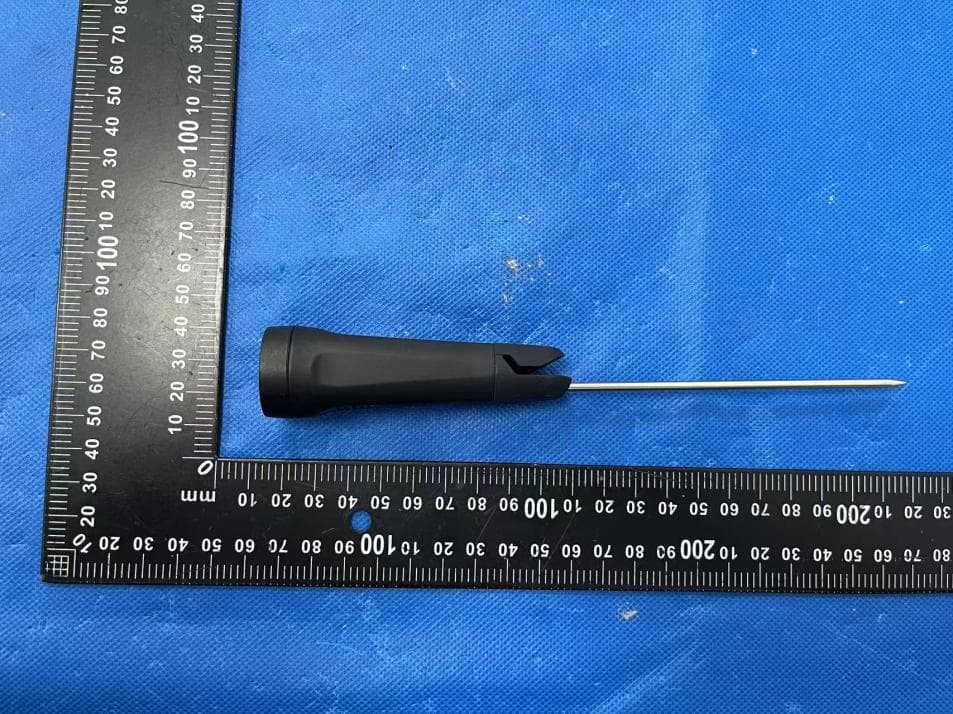

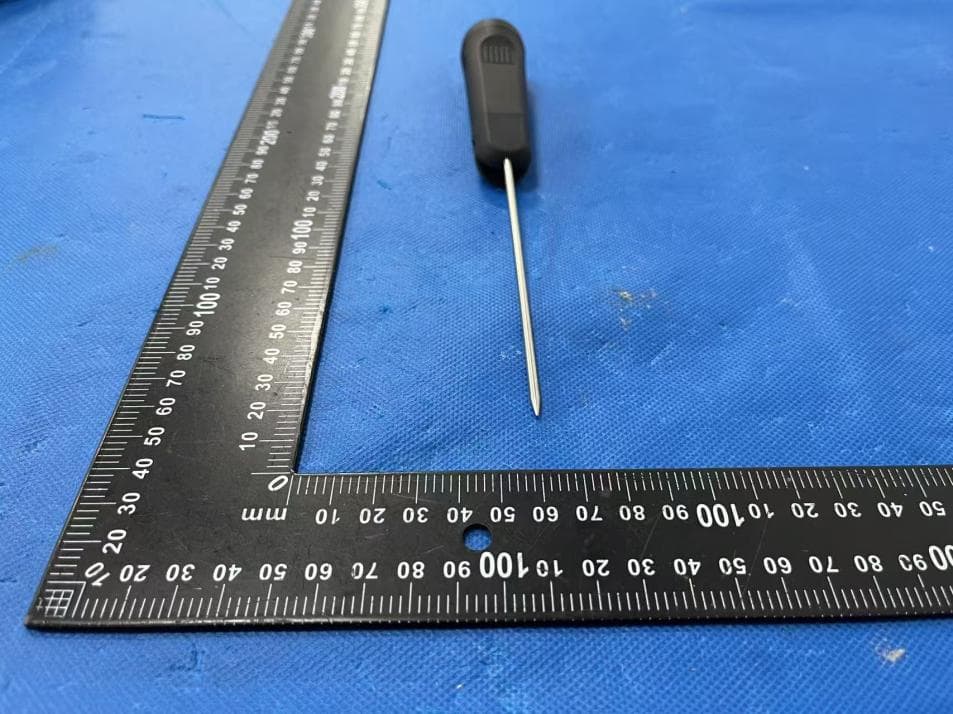

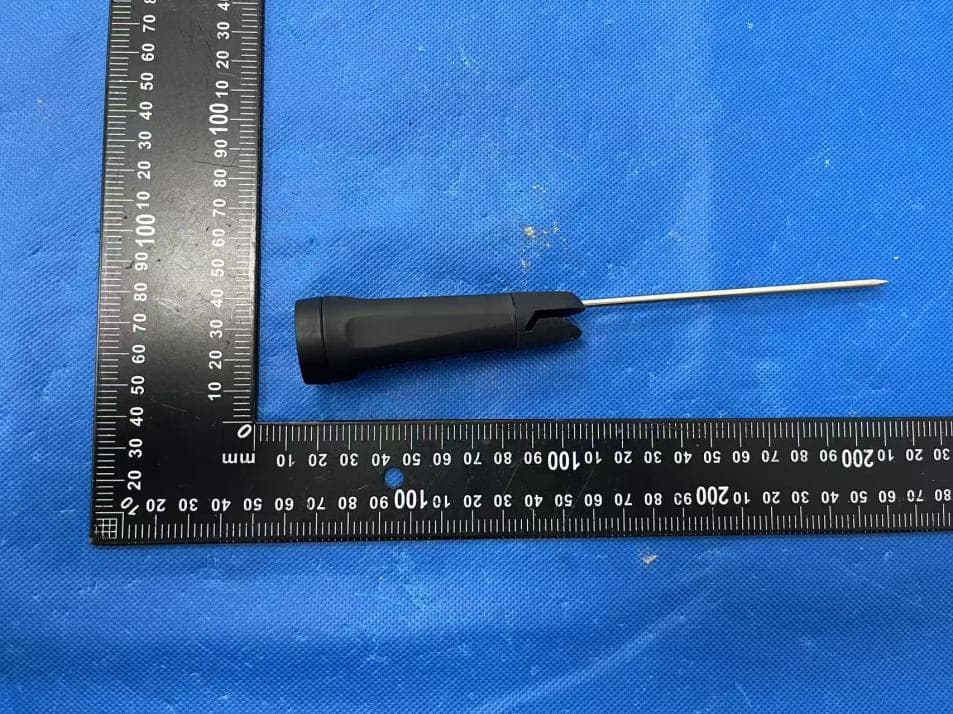

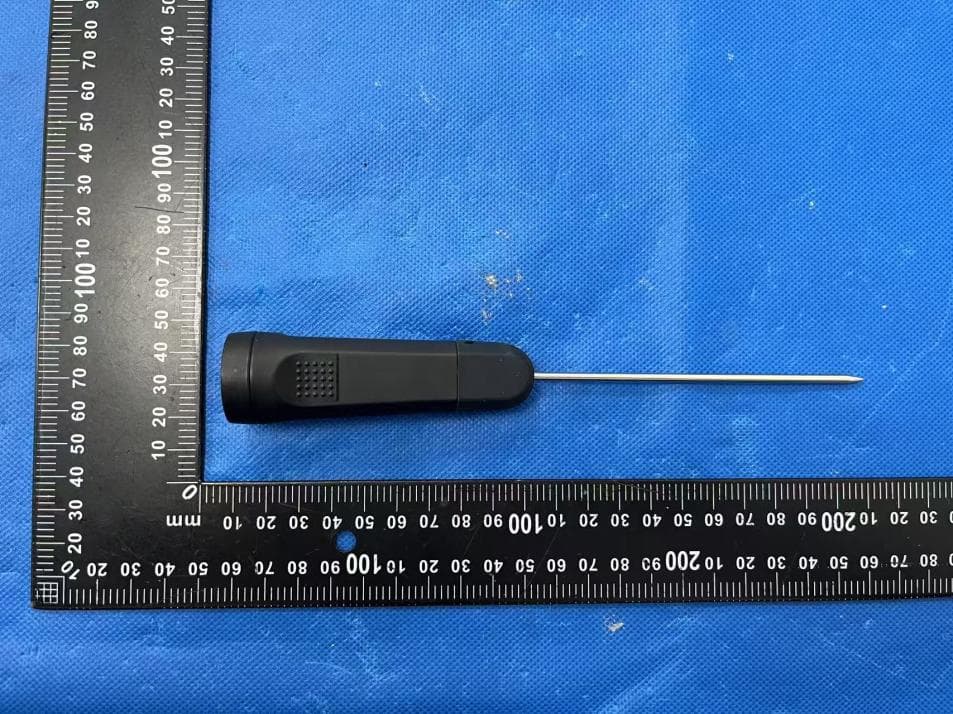

Report No.: BCTC2508400891E External Photos Report No.: BCTC2508400891E Report No.: BCTC2508400891E Report No.: BCTC2508400891E

Label & label location Location: Label: FCC ID: 2BRNI-21SL03

Report No.: BCTC2508400891E Internal Photos Report No.: BCTC2508400891E Report No.: BCTC2508400891E Antenna

RF EXPOSURE EVALUATION METHOD FCC ID: 2BRNI-21SL03 Applicable standard： In accordance with FCC 47 CFR part 2 (2.1093) this device has been defined as a portable device which is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable devices must be evaluated using the specified in FCC 47 CFR part 2 (2.1093) and ANSI/IEEEC95.1-1992. and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528-2003. Per FCC KDB 447498 D01 v06, the 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances s 50 mm are determined by: SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. BLE Mode Frequency(MHz) Maximum Conducted Output Power(PK) (dBm) GFSK 2402 -3.75 2440 -5.06 2480 -6.67 max possible output power (PK, conducted)：-3±1dBm -2dBm=0.63mW 2402MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 0.63/5*√2.402=0.195≤3.0 2440MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 0.63/5*√2.440=0.197≤3.0 2480MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 0.63/5*√2.48=0.198≤3.0 Conclusion: 1. [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] < 3.0. 2. SAR Test Exclusion Thresholds is 3.0 for separation distance 5mm. Therefore, SAR test is not required.

致力于为客户提供专业级天线解决方案 Antenna Gain Report Model：S29-ANT Date: 2024-08-06 Antenna Description: Ceramic Antenna, 0.95dBi(Max.) Manufacturer: Shenzhen KUKI Elect Co., Ltd. Address: No.1, Shichang Road,Xingiao Community, Xingiao ub-District, Baoan District, Shenzhen Antenna Size Testing environment 致力于为客户提供专业级天线解决方案 Bluetooth Antenna Freq(Mhz )Effi(%)Gain （dbi ） 2400MHZ26.80.65 2410MHZ27.90.49 2420MHZ29.60.57 2430MHZ30.40.77 2440MHZ32.60.69 2450MHZ33.40.85 2460MHZ35.10.95 2470MHZ32.10.58 2480MHZ30.20.65 2490MHZ29.80.49 2500MHZ28.40.54 致力于为客户提供专业级天线解决方案 Bluetooth Antenna

No.：BCTC/RF-ICT-005 Page: 1 of 40 Edition：C.0 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2508400891E Applicant: Zhongshan Yingda Xin Electric Co., LTD Product Name: Wireless Bluetooth temperature sensor Test Model: JXBTS-3225-21SL03 Tested Date: 2025-08-13 to 2025-08-25 Issued Date: 2025-08-25 Report No.: BCTC2508400891E No.：BCTC/RF-ICT-005 Page: 2 of 40 Edition：C.0 FCC ID: 2BRNI-21SL03 The test report is effective only with both signature and specialized stamp.This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full.The tested sample(s) and the sample information are provided by the client. Product Name: Wireless Bluetooth temperature sensor Trademark: GIONIEN SINGLEHOMIE SAMVOM Model/Type Reference: JXBTS-3225-21SL03 Prepared For: Zhongshan Yingda Xin Electric Co., LTD Address: A1 Building 1 Floor 3 Card, Jinsan Road East 45, Sanjiao Town, Zhongshan City, Guangdong, China Manufacturer: SHENZHEN KUKI ELECT.CO.,LTD Address: No 1 Furong 7th Road and No.6 Shichang Road, Xinqiao Sub-District Baoan District, Shenzhen Guangdong Province China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2025-08-13 Sample Tested Date: 2025-08-13 to 2025-08-25 Issue Date: 2025-08-25 Report No.: BCTC2508400891E Test Standards: FCC Part15.247 ANSI C63.10:2013 Test Results: PASS Remark: This is Bluetooth BLE radio test report. Tested by: Approved by: Shanshan. Zhang / Project Handler Zero Zhou/Reviewer Report No.: BCTC2508400891E No.：BCTC/RF-ICT-005 Page: 3 of 40 Edition：C.0 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 9 4.3 Support Equipment ............................................................................................... 9 4.4 Channel List ........................................................................................................ 10 4.5 Test Mode ........................................................................................................... 10 4.6 Table of parameters of text software setting ....................................................... 10 5. Test Facility And Test Instrument Used ............................................................... 11 5.1 Test Facility ......................................................................................................... 11 5.2 Test Instrument Used .......................................................................................... 11 6. Conducted Emissions .......................................................................................... 13 6.1 Block Diagram Of Test Setup .............................................................................. 13 6.2 Limit .................................................................................................................... 13 6.3 Test procedure .................................................................................................... 13 6.4 EUT Operating Conditions .................................................................................. 13 6.5 Test Result .......................................................................................................... 13 7. Radiated Emissions ............................................................................................. 14 7.1 Block Diagram Of Test Setup .............................................................................. 14 7.2 Limit .................................................................................................................... 15 7.3 Test procedure .................................................................................................... 16 7.4 EUT operating Conditions ................................................................................... 17 7.5 Test Result .......................................................................................................... 17 8. Radiated Band Emission Measurement And Restricted Bands Of Operation ..... 21 8.1 Block Diagram Of Test Setup .............................................................................. 21 8.2 Limit .................................................................................................................... 21 8.3 Test Procedure ................................................................................................... 22 8.4 EUT Operating Conditions .................................................................................. 22 8.5 Test Result .......................................................................................................... 23 9. Power Spectral Density Test ............................................................................... 24 9.1 Block Diagram Of Test Setup .............................................................................. 24 9.2 Limit .................................................................................................................... 24 9.3 Test procedure ....................................................................................................…

Text truncated - open the document above for the full version.

Report No.: BCTC2508400891E Radiated Measurement Photos
