说明书要求： 装订方式 （Binding way） 纸张颜色 （File paper） 纸张厚度 （File p aper thickness） 文件纸张 （File paper） 文件尺寸 （File size） 文件覆膜 （File film） 文件页码 （File page） 其余备注 （Remaining notes） 文件色号 （File color） 修改日期 （File update date） 文件名称 （File name） 所属公司 （Affiliates） 文件编码 （File NO.） 常州诺米电子科技有限公司 T92英文中性说明书 2022-4-14 黑白印刷 不覆膜 共9页 5.07.003.0286 80×105mm 铜版纸 105g 白色 折页 默认尺寸公差±2mm（对比电子文件） -1--2--3--4- Version：T92 20 21011 3 3D LASER LEVEL Manual in English ① ④ ② ⑥ ③ ⑤ 360 °horizontal beam 360 °vertical beam Lock the key Function button Type-c charging port 1/4” mounting threaded hole Contents Congratulations! You have chosen one of our laser level that’s guaranteed reliable and tough for professional tool users at various job sites. • SAFETY • SPECIFICATION • PRODUCT OVERVIEW • OPERATING • MAINTENANCE • WARRANTY SAFETY • Read the Safety Instructions and Manual thoroughly before using this product. All users must fully understand and adhere to these instructions. • While the product is in operation, be careful not to expose your eyes to the emitting laser beam (red light source). Exposure to a laser beam for an extended time may be hazard- ous to your eyes. • Do not stare directly into the beam or view directly with optical instruments or set up the laser at eye level. • Do not disassemble the laser tool. There are no user serviceable parts inside. • Do not modify the laser in any way. Modifying the tool may result in hazardous Laser Radiation Exposure. • Do not operate the laser around children or allow children to operate the laser. • An exposure to the beam of a Class 2 laser is considered safe for a maximum of 0.25 seconds. Eyelid reflexes will normally provide adequate protection. SPECIFICATION Laser Class Laser Wavelength Leveling Accuracy Leveling/Compensation Range Working Distance (Line) Operating Time Power Source IP Rating Operation Temperature Range Storage Temperature Range Class II 505~550nm for Green beam ±1.5mm/5m 4°±1° 30m for Green beam First gearabout 6 Hours Second gear: about 9 Hours Third gearabout 15 Hours Forth gearabout 30 Hours 3.7V 4000mAh lithium battery IP54 -10°C～＋50°C -25°C～＋70°C PRODUCT OVERVIEW ⑧ ⑦ Power indicator Battery indicator Remote contr ol description Storage Temperature Range Size Voltage Static current Modulation mode Frequency -2060 30*33*10mm 6V 0 Amplitude modulation 433.92MHz Battery model Storage humidity Endurance test requirements Working current Launch distance Frequency offset CR2016*2PCS 85%25 10W Times ≤12mA 8-10mOpen environment 0.25MHz Keep the lock switch at ‘ ’ position during moving the laser level or storage it. -6--5--7--8--9- When the lock switch slides to the ‘ ’ position, the machine unlocks and lights up all laser lines (1 horizontal laser line and 2 vertical laser lines): 1) Blue (V1) button: controls the vertical laser line at the front of the instrument. 2) Green (H1) button: controls the horizontal laser line of the instrument. 3) Yellow (V2) button: controls the vertical laser line on the side of the instrument. 4) Red power key: when the lock switch slides to the ‘ ’ state, long press the power key to control the power on / of f of the instrument, and short press the power key to switch the light brightness. 2.Locked mode: When the lock switch is set to ‘ ’ , press the power key for a long time, all the laser lines are on, flashing every 5 seconds, and the indicator light is red. In this case, you can tilt the level at will. Press the power button for a long time and turn of f the laser level meter. 3.Energy saving mode: In self-leveling mode and locked mode, short press the power button, the light brightness can be adjusted, the brightness is divided into 4 grades, press the key cycle. 4.Pulse mode: In the self-leveling mode, press the power key for a long time to enter the pulse mode, the indicator light will keep flashing, and the energy saving mode is not valid in this mode. Note: the power indicator is 4 green LED lights, the less the indicator light is, the smaller the power is. When a LED light flashes, it means the battery is weak and should be recharged in time. 1.Self-leveling mode When the lock switch slides to the ‘ ’ position, the machine unlocks and lights up all the laser lines, the machine will automatically level out and the indicator light is green. (if the indicator light is red and the laser flashes frequently, indicating that the light is not horizontal or vertical, place the laser horizontally in a flatter place, as the automatic leveling range is about 4 °.). At this time, according to the actual demand, three laser lines SPECIFICATION V1 button: controls the vertical laser line at the front of the instrument (Blue ring). Key: control the brightness of the light, 4-step adjustment. H button: controls the horizontal laser line of the instrument (Green ring). V2 button: controls the vertical laser line on the side of the instrument (Yellow ring) OPERATING It is very important! can be controlled by blue (V1) key, green (H1) key and yellow (V2) key. Put the lock switch in the ‘ ’ position and turn of f the laser level meter. MAINTENANCEWARRANTY • The laser tool is sealed and calibrated at the plant to the accuracy specified. • It’ s recommended to carry out a accuracy check before its first use and periodic checks during future use especially for precise layouts. • Do not short any battery terminals or charge alkaline batteries or dispose of batteries in fire. • Do not mix old and new batteries. Replace all of them at the same time with new batteries of the same brand and type. • Keep batteries out of reach of children. • Remove batteries if the tool will not be used for several months. • Do not store the laser tool in direct sunlight or expose it to high temperatures. The housing and some internal parts are made of plastics and may become deformed at high temperatures. • Exterior plastic parts may be cleaned with a damp cloth. Although these parts are solvent resistant, NEVER use solvents. Use a soft, dry cloth to remove moistur…

Text truncated - open the document above for the full version.

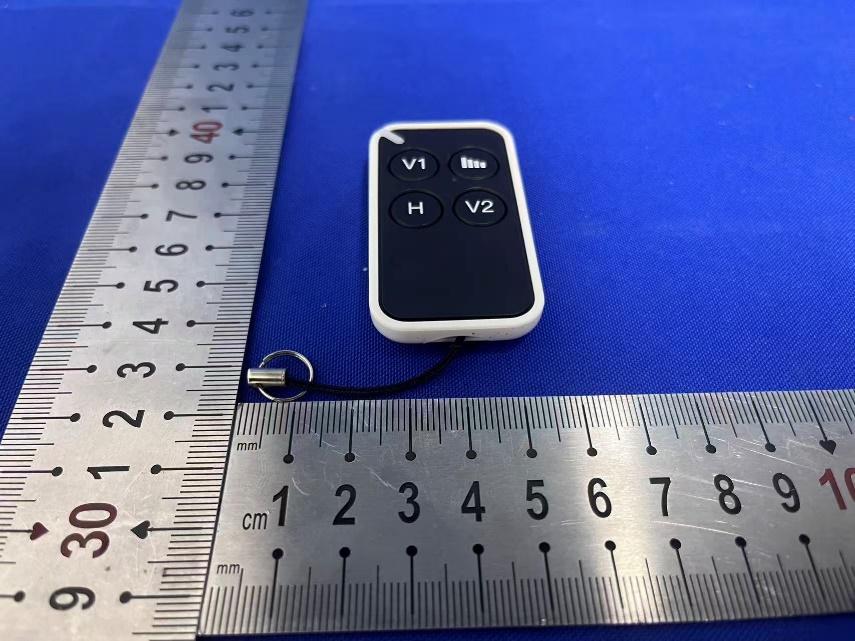

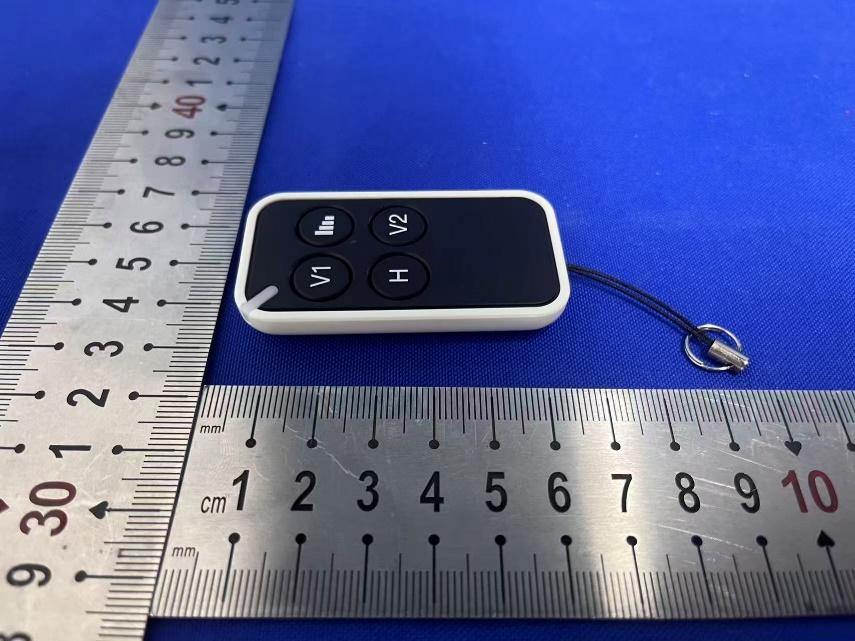

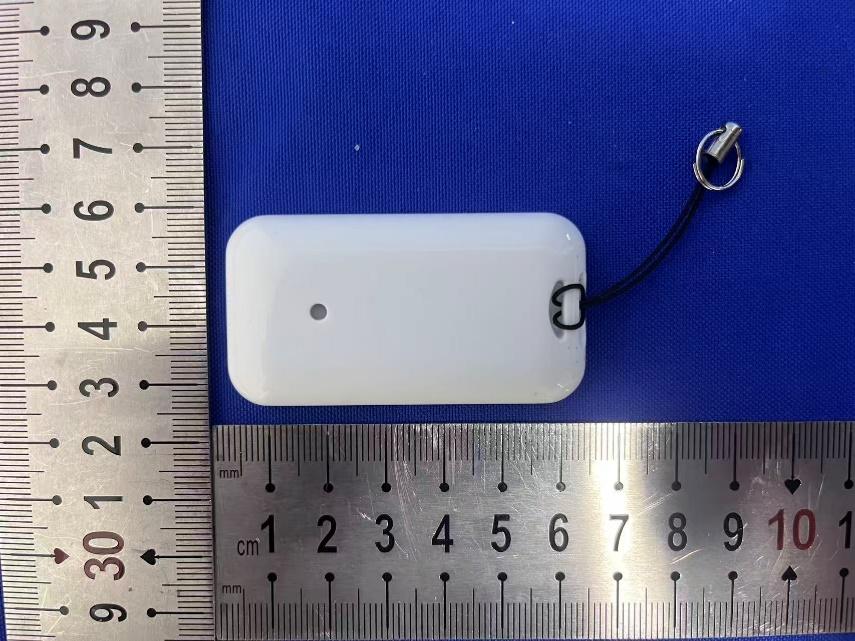

Page 1 of 3 FCC ID: 2BRPW-T92 External photos Page 2 of 3 FCC ID: 2BRPW-T92 Page 3 of 3 FCC ID: 2BRPW-T92
