2BRSYDM156IA-00001LAi Intelligent Cloud Photo Frame

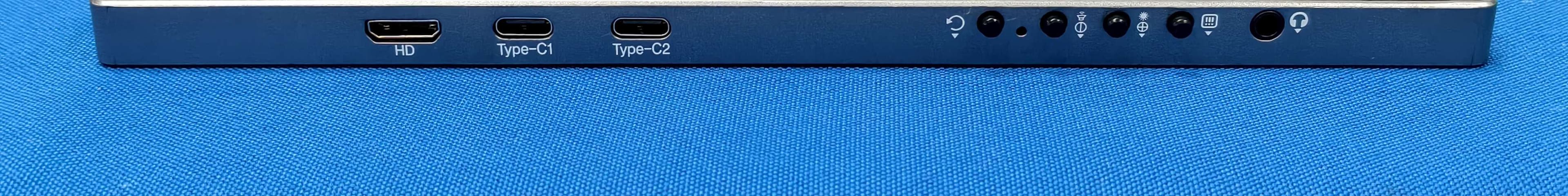

Ai Intelligent Cloud Photo Frame Chapter One: Product Overview Overview: Connection Method One: Wireless Connection Suitable for Apple phones. 1. Swipe down to open the screen mirroring feature. 2. Select the device you want to connect to. 3. Tap DISP - 6C4297. 4. Enter the password: 1234. Suitable for Android phones Swipe down to enable screen mirroring. Select the device you want to connect to. Tap DISP - 6C4297. For Windows: 1. Press the 'Windows key' + 'K key'. 2. Click. DISP - 6C4297 ※Connection method two: HDMI connection, please briefly press the power button to switch.  The HYF-M5-V1.0 mainboard is a dedicated board designed by our company for mobile screen projection applications, featuring a high-performance 32-bit RISC CPU, efficient DDR3 memory access system, and a powerful video decoding and display multimedia processing system. Additionally, it provides a range of peripheral interfaces at the board level, such as Type-C power ports, Type-C USB, HDMI IN input interfaces, and other general-purpose external interfaces. The HYF-M5-V1.0 is suitable for multiple niche markets and can meet various decoding and display application needs. This solution offers advantages such as fast boot-up speed, low power consumption, low cost, rich hardware interfaces, and stable performance. It supports LCD displays with resolutions ranging from 800x600 to 1920x1080 and different display sizes, including LVDS dual 8-bit and EDP display interfaces. Key functional features:  Supports EDP/LVDS interface displays  FI 2.4G + 5G dual-band Wi-Fi connection and data transfer  Wired and wireless screen mirroring for 99% of Apple and Android phones  Supports wired and wireless screen mirroring for 99% of Apple phones  Wireless screen mirroring for Windows PCs, Macs (Apple system computers) without a wired connection  System: Windows PCs, Macs (Apple system computers), Android devices, HDMI IN input  Motherboard image  Auto-rotation  One-click original/equal-scale display, one-click switching Basic specifications： CPU 1.0GHz DRAM max.256MB ext. 1333Mbps Internal storage flash memory SPI Flash 8M Display interface LVDS, EDP interface, supports maximum resolution up to 1920x1080p@60fps Built-in backlight LED backlight Video Decoder Multi-format @ FHD 60FPS Wi-Fi frequency band 2.4G Wi-Fi Language support Supports multiple languages Screen projection system compatibility Android, iOS, Windows Type-C interface Type-C power port Type-C interface Type-C USB interface HDMI IN interface HDMI IN interface Button interface Supports 4 control buttons Speaker interface: 1 set of 3W x 2 stereo dual speakers Software upgrade Supports software upgrades via USB Power input Input: DC5V 3A. Definition of motherboard interface pin Speaker interface (4-pin, 1.25mm pitch) serial numbe define property describe １ L- output Left channel output positive terminal ２ L+ output Left channel output negative 3 R- output Right channel output positive terminal 4 R+ output Right channel output negative terminal  LVDS display interface (30-pin, 1.0 mm pitch) serial numbe definition property describe 1 LCD_VCC power supply +3.3V/5V/12V 2 LCD_VCC power supply” +3.3V/5V/12V 3 LCD_VCC power supply” +3.3V/5V/12V 4 GND power supply” power supply 5 GND power supply” power supply 6 GND power supply” power supply 7 RXO0- power supply” power supply 8 RXO0+ power supply” data 9 RXO1- power supply” data 10 RXO1+ power supply” data 11 RXO2- power supply” data 12 RXO2+ power supply” data 13 GND power supply” power supply 14 GND power supply” power supply 15 RXEC- power supply” clock 16 RXEC+ power supply” clock 17 RXO3- power supply” data 18 RXO3+ power supply” data 19 RXE0- power supply” power supply 20 RXE0+ power supply” data 21 RXE1- power supply” data 22 RXE1+ output data 23 RXE2- output” data 24 RXE2+ output” data 25 GND power supply power supply 26 GND power supply power supply 27 RXEC- output” data 28 RXEC+ output” data 29 RXE3- output” data 30 RXE3+ output” data  LVDS display backlight interface (6-pin, 1.25 mm pitch) serial numbe definition property describe 1 +12V input Power supply output or input 2 +12V input Power supply output or input 3 EN output Control the display screen backlight on and off. 4 ADJ output Adjust the display backlight brightness. 5 GND power supply power supply 6 GND power supply power supply  EDP display interface (30-pin, 0.5 pitch) serial numbe definition property describe 1 NC NC NC 2 H_GND power supply power supply 3 LANE1_N output data 4 LANE1_P output data 5 GND power supply power supply 6 LANE0_N output data 7 LANE0_P output data 8 GND power supply power supply 9 AUX_CH_P output data 10 AUX_CH_N output data 11 GND power supply power supply 12 LCD_VCC power supply 3.3v 13 LCD_VCC power supply 3.3v 14 NC NC NC 15 H_GND power supply power supply 16 H_GND power supply power supply 17 HPD output data 18 BL_GND power supply power supply 19 BL_GND power supply power supply 20 BL_GND power supply power supply 21 BL_GND power supply power supply 22 BL_ENABLE output Control the display screen backlight on and off 23 BL_PWM output Adjust the display backlight brightness. 24 NC NC NC 25 NC NC NC 26 BL_POWER input Power supply output or input 27 BL_POWER input Power supply output or input 28 BL_POWER input Power supply output or input 29 BL_POWER input Power supply output or input 30 NC NC NC  Button interface (10-pin, 0.5 pitch) serial numbe definition property describe 1 GND power supply power supply 2 AL output Output left channel 3 AR output Output right channel 4 GND power supply power supply 5 HP-DET power supply Headphone, speaker detection pin 6 Volume Up / Backlight Down / Full Screen / Auto Rotate On / Language / Chinese 7 Set the foot output data 8 Volume down / Backlight up / Proportional / Auto-rotate off / Language / English output Volume down / Backlight up / Proportional / Auto-rotate off / Language / English 9 Function Switch Foot output data 10 LDE power supply LDE 3.3V Warning Statement This …

Text truncated - open the document above for the full version.

(Shenzhen Damei Microelectronics Co., Ltd) (2025-08-22) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID:2BRSYDM156IA- 00001L) [Shenzhen Damei Microelectronics Co., Ltd] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, the equipment does not utilize cyber-security or anti-virus software from Kaspersky Lab, Inc, or any of its successors and assignees, which is also on the “covered list”. Sincerely, (Applicant signature): (Applicant printed name): SUNHONG WEI (Shenzhen Damei Microelectronics Co., Ltd) (2025-08-22) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID:2BRSYDM156IA- 00001L) [Shenzhen Damei Microelectronics Co., Ltd] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature): (Applicant printed name): SUNHONG WEI

1/1 US Agent for Service of Process LETTER OF ATTESTATION TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 US Agent for Service of Process: Company Name: GLOCERTS TECHNOLOGY INC FRN: 0036339737 Contact Name: Huiying Fan Address: 19784 SUNKISSED RIDGE DR, RIVERSIDE, CA 92507 Telephone: (626) 588-8039 Email: [email protected] This letter is to confirm that the US Agent for Service of Process accepts responsibility to act as a local representative on behalf of Shenzhen Damei Microelectronics Co., Ltd The US Agent for Service of Process is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. Applicant: Company name: Shenzhen Damei Microelectronics Co., Ltd FRN: 0037420502 Grantee code: 2BRSY FCC ID: 2BRSYDM156IA-00001L Contact Name: SUNHONG WEI Address: Room 1101, Changping Business Building, No. 99 Honghua Road, Fubao Community, Futian District, Shenzhen Telephone No: 18129858857 Fax No: 18129858857 Email: [email protected] The Applicant is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. This Agreement is valid until (Permanently valid). Date: 2025/08/22 Applicant’s Name: SUNHONG WEI US Agent for Service of Process’s Name: Title: Manager Title: Director Signature: Signature

Shenzhen Damei Microelectronics Co., Ltd Agent Authorization Letter (2025/08/22) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (MAXLAB Testing Co.,Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature : Client’s name / title : SUNHONG WEI / Manager Contact information / address: Room 1101, Changping Business Building, No. 99 Honghua Road, Fubao Community, Futian District, Shenzhen

Shenzhen Damei Microelectronics Co., Ltd Family models declaration letter. 2025-08-22 We Shenzhen Damei Microelectronics Co., Ltd Of Room 1101, Changping Business Building, No. 99 Honghua Road, Fubao Community, Futian District, Shenzhen Product: Ai Intelligent Cloud Photo Frame Model Name: DM156IA-00001L Serial Model: DM160IA-00002L,DM140IA-00003,DMXXXIA-00004S, DM156IA-00005U,DM270IA-00006,DM156IA-00007V,DM173IA-00008L, DM185IA-00009,DM240IA-00010 We (Shenzhen Damei Microelectronics Co., Ltd) hereby state that all the models are electrical identical including the same software parameter and hardware design (circuit design, PCB Layout, RF module/circuit, antenna type(s) and antenna location, components on PCB), same mechanical structure and design (including product enclosure, materials), the only difference is the model name for trading purpose. Thanks Sincerely, Signature Name: SUNHONG WEI Date: 2025-08-22 Title: Manager

Shenzhen Damei Microelectronics Co., Ltd Long Term Confidentiality Request Letter (2025-08-22) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR(Ai Intelligent Cloud Photo Frame / DM156IA- 00001L, DM160IA-00002L,DM140IA-00003,DMXXXIA-00004S,DM156IA-00005U,DM270IA- 00006,DM156IA-00007V,DM173IA-00008L,DM185IA-00009,DM240IA-00010 / FCC ID:2BRSYDM156IA-00001L) To Whom It May Concern: - This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature : Client’s name / title : SUNHONG WEI / Manager Contact information / address: Room 1101, Changping Business Building, No. 99 Honghua Road, Fubao Community, Futian District, Shenzhen

Label Location

TX ANT

RF Exposure Report FCC ID:2BRSYDM156IA-00001L The EUT is a Ai Intelligent Cloud Photo Frame in the 2412-2462MHz frequency band. According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 f/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 f/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz MPE calculation method Calculation Method of RF Safety Distance: S: power density mW/ cm 2 ; P: power input to the antenna in mW; g: numeric gain of antenna; r: distance to centre of radiation in cm Unit dbuv/m@3m to mW calculation method E=EIRP-20log(d)+104.8 E: is the electric field strength in dBuv/m; EIRP: is the equivalent is otropically radiated power in dBm; d: is the specified measurement distance in m Calculated result Mode Max. Peak output power (dBm) Max. Peak output power (mW) Antenna Gain (numeric) Assessment distance (cm) Power Density (S) (mW/ cm 2 ) Limit of Power Density (S) (mW/ cm 2 ) 802.11b 7.522 5.652 1.986 20 0.002234 1 802.11g 6.058 4.035 1.986 20 0.001595 1 802.11n20 4.890 3.083 1.986 20 0.001219 1 802.11n40 6.948 4.952 1.986 20 0.001958 1 Note1: the antenna gain is 2.98dBi. Note2: Calculated distance is 20cm, which is declared by the manufacture.

深圳市飞敏科技有限公司 ShenZhen City FeiMin Technology CO.,LTD. 产品承认书 SPECIFICATION FOR APPROVED 客户 CUSTOMER: 深圳市三利伟电子科技有限公司 产品名称 PRODUCTS: FPC天线 客户料号 PART NO: 产品型号 Spec.: FM-S2756-投屏器 日期 Data: 2025.7.25 备注：承认盖章后请回复一份承认书（或复印件）给我司，其余由贵公司存档 REMARK:Please send us one(or copy)of this approval with stamp after accepting,other copies filed by the customer. 地址：深圳市宝安区西乡街道固戍社区恒南一路C栋厂房303室 ADD:Room 303,Building C,Hengnan one Road,Gushu community,Xixiang Street,Bao’an District,Shenzhen City 电话Tel: 0755-23035723 传真Fax: 0755-23036702 邮箱E-mail: [email protected] 网址HTTP:www.fmant.cn 客户 CUSTOMER 承认 ACCEPTED BY 审核 CHECKED BY 批准 APPROVED BY 供应商 SUPPLIER 拟制 PREPARED BY 审核 CHECKED BY 批准 APPROVED BY ANTENNA SPECIFICATION 深圳市飞敏科技有限公司 Shenzhen Feimin Technology Co.,Ltd 2 目录 产品承认书 ..................................................................................................................... 1 1. 项目信息Project Information .................................................................................. 4 1.1. 外观尺寸Appearance and Dimensions .......................................................... 4 2. 电气性能 Electrical Characteristics ......................................................................... 5 2.1. 测试环境条件Test Environment Conditions ................................................. 5 2.2. 测示方法Measurement method ..................................................................... 5 2.2.1. 天线电压驻波比Antenna VSWR ............................................................... 5 2.2.2. 天线回波损耗Antenna Return loss ................................................... 6 2.3. 天线无源测试数据 Antenna passive test data ................................. 6 2.3.1. 测试系统Test system ............................................................................... 6 2.3.2天线效率及增益Antenna efficiency and gain .............................. 7 2.3.2. 天线辐射方向图Antenna Radiation Pattern ....................................... 8 3.备注Notes .................................................................................................................... 9 4.产品包装规范Product packaging specification ......................................................... 9 ANTENNA SPECIFICATION 深圳市飞敏科技有限公司 Shenzhen Feimin Technology Co.,Ltd 3 Revision history 版本 日期 状态 A1 2025-7-25 首版 ANTENNA SPECIFICATION 深圳市飞敏科技有限公司 Shenzhen Feimin Technology Co.,Ltd 4 1. 项目信息Project Information 1.1. 外观尺寸Appearance and Dimensions ANTENNA SPECIFICATION 深圳市飞敏科技有限公司 Shenzhen Feimin Technology Co.,Ltd 5 2. 电气性能 Electrical Characteristics 2.1. 测试环境条件Test Environment Conditions 温度Temperature Ordinary Temperature (5 to 35°C) 湿度Humidity Ordinary Humidity (25 to 85% RH) 2.2. 测示方法Measurement method 2.2.1. 天线电压驻波比Antenna VSWR ANTENNA SPECIFICATION 深圳市飞敏科技有限公司 Shenzhen Feimin Technology Co.,Ltd 6 2.2.2. 天线回波损耗Antenna Return loss 2.3. 天线无源测试数据 Antenna passive test data 2.3.1. 测试系统Test system 深圳市飞敏科技有限公司（24探头OTA 微波暗室） ANTENNA SPECIFICATION 深圳市飞敏科技有限公司 Shenzhen Feimin Technology Co.,Ltd 7 2.3.2天线效率及增益Antenna efficiency and gain ANTENNA SPECIFICATION 深圳市飞敏科技有限公司 Shenzhen Feimin Technology Co.,Ltd 8 2.3.2. 天线辐射方向图Antenna Radiation Pattern ANTENNA SPECIFICATION 深圳市飞敏科技有限公司 Shenzhen Feimin Technology Co.,Ltd 9 3.备注Notes 1、安装时注意不能离金属部分太近，以避免影响天线性能。 2、此款天线只适用此机型，天线的位置不可以随意改动，若用于其它机器上导致效果变差，与我司无 关。 3、本承认书所使用数据（如：天线效率、增益等）均为本承认项目/天线在深圳市飞敏科技有限公司 实验室测试所得出数据。 4.产品包装规范Product packaging specification 产品名称:FPC天线 一、标签要求 内标签长7CM，宽4CM左右 外标签长7CM，5CM左右 二、装箱流程 作业说明： 1.产品__PCS用PE开口袋装好，每小袋贴好内标签； 将__小袋装入大PE封口胶带袋中，尾数及备品除外。 2.每箱装__大袋产品，将箱子用胶纸以“工”字形封箱。 3.在箱子的右上角贴上外标签，不可有漏填、填错现象。 三、注意事项 装箱时要注意将天线平整放好，封胶后不可出现严重晃 动情况，未填满整箱的情况需塞入泡棉填充，避免运输 过程中造成产品不良的情况。 客户名称 供 应 商 深圳市飞敏科技有限公司 订单编号 ************* 物料编码 ************* 规格型号 ****** 产品名称 ******* 数 量 *****PCS 检验 备品 ***PCS 备注 供 应 商 深圳市飞敏科技有限公司 产品名称 ****** 物料编码 ************ 规格型号 ********** 数 量 ***PCS 产品

Page 1 of 34 MAXLAB Testing Co.,Ltd. Report No.: MAX25081115P01-R01 FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : MAX25081115P01-R01 FCC ID............................................. : 2BRSYDM156IA-00001L Compiled by ( position+printed name+signature) . : Engineer/ Cindy Zheng Supervised by ( position+printed name+signature) . : Manager/Haley Wen Approved by ( position+printed name+signature) . : RF Manager/ Vivian Jiang Date of issue .................................... : August 14, 2025 Testing Laboratory Name .............. : MAXLAB Testing Co.,Ltd. Address ............................................ : 1/F, Building B, Xinshidai GR Park,Shiyan Street, Bao'an District, Shenzhen,Guangdong, 518052, People’s Republic of China Applicant’s name ............................ : Shenzhen Damei Microelectronics Co., Ltd Address ............................................ : Room 1101, Changping Business Building, No. 99 Honghua Road, Fubao Community, Futian District, Shenzhen Test specification ........................... : Standard ........................................... : FCC Part 15.247 KDB558074 D01 15.247 Meas Guidance v05r02 ANSI C63.10:2020 MAXLAB Testing Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the MAXLAB Testing Co.,Ltd.is acknowledged as copyright owner and source of the material. MAXLAB Testing Co.,Ltd.takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Ai Intelligent Cloud Photo Frame Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Damei Microelectronics Co., Ltd Model/Type reference ...................... : DM156IA-00001L Listed Models .................................. : DM160IA-00002L,DM140IA-00003,DMXXXIA-00004S, DM156IA-00005U,DM270IA-00006,DM156IA-00007V, DM173IA-00008L,DM185IA-00009,DM240IA-00010 Modulation Type ............................... : DSSS/ OFDM Operation Frequency ........................ : From 2412 - 2462MHz Rating ............................................... : DC5V from adapter AC120V/60Hz Result ............................................... : PASS MAXLAB Testing Co.,Ltd. Report No.: MAX25081115P01-R01 Page 2 of 39 TEST REPORT Equipment under Test : Ai Intelligent Cloud Photo Frame Model /Type : DM156IA-00001L Series Model No. DM160IA-00002L,DM140IA-00003,DMXXXIA-00004S, DM156IA-00005U,DM270IA-00006,DM156IA-00007V, DM173IA-00008L,DM185IA-00009,DM240IA-00010 Model Declaration : All models covered in this report are the same with each other, except for different model No. for trading purpose. Applicant : Shenzhen Damei Microelectronics Co., Ltd Address : Room 1101, Changping Business Building, No. 99 Honghua Road, Fubao Community, Futian District, Shenzhen Manufacturer : Shenzhen Damei Microelectronics Co., Ltd Address : Room 1101, Changping Business Building, No. 99 Honghua Road, Fubao Community, Futian District, Shenzhen Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. MAXLAB Testing Co.,Ltd. Report No.: MAX25081115P01-R01 Page 3 of 39 Contents 1 T E S T S T A N D AR D S . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 2 S U M M AR Y . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 2.1 General Remarks .......................................................................................................................................... 5 2.2 Product Description ..................................................................................................................................... 5 2.3 Equipment Under Test ................................................................................................................................. 6 2.4 Short description of the Equipment under Test (EUT) ............................................................................. 6 2.5 EUT operation mode .................................................................................................................................... 7 2.6 Block Diagram of Test Setup ...................................................................................................................... 7 2.7 Related Submittal(s) / Grant (s) ................................................................................................................... 7 2.8 Modifications ................................................................................................................................................ 7 3 T E S T E N V I R O N M E N T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 3.1 Address of the test laboratory .................................................................................................................... 8 3.2 Test Facility ................................................................................................................................................... 8 3.3 Environmental conditions ........................................................................................................................... 8 3.4 Test Description ........................................................................................................................................... 9 3.5 Statement of the measurement uncertainty .............................................................................................. 9 3.6 E…

Text truncated - open the document above for the full version.

MAXLAB Testing Co.,Ltd. Report No.: MAX25081115P01-R01 Page 25 of 39 4.5 6dB Bandwidth Limit For digital modulation systems, the minimum 6 dB bandwidth shall be at least 500 kHz Test Procedure The transmitter output was connected to the spectrum analyzer through an attenuator. The bandwidth of the fundamental frequency was measured by spectrum analyzer with 100 KHz RBW and 300 KHz VBW. The 6dB bandwidth is defined as the total spectrum the power of which is higher than peak power minus 6dB. Test Configuration EUT SPECTRUM ANALYZER Test Results Type Channel 6dB Bandwidth (MHz) Limit (KHz) Result 802.11b 01 9.639 ≥500 Pass 06 8.719 11 7.868 802.11g 01 16.282 ≥500 Pass 06 16.078 11 16.323 802.11n(HT20) 01 16.275 ≥500 Pass 06 16.427 11 16.536 802.11n(HT40) 03 35.098 ≥500 Pass 06 34.424 09 33.159 Note: 1) Measured peak power spectrum density at difference data rate for each mode and recorded worst case for each mode. 2) Test results including cable loss; 3) Worst case data at 1Mbps at IEEE 802.11b; 6Mbps at IEEE 802.11g; 6.5Mbps at IEEE 802.11n HT20; 13.5Mbps at IEEE 802.11n HT40; Please refer to following plots; MAXLAB Testing Co.,Ltd. Report No.: MAX25081115P01-R01 Page 26 of 39 Test Graphs 802.11b 802.11g CH01 CH01 CH06 CH06 CH11 CH11 MAXLAB Testing Co.,Ltd. Report No.: MAX25081115P01-R01 Page 27 of 39 802.11n(HT20) 802.11n(HT40) CH01 CH03 CH06 CH06 CH11 CH09 MAXLAB Testing Co.,Ltd. Report No.: MAX25081115P01-R01 Page 28 of 39 4.6 Out-of-band Emissions Limit In any 100 kHz bandwidth outside the frequency band in which the spread spectrum or digitally modulated intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power, based on either an RF con-ducted or a radiated measurement, pro-vided the transmitter demonstrates compliance with the peak conducted power limits. If the transmitter com-plies with the conducted power limits based on the use of RMS averaging over a time interval, as permitted under paragraph (b)(3) of this section, the attenuation required under this paragraph shall be 30 dB instead of 20 dB. Attenuation below the general limits specified in §15.209(a) is not required. Test Procedure Connect the transmitter output to spectrum analyzer using a low loss RF cable, and set the spectrum analyzer to RBW=100 kHz, VBW= 300 kHz, peak detector , and max hold. Measurements utilizing these setting are made of the in-band reference level, bandedge and out-of-band emissions. Test Configuration EUT SPECTRUM ANALYZER Test Results Remark: The measurement frequency range is from 30MHz to the 10th harmonic of the fundamental frequency. The lowest, middle and highest channels are tested to verify the spurious emissions and bandage measurement data. And record the worst data in the report. Mode Frequency (MHz) Max Value (dBc) Limit (dBc) Verdict b 2412 -32.36 -20 Pass b 2437 -33.39 -20 Pass b 2462 -32.98 -20 Pass g 2412 -28.85 -20 Pass g 2437 -28.71 -20 Pass g 2462 -25.76 -20 Pass n20 2412 -27.66 -20 Pass n20 2437 -27.17 -20 Pass n20 2462 -27.16 -20 Pass n40 2422 -24.29 -20 Pass n40 2437 -24.47 -20 Pass n40 2452 -24.66 -20 Pass Test plot as follows: MAXLAB Testing Co.,Ltd. Report No.: MAX25081115P01-R01 Page 29 of 39 802.11b CH01 CH06 CH11 MAXLAB Testing Co.,Ltd. Report No.: MAX25081115P01-R01 Page 30 of 39 802.11g CH01 CH06 CH11

MAXLAB Testing Co.,Ltd. Report No.: MAX25081115P01-R01 Page 31 of 39 802.11n20 CH01 CH06 CH11 MAXLAB Testing Co.,Ltd. Report No.: MAX25081115P01-R01 Page 32 of 39 802.11n40 CH03 CH06 CH09 MAXLAB Testing Co.,Ltd. Report No.: MAX25081115P01-R01 Page 33 of 39 Band-edge Measurements for RF Conducted Emissions: 802.11b Left bandedge Right bandedge MAXLAB Testing Co.,Ltd. Report No.: MAX25081115P01-R01 Page 34 of 39 802.11g Left bandedge Right bandedge MAXLAB Testing Co.,Ltd. Report No.: MAX25081115P01-R01 Page 35 of 39 802.11n(HT20) Left bandedge Right bandedge MAXLAB Testing Co.,Ltd. Report No.: MAX25081115P01-R01 Page 36 of 39 802.11n(HT40) Left bandedge 802.11n(HT40) Right bandedge MAXLAB Testing Co.,Ltd. Report No.: MAX25081115P01-R01 Page 37 of 39 4.7 Antenna Requirement Standard Applicable For intentional device, according to FCC 47 CFR Section 15.203: An intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. The use of a permanently attached antenna or of an antenna that uses a unique coupling to the intentional radiator, the manufacturer may design the unit so that a broken antenna can be replaced by the user, but the use of a standard antenna jack or electrical connector is prohibited. Test Result: The maximum gain of antenna was 2.98 dBi. Remark:The antenna gain is provided by the customer, if the data provided by the customer is not accurate, MAXLAB Testing Co.,Ltd. does not assume any responsibility. MAXLAB Testing Co.,Ltd. Report No.: MAX25081115P01-R01 Page 38 of 39 5 T e s t S e t u p P h o t o s o f t h e E U T Reference to the appendix I for details. MAXLAB Testing Co.,Ltd. Report No.: MAX25081115P01-R01 Page 39 of 39 6 P h o t o s o f t h e E U T Reference to the appendix II for details. ********************** End of Report **********************

Test Setup Photograph Radiated Emissions Test Setup Below 1G Above 1G Conduction Emissions Test Setup
