2BRVW-M1Electric Teeth Cleaner

Shenzhen Ainengke Electronics Co., Ltd.

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Sep 15, 2025
Application Purpose: Original Equipment
Equipment Note: Electric Teeth Cleaner
Frequency Range: 2412.00000000 - 2462.00000000
Company: Shenzhen Ainengke Electronics Co., Ltd.
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

! " " "# "$ %! " %$ " % &'(( )&*)+, -.'(/01**2)+)31)4'43()56)47)(&)+43+7'89:*)&2(7&73(;'42)16, .30*7'(<=(>&23(?)/'4@'+7A&3*7'(/*'*27/+)B7&)('*)5617&7*1>3664'B)+C>@3(0;3&*04)4 " ! "D E FG FHG " I " J "

Attestation Statements

扫描全能王创建

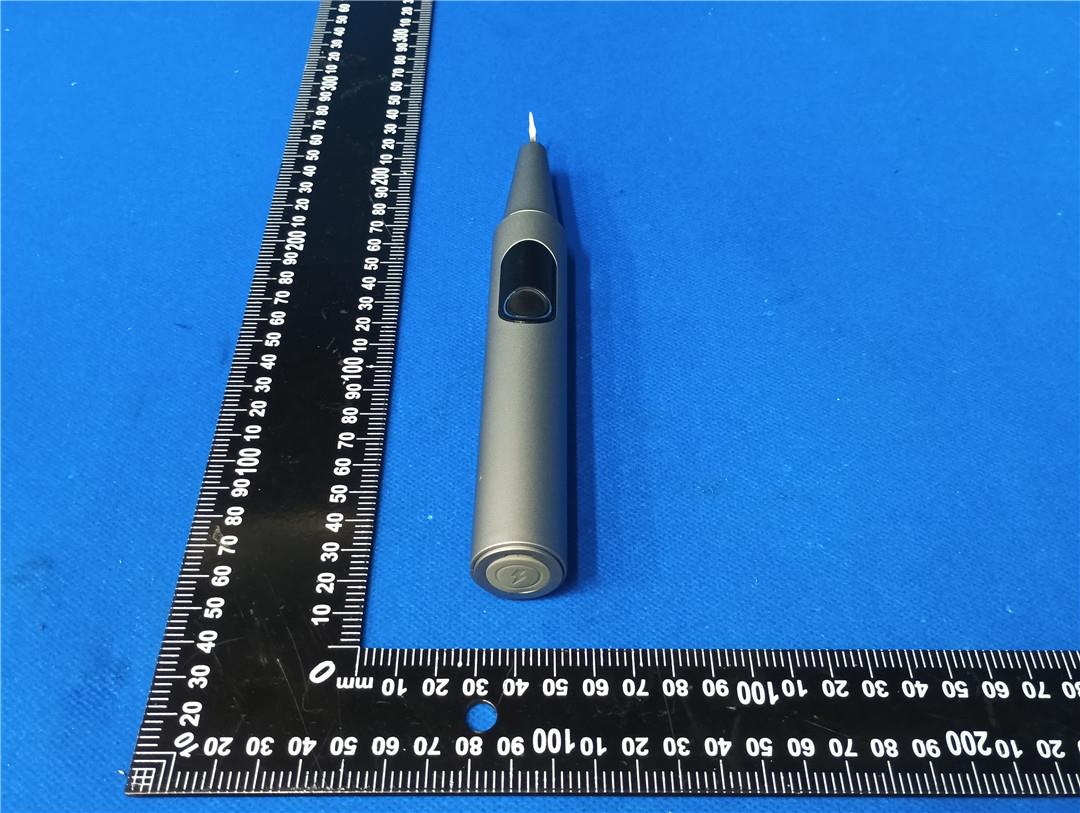

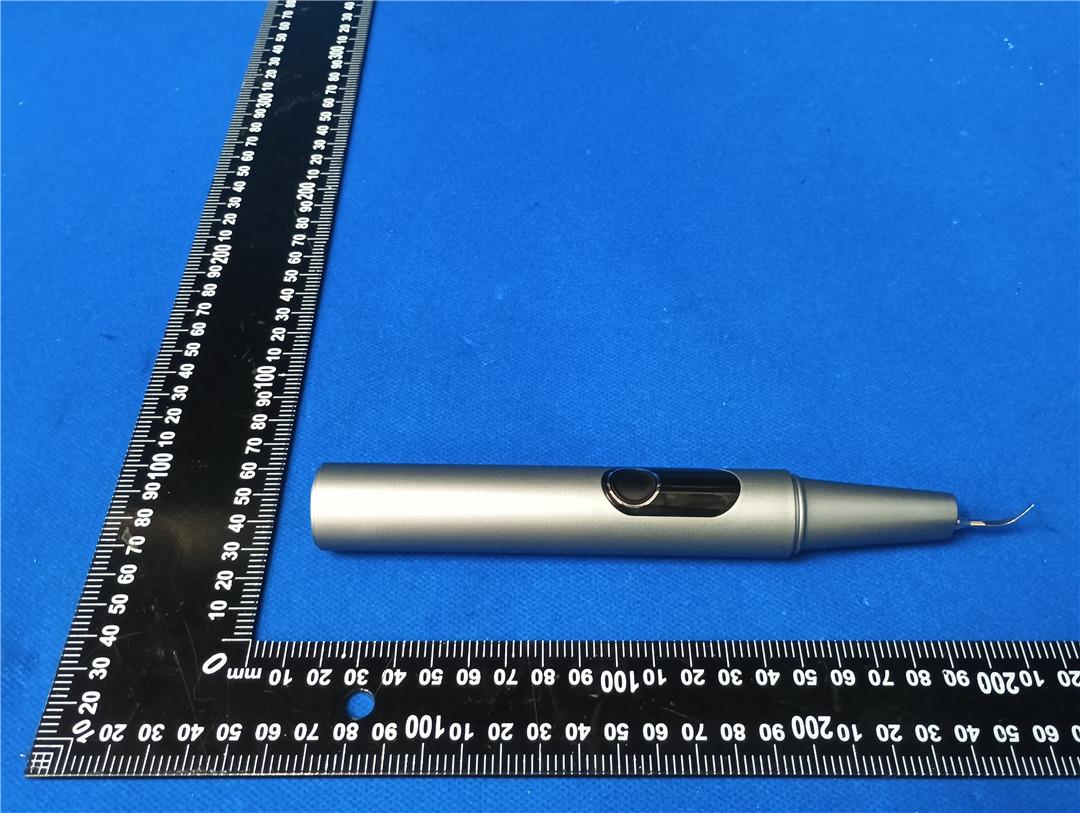

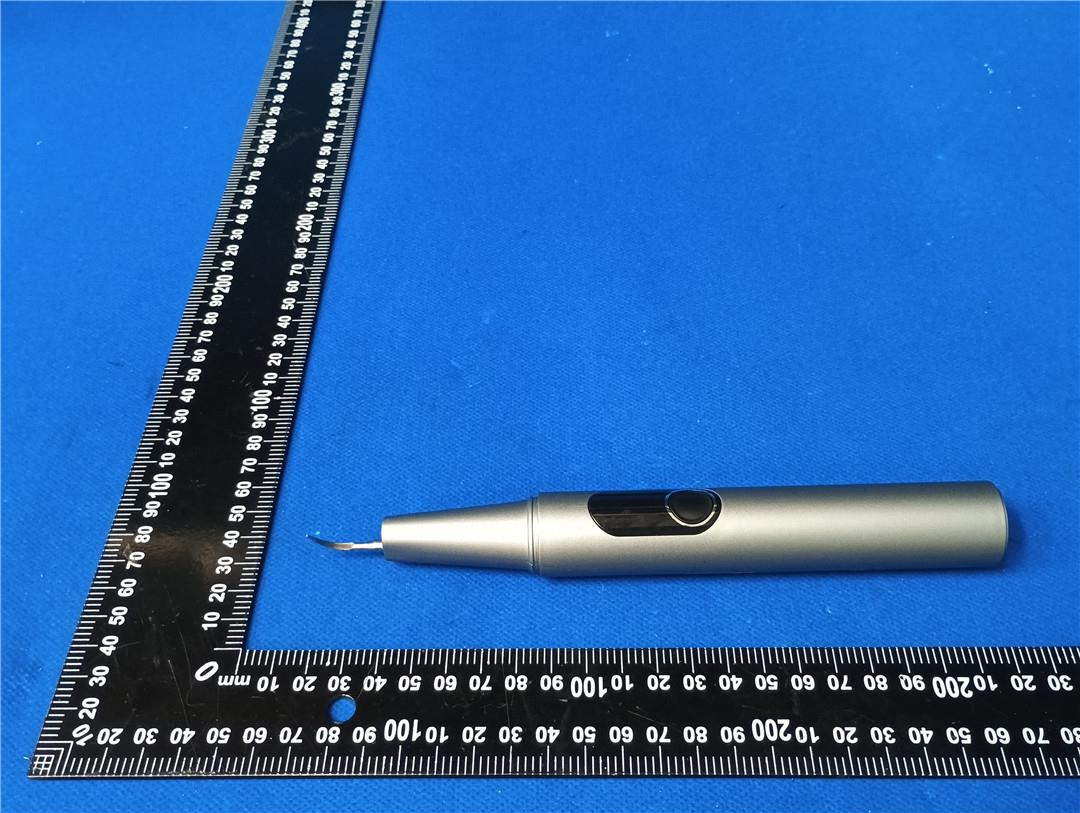

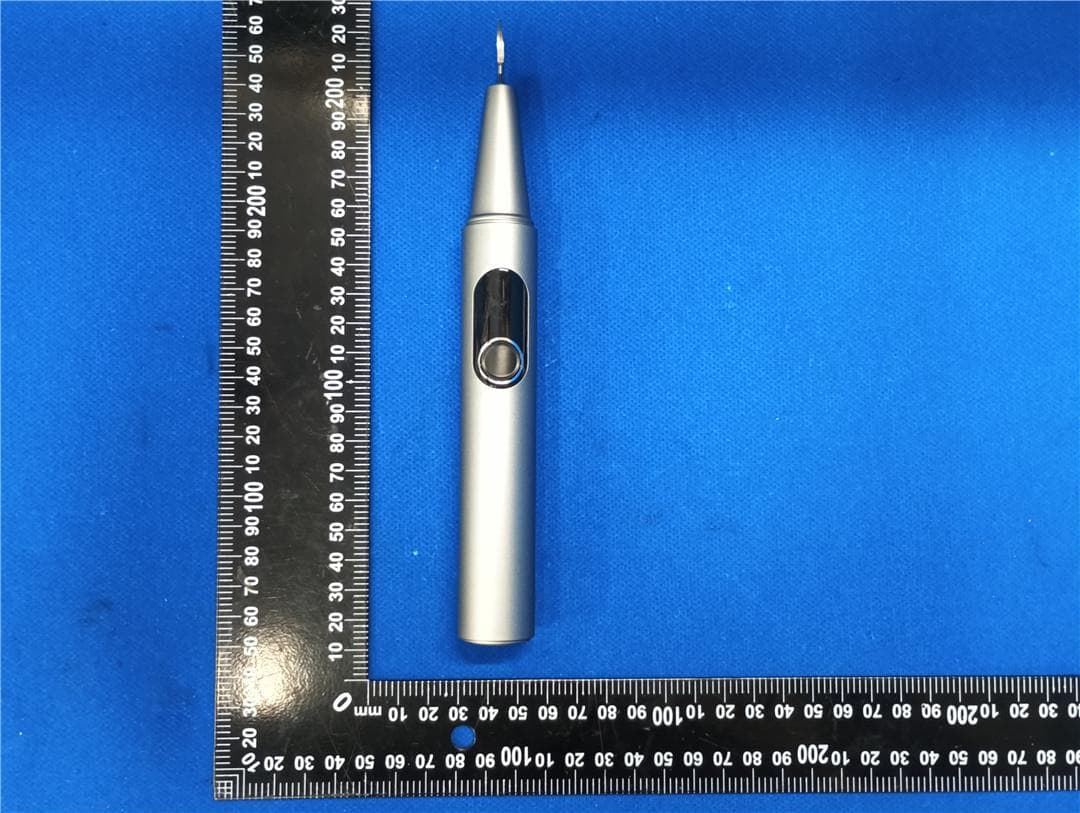

External Photos

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202508436 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 4 Product Name: Electric Teeth Cleaner Model No.: M1 EUT Constructional Details External Photo Report No.: HTT202508436 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 4 Report No.: HTT202508436 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 3 of 4 Report No.: HTT202508436 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 4 of 4 ------End------

ID Label/Location Info

Label and Location Size: L: 1.0cm*W: 0.2cm Label and Location FCC ID : 2BRVW-M1

Internal Photos

RF Exposure Info

Shenzhen HTT Technology Co., Ltd. Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 1 of 8 RF Exposure evaluation Report Reference No. ..................... : FCC ID............................................. : HTT202508436F02 2BRVW-M1 Compiled by ( position+printed name+signature) . : File administrators Supervised by ( position+printed name+signature) . : Project Engineer Approved by ( position+printed name+signature) . : RF Manager Date of issue .................................... : Aug.27, 2025 Testing Laboratory Name .............. : Shenzhen HTT Technology Co.,Ltd. Address............................................ : 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao’an District, Shenzhen, Guangdong, China Applicant’s name ............................ : Shenzhen Ainengke Electronics Co., Ltd. Address............................................ : Jinshenghui Technology Park, Dafu Industrial Zone,Guanlan Street, Longhua District, Shenzhen City. Standard ........................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen HTT Technology Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HTT Technology Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HTT Technology Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Electric Teeth Cleaner Manufacturer .................................... : Shenzhen Ainengke Electronics Co., Ltd. Trade Mark ........................................ N/A Model/Type reference ...................... : M1 Rating ............................................... : DC 3.7V From Battery and DC 5V From External Circuit Result ............................................... : PASS Report No.: HTT202508436F02 Page 2 of 8 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 2 of 8 T E S T R E P O R T Equipment under Test : Electric Teeth Cleaner Model /Type : M1 Listed Models : T4,T5,T6,T7.T8,T9,T10,M2, M3, M4 Applicant : Shenzhen Ainengke Electronics Co., Ltd. Address : Jinshenghui Technology Park, Dafu Industrial Zone,Guanlan Street, Longhua District, Shenzhen City. Manufacturer : Shenzhen Ainengke Electronics Co., Ltd. Address : Jinshenghui Technology Park, Dafu Industrial Zone,Guanlan Street, Longhua District, Shenzhen City. Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: HTT202508436F02 Page 3 of 8 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 3 of 8 Contents 1 T E S T S T A N D A R D S ................................................... 4 2 S U M M A R Y .............................................................. 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Special Accessories 5 2.4 Modifications 5 3 T E S T E N V I R O N M E N T 6 3.1 Address of the test laboratory 6 3.2 Test Facility 6 3.3 Statement of the measurement uncertainty 6 4 T E S T L I M I T 7 4.1 Requirement 7 4.2 Conducted Power Results 8 4.3 Manufacturing tolerance 8 4.4 Evaluation Result 8 4.5 Simultaneous Transmission for SAR Exclusion 8 5 C O N C L U S I O N 8 Report No.: HTT202508436F02 Page 4 of 8 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 4 of 8 1 T E S T S T A N D A R D S The tests were performed according to following standards: ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Device, RF Exposure, Equipment Authorization Procedures. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices Report No.: HTT202508436F02 Page 5 of 8 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 5 of 8 2 S U M M A R Y 2.1 General Remarks Date of receipt of test sample : Aug. 12, 2025 Testing commenced on : Aug. 12, 2025 Testing concluded on : Aug.27, 2025 2.2 Product Description Product Name: Electric Teeth Cleaner Model No.: M1 Series model: T4,T5,T6,T7.T8,T9,T10,M2, M3, M4 Test sample(s) ID: HTT202508436-1(Engineer sample) HTT202508436-2(Normal sample) Channel numbers: 802.11b /802.11g /802.11n(HT20): 11 Channel separation: 5MHz Modulation technology: 802.11b: Direct Sequence Spread Spectrum (DSSS) 802.11g/802.11n(H20): Orthogonal Frequency Division Multiplexing (OFDM) Antenna Type: Wire Antenna Antenna gain: 0.17 dBi Power Supply: DC 3.7V From Battery and DC 5V From External Circuit Adapter Information: Model No: GQ48-190237-AU Input: 100-240V~ 50/60Hz 1.5A Max Output: 19.0V⎓2.37A 2.3 Special Accessories The following is the EUT test of the auxiliary equ…

Text truncated - open the document above for the full version.

Test Report

Dongzhen Electronics Co., Ltd. ADD: No. D206, 2nd Floor, Fanglilai Technology Park, Jiutou Village, Lixin Community, Dongcheng Street, Dongguan City Antenna specification recognition letter Antenna Specification for Approval Customer Name： Shantou Xingguang Electronics Co., Ltd. Product Name： 2.4G antenna Full length 35 white Product Address: No. 4, Kunmei Park Lane, Chenghai District, Shantou City, Guangdong Province Part NO.: 19 core *0.12*1.4PVC Write By： zhou min Issued Date: 2024-10-20 client: R&D Dept Business Dept Approved By Dongzhen Electronics R&D Dept Engineer Dept Approval Product Specification A. Electrical Characteristics Frequency 2400MHz ~2500MHz VSWR <1.0 Efficiency >20% Impedance 50 Ohm Polarization Line Gain 0.17dBi B. Material & Mechanical Characteristics Material of Radiator Cu Cable Type 1.4 白色 Connector Type : NO Dimension C. Environmental Operation Temperature - 30 °C ~ + 80 °C Storage Temperature - 30 °C ~ + 85 °C Test Equipment & Conditions 1． Network Analyzers : Agilent 8753D 5071B 2． Communications Test Set: Agilent E5515C 3． 3D Chamber Test System Effiency &Gain 2.40 -0.01(dBi) 2.440 0.12(dBi) 2.48 0.17(dBi) Radiation Pattern:

Test Report

1 Appendix RF Test Data for 2.4GWIFI Company: : Shenzhen Ainengke Electronics Co., Ltd. EUT : Electric Teeth Cleaner FCC ID: : 2BRVW-M1 Model Number : M1 Report No. : HTT202508436F01 Reviewed By : Heber He 2 1. Duty Cycle 1.1 Test Result 1.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) T_on (ms) Period (ms) Duty Cycle (%) Duty Cycle Correction Factor (dB) Max. DC Variation (%) 802.11b SISO 2412 12.223 14.250 85.78 0.67 0.02 2437 12.224 14.247 85.80 0.67 0.00 2462 12.223 14.250 85.78 0.67 13.68 802.11g SISO 2412 2.033 4.059 50.09 3.00 0.02 2437 2.032 4.058 50.07 3.00 0.02 2462 2.033 4.058 50.10 3.00 13.05 802.11n (HT20) SISO 2412 1.892 3.917 48.30 3.16 0.03 2437 1.893 3.919 48.30 3.16 0.04 2462 1.893 3.919 48.30 3.16 0.02 3 1.2 Test Graph 1.2.1 Ant1 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV 4 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV 5 802.11g_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV 6 802.11n(HT20)_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant1 (SISO)_NTNV 7 802.11n(HT20)_HCH_2462MHz_Ant1 (SISO)_NTNV 8 2. Bandwidth 2.1 Test Result 2.1.1 OBW Mode TX Type Frequency (MHz) ANT 99% Occupied Bandwidth (MHz) Verdict Result Limit 802.11b SISO 2412 1 16.456 / Pass 2437 1 16.763 / Pass 2462 1 16.890 / Pass 802.11g SISO 2412 1 17.924 / Pass 2437 1 18.137 / Pass 2462 1 18.287 / Pass 802.11n (HT20) SISO 2412 1 26.001 / Pass 2437 1 26.315 / Pass 2462 1 18.828 / Pass 2.1.2 6dB BW Mode TX Type Frequency (MHz) ANT 6dB Bandwidth (MHz) Verdict Result Limit 802.11b SISO 2412 1 12.068 >=0.5 Pass 2437 1 12.072 >=0.5 Pass 2462 1 12.072 >=0.5 Pass 802.11g SISO 2412 1 16.376 >=0.5 Pass 2437 1 16.381 >=0.5 Pass 2462 1 16.382 >=0.5 Pass 802.11n (HT20) SISO 2412 1 17.355 >=0.5 Pass 2437 1 17.608 >=0.5 Pass 2462 1 17.587 >=0.5 Pass 9 2.2 Test Graph 2.2.1 OBW 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV 10 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV 11 802.11g_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV 12 802.11n(HT20)_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant1 (SISO)_NTNV 13 802.11n(HT20)_HCH_2462MHz_Ant1 (SISO)_NTNV 14 2.2.2 6dB BW 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV 15 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV 16 802.11g_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV 17 802.11n(HT20)_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant1 (SISO)_NTNV 18 802.11n(HT20)_HCH_2462MHz_Ant1 (SISO)_NTNV 19 3. Maximum Conducted Output Power 3.1 Test Result 3.1.1 Power Mode TX Type Frequency (MHz) Maximum Peak Conducted Output Power (dBm) Verdict ANT1 Limit 802.11b SISO 2412 1.59 <=30 Pass 2437 0.65 <=30 Pass 2462 -0.26 <=30 Pass 802.11g SISO 2412 2.38 <=30 Pass 2437 1.83 <=30 Pass 2462 0.86 <=30 Pass 802.11n (HT20) SISO 2412 7.16 <=30 Pass 2437 6.51 <=30 Pass 2462 1.57 <=30 Pass 20 4. Maximum Power Spectral Density 4.1 Test Result 4.1.1 PSD Mode TX Type Frequency (MHz) Maximum PSD (dBm) Verdict ANT1 Limit 802.11b SISO 2412 -10.62 <=8 Pass 2437 -11.53 <=8 Pass 2462 -12.57 <=8 Pass 802.11g SISO 2412 -16.62 <=8 Pass 2437 -16.41 <=8 Pass 2462 -18.19 <=8 Pass 802.11n (HT20) SISO 2412 -11.40 <=8 Pass 2437 -11.73 <=8 Pass 2462 -17.04 <=8 Pass 21 4.2 Test Graph 4.2.1 PSD 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV 22 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV 23 802.11g_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV 24 802.11n(HT20)_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant1 (SISO)_NTNV 25 802.11n(HT20)_HCH_2462MHz_Ant1 (SISO)_NTNV 26 5. Unwanted Emissions In Non-restricted Frequency Bands 5.1 Test Result 5.1.1 Ref Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) 802.11b SISO 2412 1 -10.58 2437 1 -11.40 2462 1 -12.63 802.11g SISO 2412 1 -16.13 2437 1 -17.23 2462 1 -18.08 802.11n (HT20) SISO 2412 1 -11.94 2437 1 -12.25 2462 1 -17.40 Note1: Refer to FCC Part 15.247 (d) and ANSI C63.10-2013, the channel contains the maximum PSD level was used to establish the reference level. 5.1.2 CSE Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) Limit (dBm) Verdict 802.11b SISO 2412 1 -10.58 -30.58 Pass 2437 1 -10.58 -30.58 Pass 2462 1 -10.58 -30.58 Pass 802.11g SISO 2412 1 -16.13 -36.13 Pass 2437 1 -16.13 -36.13 Pass 2462 1 -16.13 -36.13 Pass 802.11n (HT20) SISO 2412 1 -11.94 -31.94 Pass 2437 1 -11.94 -31.94 Pass 2462 1 -11.94 -31.94 Pass Note1: Refer to FCC Part 15.247 (d) and ANSI C63.10-2013, the channel contains the maximum PSD level was used to establish the reference level. 27 5.2 Test Graph 5.2.1 Ref 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV 28 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV 29 802.11g_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV 30 802.11n(HT20)_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant1 (SISO)_NTNV 31 802.11n(HT20)_HCH_2462MHz_Ant1 (SISO)_NTNV 32 5.2.2 CSE 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 33 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 34 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV 35 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11g_MCH_2437MHz_Ant1 (SISO)_NTNV 36 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV 37 802.11n(HT20)_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_LCH_2412MHz_Ant1 (SISO)_NTNV 38 802.11n(HT20)_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_HCH_2462MHz_Ant1 (SISO)_NTNV 39 802.11n(HT20)_HCH_2462MHz_Ant1 (SISO)_NTNV

Test Report

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202508436F01 This results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Page 1 of 27 TEST Report Applicant: Shenzhen Ainengke Electronics Co., Ltd. Address of Applicant: Jinshenghui Technology Park, Dafu Industrial Zone,Guanlan Street, Longhua District, Shenzhen City. Manufacturer : Shenzhen Ainengke Electronics Co., Ltd. Address of Manufacturer : Jinshenghui Technology Park, Dafu Industrial Zone,Guanlan Street, Longhua District, Shenzhen City. Equipment Under Test (EUT) Product Name: Electric Teeth Cleaner Model No.: M1 Series model: T4,T5,T6,T7.T8,T9,T10,M2, M3, M4 Trade Mark: N/A FCC ID: 2BRVW-M1 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of sample receipt: Aug. 12, 2025 Date of Test: Aug. 12, 2025 ~ Aug. 27, 2025 Date of report issued: Aug. 27, 2025 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: HTT202508436F01 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 2 of 27 1. Version Version No. Date Description 00 Aug. 27, 2025 Original Tested/ Prepared By Date: Aug. 27, 2025 Project Engineer Check By: Date: Aug. 27, 2025 Reviewer Approved By : Date: Aug. 27, 2025 Authorized Signature Report No.: HTT202508436F01 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 3 of 27 2. Contents Page 1. VERSION ........................................................................................................................................................ 2 2. CONTENTS .................................................................................................................................................... 3 3. TEST SUMMARY ........................................................................................................................................... 4 4. GENERAL INFORMATION ............................................................................................................................ 5 4.1. GENERAL DESCRIPTION OF EUT ................................................................................................................ 5 4.2. TEST MODE ............................................................................................................................................... 7 4.3. DESCRIPTION OF SUPPORT UNITS .............................................................................................................. 7 4.4. DEVIATION FROM STANDARDS .................................................................................................................... 7 4.5. ABNORMALITIES FROM STANDARD CONDITIONS ........................................................................................... 7 4.6. TEST FACILITY ........................................................................................................................................... 7 4.7. TEST LOCATION ......................................................................................................................................... 7 4.8. ADDITIONAL INSTRUCTIONS ........................................................................................................................ 7 5. TEST INSTRUMENTS LIST ........................................................................................................................... 8 6. TEST RESULTS AND MEASUREMENT DATA ........................................................................................... 9 6.1. CONDUCTED EMISSIONS ............................................................................................................................ 9 6.2. CONDUCTED PEAK OUTPUT POWER ......................................................................................................... 12 6.3. CHANNEL BANDWIDTH .............................................................................................................................. 12 6.4. POWER SPECTRAL DENSITY ..................................................................................................................... 14 6.5. BAND EDGE ............................................................................................................................................. 15 6.5.1. Conducted Emission Method ......................................................................................................... 15 6.5.2. Radiated Emission Method ............................................................................................................ 16 6.6. SPURIOUS EMISSION ................................................................................................................................ 18 6.6.1. Conducted Emission Method ......................................................................................................... 18 6.6.2. Radiated Emission Method ............................................................................................................ 19 6.7. ANTENNA REQUIREMENT .......................................................................................................................... 26 7. TEST SETUP PHOTO .................................................................................................................................. 27 8. EUT CONSTRUCTIONAL DETAILS .......................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos
