2BRYR-DRS1969NWireless Plug-In Remote Control Adaptor

Can’t connect? Need help? WE CAN HELP DO NOT RETURN THIS PRODUCT TO THE STORE Wireless Plug-In Remote Control Adaptor Scan code for the latest manual online DR-S1969N, MI-WW138-199W User Manual What’s in the Box START GUIDE Get Ready Know your Wi-Fi network and password Make sure you’re connected to a 2.4GHz Wi-Fi network (Outlet can’t connect to 5GHz networks) Make sure your device is running the latest version or previous two versions of iOS and Android 2.4GHz iOS Android Wireless Plug-In Remote Control Adaptor 9 04 Authorize your account with Google Assistant using the username and password from your app. 03 Choose from t he list of Home Control partners. Now your Google Home app and Merkury devices are linked! You’re now able to say “Hey Google“ and control your Merkury devices. At any time, go into the “Home Control“ section of the Google Home app to set nicknames and rooms for your devices. You can rename your devices in the app, and Google Assistant will refer to them by the same name. So if you rename a smart plug to “Living Room“ or a nickname like “Blossom,“ then Google Assistant will use that same name later on. You can always give it a nickname using the Google Home app as well. You can also assign plugs to a specific room, like “Bedroom“ or “Kitchen.“ Google Assistant will be able to control devices by room. Google Assistant /account.mymerkurysmart.com/ Email Address* Password* Sign In By signing in, you are authorizing Google to access your devices 8 T o control your bulbs, plugs or s urge protectors, just say “OK Google,“ or “Hey Google,“ and ask. Make sure your devices are a lready set up using the app. “Hey Google, turn on all the lights in my bedroom.“ “Hey Google, turn off fan.“ “Hey Google, set the bedroom light to orange.“ “Hey Google, turn off the coffee machine.“ “Hey Google, set the living room to 50%.“ “Hey Google, dim porch light.“ Things you can say*: *Some commands require compatible devices. 01 02 Open the Google Home app and go to Home Control in the menu. Tap the “+“ button. 1 STEP 1 Download the A pp from App Store or Google Play. Download & Register Register an account on your App. 01. Enter your email address. 02. Enter the verification code and create a password. 03. Log in to the App. 2 Plug the device into the wall. Make sure the reset button on the device is flashing rapidly blue, indicating the device is ready to connect. *see reset instructions on p. 4 Plug In STEP 2 01. In the app, on the top corner of the Devices screen, click Choose “Smart Power”. 02. Make sure the reset button on the device is flashing rapidly blue, indicating the device is ready to connect using Easy Mode. If not, press and hold the button for 10 seconds until the reset button is flashing rapidly, then press “Next Step”. STEP 3 Add device: Easy Mode Plug In Flashing quickly Flashing quickly Hold down to reset Name and Control Each Device by Voice VOICE CONTROL GUIDE Thank you for purchasing your home product. Make sure your devices are already set up using the app, then follow these steps. C ontrol each outlet of your Smart Wi-Fi Outlet Extender using the app and your voice assistant will recognize and follow instructions to control that Smart W i-Fi Outlet Extender. Contents 08 10 Google Assistant Amazon Alexa Voice Control Guide 6 Troubleshooting Reset the device Cannot connect to your Wi-Fi network. Make sure you entered the correct Wi-Fi password during the Wi-Fi setup. Check whether there are any Internet connection problems. If the Wi-Fi signal is too weak, reset your Wi-Fi router and try again. To Reset plugs, press and hold the power button for 3 seconds. Reset one time (press and hold) to reach Easy mode (Fast blinking blue) Reset two times (press and hold) to reach AP Mode (Slow blinking blue) System Requirements A mobile device running the latest version of iOS® or Android™, or its two previous versions. 2.4 GHz Wi-Fi network (Note: You may need to activate this frequency through your Wi-Fi account settings.) Technical Specifications Input voltage: 125V Input frequency: 60Hz Wi-Fi: IEEE 802.11n, 2.4 GHz (not compatible with 5GHz Wi-Fi networks) What’s the Wireless Range? The range of your home Wi-Fi is heavily dependent on your home router and the conditions of the room. Check with your router specifications for exact range data. If my Wi-Fi/Internet goes down, will my device still work? Merkury products need to be connected to Wi-Fi in order to use them remotely. 3 04. The app will try to connect your device. N OTE: can’t connect to 5GH z networks. *If the connection fails, try to connect using AP Mode. 03. Enter your Wi-Fi network and password. Add dedvice: Backup AP Mode 01. Make sure the device is in AP Mode, blinking slowly *see reset instructions on p. 4 02. I n the app, on the top co rner of the Devices screen, click Choose “Smart Power” Choose “AP Mode” in the top corner. 03. Click Next and enter your Wi-Fi details. Connect (Easy & AP Mode) Flashing slowly 4 04. Follow the instructions to choose the device from your Wi-Fi list. 05. The device will connect. NOTE: can’t connect to 5GHz networks. *How do I reset the device and what does the blinking light mean? Reset the plug by pressing and holding the button for 10 seconds until the indicator light is flashing rapidly. • Reset one time (press and hold) to reach Easy mode (Fast blinking, 2x per second) • Reset again (press and hold) to reach AP Mode (Slow blinking, every 3 seconds) Fast blinking: Easy Mode Slow blinking: AP Mode Press and hold for 10 seconds 5 Frequently Asked Questions Can I control each outlet individually? Yes, each outlet can be named and controled individually. On the app, each will have a on/off button, with a little pencil icon next to it. Press the on/off button to toggle the outlet power, and press the pencil icon to rename the outlet. Can I group multiple Merkury devices together? Yes, you can group multiple devices of the same type together, by room, location, or however else you wa…

Text truncated - open the document above for the full version.

Company: Deer Electric Appliance Co.,LTD Add: 119 Moo 5 Soi 12, Highway 36, Makhamkoo, Nikompattana Rayong 21180, Thailand Tel: +66660627922 Fax: +66660627922 E-mail: [email protected] Date: 06/26/2026 Attestation Letter FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, Deer Electric Appliance Co.,LTD, declared that the device only apply 2.4G Wi-Fi(2412~2462 MHz) (802.11b/g/n20), Other functions were shielded by software, the end users can’t have the capacity to active it. Product type or description: Wireless Plug-In Remote Control Adaptor Model number: DR-S1969N, MI-WW138-199W FCC ID: 2BRYR-DRS1969N Please contact me if there is need for any additional clarification or information. Best Regards, Sincerely Yours, Signature: Typed or Printed Name: YUKUAN LIANG Title: Manager

Company: Deer Electric Appliance Co.,LTD Add: 119 Moo 5 Soi 12, Highway 36, Makhamkoo, Nikompattana Rayong 21180, Thailand Tel: +66660627922 Fax: +66660627922 E-mail: [email protected] Attestation Letter Date: 2026-05-19 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911 (d) (5) (i) (ii) Filing FCC ID: 2BRYR-DRS1969N Deer Electric Appliance Co.,LTD (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Deer Electric Appliance Co.,LTD (“the applicant”) certifies that as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Deer Electric Appliance Co.,LTD (“the applicant”) certifies that the equipment does not use Kasp ersky's software information. Sincerely, Signature: Contact Person: YUKUAN LIANG Title: Manager

U.S. AGENT LETTER OF ATTESTATION Date: 2026-07-15 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911 (d) (7) Filing FCC ID: 2BRYR-DRS1969N Deer Electric Appliance Co.,LTD (“the Applicant”) certifies that, as of the date of the filing of the application, MERKURY INNOVATIONS LLC is our designated U.S. agent for service of process for the above referenced FCC ID. Deer Electric Appliance Co.,LTD (“the Applicant”) accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. MERKURY INNOVATIONS LLC accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above refe renced FCC ID. Designated U.S. Agent Information: Company Name: MERKURY INNOVATIONS LLC Address: 45 BROADWAY 3RD FLOOR, New York, NY 10006, United States FRN: 0026513606 Tel.: (212)840-8550 201 Email: [email protected] Signed by (printed name): Joan Blendowski Signature: Applicant: Deer Electric Appliance Co.,LTD Add: 119 Moo 5 Soi 12, Highway 36, Makhamkoo, Nikompattana Rayong 21180, Thailand FRN: 0037434867 Tel: +66660627922 Email: [email protected] Signed by (printed name): YUKUAN LIANG Signature:

QA-FR-170-B Company: Deer Electric Appliance Co.,LTD Add: 119 Moo 5 Soi 12, Highway 36, Makhamkoo, Nikompattana Rayong 21180, Thailand Tel: +66660627922 Fax: +66660627922 E-mail: [email protected] FCC Authorization Date: 2026-05-19 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, Deer Electric Appliance Co.,LTD, hereby authorizes Bay Area Compliance Laboratories Corp. (Kunshan) to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratories Corp. (Kunshan) on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely, Signature: Print Name: YUKUAN LIANG Title: Manager

QA-FR-171-A Applicant: Deer Electric Appliance Co.,LTD Add: 1 19 Moo 5 Soi 12, Highway 36, Makhamko o , Nikompattana Rayong 21180, Thailand Tel: +66660627922 Fax: +66660627922 E-mail: [email protected] FCC Confidential Authorization Date: 2026-05-19 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2BRYR-DRS1969N In accordance with Sections 0.457 and 0.459 of the Commission ’s Rules, Deer Electric Appliance Co.,LTD hereby requests long-term confidential treatment of information accompanying this application as outlined below: Block Diagram Schematics Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Printer Name: YUKUAN LIANG Title: Mana ger

Company: Deer Electric Appliance Co.,LTD Add: 119 Moo 5 Soi 12, Highway 36, Makhamkoo, Nikompattana Rayong, 21180, Thailand Tel: +66660627922 Fax: +66660627922 E-mail: [email protected] DECLARATION Date: 2026-06-03 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 We, Deer Electric Appliance Co.,LTD hereby declare that product name: Wireless Plug-In Remote Control Adaptor (FCC ID: 2BRYR-DRS1969N; model name: DR-S1969N, MI-WW138-199W) are electrically identical with the PCB design, components and electromagnetic compatibility characteristics, and model: DR-S1969N has been tested by Bay Area Compliance Laboratories Corp. (Kunshan). The differences of them are as follows: 1.model name--Different sales channels Please contact me if there is need for any additional clarifica tion or information. Best Regards, Signature: Printed Name:YUKUAN LIANG Title: Manager

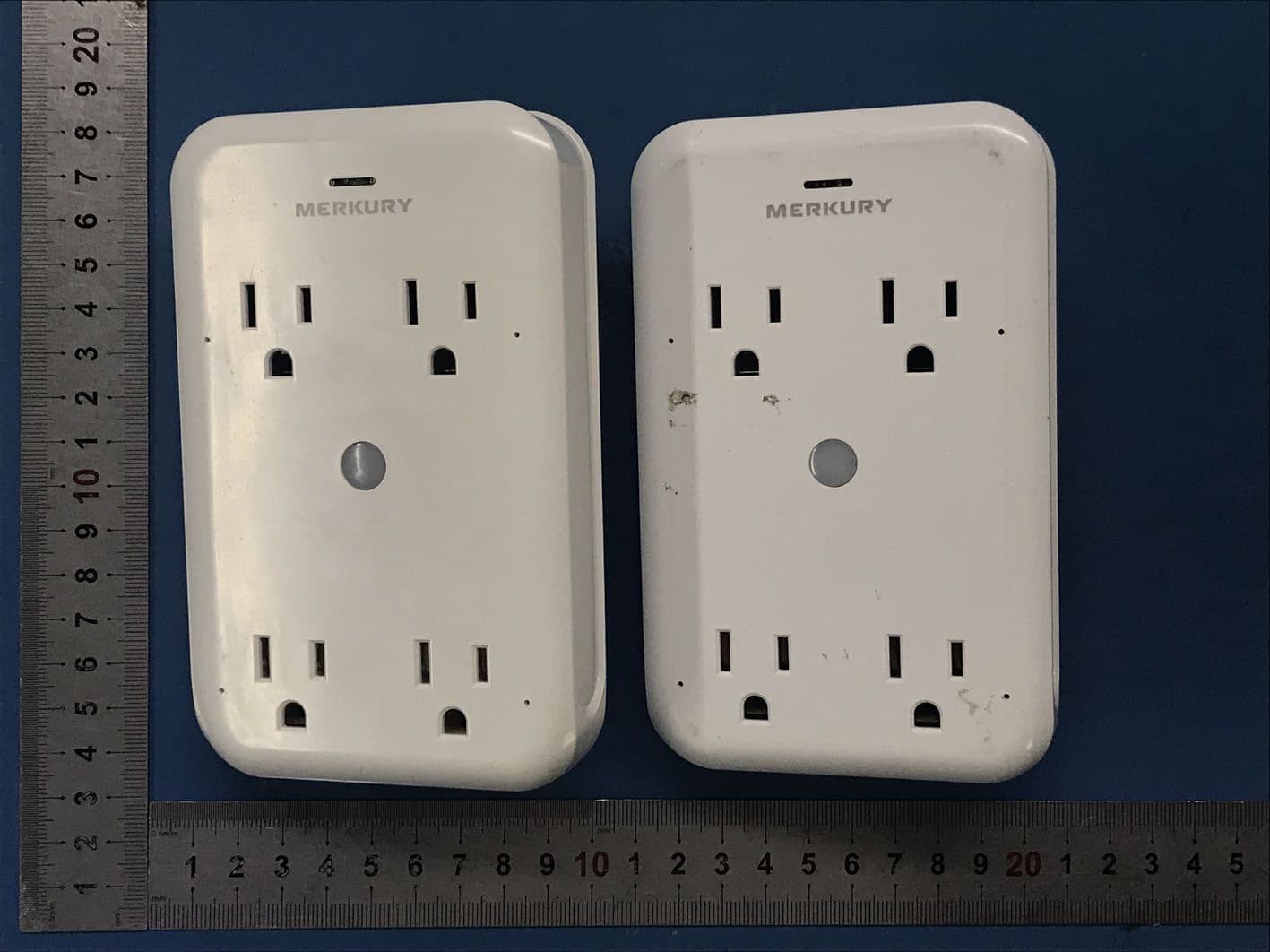

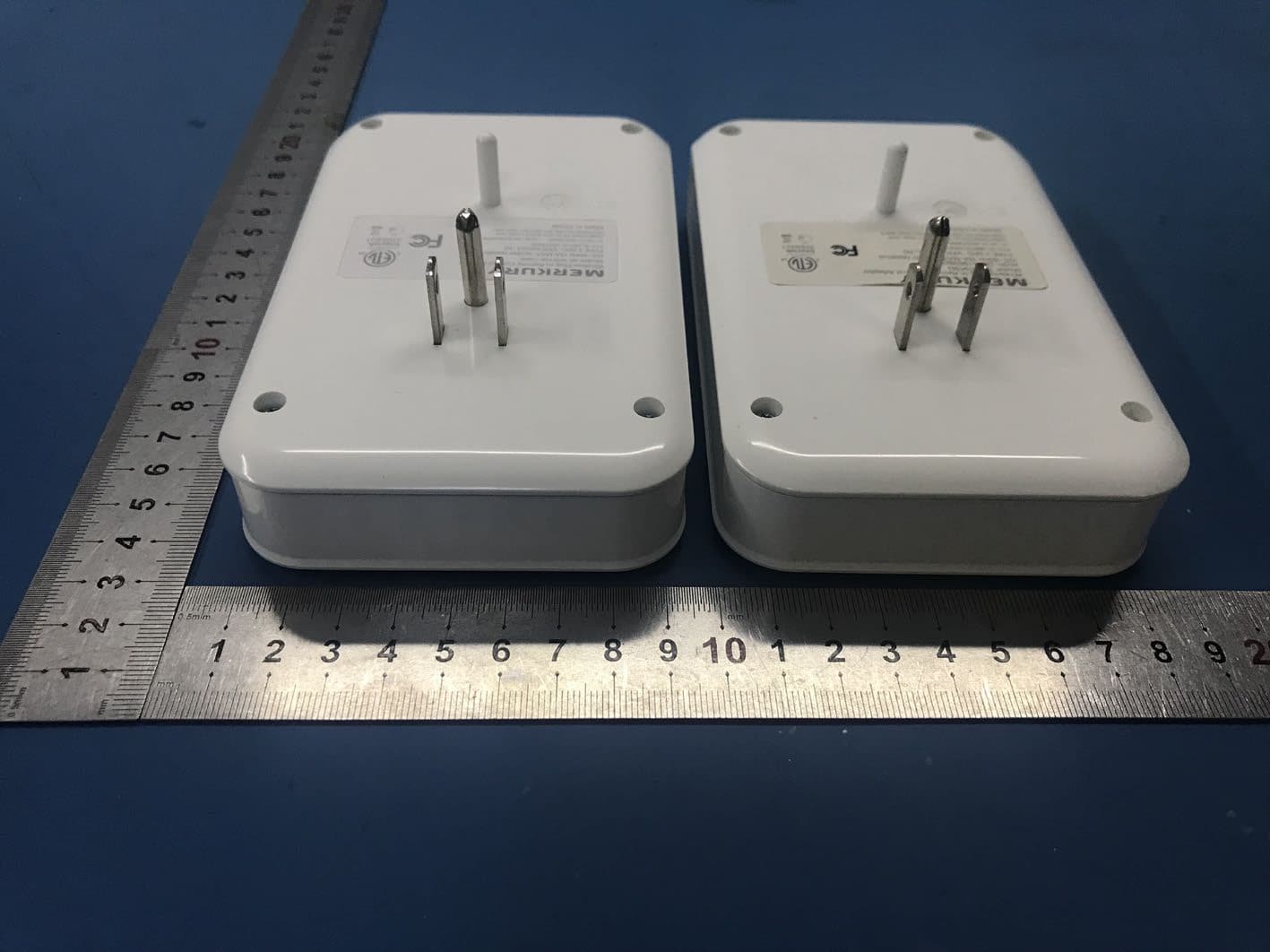

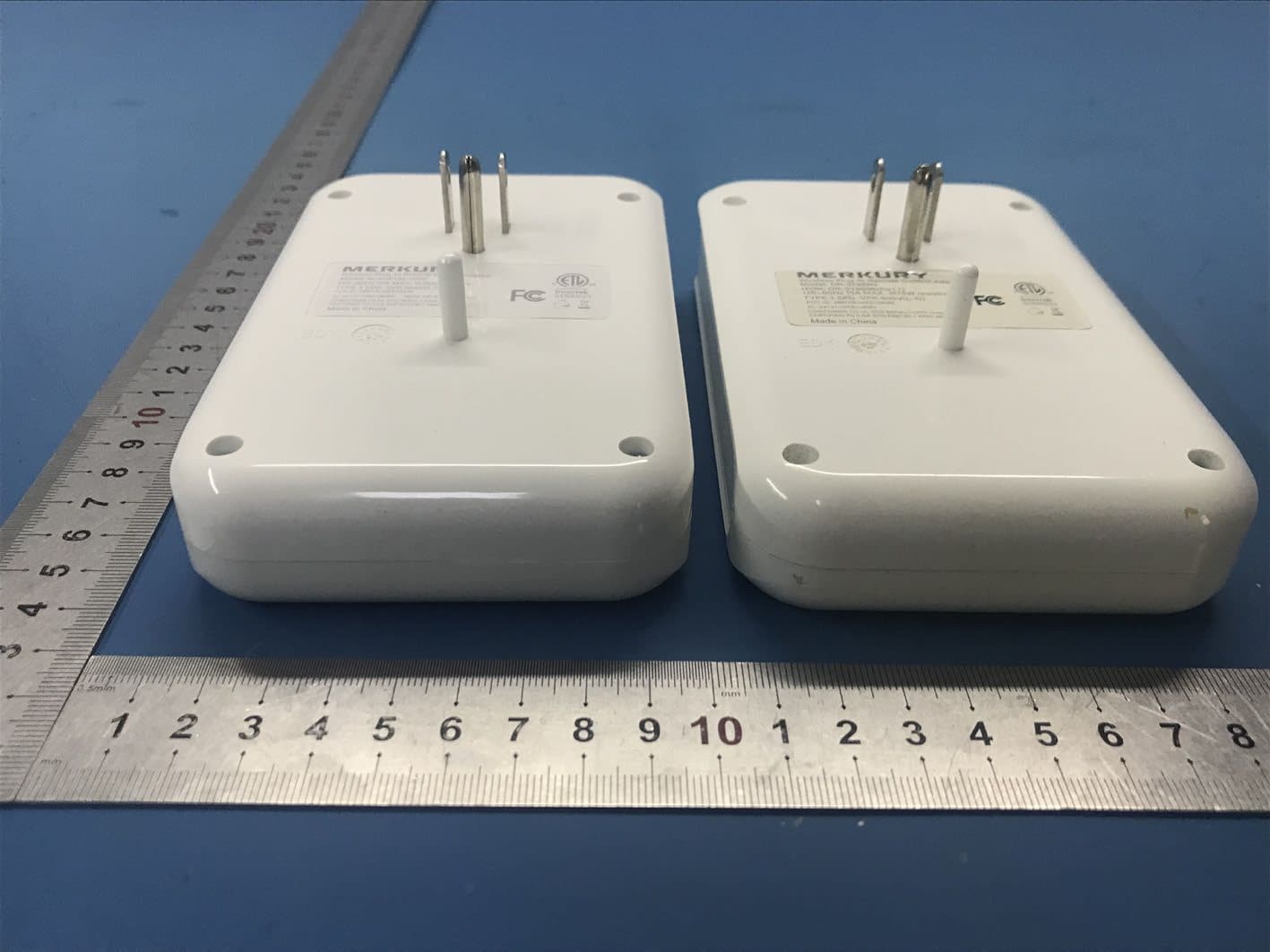

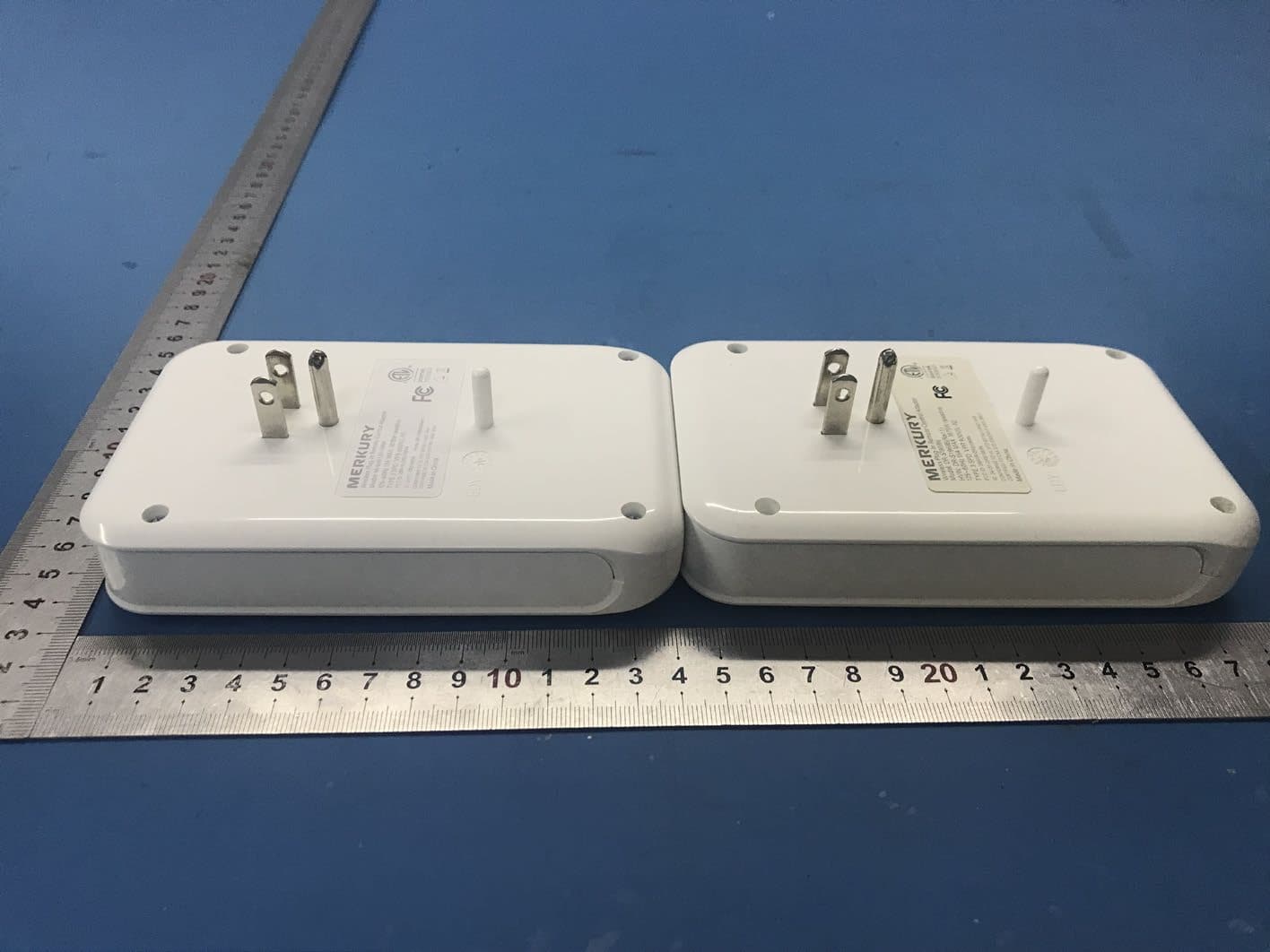

Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RSHA240903001 1 / 3 EXHIBIT A - EUT EXTERNAL PHOTOGRAPHS Model: DR-S1969N Model: MI-WW138-199W Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RSHA240903001 2 / 3 Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RSHA240903001 3 / 3

HVIN: DR-S1969B(Re11) MI-WW138-199W FCC ID: 2BRYR-DRS1969N IC: 24131-DRS1969N HVIN: DR-S1969B(Re11) FCC ID: 2BRYR-DRS1969N IC: 24131-DRS1969N

Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RSHA240903001 1 / 5 EXHIBIT B - EUT INTERNAL PHOTOGRAPHS Model: DR-S1969N Model: MI-WW138-199W Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RSHA240903001 2 / 5 Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RSHA240903001 3 / 5 Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RSHA240903001 4 / 5 Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RSHA240903001 5 / 5 2.4G Wi-Fi Antenna 2.4G Wi-Fi Antenna

Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RSHA240903001-00B Page 14 of 64 FCC §1.1310 & §2.1091 - MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart §2.1091 and subpart §1.1310, systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f²) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density; According to §1.1310 and §2.1091 RF exposure is calculated. Calculated Formulary Predication of MPE limit at a given distance S = PG/4πR² = power density (in appropriate units, e.g. mW/cm 2 ); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain; R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); Calculated Data: Mode Frequency Range (MHz) Antenna Gain ★Tune-up Output Power Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi) (numeric) (dBm) (mW) 2.4G Wi-Fi 2412~2462 3.17 2.07 21.5 141.25 20 0.0583 1.0 Note: 1. For the above tune up power were declared by the manufacturer. Result: The device meet FCC MPE at 20 cm distance.

OTA TEST REPORT TA Tech nology (Shanghai) Co., Ltd. tested the above equipment in accordance with the requirements in ANSI/IEEE Std 149-2008. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Prep ared by: Peng Tao App roved by: Kai Xu TA Technology (Shanghai) Co., Ltd. No.145, Jintang Rd, Tangzhen Industry Park, Pudong Shanghai, China TEL: +86‐021‐50791141/2/3 FAX: +86‐021‐50791141/2/3‐8000 Applicant Espressif System (Shanghai) Co.,Ltd Product ESP8684-WROOM-04C Model ESP8684-WROOM-04C Report No. Y2102A0260-T3 Issue Date March 9, 2021 OTA Test Report Report No: Y2102A0260-T3 TA Technology (Shanghai) Co., Ltd. TA-MB-04-008O P age 2 of 13 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. TABLE OF CO NTENTS 1.Test Laboratory .............................................................................................................................. 3 1.1. Notes of the Test Report ................................................................................................... 3 1.2. Test facility ........................................................................................................................ 3 1.3. Testing Location ................................................................................................................ 3 1.4. Laboratory Environment .................................................................................................... 4 2.General Description of Equipment under Test ............................................................................... 5 2.1. Applicant and Manufacturer Information ............................................................................ 5 2.2. General information ........................................................................................................... 5 2.3. Test Date ........................................................................................................................... 5 2.4. Receiving Date .................................................................................................................. 5 2.5. Applied Standards ............................................................................................................. 6 3.Test Conditions .............................................................................................................................. 7 3.1. Test Configuration ............................................................................................................. 7 3.2. Test Measurement ............................................................................................................. 7 4.Test Results ................................................................................................................................... 8 4.1. Gain and Efficiency ............................................................................................................ 8 5.Equipment List ............................................................................................................................... 9 ANNEX A 3-D Pattern Plots ................................................................................................................... 10 ANNEX B：The EUT Appearance and Test Configuration ...................................................................... 12 B.1 EUT Appearance ................................................................................................................... 12 B.2 Test Configuration ................................................................................................................. 13 OTA Test Report Report No: Y2102A0260-T3 TA Technology (Shanghai) Co., Ltd. TA-MB-04-008O P age 3 of 13 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. 1.Test Laboratory 1.1. Notes of the Test Report This report shall not be reproduced in full or partial, without the written approval of TA technology (shanghai) co., Ltd. The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein .Measurement Uncertainties were not taken into account and are published for informational purposes only. This report is written to support regulatory compliance of the applicable standards stated above. 1.2. Test facility A2LA (Certificate Number: 3857.01) TA Technology (Shanghai) Co., Ltd. has been listed by American Association for Laboratory Accreditation to perform measurement. 1.3. Testing Location Company: TA Technology (Shanghai) Co., Ltd. Address: No.145, Jintang Rd, Tangzhen Industry Park, Pudong Shanghai, China City: Sh ang hai P ost code: 201201 Country: P. R. China Contact: Xu Ka i Telep hone: +86-021-50791141/2/3 Fax:+86- 021-50791141/2/3-8000 Website: http://www.ta-shanghai.com E-mail: [email protected] OTA Test Report Report No: Y2102A0260-T3 TA Technology (Shanghai) Co., Ltd. TA-MB-04-008O P age 4 of 13 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. 1.4. Laboratory Environment Temperature Min. =19°C，Max. = 25°C Relative humidity Min. =40%，Max. =72% Shield effect 0.7-6GHz > 100dB Ground resistance <0.5 OTA Test Report Report No: Y2102A0260-T3 TA Technology (Shanghai) Co., Ltd. TA-MB-04-008O P age 5 of 13 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. 2. General Description of Equipment under Test 2.1. Applicant and Manufacturer Information Applicant Name Espressif System (Shanghai) Co.,Ltd Applicant address Suite 204 Block 2, 690 Bibo Road, Zhang Jiang Hi-Tech Park, Shanghai, China Manufacturer Name Espressif System (Shanghai) Co.,Ltd Manufacturer address Suite 204 Block 2, 690 Bibo Road, Zhang Jiang Hi-Tech Park, Shanghai, …

Text truncated - open the document above for the full version.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Kunshan). This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, or any agency of the U.S. Government. This report contains data that are not covered by the NVLAP accreditation. Page 1 of 64 FCC PART 15.247 TEST REPORT For Deer Electric Appliance Co.,LTD 119 Moo 5 Soi 12, Highway 36, Makhamkoo, Nikompattana Rayong, 21180, Thailand FCC ID: 2BRYR-DRS1969N R e p o r t T y p e : O r i g i n a l R e p o r t P r o d u c t N a m e: W i r e l e s s P l u g-I n R e m o t e C o n t r o l A d a p t o r Report Number: RSHA240903001-00B Report Date: 2026-09-03 Reviewed By: Bard Liu Approved By: Kyle Xu Prepared By: Bay Area Compliance Laboratories Corp. (Kunshan) No.248 Chenghu Road, Kunshan, Jiangsu Province, China Tel: +86-512-86175000 Fax: +86-512-88934268 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RSHA240903001-00B Page 2 of 64 TABLE OF CONTENTS REPORT REVISION HISTORY................................................................................................................................. 4 GENERAL INFORMATION ....................................................................................................................................... 5 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 5 OBJECTIVE ................................................................................................................................................................... 5 TEST METHODOLOGY .................................................................................................................................................. 6 MEASUREMENT UNCERTAINTY .................................................................................................................................... 6 TEST FACILITY ............................................................................................................................................................. 6 SYSTEM TEST CONFIGURATION .......................................................................................................................... 7 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 7 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 7 EUT EXERCISE SOFTWARE .......................................................................................................................................... 8 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................. 10 EXTERNAL I/O CABLE ................................................................................................................................................ 10 BLOCK DIAGRAM OF TEST SETUP .............................................................................................................................. 10 SUMMARY OF TEST RESULTS ............................................................................................................................. 12 TEST EQUIPMENT LIST ......................................................................................................................................... 13 FCC §1.1310 & §2.1091 - MAXIMUM PERMISSIBLE EXPOSURE (MPE) ....................................................... 14 FCC §15.203 - ANTENNA REQUIREMENT ........................................................................................................... 15 APPLICABLE STANDARD ............................................................................................................................................ 15 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 15 FCC §15.207 (a) - AC LINE CONDUCTED EMISSIONS ...................................................................................... 16 APPLICABLE STANDARD ............................................................................................................................................ 16 TEST SYSTEM SETUP .................................................................................................................................................. 16 EMI TEST RECEIVER SETUP ....................................................................................................................................... 16 TEST PROCEDURE ...................................................................................................................................................... 17 TEST RESULTS SUMMARY .......................................................................................................................................... 17 TEST DATA: SEE APPENDIX ....................................................................................................................................... 17 FCC §15.209, §15.205 & §15.247(d) - SPURIOUS EMISSIONS ............................................................................. 18 APPLICABLE STANDARD ............................................................................................................................................ 18 TEST SYSTEM SETUP .................................................................................................................................................. 18 EMI TEST RECEIVER SETUP .............................................................................................…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RSHA240903001 1 / 4 EXHIBIT C - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions - Left View Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RSHA240903001 2 / 4 Radiated Emissions-Ground-parallel View (Below 30 MHz) Radiated Emissions-Perpendicular View (Below 30 MHz) Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RSHA240903001 3 / 4 Radiated Emissions-Parallel View (Below 30 MHz) Radiated Emissions - Front View (Below 1 GHz) Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RSHA240903001 4 / 4 Radiated Emissions (1 GHz-18 GHz) Radiated Emissions (18 GHz-25 GHz)
