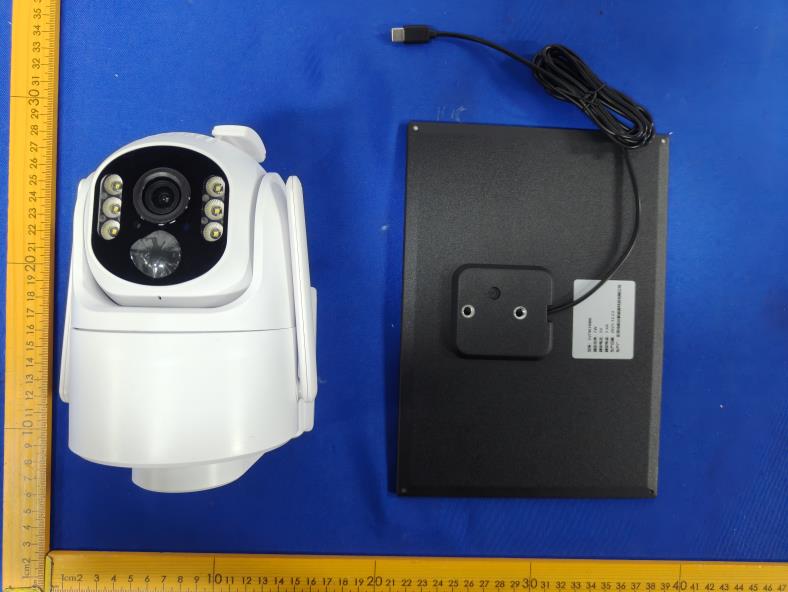

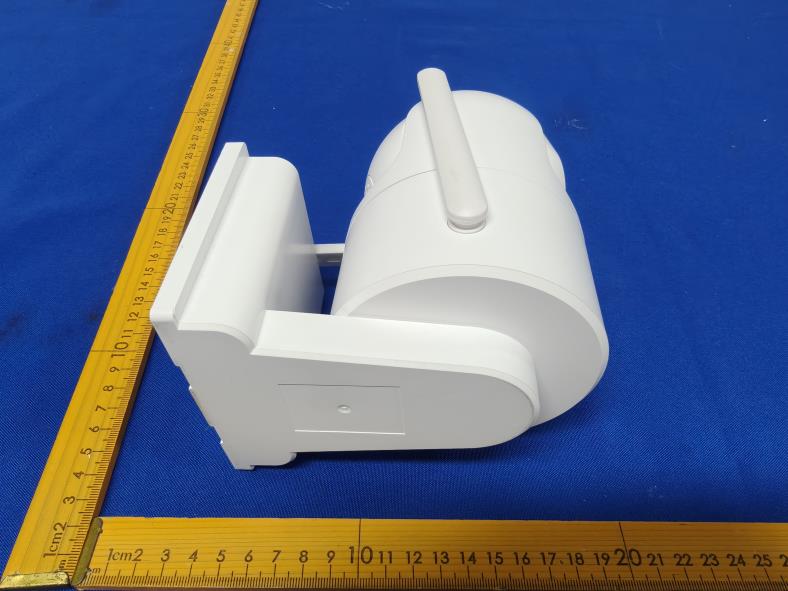

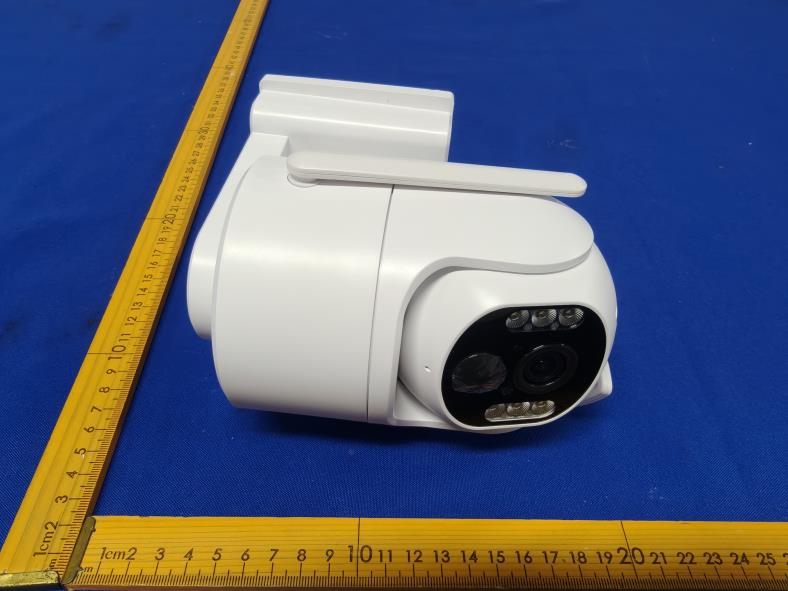

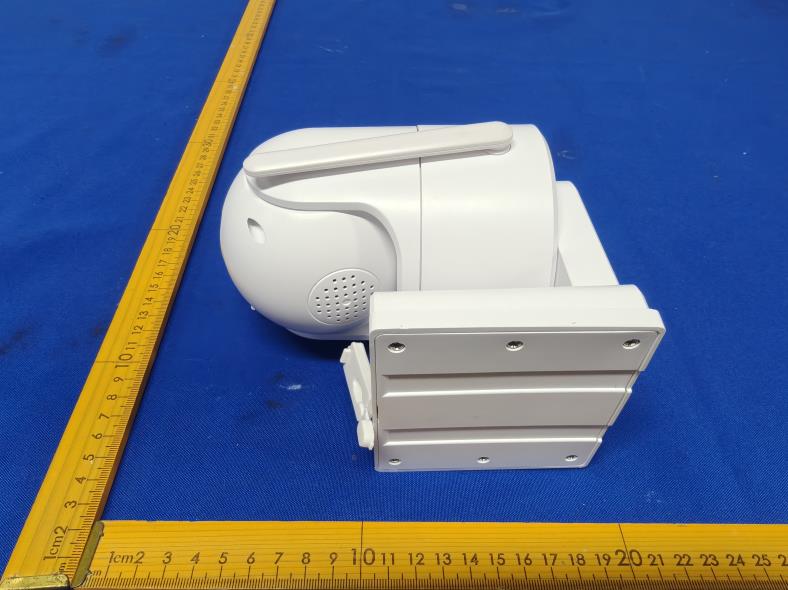

2BRZ4-D01W4G Intelligent Solar Energy PTZ Camera
Shenzhen IVY IoT Technology Co.,Ltd.
Click to zoom
Application Details
- Equipment Class
- PCB - PCS Licensed Transmitter
- Date of Grant
- Feb 02, 2026
- Application Purpose
- Original Equipment
- Equipment Note
- 4G Intelligent Solar Energy PTZ Camera
- Frequency Range
- 663.00000000 - 698.00000000
- Country
- China
Documents & Files
Select a file to view
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Users Manual
4G Solar HD Camera User Guide HUNTVISION www.ivyiot.io The camera is only available for use in the US The user guide is for reference only. Due to frequent updates and improvements, the screenshots shown in the user guide of the"HUNTVISION" App may differ from the screenshots currently displayed in your application. About the User Manual: The user manual is used as a guide. The photos, graphic, charts and illustrations provided in the user Manual are only usedto explanation and interpretation, which may be different from specific products,please refer to the real object. The user manual maybe updated because of the products version upgrade or other requirements, if you need the latest version of the user manual, please contact customer service for the latest version of the user manual. - For IOS system devices, please search and download the " HUNTVISION" app inApple Store. - For Android system devices, please search and download the "HUNTVISION"app in Google play. Please scan the QR code below with your mobile phone to download and install the "HUNTVISION" APP. 01 0203 Contents 1γCamera Hardware Instructions 2γAPP Usage Instructions Packing List04 Component Introduction 06 Installation Height and Angle 08 Installation Instruction 10 Connect the camera to solar panel supply 11 Make sure the camera is powered on 12 Preparation Before Installation 13 Registered Account 14 Add Camera17 Watch the video20 Information to User: Note: This equipment has been tested and found to comply with the limits for aClass B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmfulinterfer- encein a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if notinstalled and used in accordance with the instructions, may cause harmfulinterference to radio communications.However, there is no guarantee that interference will not occur in aparticularinstallation.If this equipment does cause harmful interference to radio ortelevision reception,which can be determined by turning the equipment off and on,the user isencouraged to try to correct the interference by one or more of the following. measures: Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Important: Change or modifications not expressly approved by the manufactur- erres-ponsible for compliance could void the user's authority to operate theequipment. How to insert TF card 22 0405 1.Packing List Open the package, please make sure that the Solar Outdoor PTZ Camera is good. Please refer to the figure below to confirm whether the accessories are complete. camera Solar Panel Main Bracket Solar Panel Screw Anchor USB Charging CableCamera bracket Instruction Manual 0607 2.Component Introduction How to reset the camera: When the device is powered on, press and hold the Reset button for about 4 seconds and release it when you hear a sound from the device.After that, the device will automatically reset successfully and restart. Speaker TF Mic PIR Lens Antenna Photosensitive LED Indicator Night Vision Light Night Vision Light Battery Holder REST SIM TF ON/OFF TPCY-C REST SIM 3.Installation Height and Angle. When the camera is installed at a height of 3 meters and the angle between the lens and the ground is 25Β°, the sensing distance is 12 meters. (Please do not point the camera lens at direct sunlight.) Please install the solar panel in a place that receives sunlight, do not install it in a place that cannot collect sunlight;When installing, the best angle between the solar panel and the wall is about 45Β°, and ensure that the sun is directly exposed. Please fix the solar panel to avoid falling damage or broken. 0809 25Β° 45Β° 9 feet (3M) 30 feet (10M) 4.Installation Instruction 1.Use the screws from the accessory kit to fix the solar panel Bracket to the wall. 2.Then lock the solar panel onto the bracket. 1011 3.Use the screws from the accessory kit to fix the solar camera bracket. 4.Insert the solar camera from below the bracket into the bracket 5. Connect the camera to solar panel supply. REST SIM TF 1.Please connect the solar panel interface to the TypeC interface below the camera's battery compartment For the camera to work normally. please do not extend the cable. 6. Make sure the camera is powered on 1213 Confirm that the SIM card has been inserted into the camera Connect the solar panel with the camera power cord. Press the switch and the light will turn on. When the blue light on the camera lights up and flashes slowly, the camera is waiting to pair with the App. 1 2 3 Press the switch, thelight will turn on. 1 Connect the solar panel with the camera power cord. Press the switch and the light will turn on. 2 Camera Working Status Led Red light is constantly on The camera did not detect the SIM card Red light is flashing rapidly The camera has a SIM card and is either in network connection or experiencing network connection failure Red light flashing slowly Camera 4G network connection successful, maintaining active service connection Blue light flashing slowly Prompt users to add 4G cameras on the app Blue light stays on The camera has been successfully bound to the APP and is in normal working condition Red and blue lights flashing alternately Camera software upgrade in progress Red light illuminates for one second and then goes out The camera is low on battery and cannot be turned on 7.Preparation Before Installation Please prepare the following equipment before use. It can support lOS11.0 or Android 8.0 (higher system version is OK)smartphones or iPad,but it cann't support Mac or Windows PC. 4G Signal Β·This camera can only support 4G Nano SIM Card. Β·But it can not support Wi-Fi signal connection on router. REST SIM β¦
Text truncated - open the document above for the full version.
Test Report
Page 1 of 148 Report No.: AiTSZ-260112005FW1 1. Effective (Isotropic) Radiated Power Output Data 1.1 Test Result 1.1.1 B41_5MHz_EIRP Band: 41 / Bandwidth: 5MHz / NTNV Modulation Frequency (MHz) RB Allocation Conducted Power (dBm) Gain (dBi) EIRP (dBm) Verdict Size Offset Result Limit QPSK 2498.5 1 0 22.24 1.29 23.53 <=33.01 Pass 13 22.24 1.29 23.53 <=33.01 Pass 24 22.28 1.29 23.57 <=33.01 Pass 12 0 21.20 1.29 22.49 <=33.01 Pass 6 21.19 1.29 22.48 <=33.01 Pass 13 21.21 1.29 22.50 <=33.01 Pass 25 0 21.23 1.29 22.52 <=33.01 Pass 2593 1 0 22.70 1.29 23.99 <=33.01 Pass 13 22.65 1.29 23.94 <=33.01 Pass 24 22.76 1.29 24.05 <=33.01 Pass 12 0 21.63 1.29 22.92 <=33.01 Pass 6 21.64 1.29 22.93 <=33.01 Pass 13 21.60 1.29 22.89 <=33.01 Pass 25 0 21.59 1.29 22.88 <=33.01 Pass 2687.5 1 0 23.73 1.29 25.02 <=33.01 Pass 13 23.80 1.29 25.09 <=33.01 Pass 24 23.83 1.29 25.12 <=33.01 Pass 12 0 22.73 1.29 24.02 <=33.01 Pass 6 22.72 1.29 24.01 <=33.01 Pass 13 22.73 1.29 24.02 <=33.01 Pass 25 0 22.78 1.29 24.07 <=33.01 Pass 16QAM 2498.5 1 0 21.19 1.29 22.48 <=33.01 Pass 13 21.22 1.29 22.51 <=33.01 Pass 24 21.19 1.29 22.48 <=33.01 Pass 12 0 20.19 1.29 21.48 <=33.01 Pass 6 20.17 1.29 21.46 <=33.01 Pass 13 20.16 1.29 21.45 <=33.01 Pass 25 0 20.26 1.29 21.55 <=33.01 Pass 2593 1 0 21.80 1.29 23.09 <=33.01 Pass 13 21.64 1.29 22.93 <=33.01 Pass 24 21.63 1.29 22.92 <=33.01 Pass 12 0 20.63 1.29 21.92 <=33.01 Pass 6 20.63 1.29 21.92 <=33.01 Pass 13 20.56 1.29 21.85 <=33.01 Pass 25 0 20.61 1.29 21.90 <=33.01 Pass 2687.5 1 0 22.76 1.29 24.05 <=33.01 Pass 13 22.88 1.29 24.17 <=33.01 Pass 24 22.76 1.29 24.05 <=33.01 Pass 12 0 21.82 1.29 23.11 <=33.01 Pass 6 21.78 1.29 23.07 <=33.01 Pass 13 21.78 1.29 23.07 <=33.01 Pass 25 0 21.82 1.29 23.11 <=33.01 Pass Note1: EIRP=Conducted Power+Antenna Gain 1.1.2 B41_10MHz_EIRP Band: 41 / Bandwidth: 10MHz / NTNV Page 2 of 148 Report No.: AiTSZ-260112005FW1 Modulation Frequency (MHz) RB Allocation Conducted Power (dBm) Gain (dBi) EIRP (dBm) Verdict Size Offset Result Limit QPSK 2501 1 0 22.05 1.29 23.34 <=33.01 Pass 25 22.12 1.29 23.41 <=33.01 Pass 49 22.25 1.29 23.54 <=33.01 Pass 25 0 21.16 1.29 22.45 <=33.01 Pass 13 21.20 1.29 22.49 <=33.01 Pass 25 21.26 1.29 22.55 <=33.01 Pass 50 0 21.24 1.29 22.53 <=33.01 Pass 2593 1 0 22.59 1.29 23.88 <=33.01 Pass 25 22.61 1.29 23.90 <=33.01 Pass 49 22.73 1.29 24.02 <=33.01 Pass 25 0 21.62 1.29 22.91 <=33.01 Pass 13 21.61 1.29 22.90 <=33.01 Pass 25 21.63 1.29 22.92 <=33.01 Pass 50 0 21.68 1.29 22.97 <=33.01 Pass 2685 1 0 23.77 1.29 25.06 <=33.01 Pass 25 23.85 1.29 25.14 <=33.01 Pass 49 23.81 1.29 25.10 <=33.01 Pass 25 0 22.71 1.29 24.00 <=33.01 Pass 13 22.76 1.29 24.05 <=33.01 Pass 25 22.71 1.29 24.00 <=33.01 Pass 50 0 22.74 1.29 24.03 <=33.01 Pass 16QAM 2501 1 0 21.10 1.29 22.39 <=33.01 Pass 25 20.95 1.29 22.24 <=33.01 Pass 49 21.53 1.29 22.82 <=33.01 Pass 25 0 20.17 1.29 21.46 <=33.01 Pass 13 20.23 1.29 21.52 <=33.01 Pass 25 20.24 1.29 21.53 <=33.01 Pass 50 0 20.19 1.29 21.48 <=33.01 Pass 2593 1 0 21.46 1.29 22.75 <=33.01 Pass 25 21.50 1.29 22.79 <=33.01 Pass 49 21.53 1.29 22.82 <=33.01 Pass 25 0 20.65 1.29 21.94 <=33.01 Pass 13 20.62 1.29 21.91 <=33.01 Pass 25 20.68 1.29 21.97 <=33.01 Pass 50 0 20.63 1.29 21.92 <=33.01 Pass 2685 1 0 22.81 1.29 24.10 <=33.01 Pass 25 22.79 1.29 24.08 <=33.01 Pass 49 22.82 1.29 24.11 <=33.01 Pass 25 0 21.73 1.29 23.02 <=33.01 Pass 13 21.79 1.29 23.08 <=33.01 Pass 25 21.75 1.29 23.04 <=33.01 Pass 50 0 21.71 1.29 23.00 <=33.01 Pass Note1: EIRP=Conducted Power+Antenna Gain 1.1.3 B41_15MHz_EIRP Band: 41 / Bandwidth: 15MHz / NTNV Modulation Frequency (MHz) RB Allocation Conducted Power (dBm) Gain (dBi) EIRP (dBm) Verdict Size Offset Result Limit QPSK 2503.5 1 0 22.12 1.29 23.41 <=33.01 Pass 38 22.13 1.29 23.42 <=33.01 Pass 74 22.22 1.29 23.51 <=33.01 Pass 36 0 21.09 1.29 22.38 <=33.01 Pass 18 21.13 1.29 22.42 <=33.01 Pass 39 21.20 1.29 22.49 <=33.01 Pass 75 0 21.18 1.29 22.47 <=33.01 Pass Page 3 of 148 Report No.: AiTSZ-260112005FW1 2593 1 0 22.52 1.29 23.81 <=33.01 Pass 38 22.58 1.29 23.87 <=33.01 Pass 74 22.54 1.29 23.83 <=33.01 Pass 36 0 21.58 1.29 22.87 <=33.01 Pass 18 21.59 1.29 22.88 <=33.01 Pass 39 21.60 1.29 22.89 <=33.01 Pass 75 0 21.62 1.29 22.91 <=33.01 Pass 2682.5 1 0 23.68 1.29 24.97 <=33.01 Pass 38 23.81 1.29 25.10 <=33.01 Pass 74 23.80 1.29 25.09 <=33.01 Pass 36 0 22.67 1.29 23.96 <=33.01 Pass 18 22.68 1.29 23.97 <=33.01 Pass 39 22.71 1.29 24.00 <=33.01 Pass 75 0 22.72 1.29 24.01 <=33.01 Pass 16QAM 2503.5 1 0 21.09 1.29 22.38 <=33.01 Pass 38 21.53 1.29 22.82 <=33.01 Pass 74 21.22 1.29 22.51 <=33.01 Pass 36 0 20.11 1.29 21.40 <=33.01 Pass 18 20.16 1.29 21.45 <=33.01 Pass 39 20.27 1.29 21.56 <=33.01 Pass 75 0 20.14 1.29 21.43 <=33.01 Pass 2593 1 0 21.41 1.29 22.70 <=33.01 Pass 38 21.54 1.29 22.83 <=33.01 Pass 74 21.35 1.29 22.64 <=33.01 Pass 36 0 20.59 1.29 21.88 <=33.01 Pass 18 20.58 1.29 21.87 <=33.01 Pass 39 20.62 1.29 21.91 <=33.01 Pass 75 0 20.58 1.29 21.87 <=33.01 Pass 2682.5 1 0 22.74 1.29 24.03 <=33.01 Pass 38 22.86 1.29 24.15 <=33.01 Pass 74 22.83 1.29 24.12 <=33.01 Pass 36 0 21.63 1.29 22.92 <=33.01 Pass 18 21.68 1.29 22.97 <=33.01 Pass 39 21.70 1.29 22.99 <=33.01 Pass 75 0 21.72 1.29 23.01 <=33.01 Pass Note1: EIRP=Conducted Power+Antenna Gain 1.1.4 B41_20MHz_EIRP Band: 41 / Bandwidth: 20MHz / NTNV Modulation Frequency (MHz) RB Allocation Conducted Power (dBm) Gain (dBi) EIRP (dBm) Verdict Size Offset Result Limit QPSK 2506 1 0 21.99 1.29 23.28 <=33.01 Pass 50 22.28 1.29 23.57 <=33.01 Pass 99 22.21 1.29 23.50 <=33.01 Pass 50 0 21.13 1.29 22.42 <=33.01 Pass 25 21.25 1.29 22.54 <=33.01 Pass 50 21.37 1.29 22.66 <=33.01 Pass 100 0 21.25 1.29 22.54 <=33.01 Pass 2593 1 0 22.49 1.29 23.78 <=33.01 Pass 50 22.55 1.29 23.84 <=33.01 Pass 99 22.50 1.29 23.79 <=33.01 Pass 50 0 21.62 1.29 22.91 <=33.01 Pass 25 21.68 1.29 22.97 <=33.01 Pass 50 21.66 1.29 22.95 <=33.01 Pass 100 0 21.61 1.29 22.90 <=33.01 Pass 2680 1 0 23.52 1.29 24.81 <=33.01 Pass 50 23.72 1.29 25.01 <=33.01 Pass Page 4 of 148 Report No.: AiTSZ-260112β¦
Text truncated - open the document above for the full version.
Test Report
Page 131 of 149 Report No.: AiTSZ-260112005FW1 Band38_20MHz_QPSK_HCH_2610MHz_RB_1_0_NTNV Band38_20MHz_QPSK_HCH_2610MHz_RB_1_0_NTNV Page 132 of 149 Report No.: AiTSZ-260112005FW1 Band38_20MHz_QPSK_HCH_2610MHz_RB_1_99_NTNV Band38_20MHz_QPSK_HCH_2610MHz_RB_100_0_NTNV Page 133 of 149 Report No.: AiTSZ-260112005FW1 Band38_20MHz_16QAM_LCH_2580MHz_RB_1_0_NTNV Band38_20MHz_16QAM_LCH_2580MHz_RB_1_0_NTNV Page 134 of 149 Report No.: AiTSZ-260112005FW1 Band38_20MHz_16QAM_LCH_2580MHz_RB_1_0_NTNV Band38_20MHz_16QAM_LCH_2580MHz_RB_1_0_NTNV Page 135 of 149 Report No.: AiTSZ-260112005FW1 Band38_20MHz_16QAM_LCH_2580MHz_RB_1_0_NTNV Band38_20MHz_16QAM_LCH_2580MHz_RB_1_0_NTNV Page 136 of 149 Report No.: AiTSZ-260112005FW1 Band38_20MHz_16QAM_LCH_2580MHz_RB_1_0_NTNV Band38_20MHz_16QAM_LCH_2580MHz_RB_100_0_NTNV Page 137 of 149 Report No.: AiTSZ-260112005FW1 Band38_20MHz_16QAM_MCH_2595MHz_RB_1_0_NTNV Band38_20MHz_16QAM_MCH_2595MHz_RB_1_0_NTNV Page 138 of 149 Report No.: AiTSZ-260112005FW1 Band38_20MHz_16QAM_MCH_2595MHz_RB_1_0_NTNV Band38_20MHz_16QAM_MCH_2595MHz_RB_1_0_NTNV Page 139 of 149 Report No.: AiTSZ-260112005FW1 Band38_20MHz_16QAM_MCH_2595MHz_RB_1_0_NTNV Band38_20MHz_16QAM_MCH_2595MHz_RB_1_0_NTNV Page 140 of 149 Report No.: AiTSZ-260112005FW1 Band38_20MHz_16QAM_HCH_2610MHz_RB_1_0_NTNV Band38_20MHz_16QAM_HCH_2610MHz_RB_1_0_NTNV Page 141 of 149 Report No.: AiTSZ-260112005FW1 Band38_20MHz_16QAM_HCH_2610MHz_RB_1_0_NTNV Band38_20MHz_16QAM_HCH_2610MHz_RB_1_0_NTNV Page 142 of 149 Report No.: AiTSZ-260112005FW1 Band38_20MHz_16QAM_HCH_2610MHz_RB_1_0_NTNV Band38_20MHz_16QAM_HCH_2610MHz_RB_1_0_NTNV Page 143 of 149 Report No.: AiTSZ-260112005FW1 Band38_20MHz_16QAM_HCH_2610MHz_RB_1_99_NTNV Band38_20MHz_16QAM_HCH_2610MHz_RB_100_0_NTNV Page 144 of 149 Report No.: AiTSZ-260112005FW1 7. Frequency Stability (IC) 7.1 Test Result 7.1.1 B38_5MHz Band: 38 / Bandwidth: 5MHz / NTNV Modulation Frequency (MHz) RB Allocation Temp. (Β°C) Voltage (VDC) OBW (FL - FH) (MHz) Limit Verdict Size Offset FL FH QPSK 2572.5 25 0 20 3.15 2570.234 2574.798 2570 to 2595 Pass 3.70 2570.236 2574.800 2570 to 2595 Pass 4.30 2570.234 2574.796 2570 to 2595 Pass -30 3.70 2570.236 2574.799 2570 to 2595 Pass -20 3.70 2570.238 2574.800 2570 to 2595 Pass -10 3.70 2570.232 2574.797 2570 to 2595 Pass 0 3.70 2570.239 2574.795 2570 to 2595 Pass 10 3.70 2570.242 2574.794 2570 to 2595 Pass 30 3.70 2570.231 2574.800 2570 to 2595 Pass 40 3.70 2570.238 2574.799 2570 to 2595 Pass 50 3.70 2570.238 2574.793 2570 to 2595 Pass 2595 25 0 20 3.15 2592.731 2597.289 2570 to 2620 Pass 3.70 2592.730 2597.284 2570 to 2620 Pass 4.30 2592.733 2597.290 2570 to 2620 Pass -30 3.70 2592.733 2597.289 2570 to 2620 Pass -20 3.70 2592.735 2597.284 2570 to 2620 Pass -10 3.70 2592.732 2597.283 2570 to 2620 Pass 0 3.70 2592.732 2597.293 2570 to 2620 Pass 10 3.70 2592.732 2597.284 2570 to 2620 Pass 30 3.70 2592.733 2597.293 2570 to 2620 Pass 40 3.70 2592.744 2597.286 2570 to 2620 Pass 50 3.70 2592.733 2597.288 2570 to 2620 Pass 2617.5 25 0 20 3.15 2615.231 2619.795 2595 to 2620 Pass 3.70 2615.234 2619.798 2595 to 2620 Pass 4.30 2615.249 2619.794 2595 to 2620 Pass -30 3.70 2615.237 2619.790 2595 to 2620 Pass -20 3.70 2615.244 2619.796 2595 to 2620 Pass -10 3.70 2615.238 2619.798 2595 to 2620 Pass 0 3.70 2615.239 2619.796 2595 to 2620 Pass 10 3.70 2615.237 2619.793 2595 to 2620 Pass 30 3.70 2615.237 2619.793 2595 to 2620 Pass 40 3.70 2615.235 2619.797 2595 to 2620 Pass 50 3.70 2615.236 2619.794 2595 to 2620 Pass 16QAM 2572.5 25 0 20 3.15 2570.247 2574.789 2570 to 2595 Pass 3.70 2570.245 2574.783 2570 to 2595 Pass 4.30 2570.225 2574.806 2570 to 2595 Pass -30 3.70 2570.244 2574.792 2570 to 2595 Pass -20 3.70 2570.231 2574.799 2570 to 2595 Pass -10 3.70 2570.241 2574.806 2570 to 2595 Pass 0 3.70 2570.245 2574.807 2570 to 2595 Pass 10 3.70 2570.231 2574.807 2570 to 2595 Pass 30 3.70 2570.240 2574.800 2570 to 2595 Pass 40 3.70 2570.248 2574.798 2570 to 2595 Pass 50 3.70 2570.232 2574.793 2570 to 2595 Pass 2595 25 0 20 3.15 2592.747 2597.286 2570 to 2620 Pass 3.70 2592.746 2597.292 2570 to 2620 Pass 4.30 2592.746 2597.284 2570 to 2620 Pass -30 3.70 2592.744 2597.291 2570 to 2620 Pass -20 3.70 2592.732 2597.286 2570 to 2620 Pass Page 145 of 149 Report No.: AiTSZ-260112005FW1 -10 3.70 2592.748 2597.290 2570 to 2620 Pass 0 3.70 2592.751 2597.293 2570 to 2620 Pass 10 3.70 2592.748 2597.291 2570 to 2620 Pass 30 3.70 2592.747 2597.292 2570 to 2620 Pass 40 3.70 2592.745 2597.284 2570 to 2620 Pass 50 3.70 2592.741 2597.282 2570 to 2620 Pass 2617.5 25 0 20 3.15 2615.247 2619.795 2595 to 2620 Pass 3.70 2615.253 2619.793 2595 to 2620 Pass 4.30 2615.252 2619.796 2595 to 2620 Pass -30 3.70 2615.247 2619.792 2595 to 2620 Pass -20 3.70 2615.245 2619.812 2595 to 2620 Pass -10 3.70 2615.243 2619.793 2595 to 2620 Pass 0 3.70 2615.254 2619.800 2595 to 2620 Pass 10 3.70 2615.253 2619.794 2595 to 2620 Pass 30 3.70 2615.242 2619.794 2595 to 2620 Pass 40 3.70 2615.246 2619.797 2595 to 2620 Pass 50 3.70 2615.255 2619.795 2595 to 2620 Pass 7.1.2 B38_10MHz Band: 38 / Bandwidth: 10MHz / NTNV Modulation Frequency (MHz) RB Allocation Temp. (Β°C) Voltage (VDC) OBW (FL - FH) (MHz) Limit Verdict Size Offset FL FH QPSK 2575 50 0 20 3.15 2570.478 2579.568 2570 to 2595 Pass 3.70 2570.497 2579.550 2570 to 2595 Pass 4.30 2570.486 2579.561 2570 to 2595 Pass -30 3.70 2570.493 2579.555 2570 to 2595 Pass -20 3.70 2570.472 2579.552 2570 to 2595 Pass -10 3.70 2570.477 2579.550 2570 to 2595 Pass 0 3.70 2570.466 2579.554 2570 to 2595 Pass 10 3.70 2570.473 2579.565 2570 to 2595 Pass 30 3.70 2570.484 2579.557 2570 to 2595 Pass 40 3.70 2570.508 2579.546 2570 to 2595 Pass 50 3.70 2570.474 2579.562 2570 to 2595 Pass 2595 50 0 20 3.15 2590.518 2599.565 2570 to 2620 Pass 3.70 2590.506 2599.580 2570 to 2620 Pass 4.30 2590.517 2599.583 2570 to 2620 Pass -30 3.70 2590.516 2599.569 2570 to 2620 Pass -20 3.70 2590.492 2599.573 2570 to 2620 Pass -10 3.70 2590.512 2599.562 2570 to 2620 Pass 0 3.70 2590.500 2599.567 2570 to 2620 Pass 10 3.70 2590.499 2599.567β¦
Text truncated - open the document above for the full version.
Test Report
Page 93 of 149 Report No.: AiTSZ-260112005FW1 Band38_10MHz_16QAM_MCH_2595MHz_RB_1_0_NTNV Band38_10MHz_16QAM_MCH_2595MHz_RB_1_0_NTNV Page 94 of 149 Report No.: AiTSZ-260112005FW1 Band38_10MHz_16QAM_MCH_2595MHz_RB_1_0_NTNV Band38_10MHz_16QAM_MCH_2595MHz_RB_1_0_NTNV Page 95 of 149 Report No.: AiTSZ-260112005FW1 Band38_10MHz_16QAM_MCH_2595MHz_RB_1_0_NTNV Band38_10MHz_16QAM_MCH_2595MHz_RB_1_0_NTNV Page 96 of 149 Report No.: AiTSZ-260112005FW1 Band38_10MHz_16QAM_HCH_2615MHz_RB_1_0_NTNV Band38_10MHz_16QAM_HCH_2615MHz_RB_1_0_NTNV Page 97 of 149 Report No.: AiTSZ-260112005FW1 Band38_10MHz_16QAM_HCH_2615MHz_RB_1_0_NTNV Band38_10MHz_16QAM_HCH_2615MHz_RB_1_0_NTNV Page 98 of 149 Report No.: AiTSZ-260112005FW1 Band38_10MHz_16QAM_HCH_2615MHz_RB_1_0_NTNV Band38_10MHz_16QAM_HCH_2615MHz_RB_1_0_NTNV Page 99 of 149 Report No.: AiTSZ-260112005FW1 Band38_10MHz_16QAM_HCH_2615MHz_RB_1_49_NTNV Band38_10MHz_16QAM_HCH_2615MHz_RB_50_0_NTNV Page 100 of 149 Report No.: AiTSZ-260112005FW1 6.2.3 B38_15MHz Band38_15MHz_QPSK_LCH_2577.5MHz_RB_1_0_NTNV Band38_15MHz_QPSK_LCH_2577.5MHz_RB_1_0_NTNV Page 101 of 149 Report No.: AiTSZ-260112005FW1 Band38_15MHz_QPSK_LCH_2577.5MHz_RB_1_0_NTNV Band38_15MHz_QPSK_LCH_2577.5MHz_RB_1_0_NTNV Page 102 of 149 Report No.: AiTSZ-260112005FW1 Band38_15MHz_QPSK_LCH_2577.5MHz_RB_1_0_NTNV Band38_15MHz_QPSK_LCH_2577.5MHz_RB_1_0_NTNV Page 103 of 149 Report No.: AiTSZ-260112005FW1 Band38_15MHz_QPSK_LCH_2577.5MHz_RB_1_0_NTNV Band38_15MHz_QPSK_LCH_2577.5MHz_RB_75_0_NTNV Page 104 of 149 Report No.: AiTSZ-260112005FW1 Band38_15MHz_QPSK_MCH_2595MHz_RB_1_0_NTNV Band38_15MHz_QPSK_MCH_2595MHz_RB_1_0_NTNV Page 105 of 149 Report No.: AiTSZ-260112005FW1 Band38_15MHz_QPSK_MCH_2595MHz_RB_1_0_NTNV Band38_15MHz_QPSK_MCH_2595MHz_RB_1_0_NTNV Page 106 of 149 Report No.: AiTSZ-260112005FW1 Band38_15MHz_QPSK_MCH_2595MHz_RB_1_0_NTNV Band38_15MHz_QPSK_MCH_2595MHz_RB_1_0_NTNV Page 107 of 149 Report No.: AiTSZ-260112005FW1 Band38_15MHz_QPSK_HCH_2612.5MHz_RB_1_0_NTNV Band38_15MHz_QPSK_HCH_2612.5MHz_RB_1_0_NTNV Page 108 of 149 Report No.: AiTSZ-260112005FW1 Band38_15MHz_QPSK_HCH_2612.5MHz_RB_1_0_NTNV Band38_15MHz_QPSK_HCH_2612.5MHz_RB_1_0_NTNV Page 109 of 149 Report No.: AiTSZ-260112005FW1 Band38_15MHz_QPSK_HCH_2612.5MHz_RB_1_0_NTNV Band38_15MHz_QPSK_HCH_2612.5MHz_RB_1_0_NTNV Page 110 of 149 Report No.: AiTSZ-260112005FW1 Band38_15MHz_QPSK_HCH_2612.5MHz_RB_1_74_NTNV Band38_15MHz_QPSK_HCH_2612.5MHz_RB_75_0_NTNV Page 111 of 149 Report No.: AiTSZ-260112005FW1 Band38_15MHz_16QAM_LCH_2577.5MHz_RB_1_0_NTNV Band38_15MHz_16QAM_LCH_2577.5MHz_RB_1_0_NTNV Page 112 of 149 Report No.: AiTSZ-260112005FW1 Band38_15MHz_16QAM_LCH_2577.5MHz_RB_1_0_NTNV Band38_15MHz_16QAM_LCH_2577.5MHz_RB_1_0_NTNV Page 113 of 149 Report No.: AiTSZ-260112005FW1 Band38_15MHz_16QAM_LCH_2577.5MHz_RB_1_0_NTNV Band38_15MHz_16QAM_LCH_2577.5MHz_RB_1_0_NTNV Page 114 of 149 Report No.: AiTSZ-260112005FW1 Band38_15MHz_16QAM_LCH_2577.5MHz_RB_1_0_NTNV Band38_15MHz_16QAM_LCH_2577.5MHz_RB_75_0_NTNV Page 115 of 149 Report No.: AiTSZ-260112005FW1 Band38_15MHz_16QAM_MCH_2595MHz_RB_1_0_NTNV Band38_15MHz_16QAM_MCH_2595MHz_RB_1_0_NTNV Page 116 of 149 Report No.: AiTSZ-260112005FW1 Band38_15MHz_16QAM_MCH_2595MHz_RB_1_0_NTNV Band38_15MHz_16QAM_MCH_2595MHz_RB_1_0_NTNV Page 117 of 149 Report No.: AiTSZ-260112005FW1 Band38_15MHz_16QAM_MCH_2595MHz_RB_1_0_NTNV Band38_15MHz_16QAM_MCH_2595MHz_RB_1_0_NTNV Page 118 of 149 Report No.: AiTSZ-260112005FW1 Band38_15MHz_16QAM_HCH_2612.5MHz_RB_1_0_NTNV Band38_15MHz_16QAM_HCH_2612.5MHz_RB_1_0_NTNV Page 119 of 149 Report No.: AiTSZ-260112005FW1 Band38_15MHz_16QAM_HCH_2612.5MHz_RB_1_0_NTNV Band38_15MHz_16QAM_HCH_2612.5MHz_RB_1_0_NTNV Page 120 of 149 Report No.: AiTSZ-260112005FW1 Band38_15MHz_16QAM_HCH_2612.5MHz_RB_1_0_NTNV Band38_15MHz_16QAM_HCH_2612.5MHz_RB_1_0_NTNV Page 121 of 149 Report No.: AiTSZ-260112005FW1 Band38_15MHz_16QAM_HCH_2612.5MHz_RB_1_74_NTNV Band38_15MHz_16QAM_HCH_2612.5MHz_RB_75_0_NTNV Page 122 of 149 Report No.: AiTSZ-260112005FW1 6.2.4 B38_20MHz Band38_20MHz_QPSK_LCH_2580MHz_RB_1_0_NTNV Band38_20MHz_QPSK_LCH_2580MHz_RB_1_0_NTNV Page 123 of 149 Report No.: AiTSZ-260112005FW1 Band38_20MHz_QPSK_LCH_2580MHz_RB_1_0_NTNV Band38_20MHz_QPSK_LCH_2580MHz_RB_1_0_NTNV Page 124 of 149 Report No.: AiTSZ-260112005FW1 Band38_20MHz_QPSK_LCH_2580MHz_RB_1_0_NTNV Band38_20MHz_QPSK_LCH_2580MHz_RB_1_0_NTNV Page 125 of 149 Report No.: AiTSZ-260112005FW1 Band38_20MHz_QPSK_LCH_2580MHz_RB_1_0_NTNV Band38_20MHz_QPSK_LCH_2580MHz_RB_100_0_NTNV Page 126 of 149 Report No.: AiTSZ-260112005FW1 Band38_20MHz_QPSK_MCH_2595MHz_RB_1_0_NTNV Band38_20MHz_QPSK_MCH_2595MHz_RB_1_0_NTNV Page 127 of 149 Report No.: AiTSZ-260112005FW1 Band38_20MHz_QPSK_MCH_2595MHz_RB_1_0_NTNV Band38_20MHz_QPSK_MCH_2595MHz_RB_1_0_NTNV Page 128 of 149 Report No.: AiTSZ-260112005FW1 Band38_20MHz_QPSK_MCH_2595MHz_RB_1_0_NTNV Band38_20MHz_QPSK_MCH_2595MHz_RB_1_0_NTNV Page 129 of 149 Report No.: AiTSZ-260112005FW1 Band38_20MHz_QPSK_HCH_2610MHz_RB_1_0_NTNV Band38_20MHz_QPSK_HCH_2610MHz_RB_1_0_NTNV Page 130 of 149 Report No.: AiTSZ-260112005FW1 Band38_20MHz_QPSK_HCH_2610MHz_RB_1_0_NTNV Band38_20MHz_QPSK_HCH_2610MHz_RB_1_0_NTNV
Test Report
Page 53 of 149 Report No.: AiTSZ-260112005FW1 Band38_20MHz_16QAM_MCH_2595MHz_RB_100_0_NTNV Band38_20MHz_16QAM_HCH_2610MHz_RB_100_0_NTNV Page 54 of 149 Report No.: AiTSZ-260112005FW1 6. Spurious Emission 6.1 Test Result 6.1.1 B38_5MHz Band: 38 / Bandwidth: 5MHz / NTNV Modulation Frequency (MHz) RB Allocation Spurious Emission Verdict Size Offset Result Limit QPSK 2572.5 1 0 Refer To Test Graph Pass 25 0 Refer To Test Graph Pass 2595 1 0 Refer To Test Graph Pass 2617.5 1 0 Refer To Test Graph Pass 24 Refer To Test Graph Pass 25 0 Refer To Test Graph Pass 16QAM 2572.5 1 0 Refer To Test Graph Pass 25 0 Refer To Test Graph Pass 2595 1 0 Refer To Test Graph Pass 2617.5 1 0 Refer To Test Graph Pass 24 Refer To Test Graph Pass 25 0 Refer To Test Graph Pass 6.1.2 B38_10MHz Band: 38 / Bandwidth: 10MHz / NTNV Modulation Frequency (MHz) RB Allocation Spurious Emission Verdict Size Offset Result Limit QPSK 2575 1 0 Refer To Test Graph Pass 50 0 Refer To Test Graph Pass 2595 1 0 Refer To Test Graph Pass 2615 1 0 Refer To Test Graph Pass 49 Refer To Test Graph Pass 50 0 Refer To Test Graph Pass 16QAM 2575 1 0 Refer To Test Graph Pass 50 0 Refer To Test Graph Pass 2595 1 0 Refer To Test Graph Pass 2615 1 0 Refer To Test Graph Pass 49 Refer To Test Graph Pass 50 0 Refer To Test Graph Pass 6.1.3 B38_15MHz Band: 38 / Bandwidth: 15MHz / NTNV Modulation Frequency (MHz) RB Allocation Spurious Emission Verdict Size Offset Result Limit QPSK 2577.5 1 0 Refer To Test Graph Pass 75 0 Refer To Test Graph Pass 2595 1 0 Refer To Test Graph Pass 2612.5 1 0 Refer To Test Graph Pass 74 Refer To Test Graph Pass 75 0 Refer To Test Graph Pass 16QAM 2577.5 1 0 Refer To Test Graph Pass 75 0 Refer To Test Graph Pass 2595 1 0 Refer To Test Graph Pass 2612.5 1 0 Refer To Test Graph Pass 74 Refer To Test Graph Pass 75 0 Refer To Test Graph Pass Page 55 of 149 Report No.: AiTSZ-260112005FW1 6.1.4 B38_20MHz Band: 38 / Bandwidth: 20MHz / NTNV Modulation Frequency (MHz) RB Allocation Spurious Emission Verdict Size Offset Result Limit QPSK 2580 1 0 Refer To Test Graph Pass 100 0 Refer To Test Graph Pass 2595 1 0 Refer To Test Graph Pass 2610 1 0 Refer To Test Graph Pass 99 Refer To Test Graph Pass 100 0 Refer To Test Graph Pass 16QAM 2580 1 0 Refer To Test Graph Pass 100 0 Refer To Test Graph Pass 2595 1 0 Refer To Test Graph Pass 2610 1 0 Refer To Test Graph Pass 99 Refer To Test Graph Pass 100 0 Refer To Test Graph Pass Page 56 of 149 Report No.: AiTSZ-260112005FW1 6.2 Test Graph 6.2.1 B38_5MHz Band38_5MHz_QPSK_LCH_2572.5MHz_RB_1_0_NTNV Band38_5MHz_QPSK_LCH_2572.5MHz_RB_1_0_NTNV Page 57 of 149 Report No.: AiTSZ-260112005FW1 Band38_5MHz_QPSK_LCH_2572.5MHz_RB_1_0_NTNV Band38_5MHz_QPSK_LCH_2572.5MHz_RB_1_0_NTNV Page 58 of 149 Report No.: AiTSZ-260112005FW1 Band38_5MHz_QPSK_LCH_2572.5MHz_RB_1_0_NTNV Band38_5MHz_QPSK_LCH_2572.5MHz_RB_1_0_NTNV Page 59 of 149 Report No.: AiTSZ-260112005FW1 Band38_5MHz_QPSK_LCH_2572.5MHz_RB_1_0_NTNV Band38_5MHz_QPSK_LCH_2572.5MHz_RB_25_0_NTNV Page 60 of 149 Report No.: AiTSZ-260112005FW1 Band38_5MHz_QPSK_MCH_2595MHz_RB_1_0_NTNV Band38_5MHz_QPSK_MCH_2595MHz_RB_1_0_NTNV Page 61 of 149 Report No.: AiTSZ-260112005FW1 Band38_5MHz_QPSK_MCH_2595MHz_RB_1_0_NTNV Band38_5MHz_QPSK_MCH_2595MHz_RB_1_0_NTNV Page 62 of 149 Report No.: AiTSZ-260112005FW1 Band38_5MHz_QPSK_MCH_2595MHz_RB_1_0_NTNV Band38_5MHz_QPSK_MCH_2595MHz_RB_1_0_NTNV Page 63 of 149 Report No.: AiTSZ-260112005FW1 Band38_5MHz_QPSK_HCH_2617.5MHz_RB_1_0_NTNV Band38_5MHz_QPSK_HCH_2617.5MHz_RB_1_0_NTNV Page 64 of 149 Report No.: AiTSZ-260112005FW1 Band38_5MHz_QPSK_HCH_2617.5MHz_RB_1_0_NTNV Band38_5MHz_QPSK_HCH_2617.5MHz_RB_1_0_NTNV Page 65 of 149 Report No.: AiTSZ-260112005FW1 Band38_5MHz_QPSK_HCH_2617.5MHz_RB_1_0_NTNV Band38_5MHz_QPSK_HCH_2617.5MHz_RB_1_0_NTNV Page 66 of 149 Report No.: AiTSZ-260112005FW1 Band38_5MHz_QPSK_HCH_2617.5MHz_RB_1_24_NTNV Band38_5MHz_QPSK_HCH_2617.5MHz_RB_25_0_NTNV Page 67 of 149 Report No.: AiTSZ-260112005FW1 Band38_5MHz_16QAM_LCH_2572.5MHz_RB_1_0_NTNV Band38_5MHz_16QAM_LCH_2572.5MHz_RB_1_0_NTNV Page 68 of 149 Report No.: AiTSZ-260112005FW1 Band38_5MHz_16QAM_LCH_2572.5MHz_RB_1_0_NTNV Band38_5MHz_16QAM_LCH_2572.5MHz_RB_1_0_NTNV Page 69 of 149 Report No.: AiTSZ-260112005FW1 Band38_5MHz_16QAM_LCH_2572.5MHz_RB_1_0_NTNV Band38_5MHz_16QAM_LCH_2572.5MHz_RB_1_0_NTNV Page 70 of 149 Report No.: AiTSZ-260112005FW1 Band38_5MHz_16QAM_LCH_2572.5MHz_RB_1_0_NTNV Band38_5MHz_16QAM_LCH_2572.5MHz_RB_25_0_NTNV Page 71 of 149 Report No.: AiTSZ-260112005FW1 Band38_5MHz_16QAM_MCH_2595MHz_RB_1_0_NTNV Band38_5MHz_16QAM_MCH_2595MHz_RB_1_0_NTNV Page 72 of 149 Report No.: AiTSZ-260112005FW1 Band38_5MHz_16QAM_MCH_2595MHz_RB_1_0_NTNV Band38_5MHz_16QAM_MCH_2595MHz_RB_1_0_NTNV Page 73 of 149 Report No.: AiTSZ-260112005FW1 Band38_5MHz_16QAM_MCH_2595MHz_RB_1_0_NTNV Band38_5MHz_16QAM_MCH_2595MHz_RB_1_0_NTNV Page 74 of 149 Report No.: AiTSZ-260112005FW1 Band38_5MHz_16QAM_HCH_2617.5MHz_RB_1_0_NTNV Band38_5MHz_16QAM_HCH_2617.5MHz_RB_1_0_NTNV Page 75 of 149 Report No.: AiTSZ-260112005FW1 Band38_5MHz_16QAM_HCH_2617.5MHz_RB_1_0_NTNV Band38_5MHz_16QAM_HCH_2617.5MHz_RB_1_0_NTNV Page 76 of 149 Report No.: AiTSZ-260112005FW1 Band38_5MHz_16QAM_HCH_2617.5MHz_RB_1_0_NTNV Band38_5MHz_16QAM_HCH_2617.5MHz_RB_1_0_NTNV Page 77 of 149 Report No.: AiTSZ-260112005FW1 Band38_5MHz_16QAM_HCH_2617.5MHz_RB_1_24_NTNV Band38_5MHz_16QAM_HCH_2617.5MHz_RB_25_0_NTNV Page 78 of 149 Report No.: AiTSZ-260112005FW1 6.2.2 B38_10MHz Band38_10MHz_QPSK_LCH_2575MHz_RB_1_0_NTNV Band38_10MHz_QPSK_LCH_2575MHz_RB_1_0_NTNV Page 79 of 149 Report No.: AiTSZ-260112005FW1 Band38_10MHz_QPSK_LCH_2575MHz_RB_1_0_NTNV Band38_10MHz_QPSK_LCH_2575MHz_RB_1_0_NTNV Page 80 of 149 Report No.: AiTSZ-260112005FW1 Band38_10MHz_QPSK_LCH_2575MHz_RB_1_0_NTNV Band38_10MHz_QPSK_LCH_2575MHz_RB_1_0_NTNV Page 81 of 149 Report No.: AiTSZ-260112005FW1 Band38_10MHz_QPSK_LCH_2575MHz_RB_1_0_NTNV Band38_10MHz_QPSK_LCH_2575MHz_RB_50_0_NTNV Page 82 of 149 Report No.: AiTSZ-260112005FW1 Band38_10MHz_QPSK_MCH_2595MHz_RB_1_0_NTNV Band38_10MHz_QPSK_β¦
Text truncated - open the document above for the full version.
Test Report
Page 1 of 149 Report No.: AiTSZ-260112005FW1 1. Effective (Isotropic) Radiated Power Output Data 1.1 Test Result 1.1.1 B38_5MHz_EIRP Band: 38 / Bandwidth: 5MHz / NTNV Modulation Frequency (MHz) RB Allocation Conducted Power (dBm) Gain (dBi) EIRP (dBm) Verdict Size Offset Result Limit QPSK 2572.5 1 0 22.63 1.70 24.33 <=33.01 Pass 13 22.71 1.70 24.41 <=33.01 Pass 24 22.69 1.70 24.39 <=33.01 Pass 12 0 21.65 1.70 23.35 <=33.01 Pass 6 21.60 1.70 23.30 <=33.01 Pass 13 21.61 1.70 23.31 <=33.01 Pass 25 0 21.61 1.70 23.31 <=33.01 Pass 2595 1 0 22.74 1.70 24.44 <=33.01 Pass 13 22.81 1.70 24.51 <=33.01 Pass 24 22.72 1.70 24.42 <=33.01 Pass 12 0 21.74 1.70 23.44 <=33.01 Pass 6 21.72 1.70 23.42 <=33.01 Pass 13 21.71 1.70 23.41 <=33.01 Pass 25 0 21.76 1.70 23.46 <=33.01 Pass 2617.5 1 0 22.89 1.70 24.59 <=33.01 Pass 13 22.97 1.70 24.67 <=33.01 Pass 24 23.02 1.70 24.72 <=33.01 Pass 12 0 21.9β¦
Text truncated - open the document above for the full version.
Contact Information
Applicant
Jianglong Hu
[email protected]Fax: N/A
Technical Contact
Test Firm
Guangdong Asia Hongke Test Technology LimitedCoin Tang
Technical Specifications
| # | Rule Parts | Frequency Range | Power Output | Emission | Tolerance |
|---|---|---|---|---|---|
| 1 | 24E | 1.85 GHz - 1.91 GHz | 526.00 mW | 1M12G7D | 2.5ppm |
| 2 | 24E | 1.85 GHz - 1.91 GHz | 463.40 mW | 18M2G7D | 2.5ppm |
| 3 | 24E | 1.85 GHz - 1.91 GHz | 420.70 mW | 18M2W7D | 2.5ppm |
| 4 | 27 | 1.71 GHz - 1.75 GHz | 363.10 mW | 1M11G7D | 2.5ppm |
| 5 | 27 | 1.71 GHz - 1.75 GHz | 323.60 mW | 18M1G7D | 2.5ppm |
| 6 | 27 | 1.71 GHz - 1.75 GHz | 289.70 mW | 18M1W7D | 2.5ppm |
| 7 | 22H | 824 MHz - 849 MHz | 166.00 mW | 1M12G7D | 2.5ppm |
| 8 | 22H | 824 MHz - 849 MHz | 146.20 mW | 9M07G7D | 2.5ppm |
| 9 | 22H | 824 MHz - 849 MHz | 129.70 mW | 9M07W7D | 2.5ppm |
| 1 | 27 | 2.50 GHz - 2.57 GHz | 260.00 mW | 4M56G7D | 2.5ppm |
| 11 | 27 | 2.50 GHz - 2.57 GHz | 246.00 mW | 18M1G7D | 2.5ppm |
| 12 | 27 | 2.50 GHz - 2.57 GHz | 208.40 mW | 18M2W7D | 2.5ppm |
| 13 | 27 | 699 MHz - 716 MHz | 345.10 mW | 1M11G7D | 2.5ppm |
| 14 | 27 | 699 MHz - 716 MHz | 307.60 mW | 9M06G7D | 2.5ppm |
| 15 | 27 | 699 MHz - 716 MHz | 270.40 mW | 9M07W7D | 2.5ppm |
| 16 | 27 | 777 MHz - 787 MHz | 372.40 mW | 4M55G7D | 2.5ppm |
| 17 | 27 | 777 MHz - 787 MHz | 359.70 mW | 9M04G7D | 2.5ppm |
| 18 | 27 | 777 MHz - 787 MHz | 306.90 mW | 9M04W7D | 2.5ppm |
| 19 | 27 | 2.57 GHz - 2.62 GHz | 296.50 mW | 4M58G7D | 2.5ppm |
| 2 | 27 | 2.57 GHz - 2.62 GHz | 278.60 mW | 18M1G7D | 2.5ppm |
| 21 | 27 | 2.57 GHz - 2.62 GHz | 229.60 mW | 18M1W7D | 2.5ppm |
| 22 | 27 | 2.56 GHz - 2.65 GHz | 326.60 mW | 9M07G7D | 2.5ppm |
| 23 | 27 | 2.56 GHz - 2.65 GHz | 317.00 mW | 18M2G7D | 2.5ppm |
| 24 | 27 | 2.56 GHz - 2.65 GHz | 252.30 mW | 18M1W7D | 2.5ppm |
| 25 | 27 | 1.71 GHz - 1.78 GHz | 358.90 mW | 1M12G7D | 2.5ppm |
| 26 | 27 | 1.71 GHz - 1.78 GHz | 319.20 mW | 18M1G7D | 2.5ppm |
| 27 | 27 | 1.71 GHz - 1.78 GHz | 268.50 mW | 18M2W7D | 2.5ppm |
| 28 | 27 | 663 MHz - 698 MHz | 132.10 mW | 4M58G7D | 2.5ppm |
| 29 | 27 | 663 MHz - 698 MHz | 112.50 mW | 18M2G7D | 2.5ppm |
| 3 | 27 | 663 MHz - 698 MHz | 100.70 mW | 18M2W7D | 2.5ppm |
