2BS2N-5827Wireless controller

Game Controller for P5 User's Manual Model:5827 Touch-pad Options Light Bar D-pad Earphone Jack RESET Speaker Connection Instructions Step1: Turn on the PS5 game console and connect it with the PS5 gamepad(OFF state) via the USB-C cable. Step2: Press the HOME button, the light bar will turn to solid on means paired. Step3: Unplug the USB-C Cable, the PS5 gamepad will auto wireless paired your PS 5 game console. *Reconnect: Press HOME button and it will auto wireless paired with your PS5 host. *Color of light bar: After different controller are connected to the host, the LED lights display different colors to distinguish different users. (1P: Blue; 2P: Red; 3P: Green; 4P: Pink) Power OFF 1.The controller will auto sleep and shut down after 5 mins in standby mode. 2.Press and hold the Home button for 1 mins untill the controller lights out. Charging Status Fully Charged State: The light bar will be off. Charging State: The light bar will be orange an flash slowly. Button Functions All standard buttons function exactly like the original controller. MUTE Key 1. Press the Mute key short, and the Mute light is always on, indicating that the controller microphone is off. 2.long press the Mute key, the Mute light breathing, means all audio ofthe controller is off. (vibration is also off) Programming Keys Action Buttons: D-pad (up, down, left, and right), ABXY, L1,R1, L2, R2, L3, R3. Program button: (ML/MR/SET) Enter Program Mode Press and hold the SET button for 3s. The LED will fash, signaling the controller is in the Program Mode. (Motor Vibration) 1. Set a single action key, then press the M(ML/MR) button that you wish to assign. The LED wil stop fiashing, signaling it finished the programming. *Such as pressing the"A" key, then pressing the ML button. The ML bution is the same as the "A" key's function. 2. Set combined a cion keys(up to 24 keys), then press the (ML/MR) button that you wish to assign. The LED will stop flashing, signaling it finished the programming. *Such as pressing the same key ("B" key) 8 times, then pressing the ML button. The ML button is the same as 8 times of pressing the'B" key's function effects. **The pressing interval time will be memorized during the button entry process. **lf didn't do any operation within 60s after into the program mode, it will exit the program mode and keep the setted as before. *Such as pressing the four diferent keys( The key sequence is A+B+X+Y), then pressing the MR button. The MR bution is the same as (The key sequence is A+B+X+Y) key's function. Clear the Programming function Press and hold the "set" button for 5s, and then press the ML/MR. The light will go from blinking to solid. EN Trigger & Analog Stick Calibration Preparation: The light bar flashes rapidly during preparation. a. Wired Mode(Power Off): Press and hold Share + Options button simultaneously, then connect to PS5 via USB cable; b. Wireless Mode(Power Off): Press and hold Share + Options + HOME button simultaneously; c. Wired Mode(In paired): Connect the controller to your PS5 via USB cable; d. Wireless Mode(In paired): Press HOME button; Calibration: Trigger: Fully press L2/R2 2–3 times, then hold X button for 2s to confirm. Analog Stick: Rotate L3/R3 2–3 full rotations, then hold X button for 2s to confirm. Completion: Wired Mode:The light bar stops flashing and remains solid. Power off the controller to save settings. Wireless Mode:The light bar flashes slowly. Power off the controller to save settings. Multi-Platforms Connection USB Connection: Default mode: The light bar is blue and the device name is "DualSenes Wireless Controller” X-input mode: The light bar is green and the device name is "Xbox 360 Controller for Windows” *Press Share + Options buttons simultaneously for 3 seconds to switch to X-input mode. Wireless Connection: Bluetooth Name: "DualSenes Wireless Controller” Step1: With the controller off, press the Share button, and then press and hold Shares + HOME buttons simultaneously for 3 seconds. The flashing light bar indicates pairing mode, then release all buttons. Step2: Search for the Bluetooth device name on your device and select it to pair. A solid light bar indicates successful pairing. *Supported Platforms: PC: Windows 10 & 11 (USB & Bluetooth) MAC: IOS13.0 or later (USB & Bluetooth) Steam Deck (USB & Bluetooth) Compatibility issues Third-party controller and may have compatibility limitations. Updating the controller's software usually fixes this! Download Link: http://www.hansengame.com/Service/Download Product Parameters: Battery Capacity: 1000MAH Charging interface: USB-C Charging time: 2-3H Operating time: 6-8H Packing List: Game controller x 1 USB-C cable x 1 User manual x 1 Sensor Calibration The controller is in paired state, place it horizontally on desktop. Press and hold the Share button + (Square button) simultaneously. The light bar will blink during calibration. Once blinking stops, calibration is complete. EN Istruzioni per il collegamento Passo1: accendere la console di gioco PS5 e collegarla con il gamepad PS5 (stato OFF) tramite il cavo USB-C. Fase 2: Premere il pulsante HOME, la barra luminosa diventerà fissa e significa che è stata accoppiata. Fase 3: scollegare il cavo USB-C, il gamepad PS5 si accoppierà automaticamente in modalità wireless con la console Ps5. Spegnimento 1. Il controller si spegne automaticamente dopo 5 minuti in modalità standby. 2. Tenere premuto il pulsante Home per 1 minuto finché il controller non si spegne. Stato di carica Stato di carica completa: La barra luminosa è spenta. Stato di carica: La barra luminosa è arancione e lampeggia lentamente. Funzioni dei pulsanti Tutti i pulsanti standard funzionano esattamente come il controller originale. Tasto MUTE 1. Premendo brevemente il tasto Mute, la spia Mute è sempre accesa e indica che il microfono del controller è spento. 2.Premendo a lungo il tasto Mute, la spia Mute si accende e significa che tutto l'audio del controller è spento. (anche la vibrazione…

Text truncated - open the document above for the full version.

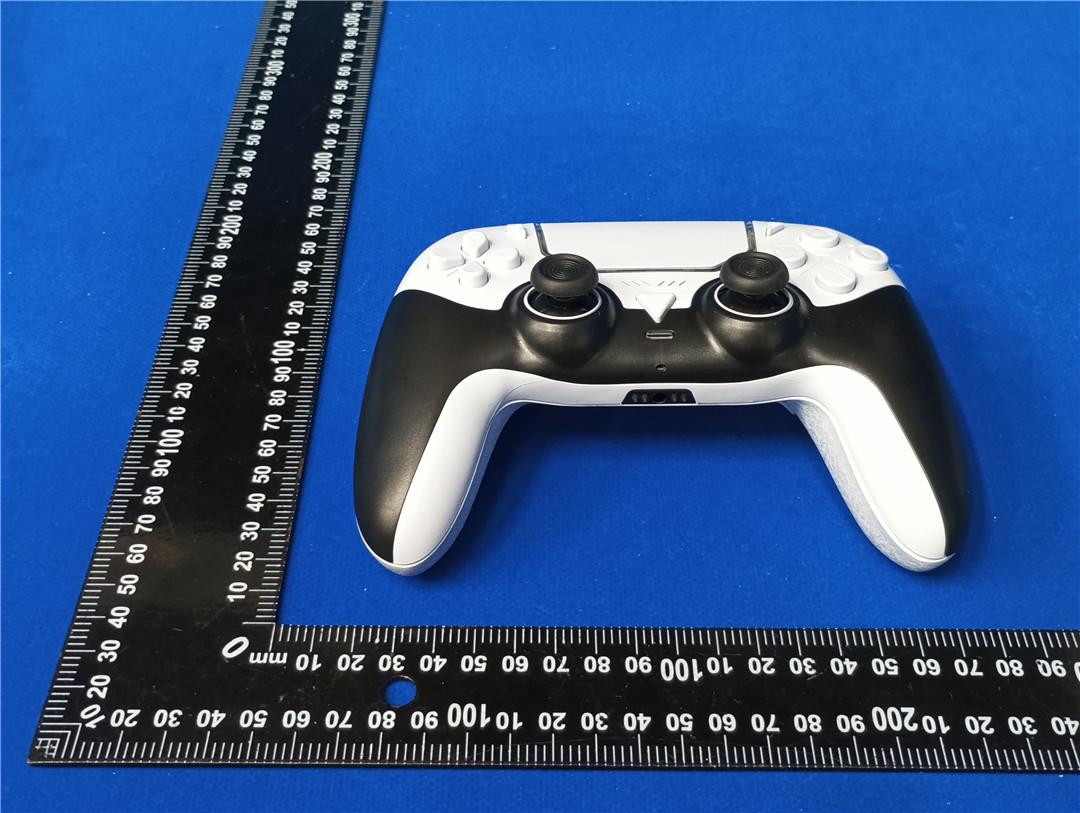

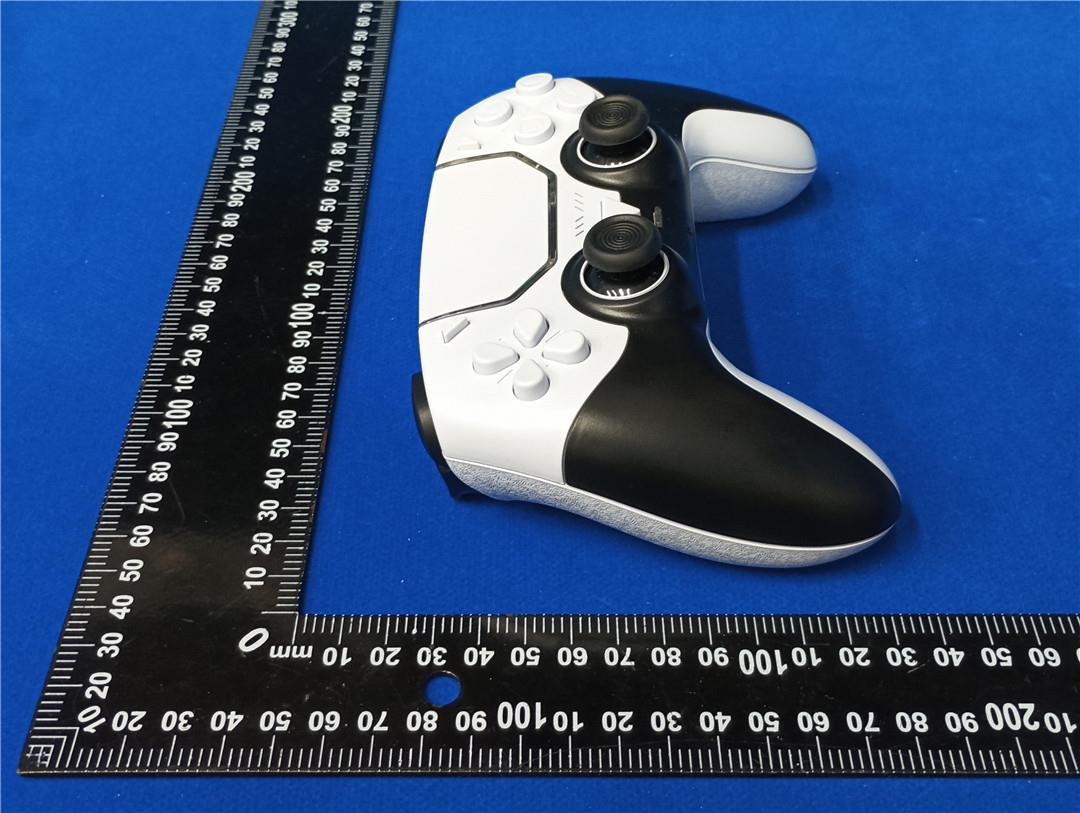

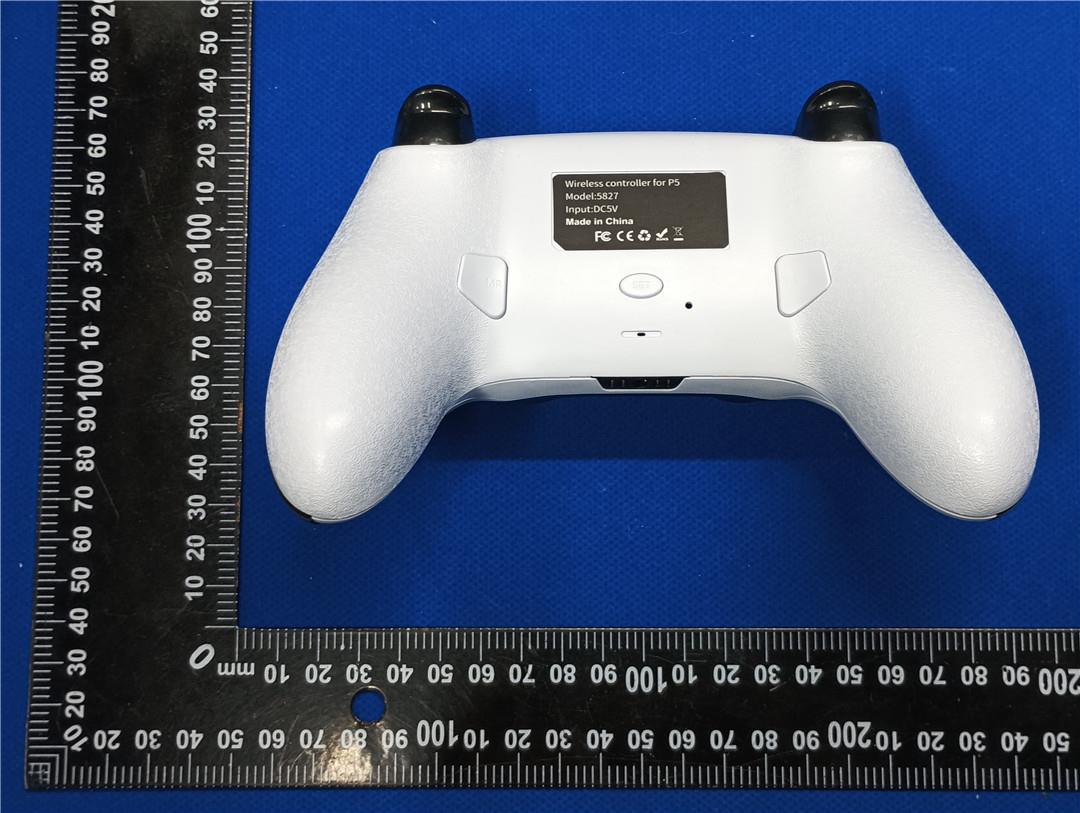

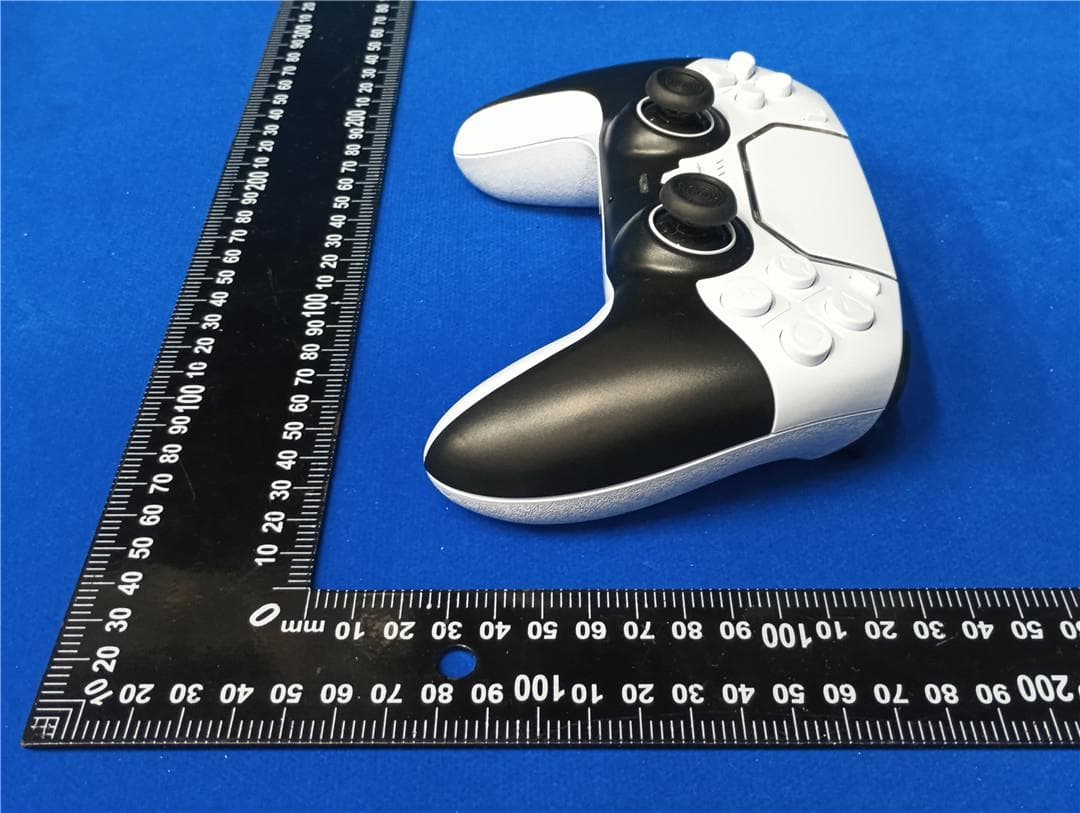

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202511557 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 3 Product Name: Wireless controller Model No.: 5827 EUT Constructional Details External Photo Report No.: HTT202511557 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 3 Report No.: HTT202511557 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 3 of 3 ------End------

Label and Location Size: L: 3.0cm*W: 2.0cm Label and Location FCC ID : 2BS2N-5827

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202511557 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 3 Product Name: Wireless controller Model No.: 5827 EUT Constructional Details Internal Photo Report No.: HTT202511557 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 3 ANTENNA Report No.: HTT202511557 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 3 of 3 ------End------

Shenzhen HTT Technology Co., Ltd. Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 1 of 9 RF Exposure evaluation Report Reference No. ..................... : FCC ID............................................. : HTT202511557F02 2BS2N-5827 Compiled by ( position+printed name+signature) . : File administrators Supervised by ( position+printed name+signature) . : Project Engineer Approved by ( position+printed name+signature) . : RF Manager Date of issue .................................... : Nov. 20, 2025 Testing Laboratory Name .............. : Shenzhen HTT Technology Co.,Ltd. Address............................................ : 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao’an District, Shenzhen, Guangdong, China Applicant’s name ............................ : Dongguan Gepaide Electronic CO.,LTD Address............................................ : Building D, No. 80 Dongxing Street, Dalingshan Town, Dongguan City, Guangdong Province, China Standard ........................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen HTT Technology Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HTT Technology Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HTT Technology Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Wireless controller Manufacturer .................................... : Dongguan Gepaide Electronic CO.,LTD Trade Mark ........................................ N/A Model/Type reference ...................... : 5827 Rating ............................................... : DC 3.7V From battery and DC 5.0V From external circuit Result ............................................... : PASS Report No.: HTT202511557F02 Page 2 of 9 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 2 of 9 T E S T R E P O R T Equipment under Test : Wireless controller Model /Type : 5827 Listed Models : EK505,G-5827,G-5828,G-5829,G-5050,G-5051 Applicant : Dongguan Gepaide Electronic CO.,LTD Address : Building D, No. 80 Dongxing Street, Dalingshan Town, Dongguan City, Guangdong Province, China Manufacturer : Dongguan Gepaide Electronic CO.,LTD Address : Building D, No. 80 Dongxing Street, Dalingshan Town, Dongguan City, Guangdong Province, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: HTT202511557F02 Page 3 of 9 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 3 of 9 Contents 1 T E S T S T A N D A R D S ................................................... 4 2 S U M M A R Y .............................................................. 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Special Accessories 5 2.4 Modifications 5 3 T E S T E N V I R O N M E N T 6 3.1 Address of the test laboratory 6 3.2 Test Facility 6 3.3 Statement of the measurement uncertainty 6 4 T E S T L I M I T 7 4.1 Requirement 7 4.2 Conducted Power Results 8 4.3 Manufacturing tolerance 8 4.4 Evaluation Result 9 4.5 Simultaneous Transmission for SAR Exclusion 9 5 C O N C L U S I O N 9 Report No.: HTT202511557F02 Page 4 of 9 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 4 of 9 1 T E S T S T A N D A R D S The tests were performed according to following standards: ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Device, RF Exposure, Equipment Authorization Procedures. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices Report No.: HTT202511557F02 Page 5 of 9 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 5 of 9 2 S U M M A R Y 2.1 General Remarks Date of receipt of test sample : Nov. 14, 2025 Testing commenced on : Nov. 14, 2025 Testing concluded on : Nov. 20, 2025 2.2 Product Description Product description: Wireless controller Model/Type reference: 5827 Power supply: DC 3.7V From battery and DC 5.0V From external circuit Adapter Information (Auxiliary test provided by the lab): Mode: GS-0500200 Input: AC100-240V, 50/60Hz, 0.3A max Output: DC 5V, 2A Testing sample ID： HTT202511557-1# (Engineer sample) HTT202511557-2# (Normal sample) Hardware version: / Software version: / Bluetooth : Supported Type: Bluetooth BR/EDR Modulation: GFSK, π/4DQPSK, 8DPSK Operation frequency: 2402MHz~2480MHz Channel number: 79 Channel separation: 1MHz Antenna type: PCB Antenna Antenna gain: 0.00 dBi 2.3 Special Accessories The following is the EUT test of the auxiliary equipment provided by the laboratory: …

Text truncated - open the document above for the full version.

Shenzhen HTT Technology Co., Ltd. Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. ........................................... : HTT202511557F01 2BS2N-5827 Compiled by ( position+printed name+signature) . : File administrators Supervised by ( position+printed name+signature) . : Project Engineer Approved by ( position+printed name+signature) . : RF Manager Date of issue .................................... : Nov. 20, 2025 Testing Laboratory Name .............. : Shenzhen HTT Technology Co.,Ltd. Address ............................................ : 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao’an District, Shenzhen, Guangdong, China Applicant’s name ........................... : Dongguan Gepaide Electronic CO.,LTD Address ............................................ : Building D, No. 80 Dongxing Street, Dalingshan Town, Dongguan City, Guangdong Province, China Test specification ........................... : Standard ........................................... : FCC Part 15.247 Shenzhen HTT Technology Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HTT Technology Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HTT Technology Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Wireless controller Trade Mark ....................................... : N/A Manufacturer .................................. : Dongguan Gepaide Electronic CO.,LTD Model/Type reference ...................... : 5827 Listed Models ................................... : EK505,G-5827,G-5828,G-5829,G-5050,G-5051 Modulation ....................................... : GFSK, Π/4DQPSK, 8DPSK Frequency ......................................... From 2402MHz to 2480MHz Ratings ............................................. : DC 3.7V From battery and DC 5.0V From external circuit Result ............................................... : PASS Report No.: HTT202511557F01 Page 2 of 30 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China T E S T R E P O R T Equipment under Test : Wireless controller Model /Type : 5827 Listed Models : EK505,G-5827,G-5828,G-5829,G-5050,G-5051 Applicant : Dongguan Gepaide Electronic CO.,LTD Address : Building D, No. 80 Dongxing Street, Dalingshan Town, Dongguan City, Guangdong Province, China Manufacturer : Dongguan Gepaide Electronic CO.,LTD Address : Building D, No. 80 Dongxing Street, Dalingshan Town, Dongguan City, Guangdong Province, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: HTT202511557F01 Page 3 of 30 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Contents 1 TEST STANDARDS .......................................................................................................................................... 4 2 SUMMARY ........................................................................................................................................................ 5 2.1 General Remarks .................................................................................................................................... 5 2.2 Product Description ................................................................................................................................. 5 2.3 Equipment Under Test ............................................................................................................................ 5 2.4 Short description of the Equipment under Test (EUT) ............................................................................ 5 2.5 EUT configuration .................................................................................................................................... 6 2.6 EUT operation mode ............................................................................................................................... 6 2.7 Block Diagram of Test Setup .................................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) .............................................................................................................. 6 2.9 Modifications ........................................................................................................................................... 6 3 TEST ENVIRONMENT ...................................................................................................................................... 7 3.1 Address of the test laboratory ................................................................................................................. 7 3.2 Test Facility ............................................................................................................................................. 7 3.3 Environmental conditions ........................................................................................................................ 7 3.4 Summary of measuremen…

Text truncated - open the document above for the full version.

Antenna specification Doc No. IS-QR-PD-010 Rev. V1.0 Page 1/10 2013/05/22 Copyright 2013© Shenzhen InnosystemTechnologyLimited All rights reserved. Antenna specification Antenna specification Doc No. IS-QR-PD-010 Rev. V1.0 Page 2/10 2013/05/22 Copyright 2013© Shenzhen InnosystemTechnologyLimited All rights reserved. Antenna model: MP341 V1.0 APPlications ※Bluetooth Home RF ※ISM band 2.4GHz applications 1.Dimensions 2.Specifications number Item Specifications 1 Working Central Frequency 2441 MHz 2 Band Width (2402-2480)MHz 3 Gain 0dBi 4 VSWR ≤2.0 5 Antenna type PCB antenna 6 Azimuth Beam width Omni‐directional 7 Impedance 50ohm 8 Modulation mode GFSK ‣Company Name Shenzhen Innosystem Technology Ltd ‣Company address F2 Building 3 Shenzhen Software Park Technology Middle 2 Rd Gao Xin Science & Technology Park North, S.Z Antenna specification Doc No. IS-QR-PD-010 Rev. V1.0 Page 3/10 2013/05/22 Copyright 2013© Shenzhen InnosystemTechnologyLimited All rights reserved. 3.simulation parameter ① VSWR Mkr1: 2397MHz 1.47 Mkr2: 2450MHz 1.51 Mkr3: 2482 MHz 1.59 Antenna specification Doc No. IS-QR-PD-010 Rev. V1.0 Page 4/10 2013/05/22 Copyright 2013© Shenzhen InnosystemTechnologyLimited All rights reserved. ②Smith Char Mkr1: 2397MHz 73.4 Mkr2: 2450MHz 62.7 Mkr3: 2482MHz 66.8 Antenna specification Doc No. IS-QR-PD-010 Rev. V1.0 Page 5/10 2013/05/22 Copyright 2013© Shenzhen InnosystemTechnologyLimited All rights reserved. ③Return Loss Mkr1: 2397MHz -15 Mkr2: 2450MHz -18 Mkr3: 2482 MHz -16 Antenna specification Doc No. IS-QR-PD-010 Rev. V1.0 Page 6/10 2013/05/22 Copyright 2013© Shenzhen InnosystemTechnologyLimited All rights reserved. ④Smith Char Mkr1: 2400MHz 1.234 Mkr2: 2500MHz 1.051Mkr3: 2600MHz 1.322 Antenna specification Doc No. IS-QR-PD-010 Rev. V1.0 Page 7/10 2013/05/22 Copyright 2013© Shenzhen InnosystemTechnologyLimited All rights reserved. ⑤Return Loss Mkr1: 2400MHz -19.59 Mkr2: 2450MHz -27.70Mkr3: 2500MHz -31.97 Mkr4: 2550MHz -21.83 ` Antenna specification Doc No. IS-QR-PD-010 Rev. V1.0 Page 8/10 2013/05/22 Copyright 2013© Shenzhen InnosystemTechnologyLimited All rights reserved. ⑥Phase Mkr1: 2400MHz -54.89 Mkr2: 2500MHz -82.03 Mkr3: 2600MHz -102.6 Antenna specification Doc No. IS-QR-PD-010 Rev. V1.0 Page 9/10 2013/05/22 Copyright 2013© Shenzhen InnosystemTechnologyLimited All rights reserved. 4. Radiation Pattems XY-plane XZ-plane YZ-plane Antenna specification Doc No. IS-QR-PD-010 Rev. V1.0 Page 10/10 2013/05/22 Copyright 2013© Shenzhen InnosystemTechnologyLimited All rights reserved.  3DRadiation pattern

1 Appendix RF Test Data for BT Company: : Dongguan Gepaide Electronic CO.,LTD EUT : Wireless controller FCC ID: : 2BS2N-5827 Model Number : 5827 Report No. : HTT202511557F01 Reviewed By : Heber He 2 1. Duty Cycle 1.1 Test Result 1.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) Packet Type T_on (ms) Period (ms) Duty Cycle (%) Duty Cycle Correction Factor (dB) Max. DC Variation (%) GFSK SISO 2402 DH5 2.915 3.751 77.71 1.10 0.03 2441 DH5 2.913 3.749 77.70 1.10 0.04 2480 DH5 2.914 3.750 77.71 1.10 0.03 Pi/4DQPSK SISO 2402 2DH5 2.920 3.751 77.85 1.09 0.06 2441 2DH5 2.920 3.749 77.89 1.09 0.01 2480 2DH5 2.920 3.751 77.85 1.09 0.04 8DPSK SISO 2402 3DH5 2.923 3.750 77.95 1.08 0.04 2441 3DH5 2.922 3.749 77.94 1.08 0.01 2480 3DH5 2.923 3.749 77.97 1.08 0.04 3 1.2 Test Graph 1.2.1 Ant1 GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV 4 GFSK_DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV 5 Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV 6 8DPSK_3DH5_LCH_2402MHz_Ant1_NTNV 8DPSK_3DH5_MCH_2441MHz_Ant1_NTNV 7 8DPSK_3DH5_HCH_2480MHz_Ant1_NTNV 8 2. Bandwidth 2.1 Test Result 2.1.1 OBW Mode TX Type Frequency (MHz) Packet Type ANT 99% Occupied Bandwidth (MHz) Verdict Result Limit GFSK SISO 2402 DH5 1 0.857 / Pass 2441 DH5 1 0.854 / Pass 2480 DH5 1 0.849 / Pass Pi/4DQPSK SISO 2402 2DH5 1 1.152 / Pass 2441 2DH5 1 1.147 / Pass 2480 2DH5 1 1.160 / Pass 8DPSK SISO 2402 3DH5 1 1.180 / Pass 2441 3DH5 1 1.162 / Pass 2480 3DH5 1 1.176 / Pass 2.1.2 20dB BW Mode TX Type Frequency (MHz) Packet Type ANT 20dB Bandwidth (MHz) Verdict Result Limit GFSK SISO 2402 DH5 1 0.937 / Pass 2441 DH5 1 0.941 / Pass 2480 DH5 1 0.948 / Pass Pi/4DQPSK SISO 2402 2DH5 1 1.253 / Pass 2441 2DH5 1 1.276 / Pass 2480 2DH5 1 1.260 / Pass 8DPSK SISO 2402 3DH5 1 1.274 / Pass 2441 3DH5 1 1.291 / Pass 2480 3DH5 1 1.276 / Pass 9 2.2 Test Graph 2.2.1 OBW GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV 10 GFSK_DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV 11 Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV 12 8DPSK_3DH5_LCH_2402MHz_Ant1_NTNV 8DPSK_3DH5_MCH_2441MHz_Ant1_NTNV 13 8DPSK_3DH5_HCH_2480MHz_Ant1_NTNV 14 2.2.2 20dB BW GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV 15 GFSK_DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV 16 Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV 17 8DPSK_3DH5_LCH_2402MHz_Ant1_NTNV 8DPSK_3DH5_MCH_2441MHz_Ant1_NTNV 18 8DPSK_3DH5_HCH_2480MHz_Ant1_NTNV 19 3. Maximum Conducted Output Power 3.1 Test Result 3.1.1 Power Mode TX Type Frequency (MHz) Packet Type Maximum Peak Conducted Output Power (dBm) Verdict ANT1 Limit GFSK SISO 2402 DH5 2.01 <=30 Pass 2441 DH5 1.88 <=30 Pass 2480 DH5 1.06 <=30 Pass Pi/4DQPSK SISO 2402 2DH5 2.76 <=20.97 Pass 2441 2DH5 2.70 <=20.97 Pass 2480 2DH5 1.89 <=20.97 Pass 8DPSK SISO 2402 3DH5 3.19 <=20.97 Pass 2441 3DH5 3.15 <=20.97 Pass 2480 3DH5 2.36 <=20.97 Pass 20 4. Carrier Frequency Separation 4.1 Test Result 4.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) Packet Type Channel Separation (MHz) 20dB Bandwidth (MHz) Limit (MHz) Verdict GFSK SISO HOPP DH5 1.008 0.948 >=0.948 Pass Pi/4DQPSK SISO HOPP 2DH5 0.972 1.276 >=0.851 Pass 8DPSK SISO HOPP 3DH5 1.001 1.291 >=0.861 Pass 21 4.2 Test Graph 4.2.1 Ant1 GFSK_DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV 22 8DPSK_3DH5_HOPP_Ant1_NTNV 23 5. Number of Hopping Frequencies 5.1 Test Result 5.1.1 HoppNum Mode TX Type Frequency (MHz) Packet Type Num of Hopping Frequencies Verdict ANT1 Limit GFSK SISO HOPP DH5 79 >=15 Pass Pi/4DQPSK SISO HOPP 2DH5 79 >=15 Pass 8DPSK SISO HOPP 3DH5 79 >=15 Pass 24 5.2 Test Graph 5.2.1 HoppNum GFSK_DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV 25 8DPSK_3DH5_HOPP_Ant1_NTNV 26 6. Time of Occupancy (Dwell Time) 6.1 Test Result 6.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) Packet Type Duration of Single Pulse (ms) Observation Period (s) Num of Pulse in Observation Period Dwell Time (ms) Limit (ms) Verdict GFSK SISO HOPP DH1 0.412 31.600 320 131.840 <=400 Pass DH3 1.670 31.600 167 278.890 <=400 Pass DH5 2.908 31.600 118 343.144 <=400 Pass Pi/4DQPSK SISO HOPP 2DH1 0.422 31.600 320 135.040 <=400 Pass 2DH3 1.674 31.600 168 281.232 <=400 Pass 2DH5 2.924 31.600 110 321.640 <=400 Pass 8DPSK SISO HOPP 3DH1 0.424 31.600 317 134.408 <=400 Pass 3DH3 1.676 31.600 162 271.512 <=400 Pass 3DH5 2.926 31.600 120 351.120 <=400 Pass 27 6.2 Test Graph 6.2.1 Ant1 GFSK_DH1_HOPP_Ant1_NTNV GFSK_DH1_HOPP_Ant1_NTNV 28 GFSK_DH3_HOPP_Ant1_NTNV GFSK_DH3_HOPP_Ant1_NTNV 29 GFSK_DH5_HOPP_Ant1_NTNV GFSK_DH5_HOPP_Ant1_NTNV 30 Pi/4DQPSK_2DH1_HOPP_Ant1_NTNV Pi/4DQPSK_2DH1_HOPP_Ant1_NTNV 31 Pi/4DQPSK_2DH3_HOPP_Ant1_NTNV Pi/4DQPSK_2DH3_HOPP_Ant1_NTNV 32 Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV 33 8DPSK_3DH1_HOPP_Ant1_NTNV 8DPSK_3DH1_HOPP_Ant1_NTNV 34 8DPSK_3DH3_HOPP_Ant1_NTNV 8DPSK_3DH3_HOPP_Ant1_NTNV 35 8DPSK_3DH5_HOPP_Ant1_NTNV 8DPSK_3DH5_HOPP_Ant1_NTNV 36 7. Unwanted Emissions In Non-restricted Frequency Bands 7.1 Test Result 7.1.1 Ref Mode TX Type Frequency (MHz) Packet Type ANT Level of Reference (dBm) GFSK SISO 2402 DH5 1 1.31 2441 DH5 1 1.17 2480 DH5 1 0.21 HOPP DH5 1 1.43 1.43 Pi/4DQPSK SISO 2402 2DH5 1 1.57 2441 2DH5 1 1.35 2480 2DH5 1 0.65 HOPP 2DH5 1 1.41 1.41 8DPSK SISO 2402 3DH5 1 0.55 2441 3DH5 1 1.41 2480 3DH5 1 0.69 HOPP 3DH5 1 1.47 1.47 Note1: Refer to FCC Part 15.247 (d) and ANSI C63.10-2020, the channel contains the maximum PSD level was used to establish the reference level. 7.1.2 CSE Mode TX Type Frequency (MHz) Packet Type ANT Level of Reference (dBm) Limit (dBm) Verdict GFSK SISO 2402 DH5 1 1.31 -18.69 Pass 2441 DH5 1 1.17 -18.83 Pass 2480 DH5 1 0.21 -19.79 Pass HOPP DH5 1 1.43 -18.57 Pass 1.43 -18.57 Pass Pi/4DQPSK SISO 2402 2DH5 1 1.57 -18.43 Pass 2441 2DH5 1 1.35 -18.65 Pass 2480 2DH5 1 0.65 -19.35 Pass HOPP 2DH5 1 1.41 -18.59 Pass 1.41 -18.59 Pass 8DPSK SISO 2402 3DH5 1 0.55 -19.45 Pass 2441 3DH5 1 1.41 -18.59 Pass 2480 3DH5 1 0.69 -19.31 Pass HOPP 3DH5 1 1.47 -18.…

Text truncated - open the document above for the full version.

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202511557 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 2 Product Name: Wireless controller Model No.: 5827 Test Setup Photo Radiated Emission Report No.: HTT202511557 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 2 Conducted Emission RF Test ------End------
