2BS2P-C5Hidden recorder

C5 Product Manual This product uses a high-performance chip to provide high-definition video and seamless dynamicimages.It has passed European CE and American FCC. strict certification,supports HD1080P true HD video.Please read this manual carefully before use and keep it properly,we hope Hope this product can meet your needs and serve you fora long time! 1.Appearance and button function description Power button 1,Powerbutton 2,power interface 3,rear pull camera interface 4,TF card slot 1.Power button Function 1:Power on/off function In the shutdown state,long pressthe [Power Button]for 2seconds to turn on the power,and the mąchine will automatically start working. In the power-on state,long press (power button)and hold for 2 seconds,the device will automatically save the video file angd usersttings and shut down. Function 2:Turn off the display screen function In the power-on state,click the [Power Button]and the machine will turn off the display.Click again to turn on the display. 2.Power interface Power cord socket:Use the original power cord configured with the product to plug into this interface,and connect the power supply to turn it on. 3.Rear pull camera interface Insert the rear camera connection cable to display the rear camera. 4.TF card slot Card small opening facing down. (1)Recording interface (2)Main Menu Interface 2016/10/25 21:30 Function setting Video replay Format SETTINGS PLAYBACK FORMAT (3)Settings menu interface e.ttings Driving Recorder CAR DVR 2.Installation Guide 1.Turn off the carengine 2.Insert the TF card into the recorder card slot. [Attention]Please use a high-speed TF card(Class 6 or above)with a capacity of no less than 512MB.The TF card supports a maximum of 32GB. 3.Fix the recorder to the front windshield of the car. 4.Connect the car power supply to the car fuse. When wiring,the charging extension cable can be laid along the edge,of the car windshield. 5.Installthe rear camera at the rear of the vehicle,paying attention to the direction during installation.The wiring can be laid along the vehicle roof.Installation complete Then plug the rear pluginto the rear camera interface of the recorder. 6.Adjust the lens position to ensure the lens is level with the ground. 7.Start the engine and check if the machine is installed correctly. [Attention]When the machine is installed correctly,the system work indicator lights up;when the machine starts and enters the recording state,the recording indicator The light is flashing.Please check if the image on the display is normal.If the display image is inverted,please contact us in time. Network. 3.Function introduction 1.Use the automatic recording function Start the carengine,the recorder automatically starts and turns on the recording function,the charging indicator lights up,and the recording indicator flashes. Shuo.Turn off the car engine,the recorder automatically saves the recorded content and shuts down.The recorded images are saved in segments on the TF card When the TF card isfull,the recorder will overwrite the earlier recorded images.You can set the recording time period in the menu. Settings,range is 1minute/3 minutes/5minutes/off four levels. Note that if you select any of the "1/3/5"minute options,the recorder will Willoverwrite previously recorded footage; b.If you select "Close",it will be saved as a file every 3 minutes,and it will not continue recording when the card is full. c.The video recordings from the front and rear cameras are saved in the "1"and"2"folders within the "DCIMA"folder on the TF card. 2.Use the manual recording function After the recorder is started,press the recorder's recording knobto start recording.The recording dot flashes and displays the recording duration.Ifyou need to turn off Long press the power button for 2 seconds,and the recorder will automatically save the recording and shut down. 3.Collision sensing function This device has a built-in collision sensor(G-sensor).If a serious vehicle collision occurs,the recorder will lock the time of the accident. This clip is saved as a special image,and a lock icon is displayed in the upper left corner of the screen.Locked images will not Covered by loop [Hint] a.Locked video files start with SOS,and normal recording files start with REC. b.The colision sensor (G-sensor)supports sensitivity adjustment,which can be changed in the settings menu according to actual needs. Set. 4.Date and time settings Press(Menu key to enter the system settings menu,short press(Up key》/(Down key to move the cursor to,the Set Date option Short press the [0K button]to enter the time and date settings.Press the up and down keys to adjust the date and time,and press the mode key to switch between year,month,and day and Time cursor. [Attention]Toeffectively record the date and time ofevidence collction fortraffic safety accidents,please set it correctly before using this machine. of time. 5.One-key mute function On the recorder interface,press the microphone icon on the screen,and the microphone will change to a prohibited icon,indicating that the video and audio recording function is turned off. At this time,the recorder only records images and not sound.Touch the microphone on the screen again to change it to a recording icon,indicating recovery. Re-recording,function [Hint]The settings are saved automatically,and there is no need to set the mute function after restarting. 6.Shooting file playback Touch the small house main menu knob while the device is powered on to enterthe menu and select playback mode.Find the desired playback. File,click to play. 7.Parking monitoring When the parking monitoring function is turned on,if the car has slight vibration(trigger sensitivity can be set in the menu)in the power-off and shutdown state, If set as needed in the list),the recorder will automatically turn on and record for 20 seconds and then turn off. 4.Product Specifications Product Model C5 DSP JL5601 Sensor 2363PJ (2G4P) Video resolution 1920*108030fps Photo…

Text truncated - open the document above for the full version.

Foshan Sesame Open Door Technology Co., LTD 111, 1st Floor, No. 25-7, Zone C, Southwest Park, Sanshui Central Science and Technology Industrial Zone, Foshan City, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2025/11/24 U.S. Agent Designation Foshan Sesame Open Door Technology Co., LTD acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BS2P-C5): Name and company of U.S. agent: GLOCERTS TECHNOLOGY INC Physical U.S. address of agent: 19784 SUNKISSED RIDGE DR RIVERSIDE, CA 92507 United States FRN of U.S. agent: 0036339737 Email address of U.S. agent: [email protected] GLOCERTS TECHNOLOGY INC acknowledges their obligation to accept service of process on behalf of Foshan Sesame Open Door Technology Co., LTD Foshan Sesame Open Door Technology Co., LTD with the FRN [0037636537] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Wulin Yang Manager Foshan Sesame Open Door Technology Co., LTD Signature Huiying Fan Director GLOCERTS TECHNOLOGY INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

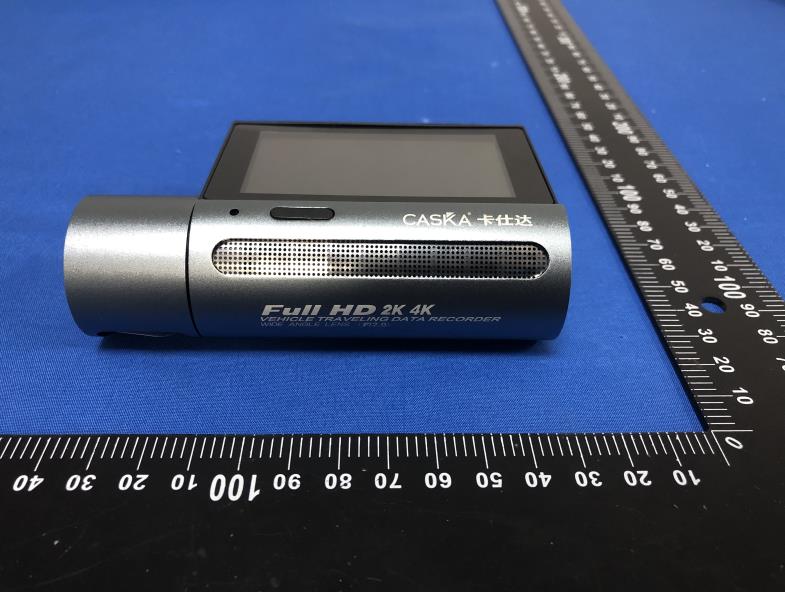

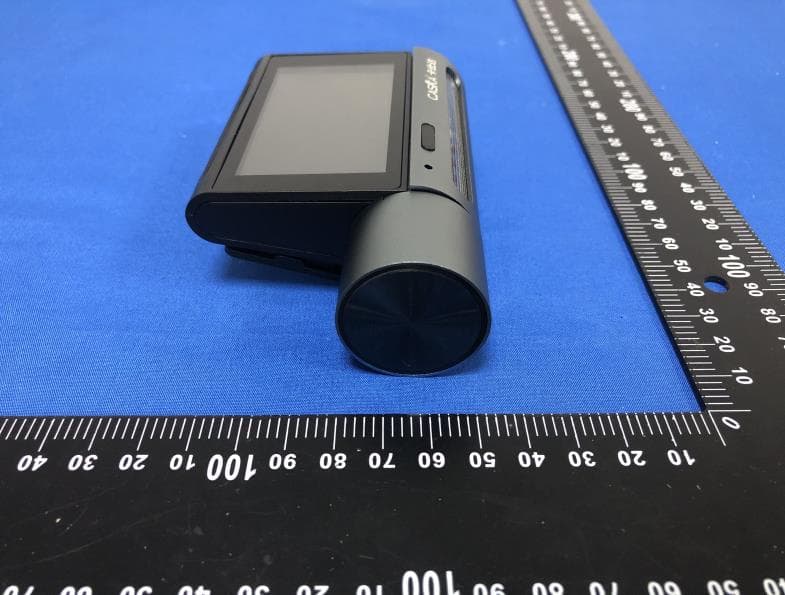

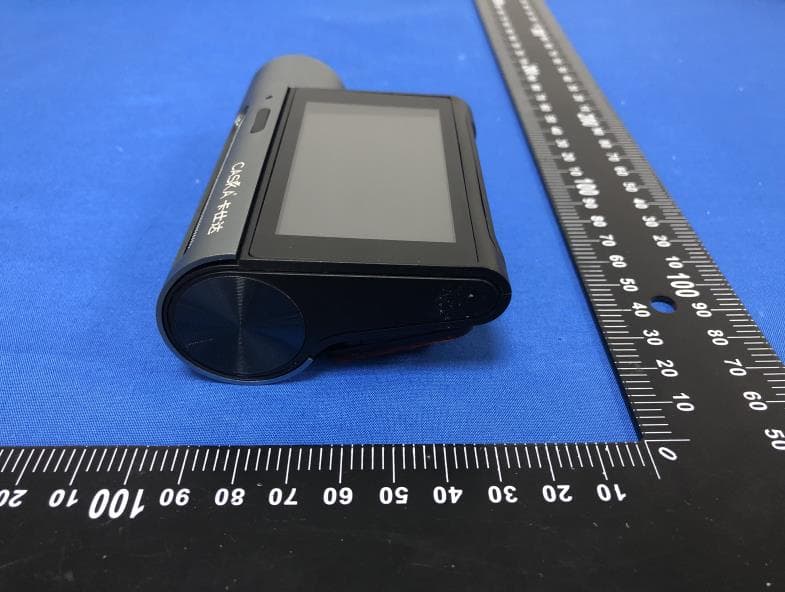

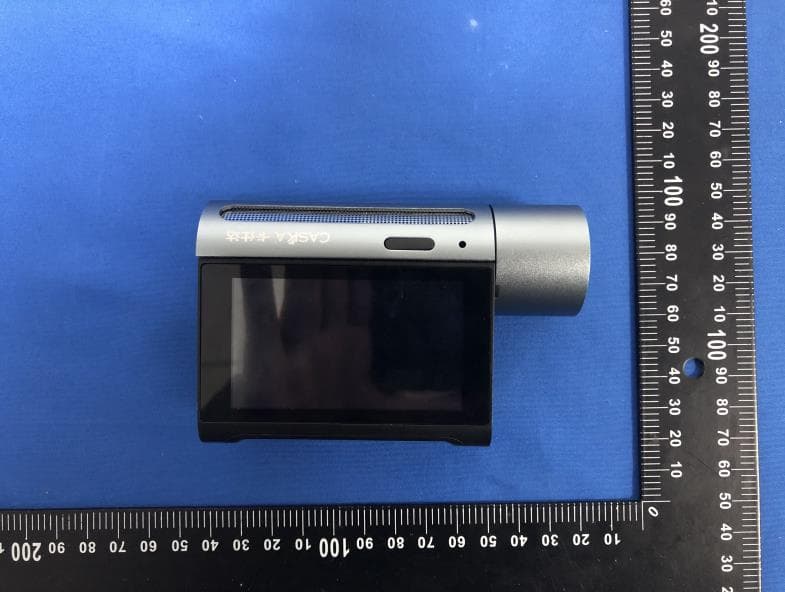

FCC ID: 2BS2P-C5 External Photos of the EUT FCC ID: 2BS2P-C5 FCC ID: 2BS2P-C5

Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location FCC ID : 2BS2P-C5

FCC ID: 2BS2P-C5 Internal Photos of the EUT FCC ID: 2BS2P-C5 FCC ID: 2BS2P-C5 FCC ID: 2BS2P-C5 FCC ID: 2BS2P-C5 ANT FCC ID: 2BS2P-C5 FCC ID: 2BS2P-C5 FCC ID: 2BS2P-C5 FCC ID: 2BS2P-C5

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure MPE Report Reference No. ..................... : FCC ID............................................. : CTA25101401802 2BS2P-C5 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Nov. 06, 2025 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : Foshan Sesame Open Door Technology Co., LTD Address............................................ : 111, 1st Floor, No. 25-7, Zone C, Southwest Park, Sanshui Central Science and Technology Industrial Zone, Foshan City, China Standard ........................................... : 47CFR §1.1310 47CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Hidden recorder Trade Mark ........................................ N/A Manufacturer .................................... : Shenzhen FenghangIndustrial Co., Ltd Model/Type reference ...................... : C5 Listed Models ................................... : Refer to page 2 Rating ............................................... : Input: 5V 1.0A Battery: 3.7V 200mAh 0.74Wh Result ............................................... : PASS Report No.: CTA25101401802 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Hidden recorder Model /Type : C5 Listed Models : C6, C7, C8, C9, A5, A6, A7, A8, A9, Z5, Z6, Z7, Z8, Z9, M5, M6, M7, M8, M9, C5pro, C6pro, C7pro, C8pro, C9pro, A5pro, A6pro, A7pro, A8pro, A9pro, Z5pro, Z6pro, Z7pro, Z8pro, Z9pro, M5pro, M6pro, M7pro, M8peo, M9pro Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : Foshan Sesame Open Door Technology Co., LTD Address : 111, 1st Floor, No. 25-7, Zone C, Southwest Park, Sanshui Central Science and Technology Industrial Zone, Foshan City, China Manufacturer : Shenzhen FenghangIndustrial Co., Ltd Address : 303, Building C, Huafeng International Robot Fosun Industrial Park, Hangcheng Avenue, Guxing Community, Xixiang Street, Bao'an District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25101401802 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 5 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 4 Test limit .............................................................................................................................. 7 4.1 Requirement ............................................................................................................ 7 4.2 MPE Calculation Method ......................................................................................... 7 4.3 Conducted Power Results ....................................................................................... 8 4.4 Manufacturing tolerance .......................................................................................... 8 4.5 Standalone MPE Result .............................................................…

Text truncated - open the document above for the full version.

烽航H720WIFI天线规格承认书 ProductSpecificationsforApproval 物料编号：WF1084B-A70L-A 客户名称:烽航机型：H720 天线频段：WIFI2.4G 版本:R-A制作日期：2021-03-19 顺达成科技有限公司研发 结构： 陈巍 射频： 符学荣 审核: 曾力文 批准: 陈华明 客户确认 客户审核：客户批准: 公司地址:深圳市宝安区福永镇重庆路新福工业园B5栋4楼 电话:0755-27211658传真:0755-29485750 Manufacturer:Research, Development and Design Services of Communication Technology Address:4th Floor, Building B5, Xinfu Industrial Park, Chongqing Road, Fuyong Town, Bao‘an District, Shenzhen, China 顺达成科技有限公司 D E S C R I P T I O N N O Q ' T Y 2 1 1 R E M A R K 7 0 C a b l e ? 1 . 1 3 C a b l e G r e y , 5 0 Ω F P C - 黑 油 黑 字 半 对 半 基 材 ， 做 抗 氧 化 处 理 3 M 9 4 7 1 背 胶 F P C 6 5 4 3 2 1 A B X X . X . . X X . X X X . X C H E C K E D ± 1 . 0 D R A W I N G ± 0 . 1 ± 0 . 5 A P P R O V E D ± 3 . 0 ± 5 F I L E : S H E E T : P A R T N A M E : R E V A 0 U N I T m / m C U S T O M E R : 1 / 3 6 5 4 C D E 3 2 2 0 2 2 . 9 . 5 A 0 F R E V D A T E N e w I s s u e G D E S C R I P T I O N 1 深 圳 市 顺 达 成 科 技 有 限 公 司 1 . 1 . 0 1 . 0 3 1 0 6 4 S D C P / N O : W I F I 天 线 ( H 7 2 0 ) F P C ( 丝 印 S D C T 3 W F ) + 1 . 1 3 灰 色 线 + O P E N 左 L = 7 0 m m 烽 航 符 学 荣 李 瑶 娜 李 瑶 娜 注 ： 6 0 m m 以 内 的 线 材 ， 若 无 客 户 要 求 则 默 认 端 子 头 朝 下   S D C T 3 W F 7 0 ± 2 顺达成科技有限公司 1.ProjectinformationandElectricalSpecification Thosespecificationswerespeciallydefinedfor 烽航H720， WiFi,andall characteristicsweremeasuredunderthemodel’shandsettestingjig. 1-1Antennapicture 1-2FrequencyBand: FrequencyBandMHz WIFI2.4G2400-2500（MHz） 1-3Impedancematching 天线原匹配无更改 顺达成科技有限公司 2.VSWR MeasuringMethod: 1.A50Ωcoaxialcableisconnectedtotheantenna.Thenthiscable isconnectedtoanetworkanalyzertomeasuretheVSWR, 2.Keepingthisjigawayfrommetalatleast20cm. VSWRparametervalues 频率（ MHZ ） 2400 24502500 驻波 1.241.331.47 3.EfficiencyandGain *measuringandtestinstruments: 微波暗室， Agilent 网络分析仪， Agilent 频谱分析仪， 8960 综合测试仪，标准天线 *testmethod: equipment 以 H 面放于转台中心位置固定，与喇叭天线中心位置在同一个水平线上。 顺达成科技有限公司 Efficiency/Gain-WIFI 4.Theproductionindex 天线量产时，以驻波比作为量产测试标准。 根据项目本身的差异 , 给出如下标准： 频率量产标准 2400-2500（MHz） VSWR（量产产品）<VSWR(设计样 品)+/-0.5

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ................... : FCC ID. .......................................... : CTA25101401801 2BS2P-C5 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Nov. 06, 2025 Testing Laboratory Name ............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Foshan Sesame Open Door Technology Co., LTD Address ............................................ : 111, 1st Floor, No. 25-7, Zone C, Southwest Park, Sanshui Central Science and Technology Industrial Zone, Foshan City, China Test specification.......................... : Standard .......................................... : FCC Part 15.247 TRF Originator ................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Hidden recorder Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen FenghangIndustrial Co., Ltd Model/Type reference ...................... : C5 Listed Models ................................... : Refer to page 2 Modulation Type .............................. : CCK/DSSS/OFDM Operation Frequency ....................... : From 2412 - 2462MHz Rating ............................................... : Input: 5V 1.0A Battery: 3.7V 200mAh 0.74Wh Result ............................................... : PASS Report No.: CTA25101401801 Page 2 of 37 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Hidden recorder Model /Type : C5 Listed Models : C6, C7, C8, C9, A5, A6, A7, A8, A9, Z5, Z6, Z7, Z8, Z9, M5, M6, M7, M8, M9, C5pro, C6pro, C7pro, C8pro, C9pro, A5pro, A6pro, A7pro, A8pro, A9pro, Z5pro, Z6pro, Z7pro, Z8pro, Z9pro, M5pro, M6pro, M7pro, M8peo, M9pro Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : Foshan Sesame Open Door Technology Co., LTD Address : 111, 1st Floor, No. 25-7, Zone C, Southwest Park, Sanshui Central Science and Technology Industrial Zone, Foshan City, China Manufacturer : Shenzhen FenghangIndustrial Co., Ltd Address : 303, Building C, Huafeng International Robot Fosun Industrial Park, Hangcheng Avenue, Guxing Community, Xixiang Street, Bao'an District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25101401801 Page 3 of 37 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description ........................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 6 2.6 EUT operation mode ......................................................................................................................... 6 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT .....................................................................…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for 2.4GWIFI FCC ID : 2BS2P-C5 Company : Foshan Sesame Open Door Technology Co., LTD EUT : Hidden recorder Model Number : C5 Report No. : CTA25101401801 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 8.880 2407.520 2416.400 0.5 PASS 2437 8.800 2432.520 2441.320 0.5 PASS 2462 9.080 2457.480 2466.560 0.5 PASS 11G Ant1 2412 16.320 2403.920 2420.240 0.5 PASS 2437 16.440 2428.840 2445.280 0.5 PASS 2462 16.320 2453.880 2470.200 0.5 PASS 11N20SISO Ant1 2412 17.400 2403.360 2420.760 0.5 PASS 2437 17.240 2428.440 2445.680 0.5 PASS 2462 17.320 2453.320 2470.640 0.5 PASS 11N40SISO Ant1 2422 33.920 2405.280 2439.200 0.5 PASS 2437 33.840 2420.120 2453.960 0.5 PASS 2452 34.160 2435.120 2469.280 0.5 PASS 3 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 4 11G_Ant1_2412 11G_Ant1_2437 5 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 6 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 7 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 8 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 12.997 2405.5587 2418.5557 --- --- 2437 12.972 2430.5508 2443.5228 --- --- 2462 12.972 2455.5664 2468.5384 --- --- 11G Ant1 2412 16.563 2403.7634 2420.3264 --- --- 2437 16.622 2428.7385 2445.3605 --- --- 2462 16.562 2453.7537 2470.3157 --- --- 11N20SISO Ant1 2412 17.463 2403.3218 2420.7848 --- --- 2437 17.458 2428.3110 2445.7690 --- --- 2462 17.474 2453.3129 2470.7869 --- --- 11N40SISO Ant1 2422 34.891 2404.6837 2439.5747 --- --- 2437 34.851 2419.7068 2454.5578 --- --- 2452 34.906 2434.6553 2469.5613 --- --- 9 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 10 11G_Ant1_2412 11G_Ant1_2437 11 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 12 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 13 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 14 Appendix C: Maximum conducted output power Test Result Peak Test Mode Antenna Frequency[MHz] Peak power [dBm] Limit [dBm] Verdict 11B Ant1 2412 14.35 ≤30.00 PASS 2437 14.79 ≤30.00 PASS 2462 14.74 ≤30.00 PASS 11G Ant1 2412 13.17 ≤30.00 PASS 2437 13.67 ≤30.00 PASS 2462 13.48 ≤30.00 PASS 11N20SISO Ant1 2412 13.52 ≤30.00 PASS 2437 14.06 ≤30.00 PASS 2462 13.75 ≤30.00 PASS 11N40SISO Ant1 2422 12.84 ≤30.00 PASS 2437 13.12 ≤30.00 PASS 2452 12.87 ≤30.00 PASS 15 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -14.61 ≤8.00 PASS 2437 -14.12 ≤8.00 PASS 2462 -14.18 ≤8.00 PASS 11G Ant1 2412 -21.28 ≤8.00 PASS 2437 -20.63 ≤8.00 PASS 2462 -20.96 ≤8.00 PASS 11N20SISO Ant1 2412 -21.03 ≤8.00 PASS 2437 -20.18 ≤8.00 PASS 2462 -20.91 ≤8.00 PASS 11N40SISO Ant1 2422 -21.94 ≤8.00 PASS 2437 -22.02 ≤8.00 PASS 2452 -21.78 ≤8.00 PASS 16 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 17 11G_Ant1_2412 11G_Ant1_2437 18 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 19 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 20 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 21 Appendix E: Band edge measurements Test Result TestMode Antenn a ChNam e Frequency[MH z] RefLevel[dB m] Result[dB m] Limit[dBm ] Verdic t 11B Ant1 Low 2412 0.56 -53.35 ≤-19.44 PASS High 2462 0.69 -56.5 ≤-19.31 PASS 11G Ant1 Low 2412 -7.04 -45.39 ≤-27.04 PASS High 2462 -7.03 -49.29 ≤-27.03 PASS 11N20SIS O Ant1 Low 2412 -7.43 -48.14 ≤-27.43 PASS High 2462 -6.72 -53.72 ≤-26.72 PASS 11N40SIS O Ant1 Low 2422 -9.95 -51.11 ≤-29.95 PASS High 2452 -10.03 -55.05 ≤-30.03 PASS 22 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 23 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 24 11N20SISO_Ant1_High_2462 11N40SISO_Ant1_Low_2422 11N40SISO_Ant1_High_2452 25 26 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference -1.30 -1.30 --- PASS 30~1000 -1.30 -54.28 ≤-21.3 PASS 1000~26500 -1.30 -44.2 ≤-21.3 PASS 2437 Reference -0.68 -0.68 --- PASS 30~1000 -0.68 -53.95 ≤-20.68 PASS 1000~26500 -0.68 -44.66 ≤-20.68 PASS 2462 Reference 0.62 0.62 --- PASS 30~1000 0.62 -55.25 ≤-19.38 PASS 1000~26500 0.62 -45.06 ≤-19.38 PASS 11G Ant1 2412 Reference -7.73 -7.73 --- PASS 30~1000 -7.73 -59.33 ≤-27.73 PASS 1000~26500 -7.73 -41.43 ≤-27.73 PASS 2437 Reference -7.03 -7.03 --- PASS 30~1000 -7.03 -59.04 ≤-27.03 PASS 1000~26500 -7.03 -44.32 ≤-27.03 PASS 2462 Reference -7.55 -7.55 --- PASS 30~1000 -7.55 -59.7 ≤-27.55 PASS 1000~26500 -7.55 -44.75 ≤-27.55 PASS 11N20SISO Ant1 2412 Reference -8.16 -8.16 --- PASS 30~1000 -8.16 -58.28 ≤-28.16 PASS 1000~26500 -8.16 -43.5 ≤-28.16 PASS 2437 Reference -7.62 -7.62 --- PASS 30~1000 -7.62 -58.99 ≤-27.62 PASS 1000~26500 -7.62 -44.2 ≤-27.62 PASS 2462 Reference -7.93 -7.93 --- PASS 30~1000 -7.93 -59.15 ≤-27.93 PASS 1000~26500 -7.93 -44.86 ≤-27.93 PASS 11N40SISO Ant1 2422 Reference -10.75 -10.75 --- PASS 30~1000 -10.75 -61.68 ≤-30.75 PASS 1000~26500 -10.75 -43.83 ≤-30.75 PASS 2437 Reference -10.46 -10.46 --- PASS 30~1000 -10.46 -61.88 ≤-30.46 PASS 1000~26500 -10.46 -44.04 ≤-30.46 PASS 2452 Reference -11.01 -11.01 --- PASS 30~1000 -11.01 -61.38 ≤-31.01 PASS 1000~26500 -11.01 -44.27 ≤-31.01 PASS 27 Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 28 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 29 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 30 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference 31 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference 32 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500

33 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 34 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000 35 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000 36 11N20SISO_Ant1_2437_1000~26500 11N20SISO_Ant1_2462_0~Reference 37 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 11N40SISO_Ant1_2422_0~Reference 38 11N40SISO_Ant1_2422_30~1000 11N40SISO_Ant1_2422_1000~26500 39 11N40SISO_Ant1_2437_0~Reference 11N40SISO_Ant1_2437_30~1000 11N40SISO_Ant1_2437_1000~26500 40 11N40SISO_Ant1_2452_0~Reference 11N40SISO_Ant1_2452_30~1000 41 11N40SISO_Ant1_2452_1000~26500 42 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] 11B Ant1 2412 20.00 20.00 100.00 2437 20.00 20.00 100.00 2462 20.00 20.00 100.00 11G Ant1 2412 20.00 20.00 100.00 2437 20.00 20.00 100.00 2462 20.00 20.00 100.00 11N20SISO Ant1 2412 20.00 20.00 100.00 2437 20.00 20.00 100.00 2462 20.00 20.00 100.00 11N40SISO Ant1 2422 20.00 20.00 100.00 2437 20.00 20.00 100.00 2452 20.00 20.00 100.00 43 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 44 11G_Ant1_2412 11G_Ant1_2437 45 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 46 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 47 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452

FCC ID: 2BS2P-C5 Test Setup Photos of the EUT
