2BS5C-C5Intelligent anti loss device

               ! "            "                  "#       "$                      %!  " %$    " %      &'(( )&*)+, -.'(/01**2)+)31)4'43()56)47)(&)+43+7'89:*)&2(7&73(;'42)16, .30*7'(<=(>&23(?)/'4@'+7A&3*7'(/*'*27/+)B7&)('*)5617&7*1>3664'B)+C>@3(0;3&*04)4     "      ! "D E     FG    FHG         "    I     "      J   "

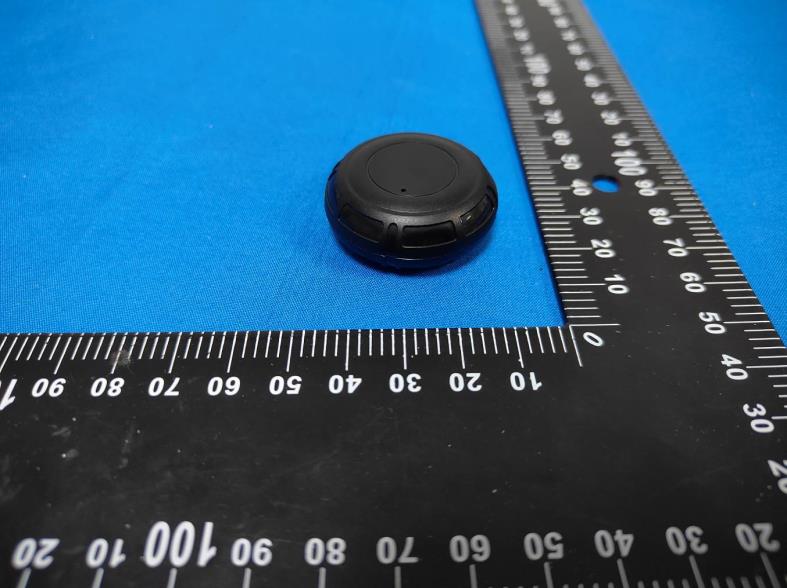

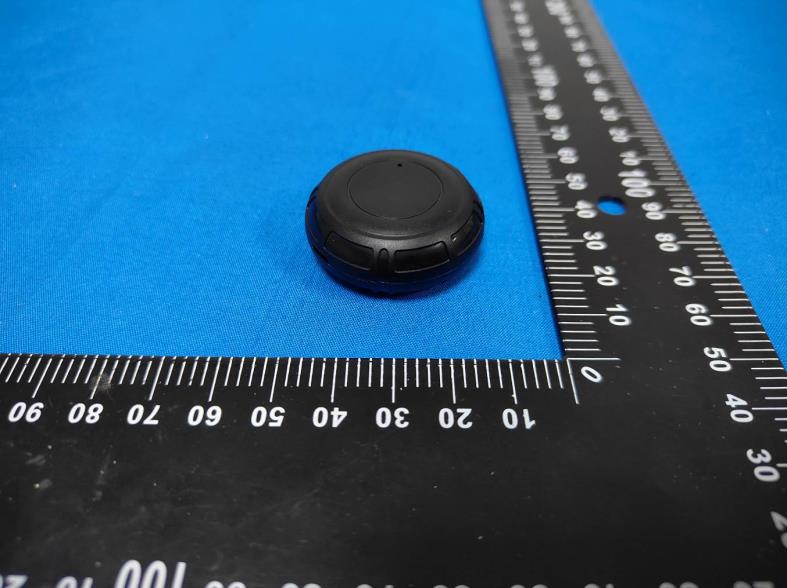

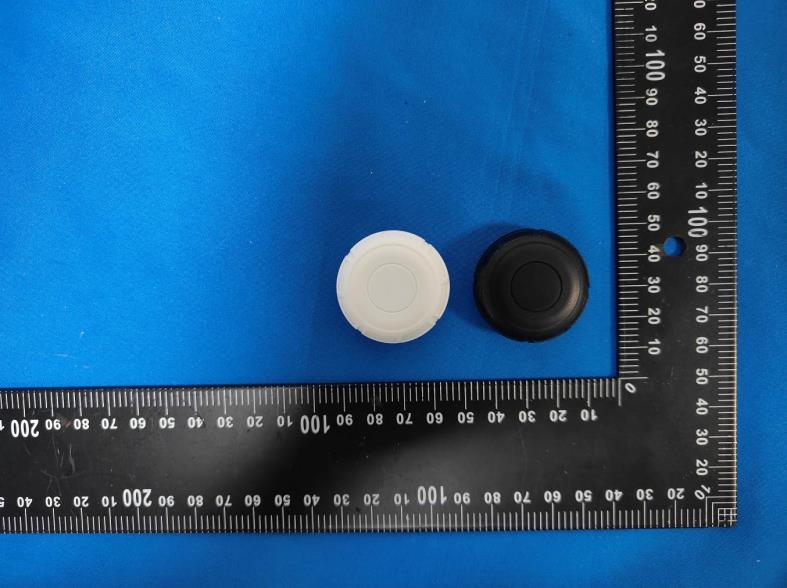

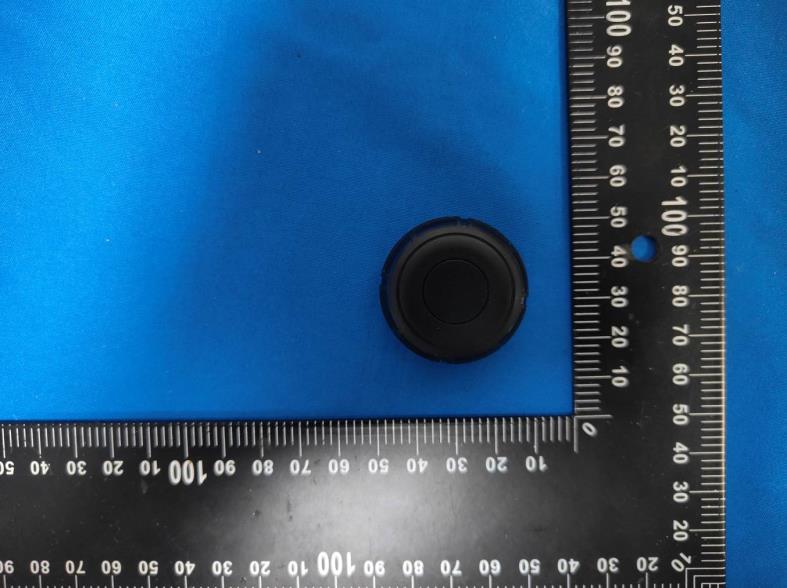

FCC ID: 2BS5C-C5 External Photos of the EUT FCC ID: 2BS5C-C5 FCC ID: 2BS5C-C5

Label and Location Size: L: 1.0cm*W: 0.5cm Label and Location FCC ID : 2BS5C-C5

FCC ID: 2BS5C-C5 Internal Photos of the EUT FCC ID: 2BS5C-C5 ANT FCC ID: 2BS5C-C5

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure evaluation Report Reference No. ..................... : FCC ID............................................. : CTA25111000402 2BS5C-C5 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Nov. 14, 2025 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : Shenzhen Jiaxiangyuan Electronics Co.,LTD Address............................................ : 2nd Floor, Building B, Shanggaotian Industrial Zone, Gucheng Community, Xixiang Street, Baoan District, Shenzhen, China Standard ........................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Intelligent anti loss device Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Jiaxiangyuan Electronics Co.,LTD Model/Type reference ...................... : C5 Listed Models ................................... : N/A Rating ............................................... : DC 3.0V From battery Result ............................................... : PASS Report No.: CTA25111000402 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Intelligent anti loss device Model /Type : C5 Listed Models : N/A Applicant : Shenzhen Jiaxiangyuan Electronics Co.,LTD Address : 2nd Floor, Building B, Shanggaotian Industrial Zone, Gucheng Community, Xixiang Street, Baoan District, Shenzhen, China Manufacturer : Shenzhen Jiaxiangyuan Electronics Co.,LTD Address : 2nd Floor, Building B, Shanggaotian Industrial Zone, Gucheng Community, Xixiang Street, Baoan District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25111000402 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 5 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 4 Test limit .............................................................................................................................. 7 4.1 Requirement ............................................................................................................ 7 4.2 Conducted Power Results ....................................................................................... 7 4.3 Manufacturing tolerance .......................................................................................... 7 4.4 Evaluation Result ..................................................................................................... 8 4.5 Simultaneous Transmission for SAR Exclusion ...................................................... 8 5 Conclusion ........................................................................................................................... 8 Report No.: CTA25111000402 Page 4 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected]…

Text truncated - open the document above for the full version.

1. Antenna Description: Antenna type PCB antenna Model C5 Frequency range 2400-2500MHz Manufacturer Shenzhen Jiaxiangyuan Electronics Co.,LTD Address 2nd Floor, Building B, Shanggaotian Industrial Zone, Gucheng Community, Xixiang Street, Baoan District, Shenzhen, China ANT Peak Gain 0.62 dBi 2. Antenna Photo: 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................. : FCC ID. ......................................... : CTA25111000401 2BS5C-C5 Compiled by ( position+printed name+signature) : File administrators Zoey Cao Supervised by ( position+printed name+signature) : Project Engineer Ace Chai Approved by ( position+printed name+signature) : RF Manager Eric Wang Date of issue ...................................: Nov. 14, 2025 Testing Laboratory Name .............: Shenzhen CTA Testing Technology Co., Ltd. Address ..........................................: Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name...........................: Shenzhen Jiaxiangyuan Electronics Co.,LTD Address ...........................................: 2nd Floor, Building B, Shanggaotian Industrial Zone, Gucheng Community, Xixiang Street, Baoan District, Shenzhen, China Test specification ......................... : Standard ..........................................: FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Equipment description ................ : Intelligent anti loss device Trade Mark ......................................: N/A Manufacturer ...................................: Shenzhen Jiaxiangyuan Electronics Co.,LTD Model/Type reference .....................: C5 Listed Models ..................................: N/A Modulation ......................................: GFSK Frequency .......................................: From 2402MHz to 2480MHz Ratings ............................................: DC 3.0V From battery Result ..............................................: PASS Report No.: CTA25111000401 Page 2 of 29 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Intelligent anti loss device Model /Type : C5 Listed Models : N/A Applicant : Shenzhen Jiaxiangyuan Electronics Co.,LTD Address : 2nd Floor, Building B, Shanggaotian Industrial Zone, Gucheng Community, Xixiang Street, Baoan District, Shenzhen, China Manufacturer : Shenzhen Jiaxiangyuan Electronics Co.,LTD Address : 2nd Floor, Building B, Shanggaotian Industrial Zone, Gucheng Community, Xixiang Street, Baoan District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25111000401 Page 3 of 29 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description* .......................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 5 2.6 EUT operation mode ......................................................................................................................... 5 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ........................................................................................................... 7 3.2 Test Facility........................................................................................................................................ 7 3.3 Environmental conditions .................................................................................................................. 7 3.4 Summary of measurement r…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for BLE FCC ID : 2BS5C-C5 Company : Shenzhen Jiaxiangyuan Electronics Co.,LTD EUT : Intelligent anti loss device Model Number : C5 Report No. : CTA25111000401 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Freq(MHz) DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.644 2401.688 2402.332 0.5 PASS 2440 0.640 2439.696 2440.336 0.5 PASS 2480 0.636 2479.696 2480.332 0.5 PASS 3 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 4 5 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 1.0055 2401.5176 2402.5231 --- --- 2440 1.0066 2439.5161 2440.5227 --- --- 2480 1.0037 2479.5168 2480.5205 --- --- 6 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 7 8 Appendix C: Maximum conducted output power Test Result Peak TestMode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict BLE_1M Ant1 2402 -3.36 ≤30 PASS 2440 -3.52 ≤30 PASS 2480 -3.42 ≤30 PASS 9 Appendix D: Maximum power spectral density Test Result TestMode Antenna Freq(MHz) Result[dBm/3kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -19.24 ≤8.00 PASS 2440 -19.04 ≤8.00 PASS 2480 -19.20 ≤8.00 PASS 10 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 11 12 Appendix E: Band edge measurements Test Result TestMode Antenna ChName Freq(MHz) RefLevel[dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 Low 2402 -3.76 -55.55 ≤-23.76 PASS High 2480 -3.79 -57.23 ≤-23.79 PASS 13 Test Graphs BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 14 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 Reference -4.88 -4.88 --- PASS 30~1000 -4.88 -56.97 ≤-24.88 PASS 1000~26500 -4.88 -47.36 ≤-24.88 PASS 2440 Reference -4.93 -4.93 --- PASS 30~1000 -4.93 -67.43 ≤-24.93 PASS 1000~26500 -4.93 -49.39 ≤-24.93 PASS 2480 Reference -4.24 -4.24 --- PASS 30~1000 -4.24 -68.01 ≤-24.24 PASS 1000~26500 -4.24 -47.68 ≤-24.24 PASS 15 Test Graphs BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 BLE_1M_Ant1_2402_1000~26500 16 BLE_1M_Ant1_2440_0~Reference BLE_1M_Ant1_2440_30~1000 17 BLE_1M_Ant1_2440_1000~26500 BLE_1M_Ant1_2480_0~Reference BLE_1M_Ant1_2480_30~1000 18 BLE_1M_Ant1_2480_1000~26500 19 Appendix G: Duty Cycle Test Result TestMode Antenna Freq(MHz) ON Time [ms] Period [ms] X DC [%] xFactor Limit Verdict BLE_1M Ant1 2402 0.41 0.63 0.6508 65.08 1.87 --- --- 2440 0.41 0.63 0.6508 65.08 1.87 --- --- 2480 0.41 0.63 0.6508 65.08 1.87 --- --- 20 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 21

FCC ID: 2BS5C-C5 Test Setup Photos of the EUT
