2BS6BGPU3Smart Watch

Gard Pro

Click to zoom

Application Details

Equipment Class: DSS - Part 15 Spread Spectrum Transmitter
Date of Grant: Jan 06, 2026
Application Purpose: Original Equipment
Equipment Note: Smart Watch
Frequency Range: 2402.00000000 - 2480.00000000
Company: Gard Pro
Country: Netherlands

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Instructions Smart Watch HVIN:GARD PRO ULTRA 3 Quick User Guide for Watch Turn on/off 1. When the watch is turned off, charging or long pressing the down button for 3 seconds will vibrate the wristband to turn it on; 2. When the watch is powered on, switch to the shutdown interface ("Settings" - "System Menu") or press and hold the button for 3 seconds. A slide-to-shutdown/slide-to-restart/slide-to-call option will pop up. Select slide-to-shutdown. Watch operation 1. When the watch is in the on-state, raising your hand or pressing a button can wake up the watch, and swiping can switch between interfaces. 2. The screen will turn off automatically after 5 seconds without any operation. Users can modify the screen timeout on the display and brightness settings page in the app or on the watch. 3. The watch is set to enable 24-hour heart rate monitoring by default when it leaves the factory, and users can choose to enable or disable it in the general settings of the device interface in the app. Install the watch app Scan the QR code below or visit major app stores to download and install "GloryFitPro". Device requirements: iOS 11.0 or above; Android 5.0 or above, supports Bluetooth BLE 5.3. Device Connect Open the app, click "Device" - "Add Device" - "Select Device", click on the corresponding model, and follow the prompts to connect. Bluetooth connection: After successful pairing, the APP automatically saves the Bluetooth address of the watch. Whenever the APP is opened or running in the background, it will automatically search for and connect to the watch. Data Synchronization: Manually pull down to synchronize data on the APP homepage; the watch can store 7 days of offline data. The more data there is, the longer the synchronization time will be, up to approximately 2 minutes. Synchronize Contacts: Enter the app, click "Device" - "Contacts" - "Open", and select up to 100 contact names. Watch Overview Touch screen: Slide down to access the status bar, slide up to enter the frequently used functions interface, slide left to enter the functions interface, and slide right to view notifications. Up button Click: Enter the function menu, one-click return to the main interface/screen on (in standby mode). Long press: Enter sports mode Middle button. Click: Enter sports mode/screen on (in standby mode). Long press: Call SOS emergency contact Press the button. Click: Return to the previous level/Turn off the screen (in the main interface)/Turn on the screen (in standby mode). Long press: Power on/off. Charging: Align the magnetic head of the charging cable with the charging contacts on the bottom of the watch, and it will automatically attach for charging (positive attraction, negative repulsion). Main interface Main interface: The watch has 5 main interfaces. Long press on the main interface for two seconds, and after a vibration, a thumbnail view will appear. You can slide left or right to switch between watch faces. After the app is paired and connected, the watch will synchronize the time, date, day of the week, and other information with the phone. Massive Watch Faces/Custom Watch Faces: Open the app, and when connected to a watch, click "Device" - "Watch Face Market" to enter the Watch Face Center to select or customize a watch face. MENU There are 6 menu modes: Honeycomb, Rapids, Halo, List, Dial, and Waterfall. Click "Settings" and then "Main Image" to make your selection. Function menu Calls、 Daily Activities、 Exercise、 Exercise Record、 Heart Rate, Sleep、 Blood Oxygen、 Body Temperature、 Stress、 Music、 Voice Assistant、 Weather、 Compass、 Altitude Barometer、 Breathing Training、 World Clock、 Medication Reminder、 UV Index、 Notifications、 Stopwatch、 Alarm Clock、 Timer、 Calculator、 Remote Camera、 Flashlight、 Find Phone、 Women's Health、 Settings. Set menu Replace dial、language selection、screen-off display、display and brightness、sound and vibration、theme、password、time and date、do not disturb mode、motion recognition、lower button settings、overlay screen-off、QR code、system menu、about. Precautions · Please do not disassemble, repair, or modify this machine on your own. · Please avoid subjecting your watch to strong impacts, extreme heat, and direct sunlight. · This device uses a 5V 500MA charger. It is strictly prohibited to use an overvoltage or overloaded power source for charging. · The operating environment for this device is between 0 degrees and 45 degrees. It is strictly prohibited to throw it into fire to avoid causing an explosion. ·When the watch gets wet, please wipe it dry with a soft cloth before charging, otherwise it may corrode the charging contacts This point leads to charging failure. · Do not touch chemicals such as gasoline, cleaning solvents, propanol, alcohol, or insect repellents. · Please do not use this product in a high-voltage or high-magnetic environment. · If you have sensitive skin or wear your watch too tightly, you may feel discomfort. · It is not advisable to wear a watch while taking a hot bath. · Please promptly wipe away the sweat droplets on your wrist. Prolonged contact of the watchband with soap, sweat, allergens, or pollutants may cause skin irritation and itching. · If you use your watch frequently, it is recommended to clean it weekly. Wipe it with a damp cloth and use a mild soap to remove any dirt or stains Remove oil stains or dust. · No special requirements, please do not enable more push notifications. Frequently asked questions What should I do if I can't connect to Bluetooth? (Connection/reconnection fails or the connection/reconnection speed is very slow) Confirm whether your device is running IOS11.0 and Android 5.0 or above and supports Bluetooth BLE5.3. 1. Due to signal interference issues with Bluetooth wireless connections, the connection time may be excessively long. If you cannot connect for a long time, please ensure that you are operating in an environment without magnetic fields or interference from multiple Bluetooth devices. 2. Turn off Blue…

Text truncated - open the document above for the full version.

RF Exposure Info

FCC ID:2BS6BGPU3 RF Exposure evaluation According to 447498 D04 Interim General RF Exposure Guidance v01 ERP/EIRP = P T +G T −L C ERP/EIRP is the equivalent (or effective) radiated power [in same units as P T , typically dBW, dBm, or power spectral density (psd)], relative to either a dipole antenna (ERP) or an isotropic antenna (EIRP). P T is the transmitter output power, in dBW, dBm, or psd (power over a specified reference bandwidth). G T is the gain of the transmitting antenna, in dBd (ERP) or dBi (EIRP). L C is the signal attenuation in the connecting cable between the transmitter and the antenna, in dB. For BT EDR mode Frequenc y (MHz) Output power (dBm) Output power (mw) Ant gain (dBi) EIRP (dBm) ERP (dBm) ERP (mw) Distance (cm) P th (mW) 2480 0.60 1.15 -7.62 -7.02 -9.17 0.12 0.5 2.7 ERP = EIRP−2.15 WORSE CASE 1.15mW<2.7mW FCC ID:2BS6BGPU3 For BT LE mode Frequenc y (MHz) Output power (dBm) Output power (mw) Ant gain (dBi) EIRP (dBm) ERP (dBm) ERP (mw) Distance (cm) P th (mW) 2480 0.36 1.09 -7.62 -7.26 -9.41 0.11 0.5 2.7 ERP = EIRP −2.15 dB WORSE CASE 1.09mW<2.7mW Remark:Then SAR evaluation is not required

Test Setup Photos

Page 1 of 2 Model No.: Gard Pro Ultra 3 Radiated Emission Page 2 of 2 Conducted Emissions RF Conducted Test

Test Report

Global United Technology Services Co., Ltd. Report No.: GTS2025090086F01 Authorized Signature: Robinson Luo Laboratory Manager This results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Page 1 of 29 TEST REPORT Applicant: Gard Pro Address of Applicant: Chocoladeweg 6 1381 DA Weesp The Netherlands Manufacturer/Factory: Gard Pro Address of Manufacturer/Factory: Chocoladeweg 6 1381 DA Weesp The Netherlands Equipment Under Test (EUT) Product Name: Smart Watch Model No.: GARD PRO ULTRA 3 FCC ID: 2BS6BGPU3 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of sample receipt: September 04, 2025 Date of Test: September 04, 2025-October 20, 2025 Date of report issued: October 21, 2025 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTS2025090086F01 Global United Technology Services Co., Ltd. No. 123- 128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 29 2 Version Version No. Date Description 00 October 21, 2025 Original Tested By: Date: October 21, 2025 Test Engineer Prepared By: Date: October 21, 2025 Project Engineer Check By: Date: October 21, 2025 Reviewer Report No.: GTS2025090086F01 Global United Technology Services Co., Ltd. No. 123- 128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 29 3 Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2 VERSION .................................................................................................................................................. 2 3 CONTENTS .............................................................................................................................................. 3 4 TEST SUMMARY ..................................................................................................................................... 4 5 GENERAL INFORMATION ...................................................................................................................... 5 5.1 GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 5.2 TEST MODE ........................................................................................................................................ 7 5.3 DESCRIPTION OF SUPPORT UNITS ....................................................................................................... 7 5.4 DEVIATION FROM STANDARDS ............................................................................................................. 7 5.5 ABNORMALITIES FROM STANDARD CONDITIONS ................................................................................... 7 5.6 TEST FACILITY .................................................................................................................................... 7 5.7 TEST LOCATION ................................................................................................................................. 7 5.8 ADDITIONAL INSTRUCTIONS ................................................................................................................. 7 6 TEST INSTRUMENTS LIST ..................................................................................................................... 8 7 TEST RESULTS AND MEASUREMENT DATA .................................................................................... 10 7.1 ANTENNA REQUIREMENT ................................................................................................................... 10 7.2 CONDUCTED EMISSIONS ................................................................................................................... 11 7.3 CONDUCTED PEAK OUTPUT POWER .................................................................................................. 14 7.4 20DB EMISSION BANDWIDTH ............................................................................................................ 15 7.5 CARRIER FREQUENCIES SEPARATION ................................................................................................ 16 7.6 HOPPING CHANNEL NUMBER ............................................................................................................ 17 7.7 DWELL TIME ..................................................................................................................................... 18 7.8 SPURIOUS EMISSION IN NON-RESTRICTED & RESTRICTED BANDS ....................................................... 19 7.8.1 Conducted Emission Method ..................................................................................................... 19 7.8.2 Radiated Emission Method ........................................................................................................ 20 8 TEST SETUP PHOTO ............................................................................................................................ 29 9 EUT CONSTRUCTIONAL DETAILS ..................................................................................................... 29 Report No.: GTS2025090086F01 Global United Technology Services Co., Ltd. No. 123- 128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 4 of 29 4 Test Su…

Text truncated - open the document above for the full version.

Test Report

ReportNo.:GTS2025090086F01 GlobalUnitedTechnologyServicesCo.,Ltd. No.123-128,TowerA,JinyuanBusinessBuilding,No.2,LaodongIndustrialZone, XixiangRoad,BaoanDistrict,Shenzhen,Guangdong,China518102 Telephone:+86(0)75527798480Fax:+86(0)75527798960Page 10 of 26 AppendixD:Carrierfrequencyseparation TestResult TestModeAntennaFrequency[MHz]Result[MHz]Limit[MHz]Verdict DH5Ant1Hop1.352≥0.957PASS 2DH5Ant1Hop1.348≥0.868PASS 3DH5Ant1Hop0.996≥0.850PASS TestGraphs DH5-Ant1-Hop-PASS2DH5-Ant1-Hop-PASS 3DH5-Ant1-Hop-PASS ReportNo.:GTS2025090086F01 GlobalUnitedTechnologyServicesCo.,Ltd. No.123-128,TowerA,JinyuanBusinessBuilding,No.2,LaodongIndustrialZone, XixiangRoad,BaoanDistrict,Shenzhen,Guangdong,China518102 Telephone:+86(0)75527798480Fax:+86(0)75527798960Page 11 of 26 AppendixE:Timeofoccupancy TestResult TestModeAntennaFrequency[MHz] BurstWidth [ms] TotalHops [Num] Result[s]Limit[s]Verdict DH1Ant1Hop0.3713200.119≤0.4PASS DH3Ant1Hop1.6191600.259≤0.4PASS DH5Ant1Hop2.868106.670.306≤0.4PASS 2DH1Ant1Hop0.3793200.121≤0.4PASS 2DH3Ant1Hop1.6301600.261≤0.4PASS 2DH5Ant1Hop2.879106.670.307≤0.4PASS 3DH1Ant1Hop0.3793200.121≤0.4PASS 3DH3Ant1Hop1.6291600.261≤0.4PASS 3DH5Ant1Hop2.880106.670.307≤0.4PASS Note: DH5/2DH5/3DH5:TotalHops=1600/79/6*0.4*79 DH5/2DH5/3DH5:Timeofoccupancy=TotalHops*(BurstWidth)/1000 DH3/2DH3/3DH3:TotalHops=1600/79/4*0.4*79 DH3/2DH3/3DH3:Timeofoccupancy=TotalHops*(BurstWidth)/1000 DH1/2DH1/3DH1:TotalHops=1600/79/2*0.4*79 DH1/2DH1/3DH1:Timeofoccupancy=TotalHops*(BurstWidth)/1000 ReportNo.:GTS2025090086F01 GlobalUnitedTechnologyServicesCo.,Ltd. No.123-128,TowerA,JinyuanBusinessBuilding,No.2,LaodongIndustrialZone, XixiangRoad,BaoanDistrict,Shenzhen,Guangdong,China518102 Telephone:+86(0)75527798480Fax:+86(0)75527798960Page 12 of 26 TestGraphs DH1-Ant1-Hop-PASSDH3-Ant1-Hop-PASS DH5-Ant1-Hop-PASS2DH1-Ant1-Hop-PASS 2DH3-Ant1-Hop-PASS2DH5-Ant1-Hop-PASS ReportNo.:GTS2025090086F01 GlobalUnitedTechnologyServicesCo.,Ltd. No.123-128,TowerA,JinyuanBusinessBuilding,No.2,LaodongIndustrialZone, XixiangRoad,BaoanDistrict,Shenzhen,Guangdong,China518102 Telephone:+86(0)75527798480Fax:+86(0)75527798960Page 13 of 26 3DH1-Ant1-Hop-PASS3DH3-Ant1-Hop-PASS 3DH5-Ant1-Hop-PASS ReportNo.:GTS2025090086F01 GlobalUnitedTechnologyServicesCo.,Ltd. No.123-128,TowerA,JinyuanBusinessBuilding,No.2,LaodongIndustrialZone, XixiangRoad,BaoanDistrict,Shenzhen,Guangdong,China518102 Telephone:+86(0)75527798480Fax:+86(0)75527798960Page 14 of 26 AppendixF:Numberofhoppingchannels TestResult TestModeAntennaFrequency[MHz]Result[Num]Limit[Num]Verdict DH5Ant1Hop79≥15PASS 2DH5Ant1Hop79≥15PASS 3DH5Ant1Hop79≥15PASS TestGraphs DH5-Ant1-Hop-PASS2DH5-Ant1-Hop-PASS 3DH5-Ant1-Hop-PASS ReportNo.:GTS2025090086F01 GlobalUnitedTechnologyServicesCo.,Ltd. No.123-128,TowerA,JinyuanBusinessBuilding,No.2,LaodongIndustrialZone, XixiangRoad,BaoanDistrict,Shenzhen,Guangdong,China518102 Telephone:+86(0)75527798480Fax:+86(0)75527798960Page 15 of 26 AppendixG:Bandedgemeasurements TestResult TestModeAntennaChNameFrequency[MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5Ant1Low2402-0.58-48.88≤-20.58PASS DH5Ant1High2480-1.59-48.94≤-21.59PASS DH5Ant1LowHop_2402-0.88-49.21≤-20.88PASS DH5Ant1HighHop_2480-1.56-48.42≤-21.56PASS 2DH5Ant1Low2402-0.76-48.59≤-20.76PASS 2DH5Ant1High2480-6.32-47.98≤-26.32PASS 2DH5Ant1LowHop_2402-7.43-49.37≤-27.43PASS 2DH5Ant1HighHop_2480-7.16-47.94≤-27.16PASS 3DH5Ant1Low2402-0.09-49.13≤-20.09PASS 3DH5Ant1High2480-2.20-47.8≤-22.2PASS 3DH5Ant1LowHop_2402-5.23-49.2≤-25.23PASS 3DH5Ant1HighHop_2480-7.58-48.82≤-27.58PASS ReportNo.:GTS2025090086F01 GlobalUnitedTechnologyServicesCo.,Ltd. No.123-128,TowerA,JinyuanBusinessBuilding,No.2,LaodongIndustrialZone, XixiangRoad,BaoanDistrict,Shenzhen,Guangdong,China518102 Telephone:+86(0)75527798480Fax:+86(0)75527798960Page 16 of 26 TestGraphs DH5-Ant1-2402-PASSDH5-Ant1-2480-PASS DH5-Ant1-Hop_2402-PASSDH5-Ant1-Hop_2480-PASS 2DH5-Ant1-2402-PASS2DH5-Ant1-2480-PASS ReportNo.:GTS2025090086F01 GlobalUnitedTechnologyServicesCo.,Ltd. No.123-128,TowerA,JinyuanBusinessBuilding,No.2,LaodongIndustrialZone, XixiangRoad,BaoanDistrict,Shenzhen,Guangdong,China518102 Telephone:+86(0)75527798480Fax:+86(0)75527798960Page 17 of 26 2DH5-Ant1-Hop_2402-PASS2DH5-Ant1-Hop_2480-PASS 3DH5-Ant1-2402-PASS3DH5-Ant1-2480-PASS 3DH5-Ant1-Hop_2402-PASS3DH5-Ant1-Hop_2480-PASS ReportNo.:GTS2025090086F01 GlobalUnitedTechnologyServicesCo.,Ltd. No.123-128,TowerA,JinyuanBusinessBuilding,No.2,LaodongIndustrialZone, XixiangRoad,BaoanDistrict,Shenzhen,Guangdong,China518102 Telephone:+86(0)75527798480Fax:+86(0)75527798960Page 18 of 26 AppendixH:ConductedSpuriousEmission TestResult TestModeAntennaFrequency[MHz] FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5Ant124020~Reference0.050.05---PASS DH5Ant1240230~10000.05-62.79≤-19.95PASS DH5Ant124021000~265000.05-42.1≤-19.95PASS DH5Ant124410~Reference-0.41-0.41---PASS DH5Ant1244130~1000-0.41-62.61≤-20.41PASS DH5Ant124411000~26500-0.41-42.89≤-20.41PASS DH5Ant124800~Reference-1.01-1.01---PASS DH5Ant1248030~1000-1.01-51.41≤-21.01PASS DH5Ant124801000~26500-1.01-42.92≤-21.01PASS 2DH5Ant124020~Reference-0.18-0.18---PASS 2DH5Ant1240230~1000-0.18-63.15≤-20.18PASS 2DH5Ant124021000~26500-0.18-43.08≤-20.18PASS 2DH5Ant124410~Reference-0.66-0.66---PASS 2DH5Ant1244130~1000-0.66-61.76≤-20.66PASS 2DH5Ant124411000~26500-0.66-42.94≤-20.66PASS 2DH5Ant124800~Reference-1.18-1.18---PASS 2DH5Ant1248030~1000-1.18-47.63≤-21.18PASS 2DH5Ant124801000~26500-1.18-43.19≤-21.18PASS 3DH5Ant124020~Reference-0.03-0.03---PASS 3DH5Ant1240230~1000-0.03-43.01≤-20.03PASS 3DH5Ant124021000~26500-0.03-42.38≤-20.03PASS 3DH5Ant124410~Reference-0.43-0.43---PASS 3DH5Ant1244130~1000-0.43-61.84≤-20.43PASS 3DH5Ant124411000~26500-0.43-42.45≤-20.43PASS 3DH5Ant124800~Reference-1.12-1.12---PASS 3DH5Ant1248030~1000-1.12-63.09≤-21.12PASS 3DH5Ant124801000~26500-1.12-42.54≤-21.12PASS

Test Report

ReportNo.:GTS2025090086F01 GlobalUnitedTechnologyServicesCo.,Ltd. No.123-128,TowerA,JinyuanBusinessBuilding,No.2,LaodongIndustrialZone, XixiangRoad,BaoanDistrict,Shenzhen,Guangdong,China518102 Telephone:+86(0)75527798480Fax:+86(0)75527798960Page 1 of 26 AppendixA:20dBEmissionBandwidth TestResult TestModeAntennaFrequency[MHz] 20db EBW[MHz] FL[MHz]FH[MHz]Limit[MHz]Verdict DH5Ant124020.9572401.5952402.552------ DH5Ant124410.9572440.5982441.555------ DH5Ant124800.9512479.6042480.555------ 2DH5Ant124021.2602401.4362402.696------ 2DH5Ant124411.3022440.4272441.729------ 2DH5Ant124801.2392479.4422480.681------ 3DH5Ant124021.2002401.4722402.672------ 3DH5Ant124411.2752440.4302441.705------ 3DH5Ant124801.1882479.4872480.675------ TestGraphs DH5-Ant1-2402DH5-Ant1-2441 ReportNo.:GTS2025090086F01 GlobalUnitedTechnologyServicesCo.,Ltd. No.123-128,TowerA,JinyuanBusinessBuilding,No.2,LaodongIndustrialZone, XixiangRoad,BaoanDistrict,Shenzhen,Guangdong,China518102 Telephone:+86(0)75527798480Fax:+86(0)75527798960Page 2 of 26 DH5-Ant1-24802DH5-Ant1-2402 2DH5-Ant1-24412DH5-Ant1-2480 3DH5-Ant1-24023DH5-Ant1-2441 ReportNo.:GTS2025090086F01 GlobalUnitedTechnologyServicesCo.,Ltd. No.123-128,TowerA,JinyuanBusinessBuilding,No.2,LaodongIndustrialZone, XixiangRoad,BaoanDistrict,Shenzhen,Guangdong,China518102 Telephone:+86(0)75527798480Fax:+86(0)75527798960Page 3 of 26 3DH5-Ant1-2480 ReportNo.:GTS2025090086F01 GlobalUnitedTechnologyServicesCo.,Ltd. No.123-128,TowerA,JinyuanBusinessBuilding,No.2,LaodongIndustrialZone, XixiangRoad,BaoanDistrict,Shenzhen,Guangdong,China518102 Telephone:+86(0)75527798480Fax:+86(0)75527798960Page 4 of 26 AppendixB:OccupiedChannelBandwidth TestResult TestModeAntennaFrequency[MHz] OCB[MHz] FL[MHz]FH[MHz]Limit[MHz]Verdict DH5Ant124020.859832401.63312402.4930------ DH5Ant124410.856072440.63282441.4889------ DH5Ant124800.871652479.62902480.5007------ 2DH5Ant124021.16732401.47862402.6459------ 2DH5Ant124411.17352440.47742441.6509------ 2DH5Ant124801.16492479.48252480.6474------ 3DH5Ant124021.17092401.47892402.6498------ 3DH5Ant124411.17152440.48082441.6523------ 3DH5Ant124801.16072479.48772480.6484------ TestGraphs DH5-Ant1-2402DH5-Ant1-2441 ReportNo.:GTS2025090086F01 GlobalUnitedTechnologyServicesCo.,Ltd. No.123-128,TowerA,JinyuanBusinessBuilding,No.2,LaodongIndustrialZone, XixiangRoad,BaoanDistrict,Shenzhen,Guangdong,China518102 Telephone:+86(0)75527798480Fax:+86(0)75527798960Page 5 of 26 DH5-Ant1-24802DH5-Ant1-2402 2DH5-Ant1-24412DH5-Ant1-2480 3DH5-Ant1-24023DH5-Ant1-2441 ReportNo.:GTS2025090086F01 GlobalUnitedTechnologyServicesCo.,Ltd. No.123-128,TowerA,JinyuanBusinessBuilding,No.2,LaodongIndustrialZone, XixiangRoad,BaoanDistrict,Shenzhen,Guangdong,China518102 Telephone:+86(0)75527798480Fax:+86(0)75527798960Page 6 of 26 3DH5-Ant1-2480 ReportNo.:GTS2025090086F01 GlobalUnitedTechnologyServicesCo.,Ltd. No.123-128,TowerA,JinyuanBusinessBuilding,No.2,LaodongIndustrialZone, XixiangRoad,BaoanDistrict,Shenzhen,Guangdong,China518102 Telephone:+86(0)75527798480Fax:+86(0)75527798960Page 7 of 26 AppendixC:Maximumconductedoutputpower TestResultPeak Test Mode AntennaFrequency[MHz] Conducted Peak Power[dBm] Conducted Limit[dBm] Gain [dBi] EIRP [dBm] EIRPLimit [dBm] Verdict DH5Ant124020.38≤30-7.62-7.24≤36PASS DH5Ant12441-0.02≤30-7.62-7.64≤36PASS DH5Ant12480-0.46≤30-7.62-8.08≤36PASS 2DH5Ant124020.38≤20.97-7.62-7.24≤36PASS 2DH5Ant12441-0.03≤20.97-7.62-7.65≤36PASS 2DH5Ant12480-0.56≤20.97-7.62-8.18≤36PASS 3DH5Ant124020.60≤20.97-7.62-7.02≤36PASS 3DH5Ant124410.14≤20.97-7.62-7.48≤36PASS 3DH5Ant12480-0.39≤20.97-7.62-8.01≤36PASS TestGraphs DH5-Ant1-2402-PASSDH5-Ant1-2441-PASS ReportNo.:GTS2025090086F01 GlobalUnitedTechnologyServicesCo.,Ltd. No.123-128,TowerA,JinyuanBusinessBuilding,No.2,LaodongIndustrialZone, XixiangRoad,BaoanDistrict,Shenzhen,Guangdong,China518102 Telephone:+86(0)75527798480Fax:+86(0)75527798960Page 8 of 26 DH5-Ant1-2480-PASS2DH5-Ant1-2402-PASS 2DH5-Ant1-2441-PASS2DH5-Ant1-2480-PASS 3DH5-Ant1-2402-PASS3DH5-Ant1-2441-PASS ReportNo.:GTS2025090086F01 GlobalUnitedTechnologyServicesCo.,Ltd. No.123-128,TowerA,JinyuanBusinessBuilding,No.2,LaodongIndustrialZone, XixiangRoad,BaoanDistrict,Shenzhen,Guangdong,China518102 Telephone:+86(0)75527798480Fax:+86(0)75527798960Page 9 of 26 3DH5-Ant1-2480-PASS

Test Report

Measured data Test location, first floor roadside green belt, Positioning time: The measured values are shown in the following figure Passive data S1 1 Passive data GPS Frequency （ MHz ） Gain （ dBi ） Effici ency （ dB ） Effici ency （ % ） 1565-2 .34-7 .1819.12 1570-2 .45-7 .2918.68 1575-2 .22-7 .0319.79 1580-1 .90-6 .6521.64 Frequ ency （ MHz ） Gain （ dB i ） Efficienc y （ dB ） Efficienc y （ % ） 24 00-8. 23-11.48 7.12 24 10-7.62-11.19 7.6 24 20-7.83-11.24 7.51 24 30-8. 67-11.83 6. 56 24 40-7.94-11.51 7.07 24 50-7.82-11.41 7.23 24 60-8. 09-11.51 7.06 24 70-8. 02-11.59 6. 93 24 80-7.69-11.48 7.12 24 90-7.77-11.43 7.2 25 00-7.66-11.31 7.39 BT Radiation patternBT Radiation patternGPS

Test Report

二○一二年工作总结暨二○一三年工作计划 2025-6-25 Confident ial Yougu K75 GPS Mold Machine Debugging Report-02 Shenzhen Hongwei Communication Technology Co., Ltd Project Resume DateVersionDebugging Record Explanation 2025-6-25 V2 Mold machine（ software version ： AT328SRV002448、 AT328SRV002496) Fixture image Matching scheme Grounding feed point matching 1 nH Environmental treatment methods Mold shell products do not require relevant grounding and conductive cloth treatment

Attestation Statements

Gard Pro Attestation Statements Not Covered Entity Applicant &Not Covered Equipment To: Federal Communications CommissionDate: Dec. 18, 25 7435 Oakland Mills Road, Columbia, MD 21046, USA Ref: Information Required by Section 2.911(d)(5)(i)& (ii) FCC ID: 2BS6BGPU3 Gard Pro certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List, established pursuant to § 1.50002 of reference chapter, as an entity producing “covered” communication equipment. The equipment for which authorization is sought is not “covered” telecommunications equipment and video surveillance equipment produced by entities identified on the Commission’s Covered List that prohibited from receiving an equipment authorization pursuant to section§ 2.903of the FCC rules. Sincerely yours, Applicant Signature: Printed Name: Koen Karssen Title: CEO Tel: +31 6 17 39 78 33 E-mail: [email protected]

Internal Photos

Page 1 of 5 Model No.: Gard Pro Ultra 3 Page 2 of 5 Page 3 of 5 Page 4 of 5 Page 5 of 5

ID Label/Location Info

Screen silk FCC ID:2BS6BGPU3 IC: 34679-GPU3 HVIN:GARD PRO ULTRA 3

External Photos

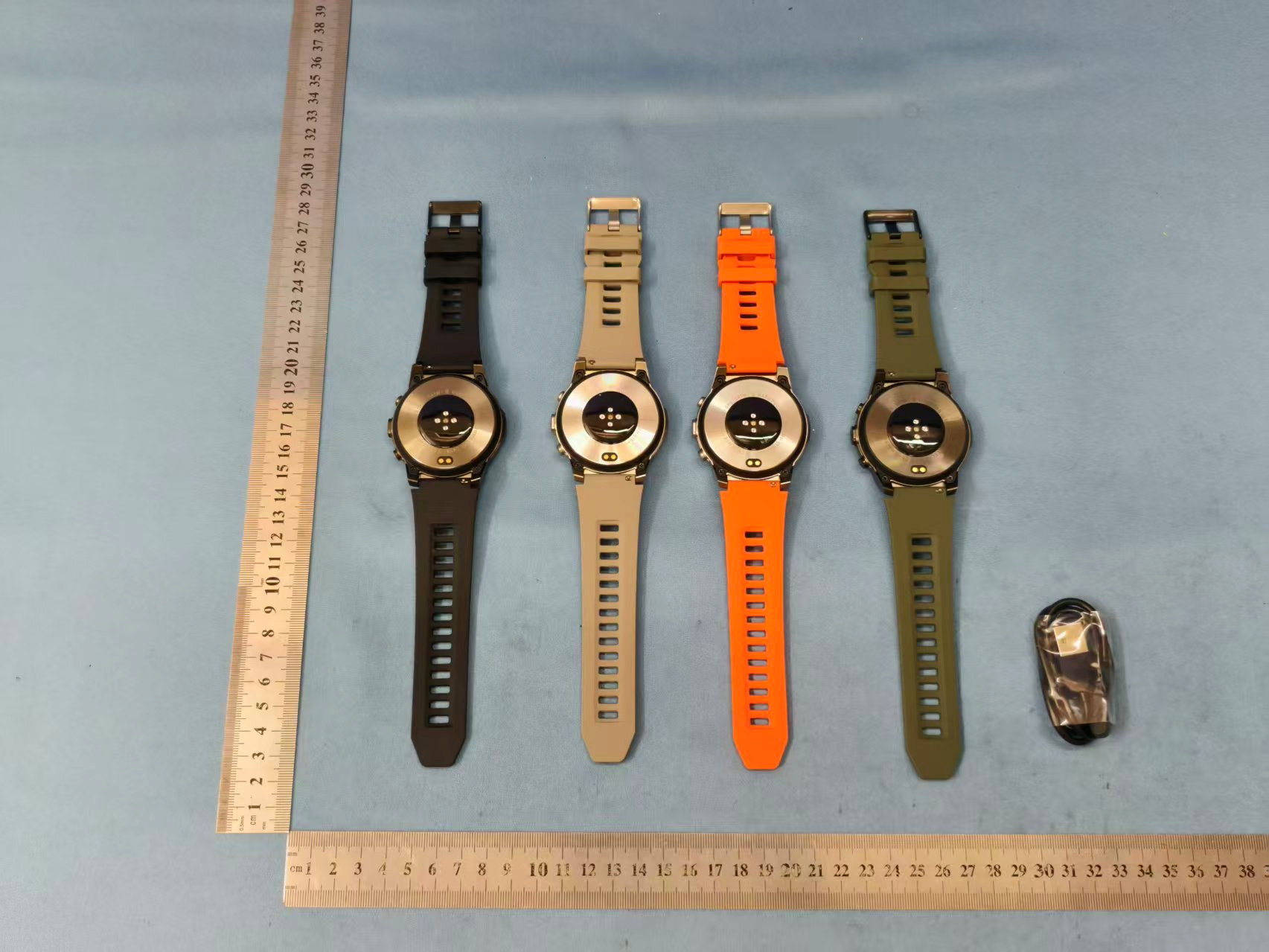

Page 1 of 5 Model No.: Gard Pro Ultra 3 Page 2 of 5 Page 3 of 5 Page 4 of 5 Page 5 of 5

Cover Letter(s)

Gard Pro December 15, 2025 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization for FCC ID: 2BS6BGPU3 I, the undersigned, hereby authorize Global United Technology Services Co., Ltd. to act on our behalfin all matters relating to this application for equipment certification. Any act carried out by Global United Technology Services Co., Ltd. shall have the same effect as our own and I acknowledge that all responsibility for complying with the terms and conditions of certification, as specified by DERYCOM CERTIFICATION SERVICES, INC., still resides with Gard Pro We certify that we are not subject to a denial of federal benefits that includes FCC benefitspursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862, and that no partyto the application, as defined in 47 CFR §1.2002(b), is subject to a denial of federal ben…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Koen Karssen(CEO)

[email protected]Fax: +31 6 17 39 78 33

Technical Contact

GLOCERTS TECHNOLOGY INCHuiying Fan

[email protected]

19784 SUNKISSED RIDGE DR · RIVERSIDE, California, 92507 · United States

Test Firm

Global United Technology Services Co. Ltd.Robinson Lo

[email protected]Fax: 86-0-755-27798960

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.40 GHz - 2.48 GHz	1.15 mW

Confidentiality

Long Term

Grant Notes

Output power listed is conducted power.
