2BS7Y-RIM-01Flovv

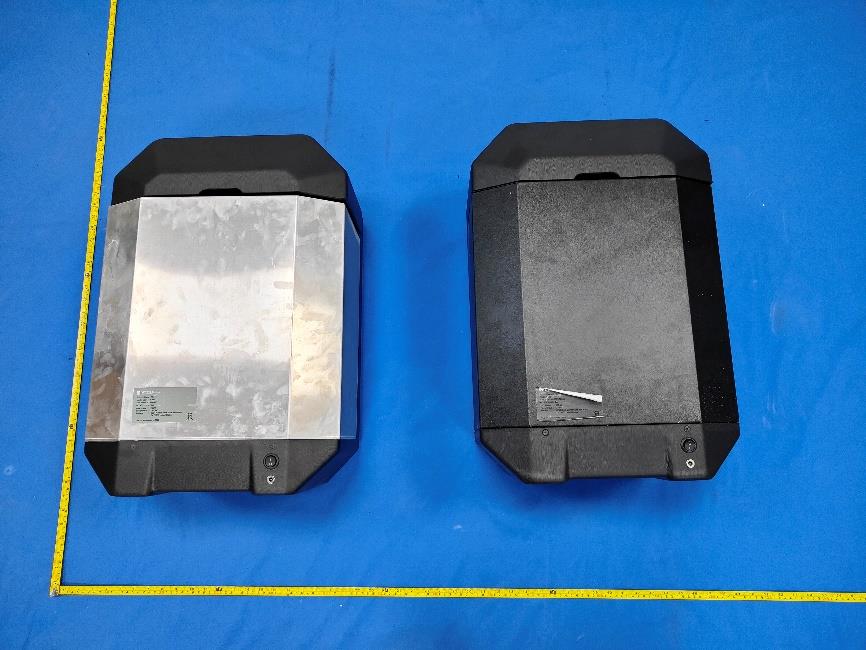

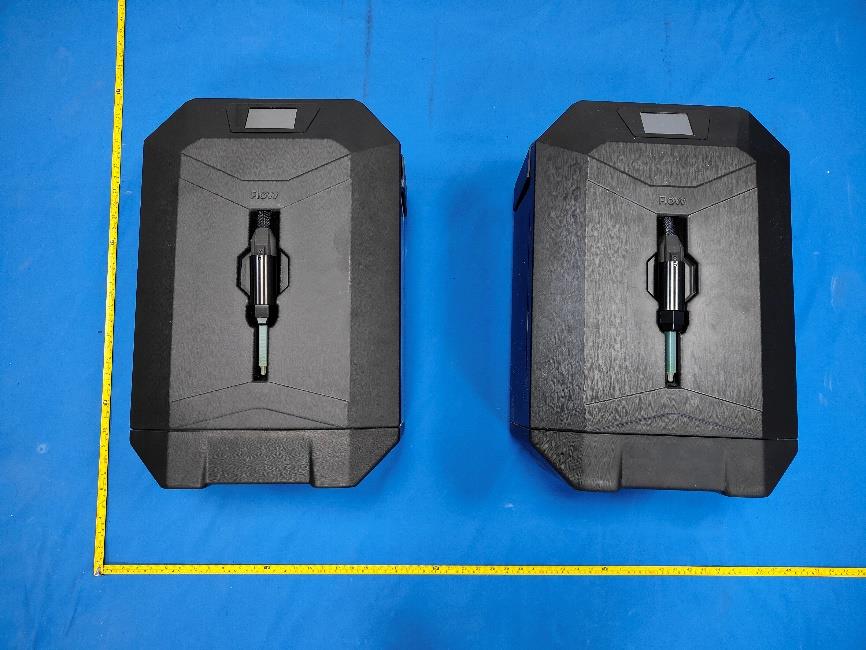

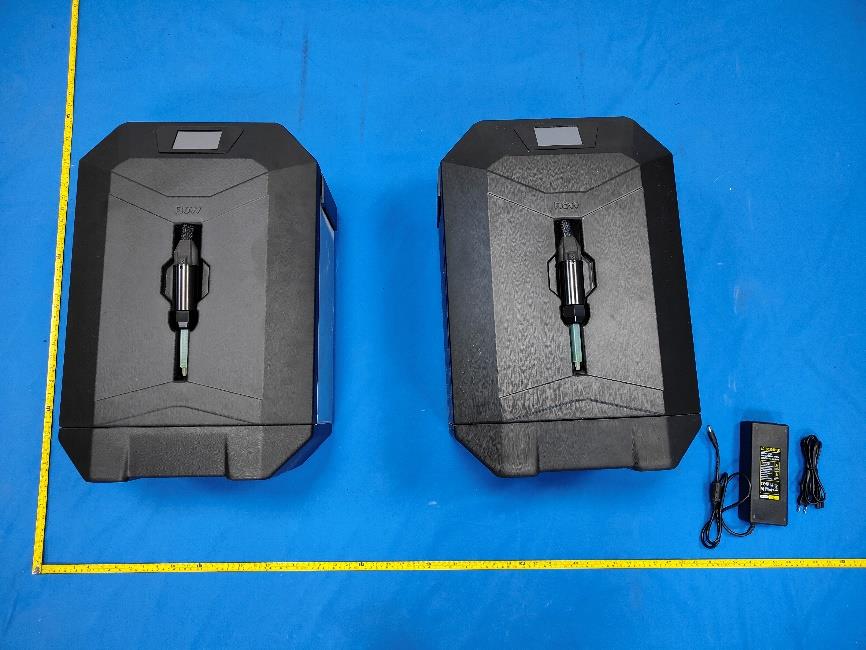

FCC ID: 2BS7Y-RIM-01 External Photos of the EUT FCC ID: 2BS7Y-RIM-01 FCC ID: 2BS7Y-RIM-01 FCC ID: 2BS7Y-RIM-01

Label and Location Size: L: 4.0cm*W: 3.0cm Label and Location FCC ID : 2BS7Y-RIM-01

FCC ID: 2BS7Y-RIM-01 Internal Photos of the EUT FCC ID: 2BS7Y-RIM-01 FCC ID: 2BS7Y-RIM-01 FCC ID: 2BS7Y-RIM-01 FCC ID: 2BS7Y-RIM-01 FCC ID: 2BS7Y-RIM-01 Antenna

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure MPE Report Reference No. ..................... : FCC ID............................................. : CTA25091201703 2BS7Y-RIM-01 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Sep. 27, 2025 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : Neckog Industries LLC (USA) Address ............................................ : 8222 N LAMAR BLVDSTE F55 AUSTIN, TEXAS, 78753-5962, United States Standard ........................................... : 47CFR §1.1310 47CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Flovv Trade Mark ........................................ N/A Manufacturer .................................... : Neckog Industries LLC (USA) Model/Type reference ...................... : RIM-01 Listed Models ................................... : N/A Rating ............................................... : Input: DC 24V 8A Result ............................................... : PASS Report No.: CTA25091201703 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Flovv Model /Type : RIM-01 Listed Models : N/A Applicant : Neckog Industries LLC (USA) Address : 8222 N LAMAR BLVDSTE F55 AUSTIN, TEXAS, 78753-5962, United States Manufacturer : Neckog Industries LLC (USA) Address : 8222 N LAMAR BLVDSTE F55 AUSTIN, TEXAS, 78753-5962, United States Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25091201703 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 6 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 4 Test limit .............................................................................................................................. 7 4.1 Requirement ............................................................................................................ 7 4.2 MPE Calculation Method ......................................................................................... 7 4.3 Conducted Power Results ....................................................................................... 7 4.4 Manufacturing tolerance .......................................................................................... 8 4.5 Standalone MPE Result ........................................................................................... 8 4.6 Simultaneous Transmission for MPE Result ........................................................... 8 5 Conclusion ........................................................................................................................... 8 Report No.: CTA25091201703 Page 4 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: ANSI C95.1–1999: IEEE Standard f…

Text truncated - open the document above for the full version.

1. Antenna Description: Antenna type Ceramic antenna Model RIM-01 Frequency range 2400-2500MHz Manufacturer Neckog Industries LLC (USA) Address 8222 N LAMAR BLVDSTE F55 AUSTIN, TEXAS, 78753-5962, United States ANT Peak Gain 2.0 dBi 2. Antenna Photo: Length :5.91mm Width:1.96mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ...................: FCC ID. ......................................... : CTA25091201701 2BS7Y-RIM-01 Compiled by ( position+printed name+signature) : File administrators Zoey Cao Supervised by ( position+printed name+signature) : Project Engineer Ace Chai Approved by ( position+printed name+signature) : RF Manager Eric Wang Date of issue ...................................: Sep. 27, 2025 Testing Laboratory Name .............: Shenzhen CTA Testing Technology Co., Ltd. Address ...........................................: Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name...........................: Neckog Industries LLC (USA) Address ...........................................: 8222 N LAMAR BLVDSTE F55 AUSTIN, TEXAS, 78753-5962, United States Test specification ......................... : Standard ..........................................: FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Equipment description ................ : Flovv Trade Mark ......................................: N/A Manufacturer ...................................: Neckog Industries LLC (USA) Model/Type reference .....................: RIM-01 Listed Models ..................................: N/A Modulation ......................................: GFSK Frequency ........................................ From 2402MHz to 2480MHz Ratings ............................................: Input: DC 24V 8A Result ..............................................: PASS Report No.: CTA25091201701 Page 2 of 35 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Flovv Model /Type : RIM-01 Listed Models : N/A Applicant : Neckog Industries LLC (USA) Address : 8222 N LAMAR BLVDSTE F55 AUSTIN, TEXAS, 78753-5962, United States Manufacturer : Neckog Industries LLC (USA) Address : 8222 N LAMAR BLVDSTE F55 AUSTIN, TEXAS, 78753-5962, United States Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25091201701 Page 3 of 35 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description* ......................................................................................................................... 5 2.3 Equipment Under Test ...................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ..................................................................... 5 2.5 EUT configuration ............................................................................................................................. 5 2.6 EUT operation mode ........................................................................................................................ 5 2.7 Block Diagram of Test Setup ............................................................................................................ 6 2.8 Related Submittal(s) / Grant (s) ........................................................................................................ 6 2.9 Modifications ..................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ........................................................................................................... 7 3.2 Test Facility ....................................................................................................................................... 7 3.3 Environmental conditions ................................................................................................................. 7 3.4 Summary of measurement results .................................................................................................... 8 3.5 Statement of the measurement uncertainty ..................................................................................... 8 3.6 Equipments Used d…

Text truncated - open the document above for the full version.

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. .......................................... : CTA25091201702 2BS7Y-RIM-01 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Sep. 27, 2025 Testing Laboratory Name ............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ........................... : Neckog Industries LLC (USA) Address ............................................ : 8222 N LAMAR BLVDSTE F55 AUSTIN, TEXAS, 78753-5962, United States Test specification.......................... : Standard .......................................... : FCC Part 15.247 TRF Originator ................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Flovv Trade Mark ....................................... : N/A Manufacturer .................................... : Neckog Industries LLC (USA) Model/Type reference ...................... : RIM-01 Listed Models ................................... : N/A Modulation Type .............................. : CCK/DSSS/OFDM Operation Frequency ....................... : From 2412 - 2462MHz Rating ............................................... : Input: DC 24V 8A Result ............................................... : PASS Report No.: CTA25091201702 Page 2 of 27 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Flovv Model /Type : RIM-01 Listed Models : N/A Applicant : Neckog Industries LLC (USA) Address : 8222 N LAMAR BLVDSTE F55 AUSTIN, TEXAS, 78753-5962, United States Manufacturer : Neckog Industries LLC (USA) Address : 8222 N LAMAR BLVDSTE F55 AUSTIN, TEXAS, 78753-5962, United States Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25091201702 Page 3 of 27 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description .......................................................................................................................... 5 2.3 Equipment Under Test ...................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ..................................................................... 5 2.5 EUT configuration ............................................................................................................................. 6 2.6 EUT operation mode ........................................................................................................................ 6 2.7 Block Diagram of Test Setup ............................................................................................................ 6 2.8 Related Submittal(s) / Grant (s) ........................................................................................................ 6 2.9 Modifications ..................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ........................................................................................................... 7 3.2 Test Facility ....................................................................................................................................... 7 3.3 Environmental conditions ................................................................................................................. 7 3.4 Test Description ................................................................................................................................ 8 3.5 Statement…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for 2.4GWIFI Company: : Neckog Industries LLC (USA) EUT : Flovv Model Number : RIM-01 FCC ID : 2BS7Y-RIM-01 Report No. : CTA25091201702 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 8.720 2407.920 2416.640 0.5 PASS 2437 9.080 2432.480 2441.560 0.5 PASS 2462 9.200 2457.440 2466.640 0.5 PASS 11G Ant1 2412 16.000 2404.200 2420.200 0.5 PASS 2437 16.360 2428.840 2445.200 0.5 PASS 2462 16.440 2453.840 2470.280 0.5 PASS 11N20SISO Ant1 2412 17.240 2403.520 2420.760 0.5 PASS 2437 17.120 2428.440 2445.560 0.5 PASS 2462 17.360 2453.280 2470.640 0.5 PASS 11N40SISO Ant1 2422 35.200 2404.800 2440.000 0.5 PASS 2437 34.960 2419.080 2454.040 0.5 PASS 2452 36.000 2434.000 2470.000 0.5 PASS 3 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 4 11G_Ant1_2412 11G_Ant1_2437 5 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 6 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 7 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 8 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 11.617 2406.4259 2418.0429 --- --- 2437 11.666 2431.1337 2442.7997 --- --- 2462 11.840 2456.1350 2467.9750 --- --- 11G Ant1 2412 16.652 2403.7950 2420.4470 --- --- 2437 16.667 2428.6996 2445.3666 --- --- 2462 16.763 2453.6907 2470.4537 --- --- 11N20SISO Ant1 2412 17.626 2403.3225 2420.9485 --- --- 2437 17.593 2428.2258 2445.8188 --- --- 2462 17.679 2453.2142 2470.8932 --- --- 11N40SISO Ant1 2422 36.054 2404.2090 2440.2630 --- --- 2437 36.142 2418.9335 2455.0755 --- --- 2452 36.385 2433.8004 2470.1854 --- --- 9 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 10 11G_Ant1_2412 11G_Ant1_2437 11 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 12 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 13 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 14 Appendix C: Maximum conducted output power Test Result Peak Test Mode Antenna Frequency[MHz] Maximum Peak conducted output power [dBm] Limit [dBm] Verdict 11B Ant1 2412 13.73 ≤30.00 PASS 2437 14.21 ≤30.00 PASS 2462 13.08 ≤30.00 PASS 11G Ant1 2412 14.31 ≤30.00 PASS 2437 14.51 ≤30.00 PASS 2462 13.45 ≤30.00 PASS 11N20SISO Ant1 2412 14.61 ≤30.00 PASS 2437 14.70 ≤30.00 PASS 2462 13.76 ≤30.00 PASS 11N40SISO Ant1 2422 14.70 ≤30.00 PASS 2437 13.28 ≤30.00 PASS 2452 13.93 ≤30.00 PASS 15 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -11.05 ≤8.00 PASS 2437 -10.72 ≤8.00 PASS 2462 -12.31 ≤8.00 PASS 11G Ant1 2412 -16.68 ≤8.00 PASS 2437 -16.97 ≤8.00 PASS 2462 -18.53 ≤8.00 PASS 11N20SISO Ant1 2412 -17.37 ≤8.00 PASS 2437 -17.89 ≤8.00 PASS 2462 -18.59 ≤8.00 PASS 11N40SISO Ant1 2422 -19.38 ≤8.00 PASS 2437 -20.61 ≤8.00 PASS 2452 -20.02 ≤8.00 PASS 16 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 17 11G_Ant1_2412 11G_Ant1_2437 18 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 19 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 20 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 21 Appendix E: Band edge measurements Test Result TestMode Antenn a ChNam e Frequency[MH z] RefLevel[dB m] Result[dB m] Limit[dBm ] Verdic t 11B Ant1 Low 2412 2.98 -50.36 ≤-17.02 PASS High 2462 1.82 -55.95 ≤-18.18 PASS 11G Ant1 Low 2412 -2.20 -35.46 ≤-22.2 PASS High 2462 -3.60 -47.32 ≤-23.6 PASS 11N20SIS O Ant1 Low 2412 -2.16 -33.56 ≤-22.16 PASS High 2462 -3.50 -46.35 ≤-23.5 PASS 11N40SIS O Ant1 Low 2422 -4.68 -40.32 ≤-24.68 PASS High 2452 -5.50 -46.72 ≤-25.5 PASS 22 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 23 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 24 11N20SISO_Ant1_High_2462 11N40SISO_Ant1_Low_2422 11N40SISO_Ant1_High_2452 25 26 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference 2.87 2.87 --- PASS 30~1000 2.87 -51.97 ≤-17.13 PASS 1000~26500 2.87 -54.42 ≤-17.13 PASS 2437 Reference 2.54 2.54 --- PASS 30~1000 2.54 -67.97 ≤-17.46 PASS 1000~26500 2.54 -55.53 ≤-17.46 PASS 2462 Reference 0.89 0.89 --- PASS 30~1000 0.89 -68 ≤-19.11 PASS 1000~26500 0.89 -55.28 ≤-19.11 PASS 11G Ant1 2412 Reference -2.23 -2.23 --- PASS 30~1000 -2.23 -68.51 ≤-22.23 PASS 1000~26500 -2.23 -54.86 ≤-22.23 PASS 2437 Reference -2.80 -2.80 --- PASS 30~1000 -2.80 -68.07 ≤-22.8 PASS 1000~26500 -2.80 -54.49 ≤-22.8 PASS 2462 Reference -4.03 -4.03 --- PASS 30~1000 -4.03 -67.92 ≤-24.03 PASS 1000~26500 -4.03 -55.07 ≤-24.03 PASS 11N20SISO Ant1 2412 Reference -2.42 -2.42 --- PASS 30~1000 -2.42 -61.22 ≤-22.42 PASS 1000~26500 -2.42 -55.35 ≤-22.42 PASS 2437 Reference -2.97 -2.97 --- PASS 30~1000 -2.97 -67.75 ≤-22.97 PASS 1000~26500 -2.97 -54.98 ≤-22.97 PASS 2462 Reference -4.08 -4.08 --- PASS 30~1000 -4.08 -68.36 ≤-24.08 PASS 1000~26500 -4.08 -55.14 ≤-24.08 PASS 11N40SISO Ant1 2422 Reference -5.03 -5.03 --- PASS 30~1000 -5.03 -67.89 ≤-25.03 PASS 1000~26500 -5.03 -55.14 ≤-25.03 PASS 2437 Reference -6.02 -6.02 --- PASS 30~1000 -6.02 -68.17 ≤-26.02 PASS 1000~26500 -6.02 -54.42 ≤-26.02 PASS 2452 Reference -5.76 -5.76 --- PASS 30~1000 -5.76 -67.29 ≤-25.76 PASS 1000~26500 -5.76 -54.73 ≤-25.76 PASS 27 Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 28 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 29 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 30 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference 31 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference 32 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 33 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 34 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000

35 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000 36 11N20SISO_Ant1_2437_1000~26500 11N20SISO_Ant1_2462_0~Reference 37 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 11N40SISO_Ant1_2422_0~Reference 38 11N40SISO_Ant1_2422_30~1000 11N40SISO_Ant1_2422_1000~26500 39 11N40SISO_Ant1_2437_0~Reference 11N40SISO_Ant1_2437_30~1000 11N40SISO_Ant1_2437_1000~26500 40 11N40SISO_Ant1_2452_0~Reference 11N40SISO_Ant1_2452_30~1000 41 11N40SISO_Ant1_2452_1000~26500 42 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] 11B Ant1 2412 0.73 0.79 92.41 2437 0.74 0.80 92.50 2462 0.73 0.79 92.41 11G Ant1 2412 0.12 0.18 66.67 2437 0.12 0.18 66.67 2462 0.12 0.18 66.67 11N20SISO Ant1 2412 0.11 0.18 61.11 2437 0.11 0.18 61.11 2462 0.11 0.18 61.11 11N40SISO Ant1 2422 0.08 0.14 57.14 2437 0.08 0.14 57.14 2452 0.07 0.14 50.00 43 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 44 11G_Ant1_2412 11G_Ant1_2437 45 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 46 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 47 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452

1 FCC Appendix RF Test Data for BLE Company: : Neckog Industries LLC (USA) EUT : Flovv Model Number : RIM-01 FCC ID : 2BS7Y-RIM-01 Report No. : CTA25091201701 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Freq(MHz) DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.640 2401.696 2402.336 0.5 PASS 2440 0.640 2439.692 2440.332 0.5 PASS 2480 0.648 2479.692 2480.340 0.5 PASS 3 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 4 5 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 1.0045 2401.5165 2402.5210 --- --- 2440 1.0059 2439.5158 2440.5217 --- --- 2480 1.0016 2479.5186 2480.5202 --- --- 6 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 7 8 Appendix C: Maximum conducted output power Test Result Peak TestMode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict BLE_1M Ant1 2402 -3.40 ≤30 PASS 2440 -3.70 ≤30 PASS 2480 -3.75 ≤30 PASS 9 Appendix D: Maximum power spectral density Test Result TestMode Antenna Freq(MHz) Result[dBm/3kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -19.17 ≤8.00 PASS 2440 -19.37 ≤8.00 PASS 2480 -19.45 ≤8.00 PASS 10 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 11 12 Appendix E: Band edge measurements Test Result TestMod e Antenn a ChNam e Freq(MHz ) RefLevel[dBm ] Result[dBm ] Limit[dBm ] Verdic t BLE_1M Ant1 Low 2402 -3.99 -55.83 ≤-23.99 PASS High 2480 -3.82 -57.24 ≤-23.82 PASS 13 Test Graphs BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 14 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 Reference -3.50 -3.50 --- PASS 30~1000 -3.50 -67.14 ≤-23.5 PASS 1000~26500 -3.50 -48.5 ≤-23.5 PASS 2440 Reference -5.95 -5.95 --- PASS 30~1000 -5.95 -68.07 ≤-25.95 PASS 1000~26500 -5.95 -47.48 ≤-25.95 PASS 2480 Reference -3.85 -3.85 --- PASS 30~1000 -3.85 -68.32 ≤-23.85 PASS 1000~26500 -3.85 -50.81 ≤-23.85 PASS 15 Test Graphs BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 BLE_1M_Ant1_2402_1000~26500 16 BLE_1M_Ant1_2440_0~Reference BLE_1M_Ant1_2440_30~1000 17 BLE_1M_Ant1_2440_1000~26500 BLE_1M_Ant1_2480_0~Reference BLE_1M_Ant1_2480_30~1000 18 BLE_1M_Ant1_2480_1000~26500 19 Appendix G: Duty Cycle Test Result TestMode Antenna Freq(MHz) ON Time [ms] Period [ms] X DC [%] xFactor Limit Verdict BLE_1M Ant1 2402 0.41 0.63 0.6508 65.08 1.87 --- --- 2440 0.41 0.63 0.6508 65.08 1.87 --- --- 2480 0.41 0.63 0.6508 65.08 1.87 --- --- 20 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 21

FCC ID: 2BS7Y-RIM-01 Test Setup Photos of the EUT FCC ID: 2BS7Y-RIM-01
