2BSBZ-B15Intelligent projector

智能投影仪 用户说明书 Intelligent Projector .01. 注意事项 1.务必使用设备标配电源适配器，如使用电源不当会对设备造成严重损坏； 2.长时间不使用设备，请保证关闭电源开关； 3.风扇口请避免有异物进入或遮挡出风口，以免影响风扇工作; 4.设备工作状态，请勿直接断电关机; 5.外接功耗较大的外置设备时,请确认功耗能否支持； 6.设备内置电源,请勿放置于高温或潮湿处,以免发生危险; 7.适用于海拔2000米及以下、非热带气候条件下安全使用; 为预防触电，请勿打开机壳。机内无顾客能够进行修理的部件。 维修事宜请委托有资格的专业维修人员来进行。 本标识警告用户机组内有未进行绝缘处理的电压，有可能引起表面磁 场造成触电。因此，接触机组内部的任何部件均非常危险。 为预防失火或触电，切勿将本机暴露于雨水或潮气之中。 此为A级产品,在生活环境中,该产品可能会造成无线电干扰。 在这种情况下,可能需要用户对其干扰采取切实可行的措施。 注意 警告 警告 警告 .02. 主机遥控器电源线 说明书 用户说明书 智能投影仪 Intelligent Projector 包装内容 .03. 安装图示 不要安装在受空调的冷暖风直接吹 拂的场所，否则可能会由于水气凝 结或温度升高而导致机体故障 .04. 注意散热 为了达到更好的观影效果，我们建议您选择以下安装式 安装好投影机。 .05. 开始使用 水平放置 成像模糊 .06. 调节焦距 当画面成像模糊时，建议通过遥控器的一键对焦功能，以提升 画面清晰度，如果无法获得满意的清晰度，也可以通过F+/F- 微调再次调整。或者请将产品向前或向后酌量移动。 一键对焦 .07. 首次使用请按此方法配对: 自动配对： 1.按遥控器语音键 进入配对页面； 2.同时按住遥控器左键与右键 ； 3.直到遥控器指示灯闪烁后松开； 4.等待自动配对成功后退出配对页。 手动配对： 1.按遥控器语音键 进入配对页面； 2.再按ok键进入设置页的蓝牙设置； 3.同时按住遥控器左键与右键 ； 4.至遥控器指示灯闪烁后松开; 5.找到“语音助手”点击连接。 1、工作指示灯 2、电源键 3、一键对焦 4、输入信号源 5、方向选择键-向上 6、方向选择键-向左 7、方向选择键-向右 8、方向选择键-向下 9、确定/播放/暂停 10、菜单键 11、返回键 12、主页键 13、手动对焦 14、音量加 15、音量减 16、语音键 遥控器按键功能 附录：投影机产品保修卡 Before using the projector,please read this guidance carefully and keep it safely Microsoft and Windows is the registered trademark of Microsoft Corporation(US and other country). Apple is the trademark of Apple Computer Inc.(U.S.A) Cautious: The trademarks and product trademarks of the above company will all get stern treatment even under the situation without annotation. Caution Intelligent Projector .01. 1. It is necessary to use the standard power adapter of the device. Improper use of the power adapter can cause serious damage to the device; To prevent electric shock, do not open the casing. There are no components inside the aircraft that customers can repair. Please entrust qualified professional maintenance personnel to carry out maintenance matters. This label warns users that there is voltage inside the unit that has not been insulated, which may cause surface magnetic fields to cause electric shock. Therefore, it is very dangerous to come into contact with any components inside the unit. To prevent fire or electric shock, do not expose this machine to rainwater or moisture. This is an A-grade product that may cause radio interference in living environments. In this case, it may be necessary for users to take practical and feasible measures to interfere with it. 2. If the device is not used for a long time, please ensure to turn off the power switch; 3. Please avoid foreign objects entering or obstructing the fan outlet to avoid affecting the fan's operation; 4. The equipment is in working condition, please do not directly power off or shut down; 5. When connecting external devices with high power consumption, please confirm if the power consumption can be supported; 6. The device is equipped with a built-in power supply. Please do not place it in a high temperature or damp place to avoid danger; 7. Suitable for safe use in non tropical climate conditions with an altitude of 2000 meters and below; Caution Warning Warning Warning Caution .02. ProjectorRemotePower cord Instruction After opening the package, please check if the content inside is in good condition. If there's any missing parts, please contact the manufactur for replacement. Before using the projector,please read this guidance carefully and keep it safely Microsoft and Windows is the registered trademark of Microsoft Corporation(US and other country). Apple is the trademark of Apple Computer Inc.(U.S.A) Cautious: The trademarks and product trademarks of the above company will all get stern treatment even under the situation without annotation. Caution Packing Intelligent Projector .03. The guidance below makes sure the long service life of the device. To prevent fire and electronic shock, please read the instruction carefully and be cautious about the warning below. Installing Do not install into places with poor ventilation Do not install into places are hot and humid Do not plugged the vent(Intake and exhaust) Do not install in smoky and dusty environment Do not install somewhere directly blown by the warm/cold wind of the A/C, or it may cause the breakdown because of the water vapor condensation .04. To maintain the projector's performance and reliability, please leave at least 30cm space between the projector and the objects around. The projector is with high brightness, please do not directly look into it or do not let the projector's light shine through the eyes, to avoid eyesight damage. Note for Heat Dissipation Note for eyes .05. For best projection effectwe suggest you to choose the following method to install the projector. Start Using Easy to install and easy to adjust Horizontally Precautions When the projector is suspended from the ceiling or in a rear projection system, please change the projection mode. Fuzzy ImageClear Image Focus Adjustment .06. One Click Autofocus When the image is blurry, it is recommended to use the One Click Autofocus function of the remote control to improve the clarity of the image. If satisfactory clarity cannot be achieved, it can also be adjusted again through F+/F fine tuning. Alternatively, please move the product forward or backward in moderation. Remote Control .07. 1. Work indicator light 2. Power button 3. One click autofocus 4. Input signal source 5. Direction selection key - up 6. Direction selection key - left 7. Direction selection key - right 8. Direction selection key - down 9. Confirm/Play/Pause 10. Menu key 11. Return key 12. Home key 13. Manual focusing 14. Volume increase 15. Volume decrease 16. Mouse Audio version: Bluetooth voice remote (Only for audio version) .11. Appendix:Warranty Card 1. This product follows the "Three Guarantee" policy since the purchasing date(according to the record),the projector is within 1 year warranty(nonhuman damage). 2. During the warrant period, all faults caused by technical problem of the product, our company will offer warranty service. 3. The following conditions are not covered by the wa…

Text truncated - open the document above for the full version.

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong RF Exposure evaluation Report Reference No. ................. : FCC ID. ......................................... : GTS20250922004-2-13 2BSBZ-B15 Compiled by ( position+printed name+signature): File administrators Peter Xiao Supervised by ( position+printed name+signature): Test Engineer Evan Ouyang Approved by ( position+printed name+signature) . : Manager Jason Hu Date of issue .................................... : Apr.22, 2026 Representative Laboratory Name ....................................................... : Shenzhen Global Test Service Co.,Ltd. Address ......................................... : No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong Applicant’s name ............................ : Ganzhou Veacine Optoelectronics Technology Co., Ltd. Address ............................................ : Third Floor, 2# Factory Building, No.69 Huayu Road, Hubian Town, Ganzhou Economic and Technological Development Zone, Ganzhou City, Jiangxi Province, China Test specification ........................ : Standard ........................................ : 47CFR §1.1310 Basis and purpose 47CFR §2.1091 Radiofrequency radiation exposure evaluation: mobile devices TRF Originator .............................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................. : Intelligent projector Trade Mark .................................... : N/A Manufacturer ................................. : Ganzhou Veacine Optoelectronics Technology Co., Ltd. Model/Type reference ................... : B15 Listed Models .............................. : N/A Hardware Version ........................ : N/A Software Version ........................... : N/A Rating ............................................ : AC100-240V, 50Hz/60Hz, 1.3A Result ............................................ : PASS Report No.:GTS20250922004-2-13 Page 2 of 16 T E S T R E P O R T Test Report No. : GTS20250922004-2-13 Apr.22, 2026 ______________________________________________________________________________________________ Date of issue Equipment under Test : Intelligent projector Model /Type : B15 Listed model : N/A Applicant : Ganzhou Veacine Optoelectronics Technology Co., Ltd. Address : Third Floor, 2# Factory Building, No.69 Huayu Road, Hubian Town, Ganzhou Economic and Technological Development Zone, Ganzhou City, Jiangxi Province, China Manufacturer : Ganzhou Veacine Optoelectronics Technology Co., Ltd.. Address : Third Floor, 2# Factory Building, No.69 Huayu Road, Hubian Town, Ganzhou Economic and Technological Development Zone, Ganzhou City, Jiangxi Province, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.:GTS20250922004-2-13 Page 3 of 16 Contents 1. SUMMARY ................................................................................................................................................................. 4 1.1 EUT CONFIGURATION ........................................................................................................................................................ 4 1.2 PRODUCT DESCRIPTION ..................................................................................................................................................... 4 2. TEST ENVIRONMENT ................................................................................................................................................. 6 2.1 ADDRESS OF THE TEST LABORATORY ..................................................................................................................................... 6 2.2 TEST FACILITY .................................................................................................................................................................. 6 2.3 ENVIRONMENTAL CONDITIONS ............................................................................................................................................ 6 2.4 STATEMENT OF THE MEASUREMENT UNCERTAINTY .................................................................................................................. 6 3. METHOD OF MEASUREMENT .................................................................................................................................... 7 3.1 APPLICABLE STANDARD ...................................................................................................................................................... 7 3.2 REQUIREMENT ................................................................................................................................................................. 7 3.3 LIMIT ............................................................................................................................................................................. 7 3.4 MPE CALCULATION METHOD ............................................................................................................................................. 8 3.5 ANTENNA INFORMATION ..........…

Text truncated - open the document above for the full version.

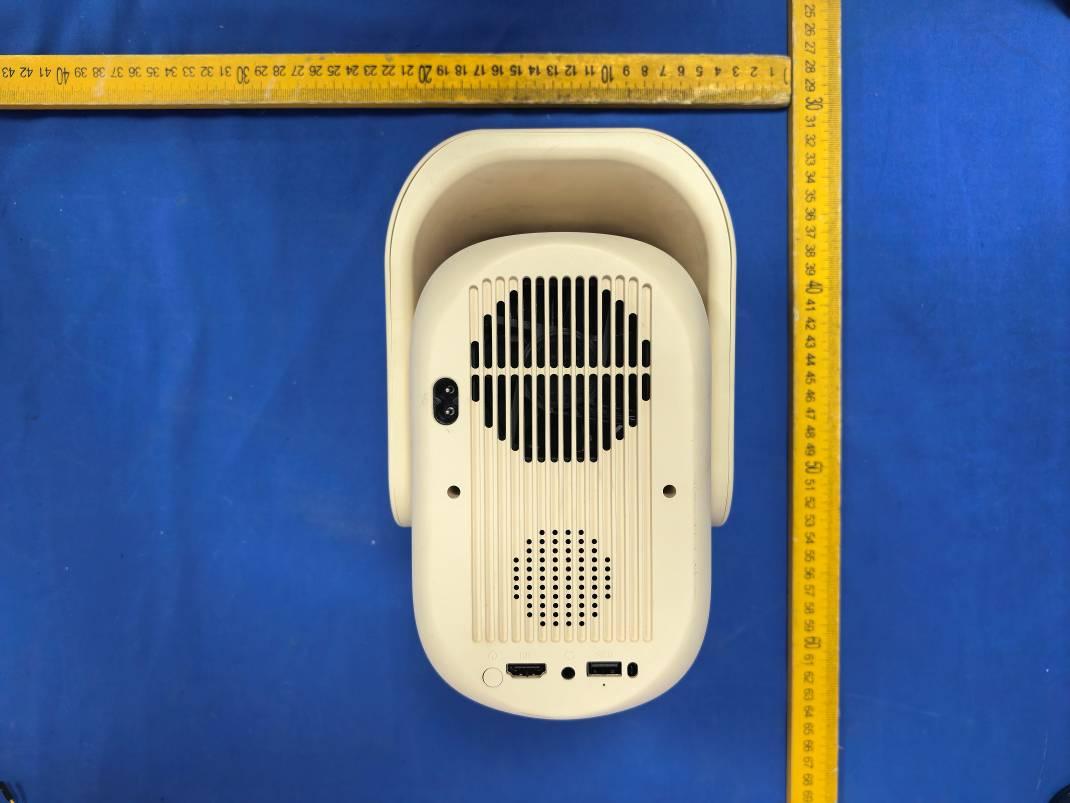

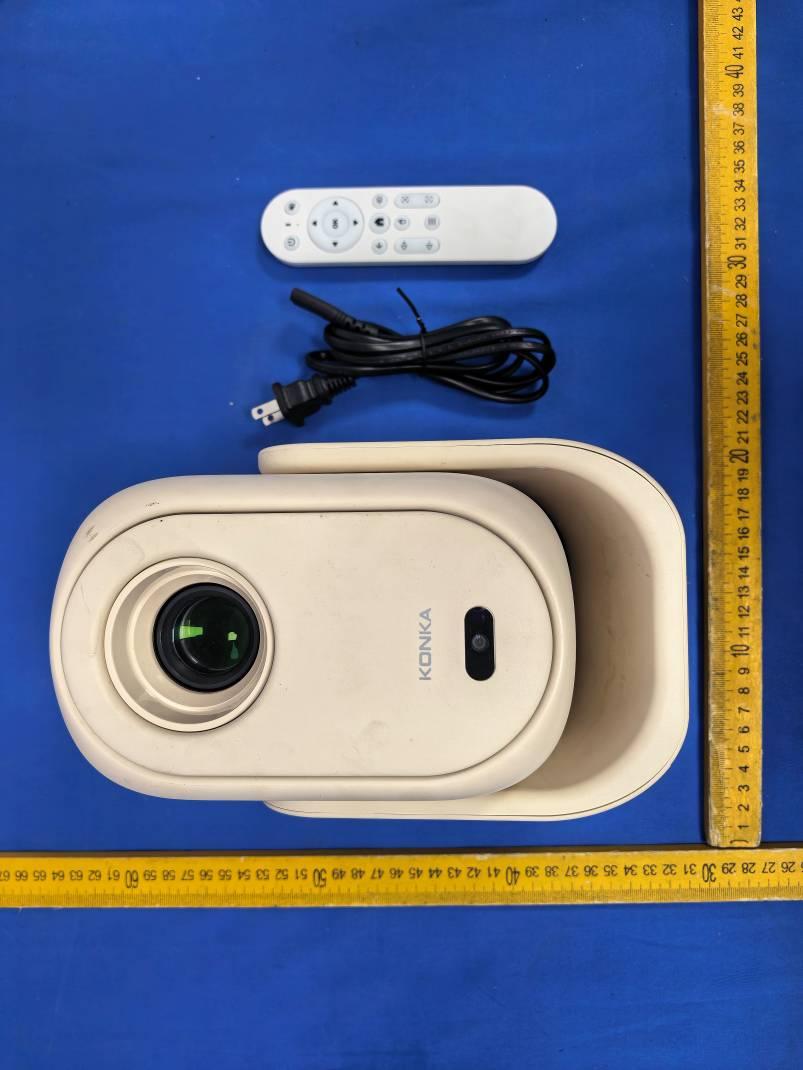

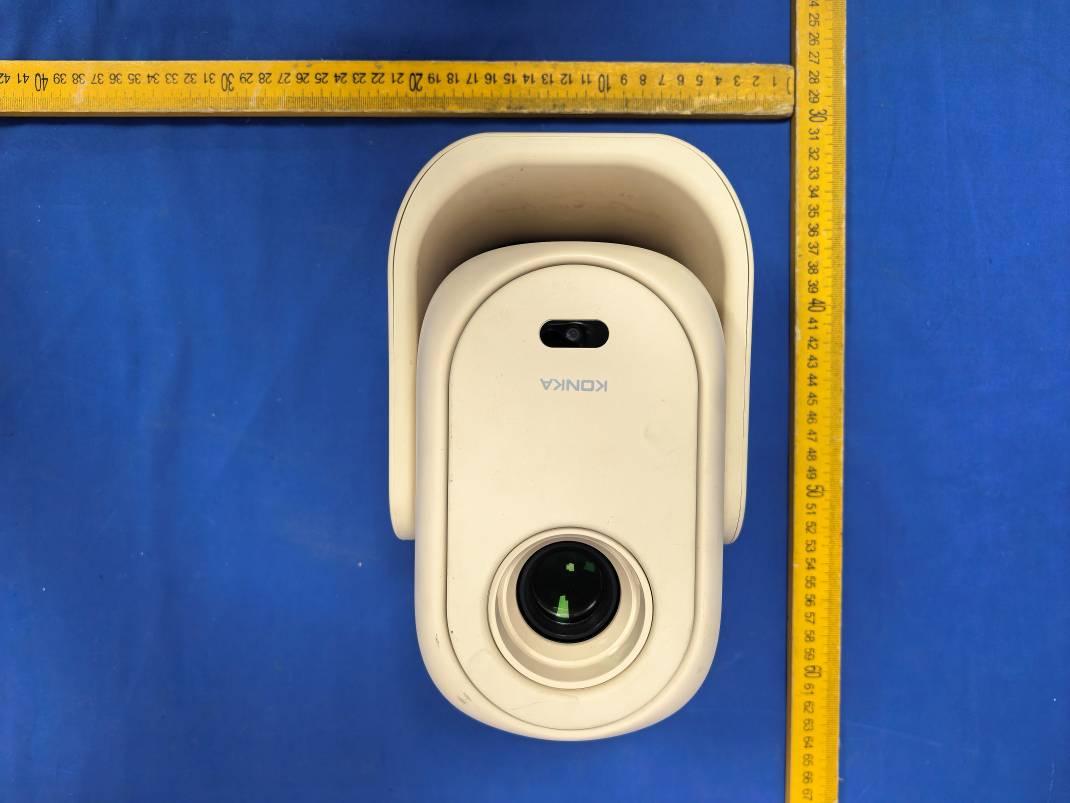

FCC ID: 2BSBZ-B15 _______________________________________________________________________________________________ Page 1 of 2 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement Fig. 1 Fig. 2 FCC ID: 2BSBZ-B15 _______________________________________________________________________________________________ Page 2 of 2 Photo of Conducted Emission Measurement Fig. 3 Fig. 4

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong FCC PART 15 SUBPART C TEST REPORT FCC PART 15.407 Report Reference No. ..................... : FCC ID............................................. : GTS20250922004-2-12 2BSBZ-B15 Compiled by ( position+printed name+signature) . : File administrators Peter Xiao Supervised by ( position+printed name+signature) . : Test Engineer Evan Ouyang Approved by ( position+printed name+signature) . : Manager Jason Hu Date of issue .................................... : Apr.22, 2026 Representative Laboratory Name . : Shenzhen Global Test Service Co.,Ltd. Address ............................................ : No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong,China Applicant’s name ............................ : Ganzhou Veacine Optoelectronics Technology Co., Ltd. Address ............................................ : Third Floor, 2# Factory Building, No.69 Huayu Road, Hubian Town, Ganzhou Economic and Technological Development Zone, Ganzhou City, Jiangxi Province, China Test specification ........................... : Standard ........................................... : FCC Part 15.407: General technical requirements TRF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ...................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Intelligent projector Trade Mark ....................................... : N/A Manufacturer .................................... : Ganzhou Veacine Optoelectronics Technology Co., Ltd. Model/Type reference ...................... : B15 Listed Models .................................. : N/A Operation Frequency ........................ : From 5180MHz to 5240MHz/ 5745MHz to 5825MHz Hardware Version ............................ : N/A Software Version .............................. : N/A Rating ............................................... : AC100-240V, 50Hz/60Hz, 1.3A Result ............................................... : PASS Report No.: GTS20250922004-2-12 Page 2 of 30 T E S T R E P O R T Test Report No. : GTS20250922004-2-12 Apr.22, 2026 ____________________________________________________________________________________ Date of issue Equipment under Test : Intelligent projector Model /Type : B15 Listed model : N/A Applicant : Ganzhou Veacine Optoelectronics Technology Co., Ltd. Address : Third Floor, 2# Factory Building, No.69 Huayu Road, Hubian Town, Ganzhou Economic and Technological Development Zone, Ganzhou City, Jiangxi Province, China Manufacturer : Ganzhou Veacine Optoelectronics Technology Co., Ltd.. Address : Third Floor, 2# Factory Building, No.69 Huayu Road, Hubian Town, Ganzhou Economic and Technological Development Zone, Ganzhou City, Jiangxi Province, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: GTS20250922004-2-12 Page 3 of 30 Contents 1. TEST STANDARDS ......................................................................................................................................... 4 2. SUMMARY ....................................................................................................................................................... 5 2.1. General Remarks ................................................................................................................................... 5 2.2. Product Description ................................................................................................................................ 5 2.3. Equipment Under Test ........................................................................................................................... 5 2.4. Short description of the Equipment under Test (EUT) ........................................................................... 7 2.5. EUT operation mode .............................................................................................................................. 7 2.6. Block Diagram of Test Setup ................................................................................................................. 8 2.7. Related Submittal(s) / Grant (s) ............................................................................................................. 8 2.8. EUT Exercise Software .......................................................................................................................... 8 2.9. Special Accessories ............................................................................................................................... 8 2.10. External I/O Cable ................................................................................................................................ 8 2.11. Modifications ........................................................................................................................................ 8 3. TEST ENVIRONMENT ..................................................................................................................................... 9 3.1. Address of the test laboratory .............................................…

Text truncated - open the document above for the full version.

FCCID:2BSBZ-B15 38 Appendix E.6:Band edge measurements Test Result B4 TestMode Antenna ChName Freq(MHz) FreqRange [MHz] Result [dBm] Limit [dBm] Verdict 11A Ant1 Low 5745 5650~5700 -41.2 ≤-26.96 PASS 5700~5720 -30.3 ≤14.73 PASS 5720~5725 -34.28 ≤16.34 PASS 5760~5650 -39.17 ≤-27 PASS High 5825 5850~5855 -39.81 ≤16.03 PASS 5855~5875 -39.04 ≤10.06 PASS 5875~5925 -37.96 ≤-25.41 PASS 5925~5935 -38.07 ≤-27 PASS 11N20SI SO Ant1 Low 5745 5650~5700 -40.91 ≤-26.96 PASS 5700~5720 -32.16 ≤14.31 PASS 5720~5725 -26.77 ≤17.13 PASS 5760~5650 -39.77 ≤-27 PASS High 5825 5850~5855 -34.29 ≤17.88 PASS 5855~5875 -38.6 ≤10.44 PASS 5875~5925 -39.37 ≤-26.21 PASS 5925~5935 -36.34 ≤-27 PASS 11N40SI SO Ant1 Low 5755 5650~5700 -34.44 ≤-26.60 PASS 5700~5720 -13.28 ≤15.43 PASS 5720~5725 -14.1 ≤16.35 PASS 5780~5650 -37.61 ≤-27 PASS High 5795 5850~5855 -25.7 ≤15.66 PASS 5855~5875 -28.2 ≤11.96 PASS 5875~5925 -38.63 ≤-25.85 PASS 5925~5935 -38.44 ≤-27 PASS 11AC20S ISO Ant1 Low 5745 5650~5700 -40.72 ≤-26.87 PASS 5700~5720 -33.41 ≤15.18 PASS 5720~5725 -27.79 ≤21.85 PASS 5760~5650 -39.58 ≤-27 PASS High 5825 5850~5855 -37.53 ≤16.34 PASS 5855~5875 -38.64 ≤10.36 PASS 5875~5925 -38.84 ≤-26.71 PASS 5925~5935 -37.6 ≤-27 PASS 11AC40S ISO Ant1 Low 5755 5650~5700 -35.97 ≤-25.90 PASS 5700~5720 -13.37 ≤11.99 PASS 5720~5725 -16.2 ≤15.74 PASS 5780~5650 -35.45 ≤-27 PASS FCCID:2BSBZ-B15 39 High 5795 5850~5855 -23.81 ≤20.55 PASS 5855~5875 -24.17 ≤13.71 PASS 5875~5925 -37.94 ≤-26.83 PASS 5925~5935 -38.09 ≤-27 PASS 11AX20SI SO Ant1 Low 5745 5650~5700 -39.64 ≤-26.53 PASS 5700~5720 -31.52 ≤14.98 PASS 5720~5725 -25.4 ≤17.39 PASS 5760~5650 -39.78 ≤-27 PASS High 5825 5850~5855 -35.39 ≤18.19 PASS 5855~5875 -38.67 ≤10.06 PASS 5875~5925 -39.55 ≤-26.81 PASS 5925~5935 -38.75 ≤-27 PASS 11AX40SI SO Ant1 Low 5755 5650~5700 -33.38 ≤-25.41 PASS 5700~5720 -14.67 ≤13.50 PASS 5720~5725 -12.22 ≤16.66 PASS 5780~5650 -35.24 ≤-27 PASS High 5795 5850~5855 -27.71 ≤17.16 PASS 5855~5875 -26.57 ≤12.56 PASS 5875~5925 -34.96 ≤-25.36 PASS 5925~5935 -37.96 ≤-27 PASS FCCID:2BSBZ-B15 40 Test GraphsB4 11A_Ant1_Low_5745 11A_Ant1_High_5825 11N20SISO_Ant1_Low_5745 FCCID:2BSBZ-B15 41 11N20SISO_Ant1_High_5825 11N40SISO_Ant1_Low_5755 FCCID:2BSBZ-B15 42 11N40SISO_Ant1_High_5795 11AC20SISO_Ant1_Low_5745 11AC20SISO_Ant1_High_5825 FCCID:2BSBZ-B15 43 11AC40SISO_Ant1_Low_5755 11AC40SISO_Ant1_High_5795 FCCID:2BSBZ-B15 44 11AX20SISO_Ant1_Low_5745 11AX20SISO_Ant1_High_5825 11AX40SISO_Ant1_Low_5755 FCCID:2BSBZ-B15 45 11AX40SISO_Ant1_High_5795 FCCID:2BSBZ-B15 46 Appendix E.7:Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] Max. Fre [MHz] Max. Level [dBm] Limit [dBm] Verdict 11A Ant1 5745 30~5650 3098.15 -40.32 ≤-27 PASS 5925~27000 24839.11 -31.64 ≤-27 PASS 5785 30~5650 2835.5 -39.88 ≤-27 PASS 5925~27000 24447.82 -31.63 ≤-27 PASS 5825 30~5650 2670.09 -39.35 ≤-27 PASS 5925~27000 23510.68 -31.57 ≤-27 PASS 11N20SISO Ant1 5745 30~5650 5389.79 -40.79 ≤-27 PASS 5925~27000 26971.9 -30.98 ≤-27 PASS 5785 30~5650 2778.74 -39.55 ≤-27 PASS 5925~27000 26707.76 -31.38 ≤-27 PASS 5825 30~5650 5447.31 -39.53 ≤-27 PASS 5925~27000 26861.61 -31.4 ≤-27 PASS 11N40SISO Ant1 5755 30~5650 5645.88 -40.2 ≤-27 PASS 5925~27000 24253.23 -32.02 ≤-27 PASS 5795 30~5650 5483.09 -39.5 ≤-27 PASS 5925~27000 24256.74 -31.73 ≤-27 PASS 11AC20SISO Ant1 5745 30~5650 2928.05 -40.8 ≤-27 PASS 5925~27000 24851.76 -31.69 ≤-27 PASS 5785 30~5650 2652.48 -39.81 ≤-27 PASS 5925~27000 24186.49 -30.39 ≤-27 PASS 5825 30~5650 2319.21 -40.54 ≤-27 PASS 5925~27000 24777.29 -31.37 ≤-27 PASS 11AC40SISO Ant1 5755 30~5650 5647.56 -39.6 ≤-27 PASS 5925~27000 23498.04 -31.31 ≤-27 PASS 5795 30~5650 5333.97 -40.12 ≤-27 PASS 5925~27000 26022.12 -31.09 ≤-27 PASS 11AX20SISO Ant1 5745 30~5650 4767.47 -40.44 ≤-27 PASS 5925~27000 24220.91 -31.71 ≤-27 PASS 5785 30~5650 3183.94 -40.4 ≤-27 PASS 5925~27000 24170.33 -31.25 ≤-27 PASS 5825 30~5650 2633.93 -39.49 ≤-27 PASS 5925~27000 25271.15 -31.54 ≤-27 PASS 11AX40SISO Ant1 5755 30~5650 5454.05 -40.29 ≤-27 PASS 5925~27000 24973.99 -31.86 ≤-27 PASS 5795 30~5650 2689.2 -39.07 ≤-27 PASS 5925~27000 24265.17 -31.68 ≤-27 PASS FCCID:2BSBZ-B15 47 Test Graphs 11A_Ant1_5745_30~5650 11A_Ant1_5745_5925~27000 11A_Ant1_5785_30~5650 FCCID:2BSBZ-B15 48 11A_Ant1_5785_5925~27000 11A_Ant1_5825_30~5650 FCCID:2BSBZ-B15 49 11A_Ant1_5825_5925~27000 11N20SISO_Ant1_5745_30~5650 11N20SISO_Ant1_5745_5925~27000 FCCID:2BSBZ-B15 50 11N20SISO_Ant1_5785_30~5650 11N20SISO_Ant1_5785_5925~27000 FCCID:2BSBZ-B15 51 11N20SISO_Ant1_5825_30~5650 11N20SISO_Ant1_5825_5925~27000 11N40SISO_Ant1_5755_30~5650 FCCID:2BSBZ-B15 52 11N40SISO_Ant1_5755_5925~27000 11N40SISO_Ant1_5795_30~5650 FCCID:2BSBZ-B15 53 11N40SISO_Ant1_5795_5925~27000 11AC20SISO_Ant1_5745_30~5650 11AC20SISO_Ant1_5745_5925~27000 FCCID:2BSBZ-B15 54 11AC20SISO_Ant1_5785_30~5650 11AC20SISO_Ant1_5785_5925~27000 FCCID:2BSBZ-B15 55 11AC20SISO_Ant1_5825_30~5650 11AC20SISO_Ant1_5825_5925~27000 11AC40SISO_Ant1_5755_30~5650 FCCID:2BSBZ-B15 56 11AC40SISO_Ant1_5755_5925~27000 11AC40SISO_Ant1_5795_30~5650 FCCID:2BSBZ-B15 57 11AC40SISO_Ant1_5795_5925~27000 11AX20SISO_Ant1_5745_30~5650 11AX20SISO_Ant1_5745_5925~27000 FCCID:2BSBZ-B15 58 11AX20SISO_Ant1_5785_30~5650 11AX20SISO_Ant1_5785_5925~27000 FCCID:2BSBZ-B15 59 11AX20SISO_Ant1_5825_30~5650 11AX20SISO_Ant1_5825_5925~27000 11AX40SISO_Ant1_5755_30~5650 FCCID:2BSBZ-B15 60 11AX40SISO_Ant1_5755_5925~27000 11AX40SISO_Ant1_5795_30~5650 FCCID:2BSBZ-B15 61 11AX40SISO_Ant1_5795_5925~27000 FCCID:2BSBZ-B15 62 Appendix E.8:Emissions in Restricted Bands Test Result TestMode Antenna ChName Freq (MHz) Detector Freq [MHz] Result [dBm] Limit [dBm] Result [dBuV/m] Limit [dBuV/m] Verdict 11A Ant1 Low 5745 Peak 5650.000 -39.432 ≤-27.00 --- --- PASS Peak 5700.000 -42.48 ≤10.00 --- --- PASS Peak 5720.000 -38.18 ≤15.60 --- --- PASS Peak 5725.000 -40.09 ≤27.00 - -- - -- PASS High 5825 Peak 5850.000 -39.107 ≤27.00 --- --- PASS Peak 5855.000 -36.71 ≤15.60 --- --- PASS Peak 5875.000 -38.36 ≤10.00 --- --- PASS Peak 5925.000 -40.22 ≤-27.00 - -- - -- PASS 11N20SI…

Text truncated - open the document above for the full version.

FCCID:2BSBZ-B15 1 Case No. : GTS20250922004-2-12 Ambient Condition: 23 °C, 49 %RH According Standard: ■Part15E Test Date:2026.1.17-2026.4.14Test Engineer: Evan ouyang Appendix E.1: Occupied channel bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5745 16.941 5736.4593 5753.4003 --- --- 5785 16.950 5776.4689 5793.4189 --- --- 5825 16.904 5816.5140 5833.4180 --- --- 11N20SISO Ant1 5745 17.810 5736.0398 5753.8498 --- --- 5785 17.827 5776.0201 5793.8471 --- --- 5825 17.818 5816.0421 5833.8601 --- --- 11N40SISO Ant1 5755 36.987 5736.2861 5773.2731 --- --- 5795 36.678 5776.6107 5813.2887 --- --- 11AC20SISO Ant1 5745 17.813 5736.0455 5753.8585 --- --- 5785 17.849 5776.0223 5793.8713 --- --- 5825 17.788 5816.0592 5833.8472 --- --- 11AC40SISO Ant1 5755 36.966 5736.3505 5773.3165 --- --- 5795 36.751 5776.5920 5813.3430 --- --- 11AX20SISO Ant1 5745 18.784 5735.5675 5754.3515 --- --- 5785 18.770 5775.5621 5794.3321 --- --- 5825 18.722 5815.5770 5834.2990 --- --- 11AX40SISO Ant1 5755 37.728 5736.0023 5773.7303 --- --- 5795 37.556 5776.1843 5813.7403 --- --- FCCID:2BSBZ-B15 2 Test Graphs 11A_Ant1_5745 11A_Ant1_5785 11A_Ant1_5825 FCCID:2BSBZ-B15 3 11N20SISO_Ant1_5745 11N20SISO_Ant1_5785 FCCID:2BSBZ-B15 4 11N20SISO_Ant1_5825 11N40SISO_Ant1_5755 11N40SISO_Ant1_5795 FCCID:2BSBZ-B15 5 11AC20SISO_Ant1_5745 11AC20SISO_Ant1_5785 FCCID:2BSBZ-B15 6 11AC20SISO_Ant1_5825 11AC40SISO_Ant1_5755 11AC40SISO_Ant1_5795 FCCID:2BSBZ-B15 7 11AX20SISO_Ant1_5745 11AX20SISO_Ant1_5785 FCCID:2BSBZ-B15 8 11AX20SISO_Ant1_5825 11AX40SISO_Ant1_5755 11AX40SISO_Ant1_5795 FCCID:2BSBZ-B15 9 FCCID:2BSBZ-B15 10 Appendix E.2: Min emission bandwidth Test Result B4 TestMode Antenna Freq(MHz) 6db EBW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5745 16.360 5736.760 5753.120 0.5 PASS 5785 16.360 5776.760 5793.120 0.5 PASS 5825 16.360 5816.760 5833.120 0.5 PASS 11N20SISO Ant1 5745 17.560 5736.160 5753.720 0.5 PASS 5785 17.560 5776.160 5793.720 0.5 PASS 5825 17.560 5816.160 5833.720 0.5 PASS 11N40SISO Ant1 5755 35.760 5737.080 5772.840 0.5 PASS 5795 35.760 5777.080 5812.840 0.5 PASS 11AC20SISO Ant1 5745 17.560 5736.160 5753.720 0.5 PASS 5785 17.560 5776.160 5793.720 0.5 PASS 5825 17.560 5816.160 5833.720 0.5 PASS 11AC40SISO Ant1 5755 35.840 5737.000 5772.840 0.5 PASS 5795 36.000 5777.080 5813.080 0.5 PASS 11AX20SISO Ant1 5745 18.400 5735.760 5754.160 0.5 PASS 5785 18.640 5775.600 5794.240 0.5 PASS 5825 18.280 5815.800 5834.080 0.5 PASS 11AX40SISO Ant1 5755 36.880 5736.360 5773.240 0.5 PASS 5795 37.120 5776.440 5813.560 0.5 PASS FCCID:2BSBZ-B15 11 Test Graphs B4 11A_Ant1_5745 11A_Ant1_5785 11A_Ant1_5825 FCCID:2BSBZ-B15 12 11N20SISO_Ant1_5745 11N20SISO_Ant1_5785 FCCID:2BSBZ-B15 13 11N20SISO_Ant1_5825 11N40SISO_Ant1_5755 11N40SISO_Ant1_5795 FCCID:2BSBZ-B15 14 11AC20SISO_Ant1_5745 11AC20SISO_Ant1_5785 FCCID:2BSBZ-B15 15 11AC20SISO_Ant1_5825 11AC40SISO_Ant1_5755 11AC40SISO_Ant1_5795 FCCID:2BSBZ-B15 16 11AX20SISO_Ant1_5745 11AX20SISO_Ant1_5785 FCCID:2BSBZ-B15 17 11AX20SISO_Ant1_5825 11AX40SISO_Ant1_5755 11AX40SISO_Ant1_5795 FCCID:2BSBZ-B15 18 FCCID:2BSBZ-B15 19 AppendixE.3: Duty Cycle Test Result TestMode Antenna Freq(MHz) Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] Duty Cycle Factor[dB] 1/T Factor[KHz] 11A Ant1 5745 5.48 5.57 98.38 0.07 0.18 5785 5.49 5.57 98.56 0.06 0.18 5825 5.48 5.56 98.56 0.06 0.18 11N20SISO Ant1 5745 5.37 5.45 98.53 0.06 0.19 5785 5.37 5.45 98.53 0.06 0.19 5825 5.37 5.45 98.53 0.06 0.19 11N40SISO Ant1 5755 3.02 3.10 97.42 0.11 0.33 5795 3.02 3.11 97.11 0.13 0.33 11AC20SISO Ant1 5745 5.39 5.47 98.54 0.06 0.19 5785 5.38 5.47 98.35 0.07 0.19 5825 5.38 5.46 98.53 0.06 0.19 11AC40SISO Ant1 5755 5.16 5.23 98.66 0.06 0.19 5795 5.16 5.24 98.47 0.07 0.19 11AX20SISO Ant1 5745 4.65 4.73 98.31 0.07 0.22 5785 4.64 4.72 98.31 0.07 0.22 5825 4.64 4.73 98.10 0.08 0.22 11AX40SISO Ant1 5755 4.63 4.72 98.09 0.08 0.22 5795 4.64 4.72 98.31 0.07 0.22 FCCID:2BSBZ-B15 20 Test Graphs 11A_Ant1_5745 11A_Ant1_5785 11A_Ant1_5825 FCCID:2BSBZ-B15 21 11N20SISO_Ant1_5745 11N20SISO_Ant1_5785 FCCID:2BSBZ-B15 22 11N20SISO_Ant1_5825 11N40SISO_Ant1_5755 11N40SISO_Ant1_5795 FCCID:2BSBZ-B15 23 11AC20SISO_Ant1_5745 11AC20SISO_Ant1_5785 FCCID:2BSBZ-B15 24 11AC20SISO_Ant1_5825 11AC40SISO_Ant1_5755 11AC40SISO_Ant1_5795 FCCID:2BSBZ-B15 25 11AX20SISO_Ant1_5745 11AX20SISO_Ant1_5785 FCCID:2BSBZ-B15 26 11AX20SISO_Ant1_5825 11AX40SISO_Ant1_5755 11AX40SISO_Ant1_5795 FCCID:2BSBZ-B15 27 FCCID:2BSBZ-B15 28 Appendix E.4: Maximum conducted output power Test Result Channel Power Test Mode Antenna Freq (MHz) Channel Powert [dBm] Duty Cycle [%] DC Factor [dBm] Result [dBm] Limit [dBm] Verdict 11A Ant1 5745 11.84 98.56 0.06 11.90 ≤30.00 PASS 5785 12.33 98.56 0.06 12.39 ≤30.00 PASS 5825 12.97 98.74 0.06 13.03 ≤30.00 PASS 11N20SI SO Ant1 5745 11.74 98.53 0.06 11.80 ≤30.00 PASS 5785 12.36 98.53 0.06 12.42 ≤30.00 PASS 5825 12.87 98.53 0.06 12.93 ≤30.00 PASS 11N40SI SO Ant1 5755 14.83 97.42 0.11 14.94 ≤30.00 PASS 5795 14.96 97.11 0.13 15.09 ≤30.00 PASS 11AC20S ISO Ant1 5745 11.57 98.54 0.06 11.63 ≤30.00 PASS 5785 12.14 98.35 0.07 12.21 ≤30.00 PASS 5825 12.98 98.53 0.06 13.04 ≤30.00 PASS 11AC40S ISO Ant1 5755 14.94 98.66 0.06 15.00 ≤30.00 PASS 5795 15.09 98.47 0.07 15.16 ≤30.00 PASS 11AX20SI SO Ant1 5745 11.63 98.31 0.07 11.70 ≤30.00 PASS 5785 12.10 98.31 0.07 12.17 ≤30.00 PASS 5825 12.99 98.10 0.08 13.07 ≤30.00 PASS 11AX40SI SO Ant1 5755 14.87 98.09 0.08 14.95 ≤30.00 PASS 5795 14.99 98.31 0.07 15.06 ≤30.00 PASS FCCID:2BSBZ-B15 29 Appendix E.5: Maximum power spectral density Test Result TestMode Antenna Freq(MHz) Result [dBm/MHz]…
