2BSD5-YYCX-002Remote control

反面 正面 123 5 7 8 6 4 Assembly Accessories 9101112 Securing the Lamp Head Basic Product Parameters Product Name: Homelist SKY1 Superlight EYE PROTECTION FLOOR LAMP The pictures are for reference onlyplease refer to the actual product Product Display 3 User Instructions Power Connection Warm Tips: 1. The lamp must be placed on a flat surface with an inclination of less than 6°. 2. Do not plug or unplug the DC power adapter while powered. Always insert the adapter’s DC plug into the DC socket on the lamp pole first, and then plug the adapter into the wall outlet to power on. After the lamp head is successfully connected to the lamp pole, align the 4 hexagon socket screws with the holes on the lamp pole and use a Y- type wrench to tighten the screws into the holes to secure the lamp head. As shown in the diagram: First, use the Y-wrench to remove the 4 cylindrical hexagon socket screws pre-installed at the bottom of the lamp pole. I. Central Control Functions II. Remote Control Functions Cylindrical Hexagon Socket Screws (for lamp base and lamp pole attachment) (Note: 4 screws are pre-installed on the lamp pole for connecting to the base) Umbrella-Head Hexagon Socket Screws (for lamp head and lamp pole attachment) Countersunk Hexagon Socket Screws (for lamp pole attachment) Y-Type Hexagonal Spanner Lamp Pole Power Adapter Base Lamp Head Body Slotted Screwdriver Packing List: Lamp Head Body, Base, Lamp Pole, Instruction Manual, Accessory Pack Assembly Instructions Pole Installation 1 Wiring the Lamp Body 1.1 Unpack the product and take out all components. Place the foam sheet from the package on the floor as a protective pad during installation. 1.2 Connect the lower connector of the upper pole to the lower pole as shown in the diagram. 1.3 After the poles are properly connected, use the Y-type spanner to tighten the countersunk screws into the screw holes to secure the pole. Connect the lower connector of the lamp head to the upper connector of the lamp pole as shown in the diagram. After the connectors are properly engaged, make sure to insert all exposed wires into the pole. Do not tuck them into the lamp head. This prevents the wires from being pinched inside the lamp head during assembly, which could cause electric leakage or malfunction. 2 Base Installation 4.1 Base Installation 4.2 Take out the base and prepare necessary protective measures to prevent it from tipping over and causing injury.As shown in the diagram: Align the holes at the bottom of the lamp pole with the guide rod holes on the base, then insert the pole. Use the Y-type wrench to tighten the 4 cylindrical hexagon socket screws to secure the lamp pole to the base, ensuring stable installation. OFF ON ON OFF Night Light: Lower light off, upper light at 5% brightness Main Power Switch: Short press to turn lights on/off; long press to pair the remote Lower Light Switch Upper Light Switch Human Presence Sensor Switch: The floor lamp will turn on automati cally when a person is within 2 me ters, and remains on for 15 minutes after the person moves beyond 2.5 meters before turning off. Constant Illuminance: Maintains desktop illuminance at 500–1000LUX when activated Entertainment Mode: Upper light 70%, Lower Light 40% Study Mode: Upper Light 100%, Lower Light 100% Upper Light Brightness +: Short press +10%; long press for stepless dimming Upper Light Brightness –: Short press –10%; long press for stepless dimming Lower Light Brightness +: Short press +10%; long press for stepless dimming Lower Light Brightness –: Short press –10%; long press for stepless dimming Drawing Mode: Lower light 50%, upper light 100% Reading Mode: Lower light 100%, upper light 100% Sleep Mode: Lower light off, upper light at 5% brightness Lower Light Control Short press: On/Off lower light Long press: Adjust lower light brightness Main Power Switch Upper Light Control Short press: On/Off upperlight Long press: Adjust upper light brightness Human Presence Sensor Switch: The floor lamp will turn on automat ically when a person is within 2 me ters, and remains on for 15 minutes after the person moves beyond 2.5 meters before turning off. Constant Illuminance Switch: When activated, the desktop illuminance is maintained at 500–1000 LUX. Radar Sensor Light Sensor Product Number: M58ALD150W4BK Rated Input: 100V-240V / 60Hz Rated Power: 150W(LED module) Power Factor: 0.9 Light Source: LED CRI: Ra98 Dimensions: 619x412x1945mm Assembly Instructions Assembly Instructions Common radar issues: Microwave radar is highly sensitive to moving objects. Movements of pendulums, plants, fans, pets, etc., within the detection range may cause false triggering of the radar. It prioritizes detecting the distance of objects with larger movements. 125.00 mm 100.00 mm 1. The light source of this product cannot be directly replaced by the user. Oncethe light source needs to be replaced (such as when the light source reachesthe end of its life), please contact the manufacturer or its service agent forreplacement; please be sure to cut off the power supply before installation. 2. Please be sure to cut off the power supply before installation. 3. The ceiling used to install the lamp must be able to withstand more than fourtimes the weight of the lamp before installation. The lamp cannot be installedon a thin and soft ceiling that cannot bear weight. 4. The lamp cannot be installed above high- temperature objects or in humid andwet places. This product is not waterproof (it cannot be installed above stoves.gas and exhaust pipes to prevent damage to the environment). 5. The lamp must not be connected in series with other electrical appliances, andcannot be used in parallel with dimmers. 6. When checking and repairing the lamps, please entrust professionals to operate. 7. When the lamp is abnoma, cut off the power supply immediately and contact us. 8. lf the external soft cable or soft wire of this lamp is damaged, contact us forreplacement to avoid danger. 9. Do not test the light sour…

Text truncated - open the document above for the full version.

* the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. SC6014701 U.S. Agent Designation for Service of Process - Certification Attestation Letter 1/20/2026 TO: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 ATTN.: Reviewing Engineer FCC ID: 2BSD5-YYCX-002 FRN of applicant: 0037535374 Per section 2.911(d)(7) of the FCC rules, Moonshadow Innovative Technology (Guangdong) Co., Ltd FRN:003753537(“the applicant”) certifies that the equipment for which authorization is sought is designated to the following U.S. agent* for service of process: Company Name: Global Product Services and Consultation LLC FCC Registration Number (FRN): 0033406703 Physical U.S. Company Address: 328 W Palm Ave. Monrovia, CA91016 Contact Person: Michael Chan Tel: +1 626 366 4358 Agent Email Address: [email protected] The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed:Agent Signed (if different from Applicant): Signed: Printed name: Hao Hu Title: Engineer Company Name: Moonshadow Innovative Technology (Guangdong) Co., Ltd Address: Building B, No. 16, Fuheng North Road, Henglan Town, Zhongshan, China 528400 Signed: Printed name: Michael Chan Title: Technical Director Company Name: Global Product Services and Consultation LLC Date: 1/24/2026 Date: 1/20/2026

Moonshadow Innovative Technology (Guangdong) Co., Ltd 2026-01-20 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2BSD5-YYCX-002) [Moonshadow Innovative Technology (Guangdong) Co., Ltd] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, the equipment does not utilize cyber-security or anti-virus software from Kaspersky Lab, Inc, or any of its successors and assignees, which is also on the “covered list”. Sincerely, Hao Hu Engineer Moonshadow Innovative Technology (Guangdong) Co., Ltd Building B, No. 16, Fuheng North Road, Henglan Town, Zhongshan, China 528400 Moonshadow Innovative Technology (Guangdong) Co., Ltd 2026-01-20 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID: 2BSD5-YYCX-002) [Moonshadow Innovative Technology (Guangdong) Co., Ltd] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Hao Hu Engineer Moonshadow Innovative Technology (Guangdong) Co., Ltd Building B, No. 16, Fuheng North Road, Henglan Town, Zhongshan, China 528400

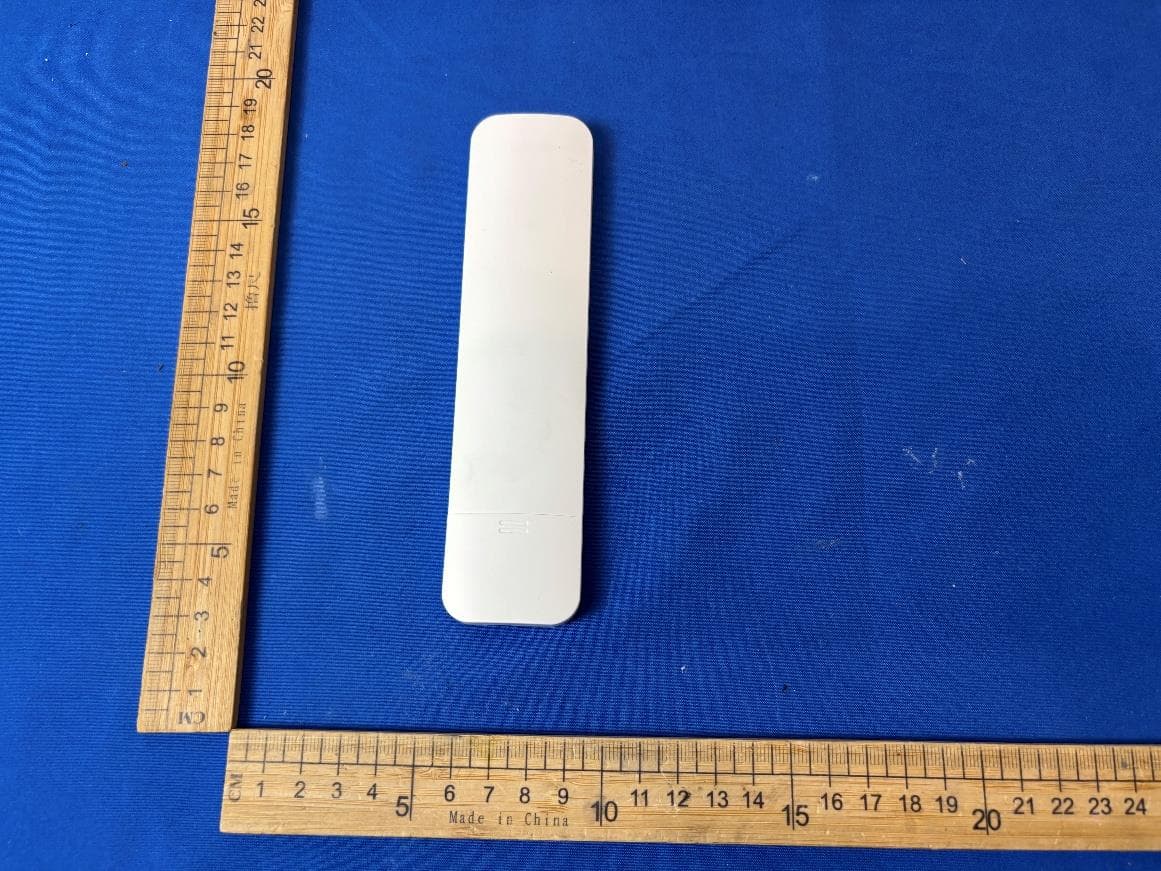

External Photographs View of EUT-1 View of EUT-2 Page 2 of 3 View of EUT-3 View of EUT-4 Page 3 of 3 View of EUT-5 View of EUT-6

Model:YYCX-002 FCC ID:2BSD5-YYCX-002 la ser engraving 14.05mm 7.2mm label location:

Internal Photographs Internal View of EUT-1 Internal View of EUT-2 Page 2 of 4 Internal View of EUT-3 Internal View of EUT-4 Page 3 of 4 Internal View of EUT-5 Internal View of EUT-6 Antenna Page 4 of 4 Internal View of EUT-7 Internal View of EUT-8

RF EXPOSURE EVALUATION EUT Specification EUT Remote control Model Number YYCX-002 FCC ID FCC ID: 2BSD5-YYCX-002 Antenna gain (Max) 2dBi Operation Frequency 2402-2480MHz Power Supply Battery 3V Classification Per Stipulated Test Standard §15.247(i), §2.1093 Modulation GFSK Max. output power 5.02dBm (0.0032W) Test Requirement: According to ß15.247(i) and ß1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Routine SAR evaluation refers to that specifically required by ß2.1093, using measurements or computer simulation. When routine SAR evaluation is not required, portable transmitters with output power greater than the applicable low threshold require SAR evaluation to quality for TCB approval. One antenna is available for the EUT. The minimum separation distance is 5mm. Page 2 of 2 Measurement Result 2.4G: Transmit Frequency (MHz) Mode Measured Power (dBm) Tune up Power (dBm) Max tune up power (dBm) Calculation Result 1-g SAR 2402 2.4G 5.02 5±1 6 1.23 3 According to KDB 447498, no stand-alone required for 2.4G antenna, and no simultaneous SAR measurement is required. Signature: Shawn Wen Date: 2026-1-16

天线规格书 一、 天线规格 ITEM ANT SPEC Model Name 2.4G ANT Center Frequency 2426MHz Operating Frequency 2402MHz / 2426MHz / 2480MHz OCW N/A Operating Temperature Range 125°C Number of channels 3 Antena Assenbly Type PCB antenna Gain 2dBi Output power ≤3dBm Modulation Type GFSK Adaptivity N/A Polarization Linear Polarization Azimuth Beam Pattern Directional Lmpedance 50 Ohm Antenna Size 11.6mm*2.0mm 二、 天线尺寸 X=11.506mm Y=2.007mm 三、 测试数据 网分测试图 测试3D图

1 / 22 Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) 1/T (kHz) NVNT 2.4G 2402 Ant1 85.6 0.68 0.47 NVNT 2.4G 2426 Ant1 85.6 0.68 0.47 NVNT 2.4G 2480 Ant1 85.2 0.7 0.47 2 / 22 Test Graphs Duty Cycle NVNT 2.4G 2402MHz Ant1 Duty Cycle NVNT 2.4G 2426MHz Ant1 3 / 22 Duty Cycle NVNT 2.4G 2480MHz Ant1 4 / 22 Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Limit (dBm) Verdict NVNT 2.4G 2402 Ant1 5.02 30 Pass NVNT 2.4G 2426 Ant1 4.3 30 Pass NVNT 2.4G 2480 Ant1 3.71 30 Pass 5 / 22 Test Graphs Power NVNT 2.4G 2402MHz Ant1 Power NVNT 2.4G 2426MHz Ant1 6 / 22 Power NVNT 2.4G 2480MHz Ant1 7 / 22 -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT 2.4G 2402 Ant1 0.66 0.5 Pass NVNT 2.4G 2426 Ant1 0.66 0.5 Pass NVNT 2.4G 2480 Ant1 0.65 0.5 Pass 8 / 22 Test Graphs -6dB Bandwidth NVNT 2.4G 2402MHz Ant1 -6dB Bandwidth NVNT 2.4G 2426MHz Ant1 9 / 22 -6dB Bandwidth NVNT 2.4G 2480MHz Ant1 10 / 22 Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT 2.4G 2402 Ant1 1.062 NVNT 2.4G 2426 Ant1 1.028 NVNT 2.4G 2480 Ant1 1.04 11 / 22 Test Graphs OBW NVNT 2.4G 2402MHz Ant1 OBW NVNT 2.4G 2426MHz Ant1 12 / 22 OBW NVNT 2.4G 2480MHz Ant1 13 / 22 Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Conducted PSD (dBm/3kHz) Limit (dBm/3kHz) Verdict NVNT 2.4G 2402 Ant1 -11.26 8 Pass NVNT 2.4G 2426 Ant1 -11.99 8 Pass NVNT 2.4G 2480 Ant1 -12.25 8 Pass 14 / 22 Test Graphs PSD NVNT 2.4G 2402MHz Ant1 PSD NVNT 2.4G 2426MHz Ant1 15 / 22 PSD NVNT 2.4G 2480MHz Ant1 16 / 22 Band Edge Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT 2.4G 2402 Ant1 -40.464 -20 Pass NVNT 2.4G 2480 Ant1 -51.403 -20 Pass 17 / 22 Test Graphs Band Edge NVNT 2.4G 2402MHz Ant1 Ref Band Edge NVNT 2.4G 2402MHz Ant1 Emission 18 / 22 Band Edge NVNT 2.4G 2480MHz Ant1 Ref Band Edge NVNT 2.4G 2480MHz Ant1 Emission 19 / 22 Conducted RF Spurious Emission Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT 2.4G 2402 Ant1 -51.45 -20 Pass NVNT 2.4G 2426 Ant1 -52.55 -20 Pass NVNT 2.4G 2480 Ant1 -42.98 -20 Pass 20 / 22 Test Graphs Tx. Spurious NVNT 2.4G 2402MHz Ant1 Ref Tx. Spurious NVNT 2.4G 2402MHz Ant1 Emission 21 / 22 Tx. Spurious NVNT 2.4G 2426MHz Ant1 Ref Tx. Spurious NVNT 2.4G 2426MHz Ant1 Emission 22 / 22 Tx. Spurious NVNT 2.4G 2480MHz Ant1 Ref Tx. Spurious NVNT 2.4G 2480MHz Ant1 Emission

TRF No.: 04-E001-0B TRF Originator: GTG TRF Date: 2023-12-13 Web: www.gtggroup.com E-mail: [email protected] Tel.: 86-400 755 8988 CFR 47 FCC PART 15 SUBPART C TEST REPORT For Remote control MODEL NUMBER: YYCX-002 REPORT NUMBER: E04A25120077F00101 ISSUE DATE: January 16, 2026 FCC ID: 2BSD5-YYCX-002 Prepared for Moonshadow Innovative Technology (Guangdong) Co., Ltd Building B, No. 16, Fuheng North Road, Henglan Town, Zhongshan, China 528400 Prepared by Guangdong Global Testing Technology Co., Ltd. Room 101-105, 203-210, Building 1, No.2, Keji 8 Road, Songshan Lake Park, Dongguan city, Guangdong, People’s Republic of China, 523808 This report is based on a single evaluation of the submitted sample(s) of the above mentioned product, it does not imply an assessment of the production of the products. This report shall not be reproduced, except in full, without the written approval of Guangdong Global Testing Technology Co., Ltd. REPORT NO.: E04A25120077F00101 Page 2 of 37 TRF No.: 04-E001-0B Global Testing , Great Quality. Revision History Rev. Issue Date Revisions Revised By V0 January 16, 2026 Initial Issue REPORT NO.: E04A25120077F00101 Page 3 of 37 TRF No.: 04-E001-0B Global Testing , Great Quality. Summary of Test Results Test Item Limit/Requirement Result Antenna Requirement FCC Part 15.203/15.247 (c) Pass AC Power Line Conducted Emission FCC Part 15.207 N/A 1 Conducted Output Power FCC Part 15.247 (b)(3) Pass 6dB Bandwidth and 99% Occupied Bandwidth FCC Part 15.247 (a)(2) Pass Power Spectral Density FCC Part 15.247 (e) Pass Conducted Band edge and spurious emission FCC Part 15.247(d) Pass Radiated Band edge and Spurious Emission FCC Part 15.247 (d) FCC Part 15.205/15.209 Pass Duty Cycle None; for reporting purposes only. Pass 1. The product is powered by button battery. *This test report is only published to and used by the applicant, and it is not for evidence purpose in China. *The measurement result for the sample received is <Pass> according to <CFR 47 FCC PART 15 SUBPART C> when <Accuracy Method> decision rule is applied. REPORT NO.: E04A25120077F00101 Page 4 of 37 TRF No.: 04-E001-0B Global Testing , Great Quality. CONTENTS 1. ATTESTATION OF TEST RESULTS ..................................................................................... 5 2. TEST METHODOLOGY ......................................................................................................... 6 3. FACILITIES AND ACCREDITATION ..................................................................................... 6 4. CALIBRATION AND UNCERTAINTY ................................................................................... 7 4.1. MEASURING INSTRUMENT CALIBRATION ........................................................... 7 4.2. MEASUREMENT UNCERTAINTY ............................................................................ 7 5. EQUIPMENT UNDER TEST .................................................................................................. 8 5.1. DESCRIPTION OF EUT ........................................................................................... 8 5.2. CHANNEL LIST ........................................................................................................ 8 5.3. MAXIMUM PEAK OUTPUT POWER ........................................................................ 8 5.4. TEST CHANNEL CONFIGURATION ........................................................................ 8 5.5. THE WORSE CASE POWER SETTING PARAMETER ............................................ 9 5.6. DESCRIPTION OF AVAILABLE ANTENNAS ........................................................... 9 5.7. SUPPORT UNITS FOR SYSTEM TEST ................................................................... 9 5.8. SETUP DIAGRAM .................................................................................................... 9 6. MEASURING EQUIPMENT AND SOFTWARE USED......................................................... 10 7. ANTENNA PORT TEST RESULTS ..................................................................................... 12 7.1. Conducted Output Power ........................................................................................ 12 7.2. 6dB Bandwidth and 99% Occupied Bandwidth ....................................................... 13 7.3. Power Spectral Density ........................................................................................... 15 7.4. Conducted Band edge and spurious emission ........................................................ 16 7.5. Duty Cycle .............................................................................................................. 18 8. RADIATED TEST RESULTS ............................................................................................... 19 8.1. Radiated Band edge and Spurious Emission .......................................................... 24 9. ANTENNA REQUIREMENT ................................................................................................ 36 10. AC POWER LINE CONDUCTED EMISSION ......................................................... 37 REPORT NO.: E04A25120077F00101 Page 5 of 37 TRF No.: 04-E001-0B Global Testing , Great Quality. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: Moonshadow Innovative Technology (Guangdong) Co., Ltd Address: Building B, No. 16, Fuheng North Road, Henglan Town, Zhongshan, China 528400 Manufacturer Information Company Name: Moonshadow Innovative Technology (Guangdong) Co., Ltd Address: Building B, No. 16, Fuheng North Road, Henglan Town, Zhongshan, China 528400 EUT Information Product Description: Remote control Model: YYCX-002 Series Model: / Brand: / Sample Received Date: December 8, 2025 Sample Status: Normal Sample ID: A25120077 001 Date of Tested: December 8, 2025 to January 13, 2026 APPLICABLE STANDARDS STANDARD TEST RESULTS CFR 47 FCC PART 15 SUBPART C Pass Prepared By: Checked By: Jok Yang Alan He Project Engineer Laboratory Leader Approved By: …

Text truncated - open the document above for the full version.

Setup Photographs Radiated Band edge and Spurious Emission Page 2 of 2
