2BSMK-LED-600remote control

433 Remote Control Specifications ⚫ Dimensions: 58mm*38mm*18mm ⚫ Operating Voltage: 12V/60mA ⚫ Battery Model: 12V 23A ⚫ Operating Frequency: 433 MHz ⚫ Buttons with A/B Symbols: Momentary function ⚫ Button with Lock Symbol: Interlock function. FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 0cm between the radiator and your body.

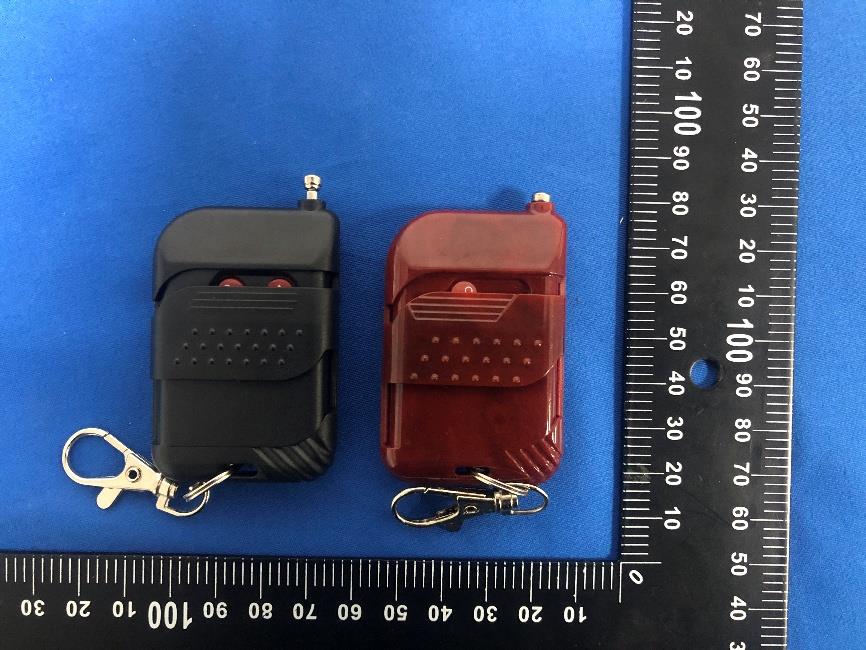

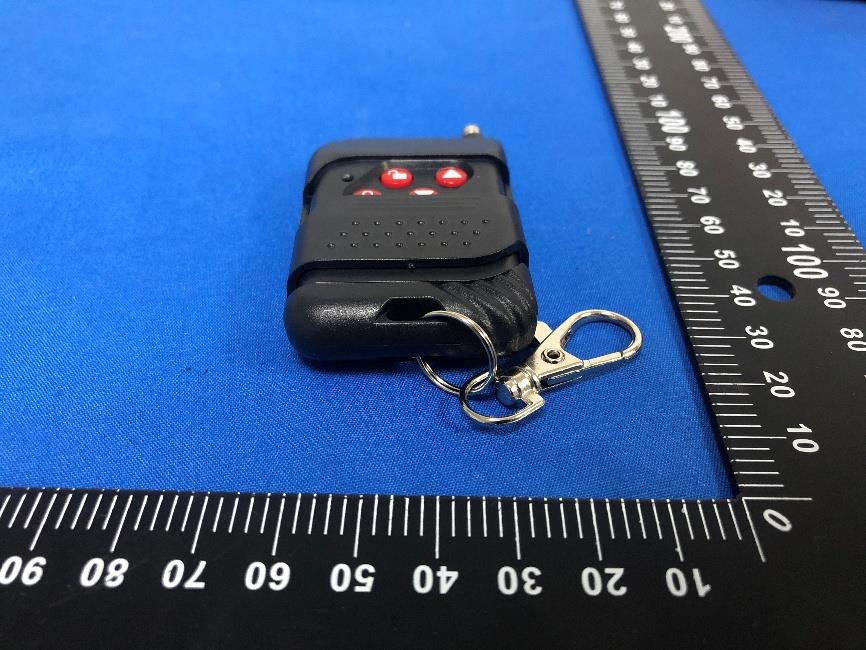

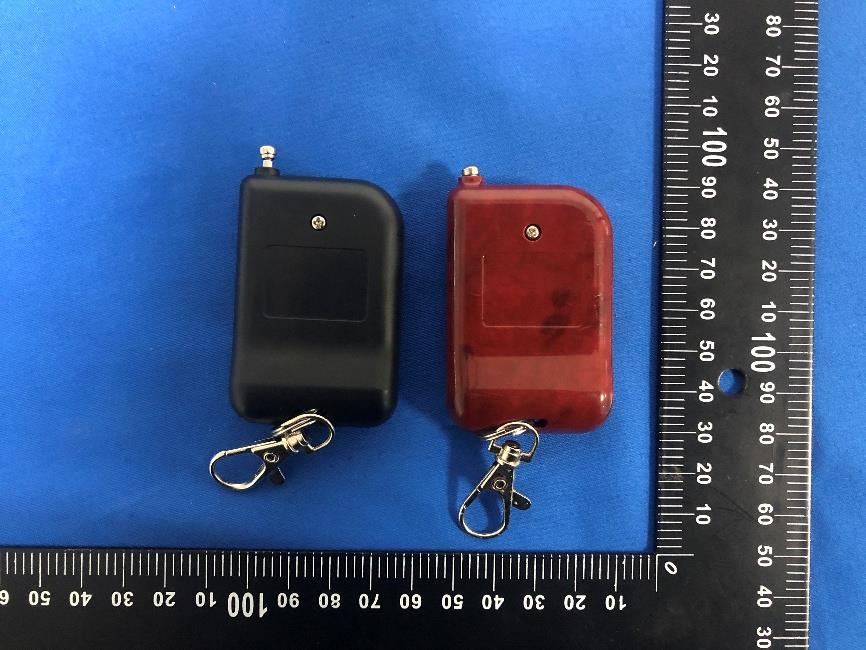

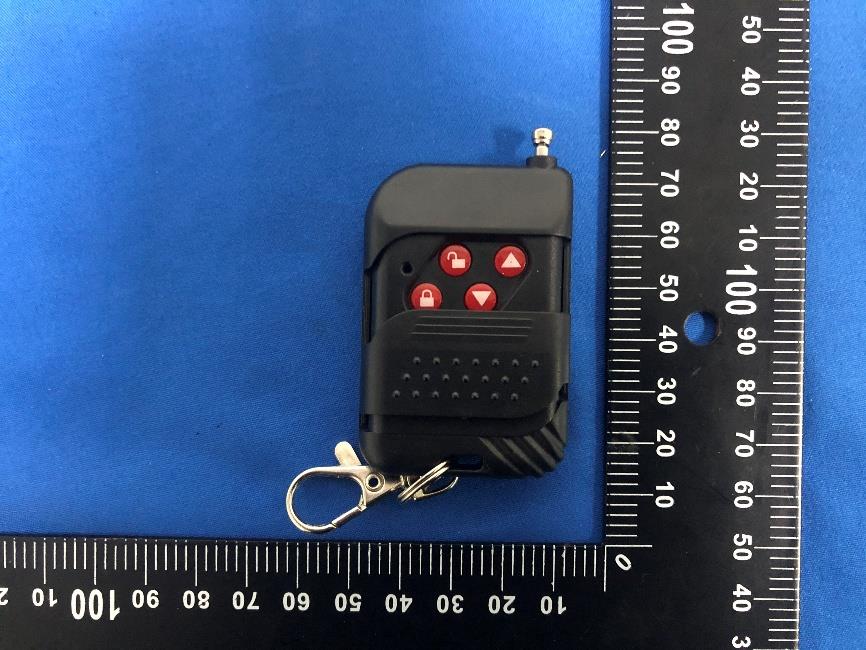

FCC ID: 2BSMK-LED-600 External Photos of the EUT FCC ID: 2BSMK-LED-600 FCC ID: 2BSMK-LED-600

Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location FCC ID : 2BSMK-LED-600

FCC ID: 2BSMK-LED-600 Internal Photos of the EUT ANT FCC ID: 2BSMK-LED-600 FCC ID: 2BSMK-LED-600

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure evaluation Report Reference No. ..................... : FCC ID............................................. : CTA25091500902 2BSMK-LED-600 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Sep. 26, 2025 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : Guang Zhou Hisun Stage Lighting co., Ltd. Address............................................ : 4th Floor, Building C, No. 6 Bajiang East Road, Baiyun District, Guangzhou City, Guangdong Province, China Standard ........................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : remote control Trade Mark ........................................ N/A Manufacturer .................................... : Guang Zhou Hisun Stage Lighting co., Ltd. Model/Type reference ...................... : LED-600 Listed Models .................................. : N/A Ratings ............................................. : DC 12.0V From battery Result ............................................... : PASS Report No.: CTA25091500902 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : remote control Model /Type : LED-600 Listed Models : N/A Applicant : Guang Zhou Hisun Stage Lighting co., Ltd. Address : 4th Floor, Building C, No. 6 Bajiang East Road, Baiyun District, Guangzhou City, Guangdong Province, China Manufacturer : Guang Zhou Hisun Stage Lighting co., Ltd. Address : 4th Floor, Building C, No. 6 Bajiang East Road, Baiyun District, Guangzhou City, Guangdong Province, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25091500902 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S ................................................... 4 2 S U M M A R Y .............................................................. 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Special Accessories 5 2.4 Modifications 5 3 T E S T E N V I R O N M E N T 6 3.1 Address of the test laboratory 6 3.2 Test Facility 6 3.3 Statement of the measurement uncertainty 6 4 T E S T L I M I T 7 4.1 Requirement 7 4.2 Conducted Power Results 7 4.3 Manufacturing tolerance 8 4.4 Evaluation Result 8 4.5 Simultaneous Transmission for SAR Exclusion 8 5 C O N C L U S I O N .......................................................... 8 Report No.: CTA25091500902 Page 4 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Device, RF Exposure, Equipment Authorization Procedures. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices Report No.: CTA25091500902 Page 5 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 2 S U M M A R Y 2.1 General Remarks Date of receipt of test sample : Sep. 15, 2025 Testing commenced on : Sep. 15, 2025 Testing concluded on : Sep. 26, 2025 2.2 Product Description Product Description: remote control Model/Type reference: LED-600 Power supply: DC 12.0V From battery Hardware version: V1.0 Software version: V1.0 Testing sample ID: CTA250915009-1# (Engineer sample) CTA250915009-2# (Normal sample) Modulation: ASK Operation frequency: 433.99MHz Channel number: 1 Antenna type: External antenna Antenna gain: 0.80 dBi 2.3 Special Accessories The following is the EUT test of the auxiliary equipment provided by the laboratory: Description Manufacturer Model Technical Parameters Certificate Provided by / /…

Text truncated - open the document above for the full version.

1. Antenna Description: Antenna type External antenna Model LED-600 Frequency range 433.99MHz Manufacturer Guang Zhou Hisun Stage Lighting co., Ltd. Address 4th Floor, Building C, No. 6 Bajiang East Road, Baiyun District, Guangzhou City, Guangdong Province, China ANT Peak Gain 0.80 dBi 2. Antenna Photo: We statement that All measurements were performed radiated and therefore additional antenna gain documentation is not required.

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China FCC PART 15 SUBPART C TEST REPORT FCC PART 15.231 Report Reference No. .................... : FCC ID. ........................................... : CTA25091500901 2BSMK-LED-600 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Sep. 26, 2025 Testing Laboratory Name ............. : Shenzhen CTA Testing Technology Co., Ltd. Address ........................................... : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Guang Zhou Hisun Stage Lighting co., Ltd. Address ............................................ : 4th Floor, Building C, No. 6 Bajiang East Road, Baiyun District, Guangzhou City, Guangdong Province, China Test specification ........................... : Standard ........................................... : FCC Part 15.231 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : remote control Trade Mark ....................................... : N/A Manufacturer .................................... : Guang Zhou Hisun Stage Lighting co., Ltd. Model/Type reference ...................... : LED-600 Listed Models .................................. : N/A Modulation ....................................... : ASK Frequency ......................................... 433.99MHz Ratings ............................................. : DC 12.0V From battery Result ............................................... : PASS Report No.: CTA25091500901 Page 2 of 20 T E S T R E P O R T Equipment under Test : remote control Model /Type : LED-600 Listed Models : N/A Applicant : Guang Zhou Hisun Stage Lighting co., Ltd. Address : 4th Floor, Building C, No. 6 Bajiang East Road, Baiyun District, Guangzhou City, Guangdong Province, China Manufacturer : Guang Zhou Hisun Stage Lighting co., Ltd. Address : 4th Floor, Building C, No. 6 Bajiang East Road, Baiyun District, Guangzhou City, Guangdong Province, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25091500901 Page 3 of 20 Contents 1 T E S T S T A N D A R D S .................................................................. 4 2 S U M M A R Y ............................................................................. 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT configuration 5 2.6 Block Diagram of Test Setup 6 2.7 Special Accessories 6 2.8 Related Submittal(s) / Grant (s) 6 2.9 Modifications 6 3 T E S T E N V I R O N M E N T ............................................................... 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ............................................ 10 4.1 AC Power Conducted Emission 10 4.2 Radiated Emission 11 4.3 20dB Bandwidth 17 4.4 Deactivation Time 18 4.5 Antenna Requirement 19 5 T E S T S E T U P P H O T O S O F T H E E U T .......................................... 20 6 P H O T O S O F T H E E U T ............................................................. 20 Report No.: CTA25091500901 Page 4 of 20 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.231:Periodic operation in the band 40.66-40.70 MHz and above 70 MHz. ANSI C63.10-2020+Cor. 1-2023+C63.10a-2024 + Errata to C63.10a-2024: American National Standard for Testing Unlicensed Wireless Devices Report No.: CTA25091500901 Page 5 of 20 2 S U M M A R Y 2.1 General Remarks Date of receipt of test sample : Sep. 15, 2025 Testing commenced on : Sep. 15, 2025 Testing concluded on : Sep. 26, 2025 2.2 Product Description Product Description: remote control Model/Type reference: LED-600 Power supply: DC 12.0V From battery Hardware version: V1.0 Software version: V1.0 Testing sample ID: CTA250915009-1# (Engineer sample) CTA250915009-2# (Normal sample) Modulation: ASK Operation frequency: 433.99MHz Channel number: 1 Antenna type: External antenna Antenna gain: 0.80 dBi 2.3 Equipment Under Test Power supply system utilised Power supply voltage : ○ 230V / 50 Hz ○ 120V / 60Hz ○ 12 V DC ○ 24 V DC ● Other (specified in blank below) DC 12.0V From battery 2.4 Short description of the Equipment under Test (EUT) This is a remote control. For more details, refer to the user’s manual of the EUT. 2.5 EUT configuration The following peripheral devices and interface cables were connected during the measurement: ● - supplied by the manufacturer ○ - supplied by the lab / Report No.: CTA25091500901 Page 6 of 20 2.6 Block Diagram of Test Setup 2.7 Special Accessories Follow auxiliary equipment(s) test with EUT that provided by the manufacturer or laboratory is listed as follow: Description Manufacturer Model Technical Parameters Certificate Provided by 2.8 Related Submittal(s) / Grant (s) This submittal(s) (test repo…

Text truncated - open the document above for the full version.

FCC ID: 2BSMK-LED-600 Test Setup Photos of the EUT
