2BSMX-UR35-OAWAIndustrial Router

UR35-OAWA Datasheet 奥 ◆ Application Example ProSeries Indus t r ialRou ter UR35-OAWA UR35-OAWA is a cost-effective industrial cellular router with embedded intelligent features that are designed for multifarious 4G LTE carrier suppor ted make this drop-in connectivity a great help for operators in maximizing uptime. Integrating embedded cellular modem and dual SIM function, the UR35-OAWA provides 4G cellular network with maximum 15 0Mbps download and 50 Mbps uplink, italso has 5 fast Ethernet p orts and supports Wi-Fi that compliance with 802.11b/g/n stan dard. All these capabilities deliver users an uninterrupted internet a ccess. Easy deployment and comprehensive remote device management makes UR35-OAWA versatile in most of IoT/ M2M applications. ◆ UR35-OAWA Datasheet Benefits - - - - - - ◆ Security & NXP industrial grade processor Global4GLTE network with dual SIM cards for backup between multiple carrier networks Embedded Python SDK for secondary development Flexible modular design provides users with different connection modules like Ethernet, I/O, serial port, Wi-Fi, GPS for connecting diverse field assets Rugged enclosure, optimized for DIN rail or shelf mounting 3-year warranty included Reliability - - - - ◆ Easy Automated failover/failback between Ethernet,Cellular(dualSIM)andWi-Fi Secure transmission with VPN tunnels like IPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN /WireGuard/ZeroTier Embeds hardware watchdog to automaticallyrecoverfromvariousfailure, ensure highest level of availability Establishesasecuredmechanismoncentr alized authentication and authorization of device access by supporting AAA (Radius, TACACS+, LDAP, local Authentication) and multiple levels of user authority Maintenance - DeviceHub and Milesight Development Platform provide easy setup, mass configuration, and centralized management of remote devices - The user-friendly web interface design and more than one option of upgrade help administrator to manage the device as easy as pie - WEB GUI and CLI enable the admin to achieve simple management and quick configuration among a large quantity of devices - Efficiently manage the remote routers on the existing platform through the industrial standard SNMP and TR069 ◆ Capabilities - - - - - Link remote devices in an environment where communication technologies are constantly changing Support 802.11 b/g/n, as AP or client mode, to establish versatile wireless network orbethe backup WAN link for 4G Support rich protocols like SNMP, TR069, MQTT, Modbus bridging, RIP, OSPF Provide powerto802.3af/at standard PoE devices and support power management Support wide operating temperature rangi ng from -40°C to +70°C/-40°F to +158°F UR35-OAWA Datasheet SIM 2 × SIM Slot (Mini SIM-2FF), 1.8V/3V Ethernet Interface Positioning Accuracy 2.5m CEP (Open Air) Extendable Storage 1 × Micro SD Slot ◆ Hardware Specifications CPU ARM Cortex-A7，528 MHz Memory 128 MB DDR3 RAM and 128MB Flash Network 4G LTE (CAT 4)/GSM (Differ as regions) Antenna Connector 2×50ΩSMAConnectors(CenterPIN:SMAFemale) Numbers 5 × RJ45 10/100 Mbps Property 1 × WAN + 4 × LAN Mode Full or half duplex (Auto-Sensing) Ethernet Isolation 1.5 kV RMS Antenna Connector 1 × 50 Ω SMA Connector (Center PIN: RP-SMA Female) Standards IEEE 802.11 b/g/n，2.4GHz 802.11b: 16 dBm +/-1.5 dBm (11 Mbps) Tx Power 802.11g: 14 dBm +/-1.5 dBm (54 Mbps) 802.11n: 13 dBm +/-1.5 dBm (65 Mbps, HT20/40 MCS7) Antenna Connector 1 × 50 Ω SMA Connector (Center PIN: SMA Female) Technology GPS/GLONASS/BDS/Galileo/QZSS Numbers 1 × RS232 + 1 × RS485 (2 × RS485 Hardware Customizable) Connector 3.5mm Terminal Block Numbers 1 × DI + 1 × DO, Galvanic Isolation Connector 3.5mm Terminal Block Digital Input Dry Contact Digital Output Wet Contact, maximum 0.3A@30VDC PoE (Optional) 4 × 802.3 af/at PoE PSE on LAN Ports GNSS (Optional) Baud Rate 300bps to 230400bps DI/DO Hardware System UR35-OAWA Datasheet Power Consumption Typical 3.9 W, Max 4.6 W (In Non-PoE mode) Relative Humidity 0% to 95% (non-condensing) at 25°C/77°F Reset Button 1 × RESET LED Indicators 1 × POWER, 1 × SYSTEM, 1 × SIM, 1 × Wi-Fi, 1 × VPN, 3 × Signal strength 1 × 2-pin 5.08 mm Terminal Block, with Surge-Protection and Reverse Power Connector Polarity Protection Power Input 9-48 VDC(48V is need for PoE) Power Output (Optional) 4 × 802.3 af/at PoE PSE on LAN Ports Per Port 30W Max., Total 60W Max. Ingress Protection IP30 Housing & Color Metal, Black Weight 485 g Dimension 135 x 103 x 45 mm (5.31 x 4.06 x 1.77 in) Operating Temperature -40°C to +70°C (-40°F to +158°F) Reduced Cellular Performance Above 60°C Storage Temperature -40°C to +85°C (-40°F to +185°F) Regulatory CE, FCC, RCM, JATE, Telec Environmental RoHS EMC EN 55032, EN 55035 IEC 61000-4-2 Level 3 IEC 61000-4-3 Level 2 IEC 61000-4-4 Level 3 EMS Radio Frequency IEC 61000-4-5 Level 3 IEC 61000-4-6 Level 3 IEC 61000-4-8 Level 4 IEC 61000-4-11 Level 3 EN 301 489-1/17/19/52, EN 301 511, EN 301 908-1/2/13, EN 303 413, EN300 328 Built-in Watchdog, Timer Installation Desktop, Wall Screw Mounting, DIN Rail Mounting UR35 Datasheet MAC Filter Blacklist, Whitelist GNSS (Optional) Safety EN62368-1 ◆ Software Specifications Network Protocols IPv4/IPv6, PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QOS, SNTP, Telnet, VLAN, SSH, MQTT, MQTTS, TR069, etc. Routing Static Routing, RIP, OSPF DDNS Supported >16 service providers, others can be configured manually QoS Upload/Download Bandwidth Limit IP Passthrough Support to assign WAN IP address to the device on LAN Reliability VRRP, WAN Failover, Dual SIM Backup Ping, Traceroute, TCPDUMP, QXDM, Log Server, Cellular AT Command Diagnostics Tools Debugger, Firewall iptables Debugger Modes AP or Client mode WEP/WPA-PSK/WPA2-PSK/WPA-EAP/WPA2-EAP authentication, Security TKIP/AES encryption Wi-Fi Users Up to 15 simultaneous connections Protocol NMEA0183, PMTK Firewalls Access Control, DMZ, Port Mapping, MAC Binding, SPI Firewalls, DoS&DDoS Protection, Filtering(IP&Domain) VL…

Text truncated - open the document above for the full version.

141 Band14 5 23305 25 #0 QPSK 4.523 5.017 PASS Band14 5 23305 25 #0 16QAM 4.521 4.921 PASS Band14 5 23330 25 #0 QPSK 4.502 4.924 PASS Band14 5 23330 25 #0 16QAM 4.513 5.035 PASS Band14 5 23355 25 #0 QPSK 4.519 4.984 PASS Band14 5 23355 25 #0 16QAM 4.500 4.970 PASS Band14 10 23330 50 #0 QPSK 8.962 9.735 PASS Band66 1.4 131979 6 #0 QPSK 1.101 1.298 PASS Band66 1.4 131979 6 #0 16QAM 1.096 1.307 PASS Band66 1.4 132322 6 #0 QPSK 1.092 1.287 PASS Band66 1.4 132322 6 #0 16QAM 1.106 1.273 PASS Band66 1.4 132665 6 #0 QPSK 1.102 1.319 PASS Band66 1.4 132665 6 #0 16QAM 1.095 1.390 PASS Band66 3 131987 15 #0 QPSK 2.707 2.999 PASS Band66 3 131987 15 #0 16QAM 2.702 3.007 PASS Band66 3 132322 15 #0 QPSK 2.700 2.966 PASS Band66 3 132322 15 #0 16QAM 2.708 2.985 PASS Band66 3 132657 15 #0 QPSK 2.718 2.989 PASS Band66 3 132657 15 #0 16QAM 2.707 3.049 PASS Band66 5 131997 25 #0 QPSK 4.502 4.946 PASS Band66 5 131997 25 #0 16QAM 4.497 4.961 PASS Band66 5 132322 25 #0 QPSK 4.511 4.966 PASS Band66 5 132322 25 #0 16QAM 4.496 4.965 PASS Band66 5 132647 25 #0 QPSK 4.546 5.077 PASS Band66 5 132647 25 #0 16QAM 4.511 5.037 PASS Band66 10 132022 50 #0 QPSK 8.940 9.709 PASS Band66 10 132022 50 #0 16QAM 8.961 9.742 PASS Band66 10 132322 50 #0 QPSK 8.961 9.924 PASS Band66 10 132322 50 #0 16QAM 8.932 9.687 PASS Band66 10 132622 50 #0 QPSK 8.948 9.849 PASS Band66 10 132622 50 #0 16QAM 8.993 9.814 PASS Band66 15 132047 75 #0 QPSK 13.404 14.548 PASS Band66 15 132047 75 #0 16QAM 13.409 14.548 PASS Band66 15 132322 75 #0 QPSK 13.376 14.685 PASS Band66 15 132322 75 #0 16QAM 13.392 14.608 PASS Band66 15 132597 75 #0 QPSK 13.429 14.522 PASS Band66 15 132597 75 #0 16QAM 13.406 14.658 PASS Band66 20 132072 100 #0 QPSK 17.878 19.165 PASS Band66 20 132072 100 #0 16QAM 17.890 19.385 PASS Band66 20 132322 100 #0 QPSK 17.844 19.505 PASS Band66 20 132322 100 #0 16QAM 17.873 19.348 PASS Band66 20 132572 100 #0 QPSK 17.907 19.393 PASS Band66 20 132572 100 #0 16QAM 17.879 19.414 PASS Band71 5 133147 25 #0 QPSK 4.526 4.979 PASS 142 Band71 5 133147 25 #0 16QAM 4.503 4.983 PASS Band71 5 133297 25 #0 QPSK 4.510 4.974 PASS Band71 5 133297 25 #0 16QAM 4.496 4.961 PASS Band71 5 133447 25 #0 QPSK 4.504 4.980 PASS Band71 5 133447 25 #0 16QAM 4.514 4.953 PASS Band71 10 133172 50 #0 QPSK 8.965 9.840 PASS Band71 10 133172 50 #0 16QAM 8.986 9.788 PASS Band71 10 133297 50 #0 QPSK 8.971 9.907 PASS Band71 10 133297 50 #0 16QAM 8.956 9.770 PASS Band71 10 133422 50 #0 QPSK 8.955 9.782 PASS Band71 10 133422 50 #0 16QAM 8.991 9.759 PASS Band71 15 133197 75 #0 QPSK 13.454 14.441 PASS Band71 15 133197 75 #0 16QAM 13.428 14.578 PASS Band71 15 133297 75 #0 QPSK 13.407 14.544 PASS Band71 15 133297 75 #0 16QAM 13.444 14.661 PASS Band71 15 133397 75 #0 QPSK 13.434 14.427 PASS Band71 15 133397 75 #0 16QAM 13.438 14.632 PASS Band71 20 133222 100 #0 QPSK 17.882 19.410 PASS Band71 20 133222 100 #0 16QAM 17.890 19.291 PASS Band71 20 133297 100 #0 QPSK 17.868 19.234 PASS Band71 20 133297 100 #0 16QAM 17.923 19.312 PASS Band71 20 133372 100 #0 QPSK 17.899 19.418 PASS Band71 20 133372 100 #0 16QAM 17.903 19.421 PASS 143 Band2 QPSK BW=1.4MHz Channel=18607 RB Size=6 Position=#0 Band2 16QAM BW=1.4MHz Channel=18607 RB Size=6 Position=#0 144 Band2 QPSK BW=1.4MHz Channel=18900 RB Size=6 Position=#0 Band2 16QAM BW=1.4MHz Channel=18900 RB Size=6 Position=#0 145 Band2 QPSK BW=1.4MHz Channel=19193 RB Size=6 Position=#0 Band2 16QAM BW=1.4MHz Channel=19193 RB Size=6 Position=#0 146 Band2 QPSK BW=3MHz Channel=18615 RB Size=15 Position=#0 Band2 16QAM BW=3MHz Channel=18615 RB Size=15 Position=#0 147 Band2 QPSK BW=3MHz Channel=18900 RB Size=15 Position=#0 Band2 16QAM BW=3MHz Channel=18900 RB Size=15 Position=#0 148 Band2 QPSK BW=3MHz Channel=19185 RB Size=15 Position=#0 Band2 16QAM BW=3MHz Channel=19185 RB Size=15 Position=#0 149 Band2 QPSK BW=5MHz Channel=18625 RB Size=25 Position=#0 Band2 16QAM BW=5MHz Channel=18625 RB Size=25 Position=#0 150 Band2 QPSK BW=5MHz Channel=18900 RB Size=25 Position=#0 Band2 16QAM BW=5MHz Channel=18900 RB Size=25 Position=#0 151 Band2 QPSK BW=5MHz Channel=19175 RB Size=25 Position=#0 Band2 16QAM BW=5MHz Channel=19175 RB Size=25 Position=#0 152 Band2 QPSK BW=10MHz Channel=18650 RB Size=50 Position=#0 Band2 16QAM BW=10MHz Channel=18650 RB Size=50 Position=#0 153 Band2 QPSK BW=10MHz Channel=18900 RB Size=50 Position=#0 Band2 16QAM BW=10MHz Channel=18900 RB Size=50 Position=#0 154 Band2 QPSK BW=10MHz Channel=19150 RB Size=50 Position=#0 Band2 16QAM BW=10MHz Channel=19150 RB Size=50 Position=#0 155 Band2 QPSK BW=15MHz Channel=18675 RB Size=75 Position=#0 Band2 16QAM BW=15MHz Channel=18675 RB Size=75 Position=#0 156 Band2 QPSK BW=15MHz Channel=18900 RB Size=75 Position=#0 Band2 16QAM BW=15MHz Channel=18900 RB Size=75 Position=#0 157 Band2 QPSK BW=15MHz Channel=19125 RB Size=75 Position=#0 Band2 16QAM BW=15MHz Channel=19125 RB Size=75 Position=#0 158 Band2 QPSK BW=20MHz Channel=18700 RB Size=100 Position=#0 Band2 16QAM BW=20MHz Channel=18700 RB Size=100 Position=#0 159 Band2 QPSK BW=20MHz Channel=18900 RB Size=100 Position=#0 Band2 16QAM BW=20MHz Channel=18900 RB Size=100 Position=#0 160 Band2 QPSK BW=20MHz Channel=19100 RB Size=100 Position=#0 Band2 16QAM BW=20MHz Channel=19100 RB Size=100 Position=#0 161 Band4 QPSK BW=1.4MHz Channel=19957 RB Size=6 Position=#0 Band4 16QAM BW=1.4MHz Channel=19957 RB Size=6 Position=#0 162 Band4 QPSK BW=1.4MHz Channel=20175 RB Size=6 Position=#0 Band4 16QAM BW=1.4MHz Channel=20175 RB Size=6 Position=#0 163 Band4 QPSK BW=1.4MHz Channel=20393 RB Size=6 Position=#0 Band4 16QAM BW=1.4MHz Channel=20393 RB Size=6 Position=#0 164 Band4 QPSK BW=3MHz Channel=19965 RB Size=15 Position=#0 Band4 16QAM BW=3MHz Channel=19965 RB Size=15 Position=#0 165 Band4 QPSK BW=3MHz Channel=20175 RB Size=15 Position=#0 Band4 16QAM BW=3MHz Channel=20175 RB Size=15 Position=#0 166 Band4 QPSK BW=3MHz Channel=20385 RB Size=15 Position=#0 Band4 16QAM BW=3MHz Channel=20385 RB Size=15 Position=#0 167 Band4 QPSK BW=5MHz Channel=19975 RB Size=25 Position=#0 Band4 16QAM…

Text truncated - open the document above for the full version.

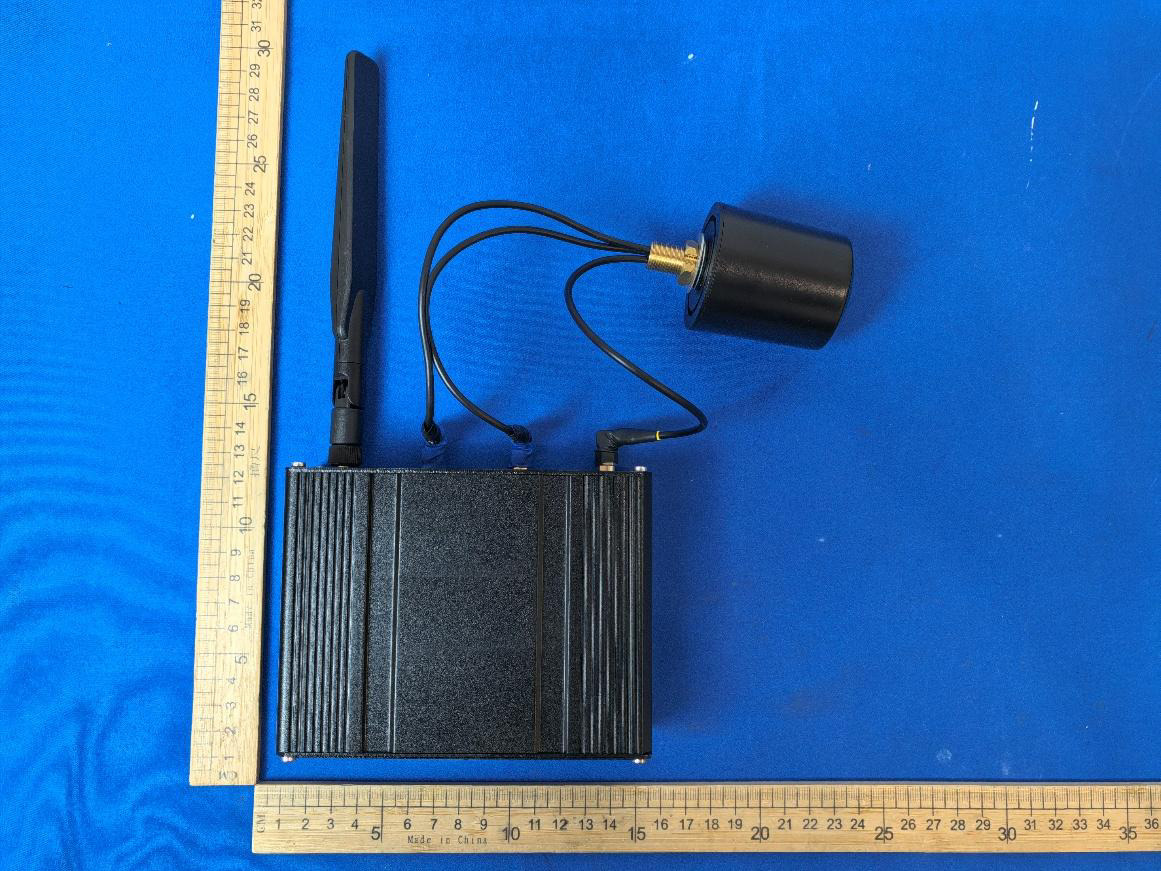

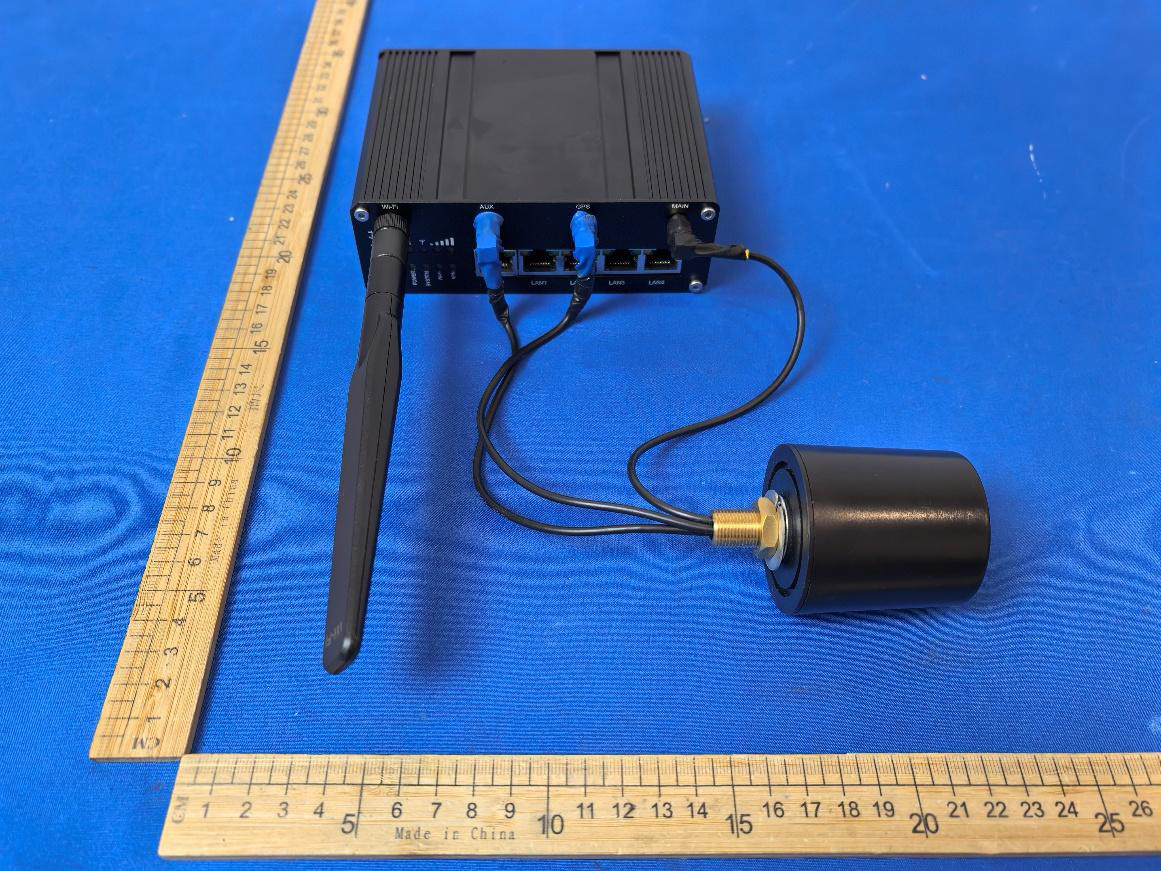

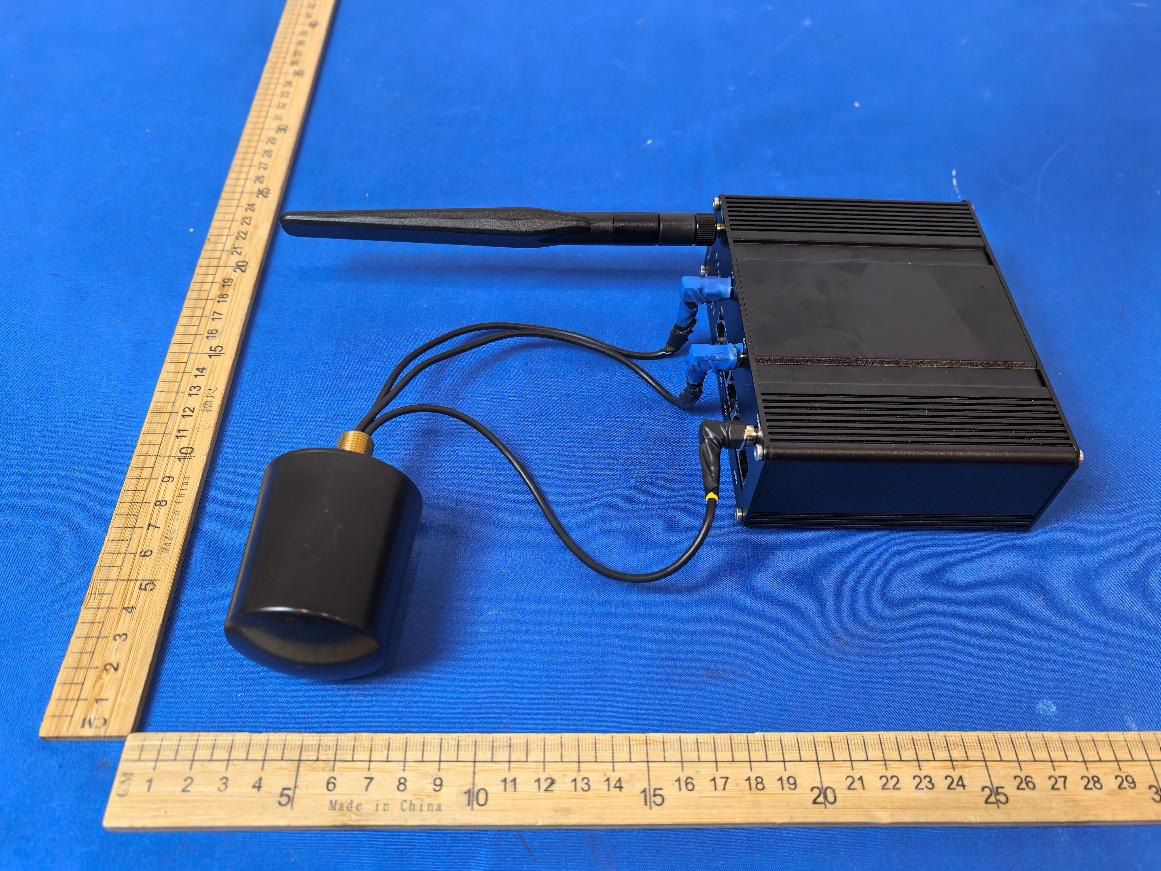

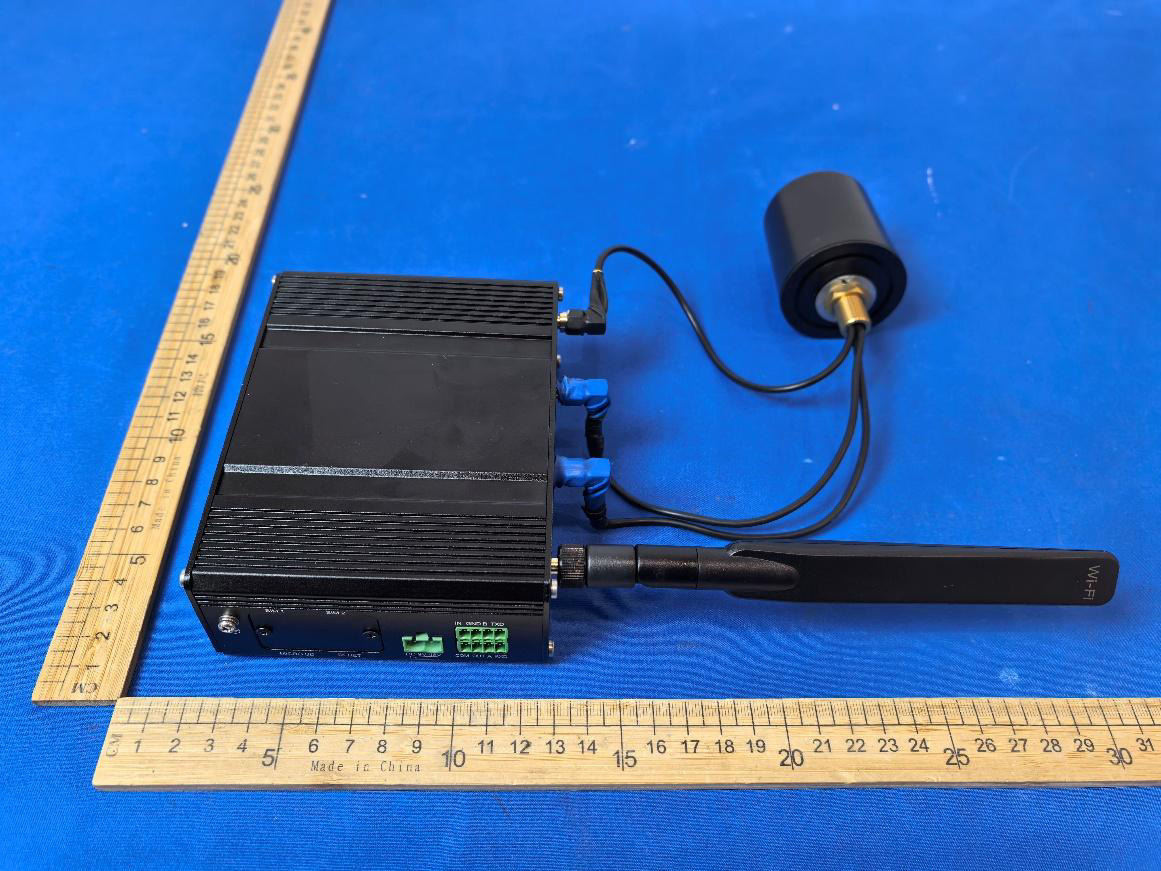

Setup Photographs 2.4G WIFI Radiated Band edge and Spurious Emission Page 2 of 2 LTE 4G Radiated Spurious Emission

81 Mode: LTE-BAND14-M Power: DC 12V TE: Berny Date 2026/4/2 T/A/P 22.3°C/51%/101Kpa Critical_Freqs No. Freq. (MHz) Reading (dBμV) Corr. (dB) Meas. (dBμV/m) Limit (dBμV/m) Margin (dB) Det. Pol. 1 1578.000 91.69 -21.86 69.83 82.30 12.47 PK+ V 2 2139.000 75.76 -18.01 57.75 82.30 24.55 PK+ V 3 2428.000 90.51 -17.21 73.30 82.30 9.00 PK+ V 4 3941.000 64.58 -13.39 51.19 82.30 31.11 PK+ V 5 4723.000 64.35 -11.58 52.77 82.30 29.53 PK+ V 6 5998.000 60.22 -8.99 51.23 82.30 31.07 PK+ V Note：[Margin=Limit-Meas.]; [Meas.=Reading+Corr. ] 82 Mode: LTE-BAND14-M Power: DC 12V TE: Berny Date 2026/4/2 T/A/P 22.3°C/51%/101Kpa Critical_Freqs No. Freq. (MHz) Reading (dBμV) Corr. (dB) Meas. (dBμV/m) Limit (dBμV/m) Margin (dB) Det. Pol. 1 1578.000 90.42 -21.86 68.56 82.30 13.74 PK+ H 2 2139.000 71.89 -18.01 53.88 82.30 28.42 PK+ H 3 2360.000 76.26 -17.43 58.83 82.30 23.47 PK+ H 4 2428.000 80.00 -17.21 62.79 82.30 19.51 PK+ H 5 3941.000 73.71 -13.39 60.32 82.30 21.98 PK+ H 6 4723.000 62.69 -11.58 51.11 82.30 31.19 PK+ H Note：[Margin=Limit-Meas.]; [Meas.=Reading+Corr. ] 83 Mode: LTE-BAND14-H Power: DC 12V TE: Berny Date 2026/4/2 T/A/P 22.3°C/51%/101Kpa Critical_Freqs No. Freq. (MHz) Reading (dBμV) Corr. (dB) Meas. (dBμV/m) Limit (dBμV/m) Margin (dB) Det. Pol. 1 1578.000 93.02 -21.86 71.16 82.30 11.14 PK+ H 2 2360.000 76.73 -17.43 59.30 82.30 23.00 PK+ H 3 2428.000 79.93 -17.21 62.72 82.30 19.58 PK+ H 4 3142.000 63.89 -15.28 48.61 82.30 33.69 PK+ H 5 3941.000 73.00 -13.39 59.61 82.30 22.69 PK+ H 6 9993.000 57.17 -6.1 51.07 82.30 31.23 PK+ H Note：[Margin=Limit-Meas.]; [Meas.=Reading+Corr. ] 84 Mode: LTE-BAND14-H Power: DC 12V TE: Berny Date 2026/4/2 T/A/P 22.3°C/51%/101Kpa Critical_Freqs No. Freq. (MHz) Reading (dBμV) Corr. (dB) Meas. (dBμV/m) Limit (dBμV/m) Margin (dB) Det. Pol. 1 1561.000 91.76 -21.99 69.77 82.30 12.53 PK+ V 2 2139.000 74.03 -18.01 56.02 82.30 26.28 PK+ V 3 3941.000 62.77 -13.39 49.38 82.30 32.92 PK+ V 4 4723.000 64.81 -11.58 53.23 82.30 29.07 PK+ V 5 6304.000 57.81 -7.37 50.44 82.30 31.86 PK+ V 6 7885.000 54.71 -7.78 46.93 82.30 35.37 PK+ V Note：[Margin=Limit-Meas.]; [Meas.=Reading+Corr. ] 85 Mode: LTE-BAND66-M Power: DC 12V TE: Berny Date 2026/4/2 T/A/P 22.3°C/51%/101Kpa Critical_Freqs No. Freq. (MHz) Reading (dBμV) Corr. (dB) Meas. (dBμV/m) Limit (dBμV/m) Margin (dB) Det. Pol. 1 1868.000 66.13 -10.38 55.75 82.30 26.55 PK+ V 2 2144.000 62.92 -9.05 53.87 82.30 28.43 PK+ V 3 3472.500 71.23 -14.21 57.02 82.30 25.28 PK+ V 4 6943.500 65.12 -8.04 57.08 82.30 25.22 PK+ V 5 8680.500 66.21 -8.27 57.94 82.30 24.36 PK+ V 6 10416.000 59.64 -5.54 54.10 82.30 28.20 PK+ V Note：[Margin=Limit-Meas.]; [Meas.=Reading+Corr. ] 86 Mode: LTE-BAND66-M Power: DC 12V TE: Berny Date 2026/4/2 T/A/P 22.3°C/51%/101Kpa Critical_Freqs No. Freq. (MHz) Reading (dBμV) Corr. (dB) Meas. (dBμV/m) Limit (dBμV/m) Margin (dB) Det. Pol. 1 1736.000 63.19 -11.49 51.70 82.30 30.60 PK+ H 2 2144.000 60.12 -9.05 51.07 82.30 31.23 PK+ H 3 3471.000 90.67 -14.21 76.46 82.30 5.84 PK+ H 4 5208.000 74.48 -10.42 64.06 82.30 18.24 PK+ H 5 6943.500 72.02 -8.04 63.98 82.30 18.32 PK+ H 6 10416.000 64.13 -5.54 58.59 82.30 23.71 PK+ H Note：[Margin=Limit-Meas.]; [Meas.=Reading+Corr. ] 87 Mode: LTE-BAND66-L Power: DC 12V TE: Berny Date 2026/4/2 T/A/P 22.3°C/51%/101Kpa Critical_Freqs No. Freq. (MHz) Reading (dBμV) Corr. (dB) Meas. (dBμV/m) Limit (dBμV/m) Margin (dB) Det. Pol. 1 2120.000 69.42 -9.13 60.29 82.30 22.01 PK+ H 2 3421.500 83.80 -14.31 69.49 82.30 12.81 PK+ H 3 5133.000 74.94 -10.28 64.66 82.30 17.64 PK+ H 4 6844.500 67.30 -8.15 59.15 82.30 23.15 PK+ H 5 8554.500 61.32 -7.91 53.41 82.30 28.89 PK+ H 6 11977.500 57.36 -4.53 52.83 82.30 29.47 PK+ H Note：[Margin=Limit-Meas.]; [Meas.=Reading+Corr. ] 88 Mode: LTE-BAND66-L Power: DC 12V TE: Berny Date 2026/4/2 T/A/P 22.3°C/51%/101Kpa Critical_Freqs No. Freq. (MHz) Reading (dBμV) Corr. (dB) Meas. (dBμV/m) Limit (dBμV/m) Margin (dB) Det. Pol. 1 2146.000 68.86 -9.05 59.81 82.30 22.49 PK+ V 2 3421.500 76.94 -14.31 62.63 82.30 19.67 PK+ V 3 5133.000 73.96 -10.28 63.68 82.30 18.62 PK+ V 4 6844.500 68.50 -8.15 60.35 82.30 21.95 PK+ V 5 8556.000 61.42 -7.89 53.53 82.30 28.77 PK+ V 6 10266.000 57.44 -5.8 51.64 82.30 30.66 PK+ V Note：[Margin=Limit-Meas.]; [Meas.=Reading+Corr. ] 89 Mode: LTE-BAND66-H Power: DC 12V TE: Berny Date 2026/4/2 T/A/P 22.3°C/51%/101Kpa Critical_Freqs No. Freq. (MHz) Reading (dBμV) Corr. (dB) Meas. (dBμV/m) Limit (dBμV/m) Margin (dB) Det. Pol. 1 2144.000 74.86 -9.05 65.81 82.30 16.49 PK+ V 2 2644.000 78.73 -8.69 70.04 82.30 12.26 PK+ V 3 3522.000 81.27 -13.9 67.37 82.30 14.93 PK+ V 4 4402.500 75.17 -11.88 63.29 82.30 19.01 PK+ V 5 7044.000 78.20 -7.91 70.29 82.30 12.01 PK+ V 6 10566.000 62.49 -5.09 57.40 82.30 24.90 PK+ V Note：[Margin=Limit-Meas.]; [Meas.=Reading+Corr. ] 90 Mode: LTE-BAND66-H Power: DC 12V TE: Berny Date 2026/4/2 T/A/P 22.3°C/51%/101Kpa Critical_Freqs No. Freq. (MHz) Reading (dBμV) Corr. (dB) Meas. (dBμV/m) Limit (dBμV/m) Margin (dB) Det. Pol. 1 2644.000 83.17 -8.69 74.48 82.30 7.82 PK+ H 2 3522.000 95.65 -13.9 81.75 82.30 0.55 PK+ H 3 4402.500 84.21 -11.88 72.33 82.30 9.97 PK+ H 4 7044.000 84.10 -7.91 76.19 82.30 6.11 PK+ H 5 7924.500 72.12 -8.05 64.07 82.30 18.23 PK+ H 6 8805.000 71.71 -7.87 63.84 82.30 18.46 PK+ H Note：[Margin=Limit-Meas.]; [Meas.=Reading+Corr. ] 91 Mode: LTE-BAND71-M Power: DC 12V TE: Berny Date 2026/4/2 T/A/P 22.3°C/51%/101Kpa Critical_Freqs No. Freq. (MHz) Reading (dBμV) Corr. (dB) Meas. (dBμV/m) Limit (dBμV/m) Margin (dB) Det. Pol. 1 2139.000 73.01 -18.01 55.00 82.30 27.30 PK+ H 2 2428.000 79.98 -17.21 62.77 82.30 19.53 PK+ H 3 5998.000 57.53 -8.99 48.54 82.30 33.76 PK+ H 4 7307.000 58.05 -7.81 50.24 82.30 32.06 PK+ H 5 9993.000 55.40 -6.1 49.30 82.30 33.00 PK+ H 6 17728.000 46.22 0.52 46.74 82.30 35.56 PK+ H Note：[Margin=Limit-Meas.]; [Meas.=Reading+Corr. ] 92 Mode: LTE-BAND71-M Power: DC 12V TE: Berny Date 2026/4/2 T/A/P 22.3°C/51%/101Kpa Critical_Freqs No. Freq. (MHz) Reading (dBμV) Corr. (dB) Meas. (dBμV/m) Limit (dBμV/m) Margin (dB) Det. Pol. 1 2…

Text truncated - open the document above for the full version.

61 Mode: LTE-BAND5-L Power: DC 12V TE: Berny Date 2026/4/2 T/A/P 22.3°C/51%/101Kpa Critical_Freqs No. Freq. (MHz) Reading (dBμV) Corr. (dB) Meas. (dBμV/m) Limit (dBμV/m) Margin (dB) Det. Pol. 1 1646.000 86.22 -21.32 64.90 82.30 17.40 PK+ V 2 2139.000 75.87 -18.01 57.86 82.30 24.44 PK+ V 3 2462.000 66.41 -17.28 49.13 82.30 33.17 PK+ V 4 4111.000 61.22 -12.84 48.38 82.30 33.92 PK+ V 5 5998.000 58.98 -8.99 49.99 82.30 32.31 PK+ V 6 17711.000 47.91 0.25 48.16 82.30 34.14 PK+ V Note：[Margin=Limit-Meas.]; [Meas.=Reading+Corr. ] 62 Mode: LTE-BAND5-L Power: DC 12V TE: Berny Date 2026/4/2 T/A/P 22.3°C/51%/101Kpa Critical_Freqs No. Freq. (MHz) Reading (dBμV) Corr. (dB) Meas. (dBμV/m) Limit (dBμV/m) Margin (dB) Det. Pol. 1 1646.000 87.50 -21.32 66.18 82.30 16.12 PK+ H 2 2139.000 68.32 -18.01 50.31 82.30 31.99 PK+ H 3 2462.000 74.48 -17.28 57.20 82.30 25.10 PK+ H 4 4111.000 62.63 -12.84 49.79 82.30 32.51 PK+ H 5 4944.000 64.96 -11.32 53.64 82.30 28.66 PK+ H 6 9993.000 55.13 -6.1 49.03 82.30 33.27 PK+ H Note：[Margin=Limit-Meas.]; [Meas.=Reading+Corr. ] 63 Mode: LTE-BAND5-M Power: DC 12V TE: Berny Date 2026/4/2 T/A/P 22.3°C/51%/101Kpa Critical_Freqs No. Freq. (MHz) Reading (dBμV) Corr. (dB) Meas. (dBμV/m) Limit (dBμV/m) Margin (dB) Det. Pol. 1 1663.000 82.43 -21.15 61.28 82.30 21.02 PK+ H 2 2496.000 75.37 -17.14 58.23 82.30 24.07 PK+ H 3 4162.000 62.41 -12.56 49.85 82.30 32.45 PK+ H 4 4995.000 60.52 -11.1 49.42 82.30 32.88 PK+ H 5 9993.000 55.95 -6.1 49.85 82.30 32.45 PK+ H 6 16232.000 46.90 -0.68 46.22 82.30 36.08 PK+ H Note：[Margin=Limit-Meas.]; [Meas.=Reading+Corr. ] 64 Mode: LTE-BAND5-M Power: DC 12V TE: Berny Date 2026/4/2 T/A/P 22.3°C/51%/101Kpa Critical_Freqs No. Freq. (MHz) Reading (dBμV) Corr. (dB) Meas. (dBμV/m) Limit (dBμV/m) Margin (dB) Det. Pol. 1 1850.000 67.64 -19.68 47.96 82.30 34.34 PK+ V 2 2139.000 75.71 -18.01 57.70 82.30 24.60 PK+ V 3 2428.000 91.12 -17.21 73.91 82.30 8.39 PK+ V 4 4995.000 60.19 -11.1 49.09 82.30 33.21 PK+ V 5 5998.000 61.45 -8.99 52.46 82.30 29.84 PK+ V 6 11999.000 53.30 -4.09 49.21 82.30 33.09 PK+ V Note：[Margin=Limit-Meas.]; [Meas.=Reading+Corr. ] 65 Mode: LTE-BAND5-H Power: DC 12V TE: Berny Date 2026/4/2 T/A/P 22.3°C/51%/101Kpa Critical_Freqs No. Freq. (MHz) Reading (dBμV) Corr. (dB) Meas. (dBμV/m) Limit (dBμV/m) Margin (dB) Det. Pol. 1 1680.000 73.10 -21.02 52.08 82.30 30.22 PK+ V 2 2428.000 90.87 -17.21 73.66 82.30 8.64 PK+ V 3 3346.000 58.69 -14.7 43.99 82.30 38.31 PK+ V 4 4196.000 59.73 -12.24 47.49 82.30 34.81 PK+ V 5 5998.000 59.69 -8.99 50.70 82.30 31.60 PK+ V 6 11829.000 48.99 -4.17 44.82 82.30 37.48 PK+ V Note：[Margin=Limit-Meas.]; [Meas.=Reading+Corr. ] 66 Mode: LTE-BAND5-H Power: DC 12V TE: Berny Date 2026/4/2 T/A/P 22.3°C/51%/101Kpa Critical_Freqs No. Freq. (MHz) Reading (dBμV) Corr. (dB) Meas. (dBμV/m) Limit (dBμV/m) Margin (dB) Det. Pol. 1 1680.000 74.15 -21.02 53.13 82.30 29.17 PK+ H 2 2139.000 66.70 -18.01 48.69 82.30 33.61 PK+ H 3 2428.000 80.12 -17.21 62.91 82.30 19.39 PK+ H 4 2513.000 73.83 -17.12 56.71 82.30 25.59 PK+ H 5 3346.000 60.42 -14.7 45.72 82.30 36.58 PK+ H 6 9993.000 54.41 -6.1 48.31 82.30 33.99 PK+ H Note：[Margin=Limit-Meas.]; [Meas.=Reading+Corr. ] 67 Mode: LTE-BAND12-M Power: DC 12V TE: Berny Date 2026/4/2 T/A/P 22.3°C/51%/101Kpa Critical_Freqs No. Freq. (MHz) Reading (dBμV) Corr. (dB) Meas. (dBμV/m) Limit (dBμV/m) Margin (dB) Det. Pol. 1 2105.000 66.92 -18.24 48.68 82.30 33.62 PK+ H 2 2428.000 80.24 -17.21 63.03 82.30 19.27 PK+ H 3 5284.000 54.59 -9.43 45.16 82.30 37.14 PK+ H 4 9993.000 55.39 -6.1 49.29 82.30 33.01 PK+ H 5 11999.000 52.21 -4.09 48.12 82.30 34.18 PK+ H 6 17694.000 47.03 -0.07 46.96 82.30 35.34 PK+ H Note：[Margin=Limit-Meas.]; [Meas.=Reading+Corr. ] 68 Mode: LTE-BAND12-M Power: DC 12V TE: Berny Date 2026/4/2 T/A/P 22.3°C/51%/101Kpa Critical_Freqs No. Freq. (MHz) Reading (dBμV) Corr. (dB) Meas. (dBμV/m) Limit (dBμV/m) Margin (dB) Det. Pol. 1 1391.000 70.81 -22.62 48.19 82.30 34.11 PK+ V 2 1850.000 68.73 -19.68 49.05 82.30 33.25 PK+ V 3 2139.000 76.88 -18.01 58.87 82.30 23.43 PK+ V 4 2428.000 90.57 -17.21 73.36 82.30 8.94 PK+ V 5 5998.000 59.03 -8.99 50.04 82.30 32.26 PK+ V 6 9993.000 55.82 -6.1 49.72 82.30 32.58 PK+ V Note：[Margin=Limit-Meas.]; [Meas.=Reading+Corr. ] 69 Mode: LTE-BAND12-L Power: DC 12V TE: Berny Date 2026/4/2 T/A/P 22.3°C/51%/101Kpa Critical_Freqs No. Freq. (MHz) Reading (dBμV) Corr. (dB) Meas. (dBμV/m) Limit (dBμV/m) Margin (dB) Det. Pol. 1 1850.000 66.31 -19.68 46.63 82.30 35.67 PK+ V 2 2139.000 75.52 -18.01 57.51 82.30 24.79 PK+ V 3 2428.000 91.03 -17.21 73.82 82.30 8.48 PK+ V 4 4995.000 58.18 -11.1 47.08 82.30 35.22 PK+ V 5 10027.000 50.62 -6.13 44.49 82.30 37.81 PK+ V 6 17694.000 46.85 -0.07 46.78 82.30 35.52 PK+ V Note：[Margin=Limit-Meas.]; [Meas.=Reading+Corr. ] 70 Mode: LTE-BAND12-L Power: DC 12V TE: Berny Date 2026/4/2 T/A/P 22.3°C/51%/101Kpa Critical_Freqs No. Freq. (MHz) Reading (dBμV) Corr. (dB) Meas. (dBμV/m) Limit (dBμV/m) Margin (dB) Det. Pol. 1 2139.000 64.62 -18.01 46.61 82.30 35.69 PK+ H 2 2785.000 61.82 -16.77 45.05 82.30 37.25 PK+ H 3 4196.000 56.11 -12.24 43.87 82.30 38.43 PK+ H 4 5488.000 54.60 -9.32 45.28 82.30 37.02 PK+ H 5 9993.000 55.76 -6.1 49.66 82.30 32.64 PK+ H 6 11999.000 54.82 -4.09 50.73 82.30 31.57 PK+ H Note：[Margin=Limit-Meas.]; [Meas.=Reading+Corr. ] 71 Mode: LTE-BAND12-H Power: DC 12V TE: Berny Date 2026/4/2 T/A/P 22.3°C/51%/101Kpa Critical_Freqs No. Freq. (MHz) Reading (dBμV) Corr. (dB) Meas. (dBμV/m) Limit (dBμV/m) Margin (dB) Det. Pol. 1 2139.000 63.87 -18.01 45.86 82.30 36.44 PK+ H 2 2428.000 80.09 -17.21 62.88 82.30 19.42 PK+ H 3 2785.000 61.35 -16.77 44.58 82.30 37.72 PK+ H 4 5505.000 54.91 -9.32 45.59 82.30 36.71 PK+ H 5 9993.000 54.15 -6.1 48.05 82.30 34.25 PK+ H 6 17711.000 47.29 0.25 47.54 82.30 34.76 PK+ H Note：[Margin=Limit-Meas.]; [Meas.=Reading+Corr. ] 72 Mode: LTE-BAND12-H Power: DC 12V TE: Berny Date 2026/4/2 T/A/P 22.3°C/51%/101Kpa Critical_Freqs No. Freq. (MHz) Reading (dBμV) Corr. (dB) Meas. (dBμV/m) Limit (dBμV/m) Margin (dB) Det. Pol. 1 21…

Text truncated - open the document above for the full version.

41 Mode: LTE-BAND66-H Power: DC 12V TE: Berny Date 2026/4/2 T/A/P 22.3°C/51%/101Kpa Critical_Freqs No. Freq. (MHz) Reading (dBμV) Corr. (dB) Meas. (dBμV/m) Limit (dBμV/m) Margin (dB) Det. Pol. 1 176.470 46.40 -21.97 24.43 82.30 57.87 PK+ V 2 212.360 50.04 -21.02 29.02 82.30 53.28 PK+ V 3 299.660 51.21 -18.68 32.53 82.30 49.77 PK+ V 4 400.540 40.56 -13.55 27.01 82.30 55.29 PK+ V 5 549.920 38.76 -9.49 29.27 82.30 53.03 PK+ V 6 792.420 37.34 -6.05 31.29 82.30 51.01 PK+ V Note：[Margin=Limit-Meas.]; [Meas.=Reading+Corr. ] 42 Mode: LTE-BAND66-H Power: DC 12V TE: Berny Date 2026/4/2 T/A/P 22.3°C/51%/101Kpa Critical_Freqs No. Freq. (MHz) Reading (dBμV) Corr. (dB) Meas. (dBμV/m) Limit (dBμV/m) Margin (dB) Det. Pol. 1 176.470 49.70 -21.97 27.73 82.30 54.57 PK+ H 2 299.660 60.02 -18.68 41.34 82.30 40.96 PK+ H 3 350.100 56.95 -16.2 40.75 82.30 41.55 PK+ H 4 450.010 51.82 -13.68 38.14 82.30 44.16 PK+ H 5 549.920 39.46 -9.49 29.97 82.30 52.33 PK+ H 6 792.420 45.84 -6.05 39.79 82.30 42.51 PK+ H Note：[Margin=Limit-Meas.]; [Meas.=Reading+Corr. ] 43 Mode: LTE-BAND71-L Power: DC 12V TE: Berny Date 2026/4/2 T/A/P 22.3°C/51%/101Kpa Critical_Freqs No. Freq. (MHz) Reading (dBμV) Corr. (dB) Meas. (dBμV/m) Limit (dBμV/m) Margin (dB) Det. Pol. 1 299.660 59.91 -18.68 41.23 82.30 41.07 PK+ H 2 350.100 56.92 -16.2 40.72 82.30 41.58 PK+ H 3 400.540 49.82 -13.55 36.27 82.30 46.03 PK+ H 4 450.010 52.32 -13.68 38.64 82.30 43.66 PK+ H 5 549.920 39.68 -9.49 30.19 82.30 52.11 PK+ H 6 792.420 47.14 -6.05 41.09 82.30 41.21 PK+ H Note：[Margin=Limit-Meas.]; [Meas.=Reading+Corr. ] 44 Mode: LTE-BAND71-L Power: DC 12V TE: Berny Date 2026/4/2 T/A/P 22.3°C/51%/101Kpa Critical_Freqs No. Freq. (MHz) Reading (dBμV) Corr. (dB) Meas. (dBμV/m) Limit (dBμV/m) Margin (dB) Det. Pol. 1 170.650 52.16 -22.17 29.99 82.30 52.31 PK+ V 2 191.020 48.00 -22.61 25.39 82.30 56.91 PK+ V 3 299.660 51.49 -18.68 32.81 82.30 49.49 PK+ V 4 400.540 41.46 -13.55 27.91 82.30 54.39 PK+ V 5 549.920 39.14 -9.49 29.65 82.30 52.65 PK+ V 6 792.420 36.60 -6.05 30.55 82.30 51.75 PK+ V Note：[Margin=Limit-Meas.]; [Meas.=Reading+Corr. ] 45 Mode: LTE-BAND71-M Power: DC 12V TE: Berny Date 2026/4/2 T/A/P 22.3°C/51%/101Kpa Critical_Freqs No. Freq. (MHz) Reading (dBμV) Corr. (dB) Meas. (dBμV/m) Limit (dBμV/m) Margin (dB) Det. Pol. 1 173.560 49.10 -22.05 27.05 82.30 55.25 PK+ V 2 230.790 47.35 -19.87 27.48 82.30 54.82 PK+ V 3 299.660 51.50 -18.68 32.82 82.30 49.48 PK+ V 4 400.540 41.08 -13.55 27.53 82.30 54.77 PK+ V 5 549.920 38.72 -9.49 29.23 82.30 53.07 PK+ V 6 792.420 36.88 -6.05 30.83 82.30 51.47 PK+ V Note：[Margin=Limit-Meas.]; [Meas.=Reading+Corr. ] 46 Mode: LTE-BAND71-M Power: DC 12V TE: Berny Date 2026/4/2 T/A/P 22.3°C/51%/101Kpa Critical_Freqs No. Freq. (MHz) Reading (dBμV) Corr. (dB) Meas. (dBμV/m) Limit (dBμV/m) Margin (dB) Det. Pol. 1 176.470 50.03 -21.97 28.06 82.30 54.24 PK+ H 2 299.660 59.90 -18.68 41.22 82.30 41.08 PK+ H 3 350.100 57.02 -16.2 40.82 82.30 41.48 PK+ H 4 450.010 52.07 -13.68 38.39 82.30 43.91 PK+ H 5 792.420 47.44 -6.05 41.39 82.30 40.91 PK+ H 6 920.460 30.63 -2.75 27.88 82.30 54.42 PK+ H Note：[Margin=Limit-Meas.]; [Meas.=Reading+Corr. ] 47 Mode: LTE-BAND71-H Power: DC 12V TE: Berny Date 2026/4/2 T/A/P 22.3°C/51%/101Kpa Critical_Freqs No. Freq. (MHz) Reading (dBμV) Corr. (dB) Meas. (dBμV/m) Limit (dBμV/m) Margin (dB) Det. Pol. 1 299.660 60.16 -18.68 41.48 82.30 40.82 PK+ H 2 350.100 57.11 -16.2 40.91 82.30 41.39 PK+ H 3 400.540 50.03 -13.55 36.48 82.30 45.82 PK+ H 4 450.010 51.98 -13.68 38.30 82.30 44.00 PK+ H 5 750.710 39.47 -6.71 32.76 82.30 49.54 PK+ H 6 792.420 47.81 -6.05 41.76 82.30 40.54 PK+ H Note：[Margin=Limit-Meas.]; [Meas.=Reading+Corr. ] 48 Mode: LTE-BAND71-H Power: DC 12V TE: Berny Date 2026/4/2 T/A/P 22.3°C/51%/101Kpa Critical_Freqs No. Freq. (MHz) Reading (dBμV) Corr. (dB) Meas. (dBμV/m) Limit (dBμV/m) Margin (dB) Det. Pol. 1 172.590 52.24 -22.1 30.14 82.30 52.16 PK+ V 2 236.610 47.26 -19.4 27.86 82.30 54.44 PK+ V 3 299.660 51.60 -18.68 32.92 82.30 49.38 PK+ V 4 400.540 41.42 -13.55 27.87 82.30 54.43 PK+ V 5 549.920 39.70 -9.49 30.21 82.30 52.09 PK+ V 6 792.420 36.54 -6.05 30.49 82.30 51.81 PK+ V Note：[Margin=Limit-Meas.]; [Meas.=Reading+Corr. ] 49 Mode: LTE-BAND2-L Power: DC 12V TE: Berny Date 2026/4/2 T/A/P 22.3°C/51%/101Kpa Critical_Freqs No. Freq. (MHz) Reading (dBμV) Corr. (dB) Meas. (dBμV/m) Limit (dBμV/m) Margin (dB) Det. Pol. 1 1858.000 62.20 -10.43 51.77 82.30 30.53 PK+ V 2 2144.000 60.67 -9.05 51.62 82.30 30.68 PK+ V 3 4999.500 59.33 -11.18 48.15 82.30 34.15 PK+ V 4 6000.000 58.82 -8.87 49.95 82.30 32.35 PK+ V 5 12000.000 52.83 -4.36 48.47 82.30 33.83 PK+ V 6 17673.000 46.35 0.3 46.65 82.30 35.65 PK+ V Note：[Margin=Limit-Meas.]; [Meas.=Reading+Corr. ] 50 Mode: LTE-BAND2-L Power: DC 12V TE: Berny Date 2026/4/2 T/A/P 22.3°C/51%/101Kpa Critical_Freqs No. Freq. (MHz) Reading (dBμV) Corr. (dB) Meas. (dBμV/m) Limit (dBμV/m) Margin (dB) Det. Pol. 1 2142.000 61.58 -9.05 52.53 82.30 29.77 PK+ H 2 6000.000 60.48 -8.87 51.61 82.30 30.69 PK+ H 3 7000.500 61.63 -7.8 53.83 82.30 28.47 PK+ H 4 7339.500 60.82 -8.26 52.56 82.30 29.74 PK+ H 5 10000.500 57.90 -6.17 51.73 82.30 30.57 PK+ H 6 13000.500 54.69 -4.51 50.18 82.30 32.12 PK+ H Note：[Margin=Limit-Meas.]; [Meas.=Reading+Corr. ] 51 Mode: LTE-BAND2-M Power: DC 12V TE: Berny Date 2026/4/2 T/A/P 22.3°C/51%/101Kpa Critical_Freqs No. Freq. (MHz) Reading (dBμV) Corr. (dB) Meas. (dBμV/m) Limit (dBμV/m) Margin (dB) Det. Pol. 1 2142.000 63.12 -9.05 54.07 82.30 28.23 PK+ H 2 2550.000 53.64 -8.17 45.47 82.30 36.83 PK+ H 3 6000.000 59.42 -8.87 50.55 82.30 31.75 PK+ H 4 7339.500 57.66 -8.26 49.40 82.30 32.90 PK+ H 5 10000.500 55.16 -6.17 48.99 82.30 33.31 PK+ H 6 12000.000 53.83 -4.36 49.47 82.30 32.83 PK+ H Note：[Margin=Limit-Meas.]; [Meas.=Reading+Corr. ] 52 Mode: LTE-BAND2-M Power: DC 12V TE: Berny Date 2026/4/2 T/A/P 22.3°C/51%/101Kpa Critical_Freqs No. Freq. (MHz) Reading (dBμV) Co…

Text truncated - open the document above for the full version.
