2BSO7-SPAMW21XXEWireless Audio Module

SUNPLUS TECHNOLOGY CO. reserves the right to change this documentation without prior notice. Information provided by SUNPLUS TECHNOLOGY CO. is believed to be accurate and reliable. However, SUNPLUS TECHNOLOGY CO. makes no warranty for any errors which may appear in this document. Contact SUNPLUS TECHNOLOGY CO. to obtain the latest version of device specifications before placing your order. No responsibility is assumed by SUNPLUS TECHNOLOGY CO. for any infringement of patent or other rights of third parties which may result from its use. In addition, SUNPLUS products are not authorized for use as critical components in life support systems or aviation systems, where a malfunction or failure of the product may reasonably be expected to result in significant injury to the user, without the express written approval of Sunplus. SUNPLUS Technology Co., Ltd. www.sunplus.com No.19, Innovation 1st Road. Hsinchu Science Park 30076, Taiwan, ROC T: +886-3-5786005 F: +886-3-5786006 SPA-MW21xx-x Wireless Audio Module Datasheet Sunplus confidential for FeitengyunSunplus confidential for FeitengyunSunplus confidential for Feitengyun Sunplus confidential for Feitengyun Sunplus confidential for FeitengyunSunplus confidential for Feitengyun Sunplus confidential for Feitengyun Sunplus confidential for FeitengyunSunplus confidential for Feitengyun Sunplus confidential for FeitengyunSunplus confidential for Feitengyun Sunplus confidential for FeitengyunSunplus confidential for Feitengyun Sunplus confidential for FeitengyunSunplus confidential for Feitengyun 1 Table of Content 1. Introductions ......................................................................................................................................2 2. Key Features .......................................................................................................................................3 3. Applications ........................................................................................................................................4 4. Module Pin Assignments ...................................................................................................................5 4.1 Module Package Outline ................................................................................................................5 SPA-MW21F3-M ................................................................................................................................................ 5 SPA-MW21F3-E ................................................................................................................................................ 7 4.2 Module PCB Pin Outline ................................................................................................................9 SPA MW21F3-M ................................................................................................................................................ 9 SPA- MW21F3-E ............................................................................................................................................. 10 4.3 Module Pin Type Definitions ......................................................................................................... 11 4.4 Tx Module Pinout Descriptions .................................................................................................... 11 4.5 Rx Module Pinout Descriptions ................................................................................................... 12 4.6 Soldering Specification ................................................................................................................ 13 5. Performance .................................................................................................................................... 15 5.1 Audio Specification (I2S to I2S), Fs=48KHz ............................................................................... 15 5.2 Audio Specification (I2S to I2S), Fs=96KHz ............................................................................... 15 5.3 Audio Specification (I2S to I2S), Fs=192KHz ............................................................................. 15 5.4 Channel Synchronization ............................................................................................................ 15 6. Electrical Characteristic ................................................................................................................. 16 6.1 Operation Condition .................................................................................................................... 16 6.2 Digital IO DC Characteristic ........................................................................................................ 16 6.3 WLAN 5G band RF Characteristic .............................................................................................. 16 6.4 BLE 2.4G band RF Characteristic ............................................................................................... 16 6.5 Power Consumption .................................................................................................................... 16 7. AC Characteristics .......................................................................................................................... 17 7.1 I2C Characteristics ...................................................................................................................... 17 7.2 I2S Characteristics ...................................................................................................................... 17 8. Module Part No. Description .......................................................................................................... 19 9. Version History ................................................................................................................................ 20 Add SPA-MW21M1-E information .....................................................…

Text truncated - open the document above for the full version.

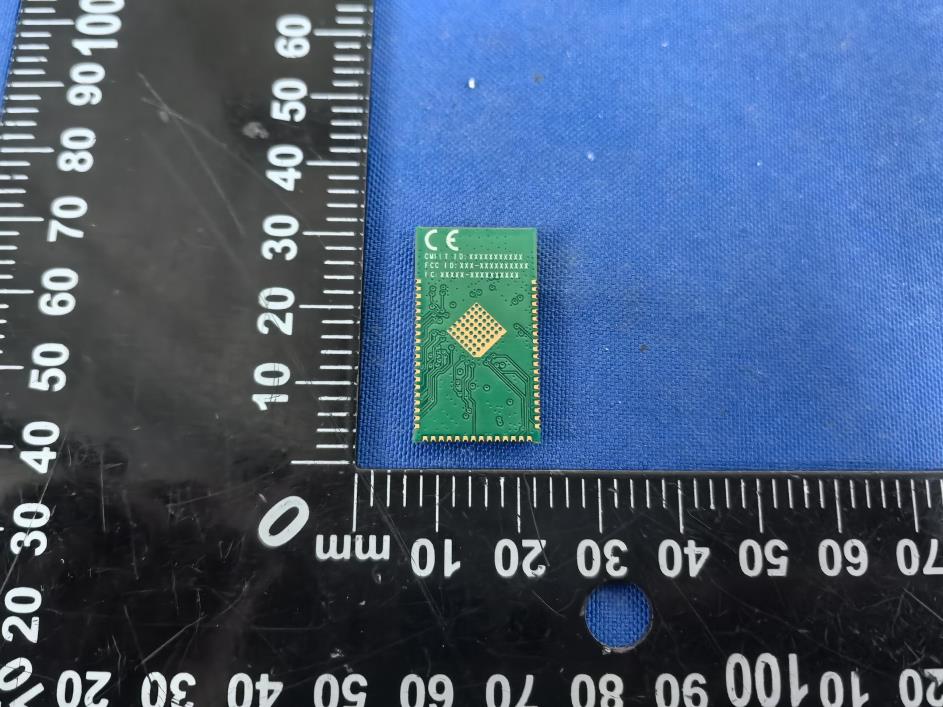

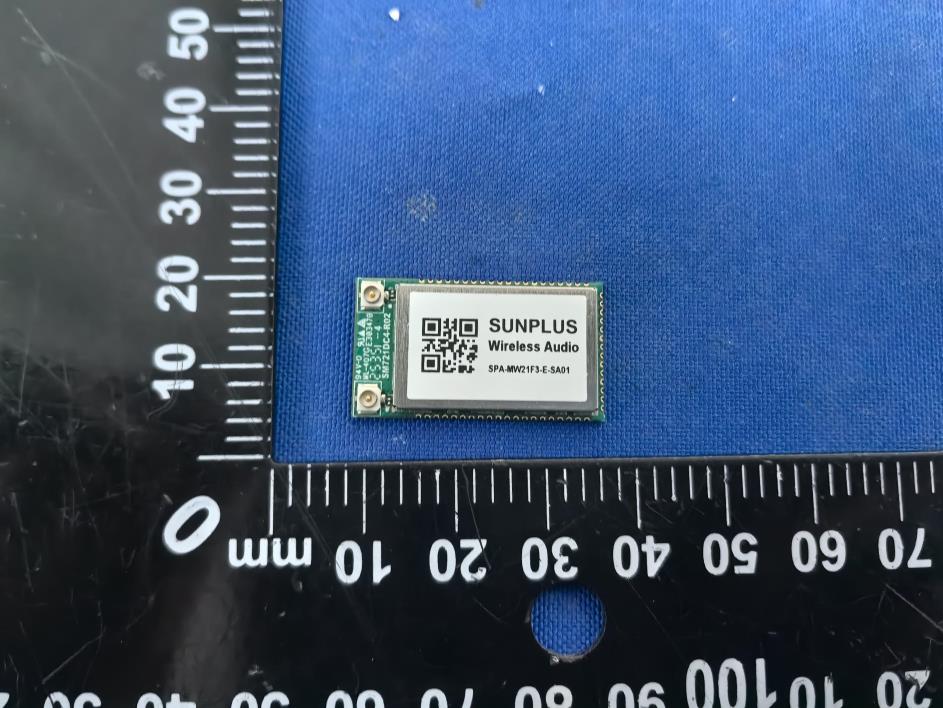

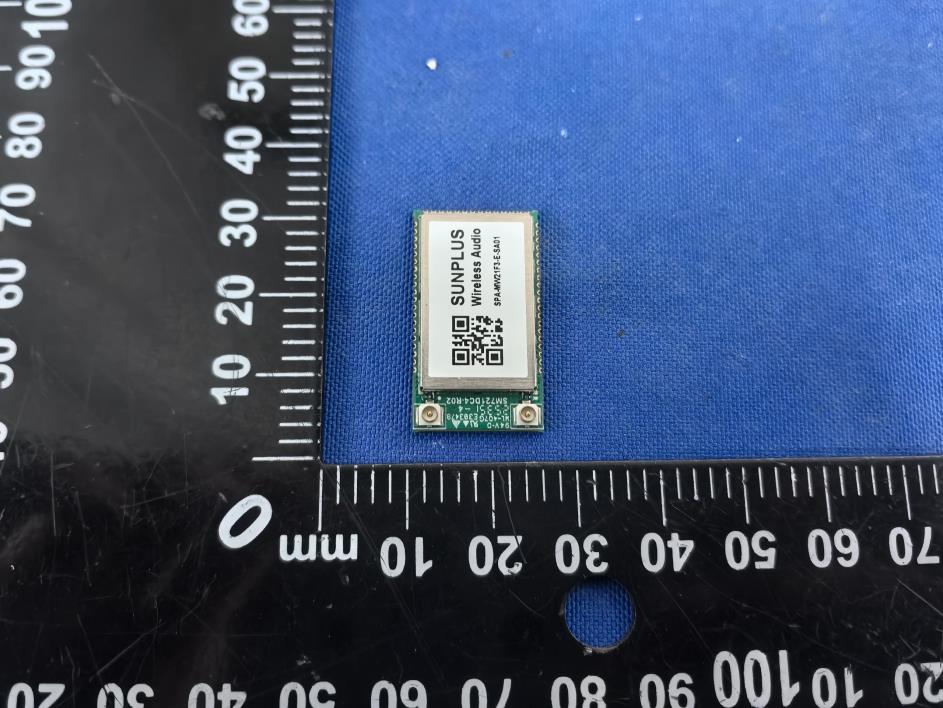

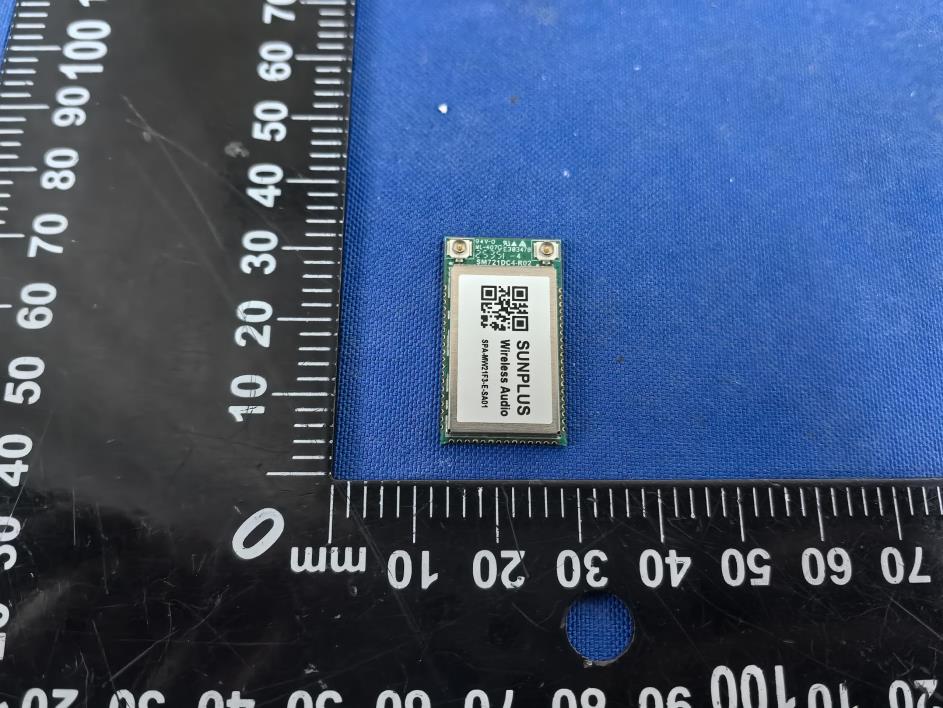

Size: 10*8mm M/N: SPA-MW21xx-E FCC ID: 2BSO7-SPAMW21XXE Label location

Shenzhen DL Testing Technology Co., Ltd. EUT TEST PHOTO Radiated Measurement Photos ※※※※※ END OF REPORT ※※※※※

Shenzhen DL Testing Technology Co., Ltd. Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 1 of 26 Appendix 1 FCC Test Report FCC ID: 2BSO7-SPAMW21XXE Applicant: SUNPLUS TECHNOLOGY CO., LTD. Address: 19, Innovation First Road Hsinchu Science Park, Taiwan 30076 Manufacturer: SUNPLUS TECHNOLOGY CO., LTD. Address: 19, Innovation First Road Hsinchu Science Park, Taiwan 30076 EUT: Wireless Audio Module Trade Mark: N/A Model Number: SPA-MW21xx-E Date of Receipt: Oct. 10, 2025 Test Date: Oct. 10, 2025 - Oct. 22, 2025 Date of Report: Oct. 22, 2025 Prepared By: Shenzhen DL Testing Technology Co., Ltd. Address: 101-201, Comprehensive Building, Tongzhou Electronics Longgang Factory Area, No.1 Baolong Fifth Road, Baolong Community, Baolong Street, Longgang District, Shenzhen, China Test Result: Pass Shenzhen DL Testing Technology Co., Ltd. Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 2 of 26 Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) NVNT a 5745 Ant1 20 6.99 NVNT a 5785 Ant1 19.2 7.17 NVNT a 5825 Ant1 19.35 7.13 NVNT n20 5745 Ant1 18.7 7.28 NVNT n20 5785 Ant1 18.03 7.44 NVNT n20 5825 Ant1 18.7 7.28 NVNT n40 5755 Ant1 11.5 9.39 NVNT n40 5795 Ant1 11.5 9.39 Shenzhen DL Testing Technology Co., Ltd. Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 3 of 26 Duty Cycle NVNT a 5745MHz Ant1 Duty Cycle NVNT a 5785MHz Ant1 Shenzhen DL Testing Technology Co., Ltd. Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 4 of 26 Duty Cycle NVNT a 5825MHz Ant1 Duty Cycle NVNT n20 5745MHz Ant1 Shenzhen DL Testing Technology Co., Ltd. Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 5 of 26 Duty Cycle NVNT n20 5785MHz Ant1 Duty Cycle NVNT n20 5825MHz Ant1 Shenzhen DL Testing Technology Co., Ltd. Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 6 of 26 Duty Cycle NVNT n40 5755MHz Ant1 Duty Cycle NVNT n40 5795MHz Ant1 Shenzhen DL Testing Technology Co., Ltd. Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 7 of 26 Conducted Band Edge Condition Mode Frequency (MHz) Antenna Max Value (dBm) Limit (dBm) Verdict NVNT a 5745 Ant1 -25.73 15.6 Pass NVNT a 5825 Ant1 -28.99 15.6 Pass NVNT n20 5745 Ant1 -20.52 15.6 Pass NVNT n20 5825 Ant1 -25.71 15.6 Pass NVNT n40 5755 Ant1 -17.65 13.2 Pass NVNT n40 5795 Ant1 -28.45 15.6 Pass Note: The antenna gain is compensated in the test data. Shenzhen DL Testing Technology Co., Ltd. Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 8 of 26 Band Edge NVNT a 5745MHz Low Ant1 Band Edge NVNT a 5825MHz High Ant1 Shenzhen DL Testing Technology Co., Ltd. Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 9 of 26 Band Edge NVNT n20 5745MHz Low Ant1 Band Edge NVNT n20 5825MHz High Ant1 Shenzhen DL Testing Technology Co., Ltd. Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 10 of 26 Band Edge NVNT n40 5755MHz Low Ant1 Band Edge NVNT n40 5795MHz High Ant1 Shenzhen DL Testing Technology Co., Ltd. Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 11 of 26 Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Output Power (dBm) Duty factor (dB) Total Output Power(dBm) Limit (dBm) Verdict NVNT a 5745 Ant1 7.93 6.99 14.92 30 Pass NVNT a 5785 Ant1 7.759 7.17 14.929 30 Pass NVNT a 5825 Ant1 6.83 7.13 13.96 30 Pass NVNT n20 5745 Ant1 8.766 7.28 16.046 30 Pass NVNT n20 5785 Ant1 8.553 7.44 15.993 30 Pass NVNT n20 5825 Ant1 8.378 7.28 15.658 30 Pass NVNT n40 5755 Ant1 6.059 9.39 15.449 30 Pass NVNT n40 5795 Ant1 5.448 9.39 14.838 30 Pass Shenzhen DL Testing Technology Co., Ltd. Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 12 of 26 -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT a 5745 Ant1 15.98 0.5 Pass NVNT a 5785 Ant1 16.1 0.5 Pass NVNT a 5825 Ant1 16.37 0.5 Pass NVNT n20 5745 Ant1 17.36 0.5 Pass NVNT n20 5785 Ant1 17.3 0.5 Pass NVNT n20 5825 Ant1 17.28 0.5 Pass NVNT n40 5755 Ant1 35.6 0.5 Pass NVNT n40 5795 Ant1 35.52 0.5 Pass Shenzhen DL Testing Technology Co., Ltd. Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 13 of 26 -6dB Bandwidth NVNT a 5745MHz Ant1 -6dB Bandwidth NVNT a 5785MHz Ant1 Shenzhen DL Testing Technology Co., Ltd. Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 14 of 26 -6dB Bandwidth NVNT a 5825MHz Ant1 -6dB Bandwidth NVNT n20 5745MHz Ant1 Shenzhen DL Testing Technology Co., Ltd. Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 15 of 26 -6dB Bandwidth NVNT n20 5785MHz Ant1 -6dB Bandwidth NVNT n20 5825MHz Ant1 Shenzhen DL Testing Technology Co., Ltd. Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 16 of 26 -6dB Bandwidth NVNT n40 5755MHz Ant1 -6dB Bandwidth NVNT n40 5795MHz Ant1 Shenzhen DL Testing Technology Co., Ltd. Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 17 of 26 Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT a 5745 Ant1 16.453 NVNT a 5785 Ant1 16.449 NVNT a 5825 Ant1 16.474 NVNT n20 5745 Ant1 17.67 NVNT n20 5785 Ant1 17.711 NVNT n20 5825 Ant1 17.681 NVNT n40 5755 Ant1 36.08 NVNT n40 5795 Ant1 36.082 Shenzhen DL Testing Technology Co., Ltd. Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 18 of 26 OBW NVNT a 5745MHz Ant1 OBW NVNT a 5785MHz Ant1 Shenzhen DL Testing Technology Co., Ltd. Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 19 of 26 OBW NVNT a 5825MHz Ant1 OBW NVNT n20 5745MHz Ant1 Shenzhen DL Testing Technology Co., Ltd. Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: service@…

Text truncated - open the document above for the full version.

Shenzhen DL Testing Technology Co., Ltd. Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 1 of 26 Appendix 1 FCC Test Report FCC ID: 2BSO7-SPAMW21XXE Applicant: SUNPLUS TECHNOLOGY CO., LTD. Address: 19, Innovation First Road Hsinchu Science Park, Taiwan 30076 Manufacturer: SUNPLUS TECHNOLOGY CO., LTD. Address: 19, Innovation First Road Hsinchu Science Park, Taiwan 30076 EUT: Wireless Audio Module Trade Mark: N/A Model Number: SPA-MW21xx-E Date of Receipt: Oct. 10, 2025 Test Date: Oct. 10, 2025 - Oct. 22, 2025 Date of Report: Oct. 22, 2025 Prepared By: Shenzhen DL Testing Technology Co., Ltd. Address: 101-201, Comprehensive Building, Tongzhou Electronics Longgang Factory Area, No.1 Baolong Fifth Road, Baolong Community, Baolong Street, Longgang District, Shenzhen, China Test Result: Pass Shenzhen DL Testing Technology Co., Ltd. Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 2 of 26 Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) NVNT a 5180 Ant1 20 6.99 NVNT a 5220 Ant1 20 6.99 NVNT a 5240 Ant1 20 6.99 NVNT n20 5180 Ant1 18.7 7.28 NVNT n20 5220 Ant1 18.03 7.44 NVNT n20 5240 Ant1 18.03 7.44 NVNT n40 5190 Ant1 11.5 9.39 NVNT n40 5230 Ant1 11.5 9.39 Shenzhen DL Testing Technology Co., Ltd. Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 3 of 26 Duty Cycle NVNT a 5180MHz Ant1 Duty Cycle NVNT a 5220MHz Ant1 Shenzhen DL Testing Technology Co., Ltd. Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 4 of 26 Duty Cycle NVNT a 5240MHz Ant1 Duty Cycle NVNT n20 5180MHz Ant1 Shenzhen DL Testing Technology Co., Ltd. Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 5 of 26 Duty Cycle NVNT n20 5220MHz Ant1 Duty Cycle NVNT n20 5240MHz Ant1 Shenzhen DL Testing Technology Co., Ltd. Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 6 of 26 Duty Cycle NVNT n40 5190MHz Ant1 Duty Cycle NVNT n40 5230MHz Ant1 Shenzhen DL Testing Technology Co., Ltd. Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 7 of 26 Conducted Band Edge Condition Mode Frequency (MHz) Antenna Max Value (dBm) Limit (dBm) Verdict NVNT a 5180 Ant1 -38.75 -27 Pass NVNT a 5240 Ant1 -41.94 -27 Pass NVNT n20 5180 Ant1 -35.82 -27 Pass NVNT n20 5240 Ant1 -41.8 -27 Pass NVNT n40 5190 Ant1 -50.03 -27 Pass NVNT n40 5230 Ant1 -42.22 -27 Pass Note: The antenna gain is compensated in the test data. Shenzhen DL Testing Technology Co., Ltd. Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 8 of 26 Band Edge NVNT a 5180MHz Low Ant1 Band Edge NVNT a 5240MHz High Ant1 Shenzhen DL Testing Technology Co., Ltd. Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 9 of 26 Band Edge NVNT n20 5180MHz Low Ant1 Band Edge NVNT n20 5240MHz High Ant1 Shenzhen DL Testing Technology Co., Ltd. Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 10 of 26 Band Edge NVNT n40 5190MHz Low Ant1 Band Edge NVNT n40 5230MHz High Ant1 Shenzhen DL Testing Technology Co., Ltd. Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 11 of 26 Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Output Power (dBm) Duty Factor (dB) Total Output Power (dBm) Limit (dBm) Verdict NVNT a 5180 Ant1 7.57 6.99 14.56 24 Pass NVNT a 5220 Ant1 6.489 6.99 13.479 24 Pass NVNT a 5240 Ant1 7.046 6.99 14.036 24 Pass NVNT n20 5180 Ant1 6.671 7.28 13.951 24 Pass NVNT n20 5220 Ant1 5.153 7.44 12.593 24 Pass NVNT n20 5240 Ant1 6.172 7.44 13.612 24 Pass NVNT n40 5190 Ant1 4.482 9.39 13.872 24 Pass NVNT n40 5230 Ant1 5.609 9.39 14.999 24 Pass Shenzhen DL Testing Technology Co., Ltd. Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 12 of 26 -26dB Bandwidth Condition Mode Frequency (MHz) Antenna -26 dB Bandwidth (MHz) Verdict NVNT a 5180 Ant1 20.81 Pass NVNT a 5220 Ant1 21.05 Pass NVNT a 5240 Ant1 20.44 Pass NVNT n20 5180 Ant1 22.48 Pass NVNT n20 5220 Ant1 22.89 Pass NVNT n20 5240 Ant1 22.76 Pass NVNT n40 5190 Ant1 38.68 Pass NVNT n40 5230 Ant1 56.83 Pass Shenzhen DL Testing Technology Co., Ltd. Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 13 of 26 -26dB Bandwidth NVNT a 5180MHz Ant1 -26dB Bandwidth NVNT a 5220MHz Ant1 Shenzhen DL Testing Technology Co., Ltd. Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 14 of 26 -26dB Bandwidth NVNT a 5240MHz Ant1 -26dB Bandwidth NVNT n20 5180MHz Ant1 Shenzhen DL Testing Technology Co., Ltd. Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 15 of 26 -26dB Bandwidth NVNT n20 5220MHz Ant1 -26dB Bandwidth NVNT n20 5240MHz Ant1 Shenzhen DL Testing Technology Co., Ltd. Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 16 of 26 -26dB Bandwidth NVNT n40 5190MHz Ant1 -26dB Bandwidth NVNT n40 5230MHz Ant1 Shenzhen DL Testing Technology Co., Ltd. Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 17 of 26 Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT a 5180 Ant1 16.447 NVNT a 5220 Ant1 16.476 NVNT a 5240 Ant1 16.483 NVNT n20 5180 Ant1 17.704 NVNT n20 5220 Ant1 17.709 NVNT n20 5240 Ant1 17.769 NVNT n40 5190 Ant1 36.034 NVNT n40 5230 Ant1 36.15 Shenzhen DL Testing Technology Co., Ltd. Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 18 of 26 OBW NVNT a 5180MHz Ant1 OBW NVNT a 5220MHz Ant1 Shenzhen DL Testing Technology Co., Ltd. Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 19 of 26 OBW NVNT a 5240MHz Ant1 OBW NVNT n20 5180MHz Ant1 Shenzhen DL Testing Technology Co., Ltd. Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 20 of 26 OBW NVNT n20 5220MHz Ant1 OB…

Text truncated - open the document above for the full version.

深圳星源创科技有限公司 Shen Zhen Xing Yuan Chuang Technology Co., Ltd 地址：深圳市宝安区福永镇福海街道塘尾股份商务大厦1506 Address:1506,Tangwei Business Building,Fuhai Street,Fuyong Town,Baoan District,Shenzhen Tel：0755-82103639 QQ：487580356 Email：[email protected] 规 格 承 认 书 Approval Sheet 客户名称 Customer 英卡 日期 Data 2025/05/14 产品名称 Product Antenna 客户机型 Models 料号 P/N 客户料号 Customer P/N 规格描述 Specifications 供应商承认签印 Vender Approved By 客户承认签印 Customer Approved By Checked By:Checked By: Audit By:Audit By: Approval By:Approval By: 文件修订履历表 版本 Version 修订内容 Revise The Content 修订人 Revused 核准 Approval 修订日期 Date 备注 Note 深圳星源创科技有限公司 Shen Zhen Xing Yuan Chuang Technology Co., Ltd 地址：深圳市宝安区福永镇福海街道塘尾股份商务大厦1506 Address:1506,Tangwei Business Building,Fuhai Street,Fuyong Town,Baoan District,Shenzhen Tel：0755-82103639 QQ：487580356 Email：[email protected] Con te nt NO.ProectPage NO. 1Specification3 2Antenna Placement4 3Test Data5~~9 4Antenna Assembly10 5Notes11 深圳星源创科技有限公司 Shen Zhen Xing Yuan Chuang Technology Co., Ltd 地址：深圳市宝安区福永镇福海街道塘尾股份商务大厦1506 Address:1506,Tangwei Business Building,Fuhai Street,Fuyong Town,Baoan District,Shenzhen Tel：0755-82103639 QQ：487580356 Email：[email protected] Specification 1.1 Electrical Properties CharacteristicsSpecifications Working Band BT 2.4G WiFi/5G WiFi Antenna FromPIFA Impedance50Ω PolarizationLinear Peak Effi 44%@BT； 44%@2.4G； 45%@5G Peak Gain -0.1dBi@BT； [email protected]； 2.02dBi@5G 1.2 Physical Properties CharacteristicsSpecifications Operating Temp -10°C~+60°C Storage Temp -10°C~+70°C Humidity10~95%RH 深圳星源创科技有限公司 Shen Zhen Xing Yuan Chuang Technology Co., Ltd 地址：深圳市宝安区福永镇福海街道塘尾股份商务大厦1506 Address:1506,Tangwei Business Building,Fuhai Street,Fuyong Town,Baoan District,Shenzhen Tel：0755-82103639 QQ：487580356 Email：[email protected] BT/2.4GWIFI/5GWIFI ANT 深圳星源创科技有限公司 Shen Zhen Xing Yuan Chuang Technology Co., Ltd 地址：深圳市宝安区福永镇福海街道塘尾股份商务大厦1506 Address:1506,Tangwei Business Building,Fuhai Street,Fuyong Town,Baoan District,Shenzhen Tel：0755-82103639 QQ：487580356 Email：[email protected] Test Data S11 Parameter-VSWR WiFi Active Test Data 深圳星源创科技有限公司 Shen Zhen Xing Yuan Chuang Technology Co., Ltd 地址：深圳市宝安区福永镇福海街道塘尾股份商务大厦1506 Ad dress:1506,Tangwei Business Building,Fuhai Street,Fuyong Town,Baoan District,Shenzhen Tel：0755-82103639 QQ：487580356 Email：[email protected] Ef f iciency Table（2.4G） / B T 深圳星源创科技有限公司 Shen Zhen Xing Yuan Chuang Technology Co., Ltd 地址：深圳市宝安区福永镇福海街道塘尾股份商务大厦1506 Ad dress:1506,Tangwei Business Building,Fuhai Street,Fuyong Town,Baoan District,Shenzhen Tel：0755-82103639 QQ：487580356 Email：[email protected] Ef f i ciency Table（5G） 深圳星源创科技有限公司 Shen Zhen Xing Yuan Chuang Technology Co., Ltd 地址：深圳市宝安区福永镇福海街道塘尾股份商务大厦1506 Ad dress:1506,Tangwei Business Building,Fuhai Street,Fuyong Town,Baoan District,Shenzhen Tel：0755-82103639 QQ：487580356 Email：[email protected] R a diation Pattern（2.4G） Radiation Pattern （ 5G ） 深圳星源创科技有限公司 Shen Zhen Xing Yuan Chuang Technology Co., Ltd 地址：深圳市宝安区福永镇福海街道塘尾股份商务大厦1506 Ad dress:1506,Tangwei Business Building,Fuhai Street,Fuyong Town,Baoan District,Shenzhen Tel：0755-82103639 QQ：487580356 Email：[email protected] W i Fi/BT Measured 深圳星源创科技有限公司 Shen Zhen Xing Yuan Chuang Technology Co., Ltd 地址：深圳市宝安区福永镇福海街道塘尾股份商务大厦1506 Ad dress:1506,Tangwei Business Building,Fuhai Street,Fuyong Town,Baoan District,Shenzhen Tel：0755-82103639 QQ：487580356 Email：[email protected] A nt enna Assembly 132+3mm 105+2mm

Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-251010039R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 1 of 43 FCC Part 15E Test Report FCC ID: 2BSO7-SPAMW21XXE Applicant: SUNPLUS TECHNOLOGY CO., LTD. Address: 19, Innovation First Road Hsinchu Science Park, Taiwan 30076 Manufacturer: SUNPLUS TECHNOLOGY CO., LTD. Address: 19, Innovation First Road Hsinchu Science Park, Taiwan 30076 Product: Wireless Audio Module Trade Mark: N/A Model No.: SPA-MW21xx-E Date of Receipt: Oct. 10, 2025 Test Date: Oct. 10, 2025 - Oct. 22, 2025 Date of Report: Oct. 22, 2025 Prepared By: Shenzhen DL Testing Technology Co., Ltd. Address: 101-201, Comprehensive Building, Tongzhou Electronics Longgang Factory Area, No.1 Baolong Fifth Road, Baolong Community, Baolong Street, Longgang District, Shenzhen, China Applicable Standards: FCC PART 15 E 15.407 ANSI C63.10:2020 Test Result: Pass Report Number: DLE-251010039R Prepared (Test Engineer): Ken Tan Reviewer (Supervisor): Jack Bu Approved (Manager): Jade Yang This test report is based on a single evaluation of one sample of above mentioned products. It is not permitted to be duplicated in extracts without written approval of Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-251010039R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 2 of 43 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 4 1.1 MEASUREMENT UNCERTAINTY 5 2 . GENERAL INFORMATION 6 2.1 GENERAL DESCRIPTION OF EUT 6 2.2 DESCRIPTION OF TEST MODES 8 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 9 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 9 2.5 TABLE OF PARAMETERS OF TEST SOFTWARE SETTING 9 2.6 EQUIPMENTS LIST FOR ALL TEST ITEMS 10 3 . EMC EMISSION TEST 11 3.1 CONDUCTED EMISSION MEASUREMENT 11 3.1.1 POWER LINE CONDUCTED EMISSION Limits 11 3.1.2 TEST PROCEDURE 11 3.1.3 DEVIATION FROM TEST STANDARD 11 3.1.4 TEST SETUP 12 3.1.5 EUT OPERATING CONDITIONS 12 3.1.6 TEST RESULTS 12 3.2 RADIATED EMISSION MEASUREMENT 13 3.2.1 Radiated Emission Limits 13 3.2.2 TEST PROCEDURE 14 3.2.3 DEVIATION FROM TEST STANDARD 14 3.2.4 TEST SETUP 15 3.2.5 EUT OPERATING CONDITIONS 16 3.2.6 TEST RESULTS (Between 9KHz – 30 MHz) 17 3.2.7 TEST RESULTS (Between 30MHz – 1GHz) 18 3.2.8 TEST RESULTS (1ghz~40ghZ) 20 3.3 RADIATED BAND EMISSION MEASUREMENT 26 3.3.1 Test Requirement: 26 3.3.2 TEST PROCEDURE 27 3.3.3 DEVIATION FROM TEST STANDARD 27 3.3.4 TEST SETUP 27 3.3.5 EUT OPERATING CONDITIONS 27 3.4 Conducted Band EMISSION MEASUREMENT 34 3.4.1 Test Requirement: 34 3.4.2 TEST PROCEDURE 34 3.4.3 DEVIATION FROM TEST STANDARD 34 3.4.4 TEST SETUP 34 3.4.5 EUT OPERATING CONDITIONS 34 4 . Conducted Output Power 35 4.1 Applied procedures / limit 35 4.1.1 TEST PROCEDURE 35 4.1.2 DEVIATION FROM STANDARD 35 4.1.3 TEST SETUP 35 4.1.4 EUT OPERATION CONDITIONS 35 4.1.5 TEST RESULTS 35 5 . POWER SPECTRAL DENSITY TEST 36 5.1 Applied procedures / limit 36 Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-251010039R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 3 of 43 Table of Contents Page 5.1.1 TEST PROCEDURE 36 5.1.2 DEVIATION FROM STANDARD 36 5.1.3 TEST SETUP 36 5.1.4 EUT OPERATION CONDITIONS 36 5.1.5 TEST RESULTS 36 6 . 6Db&26Db&99% BANDWIDTH TEST 37 6.1 Applied procedures / limit 37 6.1.1 TEST PROCEDURE 37 6.1.2 DEVIATION FROM STANDARD 37 6.1.3 TEST SETUP 37 6.1.4 EUT OPERATION CONDITIONS 38 6.1.5 TEST RESULTS 38 7 . DUTY CYCLE TEST SIGNAL 39 7.1 Applied procedures / limit 39 7.1.1 TEST PROCEDURE 39 7.1.2 DEVIATION FROM STANDARD 39 7.1.3 TEST SETUP 39 7.1.4 EUT OPERATION CONDITIONS 39 7.1.5 TEST RESULTS 39 8 . FREQUENCY STABILITY 40 8.1 Applied procedures / limit 40 8.1.1 TEST PROCEDURE 40 8.1.2 DEVIATION FROM STANDARD 40 8.1.3 TEST SETUP 40 8.1.4 EUT OPERATION CONDITIONS 40 8.1.5 TEST RESULTS 41 9 . TRANSMISSION IN THE ABSENCE OF DATA 43 9.1 STANDARD REQUIREMENT 43 9.2 tEST Result 43 10 . ANTENNA REQUIREMENT 43 10.1 STANDARD REQUIREMENT 43 10.2 EUT ANTENNA 43 11 . TEST SEUUP PHOTO 43 12 . EUT PHOTO 43 Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-251010039R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 4 of 43 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.407) , Subpart E Standard Section Test Item Judgment Remark 15.207 Conducted Emission N/A 15.407(b), 15.205, 15.209 Radiated Spurious Emission PASS 15.407(b), 15.205, 15.209 Band Edge Emission PASS 15.407 (a) Maximum Conducted Output Power PASS 15.407 (a) Power Spectral Density PASS 15.407(a) (e) 26dB bandwidth and 99%dB Bandwidth 6dB bandwidth and 99%dB Bandwidth PASS 15.407(g) Frequency Stability PASS 15.407(c) Transmission in case of Absence of Information PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Test lab: Shenzhen DL Testing Technology Co., Ltd. Address: 101-201, Comprehensive Building, Tongzhou Electronics Longgang Factory Area, No.1 Baolong Fifth Road, Baolong Community, Baolong Street, Longgang District, Shenzhen, China FCC Test Firm Registration Number: 854456 Designation Number: CN1307 IC Registered No.: 27485 CAB ID.: CN0118 Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-251010039R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 5 of 43 1.1 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±2.56dB 2 RF power,conducted ±0.42dB 3 Spurious emissions,conducted ±2.76dB 4 All emissions,radiated(<30MHz) ±3.54dB 5 All emissions,radiated(<1G) ±3.65dB 6 All emissions,radiated(>1G) ±4.89dB 7 Occupied bandwidth ±0.2% 8 PSD ±0.69dB 9 Temperature ±0.5°C 10 Humidity ±2% 11 Time ±2% Shenzhen DL…

Text truncated - open the document above for the full version.

FCC ID: 2BSO7-SPAMW21XXE RF Exposure Evaluation Limits KDB 447498 D01 General RF Exposure Guidance v06 FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 f = frequency in MHz Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 , Pout = output power to antenna in mW; G = gain of antenna in linear scale, Pi = 3.1416; R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. EIRP=EMeas+20log(dMeas)-104.7 EIRP is the equivalent isotropically radiated power, in dBm EMeas is the field strength of the emission at the measurement distance, in dBμV/m dMeas is the measurement distance, in m Test Result of RF Exposure Evaluation wifi 2.4G mode Channel Output power to antenna (dBm) Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 802.11b 13.70 23.4423 0.00456 1.0 PASS 802.11g 14.23 26.4850 0.00515 1.0 PASS 802.11n HT20 13.97 24.9459 0.00485 1.0 PASS 802.11n HT40 11.78 15.0661 0.00293 1.0 PASS Remark: antenna gain=-0.1dBi wifi 5G mode: Band Channel Output power to antenna (dBm) Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result Band 1 802.11a 14.56 28.5759 0.00905 1.0 PASS 802.11n HT20 13.951 24.8370 0.00787 1.0 PASS 802.11n HT40 14.999 31.6155 0.01001 1.0 PASS Band Channel Output power to antenna (dBm) Ou…

Text truncated - open the document above for the full version.
