2BSOE-Q-IRCUnderwater Camera Remote Control FIFISH Controller Q-iRC

USER MANUAL Industrial Remote Control (Q-iRC) V1.0 Contents Safety Rules················································ 01 Product Specification········································02 Usage Instruction··········································· 03 Feature Overview··········································· 04 Connection················································· 07 Operation·················································· 10 Calibration················································· 20 Charging··················································· 24 Maitenance and After-sales Support·························· 25 Disclaimer·················································· 26 Before operating FIFISH products, please be sure to receive relevant training and take practices, and read this document thoroughly before performing underwater operations. Operations in violation of QYSEA safety rules may result in the consequence that your safety and interests cannot be guaranteed. 1. Regarding the damages to accessories and underwater ROV caused by unauthorized modification, disassembly or opening in violation of regulations, or damages to accessories and underwater ROV caused by improper installation, improper use or operations not in accordance with official regulations, QYSEA doesn’t bear any legal responsibility and the warranty will also be ineffective. 2. When installing the accessories, the underwater ROV shall be shut down. 3. Please check whether all the parts of the QY-IRC are complete. If there is any part missing, please contact QYSEA after-sales service personnel in a timely manner. 4. Please check whether all interfaces, plug-ins and O-rings are kept dry and tidy, otherwise they should be replaced as soon as possible. 01/Safety Rules 01 Specification Dimension292mm(L)x160mm(W)x80mm(H) Weight1420g Screen Size7inch Screen Brightness1500nits Resolution1920*1200 Operating SystemAndroid 13.0 Capacity10400mAh 7.2V Li-ion Battery Life8 hrs Power Consumption9W Charging PortUSB TYPE-C Charging Time4.5 hrs WiFi band2.4/5 GHz IP RatingIP54 Working Temp.-20°C~ +40°C Storage Temp.-30°C~ +65°C Operating Humidity5%~95% 02 02/Product Specification Precautions before usage 1.Before usage, please check whether all accessory interfaces, plug-ins, and O-rings are damaged or missing, and whether they are kept dry and clean. 2.Check the battery level of the underwater ROV to ensure that there is sufficient and stable power. 3. Please check the completeness of the accessories, and make sure that the accessories can work normally when conducting electrical tests on land. 4. Before putting the ROV in the water, please check and ensure the connection between the accessories and the ROV is sealed to be watertight. 5. Check and ensure the underwater ROV and the remote control are working normally. 6. Check the batteries of mobile phones, tablet PCs and laptops. 7.After-sales service email: [email protected] 03 03/Usage Instructions 1 2 3 5 4 6 7 8 9 10 Please review the remote controller's features below. 04 04/Feature Overview 1.Left Control Stick 2.Right Control Stick 3. Custom Button L1 4. Depth Hold Button A 5. Custom Button L2 6. Power Button 7.Custom Button R1 8. APP Toolbox Control Button ØSingle Press: Open/Confirm ØLong Press: Cancel 9. Custom Button R2 10. Unlock/Lock Button H 1 7 2 9 10 34 5 6 8 11 12 1314 7.Control Mode ØAttitude / Sport / Combination 8. Record Button C 9. Right Scroll Wheel 10. Left Scroll Wheel 11. Custom Button K2 12. Custom Button K1 05 1516 1.Capture Button D 2.LED Light Brightness Adjustment ØSettings: Off / Level 1 / Level 2 3. USB-C 4. USB-A 5. TF Card Slot 6. HDMI Port 13. PLC Port 14. Network Port 15. Custom Button K4 16. Custom Button K3 04/Feature Overview Please review the remote controller's features below. 3 4 Please review the definitions for the cables below. 06 1.3.5mm Female Connector ØConnect to the 3.5mm connector on the tether spool 2.PLC Connector ØConnect to the PLC port on the remote controller 1 2 PLC Cable Network Cable 3. RJ45 Connector ØFor computer connectivity with software including QYMT measurement software. 4. 4-pin Female Connector ØConnect to the network port on the screened remote 04/Feature Overview 05/Connection 1. Connection Settings 1.1. Connect the PLC cable: PLC connector to the screened remote's PLC port, the other end to the tether spool's 3.5mm connector. 07 1.2. To complete the connection, connect the tether spool to the underwater ROV. 08 05/Connection 1.3. Short press the power button, followed by a two-second long press, to activate the remote controller and the ROV. (Note: To turn off the controller, tap the power button once, then press and hold. ) 09 1.4. Open the FIFISH app and select view the ROV's connection status. 05/Connection 1. RCTool Setup 1.1. Click the "RCTool" and navigate to "Remote Controller" -> "System Settings." 1.2. Scroll down to "USB Settings," then tap "Video Transfer" under "USB Setting." The remote controller's Type-C port will function for charging. 06/Operation 10 1.3. Select "Data Transfer" under "USB Setting." The remote controller's Type-C port will then enter data transfer mode for transferring data to the computer. ( Note: The USB-A port facilitates data transfer from the remote control to a USB flash drive or SD card reader. ) 1.4. To check the firmware version, tap "Upgrade"; to view the display remote controller's serial number and hardware version, tap "Version." 11 06/Operation 1.5. For using specific computer software like QYMT, connect the computer to the remote controller's hotspot network. 1.6. To connect, join the remote controller's hotspot and input the password "1234567890." 12 06/Operation 1234567890 2. Data Copy (Method 1) 2.1. Insert the USB drive into the Type-A port before copying the data. ( Note: Please ensure the USB drive is formatted to FAT32.) 2.2. Open the FIFISH APP, tap “Media” to view, and select “Camera” to browse the data. 13 06/Operation 2.3. Press and hold t…

Text truncated - open the document above for the full version.

Shenzhen QYSEA Tech Co.,LTD Covered Equipment Certification Attestation Letter 11/25/2025 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: 2BSOE-Q-IRC Shenzhen QYSEA Tech Co.,LTD (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. Shenzhen QYSEA Tech Co.,LTD (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Shenzhen QYSEA Tech Co.,LTD (“the applicant”) certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Signed: Printed name: Tang Junping Title: Manager Company Name: Shenzhen QYSEA Tech Co.,LTD Date: 11/25/2025

Shenzhen QYSEA Tech Co.,LTD U.S. Agent Letter of Attestation To: Federal Communications Commission 7435 Oakland Mills Road, Columbia, MD 21046, USA Date: November 25, 2025 Ref: Attestation Statement – Part 2.911(d)(7) filing FCC ID: 2BSOE-Q-IRC Shenzhen QYSEA Tech Co.,LTD(“the applicant”) certifies that, as of the date of the filing of the application, CLF Import and Export Limited (“the agent”) is our designated U.S. agent for service of process for the above reference FCC ID. The applicant accepts to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. The applicant further acknowledges it is our responsibility to inform the FCC whenever the agent information changes. CLF Import and Export Limited ("the agent) understand it is the agent's obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address. Designated U.S. Agent Company Name: CLF Import and Export Limited FRN: 0033489683 Address: 1312 17th Street #692, Denver, CO 80202, United States Signature: Contact Person: David Chen Tel: +1 949 254 2565 Email: [email protected] Applicant Shenzhen QYSEA Tech Co.,LTD FRN: 0037534773 Address: 1/F, Phase 2, Galaxy Incubator No.1 YaNan Road, Bantian Street Longgang District, Shenzhen, Guangdong, China Signature: Contact Person: Tang Junping Tel: +86-15013729253 Email: [email protected]

Shenzhen QYSEA Tech Co.,LTD Model Difference Statement Dear Sir/Madam, FCC ID: 2BSOE-Q-IRC Added models BCM01, QCA01 basis of the original product Q-iRC The color of appearance and model name of series models listed are different from the main model, but the circuit and the electronic construction are the same, declared by the manufacturer. Sincerely, Name: Tang Junping Company name: Shenzhen QYSEA Tech Co.,LTD Address: 1/F, Phase 2, Galaxy Incubator No.1 YaNan Road, Bantian Street Longgang District, Shenzhen, Guangdong, China

DATE: November 25, 2025 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2BSOE-Q-IRC Product Name: Underwater Camera Remote Control FIFISH Controller Q-iRC Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name: Tang Junping Title: Manager Company: Shenzhen QYSEA Tech Co.,LTD

Date: November 25, 2025 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Compliance Testing, LLC to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). Sincerely, <Signature> Name: Tang Junping Title: Manager Company: Shenzhen QYSEA Tech Co.,LTD

DATE: November 25, 2025 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Shenzhen CCUT Quality Technology Co., Ltd. (1F, Building 35, Changxing Technology Indstrl Park Changzhen Community, Yutang Street,Shenzhen,China) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Shenzhen QYSEA Tech Co.,LTD ( 1/F, Phase 2, Galaxy Incubator No.1 YaNan Road, Bantian Street Longgang District, Shenzhen, Guangdong, China). <Signature> Name: Tang Junping Title: Manager Applicant Company: Shenzhen QYSEA Tech Co.,LTD

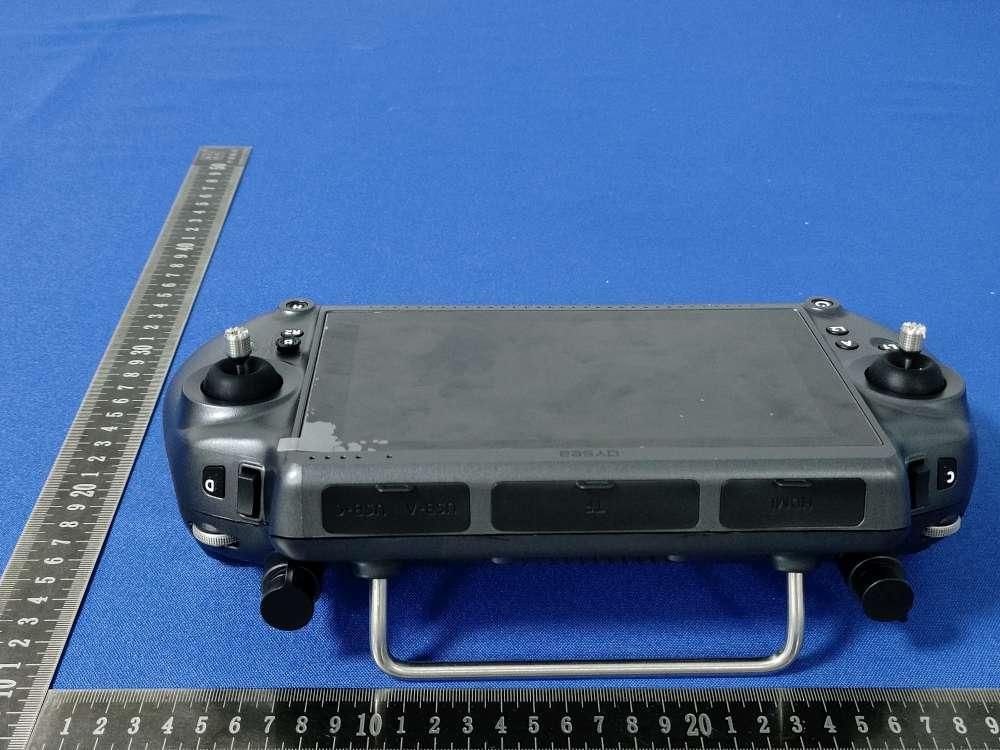

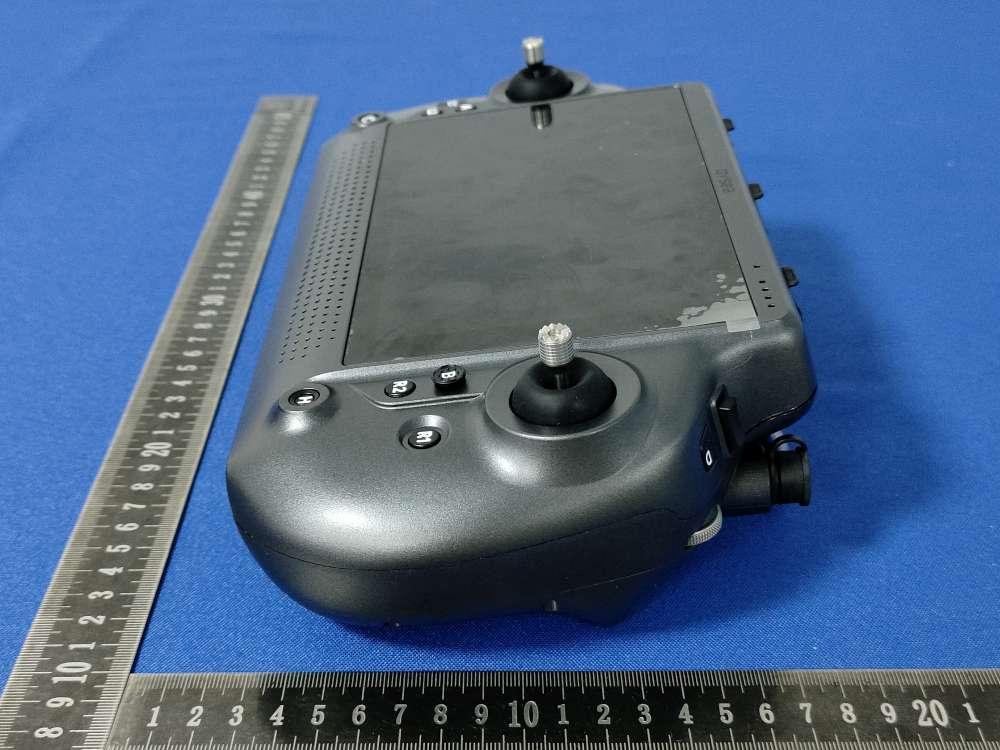

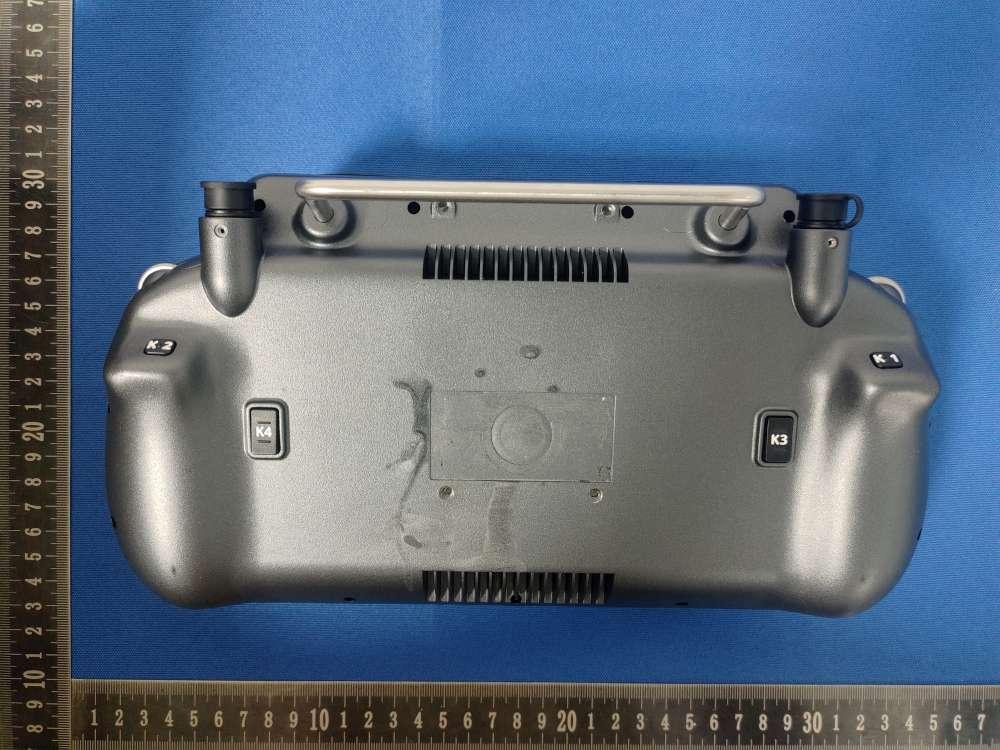

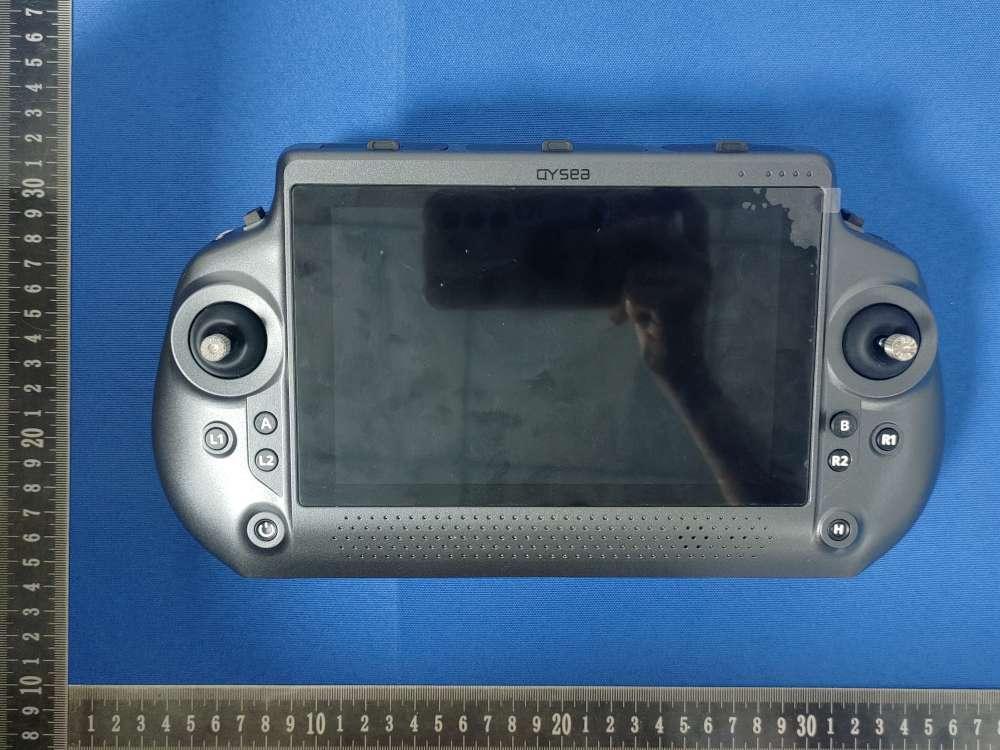

Report No: SSP25070302-1&2&3&4E FCC ID: 2BSOE-Q-IRC Annex of Test Report Annex A. EUT External Photos Model：Q-iRC EUT View 1 EUT View 2 Report No: SSP25070302-1&2&3&4E FCC ID: 2BSOE-Q-IRC Annex of Test Report EUT View 3 EUT View 4 Report No: SSP25070302-1&2&3&4E FCC ID: 2BSOE-Q-IRC Annex of Test Report EUT View 5 EUT View 6 Report No: SSP25070302-1&2&3&4E FCC ID: 2BSOE-Q-IRC Annex of Test Report EUT View 7 EUT View 8

Report No: SSP25070302-1&2&3&4E FCC ID: 2BSOE-Q-IRC Annex of Test Report Annex D. Label and Information FCC Label Sample FCC Labe Size: 3cm x 2cm FCC Label Specifications Text is Black in color and is justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Where the EUT is constructed in two or more sections connected by wires and marketed together, the above statement is required to be affixed only to the main control unit. When the EUT is so small or for such use that it is not practicable to place the statement on it, the above information shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. FCC Label Location Label Location

Report No: SSP25070302-1&2&3&4E FCC ID: 2BSOE-Q-IRC Annex of Test Report Annex B. EUT Internal Photos Model：Q-iRC EUT Internal View 1 EUT Internal View 2 ANT Location Report No: SSP25070302-1&2&3&4E FCC ID: 2BSOE-Q-IRC Annex of Test Report EUT Internal View 3 EUT Internal View 4 Report No: SSP25070302-1&2&3&4E FCC ID: 2BSOE-Q-IRC Annex of Test Report EUT Internal View 5 EUT Internal View 6 Report No: SSP25070302-1&2&3&4E FCC ID: 2BSOE-Q-IRC Annex of Test Report EUT Internal View 7 EUT Internal View 8 Report No: SSP25070302-1&2&3&4E FCC ID: 2BSOE-Q-IRC Annex of Test Report EUT Internal View 9 EUT Internal View 10 Report No: SSP25070302-1&2&3&4E FCC ID: 2BSOE-Q-IRC Annex of Test Report EUT Internal View 11 EUT Internal View 12 Report No: SSP25070302-1&2&3&4E FCC ID: 2BSOE-Q-IRC Annex of Test Report EUT Internal View 13 EUT Internal View 14 FPCB ANT FPCB ANT GPS Receive Report No: SSP25070302-1&2&3&4E FCC ID: 2BSOE-Q-IRC Annex of Test Report EUT Internal View 15

FCC ID: 2BSOE-Q-IRC RF Exposure Evaluation According to KDB 447498 D01 General RF Exposure Guidance v06 and part 2.1093，Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition(s), listed below, is (are) satisfied. For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Here, The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. For BLE Max Conducted Power(dBm) Tune-up Power(dBm) Max Tune-up Power(dBm) Max Power(mW) Frequency(MHz) Min. distance(mm) Calc. thresholds limit -2.61 -2(±1) -1 0.79 2480 5 0.248818 3.0 For BR+EDR Max Conducted Power(dBm) Tune-up Power(dBm) Max Tune-up Power(dBm) Max Power(mW) Frequency(MHz) Min. distance(mm) Calc. thresholds limit 2.17 2(±1) 3 2 2480 5 0.629920 3.0 For 2.4GWIFI Max Conducted Power(dBm) Tune-up Power(dBm) Max Tune-up Power(dBm) Max Power(mW) Frequency(MHz) Min. distance(mm) Calc. thresholds limit 1.7 1(±1) 2 1.58 2412 5 0.490767 3.0 For 5.2GWIFI Max Conducted Power(dBm) Tune-up Power(dBm) Max Tune-up Power(dBm) Max Power(mW) Frequency(MHz) Min. distance(mm) Calc. thresholds limit -3.54 -3(±1) -2 0.63 5200 5 0.287324 3.0 For 5.8GWIFI Max Conducted Power(dBm) Tune-up Power(dBm) Max Tune-up Power(dBm) Max Power(mW) Frequency(MHz) Min. distance(mm) Calc. thresholds limit -4.48 -4(±1) -3 0.5 5745 5 0.239687 3.0 So a SAR test is not required

Page 1 of 4 1. General Information 1.1 Antenna Information Manufacturer: Wuxi Yuanchuan Rongchuang Technology Co., Ltd Address of Manufacturer: Wuxi New District Qingyan Road 32 A2 Building 801, 802, 901, 902 Product Name: FPCB Antenna Model Name: TS201A Frequency Range: 2400MHz – 2500MHz, 5150-5850MHz Type of Antenna: FPCB Antenna Antenna Gain: BT:0.56dBi, 2.4GWiFi:0.56dBi, 5GWiFi:1dBi (Max.) Impedance: 50 ohm Antenna View: Unit: mm Page 2 of 4 2. Antenna Specification information 2.1 Gain Frequency Peak Gain (dBi) Polarity 2400MHz 0.56 Horizontal 2400MHz 0.13 Vertical 2450MHz -1.54 Horizontal 2450MHz -1.78 Vertical 2500MHz -1.96 Horizontal 2500MHz -2.19 Vertical 5150MHz 1 Horizontal 5150MHz -1.5 Vertical 5500MHz 0.5 Horizontal 5500MHz -1.4 Vertical 5850MHz 0.2 Horizontal 5850MHz -2.2 Vertical Page 3 of 4 2.2 Radiation Pattern View Page 4 of 4

Report No: SSP25070302-2E FCC Test Report Page 1 of 51 FCC TEST REPORT FCC ID: 2BSOE-Q-IRC Report No. : SSP25070302-2E Applicant : Shenzhen QYSEA Tech Co.,LTD Product Name : Underwater Camera Remote Control FIFISH Controller Q-iRC Model Name : Q-iRC Test Standard : FCC Part 15.247 Date of Issue : 2025-10-17 Shenzhen CCUT Quality Technology Co., Ltd. 1F, Building 35, Changxing Technology Industrial Park, Yutang Street, Guangming District, Shenzhen, Guangdong, China; (Tel.:+86-755-23406590 website: www.ccuttest.com) This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd. Report No: SSP25070302-2E FCC Test Report Page 2 of 51 Test Report Basic Information Applicant..................................: Shenzhen QYSEA Tech Co.,LTD Address of Applicant...............: 1/F, Phase 2, Galaxy Incubator No.1 YaNan Road, Bantian Street Longgang District, Shenzhen, Guangdong, China Manufacturer..........................: Wuxi Yuanchuan Rongchuang Technology Co., Ltd Address of Manufacturer........: Wuxi New District Qingyan Road 32 A2 Building 801, 802, 901, 902 Product Name.........................: Underwater Camera Remote Control FIFISH Controller Q-iRC Brand Name.............................: - Main Model..............................: Q-iRC Series Models..........................: See section 1.1(page 5) Test Standard..........................: FCC Part 15 Subpart C ANSI C63.4-2014 ANSI C63.10-2020 Date of Test .............................: 2025-07-29 to 2025-08-22 Test Result...............................: PASS Tested By ................................: (Colin Chen) Reviewed By............................: (Lorzix Luo) Authorized Signatory............: (Lahm Peng) Note : This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd.. All test data presented in this test report is only applicable to presented test sample. Report No: SSP25070302-2E FCC Test Report Page 3 of 51 CONTENTS 1. General Information ....................................................................................................................................................5 1.1 Product Information .............................................................................................................................................5 1.2 Test Setup Information..........................................................................................................................................6 1.3 Compliance Standards ...........................................................................................................................................7 1.4 Test Facilities ........................................................................................................................................................7 1.5 List of Measurement Instruments ..........................................................................................................................8 1.6 Measurement Uncertainty .....................................................................................................................................9 2. Summary of Test Results ........................................................................................................................................... 10 3. Antenna Requirement ............................................................................................................................................... 11 3.1 Standard and Limit.............................................................................................................................................. 11 3.2 Test Result .......................................................................................................................................................... 11 4. Conducted Emissions ................................................................................................................................................ 12 4.1 Standard and Limit.............................................................................................................................................. 12 4.2 Test Procedure.................................................................................................................................................... 12 4.3 Test Data and Results .......................................................................................................................................... 13 5. Radiated Emissions ................................................................................................................................................... 16 5.1 Standard and Limit.............................................................................................................................................. 16 5.2 Test Procedure.................................................................................................................................................... 16 5.3 Test Data and Results .......................................................................................................................................... 18 6. Band-edge Emissions(Radiated) ............................................................................................................................... 22 6.1 Standard and Limit.............................................................................................................................................. 22 6.2 Test Procedure.................................................................................................................................................... 22 6.3 Test Data and Results ...................................................................................................................…

Text truncated - open the document above for the full version.

Report No: SSP25070302-1&2&3&4E FCC ID: 2BSOE-Q-IRC Annex of Test Report Annex C. Test Photos Conducted Emission Test View 1 Radiated Emission Test View 1 Radiated Emission Below 1GHz Report No: SSP25070302-1&2&3&4E FCC ID: 2BSOE-Q-IRC Annex of Test Report Radiated Emission Test View 2 Radiated Emission Above 1GHz Radio Test Setup View Report No: SSP25070302-1&2&3&4E FCC ID: 2BSOE-Q-IRC Annex of Test Report
