2BSOU-PDBEAMBluetooth Headset

ApplicantCompanyLetterhead U.S.AgentLetterofAttestation To:FederalCommunicationsCommissionDate:2025-11-24 7435OaklandMillsRoad,Columbia,MD21046,USA Ref:AttestationStatement–Part2.911(d)(7)filing FCCID:2BSOU-PDBEAM TrendsetstylecanadaINC.(“theapplicant”)certifiesthat,asofthedateofthefilingoftheapplication,JOC AustraliaInc(“theagent”)isourdesignatedU.S.agentforserviceofprocessfortheabovereferenceFCCID. TheapplicantacceptstomaintainanagentforserviceofprocessintheUnitedStatesfornolessthanone yearaftereitherthegranteehaspermanentlyterminatedallmarketingandimportationoftheapplicable equipmentwithintheU.S.,ortheconclusionofanyCommission-relatedadministrativeorjudicialproceeding involvingtheequipment,whicheverislater.Theapplicantfurtheracknowledgesitisourresponsibilityto informtheFCCwhenevertheagentinformationchanges. JOCAustraliaInc(“theagent”)understanditistheagent'sobligationtoacceptserviceofprocessinthe UnitedStatesformattersrelatedtotheapplicableequipment,andatthephysicalU.S.addressandemail address. APPLICANT CompanyName:TrendsetstylecanadaINC. ContactPerson:SaharShahidi Address:305MorrisseyRd,V3H0M3,portMoody,Canada Tel.:7789284324Email:[email protected] FRN:0037595469 U.S.Agent CompanyName:JOCAustraliaInc. ContactPerson:Benjamin.Smith/VicePresident Address::CASTLETONSTSTE665,CITYOFINDUSTRY,CA91748UnitedStatesofAmerica Tel.:+1(626)3413408Email:[email protected] FCCFRN:0033379421 Sincerelyyours, TheApplicantTheAgent CompanyNameTrendsetstylecanadaINC.JOCAustraliaInc ContactPersonSaharShahidi Benjamin.SmithVicePresident Signature

Applicant Company Letterhead Attestation Statements Not Covered Entity Applicant To: Federal Communications Commission Date: 2025-11-20 7435 Oakland Mills Road, Columbia, MD 21046, USA Ref: Information Required by Section 2.911(d)(5)(ii) filing FCC ID: 2BSOU-PDBEAM Trendset style canada INC. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely yours, Applicant Signature Printed Name: Sahar Shahidi Title: Director Address: 305 Morrissey Rd, V3H 0M3, port Moody, Canada Tel.: 7789284324 Email: [email protected]

Trendset style canada INC 305 Morrissey Rd, V3H 0M3, port Moody, Canada Attestation Statements Not Covered Equipment To: Federal Communications Commission Date: 2025-11-20 7435 Oakland Mills Road, Columbia, MD 21046, USA Ref: Information Required by Section 2.911(d)(5)(i) filing FCC ID: 2BSOU-PDBEAM Trendset style canada INC. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section § 2.903 of the FCC rules. Sincerely yours, Applicant Signature Printed Name: Sahar Shahidi Title: Director Address: 305 Morrissey Rd, V3H 0M3, port Moody, Canada Tel.: 7789284324 Email: [email protected]

TCB Authority to Act as Agent Number: MS-0045317 Revision: 0 Effective date: Oct 8, 2021 Page 1 of 1 The following is a sample Agency Request letter, which needs to be completed on company letterhead, signed by an authorized Applicant/Agent, and submitted to TÜV Rheinland. Authority to Act as Agent Date: _2025-11-20___ TUV Rheinland of North America, Inc. 1279 Quarry Lane., Suite. A Pleasanton, CA 94566 To Whom It May Concern: I appoint __________TÜV Rheinland (Shenzhen) Co., Ltd./Jonanthan Li_______ to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the FCC or Industry Canada’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by TUV Rheinland Group, still resides with ____Trendset style canada INC./ 305 Morrissey Rd, V3H 0M3, port Moody, Canada For TCB applications, We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Date: ___2025-11-20___________________ Agreement is valid for 12 months from the above date. By: _____ _____________________ ___ Sahar Shahidi ________ Signature) (Print name) __ Director __ 7789284324 (Title) (Telephone) On behalf of: Trendset style canada INC. (Company Name)

MS-0044715 Page 1 of 1 Revision 1 Company letter The following is a sample Confidentiality Request letter, which must be completed on Applicant company letterhead, signed by the Applicant or their authorized Agent, and submitted to TÜV Rheinland. Date: 2025-11-20 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road, Columbia, MD 21046, USA Subject: Confidentiality Request for FCC ID: 2BSOU-PDBEAM Pursuant to FCC 47 CRF 0.457(d), the applicant requests that a part of the subject FCC/IC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term n/a External Photo Short Term Permanent Internal Photos *** Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Schematics Short Term Permanent Test Setup*** Short Term Permanent Tune-Up Procedure Short Term Permanent User’s Manual Short Term Permanent Part List/ Antenna Gain Information Datasheet Trendset style canada INC. has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. (*** Exceptional case for Permanent Confidentiality for these Exhibits by PAG only) Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of specify number of days not to exceed 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify TUV Rheinland in the event information regarding the product or the product is made available to the public. TUV Rheinland will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely, By: ______________________________________ ___ Sahar Shahidi/Director__ (Signature/Title) (Print name) Tel: 7789284324 Email: [email protected]

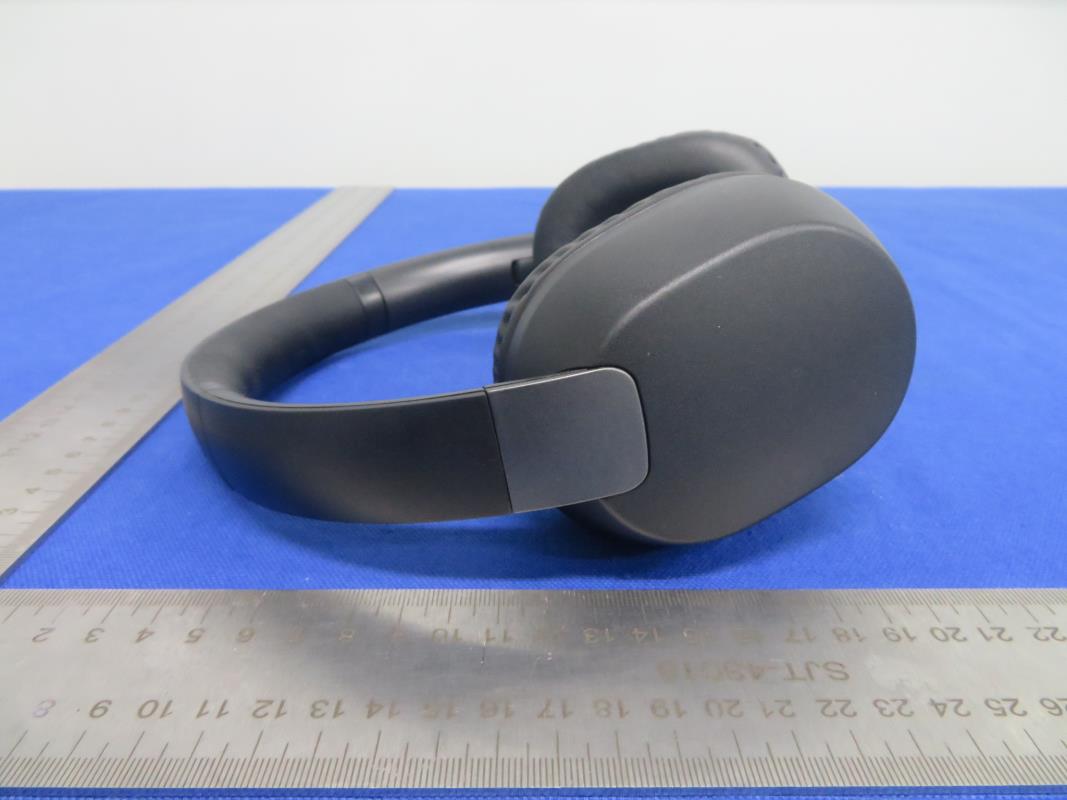

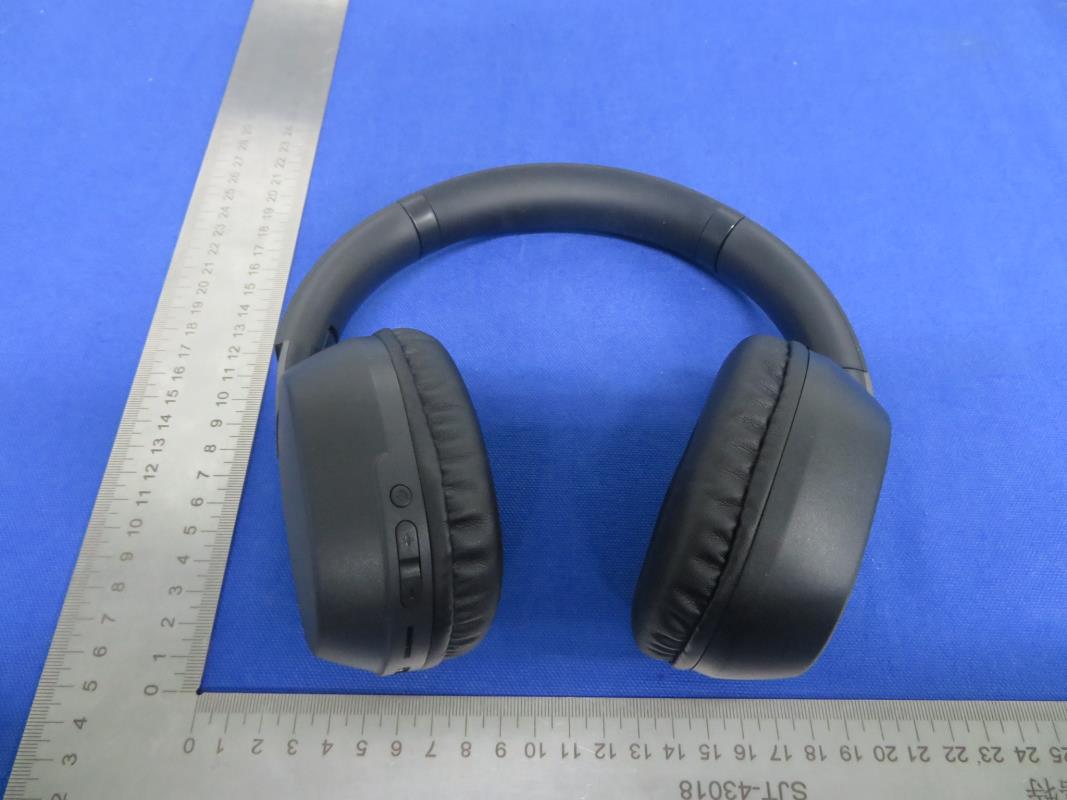

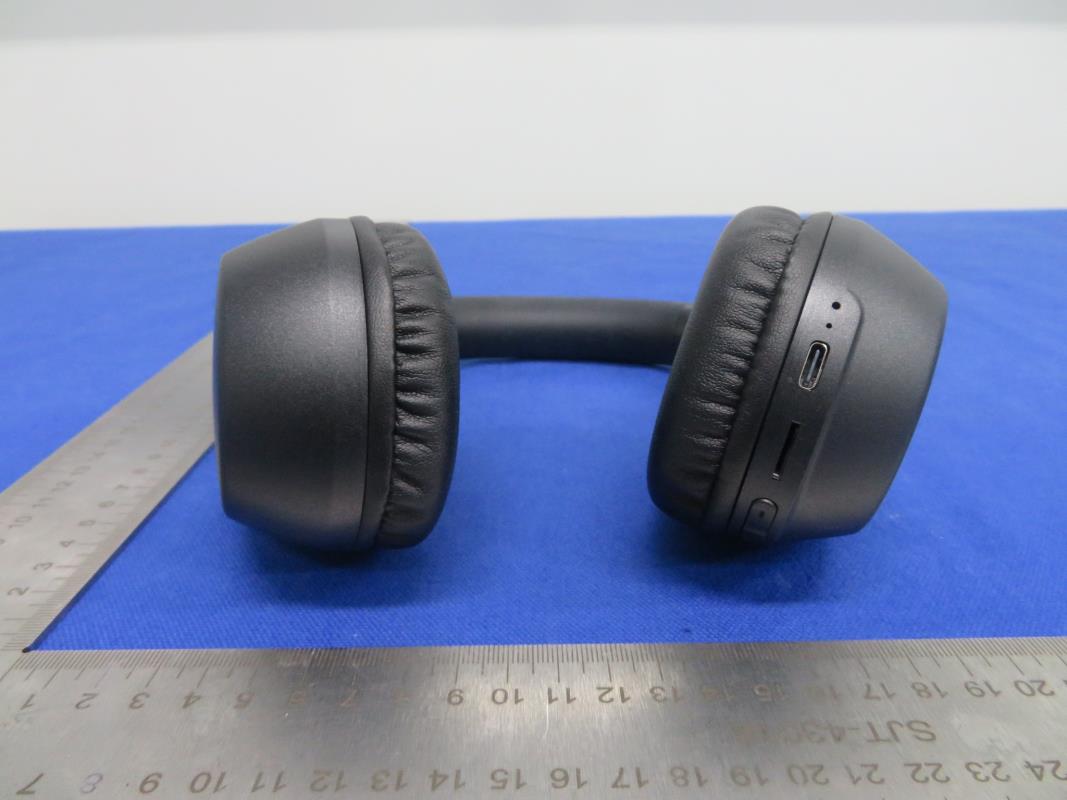

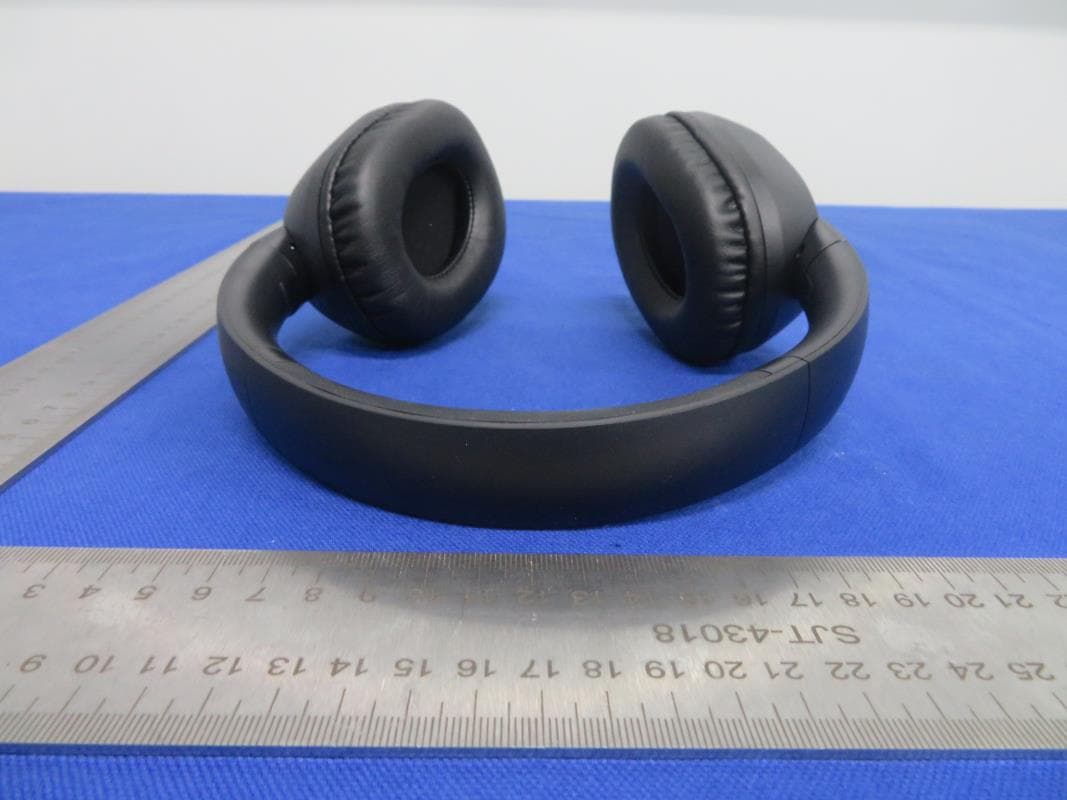

Page 1 of 3 FCC ID: 2BSOU-PDBEAM Page 2 of 3 FCC ID: 2BSOU-PDBEAM Page 3 of 3 FCC ID: 2BSOU-PDBEAM

Label and Location

Prüfbericht - Produkte Test Report - Products Prüfbericht-Nr.: Test report no.: CN2526LR 003 Auftrags-Nr.: Order no.: 168584080 Seite 1 von 7 Page 1 of 7 Kunden-Referenz-Nr.: Client reference no.: N/A Auftragsdatum: Order date: 2025-10-31 Auftraggeber: Client: Trendset style canada INC 305 Morrissey Rd, V3H 0M3, port Moody, Canada Prüfgegenstand: Test item: Bluetooth Headset Bezeichnung / Typ-Nr.: Identification / Type no.: PDBEAM Auftrags-Inhalt: Order content: Test Report Prüfgrundlage: Test specification: CFR Title 47 FCC Part 2: Section 2.1091 Wareneingangsdatum: Date of sample receipt: 2025-11-07 Please refer to Photo Document Prüfmuster-Nr.: Test sample no: A004130817-001~003 Prüfzeitraum: Testing period: 2025-11-10 - 2025-11-20 Ort der Prüfung: Place of testing: TÜV Rheinland (Shenzhen) Co., Ltd. Prüflaboratorium: Testing laboratory: TÜV Rheinland (Shenzhen) Co., Ltd. Prüfergebnis*: Test result*: Pass geprüft von: tested by: X Signed by: Jonathan Li genehmigt von: authorized by: X Signed by: Bell Hu Datum: Date: 2025-11-21 Ausstellungsdatum: Issue date: 2025-11-21 Stellung / Position: Sachverständige(r)/Expert Stellung / Position: Sachverständige(r)/Expert Sonstiges / Other: FCC ID: 2BSOU-PDBEAM Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet * Legend: P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report only relates to the above mentioned test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. TUV Rheinland (Shenzhen) Co., Ltd., 1601-1604, 1801-1804, Tower A Building 2, Shenzhen International Innovation Valley, Dashi 1st Road, Xili Street, Xili Community, Nanshan District, Shenzhen, 518000 Mail: [email protected] · Web: www.tuv.com V101023GCNSR Prüfbericht - Produkte Test Report - Products Prüfbericht-Nr.: CN2526LR 003 Test report no.: Seite 2 von 7 Page 2 of 7 Anmerkungen Remarks 1 Alle eingesetzten Prüfmittel waren zum angegebenen Prüfzeitraum gemäß eines festgelegten Kalibrierungsprogramms unseres Prüfhauses kalibriert. Sie entsprechen den in den Prüfprogrammen hinterlegten Anforderungen. Die Rückverfolgbarkeit der eingesetzten Prüfmittel ist durch die Einhaltung der Regelungen unseres Managementsystems gegeben. Detaillierte Informationen bezüglich Prüfkonditionen, Prüfequipment und Messunsicherheiten sind im Prüflabor vorhanden und können auf Wunsch bereitgestellt werden. The equipment used during the specified testing period was calibrated according to our test laboratory calibration program. The equipment fulfils the requirements included in the relevant standards. The traceability of the test equipment used is ensured by compliance with the regulations of our management system. Detailed information regarding test conditions, equipment and measurement uncertainty is available in the test laboratory and could be provided on request. 2 Wie vertraglich vereinbart, wurde dieses Dokument nur digital unterzeichnet. Der TÜV Rheinland hat nicht überprüft, welche rechtlichen oder sonstigen diesbezüglichen Anforderungen für dieses Dokument gelten. Diese Überprüfung liegt in der Verantwortung des Benutzers dieses Dokuments. Auf Verlangen des Kunden kann der TÜV Rheinland die Gültigkeit der digitalen Signatur durch ein gesondertes Dokument bestätigen. Diese Anfrage ist an unseren Vertrieb zu richten. Eine Umweltgebühr für einen solchen zusätzlichen Service wird erhoben. Informationen zur Verifizierung der Authentizität unserer Dokumente erhalten Sie auf folgender Webseite: go.tuv.com/digital-signature As contractually agreed, this document has been signed digitally only. TUV Rheinland has not verified and unable to verify which legal or other pertaining requirements are applicable for this document. Such verification is within the responsibility of the user of this document. Upon request by its client, TUV Rheinland can confirm the validity of the digital signature by a separate document. Such request shall be addressed to our Sales department. An environmental fee for such additional service will be charged. For information on verifying the authenticity of our documents, please visit the following website: go.tuv.com/digital-signature 3 Prüfklausel mit der Note * wurden an qualifizierte Unterauftragnehmer vergeben und sind unter der jeweiligen Prüfklausel des Berichts beschrieben. Abweichungen von Prüfspezifikation(en) oder Kundenanforderungen sind in der jeweiligen Prüfklausel im Bericht aufgeführt. Test clauses with remark of * are subcontracted to qualified subcontractors and descripted under the respective test clause in the report. Deviations of testing specification(s) or customer requirements are listed in specific test clause in the report. 4 Die Entscheidungsregel für Konformitätserklärungen basierend auf numerischen Messergebnisen in diesem Prüfbericht basiert auf der "Null-Grenzwert-Regel" und der "Einfachen Akzeptanz" gemäß ILAC G8:2019 und IEC Guide 115:2023, es sei denn, in der auf Seite 1 dieses Berichts genannten angewandten Norm ist etwas anderes festgelegt oder vom Kunden gewünscht. Dies bedeutet, dass die Messunsicherheit nicht berücksichtigt wird und daher auch nicht im Prüfbericht angegeben wird. Zu weiteren Informationen bezueglich des Risikos durch diese Entscheidungsregel siehe ILAC G8:2019. The decision rule for statements of conformity, based on numerical measurement results, in this test report is ba…

Text truncated - open the document above for the full version.

Trendset style canada INC 305 Morrissey Rd, V3H 0M3, port Moody, Canada Inverted F Antenna Specification Summary Trendset style canada INC 305 Morrissey Rd, V3H 0M3, port Moody, Canada Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Trendset style canada INC 305 Morrissey Rd, V3H 0M3, port Moody, Canada Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div

Prüfbericht - Produkte Test Report - Products Prüfbericht-Nr.: Test report no.: CN2526LR 002 Auftrags-Nr.: Order no.: 168584080 Seite 1 von 26 Page 1 of 26 Kunden-Referenz-Nr.: Client reference no.: N/A Auftragsdatum: Order date: 2025-10-31 Auftraggeber: Client: Trendset style canada INC 305 Morrissey Rd, V3H 0M3, port Moody, Canada Prüfgegenstand: Test item: Bluetooth Headset Bezeichnung / Typ-Nr.: Identification / Type no.: PDBEAM Auftrags-Inhalt: Order content: Test Report Prüfgrundlage: Test specification: CFR Title 47 FCC Part 15: Subpart C Section 15.247 Wareneingangsdatum: Date of sample receipt: 2025-11-07 Please refer to Photo Document Prüfmuster-Nr.: Test sample no: A004130817-001~003 Prüfzeitraum: Testing period: 2025-11-10 - 2025-11-20 Ort der Prüfung: Place of testing: TÜV Rheinland (Shenzhen) Co., Ltd. Prüflaboratorium: Testing laboratory: TÜV Rheinland (Shenzhen) Co., Ltd. Prüfergebnis*: Test result*: Pass geprüft von: tested by: X Signed by: Jonathan Li genehmigt von: authorized by: X Signed by: Bell Hu Datum: Date: 2025-11-21 Ausstellungsdatum: Issue date: 2025-11-21 Stellung / Position: Sachverständige(r)/Expert Stellung / Position: Sachverständige(r)/Expert Sonstiges / Other: FCC ID: 2BSOU-PDBEAM Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet * Legend: P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report only relates to the above mentioned test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. TUV Rheinland (Shenzhen) Co., Ltd., 1601-1604, 1801-1804, Tower A Building 2, Shenzhen International Innovation Valley, Dashi 1st Road, Xili Street, Xili Community, Nanshan District, Shenzhen, 518000 Mail: [email protected] · Web: www.tuv.com V101023GCNSR Prüfbericht - Produkte Test Report - Products Prüfbericht-Nr.: CN2526LR 002 Test report no.: Seite 2 von 26 Page 2 of 26 Anmerkungen Remarks 1 Alle eingesetzten Prüfmittel waren zum angegebenen Prüfzeitraum gemäß eines festgelegten Kalibrierungsprogramms unseres Prüfhauses kalibriert. Sie entsprechen den in den Prüfprogrammen hinterlegten Anforderungen. Die Rückverfolgbarkeit der eingesetzten Prüfmittel ist durch die Einhaltung der Regelungen unseres Managementsystems gegeben. Detaillierte Informationen bezüglich Prüfkonditionen, Prüfequipment und Messunsicherheiten sind im Prüflabor vorhanden und können auf Wunsch bereitgestellt werden. The equipment used during the specified testing period was calibrated according to our test laboratory calibration program. The equipment fulfils the requirements included in the relevant standards. The traceability of the test equipment used is ensured by compliance with the regulations of our management system. Detailed information regarding test conditions, equipment and measurement uncertainty is available in the test laboratory and could be provided on request. 2 Wie vertraglich vereinbart, wurde dieses Dokument nur digital unterzeichnet. Der TÜV Rheinland hat nicht überprüft, welche rechtlichen oder sonstigen diesbezüglichen Anforderungen für dieses Dokument gelten. Diese Überprüfung liegt in der Verantwortung des Benutzers dieses Dokuments. Auf Verlangen des Kunden kann der TÜV Rheinland die Gültigkeit der digitalen Signatur durch ein gesondertes Dokument bestätigen. Diese Anfrage ist an unseren Vertrieb zu richten. Eine Umweltgebühr für einen solchen zusätzlichen Service wird erhoben. Informationen zur Verifizierung der Authentizität unserer Dokumente erhalten Sie auf folgender Webseite: go.tuv.com/digital-signature As contractually agreed, this document has been signed digitally only. TUV Rheinland has not verified and unable to verify which legal or other pertaining requirements are applicable for this document. Such verification is within the responsibility of the user of this document. Upon request by its client, TUV Rheinland can confirm the validity of the digital signature by a separate document. Such request shall be addressed to our Sales department. An environmental fee for such additional service will be charged. For information on verifying the authenticity of our documents, please visit the following website: go.tuv.com/digital-signature 3 Prüfklausel mit der Note * wurden an qualifizierte Unterauftragnehmer vergeben und sind unter der jeweiligen Prüfklausel des Berichts beschrieben. Abweichungen von Prüfspezifikation(en) oder Kundenanforderungen sind in der jeweiligen Prüfklausel im Bericht aufgeführt. Test clauses with remark of * are subcontracted to qualified subcontractors and descripted under the respective test clause in the report. Deviations of testing specification(s) or customer requirements are listed in specific test clause in the report. 4 Die Entscheidungsregel für Konformitätserklärungen basierend auf numerischen Messergebnisen in diesem Prüfbericht basiert auf der "Null-Grenzwert-Regel" und der "Einfachen Akzeptanz" gemäß ILAC G8:2019 und IEC Guide 115:2023, es sei denn, in der auf Seite 1 dieses Berichts genannten angewandten Norm ist etwas anderes festgelegt oder vom Kunden gewünscht. Dies bedeutet, dass die Messunsicherheit nicht berücksichtigt wird und daher auch nicht im Prüfbericht angegeben wird. Zu weiteren Informationen bezueglich des Risikos durch diese Entscheidungsregel siehe ILAC G8:2019. The decision rule for statements of conformity, based on numerical measurement results, in this te…

Text truncated - open the document above for the full version.

Prüfbericht - Produkte Test Report - Products Appendix B CN2526LR 002 Page 2 of 30 Appendix B.1: Test Results of Conducted Power Spectral Density Bluetooth LE, 1Mbps Prüfbericht - Produkte Test Report - Products Appendix B CN2526LR 002 Page 3 of 30 Bluetooth LE, 2Mbps Prüfbericht - Produkte Test Report - Products Appendix B CN2526LR 002 Page 4 of 30 Prüfbericht - Produkte Test Report - Products Appendix B CN2526LR 002 Page 5 of 30 Appendix B.2: Test Results of 6dB Bandwidth Bluetooth LE, 1Mbps Minimum Emission Bandwidth 6 dB (2402 MHz; 20.000 dBm; 1 MHz) Test according to FCC title 47 part 15 §15.247(a), KDB 558074 D01 DTS Meas Guidance v04 and ANSI C63.10- 2013 6 dB Bandwidth DUT Frequency (MHz) Bandwidth (MHz) Limit Min (MHz) Limit Max (MHz) Band Edge Left (MHz) Band Edge Right (MHz) 2402.0000000.5346540.500000---2401.6633662402.198020 (continuation of the "6 dB Bandwidth" table from column 6 ...) DUT Frequency (MHz) Max Level (dBm) Result 2402.0000001.9PASS -30 -20 -10 0 10 2401 2401.5 2402 2402.5 2403 L e v e l i n d B m Frequency in MHz 6 dB Bandwidth 534.654 kHz Measurement SettingInstrument Value Target Value Start Frequency2.40100 GHz2.40100 GHz Stop Frequency2.40300 GHz2.40300 GHz Span2.000 MHz2.000 MHz RBW100.000 kHz~ 100.000 kHz VBW300.000 kHz~ 300.000 kHz SweepPoints101~ 40 Sweeptime18.938 μsAUTO Reference Level0.000 dBm0.000 dBm Attenuation20.000 dBAUTO DetectorMaxPeakMaxPeak SweepCount100100 Filter3 dB3 dB Trace ModeMax HoldMax Hold SweeptypeFFTAUTO Preampoffoff Prüfbericht - Produkte Test Report - Products Appendix B CN2526LR 002 Page 6 of 30 StablemodeTraceTrace Stablevalue0.50 dB0.50 dB Run7 / max. 150max. 150 Stable5 / 55 Max Stable Difference0.03 dB0.50 dB 6 dB Bandwidth DUT Frequency (MHz) Bandwidth (MHz) Limit Min (MHz) Limit Max (MHz) Band Edge Left (MHz) Band Edge Right (MHz) 2440.0000000.5346540.500000---2439.6633662440.198020 (continuation of the "6 dB Bandwidth" table from column 6 ...) DUT Frequency (MHz) Max Level (dBm) Result 2440.0000001.6PASS -30 -20 -10 0 10 2439 2439.5 2440 2440.5 2441 L e v e l i n d B m Frequency in MHz 6 dB Bandwidth 534.654 kHz Measurement SettingInstrument Value Target Value Start Frequency2.43900 GHz2.43900 GHz Stop Frequency2.44100 GHz2.44100 GHz Span2.000 MHz2.000 MHz RBW100.000 kHz~ 100.000 kHz VBW300.000 kHz~ 300.000 kHz SweepPoints101~ 40 Sweeptime18.938 μsAUTO Reference Level0.000 dBm0.000 dBm Attenuation20.000 dBAUTO DetectorMaxPeakMaxPeak SweepCount100100 Filter3 dB3 dB Trace ModeMax HoldMax Hold SweeptypeFFTAUTO Preampoffoff StablemodeTraceTrace Stablevalue0.50 dB0.50 dB Run9 / max. 150max. 150 Stable5 / 55 Max Stable Difference0.05 dB0.50 dB Prüfbericht - Produkte Test Report - Products Appendix B CN2526LR 002 Page 7 of 30 6 dB Bandwidth DUT Frequency (MHz) Bandwidth (MHz) Limit Min (MHz) Limit Max (MHz) Band Edge Left (MHz) Band Edge Right (MHz) 2480.0000000.5346540.500000---2479.6633662480.198020 (continuation of the "6 dB Bandwidth" table from column 6 ...) DUT Frequency (MHz) Max Level (dBm) Result 2480.0000002.0PASS -30 -20 -10 0 10 2479 2479.5 2480 2480.5 2481 L e v e l i n d B m Frequency in MHz 6 dB Bandwidth 534.654 kHz Measurement SettingInstrument Value Target Value Start Frequency2.47900 GHz2.47900 GHz Stop Frequency2.48100 GHz2.48100 GHz Span2.000 MHz2.000 MHz RBW100.000 kHz~ 100.000 kHz VBW300.000 kHz~ 300.000 kHz SweepPoints101~ 40 Sweeptime18.938 μsAUTO Reference Level0.000 dBm0.000 dBm Attenuation20.000 dBAUTO DetectorMaxPeakMaxPeak SweepCount100100 Filter3 dB3 dB Trace ModeMax HoldMax Hold SweeptypeFFTAUTO Preampoffoff StablemodeTraceTrace Stablevalue0.50 dB0.50 dB Run8 / max. 150max. 150 Stable5 / 55 Max Stable Difference0.31 dB0.50 dB Prüfbericht - Produkte Test Report - Products Appendix B CN2526LR 002 Page 8 of 30 Bluetooth LE, 2Mbps 6 dB Bandwidth DUT Frequency (MHz) Bandwidth (MHz) Limit Min (MHz) Limit Max (MHz) Band Edge Left (MHz) Band Edge Right (MHz) 2402.0000000.9504950.500000---2401.3663372402.316832 (continuation of the "6 dB Bandwidth" table from column 6 ...) DUT Frequency (MHz) Max Level (dBm) Result 2402.0000001.4PASS -40 -30 -20 -10 0 5 2400 2401 2402 2403 2404 L e v e l i n d B m Frequency in MHz 6 dB Bandwidth 950.495 kHz Measurement SettingInstrument Value Target Value Start Frequency2.40000 GHz2.40000 GHz Stop Frequency2.40400 GHz2.40400 GHz Span4.000 MHz4.000 MHz RBW100.000 kHz~ 100.000 kHz VBW300.000 kHz~ 300.000 kHz SweepPoints101~ 80 Sweeptime18.938 μsAUTO Reference Level0.000 dBm0.000 dBm Attenuation20.000 dBAUTO DetectorMaxPeakMaxPeak SweepCount100100 Filter3 dB3 dB Trace ModeMax HoldMax Hold SweeptypeFFTAUTO Preampoffoff StablemodeTraceTrace Stablevalue0.50 dB0.50 dB Run19 / max. 150max. 150 Stable5 / 55 Max Stable Difference0.05 dB0.50 dB Prüfbericht - Produkte Test Report - Products Appendix B CN2526LR 002 Page 9 of 30 6 dB Bandwidth DUT Frequency (MHz) Bandwidth (MHz) Limit Min (MHz) Limit Max (MHz) Band Edge Left (MHz) Band Edge Right (MHz) 2440.0000000.9504950.500000---2439.3663372440.316832 (continuation of the "6 dB Bandwidth" table from column 6 ...) DUT Frequency (MHz) Max Level (dBm) Result 2440.0000001.1PASS -40 -30 -20 -10 0 5 2438 2439 2440 2441 2442 L e v e l i n d B m Frequency in MHz 6 dB Bandwidth 950.495 kHz Measurement SettingInstrument Value Target Value Start Frequency2.43800 GHz2.43800 GHz Stop Frequency2.44200 GHz2.44200 GHz Span4.000 MHz4.000 MHz RBW100.000 kHz~ 100.000 kHz VBW300.000 kHz~ 300.000 kHz SweepPoints101~ 80 Sweeptime18.938 μsAUTO Reference Level0.000 dBm0.000 dBm Attenuation20.000 dBAUTO DetectorMaxPeakMaxPeak SweepCount100100 Filter3 dB3 dB Trace ModeMax HoldMax Hold SweeptypeFFTAUTO Preampoffoff StablemodeTraceTrace Stablevalue0.50 dB0.50 dB Run18 / max. 150max. 150 Stable5 / 55 Max Stable Difference0.00 dB0.50 dB Prüfbericht - Produkte Test Report - Products Appendix B CN2526LR 002 Page 10 of 30 6 dB Bandwidth DUT Frequency (MHz) Bandwidth (MHz) Limit Min (MHz) Limit Max (MHz) Band Edge Left (MHz) Band Edge Right (MHz) 2480.0000000.9504…

Text truncated - open the document above for the full version.

Prüfbericht - Produkte Test Report - Products Appendix C CN2526LR 002 Page 1 of 2 Appendix C: Photographs of the Test Set-Up APPENDIX C: PHOTOGRAPHS OF THE TEST SET-UP.......................................................................................................1 PHOTOGRAPH 1: SET-UP PHOTO FOR RADIATED SPURIOUS EMISSION, 30MHZ - 1GHZ......................................................................2 PHOTOGRAPH 2: SET-UP PHOTO FOR RADIATED SPURIOUS EMISSION, 1GHZ - 18GHZ.......................................................................2 Prüfbericht - Produkte Test Report - Products Appendix C CN2526LR 002 Page 2 of 2 Photograph 1: Set-up photo for Radiated Spurious Emission, 30MHz - 1GHz Photograph 2: Set-up photo for Radiated Spurious Emission, above 1G
