2BSP3-S12PROTablet

Android Please read this instruction throughly before using this product and keep it for future reference. User Manual Tablet S12pro If you encounter any product problems, please scan the QR code above to get professional worry-free technical support immediately INTRODUCTION Congr atulations on choosing to buy an Senlin Techproduct. All products brought to by Senlin Tech are manufactured to the highest standards of performance and safety Before use, please read this manual carefully. It gives important instructions about safety, use and maintenance of your Tablet. We hope you enjoy using your purchase for many years to come. Remove all packaging material. You may wish to keep packaging for fut ure use or storage of your Tablet. Alternatively, disposed of accordingly. 00 01 01 02 02 04 04 04 04 05 05 06 Before Power up the Tablet, ensure that it is fully charged. Getting started Pre ss and hold the power button for 2-3s to turn on your tablet:Select your language and set up your tablet following the start guide: Press and hold the power button for 2s,then release it. lt will show Power Off and Restart on the screen.Tap Power Off to turn off the tablet. Press and hold the power button for 5s to do a forced shutdown when it's frozen. Battery Rechargable Li-ion battery is installed in the tablet. We suggest you drain the battery completely once a month if only use your tablet occasionally. DO NOT dispose the tablet in a fire. Sleep Mode Simply press the power button once to switch the tablet to the Sleep Mode when the tablet is ON; press again to wake it up. Tip : Go to Settings>Display>Sleep to set the time of Sleep Mode. 01 EN 1.Reset 2.Power On/Off 3.Volume + 4.Volume - 5.USB Type-C interface 6.3.5mm AUX Slot 7. 8.0MP Camera 8.Double Speaker 9. 13.0MP Camera 10.Lights Flash Power On/Off HOME SCREEN Icons on the Bottom Menu Wallpapers, Widgets and Home Settings SETTING BASICS Quick Settings Tap and hold the empty section of a Home screen. WALLPAPERS, WIDGETS and HOME SETTINGS will be displayed Tap WALLPAPERS icon to change the current wallpaper of the tablet from the default wallpapers or your photos, Tap WIDGETS, touch and hold any widget (e.g.Clock), then slide and add it to a Home screen. Remove it by sliding to X. Tap HOME SETTINGS to enable/disable adding icon to Home screen. This is applicable to the new Apps installed from Play Store. Swipe down from the top of the screen to access Quick Settings * * * Connect to any working Wi-Fi Enable/disable the Airplane Mode Monitor the data usage More Settings Swipe down from the top of the screen, then tap the icon to enter the detailed Setting interface. Or, tap the Setting icon on the Home screen to enter. Network & Internet Tap the icon to change theoptionsin the Quick Settings. : Wi-fi Tapto connect to a wireless network :Do NotDisturb. Block soundsor vibrations accordingtothe differentmodes (Total silence, Alarms onlyandPriority only) : Portrait /Auto-rotate/Landscape : Battery Saver.Enable/disable the low power mode :Airplane Mode. Turn on/offallthe network connectivity + 02 EN Apps Collection 1 Apps & notifications Battery Display Sound Screenshot Tip : * * * * * * * * * * * * * * * * * * * * * Check the Apps recently opened Check all the Apps on the tablet Set the App permissions Uninstall the third-party Apps Adjust App notification settings Clear the cache of the Apps Display the remaining battery power as a percentage Enable/disable the Battery Saver Adjust the time of entering the Sleep Mode Adjust the screen brightness Adjust the font size and display size Set a Screensaver Change the wallpaper Adjust the time of entering the Sleep Mode Set volume levels for media, alarms, and notifications Set preferences of Do Not Disturb Set the tunes tor notifications and alarms Turn on/off the sound for screen lock, charging and touch Set the delay time for screen shot Set the location folder of screen shots Switch on/off Show the screen shot button in the statusbar Press the volume down button and the power button together to capture a screen shot. O r, switch on show the screen shot button in the statusbar, then tap the icon on the bottom menu to capture a screen shot. * * * * * * * * * * * * * Storage View and manage your storage space Security&location Set screen lock pattern,e.g.password, PIN,Swipe etc. Enable/disable all the notifications while the screen is locked Enable / disable services. Turn on/off the location services for specific Apps Set to show/hide the password when input a password Users&accounts Add and manage the user accounts on your tablet Accessibility For vision and hearing impaired users, manage settings for Screen readers, Subtitle, and more Google Set the preferences for Google related services System Set Language. Tap Languages&input>Languages>+add, a language to add your language.After adding,hold and slide to the top to change the language. Restore factory setting. Tap Reset options> Erase all data (factory reset ) to restore the factory setting. Set the date and time Turn on/off the Backup Check the detailed information about the tablet 03 EN Wi-Fi Connection NETWORK CONNECTION Go to Wi-Fi settings in the Settings interface or directly enter Quick Settings. 1.Tap Network and Internet and turn on the Wi-Fi,All Wi-Fi connections available will be listed; 2. Select your Wi-Fi and input the correct password. App Download and Installation 1.Tap and open Play Store on the Home screen; 2.Log into your Google account, search and download the App you need. App Management Move the App Tap and hold the App, then slide it to a desired screen. Remove the App from the Home screen Tap and hold the App, then slide to X to remove it from your Home screen. Uninstall the App Tap and hold the App, then slide to the trash bin to uninstall the App. Clear the Cache of the App 1.Go to Settings>Apps&notifications; 2.Select an App>Storage>CLEAR CACHE. Connecting to the Computer 1.Connect your tablet to the computer with USB cable and go…

Text truncated - open the document above for the full version.

YAU WAH TECHNOLOGY CO., LIMITED Covered Equipment Certification Attestation Letter 10/27/2025 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: 2BSP3-S12PRO YAU WAH TECHNOLOGY CO., LIMITED (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. YAU WAH TECHNOLOGY CO., LIMITED (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. YAU WAH TECHNOLOGY CO., LIMITED (“the applicant”) certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). <Signature>: Name: Jack Bu Title: Manager Company: YAU WAH TECHNOLOGY CO., LIMITED Date: 10/27/2025

YAU WAH TECHNOLOGY CO., LIMITED * the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter 10/27/2025 TO: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 ATTN.: Reviewing Engineer FCC ID: 2BSP3-S12PRO FRN of applicant: 0037611373 Per section 2.911(d)(7) of the FCC rules, [YAU WAH TECHNOLOGY CO., LIMITED ] (“the applicant”) certifies that the equipment for which authorization is sought is designated to the following U.S. agent* for service of process: Company Name: Herland International Trading Inc FCC Registration Number (FRN): 0036324101 Physical U.S. Company Address: 1370 Valley Vista Dr Ste 200 Diamond Bar, CA 91765 Contact Person: Jianfeng Gao Agent Email Address: [email protected] The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Signed: Printed name: Jack bu Title: Manager Company Name: YAU WAH TECHNOLOGY CO., LIMITED Date: 10/27/2025 Agent Signed (if different from Applicant): Signed: Printed name: Jianfeng Gao Title: Manager Company Name: Herland International Trading Inc Date: 10/27/2025

YAU WAH TECHNOLOGY CO., LIMITED 2025-10-27 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2BSP3-S12PRO Product Name: Tablet Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature>: Name: Jack Bu Title: Manager Company: YAU WAH TECHNOLOGY CO., LIMITED

YAU WAH TECHNOLOGY CO., LIMITED 2025-10-27 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Shenzhen DL Testing Technology Co., Ltd.（101-201, Comprehensive Building, Tongzhou Electronics Longgang Factory Area, No.1 Baolong Fifth Road, Baolong Community, Baolong Street, Longgang District, Shenzhen, China）to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with YAU WAH TECHNOLOGY CO., LIMITED（RM 01, 26TH FLOOR, WORKING VIEW COMM BUILDING, 21 YIU WAH STREET, CAUSEWAY BAY, HONG KONG） <Signature>: Name: Jack Bu Title: Manager Company: YAU WAH TECHNOLOGY CO., LIMITED

YAU WAH TECHNOLOGY CO., LIMITED 2025-10-27 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Compliance Testing, LLC to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). Sincerely, <Signature>: Name: Jack Bu Title: Manager Company: YAU WAH TECHNOLOGY CO., LIMITED

YAU WAH TECHNOLOGY CO., LIMITED Product function Declaration Applicant: YAU WAH TECHNOLOGY CO., LIMITED Address: RM 01, 26TH FLOOR, WORKING VIEW COMM BUILDING, 21 YIU WAH STREET, CAUSEWAY BAY, HONG KONG Manufacturer: Dongguan Jintai Yi Electronics Co., Ltd. Address: Room 1301, Building 1, OFILM Film Industry Research Center. No.2 Huahai Road, Binhai Bay New Area, Dongguan City, Guangdong Province Product Name: Tablet Trade Mark: SenlinTech Model Number: S12pro We (YAU WAH TECHNOLOGY CO., LIMITED) here by state that The product has (BT/WIFI6/WIFI5180-5700MHz) function at the beginning of design. However, due to the iteration of the product, this function is no longer required at present, so through the (Software mask) method, the function is forced off, and the product (FCC ID: 2BSP3-S12PRO) no longer has the (BT/WIFI6/WIFI5180- 5700MHz) function. Signature: Name: Jack bu Date: 2025-10-27 Title: Manager Signature of applicant:

1/1 YAU WAH TECHNOLOGY CO., LIMITED FCC Software Configuration Control Declaration Date: 2025-10-27 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attn: OET Dept. Company Name: YAU WAH TECHNOLOGY CO., LIMITED FCC ID: 2BSP3-S12PRO Product Name: Tablet Regarding FCC Country Code Selection guidelines identified in KDB 594280. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. <Signature>: Name: Jack Bu Title: Manager Company: YAU WAH TECHNOLOGY CO., LIMITED

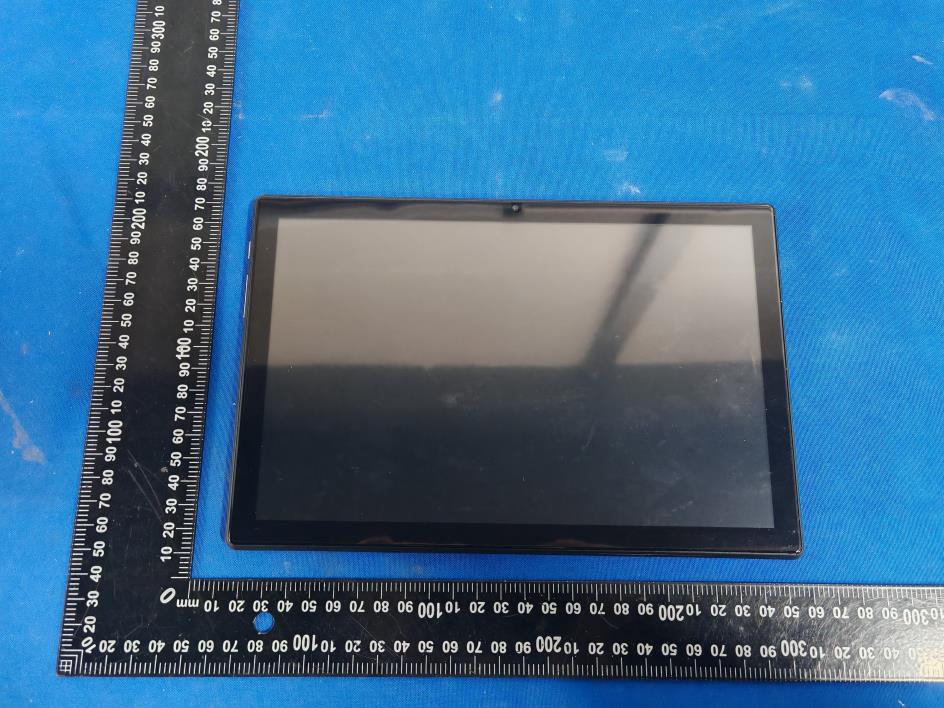

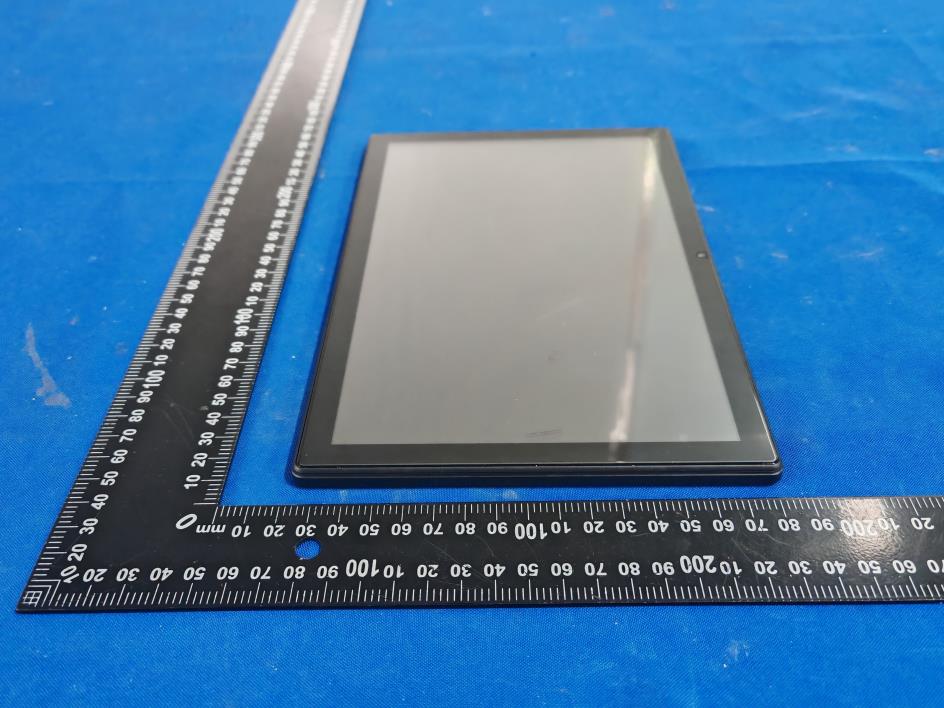

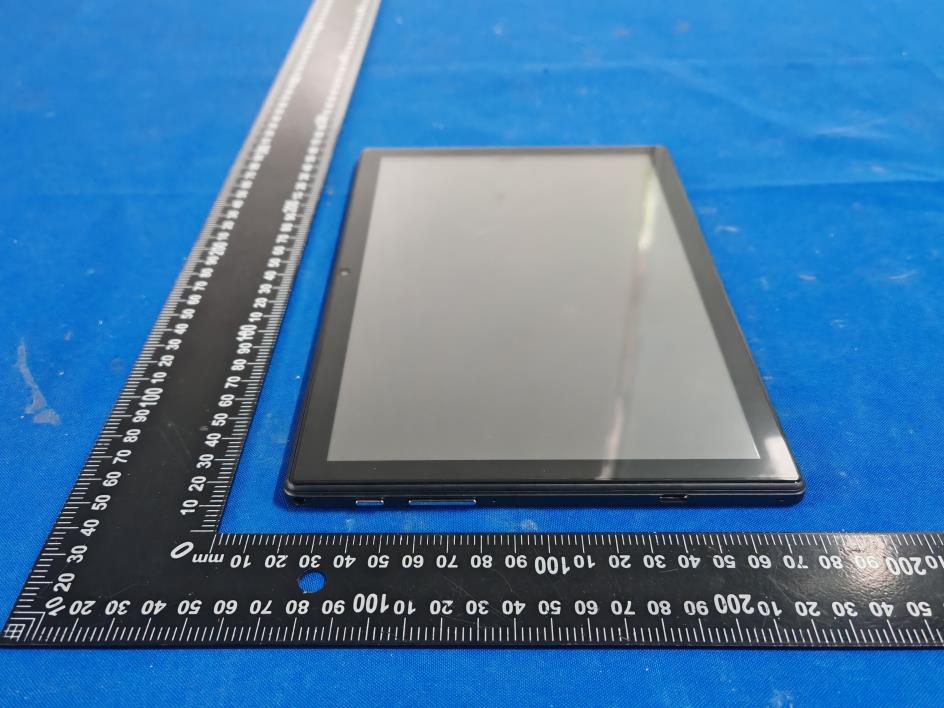

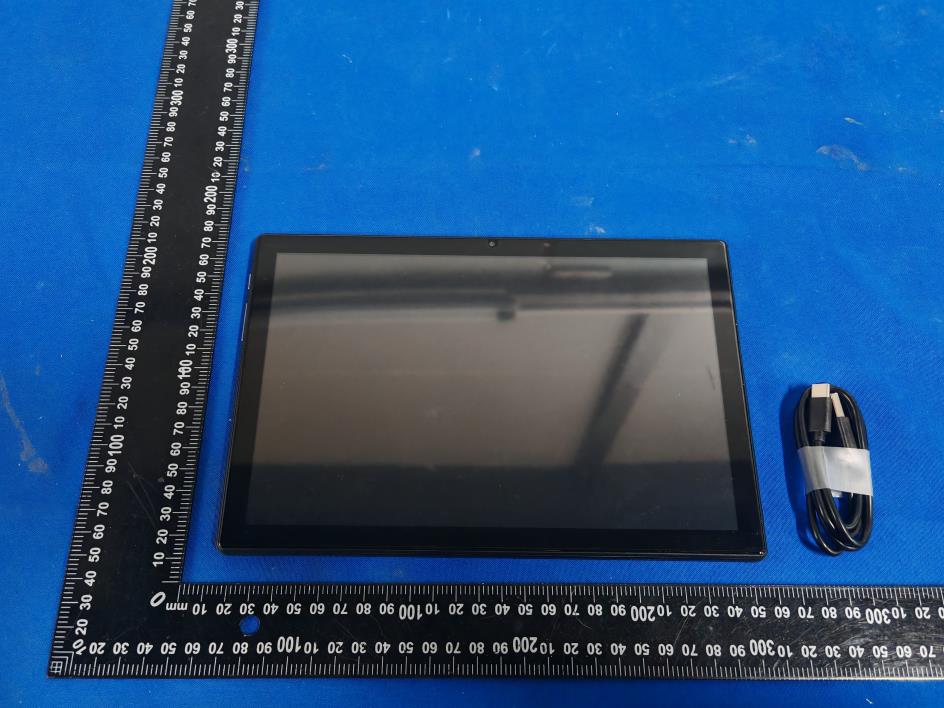

Shenzhen DL Testing Technology Co., Ltd. EUT PHOTO(External Photos) Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. ※※※※※ END OF REPORT ※※※※※

Size: 25*20mm Model.: S12pro FCC ID: 2BSP3-S12PRO Label location

Shenzhen DL Testing Technology Co., Ltd. EUT PHOTO(Internal Photos) Shenzhen DL Testing Technology Co., Ltd. ANT Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. ※※※※※ END OF REPORT ※※※※※

FCC ID: 2BSP3-S12PRO RF Exposure Evaluation According to KDB 447498 D01 V06 and part 2.1093，Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition(s), listed below, is (are) satisfied. For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f (GHz) ] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where f (GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison EIRP=E Meas +20log(d Meas )-104.7 EIRP is the equivalent isotropically radiated power, in dBm E Meas is the field strength of the emission at the measurement distance, in dBμV/m d Meas is the measurement distance, in m Here, WIFI 2.4G Output Power (dBm) Max tune-up (mW) Frequency (MHz) Min. distance(mm) Calc. thresholds limit 5.34 3.4 2437 5 1.07 3.0 WIFI 5.8G Output Power (dBm) Max tune-up (mW) Frequency (MHz) Min. distance(mm) Calc. thresholds limit 6.728 4.7 5795 5 2.3 3.0 So a SAR test is not required
