KS-16S Pro User Manual CAUTIONS Electric unicycle is designed for the outdoors and short distance personal transport. SAFETY IS THE NUMBER ONE PRIORITY! PLEASE RIDE UNDER LOCAL LAW! The user manual below is a quick and convenient guide of safety & item functions/features to end user. We can’t ensure all types of situation emergency are covered. Therefore, we STRONGLY remind you to read this guide very carefully, and ride with attention to ensure your safety. Riding like all outdoor activities comes with it’s risks. You risk serious danger and injury if you fall, collide or lose of control when riding, please ride with caution and at your own risk. Thanks you for purchasing King Song smart electric unicycle! Contents 1. Product Details----------------------------------------01 2. Safety Instructions-------------------------------------07 3. APP---------------------------------------------------11 4. Find My-----------------------------------------------12 5. Learn to Ride------------------------------------------18 6. Warning-----------------------------------------------21 7. Maintenance-------------------------------------------25 8. Warranty----------------------------------------------27 Tire Pedal RGB light Speaker Headlight Pad Charge port Handle Tail light Display Power button Charge port Headlight Rear Front Accessories ----------------------------------------------------------------------------------- Charging Adapter User Manual 1. Product Details 1.1 Diagram: KS-16S Pro 01 Around 7hrsCharging time Input AC 100~240V / Output DC 67.2V 2AAdapter specs 120kgMax load Around 70-80kmsMileage Rated Power: DC 57.6V Top Charging Voltage: DC 67.2V Rated Capacity: 806.4Wh Battery pack with equalization, overcharge and short circuit protection. Battery Around 35°Grade-ability Full speed unlocked after 5km. Max speed of 40km/h (Factory alarm settings: 18km/h first level alarm, 19km/h second level alarm, 20km/h third level alarm and warp plate). Max speed 3800WPeak power 1200WRated power KS-16S ProModel No. 1.2 Specifications 02 55° left and right side. ( Motor stalls when over 55° ) Roll protection Lift sensor accurately senses and determines when wheel is lifted off the ground to stop tire rotation. Lift sensor Protective Measures Led shows battery level when EUC on at rest.Battery indicate Charge port, Power button, Light sensor.Port Around 17.4kgWeight 16*2.125inchTire size 120mm Pedal distance from the ground 520(L)*220(W)*540(H)mmPackage size 463(L)*236(W)*506(H)mmProduct size Appearance & weight White, BlackColor -10°C / +60°C Working temperature 03 The protection pad are ergonomically designed to use the safe foams, which is moderate, easy to accelerate and decelerate and also better to protect the body. Power pad Uniform force on the pedals with raised small columns which is more effective than traditional sand sticking to protect anti-skid, greatly improving safety performance and riding experience. Pedals anti-slip protection The motherboard is treated with sealant, greatly enhancing the waterproof performance. Motherboard Waterproof Protection When the motherboard reaches 80°C it will result tilt-back. When the motor reaches 120°C it will result in tilt-back. Higher temperature protection Low battery protection activated on 30% battery, speed will decreases linearly; when the battery is lower than 5%, voice alarm for charge, when battery at 0%, the front part of the pedal will rise to decelerate until full stop. Low battery protection Beep alarm or voice alarm when exceed limit speed. Speed limit protection Place the machine vertically on the ground will restart automatically, no need to restart manually. 04 Adopt 5.1 Bluetooth module, with stronger compatibility, faster and more stable data transmission, and support system OTA Data Bluetooth System Music Bluetooth uses the latest 5.4 technology to provide better sound quality for music playback Music Bluetooth System Brand-new motherboard architecture, the driver board is designed separately on the aluminum substrate, which has better heat dissipation. 12 brand-new Toll packaged low-resistance MOS provide good power supply for high-power motors. The modular design of the control board and power amplifier board provides good support for the whole system. Motherboard Hardware Features Custom voice system, you can freely choose a variety of voice prompt sounds. Voice remind Led shows battery level when EUC power on at rest.Battery indicate Short press power key: turn on Long press: hear a click then turn off Switch On/Off Alarm & Features 05 1*Charger, 1*User manual, 1*QC certificateStandard accessories Package Find My network uses hundreds of millions of Apple devices around the world to build a positioning system to realize vehicle positioning function Find My Self-developed BMS intelligent management system, temperature, voltage, current, real-time monitoring, you can view battery related information in real time through the APP Battery Front and rear 3W lights + 1W brake light provide good lighting at night Lighting system 4 colorful lights cover the body of the car, continuing the music spectrum, making riding with music even cooler Colorful Lights Aviation plug M16-3P, provides 5A fast chargingCharge Equipped with surround sound Bluetooth audio, better sound quality. Bluetooth speaker 06 2. Safety Instructions ● 16S Pro is an entertainment product, Which is different from motor vehicles driving on the road. Before mastering riding skills, you need to practice. Kingsong is not responsible for any injuries or damage caused by a rider's inexperience or failure to follow the instructions in this document. ● Please understand that you can reduce the risk by following all the instructions and warnings in this manual, but you cannot eliminate all the risks. Remember that whenever you ride the 16S Pro you risk injury or death from loss of control, collisions, and falls. When entering into public spaces always comply with the local law…

Text truncated - open the document above for the full version.

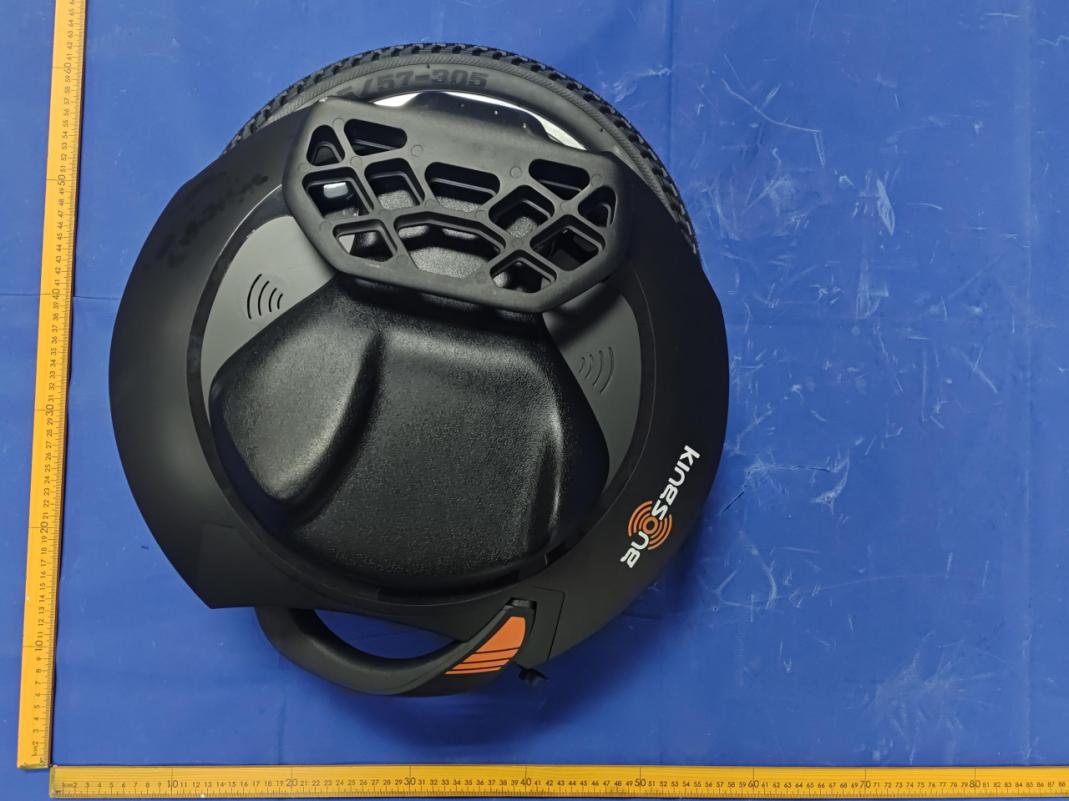

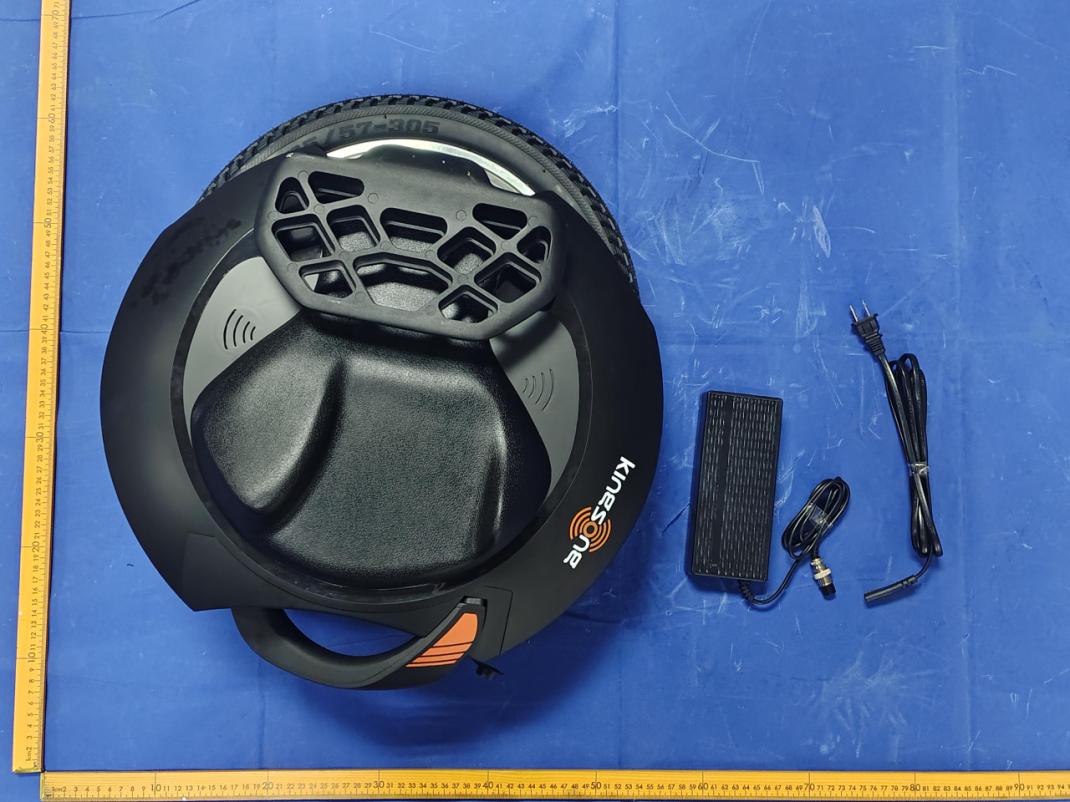

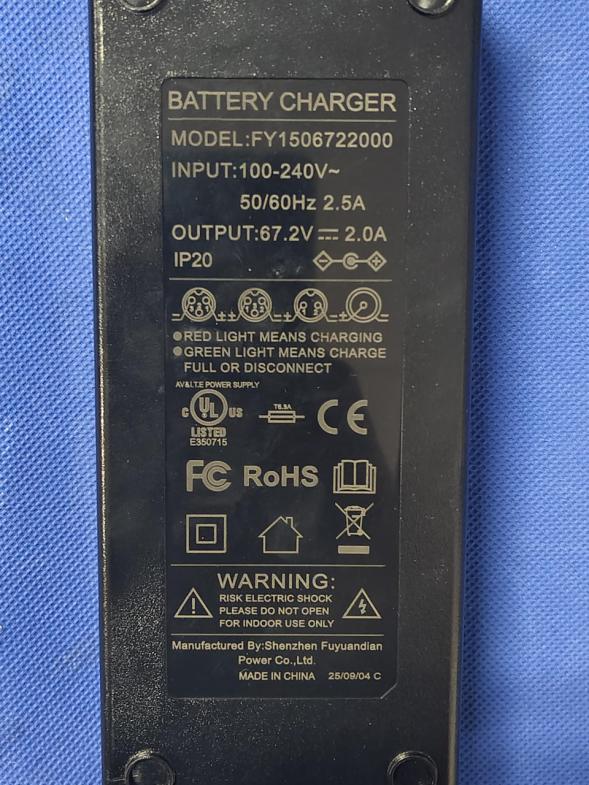

Page 1 of 5 FCC ID: 2BSP6-16SPRO-16S Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com External Photos of the EUT Fig. 1 Fig. 2 Page 2 of 5 FCC ID: 2BSP6-16SPRO-16S Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 3 Fig. 4 Page 3 of 5 FCC ID: 2BSP6-16SPRO-16S Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 5 Fig. 6 Page 4 of 5 FCC ID: 2BSP6-16SPRO-16S Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 7 Fig. 8 Page 5 of 5 FCC ID: 2BSP6-16SPRO-16S Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 9

Page 1 of 2 FCC ID: 2BSP6-16SPRO-16S Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com LABEL AND LOCATION (Size: L2.0cm x W 4.0cm) Label Location Electric unicycle Model: KS-16SPRO FCC ID: 2BSP6-16SPRO-16S Page 2 of 2 FCC ID: 2BSP6-16SPRO-16S Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com LABEL AND LOCATION (Size: L2.0cm x W 4.0cm) Label Location Electric unicycle Model: KS-16S FCC ID: 2BSP6-16SPRO-16S

Page 1 of 17 FCC ID: 2BSP6-16SPRO-16S Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Internal Photos of the EUT Fig. 1 Fig. 2 Page 2 of 17 FCC ID: 2BSP6-16SPRO-16S Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 3 Fig. 4 Page 3 of 17 FCC ID: 2BSP6-16SPRO-16S Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 5 Fig. 6 Page 4 of 17 FCC ID: 2BSP6-16SPRO-16S Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 7 Fig. 8 Page 5 of 17 FCC ID: 2BSP6-16SPRO-16S Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 9 Fig. 10 Page 6 of 17 FCC ID: 2BSP6-16SPRO-16S Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 11 Fig. 12 Page 7 of 17 FCC ID: 2BSP6-16SPRO-16S Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 13 Fig. 14 Page 8 of 17 FCC ID: 2BSP6-16SPRO-16S Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 15 Fig. 16 Page 9 of 17 FCC ID: 2BSP6-16SPRO-16S Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 17 Fig. 18 Page 10 of 17 FCC ID: 2BSP6-16SPRO-16S Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 19 Fig. 20 Page 11 of 17 FCC ID: 2BSP6-16SPRO-16S Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 21 Fig. 22 Page 12 of 17 FCC ID: 2BSP6-16SPRO-16S Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 23 Fig. 24 Page 13 of 17 FCC ID: 2BSP6-16SPRO-16S Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 25 Fig. 26 Page 14 of 17 FCC ID: 2BSP6-16SPRO-16S Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 27 Fig. 28 Page 15 of 17 FCC ID: 2BSP6-16SPRO-16S Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 29 Fig. 30 Page 16 of 17 FCC ID: 2BSP6-16SPRO-16S Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 31 Fig. 32 Page 17 of 17 FCC ID: 2BSP6-16SPRO-16S Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 33 Fig. 34 BT Antenna

Page 1 of 8 FCC ID: 2BSP6-16SPRO-16S Report No.: LCSC11045013EB Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com RF Exposure Evaluation FOR Shenzhen Kingsong Technology Co., Ltd. Electric unicycle Test Model: KS-16SPRO Additional Model No.: KS-16S Prepared for : Shenzhen Kingsong Technology Co., Ltd. Address : B5, 303-1, Yijing Industrial City, Tianliao Community, Yutang Street, Guangming District, Shenzhen, China Prepared by : Guangzhou LCS Compliance Testing Laboratory Ltd. Address : No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel : (+86) 020-39166689 Fax : (+86) 020-39166619 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : November 05, 2025 Number of tested samples : 2 Sample No. : C251104010-1, C251104010-2 Serial number : Prototype Date of Test : November 05, 2025 ~ November 17, 2025 Date of Report : November 18, 2025 Page 2 of 8 FCC ID: 2BSP6-16SPRO-16S Report No.: LCSC11045013EB Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com RF Exposure Evaluation Report Reference No. ................. : LCSC11045013EB Date of Issue ................................... : November 18, 2025 Testing Laboratory Name ............ : Guangzhou LCS Compliance Testing Laboratory Ltd. Address ........................................... : No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : Shenzhen Kingsong Technology Co., Ltd. Address ........................................... : B5, 303-1, Yijing Industrial City, Tianliao Community, Yutang Street, Guangming District, Shenzhen, China Test Specification Standard ......................................... : FCC KDB publication 447498 D01 General RF Exposure Guidance v06 FCC CFR 47 part1 1.1310 FCC CFR 47 part2 2.1093 Test Report Form No. ..................... : TRF-4-E-215 A/0 TRF Originator ................................ : Guangzhou LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Guangzhou LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Guangzhou LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Guangzhou LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. .................. : Electric unicycle Trade Mark ...................................... : KINGSONG Test Model ...................................... : KS-16SPRO Ratings ............................................ : Please Refer to Page 6 Result ........................................... : PASS Compiled by: Supervised by: Approved by: Lifeng Le/ File administrators Justin Zhu/ Technique Director Gavin Liang / Manager Page 3 of 8 FCC ID: 2BSP6-16SPRO-16S Report No.: LCSC11045013EB Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com RF Exposure Evaluation Test Result PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCSC11045013EB November 18, 2025 Date of issue Test Model.............................. : KS-16SPRO EUT......................................... : Electric unicycle Applicant............................... : Shenzhen Kingsong Technology Co., Ltd. Address................................... : B5, 303-1, Yijing Industrial City, Tianliao Community, Yutang Street, Guangming District, Shenzhen, China Telephone............................... : / Fax.......................................... : / Manufacturer......................... : Dongguan Huashunjie Technology Co., Ltd. Address................................... : No.16, Jiayuan Road, Dalang Town, Dongguan, Guangdong China Telephone............................... : / Fax.......................................... : / Factory................................... : Shenzhen Kingsong Technology Co., Ltd. Address................................... : B5, 303-1, Yijing Industrial City, Tianliao Community, Yutang Street, Guangming District, Shenzhen, China Telephone............................... : / Fax.......................................... : / Page 4 of 8 FCC ID: 2BSP6-16SPRO-16S Report No.: LCSC11045013EB Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Revision History Report Version Issue Date Revision Content Revised By 000 November 18, 2025 Initial Issue --- Page 5 of 8 FCC ID: 2BSP6-16SPRO-16S Report No.: LCSC11045013EB Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com TABLE OF CONTENTS Description Page 1. PRODUCT INFORMATION ........................................................................................................................ 6 2. EVALUATION METHOD AND LIMIT .............…

Text truncated - open the document above for the full version.

Page1of10 TestingReport CustomerName：ShenzhenxinhongdaTechnologyCo.,Ltd ProductName：2.4G-BluetoothAntenna SampleModel：XHD-ML1.0 ReferenceStandard ： GB/T9410-2008;ANSI/IEEEStd149-1979 IssueDate ： 2024.5.10 Engineer：Date： Auditor：Date： Approver ： Date ： Page2of10 Version VersionNo.DateDescriptionFormulateapproval A02024.5.10Forthefirsttime Contents 1.GeneralInformation.................................................................................................................................................................3 1.1.Generalinformationoftestinginstitutions..................................................................................................................3 1.2.Testingprinciple............................................................................................................................................................3 1.3.Testequipment..............................................................................................................................................................4 1.4.Testenvironment...........................................................................................................................................................4 1.5.Statement......................................................................................................................................................................4 2.SampleInformation..................................................................................................................................................................5 2.1.Clientinformation.........................................................................................................................................................5 2.2.DescriptionofEUT(S)....................................................................................................................................................5 2.3.EUTappearance............................................................................................................................................................6 2.4.DUTsetupphotooffreespaceOTAtesting..................................................................................................................6 3.TestResults...............................................................................................................................................................................7 3.1.Teststandard.................................................................................................................................................................7 3.2.Testuncertainty.............................................................................................................................................................7 3.3.Testdata........................................................................................................................................................................8 3.3.1.S11parameters..................................................................................................................................................8 3.3.2.VSWR..................................................................................................................................................................8 3.3.3.Typicalfreespaceefficiencyandgain................................................................................................................8 3.3.4.Typicalfreespaceradiationpattern..................................................................................................................9 （ Thefollowingisblank ） .........................................................................................................................................................10 Page3of10 1.GeneralInformation 1.1.Generalinformationoftestinginstitutions NameShenzhenYundingCommunicationElectronicsCo.,LTD Address 3015,3rdFloor,No.1SanweiSouthRoad,Bao'anDistrict,Shenzhen City,GuangdongProvince Tel0755-23073599 [email protected] EquipmentATS300 1.2.Testingprinciple Page4of10 1.3.Testequipment EquipmentModelNo.SerialNo.Manufactur calibration date Next calibration date ATS3004x 3x3m(3D) Chamber 4*3*3Xinghang2023.12.52024.12.4 Network Analyzer E5071BAgilent2023.11.262024.11.25 Network Analyzer 8753DHP2023.11.132024.11.12 1.4.Testenvironment Temperature24.6°C Humidity59%RH Pressure100.12kPa 1.5.Statement (1)Thetestresultsinthereportareonlyapplicabletothetestedsamplesandthe testedsamplesworkundertheenvironmentdescribedinthereport. (2)OnlyShenzhenYundingCommunicationElectronicsCo.,LTDhavetherightto modifythereport,andthemodificationinformationshallbeannotatedintherevision form. (3)Anyobjectiontothisreportshallberaisedwithin30daysafrerformal confirmationofthereport. (4)Thisreportisinvalidifthereisanyevidencethatthesampleinformationprovided isfalsified. (5)Thereportisinvalidwithoutthesignatureoftheauditorandapprover. Page5of10 2.SampleInformation 2.1.Clientinformation NameShenzhenxinhongdaTechnologyCo.,Ltd Address 310,BlockC,HongwanBusinessCenter,GuchengHongwanSecond IndustrialZone,XixiangStreet,Bao'anDistrict,Shenzhen ContactsHongTao Tel13113675359 [email protected] 2.2.DescriptionofEUT(S) ProductName2.4G-BluetoothAntenna SampleModelXHD-ML1.0 AntennaSize16.5*9.8MM AntennaTypePCBAntenna SerialNo./ TestItemVSWR;Gain;Efficiency.Radiationpattern Frequency Range 2400-2500MHz ReceivedDate TestDate2024.5.10 Remark/ Page6of10 2.3.EUTappearance 2.4.DUTsetupphotooffreespaceOTAtesting Planform Frontview Page7of10 3.TestResults 3.1.Teststandard NameParameterMethodStandardno. Mobile communication antenna VSWR Genericspecificationfor antennasusedinthe mobilecommunications GB/T9410-2008Antennagain Radiationpattern AntennaRadiationefficiency IEEEStandardTest ProceduresforAntennas ANSI/IEEEStd 149-1979 3.2.Testuncertainty TheuncertaintywascalculatedonthebasisoftheGUMpublishedbyISO,usingtheinclusionfactor ofK=2andthe95%confidencelevelt…

Text truncated - open the document above for the full version.

Page 1 of 23 FCC ID: 2BSP6-16SPRO-16S Report No.: LCSC11045013EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Appendix A RF Test Data for BT LE (Conducted Measurement) Product Name: Electric unicycle Test Model: KS-16SPRO Environmental Conditions Temperature: 24.2 C Relative Humidity: 56.4% ATM Pressure: 100.0 kPa Test Engineer: Yan Chen Supervised by: Fengliu Tang Page 2 of 23 FCC ID: 2BSP6-16SPRO-16S Report No.: LCSC11045013EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com A.1 -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT BLE 2M 2402 Ant1 1.161 >=0.5 Pass NVNT BLE 2M 2440 Ant1 1.109 >=0.5 Pass NVNT BLE 2M 2480 Ant1 1.126 >=0.5 Pass Page 3 of 23 FCC ID: 2BSP6-16SPRO-16S Report No.: LCSC11045013EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com -6dB Bandwidth NVNT BLE 2M 2402MHz Ant1 6dB Bandwidth NVNT BLE 2M 2440MHz Ant1 Page 4 of 23 FCC ID: 2BSP6-16SPRO-16S Report No.: LCSC11045013EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com -6dB Bandwidth NVNT BLE 2M 2480MHz Ant1 Page 5 of 23 FCC ID: 2BSP6-16SPRO-16S Report No.: LCSC11045013EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com A.2 Maximum Peak Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Limit (dBm) Verdict NVNT BLE 2M 2402 Ant1 -1.72 30 Pass NVNT BLE 2M 2440 Ant1 0.6 30 Pass NVNT BLE 2M 2480 Ant1 -0.41 30 Pass Page 6 of 23 FCC ID: 2BSP6-16SPRO-16S Report No.: LCSC11045013EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Power NVNT BLE 2M 2402MHz Ant1 Power NVNT BLE 2M 2440MHz Ant1 Page 7 of 23 FCC ID: 2BSP6-16SPRO-16S Report No.: LCSC11045013EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Power NVNT BLE 2M 2480MHz Ant1 Page 8 of 23 FCC ID: 2BSP6-16SPRO-16S Report No.: LCSC11045013EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com A.3 Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Conducted PSD (dBm/3kHz) Limit (dBm/3kHz) Verdict NVNT BLE 2M 2402 Ant1 -21.58 8 Pass NVNT BLE 2M 2440 Ant1 -19.2 8 Pass NVNT BLE 2M 2480 Ant1 -20.23 8 Pass Page 9 of 23 FCC ID: 2BSP6-16SPRO-16S Report No.: LCSC11045013EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com PSD NVNT BLE 2M 2402MHz Ant1 PSD NVNT BLE 2M 2440MHz Ant1 Page 10 of 23 FCC ID: 2BSP6-16SPRO-16S Report No.: LCSC11045013EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com PSD NVNT BLE 2M 2480MHz Ant1 Page 11 of 23 FCC ID: 2BSP6-16SPRO-16S Report No.: LCSC11045013EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com A.4 Band Edge Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT BLE 2M 2402 Ant1 -45.25 -20 Pass NVNT BLE 2M 2480 Ant1 -55.4 -20 Pass Page 12 of 23 FCC ID: 2BSP6-16SPRO-16S Report No.: LCSC11045013EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Band Edge NVNT BLE 2M 2402MHz Ant1 Ref Band Edge NVNT BLE 2M 2402MHz Ant1 Emission Page 13 of 23 FCC ID: 2BSP6-16SPRO-16S Report No.: LCSC11045013EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Band Edge NVNT BLE 2M 2480MHz Ant1 Ref Band Edge NVNT BLE 2M 2480MHz Ant1 Emission Page 14 of 23 FCC ID: 2BSP6-16SPRO-16S…

Text truncated - open the document above for the full version.
