2BSPD-WI6TEAX600Wi-Fi Repeater

1 Wi-Fi Repeater WI6TE-AX600 Know your product The WI6TE-AX600 is a device that extends WiFi signals, expanding the existing network signals in your home 1 SET Network configuration button ------ Long press for 3 seconds to start the distribution network 2 RESET restore factory setting ------ Long press for more than 3 seconds to restore factory Settings 3 WPS Pair up with one click ------ Long press for 3 seconds to start pairing (this function only supports IOS) 4 USB Power input ------ 5V/2A 5 LED pilot lamp ------ The white light is on when the power is on ------ The red light flashes when the distribution network is connected ------ The green light for the distribution network is always on 2 Install 1.The mobile phone scans the QR code and installs the Wi6te App for the network 2. First, place the repeater near the router, insert the USB power supply, and open the mobile App Wi6te 3. Turn on the wifi and Bluetooth switches on your phone and hold it close to the amplifier Wi6te 4. Long press for 3 seconds to configure the network of the repeater 5. Click on the image below in the App + 6 . In the App, click Add discovered devices. In the pop-up interface, select the superior main router to be connected (that is, select the working Wi-Fi), and enter the Wi-Fi password of the router to be connected. Click Next to display the successful binding 7.Set the encryption mode of Wi-Fi in the pop-up Wi-Fi information, and then set an SSID Wi-Fi account you want to display (the Wi-Fi name in the figure below is just a random example), and set the password, and then click complete. After completion, the App home page shows "connected"。 8.Congratulations, you have successfully configured your wireless repeater signal amplifier network! You can find the Wi-Fi name you set in the Wi-Fi list of your mobile phone or other wireless devices. After entering the password you set in step 7, you can connect to its Wi-Fi signal and start surfing the web! 3 Frequently asked questions How does the WI6TE-AX600 amplify wireless signals ? Through the relay transmission of Wi-Fi signal, the Wi-Fi sign al can be extended, and the purpose of transmitting Wi-Fi signal to a farther distance is achieved How to manage the WI6TE-AX600? It can be managed and set up through the Wi6te App What should I do if the WI6TE-AX600 does not work properly? You can check the status o f the amplifier' s LED ligh t through the Wi6t e App . Follo w these steps to troubleshoot: 1.If the LED green light of the amplifier flashes, it indicates that there is a problem with the Wi-Fi network of the superior router. It is recommended to change the position of the amplifier closer to the superior router first. When the green light is always on, it indicates that the network is normal again 2.Check whether the master router of the superior level is enabled with a black and white list 3.If the above problems cannot be solved, press the RESET button to restore the factory Settings for 3 seconds to complete the reset and set it again 4.When you take the Wi6te-ax600 Wi-Fi amplifier to a new environment, press the RESET button to restore the factory Settings for 3 seconds. After resetting, reset it again This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. -This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

Shenzhen Hailingwei Electronic Co., LTD Covered Equipment Certification Attestation Letter 10/27/2025 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: 2BSPD-WI6TEAX600 Shenzhen Hailingwei Electronic Co., LTD (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. Shenzhen Hailingwei Electronic Co., LTD (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Shenzhen Hailingwei Electronic Co., LTD (“the applicant”) certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). <Signature>: Name: Jack Bu Title: Manager Company: Shenzhen Hailingwei Electronic Co., LTD Date: 10/27/2025

Shenzhen Hailingwei Electronic Co., LTD * the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter 10/27/2025 TO: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 ATTN.: Reviewing Engineer FCC ID: 2BSPD-WI6TEAX600 FRN of applicant: 0037610904 Per section 2.911(d)(7) of the FCC rules, [Shenzhen Hailingwei Electronic Co., LTD ] (“the applicant”) certifies that the equipment for which authorization is sought is designated to the following U.S. agent* for service of process: Company Name: Herland International Trading Inc FCC Registration Number (FRN): 0036324101 Physical U.S. Company Address: 1370 Valley Vista Dr Ste 200 Diamond Bar, CA 91765 Contact Person: Jianfeng Gao Agent Email Address: [email protected] The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Signed: Printed name: Jack bu Title: Manager Company Name: Shenzhen Hailingwei Electronic Co., LTD Date: 10/27/2025 Agent Signed (if different from Applicant): Signed: Printed name: Jianfeng Gao Title: Manager Company Name: Herland International Trading Inc Date: 10/27/2025

Shenzhen Hailingwei Electronic Co., LTD 2025-10-27 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2BSPD-WI6TEAX600 Product Name: Wi-Fi Repeater Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature>: Name: Jack Bu Title: Manager Company: Shenzhen Hailingwei Electronic Co., LTD

Shenzhen Hailingwei Electronic Co., LTD 2025-10-27 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Shenzhen DL Testing Technology Co., Ltd.（101-201, Comprehensive Building, Tongzhou Electronics Longgang Factory Area, No.1 Baolong Fifth Road, Baolong Community, Baolong Street, Longgang District, Shenzhen, China）to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Shenzhen Hailingwei Electronic Co., LTD （Room 301, Building 9, Longwang Temple Industrial Area, Baishixia Community, Fuyong Subdistrict, Bao'an District, Shenzhen City ） <Signature>: Name: Jack Bu Title: Manager Company: Shenzhen Hailingwei Electronic Co., LTD

Shenzhen Hailingwei Electronic Co., LTD 2025-10-27 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Compliance Testing, LLC to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). Sincerely, <Signature>: Name: Jack Bu Title: Manager Company: Shenzhen Hailingwei Electronic Co., LTD

1/1 Shenzhen Hailingwei Electronic Co., LTD FCC Software Configuration Control Declaration Date: 2025-10-27 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attn: OET Dept. Company Name: Shenzhen Hailingwei Electronic Co., LTD FCC ID: 2BSPD-WI6TEAX600 Product Name: Wi-Fi Repeater Regarding FCC Country Code Selection guidelines identified in KDB 594280. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. <Signature>: Name: Jack Bu Title: Manager Company: Shenzhen Hailingwei Electronic Co., LTD

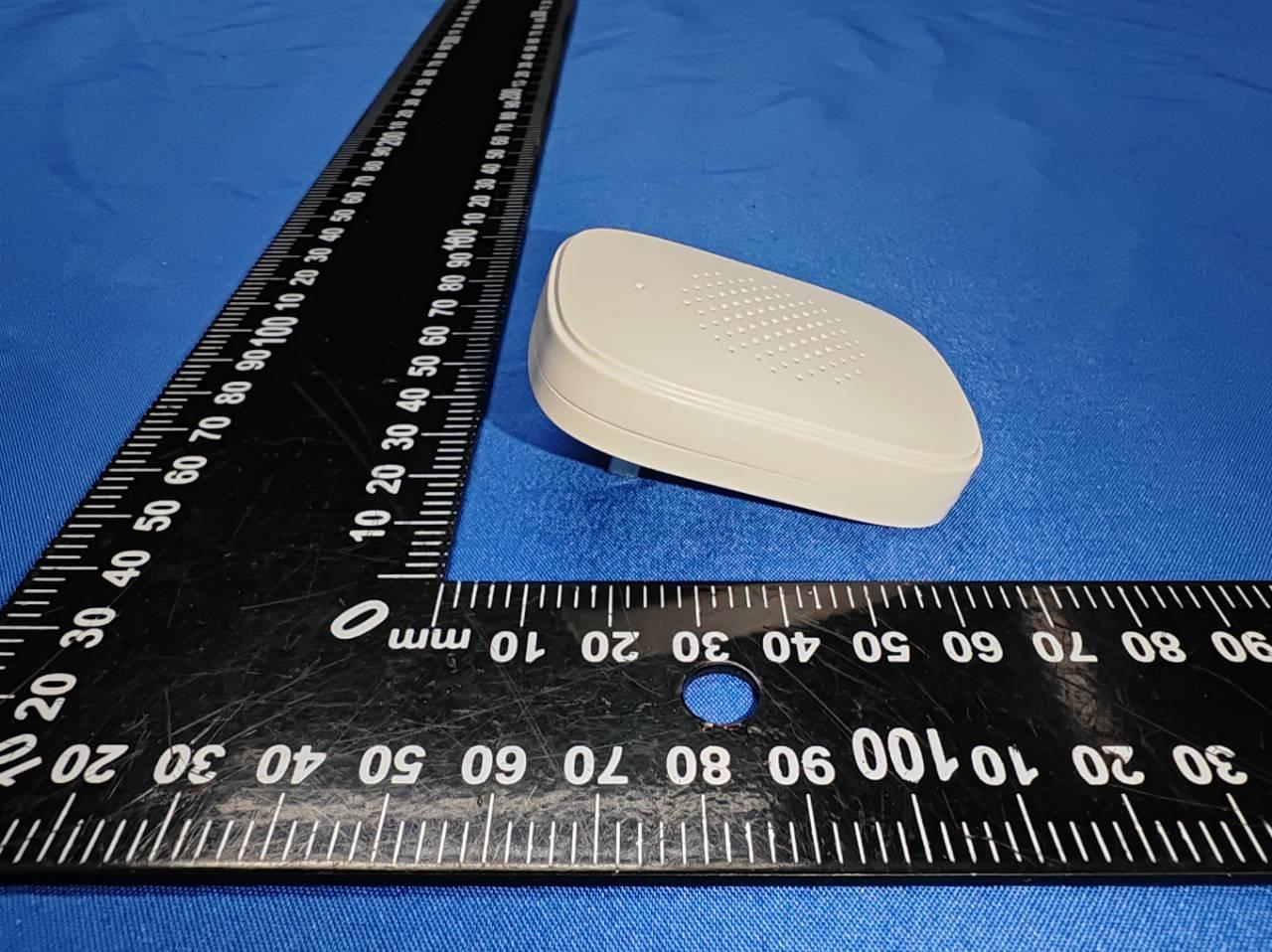

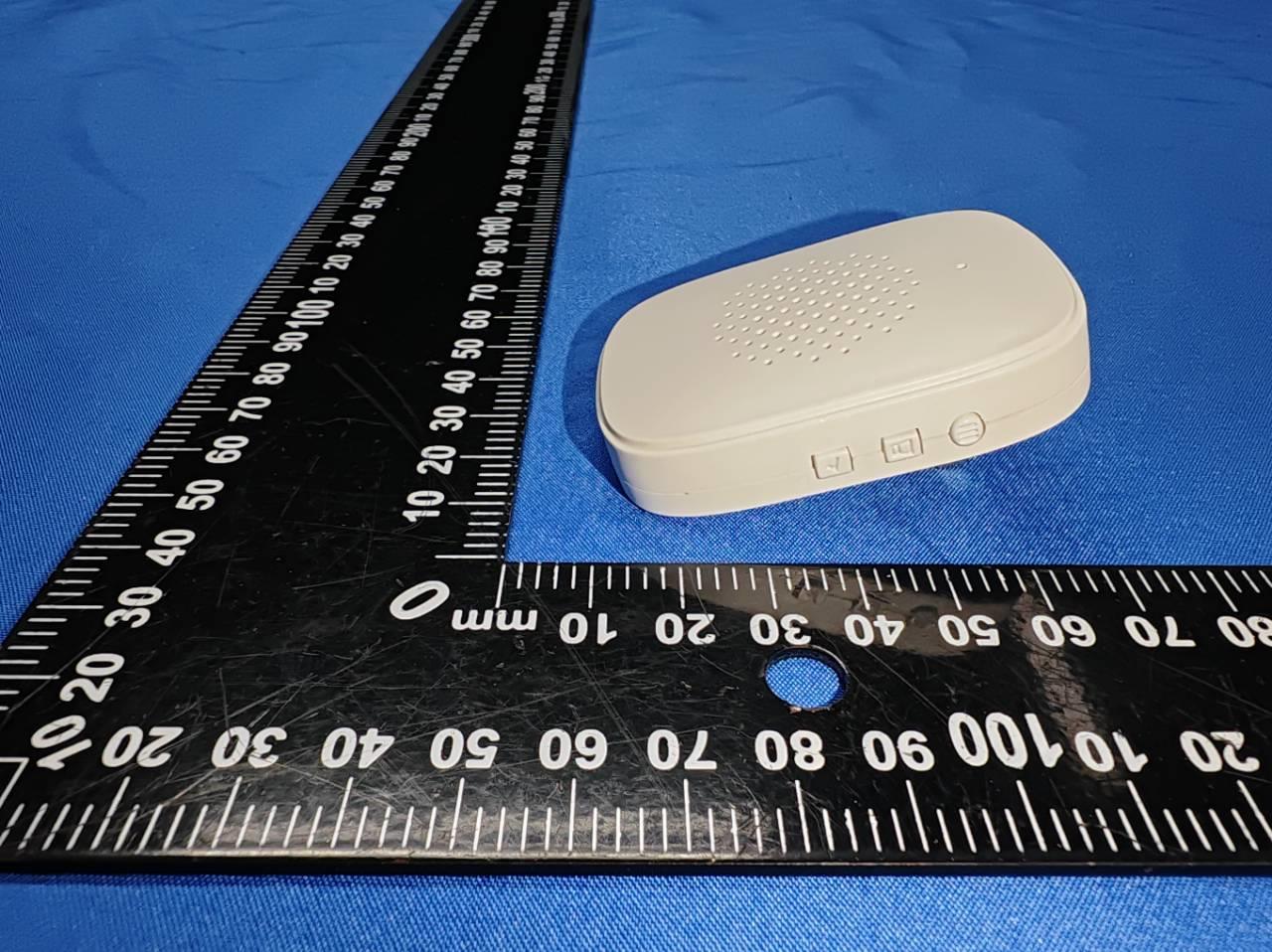

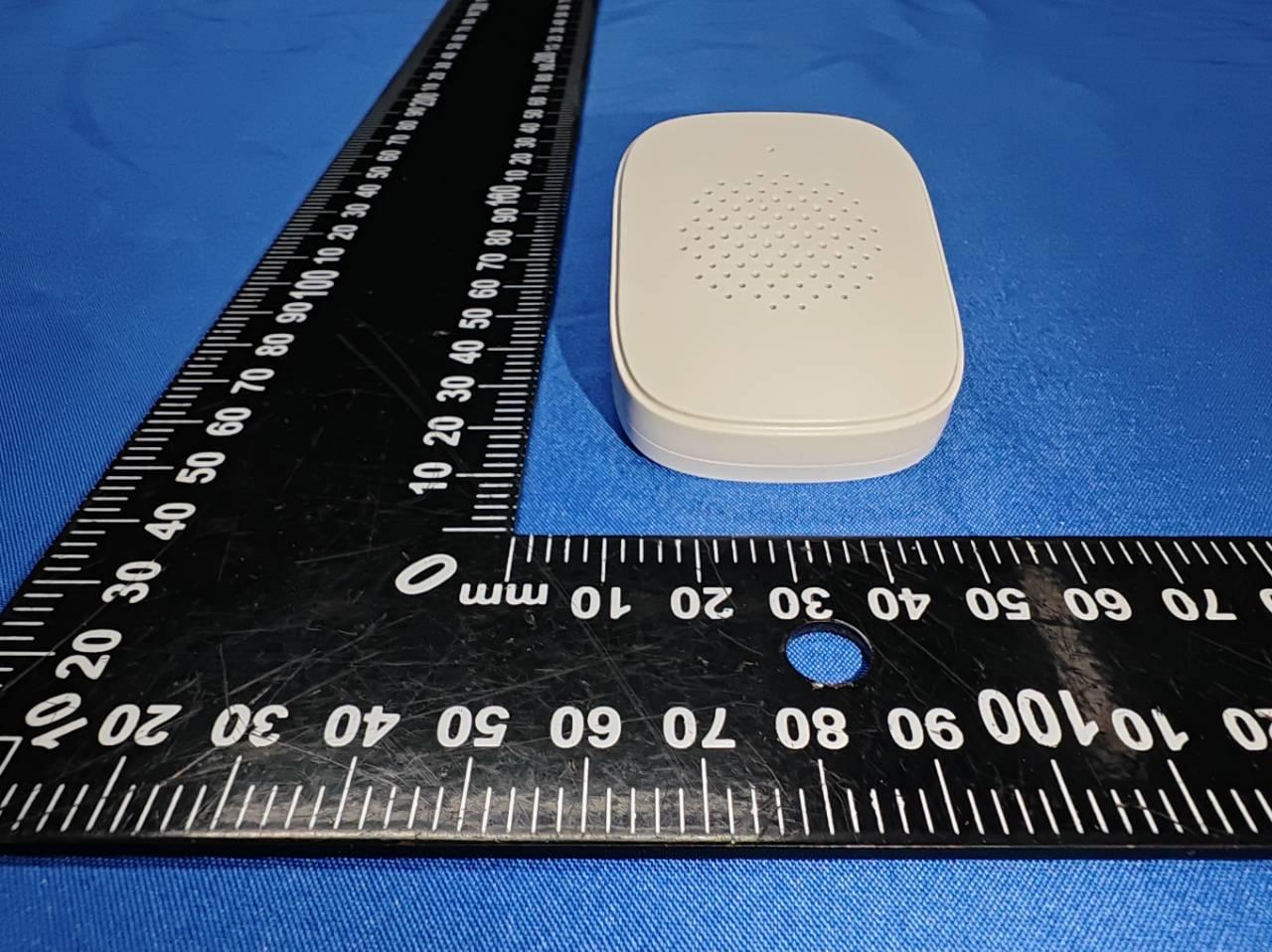

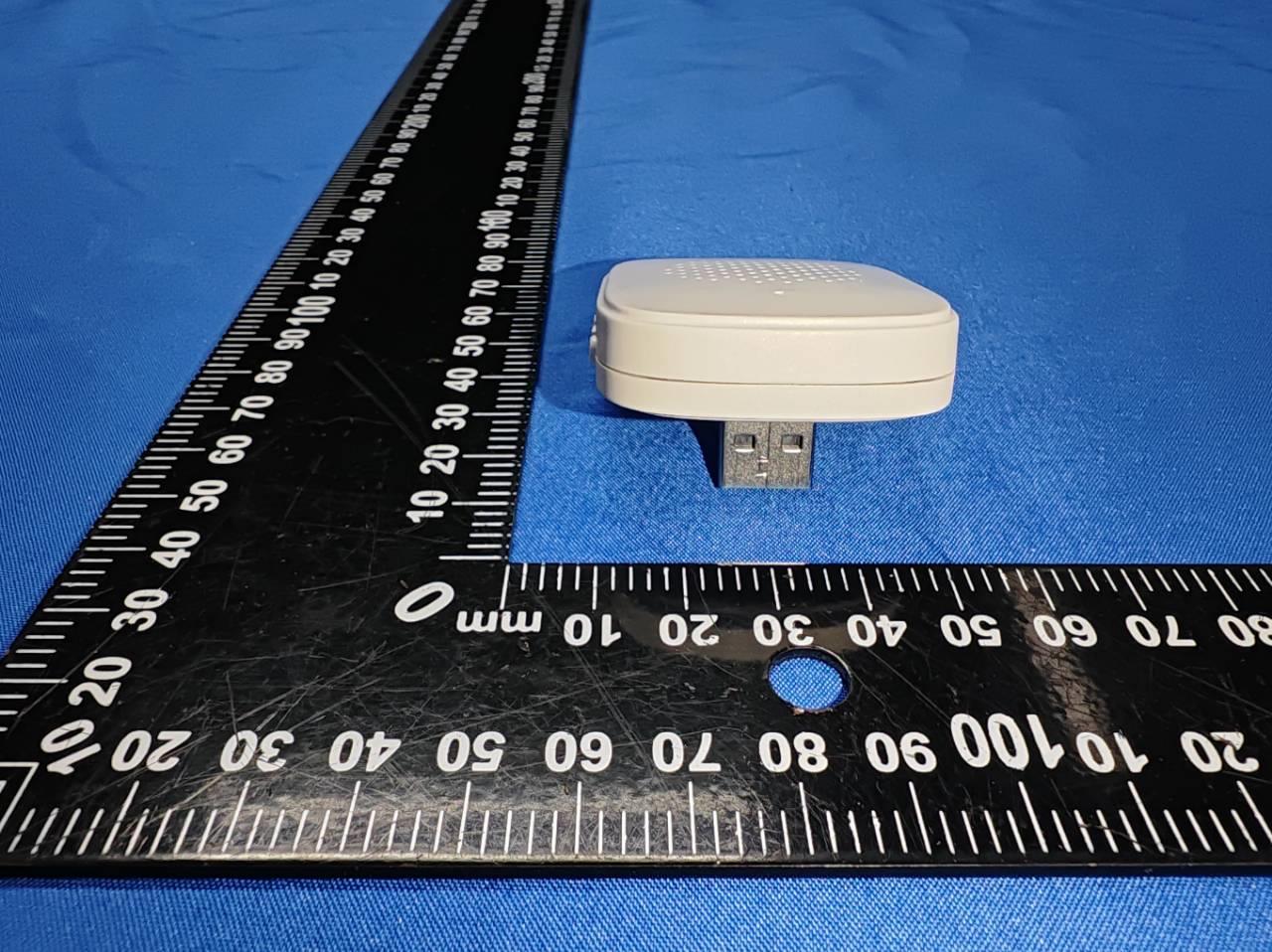

Shenzhen DL Testing Technology Co., Ltd. EUT PHOTO(External Photos) Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. ※※※※※ END OF REPORT ※※※※※

Size: 15*13mm Model.: WI6TE-AX600 FCC ID: 2BSPD-WI6TEAX600 Label location

Shenzhen DL Testing Technology Co., Ltd. EUT PHOTO(Internal Photos) Shenzhen DL Testing Technology Co., Ltd. ※※※※※ END OF REPORT ※※※※※ ANT

FCC ID: 2BSPD-WI6TEAX600 RF Exposure Evaluation Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in KDB 447498 D01 V06 and 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 f = frequency in MHz Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 , Pout = output power to antenna in mW; G = gain of antenna in linear scale, Pi = 3.1416; R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. EIRP=EMeas+20log(dMeas)-104.7 EIRP is the equivalent isotropically radiated power, in dBm EMeas is the field strength of the emission at the measurement distance, in dBμV/m dMeas is the measurement distance, in m Test Result of RF Exposure Evaluation wifi 2.4G mode Channel Output power to antenna (dBm) Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 802.11b 11.87 15.3815 0.0065 1.0 PASS 802.11g 9.99 9.9770 0.0042 1.0 PASS 802.11n HT20 9.39 8.6896 0.0037 1.0 PASS 802.11n HT40 8.01 6.3241 0.0027 1.0 PASS Remark: antenna gain=3.3dBi wifi 5G mode: Band Channel Output power to antenna (dBm) Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result Band 4 802.11a 9.41 8.7297 0.0022 1.0 PASS 802.11n HT20 8.00 6.3096 0.0016 1.0 PASS 802.11n HT40 8.48 7.0469 0.0018 1.0 PASS 802.11ac HT20 8.14 6.5163 0.0016 1.0 PASS 802.11ac HT40 8.32 6.7920 0.0017 1.0 PASS Remark: antenna gain=1.0dBi For BT Output power to antenna (dBm) Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result -2.48 0.5649 0.0002 1.0 PASS Remark: antenna gain=3.3dBi For Simultaneous transmitting, 1): The sum of the ratios of the spatially averaged results to the applicable frequency dependent MPE limits =0.0065/1 + 0.0022/1 + 0.0002/1= 0.0089< 1 Since the sum of the MPE ratios for all simultaneously transmitting antennas incorporated in the device is ≤ 1.0, the EUT is considered to satisfy MPE compliance for simultaneous transmission operations.

Approvalsheet OA-W01_V02 1 APPROVALSHEET OverAir TM SMDAntennaseries RoHSCompliance PN:OA-W01 2.4G/5GWIFIbandantenna Approvalsheet OA-W01_V02 2 FEATURES 1.SurfaceMountedDevices(SMD)withasmalldimensionof8.0X3.0X1.0mm 3 meet miniaturizationtrend. 2.Lowpowerlossandhighantennaefficiency. 3.HighstabilityinTemperatureandHumidityChange. APPLICATIONS 1.2.4G/5GWIFIbandRFapplications 2.WIFI（2.4G/5G） CONSTRUCTION 1、AntennaFeeding 2、Solderingterminal 3、IdentificationMark DIMENSIONS FigureSymbolDimension(mm) L 8.0±0.1 w3.0±0.1 T1.0±0.1 a0.6±0.1 Approvalsheet OA-W01_V02 3 ELECTRICALCHARACTERISTICS OA-W01Specification WorkingFrequencyRange 2400-2500MHz，5200-5800MHz Impedance 50Ω Gain(dBi) 3.3dBi（2.45GHz），1.0dBi（5.5Ghz） VSWR<2 OperationTemperature -40°C~+85°C PowerCapacity3W Theworkingfrequencyneedbeadjustedto2.45GHzwithmatchingcircuit. SOLDERLANDPATTERNDESIGN Figure Approvalsheet OA-W01_V02 4 MatchingcomponentvalueSeries1 0Ω Shunt1 NC Series2 0 Ω AntennaonTestBoard(Thickness1.0mm) AntennaS11onTestBoard Approvalsheet OA-W01_V02 5 AntennaVSWRonTestBoard EfficiencyandRADIATIONPATTERN Efficiency ， RadiationPatternandGainweredependentonmeasurementboarddesign.The specificationofCA-C03antennawasmeasuredbasedonthePCBsizeandinstallationpositionas showninthebelowfiguretestboard.ThetestresultsweretestedinETS3DChamber. GainandEfficiency2.4G-2.5GHz5.2G-5.8GHz PeakGain3.3dBi1.0 AverageGainacrosstheband3.0dBi0.48 GainRangeacrosstheband2.6dBi~3.3dBi-0.7dBi~1.0dBi PeakEfficiency73.3%54.5% Z Y X Approvalsheet OA-W01_V02 6 AverageEfficiencyacrosstheband68.4%42.2% EfficiencyRangeacrosstheband63.8%~73.3%32.4%~54.5% Theta @2.45 GHz Phi @2.45 GHz Total @2.45 GHz Approvalsheet OA-W01_V02 7 Theta @5.5 GHz Phi @5.5 GHz Total @5.5 GHz SOLDERINGCONDITION Typicalexamplesofsolderingprocessesthatprovidereliablejointswithoutanydamageisas follows: Approvalsheet OA-W01_V02 8 PACKAGING PlasticTapespecification(unit:mm) Approvalsheet OA-W01_V02 9 IndexAoBo ΦD TW Dimension(mm) 3.3±0.18.4±0.11.3±0.050.3±0.0516.0±0.3 IndexEFPoP1P2 Dimension(mm) 1.75 ± 0.17.0 ± 0.18.0 ± 0.14.0 ± 0.12.0 ± 0.1 Reeldimensions IndexABC Dimension(mm)33010013.5 TypingQuantity:2000piecesperreel. CAUTIONOFHANDLING Storageenvironmentcondition Productsshoudbestorageinthewarehouseonthefollowingconditions: Temperature:-10°C~+40°C Humidity:30%to70%relativehumidity Don’tkeepproductsincorrosivegasessuchassulfur.Chlorinegasoracidoritmay causeoxidizationofelectrode,resultinginpoorsolderability. Productsshouldbestorageonthepaletteforthepreventionoftheinfluencefrom humidity,dustandsoon. Productsshouldbestorageinthewarehousewithoutheatshock,vibration,direct sunlightandsoon. Productsshouldbestorageundertheairtightpackagedcondition.

Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-251017064R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 1 of 52 FCC Part 15E Test Report FCC ID: 2BSPD-WI6TEAX600 Applicant: Shenzhen Hailingwei Electronic Co., LTD Address: Room 301, Building 9, Longwang Temple Industrial Area, Baishixia Community, Fuyong Subdistrict, Bao'an District, Shenzhen City Manufacturer: Shenzhen Hailingwei Electronic Co., LTD Address: Room 301, Building 9, Longwang Temple Industrial Area, Baishixia Community, Fuyong Subdistrict, Bao'an District, Shenzhen City Product Name: Wi-Fi Repeater Trade Mark: N/A Model Number: WI6TE-AX600 Date of Receipt: Oct. 17, 2025 Test Date: Oct. 17, 2025 - Oct. 30, 2025 Date of Report: Oct. 30, 2025 Prepared By: Shenzhen DL Testing Technology Co., Ltd. Address: 101-201, Comprehensive Building, Tongzhou Electronics Longgang Factory Area, No.1 Baolong Fifth Road, Baolong Community, Baolong Street, Longgang District, Shenzhen, China Applicable Standards: FCC PART 15 E 15.407 ANSI C63.10:2020 Test Result: Pass Report Number: DLE-251017064R Prepared (Test Engineer): Alisa Song Reviewer (Supervisor): Jack Bu Approved (Manager): Jade Yang This test report is based on a single evaluation of one sample of above mentioned products. It is not permitted to be duplicated in extracts without written approval of Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-251017064R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 2 of 52 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 4 1.1 MEASUREMENT UNCERTAINTY 4 2 . GENERAL INFORMATION 5 2.1 GENERAL DESCRIPTION OF EUT 5 2.2 DESCRIPTION OF TEST MODES 6 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 6 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 7 2.5 TABLE OF PARAMETERS OF TEST SOFTWARE SETTING 7 2.6 EQUIPMENTS LIST FOR ALL TEST ITEMS 8 3 . EMC EMISSION TEST 9 3.1 CONDUCTED EMISSION MEASUREMENT 9 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 9 3.1.2 TEST PROCEDURE 9 3.1.3 DEVIATION FROM TEST STANDARD 9 3.1.4 TEST SETUP 10 3.1.5 EUT OPERATING CONDITIONS 10 3.1.6 TEST RESULTS 11 3.2 RADIATED EMISSION MEASUREMENT 13 3.2.1 RADIATED EMISSION LIMITS 13 3.2.2 TEST PROCEDURE 14 3.2.3 DEVIATION FROM TEST STANDARD 14 3.2.4 TEST SETUP 15 3.2.5 EUT OPERATING CONDITIONS 16 3.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 17 3.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 18 3.2.8 TEST RESULTS (1GHZ~40GHZ) 20 3.3 RADIATED BAND EMISSION MEASUREMENT 26 3.3.1 TEST REQUIREMENT: 26 3.3.2 TEST PROCEDURE 26 3.3.3 DEVIATION FROM TEST STANDARD 26 3.3.4 TEST SETUP 27 3.3.5 EUT OPERATING CONDITIONS 27 4 . AVERAGE OUTPUT POWER 30 4.1 APPLIED PROCEDURES / LIMIT 30 4.1.1 TEST PROCEDURE 30 4.1.2 DEVIATION FROM STANDARD 30 4.1.3 TEST SETUP 30 4.1.4 EUT OPERATION CONDITIONS 30 4.1.5 TEST RESULTS 31 5 . POWER SPECTRAL DENSITY TEST 35 5.1 APPLIED PROCEDURES / LIMIT 35 5.1.1 TEST PROCEDURE 35 5.1.2 DEVIATION FROM STANDARD 35 5.1.3 TEST SETUP 35 5.1.4 EUT OPERATION CONDITIONS 35 5.1.5 TEST RESULTS 36 6 . 6DB BANDWIDTH TEST 40 Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-251017064R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 3 of 52 Table of Contents Page 6.1 APPLIED PROCEDURES / LIMIT 40 6.1.1 TEST PROCEDURE 40 6.1.2 DEVIATION FROM STANDARD 40 6.1.3 TEST SETUP 40 6.1.4 EUT OPERATION CONDITIONS 40 6.1.5 TEST RESULTS 41 7 . DUTY CYCLE TEST SIGNAL 45 7.1 APPLIED PROCEDURES / LIMIT 45 7.1.1 TEST PROCEDURE 45 7.1.2 DEVIATION FROM STANDARD 45 7.1.3 TEST SETUP 45 7.1.4 EUT OPERATION CONDITIONS 45 7.1.5 TEST RESULTS 46 8 . FREQUENCY STABILITY 50 8.1 APPLIED PROCEDURES / LIMIT 50 8.1.1 TEST PROCEDURE 50 8.1.2 DEVIATION FROM STANDARD 50 8.1.3 TEST SETUP 50 8.1.4 EUT OPERATION CONDITIONS 50 8.1.5 TEST RESULTS 51 9 . TRANSMISSION IN THE ABSENCE OF DATA 52 9.1 STANDARD REQUIREMENT 52 9.2 TEST RESULT 52 10 . ANTENNA REQUIREMENT 52 10.1 STANDARD REQUIREMENT 52 10.2 EUT ANTENNA 52 11 . TEST SEUUP PHOTO 52 12 . EUT PHOTO 52 Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-251017064R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 4 of 52 1.. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.407) , Subpart E Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.407(b), 15.209 Radiated Spurious Emission PASS 15.407 (b) Band Edge Emission PASS 15.407 (a) Average Output Power PASS 15.407 (a) Power Spectral Density PASS 15.407(e) 6dB bandwidth PASS 15.407(g) Frequency Stability PASS 15.407(c) Transmission in case of Absence of Information PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Test lab: Shenzhen DL Testing Technology Co., Ltd. Address: 101-201, Building C, Shuanghuan, No.8, Baoqing Road, Baolong Industrial Zone, Baolong Street, Longgang District, Shenzhen, Guangdong, China FCC Test Firm Registration Number: 854456 Designation Number: CN1307 IC Registered No.: 27485 CAB ID.: CN0118 1.1. MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±2.56dB 2 RF power,conducted ±0.42dB 3 Spurious emissions,conducted ±2.76dB 4 All emissions,radiated(<1G) ±3.65dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% 8 Bandwidth ±0.2% 9 Power Spectral Density ±2.45dBm 10 Frequency Stability ±0.3MHz 11 DUTY CYCLE ±0.53dB Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-251017064R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 5 of 52 2.. GENERAL INFORMATION 2.1. GENERAL DESCRIPTION OF EUT Product Name: Wi-Fi Repeater Trade Mark: N/A Model Number: WI6TE-AX600 Test Model: WI6TE-AX600 Model Difference …

Text truncated - open the document above for the full version.

Shenzhen DL Testing Technology Co., Ltd. EUT TEST PHOTO Radiated Measurement Photos Shenzhen DL Testing Technology Co., Ltd. Conducted Measurement Photos ※※※※※ END OF REPORT ※※※※※
