2BSRF-T29Smart lock

PLEASE KEEP THIS GUIDE This guide contains important information about your lock. Product Operation Instructions I L P OutSide Le Open Right Open Le Open Right Open OutSideOutSideOutSide InsideInside Inside Inside Left
Open Right
Open Left
Open Right
Open a b c a. Choose the installation direction of the latch bolt of the lock by following thedoor opening direction. b. Locate the reversing block on the lock and push it up to release the latch bolt.The latch bolt will pop out automatically. c.Turn the latch bolt 180 degrees to face the right direction and push it back inuntil it clicks. F Spindle Key Cylinder Cylinder Screw I Mortise +4 Screws Sleeve for Alarm Button Pin Drilling Template L Lever Screw P 4 F Change The Orientation Of The Latch Bolt -1--2- After trepenning on the door, you may insert the lock body Tweaking the four screws to fasten the lock body Insert the key cylinder in the lock body, then use cylinder assembly screw to fasten it B 3 1 Use Phillips Screwdriver to fasten the (P) Lever Screw on the back of the front panel Adjust the lever direction depends on the door direction Take out the screw in the lever of the back lock panel Pull out the whole lever and adjust the direction, insert it back and screw it again Screw the (B)Connection Column onto the front lock panel. Ensure the round side of the connection column faces the panel. Front
Panel: 3.To drill the necessary holes, usethe drilling template to mark the appropriate location on the door, and then proceed to drill the holes at themarked positions. 1.Cut the drilling template along the dotted lines as indicated on the template. 2.Position the template on your desired location on the door in accordance with the illustration provided. 2 D C D 4 Connecting the two panels Position the Front Lock Panel Screw the Connection Column Cut the (C)Square Steel to the proper length as graph 1 shown Place the (D)Spring into the square steel hole, to prevent the square steel falling off Put (J)Sleeve on the alarm button Connect the wires tightly graph 1 Installing the Lock Body P J J -3--4- 5 It's important to ensure that there's someone inside the house while testing the lock. O Method 1 Take out one battery first, and wait for 8s Use the thin thing to hold the little circle button on near the batteries Put the battery in (Remember keep holding the button), and you will hear the sounds of ‘di’ Waiting the voice prompt that let you confirm the factory reset Press the ‘#’ to confirm the factory reset Method 2 Access into the System setting Press 3(System Setting), 7(Factory Reset) again, and press ‘#’ to confirm the factory reset (Please notice: After the factory reset, the lock will be under the experiencing mode: any fingerprint/IC card is able to unlock) Factory Reset 1 2 Operating Instructions 1.User Manage Touch any key to wake the system, and press ‘*’ + ‘#’ to enter the Setting, by using the initial admin password(123456) Press ‘1’(User Manage) to Create User If the (D)Spindle is too long, use a vice to break it to the proper length depending on your door thickness. Fasten the Spindle Take out the (D)Spindle and use the (F)Pin to fasten by going through the holes for linking them together as graph 2 shown. graph 2 Ensure that the square steel, key cylinder, and spindle are aligned and centered in the holes of the door. Back Panel Installation Break the Spindle Fasten the Spindle 6 Cut the (A)Column Screws to the proper length Push the back lock panel into the door, ensuring that the square steel and spindle are inserted into the back lock panel. Use Phillips Screwdriver to fasten the back lock panel on the doorMake sure the lock panel is tightly fixed Install the Back Lock Panel 7 Battery Inserting Remove the battery cover and place the (O)Batteries K 1.Add Users 2.Delete Users 3.System Setting 4.Record Query 1. Add Admins 1. Add Fingerprint 2 . Add Password The Normal User can’t enter the Setting The first user has to be the administrator. 1)Enroll Password: Enter the new password 2 )Enroll Fingerprint: Follow the voice prompt to press and lift your finger A F -5--6- Search for Smart Life in Apple’s App Store and other major app stores or scan the following QR code to download the Smart Life app Please type in WiFi SSID and Key,(Remember the device only support 2.4GHz WiFi) Press ‘3’ to enter the System Setting Press ‘5’ to create phone user, and choose WIFI 1.Intelligent Network Connection 2.Hot-spot Network Connection 3.Delete Network 1.Add Users 2.Delete Users 3.System Setting 4.Record Query 1.Time Setting 5. Network configuration 2.Language setting 6. Anti-prying setting 3.Volume setting 7. Factory reset 4.Unlock mode Confirm the indicator is blinking rapidly (Some models don’t blink) Select EZ Mode Then it will automatically start to connect You may rename the lock name by choosing the pattern of the pen 2.Delete Users 1. Delete My Group 2. Delete My Index 1.Add Users 2.Delete Users 3.System Setting 4.Record Query 1)Delete Group Delate by the group of user types: Fingerprints, cards, or passwords 2)Delete Index Delate by entering the user number 1. Delete Fingerprint 2. Delete Password Please put your phone to device camera scan your QR code If you have more questions about operating, please find the followed website of TUYA Networking Configuration APP Operating -7--8- 3.System Setting 1.Add Users 2.Delete Users 3.System Setting 4.Record Query 1.Time Setting 5. Network configuration 2.Language setting 6. Anti-prying setting 3.Volume setting 7. Factory reset 4.Unlock mode 1) Time Setting 2) Language Setting 3) Volume Setting 4) Unlock Mode 1.Single Open Mode 2.Double Open Mode Disable Verify- Disable the certain unlocking functions among fingerprints, face ID, ID card, password. 6) Anti-prying setting 1.open 2.close Anti-pry- Turn on or offthe anti-pryalarm.Theanti-pry alarm will sound for 30s if criminals remove the lock 5) Network configuration 4.Record Query To see the unlocking records 1) The initial admin pass…

Text truncated - open the document above for the full version.

Zhejiang Dalton Intelligent Technology Co., Ltd. 3/F, Building E, George White Leisure Clothing Production Base, Kunyang Town, Pingyang County, Wenzhou City, Zhejiang Province, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2026/01/26 U.S. Agent Designation Zhejiang Dalton Intelligent Technology Co., Ltd. acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BSRF-T29): Name and company of U.S. agent: GLOCERTS TECHNOLOGY INC Physical U.S. address of agent: 19784 SUNKISSED RIDGE DR RIVERSIDE, CA 92507 United States FRN of U.S. agent: 0036339737 Email address of U.S. agent: [email protected] GLOCERTS TECHNOLOGY INC acknowledges their obligation to accept service of process on behalf of Zhejiang Dalton Intelligent Technology Co., Ltd. Zhejiang Dalton Intelligent Technology Co., Ltd. with the FRN [0037613411] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. An expiration date for this letter does not exist. Sincerely, Signature Xiansheng Jin Manager Zhejiang Dalton Intelligent Technology Co., Ltd. Signature Huiying Fan Director GLOCERTS TECHNOLOGY INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

ZhejiangDaltonIntelligentTechnologyCo.,Ltd. 01/26/2026 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:AttestationStatementsPart2.911(d)(5)(i)requestfor(FCCID:2BSRF-T29) [ZhejiangDaltonIntelligentTechnologyCo.,Ltd.](“theapplicant”)certifiesthatthe equipmentforwhichauthorizationissoughtisnot“covered”equipmentprohibited fromreceivinganequipmentauthorizationpursuanttosection2.903oftheFCCrules. Wealsocertifythat,asofthedateofthefilingoftheapplication,theequipmentdoes notutilizecyber-securityoranti-virussoftwarefromKasperskyLab,Inc,oranyofits successorsandassignees,whichisalsoonthe“coveredlist”. Sincerely, (Applicantsignature) (Applicantprintedname)XianshengJin ZhejiangDaltonIntelligentTechnologyCo.,Ltd 01/26/2026 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:AttestationStatementsPart2.911(d)(5)(ii)requestfor(FCCID:2BSRF-T29) [ ZhejiangDaltonIntelligentTechnologyCo.,Ltd. ](“theapplicant”)certifiesthat,asof thedateofthefilingoftheapplication,theapplicantisnotidentifiedontheCovered Listasanentityproducing“covered”equipment. Sincerely, (Applicantsignature) (Applicantprintedname)XianshengJin

ZhejiangDaltonIntelligentTechnologyCo.,Ltd. 01/26/2026 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:CONFIDENTIALITYREQUESTFOR(Smartlock/ #ANDFCCID:2BSRF-T29) ToWhomItMayConcern: Thisletterservesasanofficialrequestforconfidentialityundersections0.457and0.459 ofCFR47.Wehaverequestedthatthe -BlockDiagram -Schematics -OperationalDescription requiredtobesubmittedwiththisapplicationbepermanentlywithheldfrompublic review. Theabovedocumentsarecompanyproprietaryinformationthatcouldnevergetintothe possessionofyourcompetition. Pleasecontactmeifthereisanyinformationyoumayneed. Sincerely, Client’ssignature: Client’sname/title: XianshengJin /manager Contactinformation/address: 3/F,BuildingE,GeorgeWhiteLeisureClothingProductionBase, KunyangTown,PingyangCounty,WenzhouCity,ZhejiangProvince,China

ZhejiangDaltonIntelligentTechnologyCo.,Ltd. 01/26/2026 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:LETTEROFAGENTAUTHORIZATION ToWhomItMayConcern: We,theundersigned,herebyauthorize(ShenzhenCTATestingTechnologyCo.,Ltd.)toacton ourbehalfinallmattersrelatingtoapplicationforequipmentauthorization,includingthesigning ofalldocumentsrelatingtothesematters. Wealsoherebycertifythatnopartytotheapplicationauthorizedhereunderissubjecttothe denialofbenefits,includingFCCbenefits,pursuanttoSection5301oftheAnti-DrugAbuseAct of1988,21U.S.C.853(a). Thisagreementexpiresoneyearfromthecurrentdate. Sincerely, Client’ssignature: Client’sname/title: XianshengJin /manager Contactinformation/address:3/F,BuildingE,GeorgeWhiteLeisureClothingProduction Base,KunyangTown,PingyangCounty,WenzhouCity,ZhejiangProvince,China

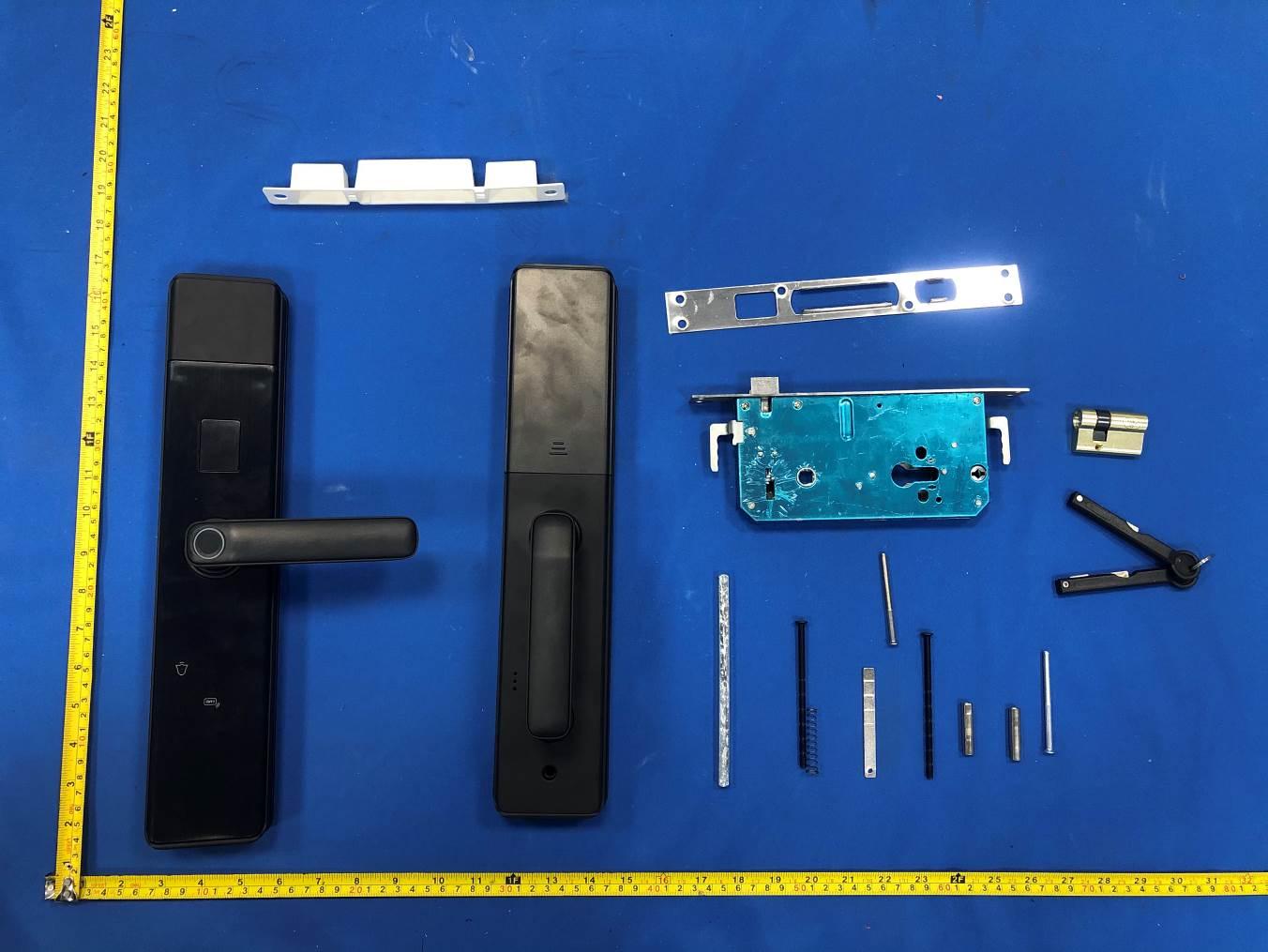

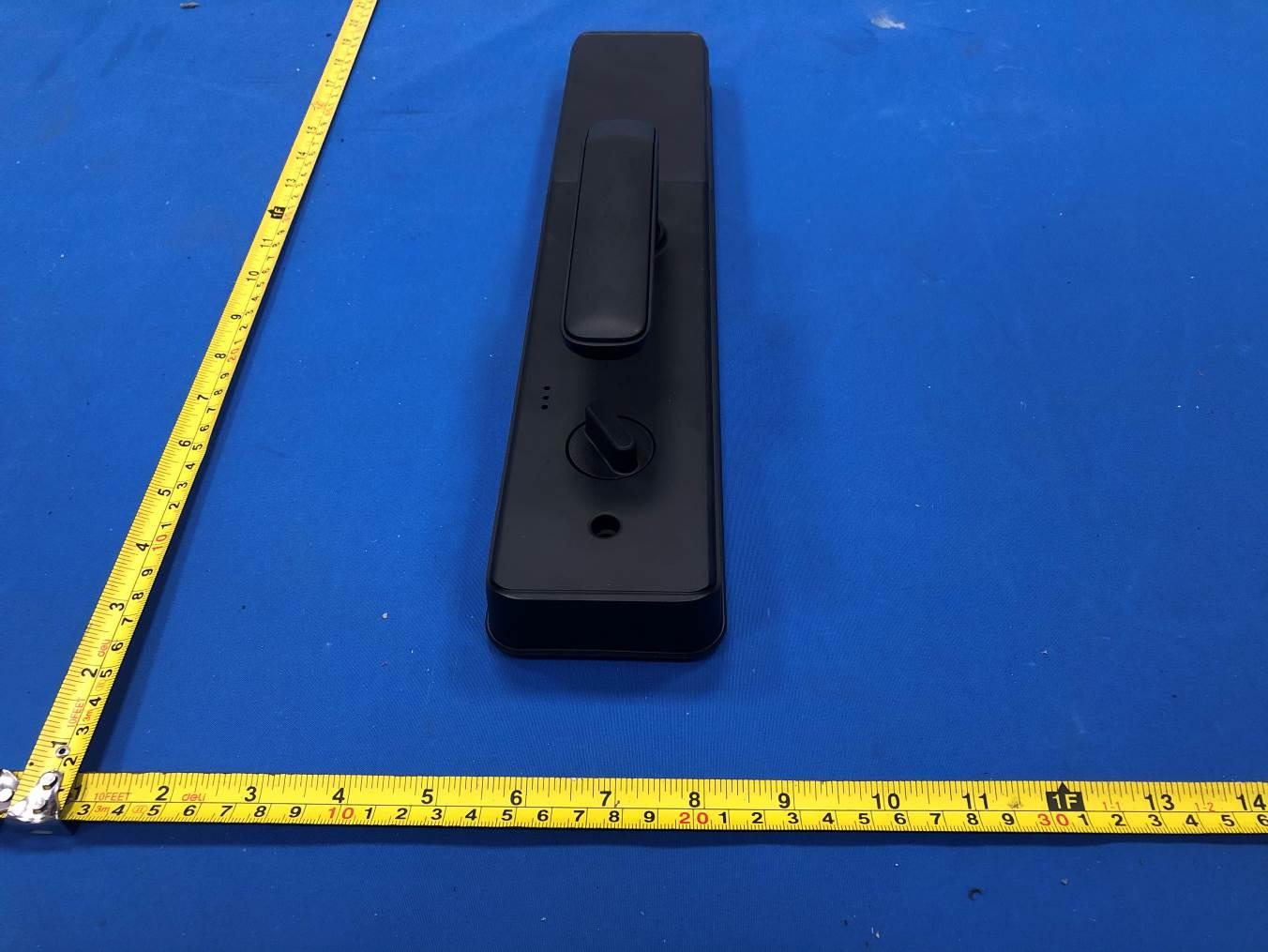

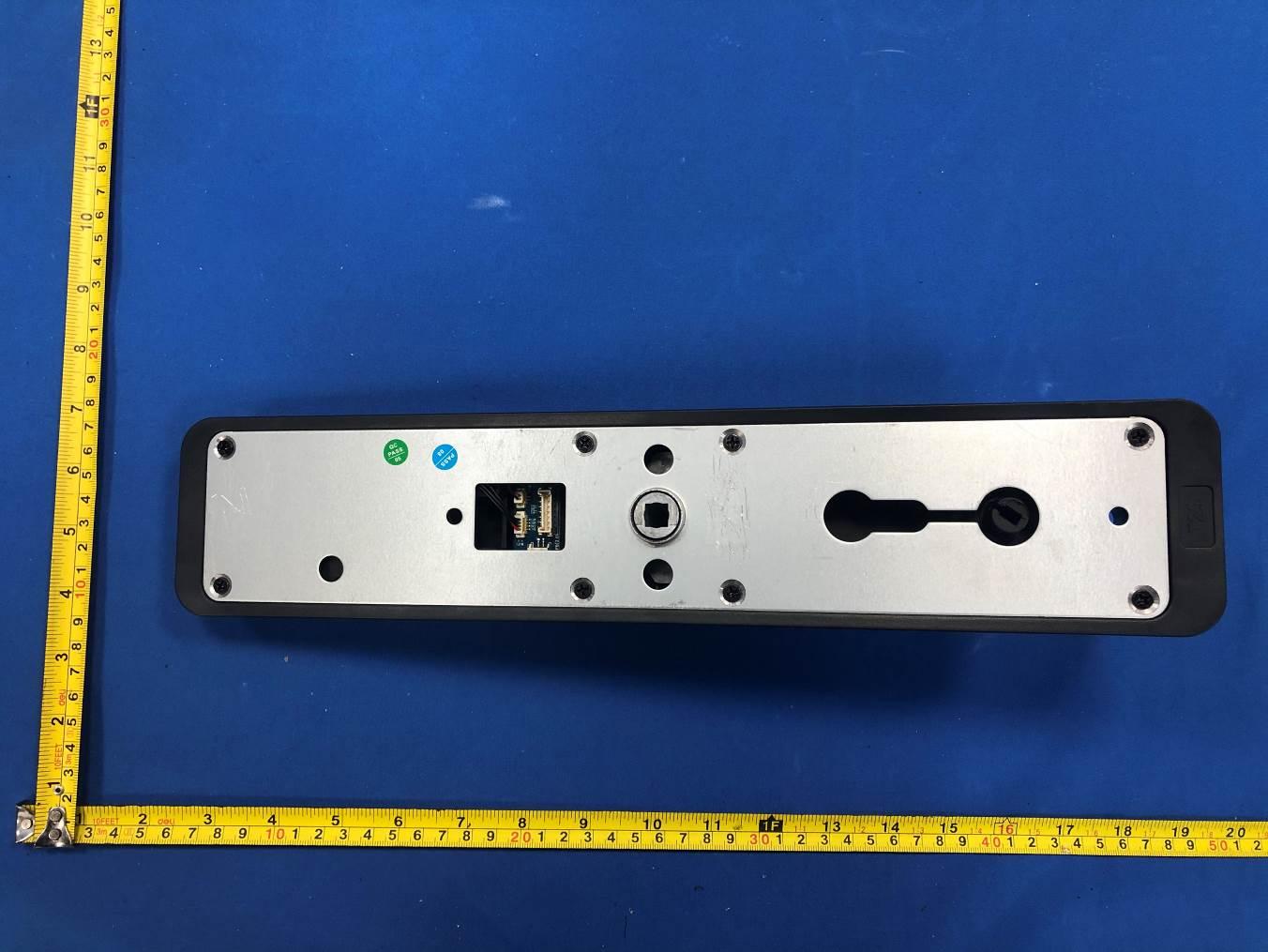

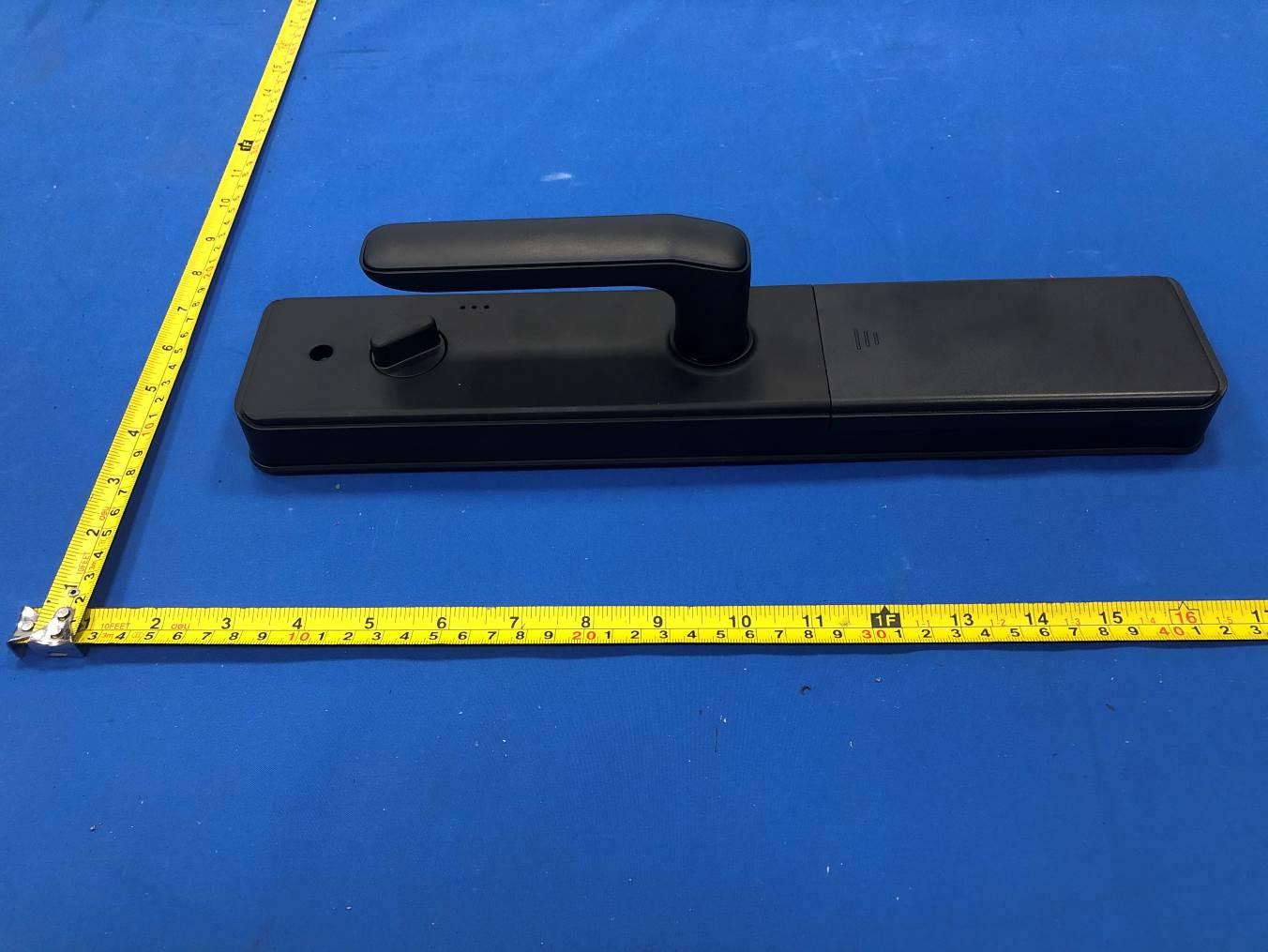

FCCID:2BSRF-T29 ExternalPhotosoftheEUT FCCID:2BSRF-T29 FCCID:2BSRF-T29
