2BSRJ-1005smart glasses

GS300使用说明书 1.外观说明 ⻨克⻛ 镜腿触控区 充电触点 扬声器 指示灯 说明：左右镜腿对称分布触控区、麦克风、充电触点、扬声器及指示灯。 6.产品参数 无线连接：5.2 续航时间：8小时以上 产品类型：智能眼镜 电池容量：300mAh 充电时间：60分钟 扬声器：高保真 麦克风：语音降噪 8.注意事项 1.切勿严重撞击眼镜。 2.切勿接触苯、稀释剂等化学物品。 3.请不要靠近强磁场、电击站。 4.请避开直射光线或发热器具。 5.切勿自行拆卸、修理、改造。 6.废弃包装、电池、旧电子产品，请分类妥善处理。 打开手机无线搜索眼镜名”XXX“，在手机端点击配对即可。 4.无线配对 当眼镜连接充电线后，将充电线的 USB 端接入标准充电器，仅需 60 分钟即可充满。 3.充电说明 5.安装连接APP 1.手机扫描二维码下载并安装APP。 支持系统：iPhone10.0、Android9.0 及以上版本 2.在APP中登录帐号，选择连接绑定眼镜。 提示：请确保手机无线处于开启状态，连接过程中需将眼镜靠近手机。 7.主要功能 播放音乐无线通话语音助手计步距离 2.按键位置与功能 镜腿触控区 说明：左右侧镜腿均分布触控区 如何开机/关机？ 如何进入配对状态？ 开启眼镜，即可进入配对状态 如何进行语音交互？ 打开双腿，眼镜开机 关闭双腿，眼镜关机 长按中间（左侧）唤醒语音助手 如何播放音乐？ 单击右侧播放/暂停 前后滑动（左侧）声音增加/减少 前后滑动（右侧）下一首/上一首 来电通话如何操作？ 前后滑动（右侧）接听/拒接 向后滑动（右侧）通话中挂断 如何控制手机拍摄？ 进入手机拍摄界面后，向前滑动（右侧） （仅部分安卓手机支持） 7. Main functions 8. Precautions 1. Do not severely impact the glasses. 2. Do not contact chemicals such as benzene and thinners. 3. Please do not approach strong magnetic fields or electric shock stations. 4. Please avoid direct light or heating appliances. 5. Do not disassemble, repair or modify by yourself. 6. Please classify and properly dispose of discarded packaging, batteries, and old electronic products. 1. Appearance description Charging contacts Speaker GS300 User Manual Microphones Mirror leg touch control area Indicator light Description: The touch area, microphone, charging contacts, speaker and indicator light are symmetrically distributed on the left and right temples. 6. Product parameters Speaker: high fidelity Microphone: voice noise reduction Wireless connection: 5.2 Battery life: more than 8 hours Product type: smart glasses Battery capacity: 300mAh Charging time: 60 minutes 2. Button Location and Function Mirror leg touch control area Description: The left and right side mirror legs are distributed with touch control area. How to turn on/off? How to enter pairing status? Turn on the glasses to enter the pairing status. How to do voice interaction? Open the legs, the glasses are turned on. Close the legs, the glasses are turned off. Long press the center(left side) Wake up the voice assistant How to play music? Click the right sidePlay/Pause Swipe back and forth (left) Sound increase/decrease Slide back and forth (right side) Next/Previous How does incoming call work? Swipe back and forth (right) Answer/Reject Swipe back (right) Hang up during a call Play musicWireless callVoice assistantStep countingDistance Open your cell phone to search for the name of glasses “XXX” wirelessly and click pairing on the cell phone. 4.Wireless Pairing When the glasses are connected to the charging cable, connect the USB end of the charging cable to a standard charger and it will take only 60 minutes to be fully charged. 3.Charging instructions 5.Installation of connection APP 1. Scan the QR code on your cell phone to download and install APP. Support system:For iPhone 10.0, Android 9.0 and above. 2.Login your account in APP and choose to connect the bound glasses. Tips: Please make sure the wireless of your cell phone is on, and keep the glasses close to your cell phone during the connection process. How to control the phone shooting? After entering the cell phone shooting interface, swipe forward (right) (Only supported by some Android phones) FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 0cm between the radiator and your body.

Local Representative Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(7), of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC ID Model name 2BSRJ-1005 1005, 1001, 1002, 1003, 1006, 1007, 1008, 1009 We hereby acknowledge as follows: i. both signees confirm that the point of contact accepts responsibility to act as a US- American Representative on behalf of the applicant ii. the point of contact provides the physical U.S. address and email as listed below iii. both parties maintain the requirements of this agreement for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. iv. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. US-American Point of Contact Applicant/Approval Holder Signature Date: 2025-11-22 Signature Date: 2025-11-22 Company Name: HOORAY INDUSTRY LLC Shenzhen Jieshimeng Intelligent Technology Co., Ltd. FRN: 0033926106 0037613510 Contact Name: Cindy Wu Xiansheng Jin Address: 1408 Pinon Place Fullerton, CA 92835 United States 1409 Hangdu Building, 1006 Huafu Road, Huahang Community, Huaqiang North Street, Futian District, Shenzhen, China Phone: (626) 910-5808 13424388340 Email: [email protected] [email protected]

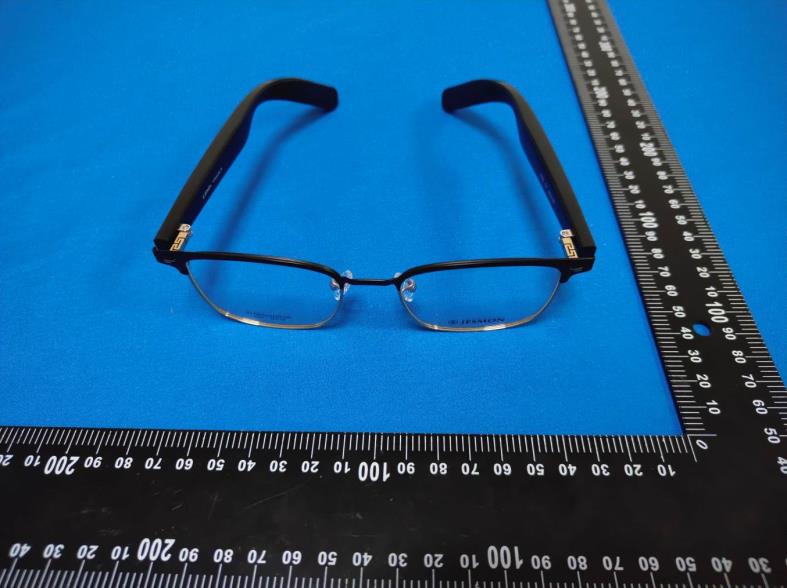

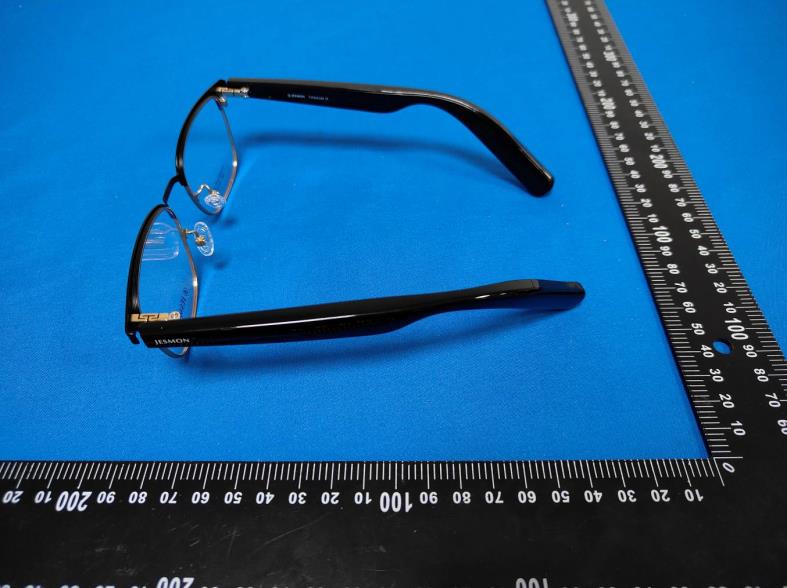

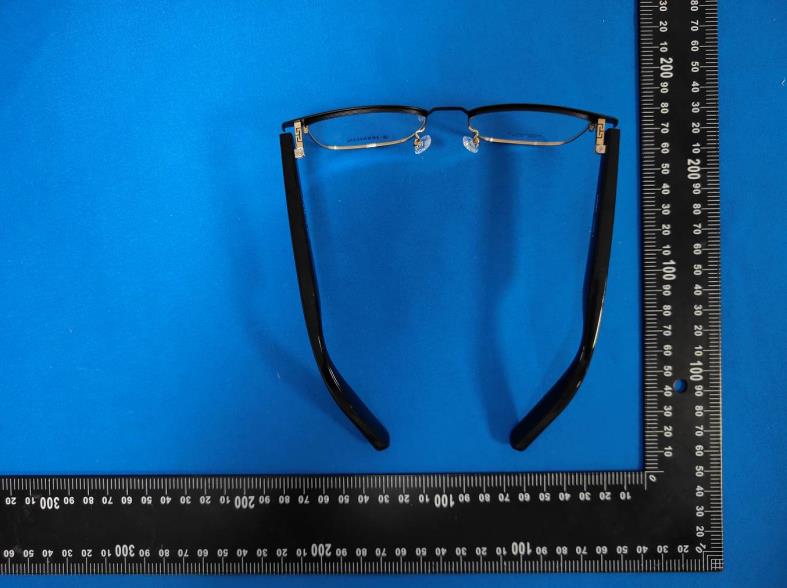

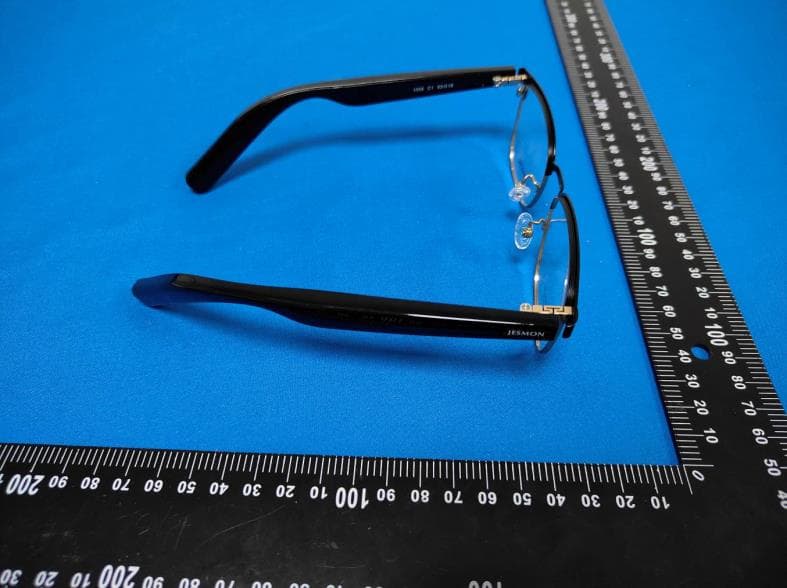

FCC ID: 2BSRJ-1005 External Photos of the EUT FCC ID: 2BSRJ-1005 FCC ID: 2BSRJ-1005

Label and Location Size: L: 2.0cm*W: 0.5cm Label and Location FCC ID : 2BSRJ-1005

FCC ID: 2BSRJ-1005 Internal Photos of the EUT FCC ID: 2BSRJ-1005 ANT FCC ID: 2BSRJ-1005 FCC ID: 2BSRJ-1005 FCC ID: 2BSRJ-1005 FCC ID: 2BSRJ-1005

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure evaluation Report Reference No. ..................... : FCC ID............................................. : CTA25091701202 2BSRJ-1005 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Sep. 28, 2025 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : Shenzhen Jieshimeng Intelligent Technology Co., Ltd. Address............................................ : 1409 Hangdu Building, 1006 Huafu Road, Huahang Community, Huaqiang North Street, Futian District, Shenzhen, China Standard ........................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : smart glasses Trade Mark ....................................... : Manufacturer .................................... : Shenzhen Jieshimeng Intelligent Technology Co., Ltd. Model/Type reference ...................... : 1005 Listed Models ................................... : 1001, 1002, 1003, 1006, 1007, 1008, 1009 Rating ............................................... : DC 3.7V From battery and DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA25091701202 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : smart glasses Model /Type : 1005 Listed Models : 1001, 1002, 1003, 1006, 1007, 1008, 1009 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : Shenzhen Jieshimeng Intelligent Technology Co., Ltd. Address : 1409 Hangdu Building, 1006 Huafu Road, Huahang Community, Huaqiang North Street, Futian District, Shenzhen, China Manufacturer : Shenzhen Jieshimeng Intelligent Technology Co., Ltd. Address : 1409 Hangdu Building, 1006 Huafu Road, Huahang Community, Huaqiang North Street, Futian District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25091701202 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 5 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 4 Test limit .............................................................................................................................. 7 4.1 Requirement ............................................................................................................ 7 4.2 Conducted Power Results ....................................................................................... 7 4.3 Manufacturing tolerance .......................................................................................... 8 4.4 Evaluation Result ..................................................................................................... 8 4.5 Simultaneous Transmission for SAR Exclusion ...................................................... 8 5 Conclusion ........................................................................................................…

Text truncated - open the document above for the full version.

1. Antenna Description: Antenna type Internal antenna Model 1005 Frequency range 2400-2500MHz Manufacturer Shenzhen Jieshimeng Intelligent Technology Co., Ltd. Address 1409 Hangdu Building, 1006 Huafu Road, Huahang Community, Huaqiang North Street, Futian District, Shenzhen, China ANT Peak Gain 0.86 dBi 2. Antenna Photo: 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. ........................................... : CTA25091701201 2BSRJ-1005 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Sep. 28, 2025 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ........................... : Shenzhen Jieshimeng Intelligent Technology Co., Ltd. Address ............................................ : 1409 Hangdu Building, 1006 Huafu Road, Huahang Community, Huaqiang North Street, Futian District, Shenzhen, China Test specification ........................... : Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : smart glasses Trade Mark ....................................... : Manufacturer .................................... : Shenzhen Jieshimeng Intelligent Technology Co., Ltd. Model/Type reference ...................... : 1005 Listed Models ................................... : 1001, 1002, 1003, 1006, 1007, 1008, 1009 Modulation ....................................... : GFSK, Π/4DQPSK, 8DPSK Frequency ......................................... From 2402MHz to 2480MHz Ratings ............................................. : DC 3.7V From battery and DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA25091701201 Page 2 of 30 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : smart glasses Model /Type : 1005 Listed Models : 1001, 1002, 1003, 1006, 1007, 1008, 1009 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : Shenzhen Jieshimeng Intelligent Technology Co., Ltd. Address : 1409 Hangdu Building, 1006 Huafu Road, Huahang Community, Huaqiang North Street, Futian District, Shenzhen, China Manufacturer : Shenzhen Jieshimeng Intelligent Technology Co., Ltd. Address : 1409 Hangdu Building, 1006 Huafu Road, Huahang Community, Huaqiang North Street, Futian District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25091701201 Page 3 of 30 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description ........................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 6 2.6 EUT operation mode ......................................................................................................................... 6 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ........................................................................................................... 7 3.2 Tes…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for BT FCC ID : 2BSRJ-1005 Company : Shenzhen Jieshimeng Intelligent Technology Co., Ltd. EUT : smart glasses Model Number : 1005 Report No. : CTA25091701201 Reviewed By : Eric Wang 2 Appendix A: 20dB Emission Bandwidth Test Result TestMode Antenna Freq(MHz) 20dB EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.936 2401.553 2402.489 --- --- 2441 0.939 2440.550 2441.489 --- --- 2480 1.017 2479.487 2480.504 --- --- 2DH5 Ant1 2402 1.278 2401.382 2402.660 --- --- 2441 1.335 2440.340 2441.675 --- --- 2480 1.326 2479.343 2480.669 --- --- 3DH5 Ant1 2402 1.278 2401.382 2402.660 --- --- 2441 1.284 2440.379 2441.663 --- --- 2480 1.335 2479.343 2480.678 --- --- 3 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 4 2DH5_Ant1_2402 2DH5_Ant1_2441 5 2DH5_Ant1_2480 3DH5_Ant1_2402 3DH5_Ant1_2441 6 3DH5_Ant1_2480 7 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.87503 2401.5727 2402.4478 --- --- 2441 0.86488 2440.5750 2441.4399 --- --- 2480 0.86937 2479.5746 2480.4440 --- --- 2DH5 Ant1 2402 1.1879 2401.4167 2402.6046 --- --- 2441 1.1839 2440.4184 2441.6023 --- --- 2480 1.1896 2479.4163 2480.6059 --- --- 3DH5 Ant1 2402 1.1876 2401.4162 2402.6038 --- --- 2441 1.1850 2440.4166 2441.6016 --- --- 2480 1.1877 2479.4170 2480.6047 --- --- 8 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 9 2DH5_Ant1_2402 2DH5_Ant1_2441 10 2DH5_Ant1_2480 3DH5_Ant1_2402 3DH5_Ant1_2441 11 3DH5_Ant1_2480 12 Appendix C: Maximum conducted output power Test Result Peak Left: Test Mode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict DH5 Ant1 2402 -0.28 ≤20.97 PASS 2441 -0.53 ≤20.97 PASS 2480 -0.55 ≤20.97 PASS 2DH5 Ant1 2402 -0.92 ≤20.97 PASS 2441 -1.15 ≤20.97 PASS 2480 -1.39 ≤20.97 PASS 3DH5 Ant1 2402 -1.39 ≤20.97 PASS 2441 -1.35 ≤20.97 PASS 2480 -1.34 ≤20.97 PASS Right: Test Mode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict DH5 Ant1 2402 -0.43 ≤20.97 PASS 2441 -0.69 ≤20.97 PASS 2480 -0.79 ≤20.97 PASS 2DH5 Ant1 2402 -1.05 ≤20.97 PASS 2441 -1.36 ≤20.97 PASS 2480 -1.42 ≤20.97 PASS 3DH5 Ant1 2402 -1.48 ≤20.97 PASS 2441 -1.53 ≤20.97 PASS 2480 -1.59 ≤20.97 PASS 13 Appendix D: Carrier frequency separation Test Result TestMode Antenna Freq(MHz) Result[MHz] Limit[MHz] Verdict DH5 Ant1 Hop 1.016 ≥0.678 PASS 2DH5 Ant1 Hop 1.18 ≥0.890 PASS 3DH5 Ant1 Hop 1.104 ≥0.890 PASS 14 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 3DH5_Ant1_Hop 15 16 Appendix E: Time of occupancy Test Result TestMode Antenna Freq(MHz) BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH1 Ant1 Hop 0.390 315 0.123 ≤0.4 PASS DH3 Ant1 Hop 1.650 158 0.261 ≤0.4 PASS DH5 Ant1 Hop 2.890 107 0.309 ≤0.4 PASS 2DH1 Ant1 Hop 0.390 318 0.124 ≤0.4 PASS 2DH3 Ant1 Hop 1.650 159 0.262 ≤0.4 PASS 2DH5 Ant1 Hop 2.890 114 0.329 ≤0.4 PASS 3DH1 Ant1 Hop 0.390 314 0.122 ≤0.4 PASS 3DH3 Ant1 Hop 1.640 166 0.272 ≤0.4 PASS 3DH5 Ant1 Hop 2.900 103 0.299 ≤0.4 PASS 17 Test Graphs DH1_Ant1_Hop DH3_Ant1_Hop 18 DH5_Ant1_Hop 19 2DH1_Ant1_Hop 2DH3_Ant1_Hop 20 2DH5_Ant1_Hop 21 3DH1_Ant1_Hop 3DH3_Ant1_Hop 22 3DH5_Ant1_Hop 23 24 Appendix F: Number of hopping channels Test Result TestMode Antenna Freq(MHz) Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS 3DH5 Ant1 Hop 79 ≥15 PASS 25 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 3DH5_Ant1_Hop 26 27 Appendix G: Band edge measurements Test Result TestMode Antenna ChName Freq(MHz) RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 -0.08 -59.49 ≤-20.08 PASS High 2480 -0.75 -55.15 ≤-20.75 PASS Low Hop_2402 -1.35 -60.24 ≤-21.35 PASS High Hop_2480 -0.89 -63.57 ≤-20.89 PASS 2DH5 Ant1 Low 2402 -3.67 -56.34 ≤-23.67 PASS High 2480 -5.21 -63.18 ≤-25.21 PASS Low Hop_2402 -0.49 -53.44 ≤-20.49 PASS High Hop_2480 -1.60 -57 ≤-21.6 PASS 3DH5 Ant1 Low 2402 -5.01 -57.63 ≤-25.01 PASS High 2480 -5.09 -64.08 ≤-25.09 PASS Low Hop_2402 -3.09 -52.24 ≤-23.09 PASS High Hop_2480 -1.57 -63.6 ≤-21.57 PASS 28 Test Graphs DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop_2402 29 DH5_Ant1_High_Hop_2480 2DH5_Ant1_Low_2402 30 2DH5_Ant1_High_2480 2DH5_Ant1_Low_Hop_2402 2DH5_Ant1_High_Hop_2480 31 3DH5_Ant1_Low_2402 3DH5_Ant1_High_2480 32 3DH5_Ant1_Low_Hop_2402 3DH5_Ant1_High_Hop_2480 33 Appendix H: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 Reference -0.74 -0.74 --- PASS 30~1000 -0.74 -67.91 ≤-20.74 PASS 1000~26500 -0.74 -41.68 ≤-20.74 PASS 2441 Reference -1.83 -1.83 --- PASS 30~1000 -1.83 -67.51 ≤-21.83 PASS 1000~26500 -1.83 -42.39 ≤-21.83 PASS 2480 Reference -1.59 -1.59 --- PASS 30~1000 -1.59 -67.81 ≤-21.59 PASS 1000~26500 -1.59 -44.19 ≤-21.59 PASS 2DH5 Ant1 2402 Reference -5.85 -5.85 --- PASS 30~1000 -5.85 -67.76 ≤-25.85 PASS 1000~26500 -5.85 -50.45 ≤-25.85 PASS 2441 Reference -4.28 -4.28 --- PASS 30~1000 -4.28 -66.94 ≤-24.28 PASS 1000~26500 -4.28 -46.79 ≤-24.28 PASS 2480 Reference -5.63 -5.63 --- PASS 30~1000 -5.63 -67.6 ≤-25.63 PASS 1000~26500 -5.63 -47.92 ≤-25.63 PASS 3DH5 Ant1 2402 Reference -5.60 -5.60 --- PASS 30~1000 -5.60 -68.34 ≤-25.6 PASS 1000~26500 -5.60 -50.82 ≤-25.6 PASS 2441 Reference -4.39 -4.39 --- PASS 30~1000 -4.39 -68.33 ≤-24.39 PASS 1000~26500 -4.39 -47.02 ≤-24.39 PASS 2480 Reference -6.78 -6.78 --- PASS 30~1000 -6.78 -67.77 ≤-26.78 PASS 1000~26500 -6.78 -48.43 ≤-26.78 PASS

34 Test Graphs DH5_Ant1_2402_0~Reference DH5_Ant1_2402_30~1000 DH5_Ant1_2402_1000~26500 35 DH5_Ant1_2441_0~Reference DH5_Ant1_2441_30~1000 36 DH5_Ant1_2441_1000~26500 DH5_Ant1_2480_0~Reference DH5_Ant1_2480_30~1000 37 DH5_Ant1_2480_1000~26500 2DH5_Ant1_2402_0~Reference 38 2DH5_Ant1_2402_30~1000 2DH5_Ant1_2402_1000~26500 2DH5_Ant1_2441_0~Reference 39 2DH5_Ant1_2441_30~1000 2DH5_Ant1_2441_1000~26500 40 2DH5_Ant1_2480_0~Reference 2DH5_Ant1_2480_30~1000 2DH5_Ant1_2480_1000~26500 41 3DH5_Ant1_2402_0~Reference 3DH5_Ant1_2402_30~1000 42 3DH5_Ant1_2402_1000~26500 3DH5_Ant1_2441_0~Reference 3DH5_Ant1_2441_30~1000 43 3DH5_Ant1_2441_1000~26500 3DH5_Ant1_2480_0~Reference 44 3DH5_Ant1_2480_30~1000 3DH5_Ant1_2480_1000~26500 45 Appendix I: Duty Cycle Test Result TestMode Antenna Freq(MHz) ON Time [ms] Period [ms] DC [%] xFactor Limit Verdict DH5 Ant1 2402 2.92 3.75 77.87 1.09 --- --- 2441 2.91 3.75 77.60 1.10 --- --- 2480 2.92 3.75 77.87 1.09 --- --- 2DH5 Ant1 2402 2.92 3.75 77.87 1.09 --- --- 2441 2.92 3.75 77.87 1.09 --- --- 2480 2.92 3.75 77.87 1.09 --- --- 3DH5 Ant1 2402 2.91 3.75 77.60 1.10 --- --- 2441 2.91 3.75 77.60 1.10 --- --- 2480 2.91 3.75 77.60 1.10 --- --- 46 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 47 2DH5_Ant1_2402 2DH5_Ant1_2441 48 2DH5_Ant1_2480 3DH5_Ant1_2402 3DH5_Ant1_2441 49 3DH5_Ant1_2480
