2BSSKBOXTV box

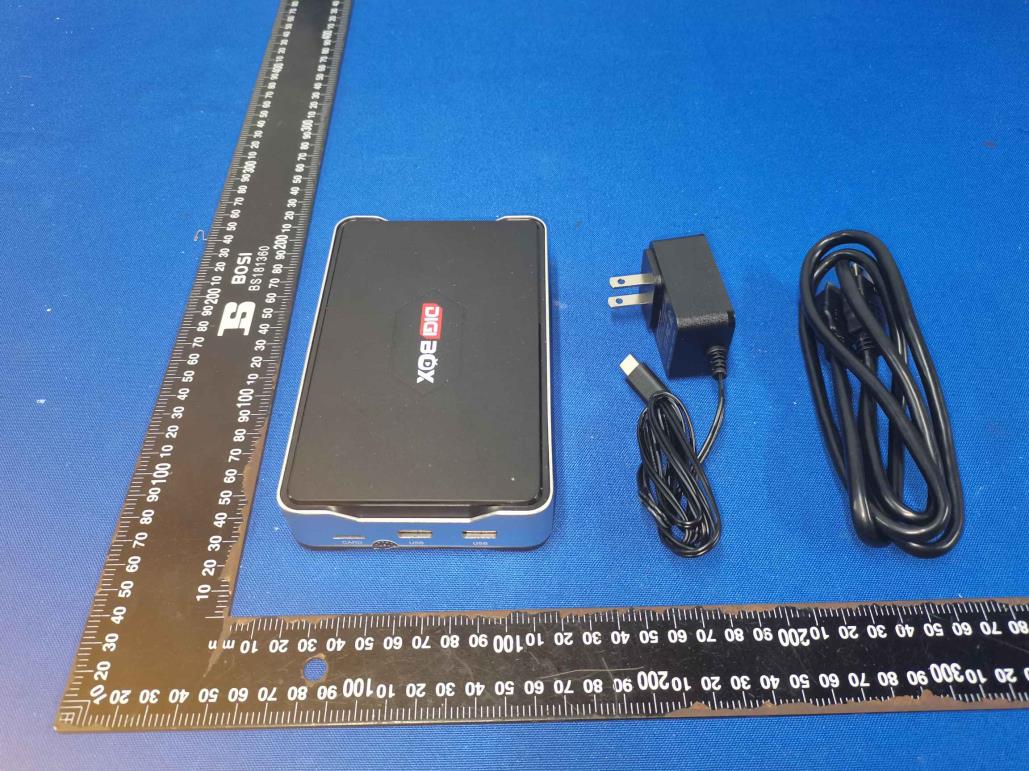

Connection Inter face Package Contents The Screen Casting Multi-screen Interaction Installation Steps Key Features Warranty Card Smart Phone Tablet PC TV Router How to use: After your device ( s ) and TV Box are connected to the same network, the logo will show up in the related applications of your device ( s ). Click the and share the photos, music and videos on TV. Device x1 Allwinner H618 CPU: Quad-core ARM Cortex A53 processor GPU: Mali G31, supports OpenGL ES 1.0 / 2.0 / 3.2 , Vulkan 1.1, OpenCL 2.0. 1000M Ethernet,IEEE 802.11a/b/g/n/ac/ax 2T2R+Bluetooth 5.4 SDIO Combo Module Power Adapter x1HD Cable x1 Connect the TV Box with the power supply . Connect the TV Box to the TV with an HD cable or AV cable. For a wired connection, plug in Ethernet cable from the TV Box to your modem or router. For wireless, choose your Wi-Fi network and input the Wi-Fi password. Introduction: The TV Box lets you play photos, music and videos from smart phone or tablet computer on TV. Preparation: Make sure your device ( s ) and TV Box are connected to the same network. Supports video decoding up to 4K 60fpsSupports multi-formats: H265 Main10 L5.1 up to 4K 60fps and 6K 30fps. Remote Control x1 Android 12.0 OS 5V USBUSBCARD USBUSB This product has the function of connecting to the Internet. The applications downloaded and installed by users are all from the Internet, and this product is not responsible for the correctness and legality of the content contained in any third-party applications. Users are requested to abide by relevant local laws and regulations, and do not install or use any applications that violate regulations such as pornography, violence, copyright disputes, etc. www.digiboxtv.com Manufactured in China/Designed in the USA Digi tv Technology Co.,Ltd. Dear user,thank you for chooseing our product.To better serve you,please read,file out,and keep this warranty card after purchase. 1.Do not disassemle the device or open its casing,as this will void the warranty. 2.If the product malfunction,please contact your service provider promptly. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the device and receiver. --Connect the device into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment FCC Radiation Exposure Statement The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located for operating in conjunction with any other antenna or transmitter. User Name User Phone User Address Purchase Date Product SN Repair Date Seller Cause of Failure

12/4 Fed Auth 7435 Colu USA AT T FCC PA B auth equi PA B of th nam equi PA B auth prov equi cybe Cov Sig n Prin Titl e Com Date Co 4/2025 eral Comm u horization a 5 Oakland M umbia, MD 2 A TN.: Review C ID: 2BSSK BOACAT M horization is ipment auth Note: If any of t h include BOACAT M he applicatio med entity or ipment. BOACAT M horization is vided by Ka ipment with ersecurity o vered Equipm ned: ted name: k e: Manager mpany Name e: 12/4/2025 overed Eq unications C nd Evaluatio Mills Road 21046 wing Engin KBOX MAJU SDN. sought is n horization pu the equipm he entities id an explanat MAJU SDN. on, the appl r any of its s MAJU SDN. sought do e aspersky La integrated r anti-virus ment Guida kevin wen e: PA BOAC 5 PA BOAC quipment Commission on Division neer BHD. (“the not “covered ursuant to s ent for whic dentified on tion on why BHD. (“the icant is not subsidiaries BHD. (“the es not includ ab, Inc. or an Kaspersky software pu ance section CAT MAJU CAT MAJU t Certifica n applicant”) d” equipmen section 2.90 ch the applic n the current y the equipm applicant”) identified o s or affiliates applicant”) de cybersec ny of its suc y Lab, Inc. (o ursuant to D n B(2a). SDN. BHD SDN. BHD ation Attes certifies tha nt prohibited 3 of the FC cant seeks a t Covered L ment is not “ certifies th a n the Cover s) as an ent certifies th a curity or ant ccessors an or any of its DA-24-886 a . D. station Le at the equipm d from receiv C rules. authorizatio List, the app covered” eq at, as of the red List (as ity produci n at the equipm ti-virus softw d assignees successors and KDB 98 etter ment for wh ving an on is produc plicant shoul quipment. date of the a specifica l ng “covered” ment for wh ware produc s, including s and assign 6446 D01 hich ced by ld filing lly ” hich ced or nees)

December 04, 2025 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2BSSKBOX Product Name: TV box Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature>： Name：kevin wen Title：Manager Applicant Company：PA BOACAT MAJU SDN. BHD.

July Fede Auth 7345 Colu On o Bloc Distr agen subm certif defin labe For i beha for c MED <Sig n Name Title： Applic 10, 2024 eral Commu horization & 5 Oakland M umbia, Mary our behalf, I ck B, Jun Xia rict, Shenzh nt in the p mitted docu fication is so ned in the F l identical to instances w alf, I acknow certification, DAN LIM CH nature>： e：kevin we Manager cant Compa unications C Evaluation D Mills Road land 21046 appoint Sh e ang Da Build hen, China preparation uments prop ought. I also Federal Com o that submit where our au wledge that still resides HENG TEIK en any：PA BO ommission Division Author i enzhen Time ding, Zhongs (Name of A of this app perly descr o certify that mmunications tted for appr uthorized ag all responsi with PA B 10250 GEO OACAT MA ity to Act as eway Testin shan Park R Agent comp plication for ribe the de t each unit m s Commissi roval with th ent signs th ibility for com BOACAT M ORGE TOWN AJU SDN. B s Agent ng Laborator Road West, T pany name r equipment evice or sy manufacture ion’s regulat his applicatio he applicatio mplying with MAJU SD N PULAU P HD. ries/ Zone C Tong Le Vill and addres t certificatio stem for w ed, imported tions will ha on. on for certific h the terms N. BHD./ INANG MAL C, 1st Floor, lage, Nansh ss) to act as on. I certify which equip d or markete ave affixed t cation on ou and conditio / NO. 49, LAYSIA han s our y that pment ed, as to it a ur ons

PA BOACAT MAJU SDN. BHD. Statement We PA BOACAT MAJU SDN. BHD. Hereby Declare that The product TV box, models no. D6 MAX, D6 Ultra, D8 MAX, D8 Ultra, D9 MAX, D9 Ultra, D10 MAX, D10 Ultra, D11 MAX, D11 Ultra, D12 MAX, D12 Ultra are all identical in interior structure, electrical circuits and components, and just the model names and color are different for the marketing requirement. Your assistance on this matter is highly appreciated. Yours sincerely, <Signature>： Name：kevin wen Title：Manager Applicant Company：PA BOACAT MAJU SDN. BHD.

FCC ID: 2BSSKBOX

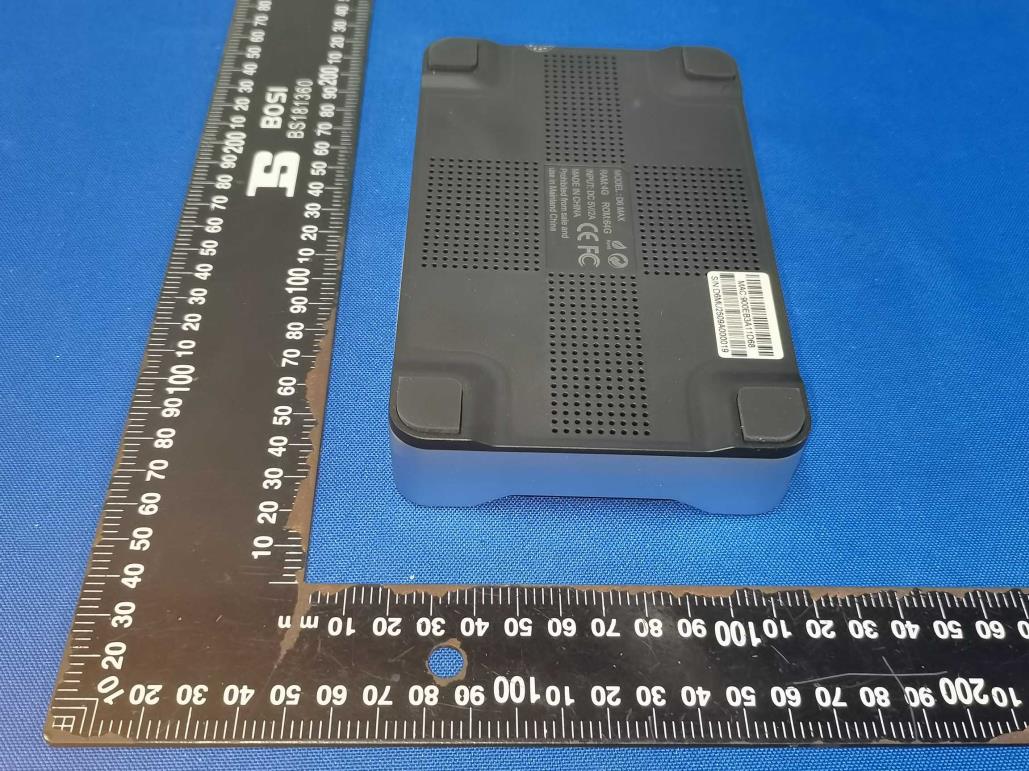

Label Location

SAR evaluation FCC ID: 2BSSKBOX MPE Calculation Method E (V/m) = (30*P*G) 0.5 /d Power Density: Pd (W/m2) = E 2 /377 E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = (30*P*G) / (377*d 2 ) From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Calculated WIFI Result and Limit (WORSE CASE IS AS BELOW) Antenna Gain (Numeric) Peak Output Power (mW) Power Density (S) (mW/cm2) Limit of Power Density (S) (mW/cm2) Test Result 6.37 （4.335dBi） 145.9 （21.64dBm） 0.01258 1 Compiles Note: Antenna Gain: 3.36dBi (2.4G Band) Assembly Antenna Gain: 6.37dBi Assembly Antenna Gain (Numeric): 4.335dBi ERP=21.64+6.37-2.15=25.86dBm(385.48mW) WIFI 2.4G band and 5G band cannot transmit Simultaneously Calculated Bluetooth Result and Limit (WORSE CASE IS AS BELOW) eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m)---3m So pt = (EXd) 2 /(30 x gt) Ant gain =3.36dBi so Ant numeric gain= 2.168 Field strength =91.91dBμV/m @3m@2402MHz So Pt={[10 (91.91/20) /10 6 x3] 2 /(30x2.168)}x1000 mW = 0.2148mW Antenna Gain (Numeric) Peak Output Power (mW) Power Density (S) (mW/cm2) Limit of Power Density (S) (mW/cm2) Test Result 3.36（2.168dBi） 0.2148 （-6.680dBm） 0.000093 1 Compiles Note: Antenna Gain: 3.36dBi (2.4G Band) Antenna Gain (Numeric): 2.168dBi ERP=-6.680-2.15=-8.83 dBm(0.1309mW) BT BDR/EDR and BLE cannot transmit Simultaneously =145.9/3060 +0.2148/3060=0.04775 = (385.48+0.1309)/3060 =0.12602 =（ 0.01258+ 0.000093）/1=0.01267 0.04775+0.12602+0.01267=0.18644<1

Report No.: TW2510026-04E Applicant: PA BOACAT MAJU SDN. BHD. Product: TV box Model No.: D6 MAX, D6 Ultra, D8 MAX, D8 Ultra, D9 MAX, D9 Ultra, D10 MAX, D10 Ultra, D11 MAX, D11 Ultra, D12 MAX, D12 Ultra Trademark: DIGIBOX Test Standards: FCC Part 15 Subpart E, Paragraph 15.407 Test Result: It is herewith confirmed and found to comply with the requirements set up by ANSI C63.10, FCC Part 15 Subpart C, Paragraph 15.247 for the evaluation of electromagnetic compatibility Approved By Terry Tang Manager Dated: November 13, 2025 Results appearing herein relate only to the sample tested The technical reports is issued errors and omissions exempt and is subject to withdrawal at SHENZHEN TIMEWAY TESTING LABORATORIES Zone C, 1st Floor, Block B, Jun Xiang Da Building, Zhongshan Park Road West, Tong Le Village, Nanshan District, Shenzhen, China Tel (755) 83448688, Fax (755) 83442996, E-Mail:[email protected] Report No.: TW2510026-04E Page 2 of 247 Date: 2025-11-13 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the SHENZHEN TIMEWAY TESTING LABORATORIES. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the SHENZHEN TIMEWAY TESTING LABORATORIES. to his customer. Supplier or others persons directly concerned. SHENZHEN TIMEWAY TESTING LABORATORIES. will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The SHENZHEN TIMEWAY TESTING LABORATORIES. reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Special Statement： FCC-Registration No.: 744189 The EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications commission. The acceptance letter from the FCC is maintained in our files. Registration No.: 744189. ISED —Registration No.:5205A The EMC Laboratory has been registered by Certification and Engineering Bureau of ISED for radio equipment testing with Registration No.: 5205A. A2LA (Certification Number:5013.01) The EMC Laboratory has been accredited by the American Association for Laboratory Accreditation (A2LA). Certification Number:5013.01 CAB identifier: CN0033 Report No.: TW2510026-04E Page 3 of 247 Date: 2025-11-13 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the SHENZHEN TIMEWAY TESTING LABORATORIES. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the SHENZHEN TIMEWAY TESTING LABORATORIES. to his customer. Supplier or others persons directly concerned. SHENZHEN TIMEWAY TESTING LABORATORIES. will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The SHENZHEN TIMEWAY TESTING LABORATORIES. reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Test Report Conclusion Content 1.0 General Details ................................................................................................ 4 1.1 Test Lab Details................................................................................................ 4 1.2 Applicant Details.............................................................................................. 4 1.3 Description of EUT ........................................................................................... 4 1.4 Submitted Sample.............................................................................................. 6 1.5 Test Duration................................................................................................... 6 1.6 Test Uncertainty............................................................................................... 6 1.7 Test By.......................................................................................................... 6 2.0 List of Measurement Equipment......................................................................... 7 3.0 Technical Details............................................................................................. 8 3.1 Summary of Test Results..................................................................................... 8 3.2 Test Standards.................................................................................................. 8 4.0 EUT Modification.............................................................................................8 5.0 Power Line Conducted Emission Test...................................................................... 9 5.1 Schematics of the Test........................................................................................ 9 5.2 Test Method and Test Procedure............................................................................ 9 5.3 Configuration of the EUT.................................................................................... 9 5.4 EUT Operating Condition....................................................................................10 5.5 Conducted Emission Limit................................................................................... 10 5.6 Test Result...................................................................................................... 10 6.0 Undesirable Emission and Restrict band................................................................... 13 7.0 Bandwidth Measurement...............................................…

Text truncated - open the document above for the full version.

深圳市云顶通讯电子有限公司 Shenzhen Yunding Communication Electronics Co.,Ltd. YLCHE 2025-11-18 1036-天线测试报告 深圳云顶通讯电子有限公司 Shenzhen Yunding Communication Electronics Co.,Ltd. 一、测试环境 深圳云顶通讯电子有限公司 Shenzhen Yunding Communication Electronics Co.,Ltd. 二、天线装配图 深圳云顶通讯电子有限公司 Shenzhen Yunding Communication Electronics Co.,Ltd. 三、天线参数VSWR 深圳云顶通讯电子有限公司 Shenzhen Yunding Communication Electronics Co.,Ltd. 四、天线参数VSWR 深圳云顶通讯电子有限公司 Shenzhen Yunding Communication Electronics Co.,Ltd. 五、暗室测试数据：OTA Wifi 2G TRP 1611 241224372462 15.6115.5316.59 Wifi 2G TIS 1611 241224372462 -79.98-82.88-84.23 深圳云顶通讯电子有限公司 Shenzhen Yunding Communication Electronics Co.,Ltd. 六、暗室测试数据：OTA Wifi 5G TRP 3664161 518053205805 14.6314.8114 Wifi 5G TIS 3664161 518053205805 -75.69-75.97-79.53 深圳云顶通讯电子有限公司 Shenzhen Yunding Communication Electronics Co.,Ltd. 七、暗室测试数据：效率与增益 FreqEffiGain (MHz)(%)(dBi) 240043.61.51 241042.661.6 242039.631.46 243039.841.64 244041.441.92 245044.242.21 246046.462.47 247047.522.56 248052.083.05 249054.973.36 250053.323.2 深圳云顶通讯电子有限公司 Shenzhen Yunding Communication Electronics Co.,Ltd. 八、暗室测试数据：效率与增益 FreqEffiGain (MHz)(%)(dBi) 515044.965.44 520041.785.24 525044.735.51 530046.55.6 535050.715.94 540054.916.29 545050.916.02 550051.026.35 555044.645.85 560048.546.63 565051.036.74 570049.76.59 575050.716.85 580051.676.55 585053.616.23 地址：深圳市宝安区航空路锦驰中心 3015 天线结构图

Conducted Emission Test Setup: Radiated Emission Test Setup: RF test Setup:
