2BSSU-LFP12100Bluetooth lithium battery

Document： Lithium Battery datasheet Doc. Version：V4.0 Issue Date： 1-1-2024 SHENZHEN NEATA POWER TECH CO.,LTD Reminder: Note 1: Please always refer to the latest edition of our technical datasheet that published on our website to ensure safe and efficient operation. LFP12100(12.8V100AH) Overview Battery Images Advantages Customization Functions LCD (default none) Bluetooth (default none) Heater (default none) Communciat ion (default none) GPS (default none) Active Balancer (default none) The battery module consists of LFP cells, wire, BMS and ABS container. ➢ Packed with high performance LFP single cell, long life, safety and wide temperature range ➢ High energy density, small size, light weight, no pollution; ➢ Packing with single cell container, fire retardant wire and copper connecting bar, stable and safe. ➢ Built-in BMS, with battery voltage, current, temperature and health management. ➢ LCD(optional) indicate the battery SOC and operating status. ➢ Support Max 4pcs in series. ➢ Flexible customization of dimensions ➢ More than 15 years design life, Stable performance, maintenance-free NEATA Lithium iron phosphate battery module which designed for storage and power supply system application. This battery module integrated with intelligent BMS with big advantages on safety, cycle life, energy density, temperature range and environmental protection. This product specification describes the type, size, structure, electrochemistry performance, service life, and BMS characteristics. The specification will be updated based on different customer requirement. Safety Multipurpose Fast Charge/Discharge Simple Maintenance 极致安全 超简运维 Document： Lithium Battery datasheet Doc. Version：V4.0 Issue Date： 1-1-2024 SHENZHEN NEATA POWER TECH CO.,LTD Reminder: Note 1: Please always refer to the latest edition of our technical datasheet that published on our website to ensure safe and efficient operation. LFP12100(12.8V100AH) Battery specification ELECTRICAL SPECIFICATIONS BMS SPECIFICATIONS Cell Type - Chemistry LiFePo4 Version Softversion Nominal Voltage 12.8V Code J-B04S100 Amp Hour Capacity 100AH Primary Charge Current Protection 120±10A 10S±5S Dimensions 258*166*215mm Second Charge Current Protection NA Weight 9.9±0.2kgs Third Charge Current Protection NA Terminal Type M8 High Voltage Protection 15±0.2V 2S±1S Case Material ABS-Sealed Reconnect Voltage 14.2V Case IP Rating IP65 Primary Discharging Current Protection 120±10A 10S±3S Series connections Max to 51.2V Second Discharging Current Protection 330±80A 0.3S±0.2S Parallel connections No limited Third Discharging Current Protection NA Storage Temperature (-10 to 40°C) Low Voltage Protection 8.8±0.4V Resistance - Milliohms < 15 Reconnect Voltage 10.4±0.4V Self Discharge per Month < 2% High Temp Protection 65±3°C CHARGE SPECIFICATIONS Reconnect Temp 50°C Floating Charge Voltage ≤13.8V Balancing voltage 13.2±0.2V Boost Charge Voltage ≤14.2V Balancing current 200±50mA Recommend Charge Current ≤20A Shortage current 1320±300A Max Charge current ≤100A Charge current (0 to -10°C) <0.1C Charge currrent (-20 to -10°C) <0.05C Charge Temperature (0 to 45°C) DISCHARGE SPECIFICATIONS Recommend Discharge current ≤100A Max Cont Discharge current ≤120A Max Disharge Voltage ≥10.4V Discharge Temperature (-20 to 60°C) Document： Lithium Battery datasheet Doc. Version：V4.0 Issue Date： 1-1-2024 SHENZHEN NEATA POWER TECH CO.,LTD Reminder: Note 1: Please always refer to the latest edition of our technical datasheet that published on our website to ensure safe and efficient operation. LFP12100(12.8V100AH) Performance curve Note 2: The above curves are based on laboratory testing data @ 25°C 40%RH State of Charge Curve (25°C) Discharge characteristics (25°C) Discharge time Voltage (V) 0 20 40 60 2 3.3 5 10 minutes hours Cycle Life On D.O.D 0.2C Rate (25°C) Self-Discharging Curve Charge characteristics (25°C) Temperature effect on discharging (0.5C) Storage time (months) 100 90 80 70 60 0 2 4 6 8 10 12 Capacity (%) 50°C 10°C 25°C 30°C 40°C 2C 1C 0.5C 0.3C 0.2C 0.1C Number of Cycles 3500 4500 6000 7000 8000 9000 10500 12000 100%D.O.D 80%D.O.D 50%D.O.D 30%D.O.D 30%DOD Capacity (%) 100 90 80 70 60 Charging Capacity (%) 0 20 40 60 80 100 120 Voltage ( V ) Current ( A ) 15.0 14.5 14.0 13.5 13.0 12.5 12.0 11.5 11.0 10.5 10.0 0.5C 0.2C 0.02C 0 0.5C Voltage 0.5C Current Charging Time (hours) 1 2 3 4 5 Voltage ( V ) State of charge 15.0 14.5 14.0 13.5 13.0 12.5 12.0 11.5 11.0 10.5 10.0 100 90 80 70 60 50 40 30 20 10 0 0.2C Voltage 0.2C State of charge Capacity (%) Voltage ( V ) 14.5 13.5 12.5 12.0 11.5 11.0 10.5 10.0 0 10 20 30 40 50 60 70 80 90 100 20°C 50°C 40°C 30°C 10°C 0°C -10°C 0.5C Voltage 0.5C State of charge 0.2C Voltage 0.2C Current 14.4 13.5 12.5 11.6 10.8 10.0 9.20 FCCWarning ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions: (1)Thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptanyinterferencereceived,including interferencethatmaycauseundesiredoperation. NOTE1:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttopart15of theFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferenceinaresidential installation.Thisequipmentgenerates,usesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordance withtheinstructions,maycauseharmfulinterferencetoradiocommunications.However,thereisnoguaranteethat interferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevision reception,whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrectthe interferencebyoneormoreofthefollowingmeasures: -Reorientorrelocatethereceivingantenna. -Increasetheseparationbetweentheequipmentandreceiver. -Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected. -Consultthedealeroranexperiencedradio/TVtechnicianforhelp. NOTE2:Anychangesormodificationstothisunitnotexpresslyapprovedbythep…

Text truncated - open the document above for the full version.

SHENZHEN NEATA POWER TECH CO., LIMITED U.S. Agent Letter of Attestation To: Federal Communications Commission 7435 Oakland Mills Road, Columbia, MD 21046, USA Date: November 07, 2025 Ref: Attestation Statement – Part 2.911(d)(7) filing FCC ID: 2BSSU-LFP12100 SHENZHEN NEATA POWER TECH CO., LIMITED(“the applicant”) certifies that, as of the date of the filing of the application, CLF Import and Export Limited (“the agent”) is our designated U.S. agent for service of process for the above reference FCC ID. The applicant accepts to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. The applicant further acknowledges it is our responsibility to inform the FCC whenever the agent information changes. CLF Import and Export Limited ("the agent) understand it is the agent's obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address. Designated U.S. Agent Company Name: CLF Import and Export Limited FRN: 0033489683 Address: 1312 17th Street #692, Denver, CO 80202, United States Signature: Contact Person: David Chen Tel: +1 949 254 2565 Email: [email protected] Applicant SHENZHEN NEATA POWER TECH CO., LIMITED FRN: 0037505526 Address: 2304 Unit 1,zhihuiiayuan 3A,Baohe road No 76,Baolong Community, Baolong Streetong Gang District, Shenzhen, Guangdong, China Signature: Contact Person: XIAO LU Tel: +86-18122050760 Email: [email protected]

Rev 1/26/2023 (SHENZHEN NEATA POWER TECH CO., LIMITED) Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: November 07, 2025 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: 2BSSU-LFP12100 [SHENZHEN NEATA POWER TECH CO., LIMITED] certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. [SHENZHEN NEATA POWER TECH CO., LIMITED] certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Device is inherently compliant based on hardware limitations or software controls. or A Software Bill of Materials (SBOM) is provided to the TCB for review, and The end-user or third parties cannot install additional software on this device. Sincerely, (XIAO LU) Rev 1/26/2023 (SHENZHEN NEATA POWER TECH CO., LIMITED) Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: November 07, 2025 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: 2BSSU-LFP12100 [SHENZHEN NEATA POWER TECH CO., LIMITED] certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, (XIAO LU)

Page 1 of 3 1. General Information 1.1 Antenna Information Manufacturer: SHENZHEN NEATA POWER TECH CO., LIMITED Address of Manufacturer: 2304 Unit 1,zhihuiiayuan 3A,Baohe road No 76, Baolong Community, Baolong Streetong Gang District, Shenzhen, Guangdong, China Product Name: 2.4GHz Antenna Model Name: LFP12100 Frequency Range: 2402MHz – 2483.5MHz Type of Antenna: PCB Antenna Antenna Gain: 0dBi (Max.) Impedance: 50 ohm Antenna View: Length * Width (1cm * 0.5cm) Page 2 of 3 2. Antenna Specification information 2.1 Gain Frequency Peak Gain (dBi) Polarity 2402MHz 0 Horizontal 2402MHz -0.42 Vertical 2442MHz -1.38 Horizontal 2442MHz -1.73 Vertical 2480MHz -1.87 Horizontal 2480MHz -2.03 Vertical Page 3 of 3 2.2 Radiation Pattern View

SHENZHEN NEATA POWER TECH CO., LIMITED Date: November 07, 2025 Product Model Number: LFP12100, LFP12200 FCC ID: 2BSSU-LFP12100 To whom it may concern, Re: Product Certification Representative Authorization Letter We authorize QAI Laboratories Ltd. 3980 North Fraser Way, Burnaby B.C. Canada V5J 5K5 to act on our behalf on all matters concerning the above named equipment. This shall include the following: • Testing • Approval applications and procedures We declare that QAI Laboratories Ltd. is allowed to forward all information related to the approval project to the applied certification body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by QAI Laboratories Ltd. on our behalf shall have the same effect as acts of our own. By: XIAO LU Contact Listed on FCC Wesbite Title: Manager Email: [email protected] Telephone: +86-18122050760 On behalf of: SHENZHEN NEATA POWER TECH CO., LIMITED

SHENZHEN NEATA POWER TECH CO., LIMITED Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: November 19, 2025 Subject; Request for Confidentiality FCC ID: 2BSSU-LFP12100 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure Software Security Requirements for UNII devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: XIAO LU Title: Manager

SHENZHEN NEATA POWER TECH CO., LIMITED FCC ID: 2BSSU-LFP12100 Model Difference Statement Dear Sir/Madam, Added models LFP12200 basis of the original product LFP12100 The color of appearance and model name of series models listed are different from the main model, but the circuit and the electronic construction are the same, declared by the manufacturer. Sincerely, Name: XIAO LU Company name: SHENZHEN NEATA POWER TECH CO., LIMITED Address: 2304 Unit 1,zhihuiiayuan 3A,Baohe road No 76,Baolong Community, Baolong Streetong Gang District, Shenzhen, Guangdong, China

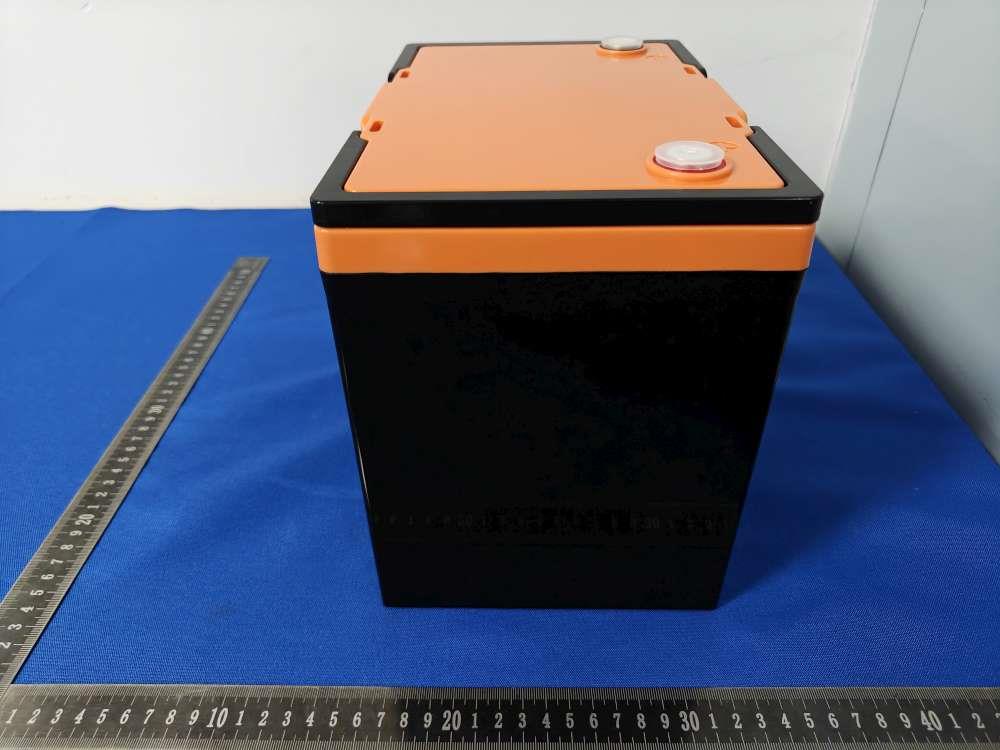

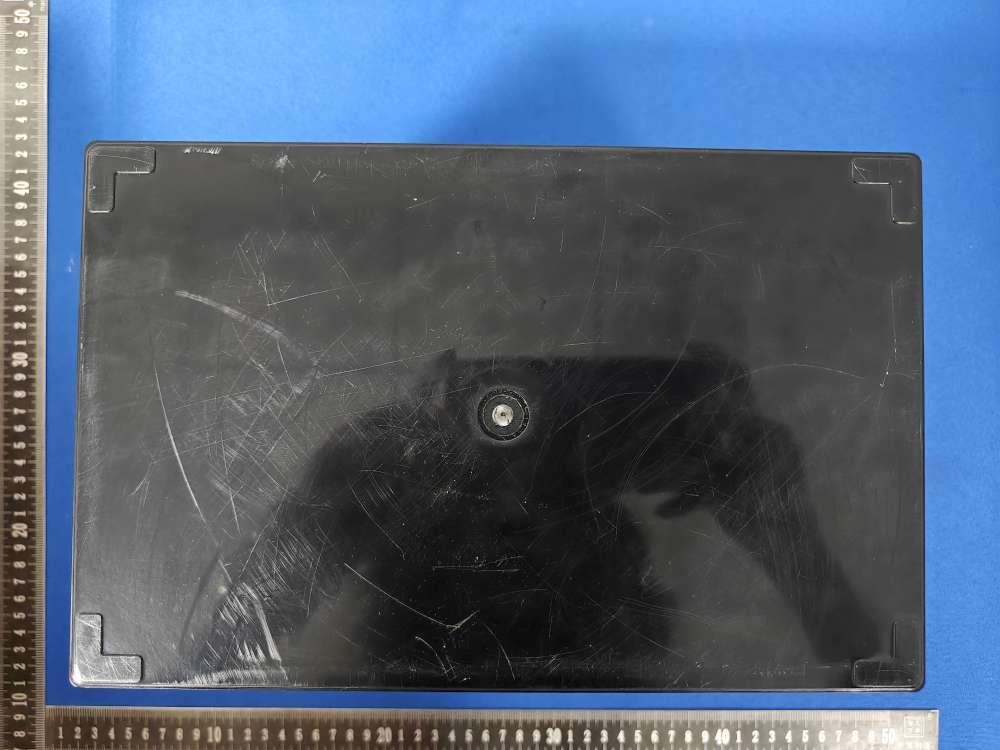

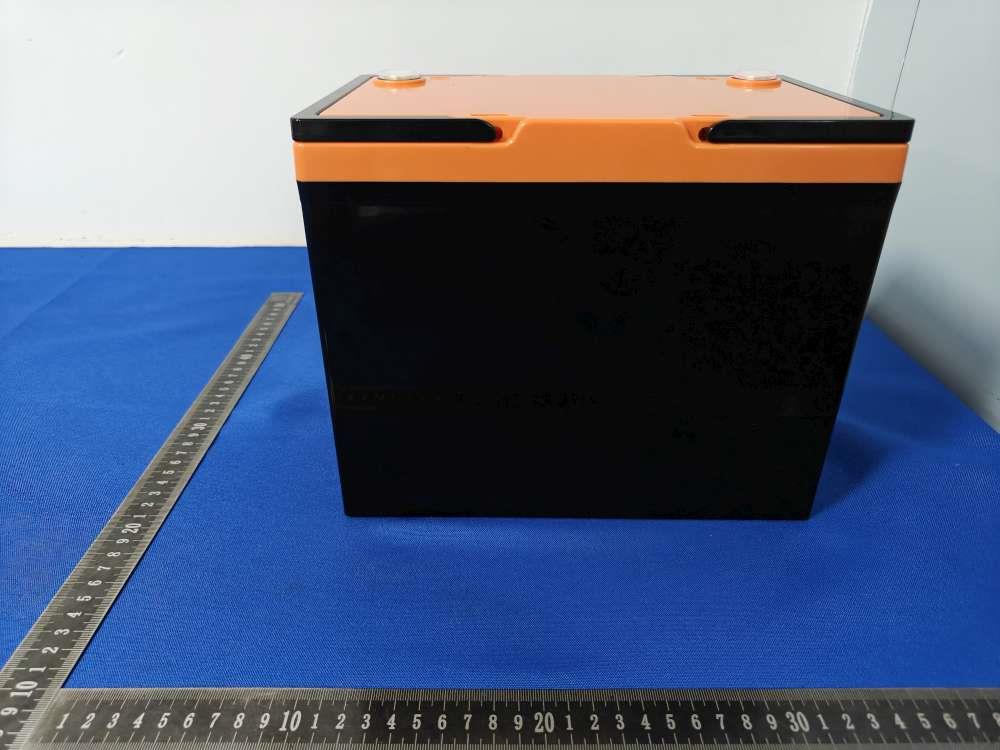

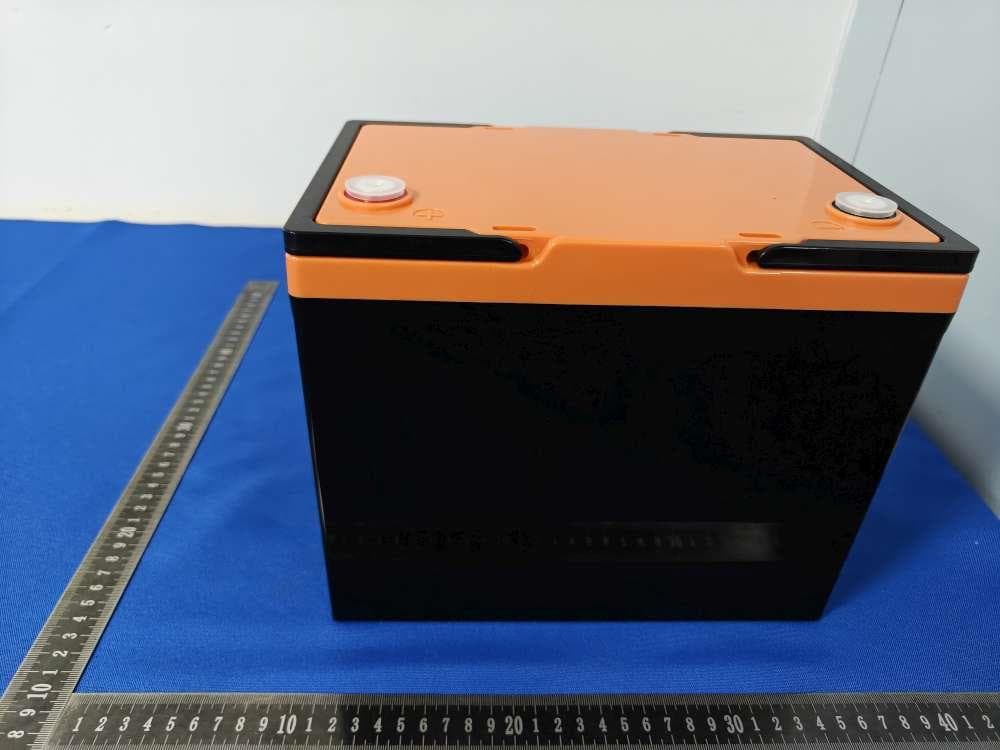

Report No: SSP25070079-1E FCC ID: 2BSSU-LFP12100 Annex of Test Report Annex A. EUT External Photos Model: LFP12100 EUT View 1 EUT View 2 Report No: SSP25070079-1E FCC ID: 2BSSU-LFP12100 Annex of Test Report EUT View 3 EUT View 4 Report No: SSP25070079-1E FCC ID: 2BSSU-LFP12100 Annex of Test Report EUT View 5 EUT View 6

Report No: SSP25070079-1E FCC ID: 2BSSU-LFP12100 Annex of Test Report Annex D. Label and Information FCC Label Sample Label Size:2.5cm*1.5cm FCC Label Specifications Text is Black in color and is justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Where the EUT is constructed in two or more sections connected by wires and marketed together, the above statement is required to be affixed only to the main control unit. When the EUT is so small or for such use that it is not practicable to place the statement on it, the above information shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. FCC Label Location

Report No: SSP25070079-1E FCC ID: 2BSSU-LFP12100 Annex of Test Report Annex B. EUT Internal Photos Model: LFP12100 EUT Internal View 1 EUT Internal View 2 Report No: SSP25070079-1E FCC ID: 2BSSU-LFP12100 Annex of Test Report EUT Internal View 3 EUT Internal View 4 Report No: SSP25070079-1E FCC ID: 2BSSU-LFP12100 Annex of Test Report EUT Internal View 5 EUT Internal View 6 PCB Antenna Report No: SSP25070079-1E FCC ID: 2BSSU-LFP12100 Annex of Test Report EUT Internal View 7 EUT Internal View 8

FCC ID: 2BSSU-LFP12100 RF Exposure Evaluation According to KDB 447498 D01 General RF Exposure Guidance v06 and part 2.1093，Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition(s), listed below, is (are) satisfied. For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Here, The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. For BLE Max Conducted Power(dBm) Tune-up Power(dBm) Max Tune-up Power(dBm) Max Power(mW) Frequency(MHz) Min. distance(mm) Calc. thresholds limit 1.19 1(±1) 2 1.585 2402 5 0.4912 3.0 So a SAR test is not required

Report No: SSP25070079-1E FCC Test Report Page 1 of 31 FCC TEST REPORT FCC ID: 2BSSU-LFP12100 Report No. : SSP25070079-1E Applicant : SHENZHEN NEATA POWER TECH CO., LIMITED Product Name : Bluetooth lithium battery Model Name : LFP12100 Test Standard : FCC Part 15.247 Date of Issue : 2025-08-25 Shenzhen CCUT Quality Technology Co., Ltd. 1F, Building 35, Changxing Technology Industrial Park, Yutang Street, Guangming District, Shenzhen, Guangdong, China; (Tel.:+86-755-23406590 website: www.ccuttest.com) This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd. Report No: SSP25070079-1E FCC Test Report Page 2 of 31 Test Report Basic Information Applicant..................................: SHENZHEN NEATA POWER TECH CO., LIMITED Address of Applicant...............: 2304 Unit 1,zhihuiiayuan 3A,Baohe road No 76,Baolong Community, Baolong Streetong Gang District, Shenzhen, Guangdong, China Manufacturer..........................: SHENZHEN NEATA POWER TECH CO., LIMITED Address of Manufacturer........: 2304 Unit 1,zhihuiiayuan 3A,Baohe road No 76,Baolong Community, Baolong Streetong Gang District, Shenzhen, Guangdong, China Product Name.........................: Bluetooth lithium battery Brand Name.............................: - Main Model..............................: LFP12100 Series Models..........................: LFP12200 Test Standard..........................: FCC Part 15 Subpart C KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.4-2014 ANSI C63.10-2020/Cor 1-2023 Date of Test .............................: 2025-07-06 to 2025-07-09 Test Result...............................: PASS Tested By ................................: (Coke Huang) Reviewed By............................: (Lorzix Luo) Authorized Signatory............: (Lahm Peng) Note : This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd.. All test data presented in this test report is only applicable to presented test sample. Report No: SSP25070079-1E FCC Test Report Page 3 of 31 CONTENTS 1. General Information ....................................................................................................................................................5 1.1 Product Information .............................................................................................................................................5 1.2 Test Setup Information..........................................................................................................................................6 1.3 Compliance Standards ...........................................................................................................................................7 1.4 Test Facilities ........................................................................................................................................................7 1.5 List of Measurement Instruments ..........................................................................................................................8 1.6 Measurement Uncertainty .....................................................................................................................................9 2. Summary of Test Results ........................................................................................................................................... 10 3. Antenna Requirement ............................................................................................................................................... 11 3.1 Standard and Limit.............................................................................................................................................. 11 3.2 Test Result .......................................................................................................................................................... 11 4. Conducted Emissions ................................................................................................................................................ 12 4.1 Standard and Limit.............................................................................................................................................. 12 4.2 Test Procedure.................................................................................................................................................... 12 4.3 Test Data and Results .......................................................................................................................................... 13 5. Radiated Emissions ................................................................................................................................................... 14 5.1 Standard and Limit.............................................................................................................................................. 14 5.2 Test Procedure.................................................................................................................................................... 14 5.3 Test Data and Results .......................................................................................................................................... 16 6. Band-edge Emissions(Radiated) ............................................................................................................................... 20 6.1 Standard and Limit.............................................................................................................................................. 20 6.2 Test Procedure.................................................................................................................................................... 20 6.3 Test Data and Results ........................................…

Text truncated - open the document above for the full version.

Report No: SSP25070079-1E FCC ID: 2BSSU-LFP12100 Annex of Test Report Annex C. Test Photos Radiated Emission Test View Below 1GHz Radiated Emission Test View Above 1GHz
