2BST5-HEXBOXGhost Box FM/AM Radio Scanner

HexBox User Guide For more information visit: www.spiritshack.co.uk Introduction Thank you for choosing the HexBox, our advanced spirit communication device. Designed for serious paranormal investigators, this tool combines a high-performance radio scanning engine, randomised MP3 playback, and intuitive reverb and sweep functions — all controllable via onboard buttons. With an extendable antenna, built-in rechargeable battery, and a user-friendly LCD, it's built to support your fieldwork day or night. Features • Rechargeable BL-5C Battery: Built-in battery with USB-C charging and easy rear access for replacements. • Multi-Mode Operation: Includes Standard Sweep, Channel Hop, Channel Skip, Wordbank (MP3/WAV file) mode, and Bluetooth mode. • AM/FM Scanning with Adjustable Sweep Speeds: Choose from 8 sweep rates (50ms–400ms) and scan forward or backward. • Integrated Reverb Control: Adjustable reverb adds a spooky echo to responses, enhancing the overall paranormal atmosphere. • Telescopic Antenna with Cutoff Option: For controlled white noise experimentation. • MP3 Playback from Micro SD Card: Wordbank mode plays stored MP3 or WAV files randomly, from root or folders. • Backlit LCD Display: Backlit screen shows sweep speed, mode, volume, station, reverb, and more. • 3.5mm Audio Output: Connect headphones or external speakers directly. • Bluetooth Connectivity: Connect your phone to the HexBox via Bluetooth and play audio from your favourite ghost hunting apps directly through the HexBox speaker. Power & Charging • The device features a built-in BL-5C rechargeable battery. • Charge the device via the USB-C port. • Can operate continuously while connected to a USB battery pack. • The battery access panel on the back allows for easy replacement of the BL-5C battery. Ports & Connectivity • USB-C Port: For charging or continuous power. • 3.5mm Audio Jack: Connect headphones for private listening, or a speaker. • Battery Access Panel: Located on the back for battery swaps. • Bluetooth: Output audio from ghost hunting apps on your phone. • Memory Card Slot: Supports playing MP3 or WAV files stored on Micro SD cards. Antenna • Built-in telescopic antenna integrated into the body (not externally attached). • Can be toggled on or off using the Antenna Cutoff function. LCD Display • Backlit display for improved readability in the dark. • Displays the following: 1. Battery level 2. Sweep speed 3. AM/FM mode 4. Current radio station 5. Reverb level 6. Antenna cutoff status 7. Current scan mode 8. Volume level Startup Behaviour • On power-up, the device: 1. Scans and stores all strong FM stations. 2. Scans and stores all strong AM stations. • Stored station list is cleared when powered off. • A progress bar is shown during the scanning process. Buttons & Controls • Power: Turns the device on or off. • Volume Up: Increases output volume. • Volume Down: Decreases output volume. • Sweep Forwards: Starts scanning forward through stations. • Sweep Backwards: Starts scanning backwards through stations. • Sweep Rate: Cycles through sweep speeds (50ms to 400ms). • AM/FM: Toggles between AM and FM radio bands. • Reverb: Cycles through reverb levels (Off, Level 1-5). • Mode: Press once to cycle between scanning modes: Standard, Channel Hop, and Channel Skip. Press and hold to switch between Bluetooth and Wordbank modes. • Antenna Cutoff: Enables or disables the antenna. Modes Explained Press once to cycle between scanning modes: Standard, Channel Hop, and Channel Skip. Press and hold to switch between Bluetooth and Wordbank modes. 1. Standard Mode: Continuously scans through all stations (AM/FM), uses selected sweep speed. 2. Channel Hop Mode: Scans only saved broadcast stations, and produces no white noise. 3. Channel Skip Mode: Skips saved stations, and plays only white noise between frequencies. 4. Wordbank Mode: Plays MP3 or WAV files from the memory card in random order (supports folder-based file organization). Files under 3 seconds play in their entirety. For files over 3 seconds, a random 3-second segment is played. 5. Bluetooth Mode: Connect your phone or tablet to the HexBox via Bluetooth. Play your favourite ghost hunting apps through the HexBox speaker. Bluetooth Mode The HexBox includes built-in Bluetooth connectivity, allowing you to stream audio from your phone or tablet directly through the device’s speaker. This is ideal for playing audio from ghost hunting apps or any other paranormal tools on your mobile device. To Use Bluetooth Mode: • Press and hold the mode button until Bluetooth Mode is displayed on the screen. • On your phone, enable Bluetooth and search for available devices. • Select “HexBox” from the list to connect. • Once connected, play audio from your preferred ghost hunting app — it will be routed through the HexBox speaker. Scanning Before starting a scan, you can customise the experience by adjusting the following settings: • Sweep Speed: Cycle through sweep intervals from 50ms to 400ms to control how quickly the device scans between frequencies. • AM/FM Preference: Select AM or FM mode depending on your preference and location. • Reverb Level: Add depth or echo to incoming audio by choosing from six reverb levels: Off, Level 1–5. • Scanning Mode: Choose between: o Standard (continuous scan) o Channel Hop (broadcast stations only) o Channel Skip (white noise only) Once configured, start scanning forwards or backwards using the dedicated buttons. Wordbank Mode Plays MP3 or WAV files from a microSD card in random order. Files under 3 seconds play in full; longer files play a random 3-second segment. Supports folder-based organisation. The HexBox is available with or without a preloaded card — you can also use your own, containing custom files. Wordbank Mode ignores sweep settings and scan direction. To Use Wordbank Mode: • Insert a microSD card containing MP3 or WAV files. • Press and hold the mode button until Wordbank mode appears on the screen. If the device enters Bluetooth mod…

Text truncated - open the document above for the full version.

Rev 1/26/2023 SpiritShack Ltd Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 11-20-2025 Ref: Attestation Statements Part 2.911(d)(7) Filing Applicant Information: FCC ID ： ：： ：2BST5-HEXBOX Applicant FRN: 0037614724 Company Name: SpiritShack Ltd Address: 47 Wheatfield Crescent, Sheffield, S5 0JG, United Kingdom Contact Person: Sam Ashford Phone: +44 0114 553 9007 Email: [email protected] [SpiritShack Ltd] certifies that, as of the date of the filing of the application, [FCC US Agent, LLC] is our designated U.S. agent for service of process for the above referenced FCC ID. [SpiritShack Ltd] accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. [FCC US Agent, LLC] accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Company Name: FCC US Agent, LLC FRN: 0033402884 Address: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA Contact Person: Tim Payne Phone: 708-571-3148 Email: [email protected] Sincerely, [SpiritShack Ltd] FCC US Agent, LLC [Sam Ashford] Tim Payne

(SpiritShack Ltd) (2025.11.24) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID:2BST5-HEXBOX) [SpiritShack Ltd] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, the equipment does not utilize cyber-security or anti-virus software from Kaspersky Lab, Inc, or any of its successors and assignees, which is also on the “covered list”. Sincerely, (Applicant signature) (Applicant printed name) Sam Ashford (SpiritShack Ltd) (2025.11.24) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID:2BST5-HEXBOX) [SpiritShack Ltd] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Sam Ashford

SpiritShack Ltd 2025.11.24 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: Ghost Box FM/AM Radio Scanner Trademark: SpiritShack MODEL : HexBox, HexPortal, Hex Remote FCC ID : 2BST5-HEXBOX To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : Sam Ashford / Manager Contact information / address: 47 Wheatfield Crescent, Sheffield, S5 0JG, United Kingdom

SpiritShack Ltd 2025.11.24 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : Sam Ashford / Manager Contact information / address: 47 Wheatfield Crescent, Sheffield, S5 0JG, United Kingdom

SpiritShack Ltd Model Difference 2025-11-24 EUT NAME: Ghost Box FM/AM Radio Scanner FCC ID: 2BST5-HEXBOX MODEL : HexBox, HexPortal, Hex Remote All the model are the same circuit and RF module, except model names. Regards Sincerely Client’s signature: Client’s name / title : Sam Ashford / Manager Contact information / address: 47 Wheatfield Crescent, Sheffield, S5 0JG, United Kingdom

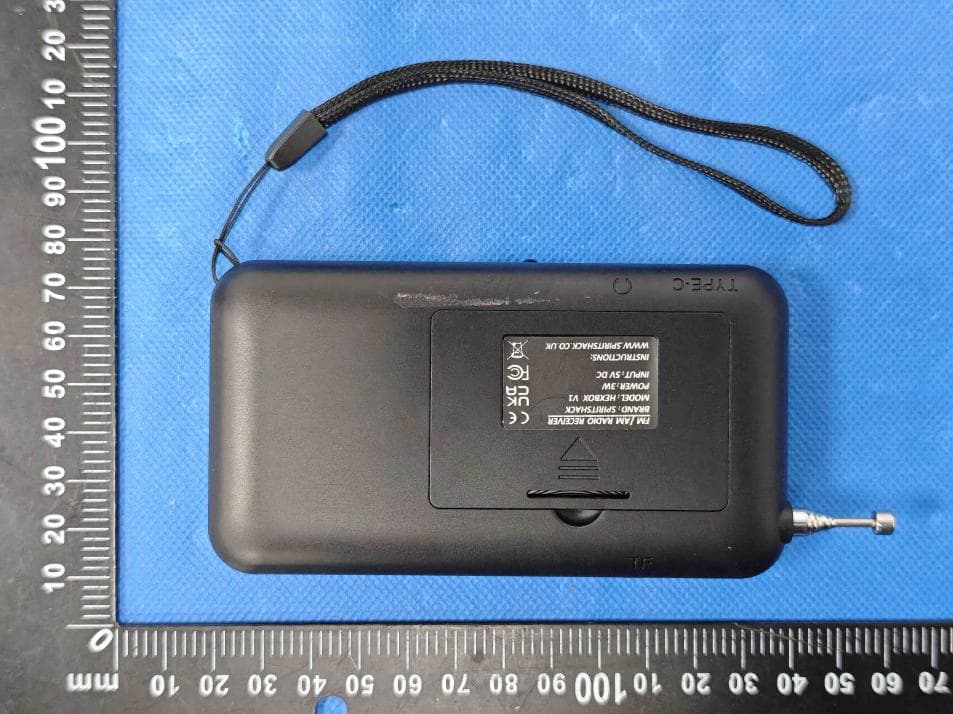

Report No.: BCTC2509205488E External Photos Report No.: BCTC2509205488E Report No.: BCTC2509205488E Report No.: BCTC2509205488E

Size:20*10mm Ghost Box FM/AM Radio Scanner FCC ID: 2BST5-HEXBOX Label location

Report No.: BCTC2509205488E Internal Photos Report No.: BCTC2509205488E Report No.: BCTC2509205488E Antenna Report No.: BCTC2509205488E

Shenzhen BCTC Testing Co., Ltd. FCC ID: 2BST5-HEXBOX Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Channel Freq. (GHz) Max Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n SAR Exclusion threshold SAR test exclusion 2.402 1.26 <5 0.39056 3.00 YES 2.441 1.26 <5 0.39372 3.00 YES 2.48 1.26 <5 0.39685 3.00 YES 2.402 1.58 <5 0.48975 3.00 YES 2.44 1.58 <5 0.49361 3.00 YES 2.48 1.58 <5 0.49764 3.00 YES 0.04 1.3 BT BLE 0±1 1.00 1±1 2.00 1.01 1.35 Conclusion: For the max result: 0.49764 ≤ FCC Limit 3.0 for 1g SAR. The Product unsupported at the same time to Transmitting.

Invert ed F Antenna Specification Summary ITEMANT SPEC Mo del Name 2.4G ANT Ho rizontalVertical 2400MHz 2450MHz 2500MHz 2400MHz 2450MHz 2500MHz Cent er Frequency -1.26-0.76-0.58-5.25-2.46-1.86 Peak. Gain-0.58dBi Po larizationHorizontal and Vertical A zimuth Beam Pattern Omni-directional Impedance50 Ohm A ntenna Length M anufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Antenna Photo & Length (mm ) Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Peak::: 0 Min: -40 Scale: 5/div Gain(dBi) Frequency (MHz) Peak Min Avg 2400 -1.26174 -30.0801 -7.18716 2450 -0.765802 -36.5604 -7.48023 2500 -0.585582 -22.0315 -6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Peak:: 0 Min: -30 Scale: 5/div Gain(dB) Frequency (MHz) Peak Min Avg 2400 -5.2537 -22.1424 -12.4294 2450 -2.4652 -24.5837 -10.4702 2500 -1.86120 -29.5214 -9.20432 ANT Test Labs：Attestation of Global Compliance Co., Ltd. Gain(dBi)

No.：BCTC/RF-ICT-005 Page 1 of 56 Edition：C.0 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2509205488-2E Applicant: SpiritShack Ltd Product Name: Ghost Box FM/AM Radio Scanner Test Model: HexBox Tested Date: 2025-09-25 to 2025-10-20 Issued Date: 2025-11-20 Report No.: BCTC2509205488-2E No.：BCTC/RF-ICT-005 Page 2 of 56 Edition：C.0 FCC ID: 2BST5-HEXBOX The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: Ghost Box FM/AM Radio Scanner Trademark: SpiritShack Model/Type reference: HexBox HexPortal, Hex Remote Prepared For: SpiritShack Ltd Address: 47 Wheatfield Crescent, Sheffield, S5 0JG, United Kingdom Manufacturer: SpiritShack Ltd Address: 47 Wheatfield Crescent, Sheffield, S5 0JG, United Kingdom Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2025-09-25 Sample tested Date: 2025-09-25 to 2025-10-20 Issue Date: 2025-11-20 Report No.: BCTC2509205488-2E Test Standards: FCC Part15.247 ANSI C63.10-2020 Test Results: PASS Remark: This is Bluetooth BLE radio test report. Tested by: Approved by: Lei Chen/Project Handler Zero Zhou/Reviewer Report No.: BCTC2509205488-2E No.：BCTC/RF-ICT-005 Page 3 of 56 Edition：C.0 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 8 4.4 Channel List .......................................................................................................... 9 4.5 Test Mode ............................................................................................................. 9 4.6 Table Of Parameters Of Text Software Setting ..................................................... 9 5. Test Facility And Test Instrument Used ............................................................... 10 5.1 Test Facility ......................................................................................................... 10 5.2 Test Instrument Used .......................................................................................... 10 6. Conducted Emissions .......................................................................................... 12 6.1 Block Diagram Of Test Setup .............................................................................. 12 6.2 Limit .................................................................................................................... 12 6.3 Test Procedure ................................................................................................... 12 6.4 EUT Operating Conditions .................................................................................. 12 6.5 Test Result .......................................................................................................... 13 7. Radiated Emissions ............................................................................................. 15 7.1 Block Diagram Of Test Setup .............................................................................. 15 7.2 Limit .................................................................................................................... 16 7.3 Test Procedure ................................................................................................... 17 7.4 EUT Operating Conditions .................................................................................. 18 7.5 Test Result .......................................................................................................... 18 8. Radiated Band Emission Measurement And Restricted Bands Of Operation ..... 23 8.1 Block Diagram Of Test Setup .............................................................................. 23 8.2 Limit .................................................................................................................... 23 8.3 Test Procedure ................................................................................................... 24 8.4 EUT operating Conditions ................................................................................... 24 8.5 Test Result .......................................................................................................... 25 9. Power Spectral Density Test ............................................................................... 26 9.1 Block Diagram Of Test Setup .............................................................................. 26 9.2 Limit .................................................................................................................... 26 9.3 Test Procedure ................................................................................................... 26 9.4 EUT Operating Conditions .................................................................................. 26 9.5 Test Result .......................................................................................................... 27 10. Bandwidth Test ...............................................…

Text truncated - open the document above for the full version.

Report No.:BCTC2509205488-1E No.：BCTC/RF-ICT-005 Page 83 of 85 Edition：C.0 17. EUT Test Setup Photographs Conducted Emissions Photo Radiated Measurement Photos Report No.:BCTC2509205488-1E No.：BCTC/RF-ICT-005 Page 84 of 85 Edition：C.0
