2BST8-EAIRZ616SAPPHIRE EDGE AI Mini PC

： ： ： ： ： ： ： ： ： ： ： ： ： ： SAPPHIRE EDGE AI 系列 ��� - ���V（交流） �.��A 参阅外盒标签 参阅外盒标签 参阅用户手册 参阅用户手册 产品名称 额定电压 额定输入电流 制造编号 制造国 注 产品特点 123454678 Features Leistungsmerkmale | Características | Características | | 특징 | 特点 | 特點 Ethernet 產品名稱 額定電壓 額定輸入電流 生產編號 生產地 附註 產品特色 ： ： ： ： ： ： ： SAPPHIRE EDGE AI 系列 100 - 240 伏特（交流電） 6.32 安培 請參閱外包裝盒上的標籤 請參閱外包裝盒上的標籤 請參閱使用手冊 請參閱使用手冊 1 2 3 4 5 6 7 8 Power button Audio Jack USB Type-A Connector HDMI Power DC Jack USB Type-C USB Type-A RJ �� Ethernet Produktname: Serie SAPPHIRE EDGE AI Nennspannung: 100–240 V (Wechselspannung) Nenneingangsstrom: 6,32 A Herstellungsnummer: Siehe Angaben auf der Umverpackung Herstellungsland: Siehe Angaben auf der Umverpackung Hinweise: Siehe Bedienungsanleitung Produkteigenschaften: Siehe Bedienungsanleitung Product: SAPPHIRE EDGE AI SERIES Voltage Rating: 100 ~ 240 V(AC) Rated Current Input: 6.32 A Product Number: Refer to the packaging label Country of Origin: Refer to the packaging label Additional Note: Refer to the user’s manual Product Features: Refer to the user’s manual Nombre del producto: Serie SAPPHIRE EDGE AI Tensión nominal: 100 - 240 voltios (CA) Corriente nominal de entrada: 6,32 A Número de fabricación: Consulta el etiquetado exterior de la caja País de fabricación: Consulta el etiquetado exterior de la caja Notas: Consulta el manual del usuario Características del producto: Consulta el manual del usuario Nome do produto: SAPPHIRE EDGE AI Series Tensão nominal: 100 a 240 volts (CA) Corrente de entrada nominal: 6,32 A Número de série: Consulte a etiqueta na parte de fora da caixa País de fabricação: Consulte a etiqueta na parte de fora da caixa Notas: Consulte o manual de usuário Características do produto: Consulte o manual de usuário 제품 이름 정격 전압 정격 입력 전류 제조 번호 제조 국가 참고 제품 특징 SAPPHIRE EDGE AI 시리즈 100~240 V(AC) 6.32 A 외부 상자의 라벨을 참조하십시오. 외부 상자의 라벨을 참조하십시오. 사용 설명서를 참조하십시오. 사용 설명서를 참조하십시오. User Manual QR Code / QR-Code der Bedienungsanleitung / Código QR del manual del usuario / Código QR do manual de usuário / 사용 설명서 QR 코드 / 用户手册二维码 / 使用手冊二維碼 : SAPPHIRE EDGE AI Mini PC Quick Setup Guide 4. Connect the power cable to the computer 5. Press the power button and turn on the computer 6. The system may not come with operating system. Please install your operating system in order to complete the setup 1. Connect the keyboard and mouse to the computer 2. Connect the Ethernet cable to the computer or connect to a wireless network (if applicable) 3. Connect the monitor NOTE: System is equipped with HDMI and USB Type-C connectors. A display dongle will be needed for monitor connections using other connectors. Kurzanleitung zur Einrichtung 4. Stromkabel an den Computer anschließen. 5. Ein /Aus-Schalter drücken, um den Computer einzuschalten. 6. Bitte beachten Sie, dass das System möglicherweise kein vorinstalliertes Betriebssystem enthält. Dann müssen Sie Ihr Betriebssystem selbst installieren, um das Setup abschließen zu können. 1. Tastatur und Maus an den Computer anschließen. 2. Ethernetkabel an den Computer anschließen oder (falls vorhanden) den Computer mit einem Drahtlosnetzwerk verbinden. 3. Monitor anschließen. Hinweis: Das System verfügt über HDMI und USB-C-Anschlüsse. Wenn Sie eine andere Anschlussart verwenden wollen, ist ein Display-Dongle erforderlich. 快速設定指南 4. 連接電源線至電腦。 5. 按下電源按鈕啟動電腦。 6. 請留意，系統不一定隨附預先安裝之作業系統。 如有需要，請先安裝作業系統，以便完成設定。 1. 連接鍵盤和滑鼠至電腦。 2. 連接網路線至電腦，或連接無線網路。（如適用） 3. 連接螢幕。 附註：系統附設 HDMI 和 USB Type-C 接口。 如您需要其他類型的接口，請使用顯示轉接器。 快速设置指南 �. 将电源线连接至计算机。 �. 按下电源按钮并打开计算机。 �. 请注意，该系统可能未预装操作系统。您需要安装操作 系统来完成设置。 �. 将键盘和鼠标连接至计算机。 �. 将以太网电缆连接至计算机或连接至无线网络。（如适用） �. 连接显示器。 注：该系统包含 HDMI 和 USB Type-C 连接器。 如果您使用不同类型的连接器，则需要显示器加密狗。 4. 전원 케이블을 컴퓨터에 연결합니다. 5. 전원 버튼을 누르고 컴퓨터를 켭니다. 6. 시스템에 운영 체제가 사전 설치되어 있지 않을 수 있습니다. 설정을 완료하려면 운영 체제를 설치해야 합니다. 1. 키보드와 마우스를 컴퓨터에 연결합니다. 2. 이더넷 케이블을 컴퓨터에 연결하거나 무선 네트워크에 연결합니다. (해당되는 경우) 3. 모니터를 연결합니다. 참고: 이 시스템에는 HDMI 및 USB Type-C 커넥터가 포함되어 있습니다. 다른 유형의 커넥터를 사용하는 경우 디스플레이 동글이 필요합니다. 4. Conecta el cable de alimentación a la computadora. 5. Presiona el botón de encendido y enciende la computadora. 6. Ten en cuenta que el sistema puede no venir con un sistema operativo preinstalado. Tendrás que instalar tu sistema operativo para completar la configuración. 1. Conecta el teclado y el ratón a la computadora. 2. Conecta el cable Ethernet a la computadora o conéctate a una red inalámbrica. (si procede) 3. Conecta el monitor. Nota: El sistema incluye conectores HDMI y USB Tipo-C. Si utilizas otro tipo de conector, necesitarás un dongle de pantalla. Guía de configuración rápida 4. Conecte o cabo de força ao computador. 5. Pressione o botão para ligar o computador. 6. Observe que o computador pode não incluir um sistema operacional pré-instalado. Você terá que instalar seu sistema operacional para concluir a configuração. 1. Conecte o teclado e o mouse ao computador. 2. Conecte o cabo de rede ao computador ou conecte-se a uma rede sem fios. (se aplicável) 3. Conecte o monitor. Nota: O sistema inclui conectores HDMI e USB tipo C. Se você estiver usando um tipo de conector diferente, será necessário usar um adaptador. Guia de configuração rápida FCC Caution. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communicati…

Text truncated - open the document above for the full version.

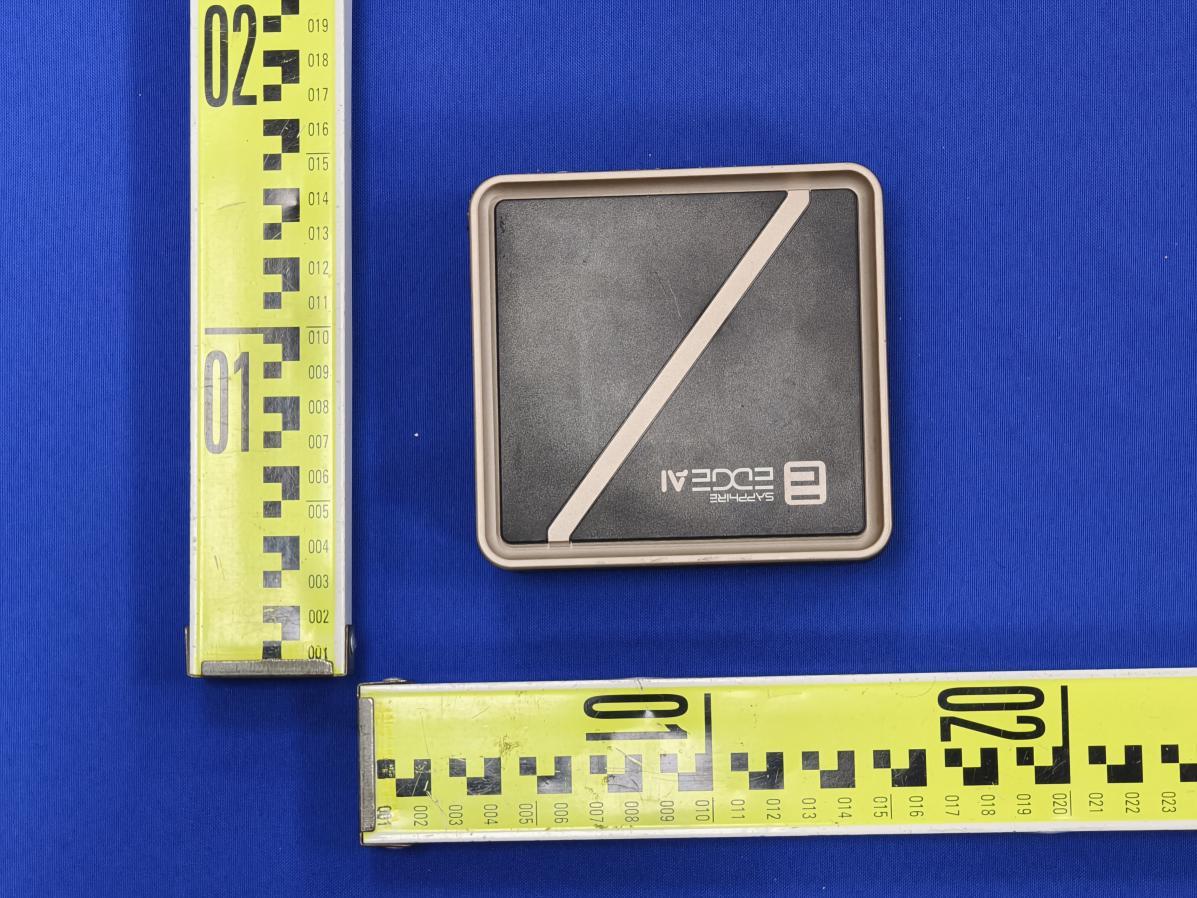

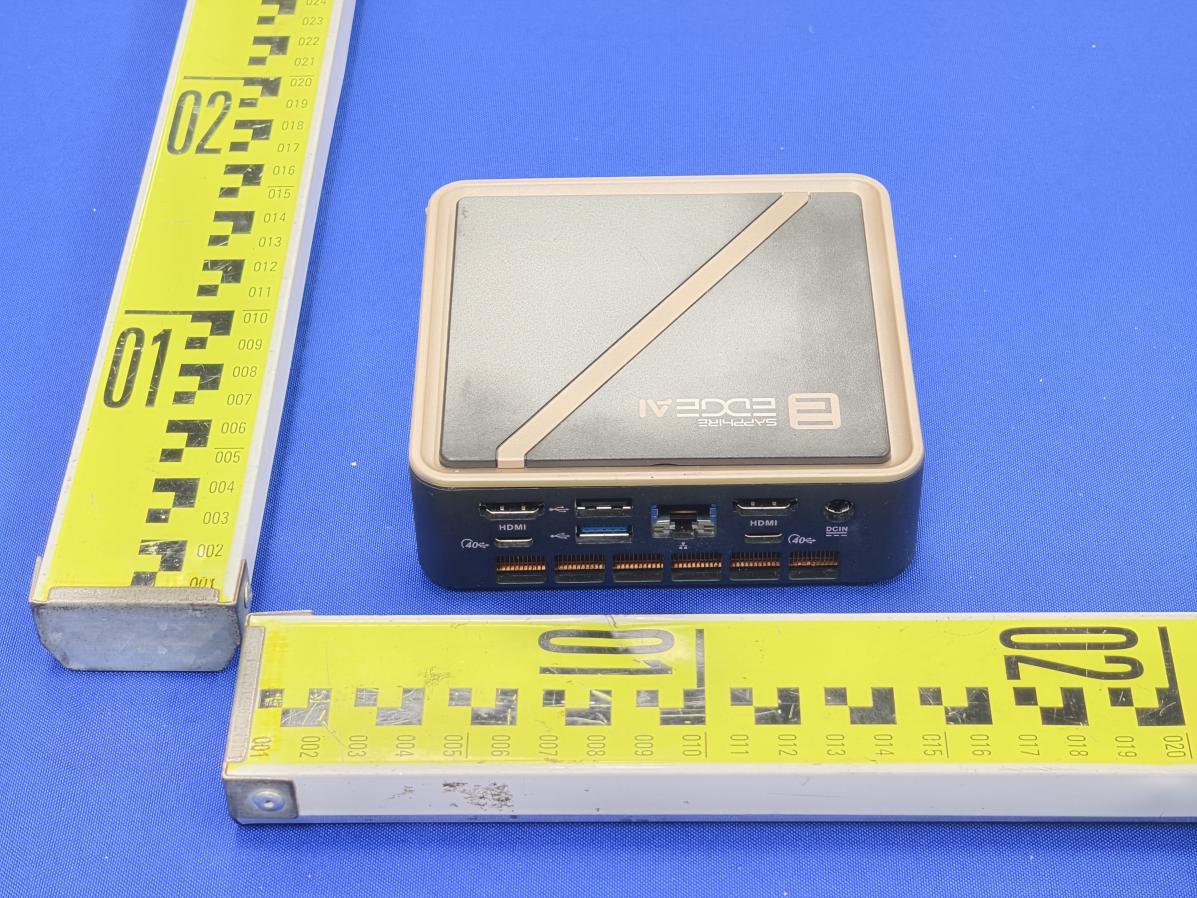

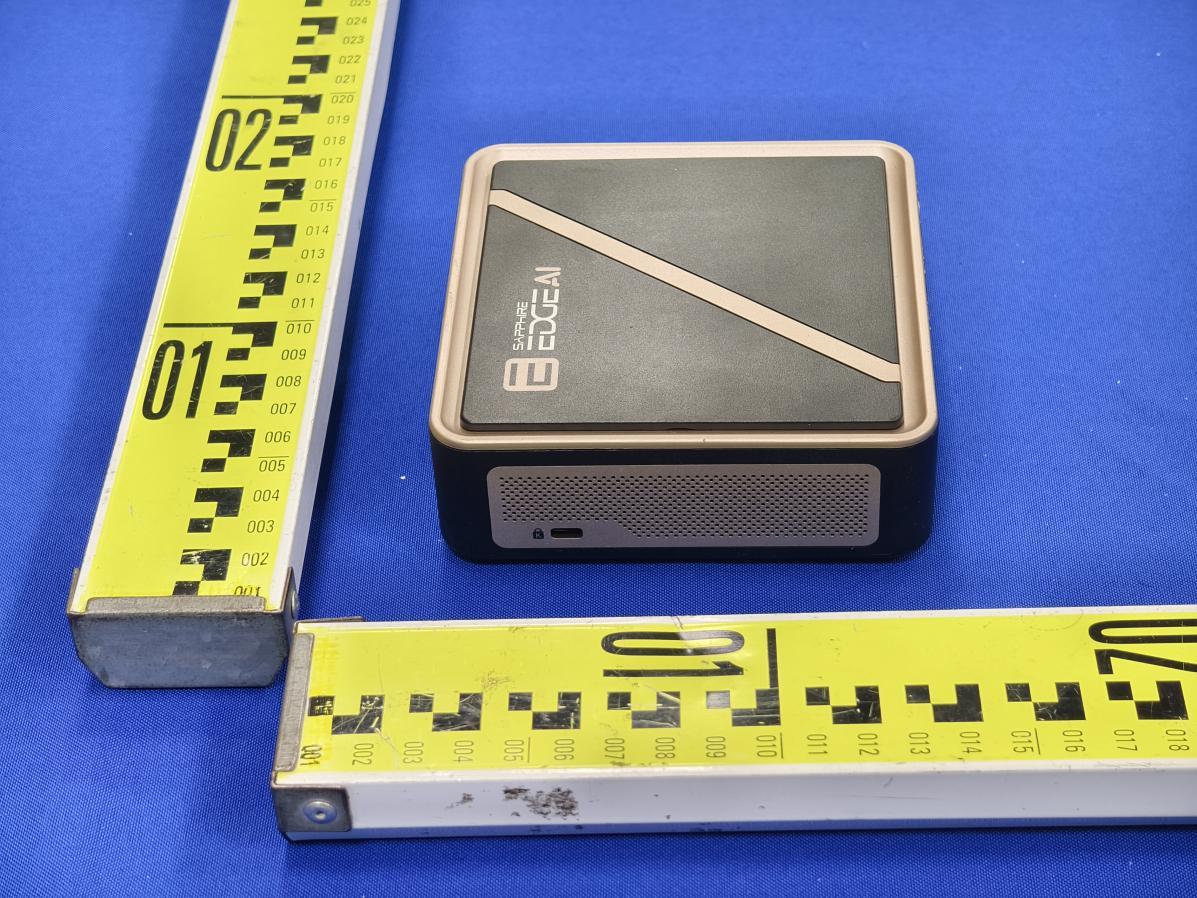

Page 1 of 11 Report No.: STS2509098 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Antenna Antenna Page 2 of 11 Report No.: STS2509098 Photo 3 Photo 4 Page 3 of 11 Report No.: STS2509098 Photo 5 Photo 6 Page 4 of 11 Report No.: STS2509098 Photo 7 Photo 8 Page 5 of 11 Report No.: STS2509098 Photo 9 Photo 10 Page 6 of 11 Report No.: STS2509098 Photo 11 Photo 12 Page 7 of 11 Report No.: STS2509098 Photo 13 Photo 14 Page 8 of 11 Report No.: STS2509098 Photo 15 Photo 16 Page 9 of 11 Report No.: STS2509098 Photo 17 Photo 18 Page 10 of 11 Report No.: STS2509098 Photo 19 Photo 20 Page 11 of 11 Report No.: STS2509098 Photo 21

Page 1 of 2 FCC ID: 2BST8-EAIRZ616 Setup photo AC Conduction RF Conduction Page 2 of 2 FCC ID: 2BST8-EAIRZ616 RE (Below 1GHz) RE (Above 1GHz)

The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the Shenzhen STS Test Services Co., Ltd. Radio Test Report Report No.:STS2509098W02 Issued for Sapphire Technology PTE. LTD 1 Raffles Place, Tower 2, Level #19-61, Singapore 048616 Product Name: SAPPHIRE EDGE AI Mini PC Brand Name: N/A Model Name: SAPPHIRE EDGE AI 370 Mini PC Series Model(s): SAPPHIRE EDGE AI 350 Mini PC, SAPPHIRE EDGE AI 340 Mini PC FCC ID: 2BST8-EAIRZ616 Test Standards: FCC Part15.247 Page 2 of 54 Report No.: STS2509098W02 TEST REPORT Applicant’s Name ................. : Sapphire Technology PTE. LTD Address ................................. : 1 Raffles Place, Tower 2, Level #19-61, Singapore 048616 Manufacturer's Name .......... : Sapphire Technology PTE. LTD Address ................................. : 1 Raffles Place, Tower 2, Level #19-61, Singapore 048616 Product Description Product Name ....................... : SAPPHIRE EDGE AI Mini PC Brand Name .......................... : N/A Model Name .......................... : SAPPHIRE EDGE AI 370 Mini PC Series Model(s) .................... : SAPPHIRE EDGE AI 350 Mini PC, SAPPHIRE EDGE AI 340 Mini PC Standards ............................. : FCC Part15.247 Test Procedure ...................... : ANSI C63.10-2020 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the Shenzhen STS Test Services Co., Ltd. Date of Test ........................................... : Date of receipt of test item ..................... : 15 Sept. 2025 Date (s) of performance of tests ............. : 15 Sept. 2025~18 Oct. 2025 Date of Issue .......................................... : 18 Oct. 2025 Test Result.............................................. : Pass Testing Engineer : (Aaron Bu) Technical Manager : (Skylar Li) Authorized Signatory : (Bovey Yang) Page 3 of 54 Report No.: STS2509098W02 Table of Contents Page 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACTORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF THE TEST MODES 9 2.3 TEST SOFTWARE AND POWER LEVEL 9 2.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.5 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 11 2.6 EQUIPMENTS LIST 12 3. EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.2 TEST PROCEDURE 14 3.3 TEST SETUP 14 3.4 EUT OPERATING CONDITIONS 14 3.5 TEST RESULTS 15 4. RADIATED EMISSION MEASUREMENT 17 4.1 RADIATED EMISSION LIMITS 17 4.2 TEST PROCEDURE 19 4.3 TEST SETUP 20 4.4 EUT OPERATING CONDITIONS 20 4.5 FIELD STRENGTH CALCULATION 21 4.6 TEST RESULTS 22 5. CONDUCTED SPURIOUS & BAND EDGE EMISSION 29 5.1 LIMIT 29 5.2 TEST PROCEDURE 29 5.3 TEST SETUP 29 5.4 EUT OPERATION CONDITIONS 29 5.5 TEST RESULTS 29 6. POWER SPECTRAL DENSITY TEST 30 6.1 LIMIT 30 6.2 TEST PROCEDURE 30 6.3 TEST SETUP 30 Page 4 of 54 Report No.: STS2509098W02 Table of Contents Page 6.4 EUT OPERATION CONDITIONS 30 6.5 TEST RESULTS 30 7. BANDWIDTH TEST 31 7.1 LIMIT 31 7.2 TEST PROCEDURE 31 7.3 TEST SETUP 31 7.4 EUT OPERATION CONDITIONS 31 7.5 TEST RESULTS 31 8. PEAK OUTPUT POWER TEST 32 8.1 LIMIT 32 8.2 TEST PROCEDURE 32 8.3 TEST SETUP 33 8.4 EUT OPERATION CONDITIONS 33 8.5 TEST RESULTS 33 9. ANTENNA REQUIREMENT 34 9.1 STANDARD REQUIREMENT 34 9.2 EUT ANTENNA 34 APPENDIX 1-TEST DATA 35 DUTY CYCLE 35 MAXIMUM PEAK CONDUCTED OUTPUT POWER 38 -6DB BANDWIDTH 41 MAXIMUM POWER SPECTRAL DENSITY LEVEL 44 BAND EDGE 47 CONDUCTED RF SPURIOUS EMISSION 50 APPENDIX 2- EUT TEST PHOTO 54 Page 5 of 54 Report No.: STS2509098W02 Revision History Rev. Issue Date Report No. Effect Page Contents 00 18 Oct. 2025 STS2509098W02 ALL Initial Issue Page 6 of 54 Report No.: STS2509098W02 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 15.247 Meas Guidance v05r02. FCC Part 15.247,Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS -- 15.247 (a)(2) 6dB Bandwidth PASS -- 15.247 (b)(3) Output Power PASS -- 15.209 Radiated Spurious Emission PASS -- 15.247 (d) Conducted Spurious & Band Edge Emission PASS -- 15.247 (e) Power Spectral Density PASS -- 15.205 Restricted bands of operation PASS -- Part 15.247(d)/ Part 15.209(a) Band Edge Emission PASS -- 15.203 Antenna Requirement PASS -- Note: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2020. Page 7 of 54 Report No.: STS2509098W02 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : 101, Building B, Zhuoke Science Park, No.190 Chongqing Road, ZhanChengShequ, Fuhai Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.755dB 2 Unwanted Emissions, conducted ±2.874dB 3 All emissions, radiated 9K-30MHz ±3.80dB 4 All emissions, radiated 30M-1GHz ±4.18dB 5 All emissions, radiated 1G-6GHz ±4.90dB 6 All emissions, radiated>6G ±5.24dB 7 Conducted Emission (9KHz-150KHz) ±2.19dB 8 Conducted Emission (150KHz-30MHz) ±2.53dB 9 Occupied Channel Bandwidth ±3.5% 10 Power Spectral Density, conducted ±1.245dB 11 Duty Cycle ±3.2% Page 8 of 54 Report No.: STS2509098W02 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name SAPPHIRE EDGE AI Mini PC Brand Name N/A Model Name SAPPHIRE EDGE AI 3…

Text truncated - open the document above for the full version.

Page 81 of 151 Report No.: STS2509098W01 PSD NVNT n40 2437MHz Ant1 PSD NVNT n40 2437MHz Ant2 Page 82 of 151 Report No.: STS2509098W01 PSD NVNT n40 2452MHz Ant1 PSD NVNT n40 2452MHz Ant2 Page 83 of 151 Report No.: STS2509098W01 PSD NVNT ax20 2412MHz Ant1 PSD NVNT ax20 2412MHz Ant2 Page 84 of 151 Report No.: STS2509098W01 PSD NVNT ax20 2437MHz Ant1 PSD NVNT ax20 2437MHz Ant2 Page 85 of 151 Report No.: STS2509098W01 PSD NVNT ax20 2462MHz Ant1 PSD NVNT ax20 2462MHz Ant2 Page 86 of 151 Report No.: STS2509098W01 PSD NVNT ax40 2422MHz Ant1 PSD NVNT ax40 2422MHz Ant2 Page 87 of 151 Report No.: STS2509098W01 PSD NVNT ax40 2437MHz Ant1 PSD NVNT ax40 2437MHz Ant2 Page 88 of 151 Report No.: STS2509098W01 PSD NVNT ax40 2452MHz Ant1 PSD NVNT ax40 2452MHz Ant2 Page 89 of 151 Report No.: STS2509098W01 Band Edge Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT b 2412 Ant1 -49.5 <=-20 Pass NVNT b 2462 Ant1 -53.32 <=-20 Pass NVNT b 2412 Ant2 -50.49 <=-20 Pass NVNT b 2462 Ant2 -53.95 <=-20 Pass NVNT g 2412 Ant1 -40.61 <=-20 Pass NVNT g 2462 Ant1 -54.5 <=-20 Pass NVNT g 2412 Ant2 -44.38 <=-20 Pass NVNT g 2462 Ant2 -55.3 <=-20 Pass NVNT n20 2412 Ant1 -42.27 <=-20 Pass NVNT n20 2412 Ant2 -44.17 <=-20 Pass NVNT n20 2462 Ant1 -52.29 <=-20 Pass NVNT n20 2462 Ant2 -55.49 <=-20 Pass NVNT n40 2422 Ant1 -34.97 <=-20 Pass NVNT n40 2422 Ant2 -38.69 <=-20 Pass NVNT n40 2452 Ant1 -46.85 <=-20 Pass NVNT n40 2452 Ant2 -44.75 <=-20 Pass NVNT ax20 2412 Ant1 -44.35 <=-20 Pass NVNT ax20 2412 Ant2 -41.97 <=-20 Pass NVNT ax20 2462 Ant1 -50.52 <=-20 Pass NVNT ax20 2462 Ant2 -49.48 <=-20 Pass NVNT ax40 2422 Ant1 -36.14 <=-20 Pass NVNT ax40 2422 Ant2 -42.69 <=-20 Pass NVNT ax40 2452 Ant1 -46.41 <=-20 Pass NVNT ax40 2452 Ant2 -43.4 <=-20 Pass Page 90 of 151 Report No.: STS2509098W01 Test Graphs Band Edge NVNT b 2412MHz Ant1 Ref Band Edge NVNT b 2412MHz Ant1 Emission Page 91 of 151 Report No.: STS2509098W01 Band Edge NVNT b 2462MHz Ant1 Ref Band Edge NVNT b 2462MHz Ant1 Emission Page 92 of 151 Report No.: STS2509098W01 Band Edge NVNT b 2412MHz Ant2 Ref Band Edge NVNT b 2412MHz Ant2 Emission Page 93 of 151 Report No.: STS2509098W01 Band Edge NVNT b 2462MHz Ant2 Ref Band Edge NVNT b 2462MHz Ant2 Emission Page 94 of 151 Report No.: STS2509098W01 Band Edge NVNT g 2412MHz Ant1 Ref Band Edge NVNT g 2412MHz Ant1 Emission Page 95 of 151 Report No.: STS2509098W01 Band Edge NVNT g 2462MHz Ant1 Ref Band Edge NVNT g 2462MHz Ant1 Emission Page 96 of 151 Report No.: STS2509098W01 Band Edge NVNT g 2412MHz Ant2 Ref Band Edge NVNT g 2412MHz Ant2 Emission Page 97 of 151 Report No.: STS2509098W01 Band Edge NVNT g 2462MHz Ant2 Ref Band Edge NVNT g 2462MHz Ant2 Emission Page 98 of 151 Report No.: STS2509098W01 Band Edge NVNT n20 2412MHz Ant1 Ref Band Edge NVNT n20 2412MHz Ant1 Emission Page 99 of 151 Report No.: STS2509098W01 Band Edge NVNT n20 2412MHz Ant2 Ref Band Edge NVNT n20 2412MHz Ant2 Emission Page 100 of 151 Report No.: STS2509098W01 Band Edge NVNT n20 2462MHz Ant1 Ref Band Edge NVNT n20 2462MHz Ant1 Emission Page 101 of 151 Report No.: STS2509098W01 Band Edge NVNT n20 2462MHz Ant2 Ref Band Edge NVNT n20 2462MHz Ant2 Emission Page 102 of 151 Report No.: STS2509098W01 Band Edge NVNT n40 2422MHz Ant1 Ref Band Edge NVNT n40 2422MHz Ant1 Emission Page 103 of 151 Report No.: STS2509098W01 Band Edge NVNT n40 2422MHz Ant2 Ref Band Edge NVNT n40 2422MHz Ant2 Emission Page 104 of 151 Report No.: STS2509098W01 Band Edge NVNT n40 2452MHz Ant1 Ref Band Edge NVNT n40 2452MHz Ant1 Emission Page 105 of 151 Report No.: STS2509098W01 Band Edge NVNT n40 2452MHz Ant2 Ref Band Edge NVNT n40 2452MHz Ant2 Emission Page 106 of 151 Report No.: STS2509098W01 Band Edge NVNT ax20 2412MHz Ant1 Ref Band Edge NVNT ax20 2412MHz Ant1 Emission Page 107 of 151 Report No.: STS2509098W01 Band Edge NVNT ax20 2412MHz Ant2 Ref Band Edge NVNT ax20 2412MHz Ant2 Emission Page 108 of 151 Report No.: STS2509098W01 Band Edge NVNT ax20 2462MHz Ant1 Ref Band Edge NVNT ax20 2462MHz Ant1 Emission Page 109 of 151 Report No.: STS2509098W01 Band Edge NVNT ax20 2462MHz Ant2 Ref Band Edge NVNT ax20 2462MHz Ant2 Emission Page 110 of 151 Report No.: STS2509098W01 Band Edge NVNT ax40 2422MHz Ant1 Ref Band Edge NVNT ax40 2422MHz Ant1 Emission Page 111 of 151 Report No.: STS2509098W01 Band Edge NVNT ax40 2422MHz Ant2 Ref Band Edge NVNT ax40 2422MHz Ant2 Emission Page 112 of 151 Report No.: STS2509098W01 Band Edge NVNT ax40 2452MHz Ant1 Ref Band Edge NVNT ax40 2452MHz Ant1 Emission Page 113 of 151 Report No.: STS2509098W01 Band Edge NVNT ax40 2452MHz Ant2 Ref Band Edge NVNT ax40 2452MHz Ant2 Emission Page 114 of 151 Report No.: STS2509098W01 Conducted RF Spurious Emission Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT b 2412 Ant1 -33.96 <=-20 Pass NVNT b 2437 Ant1 -35.22 <=-20 Pass NVNT b 2462 Ant1 -35.24 <=-20 Pass NVNT b 2412 Ant2 -34.22 <=-20 Pass NVNT b 2437 Ant2 -34.53 <=-20 Pass NVNT b 2462 Ant2 -35.76 <=-20 Pass NVNT g 2412 Ant1 -31.91 <=-20 Pass NVNT g 2437 Ant1 -42.03 <=-20 Pass NVNT g 2462 Ant1 -40.15 <=-20 Pass NVNT g 2412 Ant2 -40.32 <=-20 Pass NVNT g 2437 Ant2 -40.76 <=-20 Pass NVNT g 2462 Ant2 -43.34 <=-20 Pass NVNT n20 2412 Ant1 -41.09 <=-20 Pass NVNT n20 2412 Ant2 -39.93 <=-20 Pass NVNT n20 2437 Ant1 -41.33 <=-20 Pass NVNT n20 2437 Ant2 -40.9 <=-20 Pass NVNT n20 2462 Ant1 -41.45 <=-20 Pass NVNT n20 2462 Ant2 -41.22 <=-20 Pass NVNT n40 2422 Ant1 -35.04 <=-20 Pass NVNT n40 2422 Ant2 -36.36 <=-20 Pass NVNT n40 2437 Ant1 -34.49 <=-20 Pass NVNT n40 2437 Ant2 -36.26 <=-20 Pass NVNT n40 2452 Ant1 -35.2 <=-20 Pass NVNT n40 2452 Ant2 -36.32 <=-20 Pass NVNT ax20 2412 Ant1 -36.98 <=-20 Pass NVNT ax20 2412 Ant2 -36.41 <=-20 Pass NVNT ax20 2437 Ant1 -38.31 <=-20 Pass NVNT ax20 2437 Ant2 -38.29 <=-20 Pass NVNT ax20 2462 Ant1 -35.22 <=-20 Pass NVNT ax20 2462 Ant2 -38.96 <=-20 Pass NVNT ax40 2422 Ant1 -35.44 <=-20 Pass NVNT ax40 2422 Ant2 -35 <=-20 Pass NVNT ax40 2437 Ant1 -35.07 <=-20 Pass NVNT ax40 2437 Ant2 -35.35 <=-20 Pass NVNT ax40 245…

Text truncated - open the document above for the full version.

The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the Shenzhen STS Test Services Co., Ltd. Radio Test Report Report No.:STS2509098W01 Issued for Sapphire Technology PTE. LTD 1 Raffles Place, Tower 2, Level #19-61, Singapore 048616 Product Name: SAPPHIRE EDGE AI Mini PC Brand Name: N/A Model Name: SAPPHIRE EDGE AI 370 Mini PC Series Model(s): SAPPHIRE EDGE AI 350 Mini PC, SAPPHIRE EDGE AI 340 Mini PC FCC ID: 2BST8-EAIRZ616 Test Standards: FCC Part15.247 Page 2 of 151 Report No.: STS2509098W01 TEST REPORT Applicant’s Name ................. : Sapphire Technology PTE. LTD Address ................................. : 1 Raffles Place, Tower 2, Level #19-61, Singapore 048616 Manufacturer's Name ........... : Sapphire Technology PTE. LTD Address ................................. : 1 Raffles Place, Tower 2, Level #19-61, Singapore 048616 Product Description Product Name ........................ : SAPPHIRE EDGE AI Mini PC Brand Name ........................... : N/A Model Name .......................... : SAPPHIRE EDGE AI 370 Mini PC Series Model(s) .................... : SAPPHIRE EDGE AI 350 Mini PC, SAPPHIRE EDGE AI 340 Mini PC Standards ............................. : FCC Part 15.247 Test Procedure........................: ANSI C63.10-2020 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the Shenzhen STS Test Services Co., Ltd. Date of Test ........................................... : Date of receipt of test item ...................... : 15 Sept. 2025 Date (s) of performance of tests ............. : 15 Sept. 2025~18 Oct. 2025 Date of Issue .......................................... : 18 Oct. 2025 Test Result .............................................. : Pass Testing Engineer : (Aaron Bu) Technical Manager : (Skylar Li) Authorized Signatory : (Bovey Yang) Page 3 of 151 Report No.: STS2509098W01 Table of Contents Page 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACTORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF THE TEST MODES 10 2.3 TEST SOFTWARE AND POWER LEVEL 11 2.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 12 2.5 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 13 2.6 EQUIPMENTS LIST FOR ALL TEST ITEMS 14 3. EMC EMISSION TEST 15 3.1 CONDUCTED EMISSION MEASUREMENT 15 3.2 RADIATED EMISSION MEASUREMENT 19 4. CONDUCTED SPURIOUS & BAND EDGE EMISSION 31 4.1 LIMIT 31 4.2 TEST PROCEDURE 31 4.3 DEVIATION FROM STANDARD 31 4.4 TEST SETUP 31 4.5 EUT OPERATION CONDITIONS 31 4.6 TEST RESULTS 31 5. POWER SPECTRAL DENSITY TEST 32 5.1 LIMIT 32 5.2 TEST PROCEDURE 32 5.3 DEVIATION FROM STANDARD 32 5.4 TEST SETUP 32 5.5 EUT OPERATION CONDITIONS 32 5.6 TEST RESULTS 32 6. BANDWIDTH TEST 33 6.1 LIMIT 33 6.2 TEST PROCEDURE 33 6.3 DEVIATION FROM STANDARD 33 6.4 TEST SETUP 33 6.5 EUT OPERATION CONDITIONS 33 Page 4 of 151 Report No.: STS2509098W01 Table of Contents Page 6.6 TEST RESULTS 33 7. PEAK OUTPUT POWER TEST 34 7.1 LIMIT 34 7.2 TEST PROCEDURE 34 7.3 DEVIATION FROM STANDARD 34 7.4 TEST SETUP 34 7.5 EUT OPERATION CONDITIONS 34 7.6 TEST RESULTS 34 8. ANTENNA REQUIREMENT 35 8.1 STANDARD REQUIREMENT 35 8.2 EUT ANTENNA 35 APPENDIX 1-TEST DATA 36 DUTY CYCLE 36 MAXIMUM PEAK CONDUCTED OUTPUT POWER 49 -6DB BANDWIDTH 50 MAXIMUM POWER SPECTRAL DENSITY LEVEL 70 BAND EDGE 89 CONDUCTED RF SPURIOUS EMISSION 114 APPENDIX 2-PHOTOS OF TEST SETUP 151 Page 5 of 151 Report No.: STS2509098W01 Revision History Rev. Issue Date Report No. Effect Page Contents 00 18 Oct. 2025 STS2509098W01 ALL Initial Issue Page 6 of 151 Report No.: STS2509098W01 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 15.247 Meas Guidance v05r02. FCC Part 15.247,Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS -- 15.247 (a)(2) 6dB Bandwidth PASS -- 15.247 (b)(3) Output Power PASS -- 15.209 Radiated Spurious Emission PASS -- 15.247 (d) Conducted Spurious & Band Edge Emission PASS -- 15.247 (e) Power Spectral Density PASS -- 15.205 Restricted Band Edge Emission PASS -- Part 15.247(d)/ part 15.209(a) Band Edge Emission PASS -- 15.203 Antenna Requirement PASS -- NOTE: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2020. Page 7 of 151 Report No.: STS2509098W01 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : 101, Building B, Zhuoke Science Park, No.190 Chongqing Road, ZhanChengShequ, Fuhai Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ±U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.755dB 2 Unwanted Emissions, conducted ±2.874dB 3 All emissions, radiated 9K-30MHz ±3.80dB 4 All emissions, radiated 30M-1GHz ±4.18dB 5 All emissions, radiated 1G-6GHz ±4.90dB 6 All emissions, radiated>6G ±5.24dB 7 Conducted Emission (9KHz-150KHz) ±2.19dB 8 Conducted Emission (150KHz-30MHz) ±2.53dB 9 Occupied Channel Bandwidth ±3.5% 10 Power Spectral Density, conducted ±1.245dB 11 Duty Cycle ±3.2% Page 8 of 151 Report No.: STS2509098W01 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name SAPPHIRE EDGE AI Mini PC Brand Name N/A Model Name SAPPHIRE EDGE AI 370 Mini PC Series Model(s) SAPPHIRE EDGE AI 350 Mini PC, SAPPHIRE EDGE AI 340 Mini PC…

Text truncated - open the document above for the full version.

昆山睿翔讯通通信技术有限公司 产品规格书 客户名称：六联 产品名称：JM24-MAIN-成品 客户料号： 睿翔料号：F211M2412191000 版本：T01 核准审核编制 Gavin.shiBo.liShaoyu.zhu 2025.07.012025.07.012025.07.01 昆山睿翔讯通通信技术有限公司 1.天线规格 2.天线照片 AntennaTypeWLANAntenna Frequency 2400MHz~2500MHz5150MHz~5850MHz 5925Hz~7125MHz VSWR3.0Max Impedance50Ω PolarizationLinear Radiation pattern Omni-directional 天线尺寸（mm）24mm*9.8mm*0.15mm Connector康硕四代端子 CableType WLANMain1.13.LL，L=70mm黑色 工作温度（°C）-20~65 存储温度（°C）-20~85 昆山睿翔讯通通信技术有限公司 3.治具布局 昆山睿翔讯通通信技术有限公司 昆山睿翔讯通通信技术有限公司 昆山睿翔讯通通信技术有限公司 4.天线S11（VSWR/Returnloss） Returnloss测试装置依次的连接为：E5071B网络分析仪→50欧姆的同轴 Cable→测试治具 昆山睿翔讯通通信技术有限公司 5.天线效率 昆山睿翔讯通通信技术有限公司 6.3D场型图 昆山睿翔讯通通信技术有限公司 7.天线图面

昆山睿翔讯通通信技术有限公司 产品规格书 客户名称：六联 产品名称：JM24-AUX-成品 客户料号： 睿翔料号：F211M2412591000 版本：T01 核准审核编制 Gavin.shiBo.liShaoyu.zhu 2025.07.012025.07.012025.07.01 昆山睿翔讯通通信技术有限公司 1.天线规格 2.天线照片 AntennaTypeWLANAntenna Frequency 2400MHz~2500MHz5150MHz~5850MHz 5925Hz~7125MHz VSWR3.0Max Impedance50Ω PolarizationLinear Radiation pattern Omni-directional 天线尺寸（mm）24mm*9.8mm*0.15mm Connector康硕四代端子 CableType WLANAux1.13.LL，L=125mm灰色 工作温度（°C）-20~65 存储温度（°C）-20~85 昆山睿翔讯通通信技术有限公司 3.治具布局 昆山睿翔讯通通信技术有限公司 昆山睿翔讯通通信技术有限公司 昆山睿翔讯通通信技术有限公司 4.天线S11（VSWR/Returnloss） Returnloss测试装置依次的连接为：E5071B网络分析仪→50欧姆的同轴 Cable→测试治具 昆山睿翔讯通通信技术有限公司 5.天线效率 昆山睿翔讯通通信技术有限公司 6.3D场型图 昆山睿翔讯通通信技术有限公司 7.天线图面

The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the ShenZhen STS Test Services Co., Ltd. MPE Report Report No.:STS2509098H01 Issued for Sapphire Technology PTE. LTD 1 Raffles Place, Tower 2, Level #19-61, Singapore 048616 Product Name: SAPPHIRE EDGE AI Mini PC Brand Name: N/A Model Name: SAPPHIRE EDGE AI 370 Mini PC Series Model(s): SAPPHIRE EDGE AI 350 Mini PC, SAPPHIRE EDGE AI 340 Mini PC FCC ID: 2BST8-EAIRZ616 Test Standard: FCC 47CFR §2.1091 Page 2 of 9 Report No.: STS2509098H01 TEST REPORT Applicant’s Name ................. : Sapphire Technology PTE. LTD Address ................................. : 1 Raffles Place, Tower 2, Level #19-61, Singapore 048616 Manufacturer's Name ........... : Sapphire Technology PTE. LTD Address ................................. : 1 Raffles Place, Tower 2, Level #19-61, Singapore 048616 Product Description Product Name ........................ : SAPPHIRE EDGE AI Mini PC Brand Name .......................... : N/A Model Name .......................... : SAPPHIRE EDGE AI 370 Mini PC Series Model(s) ...................... : SAPPHIRE EDGE AI 350 Mini PC, SAPPHIRE EDGE AI 340 Mini PC Test Standards ..................... : FCC 47CFR §2.1091 447498 D01 Interim General RF Exposure Guidance v06 The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the ShenZhen STS Test Services Co., Ltd. Date of Test ........................................... : Date of receipt of test item ...................... : 15 Sept. 2025 Date (s) of performance of tests ............. : 15 Sept. 2025~18 Oct. 2025 Date of Issue .......................................... : 18 Oct. 2025 Test Result .............................................. : Pass Testing Engineer : (Aaron Bu) Technical Manager : (Skylar Li) Authorized Signatory : (Bovey Yang) Page 3 of 9 Report No.: STS2509098H01 TABLE OF CONTENTS 1. GENERAL INFORMATION 5 1.1 GENERAL DESCRIPTION OF THE EUT 5 1.2 TEST FACTORY 7 2. FCC 47CFR §2.1091 REQUIREMENT 8 2.1 TEST STANDARDS 8 2.2 LIMIT 8 2.3 TEST RESULT 9 Page 4 of 9 Report No.: STS2509098H01 Revision History Rev. Issue Date Report No. Effect Page Contents 00 18 Oct. 2025 STS2509098H01 ALL Initial Issue Page 5 of 9 Report No.: STS2509098H01 1. GENERAL INFORMATION 1.1 GENERAL DESCRIPTION OF THE EUT Product Name SAPPHIRE EDGE AI Mini PC Brand Name N/A Model Name SAPPHIRE EDGE AI 370 Mini PC Series Model(s) SAPPHIRE EDGE AI 350 Mini PC, SAPPHIRE EDGE AI 340 Mini PC Model Difference The only difference is the model name. Product Description The EUT is SAPPHIRE EDGE AI Mini PC Operation Frequency: Bluetooth: 2402~2480 MHz 2.4G WLAN: 802.11b/g/n/ax 20: 2412~2462 MHz 802.11n/ax40:2422~2452MHz 5.2G WLAN: IEEE 802.11a/ n(HT20)/ac(VHT20)/ax(HE20): 5.180GHz-5.240GHz IEEE 802.11n(HT40)/ac(VHT40)/ax(HE40): 5.190GHz-5.230GHz IEEE 802.11ac(VHT80) /ax(HE80): 5.210GHz 5.8G WLAN: IEEE 802.11a/ n(HT20)/ac(VHT20)/ax(HE20): 5.745GHz-5.825GHz IEEE 802.11a/ n(HT40)/ac(VHT40)/ax(HE40): 5.755GHz-5.795GHz IEEE 802.11ac(VHT80)/ax(HE80): 5.775GHz 5.9G WLAN: IEEE 802.11a/ n(HT20)/ac(VHT20))/ax(HE20): 5.845GHz -5.885GHz IEEE 802.11a/ n(HT40)/ac(VHT40)/ax(HE40): 5835GHz -5875GHz IEEE 802.11ac(VHT80)/ax(HE80):5855 GHz 6G WLAN: UNII-5 Band: 5925-6425MHz UNII-6 Band: 6425-6525MHz UNII-7 Band: 6525-6875MHz UNII-8 Band: 6875-7125MHz Page 6 of 9 Report No.: STS2509098H01 Modulation Type: BLE:GFSK BT: GFSK(1Mbps), π/4-DQPSK(2Mbps), 8DPSK(3Mbps) 2.4G WLAN: 802.11b(DSSS):CCK,DQPSK,DBPSK 802.11g(OFDM): BPSK,QPSK,16-QAM,64-QAM 802.11n(OFDM): BPSK,QPSK,16-QAM,64-QAM 802.11ax(OFDM, OFDMA): BPSK,QPSK,16-QAM,64-QAM,256-QAM, 1024QAM 5G WLAN: 802.11a(OFDM): BPSK,QPSK,16-QAM,64-QAM 802.11n(OFDM): BPSK,QPSK,16-QAM,64-QAM 802.11ac(OFDM): BPSK,QPSK,16-QAM,64-QAM,256-QAM 802.11ax(O…
