2BSTP-WT16Signal detector

[email protected] Operation Guide Personal Privacy Protector Support Email: [email protected] 16 Dear Customer, Thank you for choosing our product. We invite you to join our FREE VIP Membership Program, which offers: · Priority access to experience our lastest products · Exclusive benefits for valued members For enrollment details, please contact our spport team at: [email protected] For Accurate Wirless Bugs Detection: · Set your phone to airplane mode, · Turn off WiFi routers and other wireless devices, · Ensure proper charging before first use. Need Helps? Contact us anytime: [email protected] Thanks for reading! Best wishes! Product Display···········································1 Quick Start Guide········································2 WiFi Bug Detection····································3 Full-band Detection·····································4 Infrared Detection·······································5 Strong Magnetic Detection························6 AirTag Detection·········································7 Camera Detection·······································8 Silent Mode·················································9 Basic Parameters·········································9 FAQ ···························································10 Lifetime Warranty ····································12 MENU Product Display Quick Start Guide ①Power on/off: Long press Power Switch for 3 seconds, the detector is on with a beep sound. It’s the WiFi Bug Detection by default, indicator “WIFI” lights up. If the detector keeps beeping, please set your cell phone to airplane mode and turn off WiFi, routers and other wireless devices before detecting. ②Select mode: Short press the Power Switch button to switch the mode you want. There are six modes to switch: · WiFi Bug Detection, · Full-band Detection, · Infrared Detection · Magnetic Detection · AirTag Detection · Camera Detection ③ Adjusting sensitivity: Short press the Sensitivity Adjustment button to adjust the sensitivity of the detection (only in WiFi Bug DetectionFull-band Detection ) and there are 6 different gears to adjust. And you can also adjust the speed of the red light when in Camera Detection. ④ Silence mode: Long press the Sensitivity Adjustment button for 3 seconds to switch to Silence Mode. Long press the Sensitivity Adjustment button 3 seconds to release the Silence Mode. Please fully charge the product before first use. -1--2- Tag AirTag detection mode Signal/Sensitivity indicator WiFi bug detection mode 2 Red lights Red light adjustment w Infrared light 6 signal intensity display lights Adjustable display lights(5 levels of sensitivity) Sensitivity adjustment Infrared light adjustment (fast or slow) Power switch Mode selection WIFI camera detection Full-band detection DC 5V Charging Port Charging Progress Indicator WiFi Bug Detection (More pricise) . Mode Activation Press and hold the Power Switch for 3 seconds. The "WIFI" indicator will light up, entering WiFi Bug Detection Mode, used to detect 2.4GHz wireless signals (commonly used in detecting hidden WiFi cameras). . Detection Process Move the detector slowly and continuously around the area. As you get closer to a hidden camera or signal source: · Signal strength lights will flash more rapidly · Beeping sound becomes more frequent . Importance Notes Short press the Sensitivity Adjustment button to toggle through sensitivity levels · Higher sensitivity = broader detection range · Lower sensitivity = more precise location Remark: ①Before detecting at home or hotel, the mobile phone must be set to air-plane mode, and the wireless router must be turned off to reduce interference. ②Before detection in the car, the mobile phone must be set to the air-plane mode, the car should be turned off and do not start (there will be signal interference on the car navigation when it is started), and the car should be parked in a remote place. -3- -4- Full-band Detection (Wider frequency range) . Mode Activation Press and hold the Power Switch for 3 seconds, then short press the Mode Selection button once. The "F-band" indicator light will turn on, indicating the detector has entered Full-band Detection Mode, capable of detecting signals in the 1MHz–6GHz frequency range. . Detection Process Move the detector slowly and continuously around the area. As you approach a signal-emitting source: · Signal intensity lights will flash more rapidly · Beeping sounds will become more frequent . Importance Notes Short press the Sensitivity Adjustment button to adjust detection sensitivity: · High sensitivity allows broad scanning · Low sensitivity helps narrow down the exact source Remark: ①Before detecting at home or hotel, the mobile phone must be set to air-plane mode, and the wireless router must be turned off to reduce interference. ②Before detection in the car, the mobile phone must be set to the air-plane mode, the car should be turned off and do not start (there will be signal interference on the car navigation when it is started), and the car should be parked in a remote place. Strong Magnetic Detection . Mode Activated Press and hold the Power Switch for 3 seconds, then short press the Mode Selection button 3 times. The "magnet sign" indicator light will turn on, and the device enters Strong Magnetic Detection Mode. . Detection Process Move the detector slowly and close to surfaces (especially metallic ones). As you approach a hidden magnetic device: · The signal indicator lights will flash more · The beeping frequency will increase · The closer you are, the stronger the signal . Important Notes This mode uses fixed sensitivity, manual adjust- ment of sensitivity is not available. Remarks: ①Mainly for magnetic suction bugs like GPS tracker, pinhole camera and eavesdropper etc. ②Successful detection of a magnetic bug depends on the strength of the magnet and its distance from the Bug Detector. So you need to scan it as close as possible. S…

Text truncated - open the document above for the full version.

Local Representative Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(7), of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC ID Model name 2BSTP-WT16 WT16, WT10, WT12, WT18, WT24, WT30, WT31 WT32 WT33 WT34 We hereby acknowledge as follows: i. both signees confirm that the point of contact accepts responsibility to act as a US- American Representative on behalf of the applicant ii. the point of contact provides the physical U.S. address and email as listed below iii. both parties maintain the requirements of this agreement for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. iv. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. US-American Point of Contact Applicant/Approval Holder Signature Date: 2025-11-26 Signature Date: 2025-11-26 Company Name: HOORAY INDUSTRY LLC Shenzhen Qitaishan Science & Technology Co., Ltd. FRN: 0033926106 0037613973 Contact Name: Cindy Wu Dongfeng Zhang Address: 1408 Pinon Place Fullerton, CA 92835 United States 201A, Building K, Zhonggang Star Industrial Park, No.459 GuiyueRoad, Zhangge Community, Fucheng Street, Longhua District, Shenzhen, China Phone: (626) 910-5808 15112684264 Email: [email protected] [email protected]

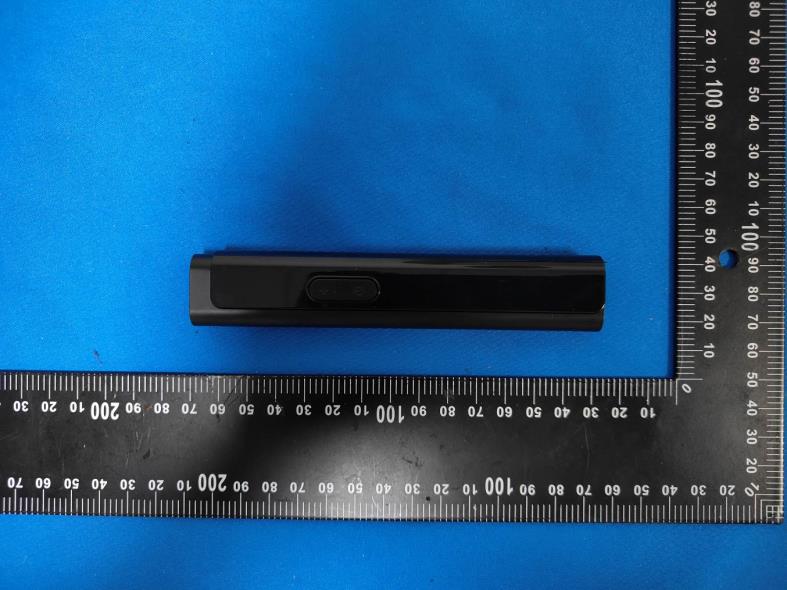

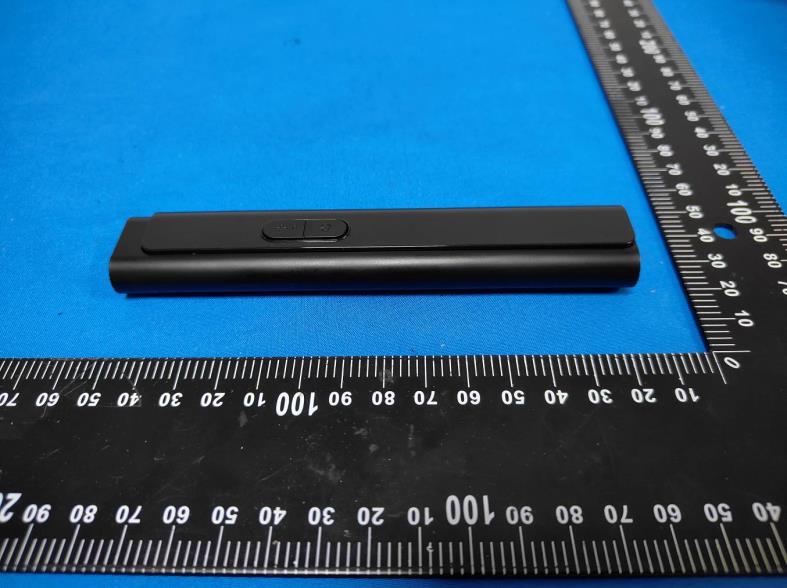

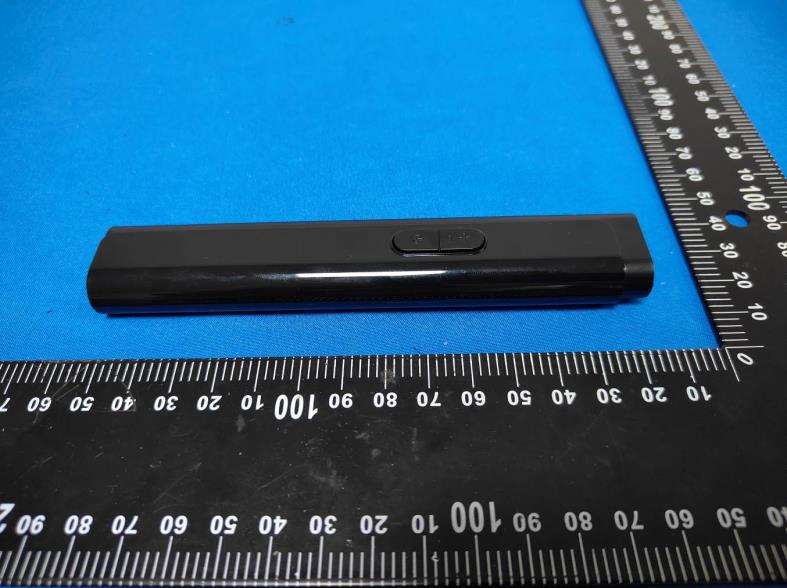

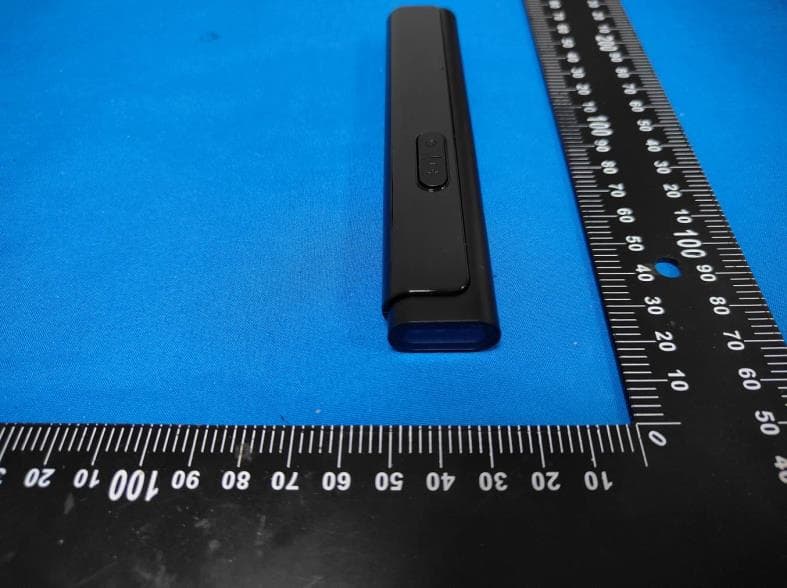

FCC ID: 2BSTP-WT16 External Photos of the EUT FCC ID: 2BSTP-WT16 FCC ID: 2BSTP-WT16

Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location FCC ID : 2BSTP-WT16

FCC ID: 2BSTP-WT16 Internal Photos of the EUT FCC ID: 2BSTP-WT16 ANT FCC ID: 2BSTP-WT16

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure evaluation Report Reference No. ..................... : FCC ID. ........................................... : CTA25110701702 2BSTP-WT16 Compiled by ( position+printed name+signature) .. : File administrators Zoey Cao Supervised by ( position+printed name+signature) .. : Project Engineer Ace Chai Approved by ( position+printed name+signature) .. : RF Manager Eric Wang Date of issue ..................................... : Nov. 11, 2025 Testing Laboratory Name ............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Shenzhen Qitaishan Science & Technology Co., Ltd. Address ............................................ : 201A, Building K, Zhonggang Star Industrial Park, No.459 GuiyueRoad, Zhangge Community, Fucheng Street, Longhua District, Shenzhen, China Standard ........................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Signal detector Trade Mark ........................................ 无田 Manufacturer .................................... : Shenzhen Qitaishan Science & Technology Co., Ltd. Model/Type reference ....................... : WT16 Listed Models ................................... : WT10, WT12, WT18, WT24, WT30, WT31 WT32 WT33 WT34 Rating ............................................... : DC 3.7V From battery and DC 5.0V From external circuit Result ................................................ : PASS Report No.: CTA25110701702 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Signal detector Model /Type : WT16 Listed Models : WT10, WT12, WT18, WT24, WT30, WT31 WT32 WT33 WT34 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : Shenzhen Qitaishan Science & Technology Co., Ltd. Address : 201A, Building K, Zhonggang Star Industrial Park, No.459 GuiyueRoad, Zhangge Community, Fucheng Street, Longhua District, Shenzhen, China Manufacturer : Shenzhen Qitaishan Science & Technology Co., Ltd. Address : 201A, Building K, Zhonggang Star Industrial Park, No.459 GuiyueRoad, Zhangge Community, Fucheng Street, Longhua District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25110701702 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 5 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 4 Test limit .............................................................................................................................. 7 4.1 Requirement ............................................................................................................ 7 4.2 Conducted Power Results ....................................................................................... 7 4.3 Manufacturing tolerance .......................................................................................... 7 4.4 Evaluation Result ..................................................................................................... 8 4.5 Simultaneous Transmission for SAR Exclusion ...................................................... 8 5 Conclusion ...............…

Text truncated - open the document above for the full version.

1. Antenna Description: Antenna type Internal antenna Model WT16 Frequency range 2400-2500MHz Manufacturer Shenzhen Qitaishan Science & Technology Co., Ltd. Address 201A, Building K, Zhonggang Star Industrial Park, No.459 GuiyueRoad, Zhangge Community, Fucheng Street, Longhua District, Shenzhen, China ANT Peak Gain 0.95 dBi 2. Antenna Photo: 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................. : FCC ID. ......................................... : CTA25110701701 2BSTP-WT16 Compiled by ( position+printed name+signature) : File administrators Zoey Cao Supervised by ( position+printed name+signature) : Project Engineer Ace Chai Approved by ( position+printed name+signature) : RF Manager Eric Wang Date of issue ...................................: Nov. 11, 2025 Testing Laboratory Name .............: Shenzhen CTA Testing Technology Co., Ltd. Address ..........................................: Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name...........................: Shenzhen Qitaishan Science & Technology Co., Ltd. Address ...........................................: 201A, Building K, Zhonggang Star Industrial Park, No.459 GuiyueRoad, Zhangge Community, Fucheng Street, Longhua District, Shenzhen, China Test specification ......................... : Standard ..........................................: FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Equipment description ................ : Signal detector Trade Mark ......................................: 无田 Manufacturer ...................................: Shenzhen Qitaishan Science & Technology Co., Ltd. Model/Type reference .....................: WT16 Listed Models ..................................: WT10, WT12, WT18, WT24, WT30, WT31 WT32 WT33 WT34 Modulation ......................................: GFSK Frequency ........................................ From 2402MHz to 2480MHz Ratings ............................................: DC 3.7V From battery and DC 5.0V From external circuit Result ..............................................: PASS Report No.: CTA25110701701 Page 2 of 33 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Signal detector Model /Type : WT16 Listed Models : WT10, WT12, WT18, WT24, WT30, WT31 WT32 WT33 WT34 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : Shenzhen Qitaishan Science & Technology Co., Ltd. Address : 201A, Building K, Zhonggang Star Industrial Park, No.459 GuiyueRoad, Zhangge Community, Fucheng Street, Longhua District, Shenzhen, China Manufacturer : Shenzhen Qitaishan Science & Technology Co., Ltd. Address : 201A, Building K, Zhonggang Star Industrial Park, No.459 GuiyueRoad, Zhangge Community, Fucheng Street, Longhua District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25110701701 Page 3 of 33 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description* .......................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 5 2.6 EUT operation mode ......................................................................................................................... 5 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ..............................................................................................…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for BLE FCC ID : 2BSTP-WT16 Company : Shenzhen Qitaishan Science & Technology Co., Ltd. EUT : Signal detector Model Number : WT16 Report No. : CTA25110701701 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Freq(MHz) DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.632 2401.700 2402.332 0.5 PASS 2440 0.628 2439.692 2440.320 0.5 PASS 2480 0.644 2479.692 2480.336 0.5 PASS 3 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 4 5 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 1.0033 2401.5169 2402.5202 --- --- 2440 1.0027 2439.5182 2440.5209 --- --- 2480 1.0040 2479.5164 2480.5204 --- --- 6 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 7 8 Appendix C: Maximum conducted output power Test Result Peak TestMode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict BLE_1M Ant1 2402 -3.54 ≤30 PASS 2440 -3.68 ≤30 PASS 2480 -3.62 ≤30 PASS 9 Appendix D: Maximum power spectral density Test Result TestMode Antenna Freq(MHz) Result[dBm/3kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -19.65 ≤8.00 PASS 2440 -19.28 ≤8.00 PASS 2480 -19.29 ≤8.00 PASS 10 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 11 12 Appendix E: Band edge measurements Test Result TestMod e Antenn a ChNam e Freq(MHz ) RefLevel[dBm ] Result[dBm ] Limit[dBm ] Verdic t BLE_1M Ant1 Low 2402 -4.11 -56.09 ≤-24.11 PASS High 2480 -3.54 -54.18 ≤-23.54 PASS 13 Test Graphs BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 14 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 Reference -3.72 -3.72 --- PASS 30~1000 -3.72 -65.7 ≤-23.72 PASS 1000~26500 -3.72 -46.73 ≤-23.72 PASS 2440 Reference -5.42 -5.42 --- PASS 30~1000 -5.42 -67.38 ≤-25.42 PASS 1000~26500 -5.42 -50.15 ≤-25.42 PASS 2480 Reference -4.29 -4.29 --- PASS 30~1000 -4.29 -67.69 ≤-24.29 PASS 1000~26500 -4.29 -45.58 ≤-24.29 PASS 15 Test Graphs BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 BLE_1M_Ant1_2402_1000~26500 16 BLE_1M_Ant1_2440_0~Reference BLE_1M_Ant1_2440_30~1000 17 BLE_1M_Ant1_2440_1000~26500 BLE_1M_Ant1_2480_0~Reference BLE_1M_Ant1_2480_30~1000 18 BLE_1M_Ant1_2480_1000~26500 19 Appendix G: Duty Cycle Test Result TestMode Antenna Freq(MHz) ON Time [ms] Period [ms] X DC [%] xFactor Limit Verdict BLE_1M Ant1 2402 0.41 0.63 0.6508 65.08 1.87 --- --- 2440 0.41 0.63 0.6508 65.08 1.87 --- --- 2480 0.41 0.63 0.6508 65.08 1.87 --- --- 20 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 21

FCC ID: 2BSTP-WT16 Test Setup Photos of the EUT FCC ID: 2BSTP-WT16
