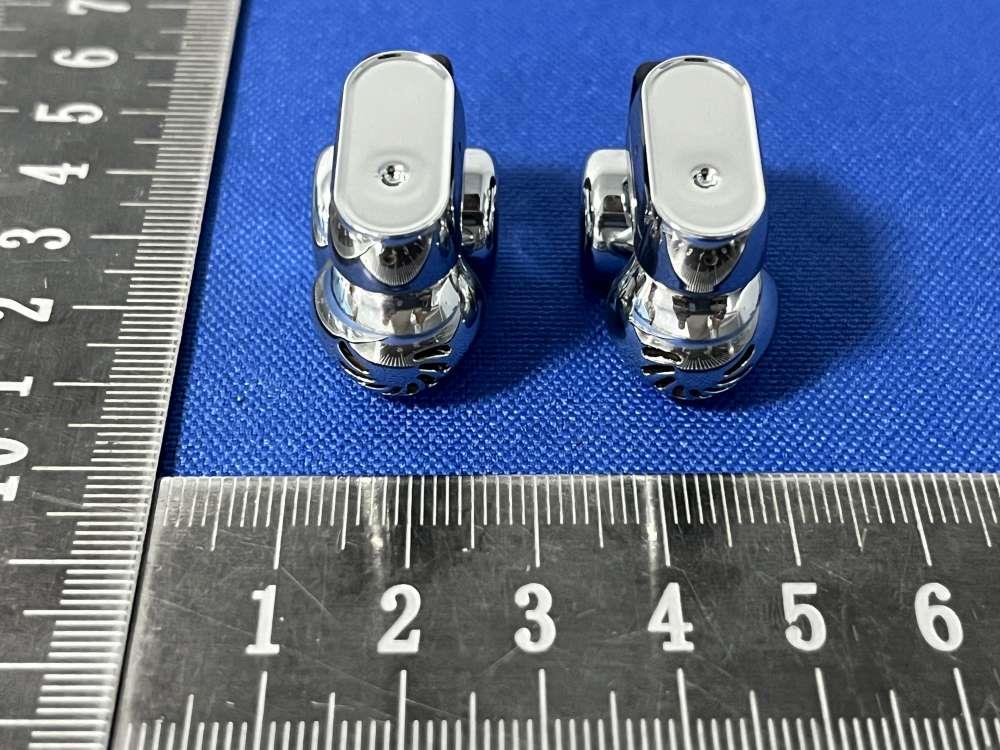

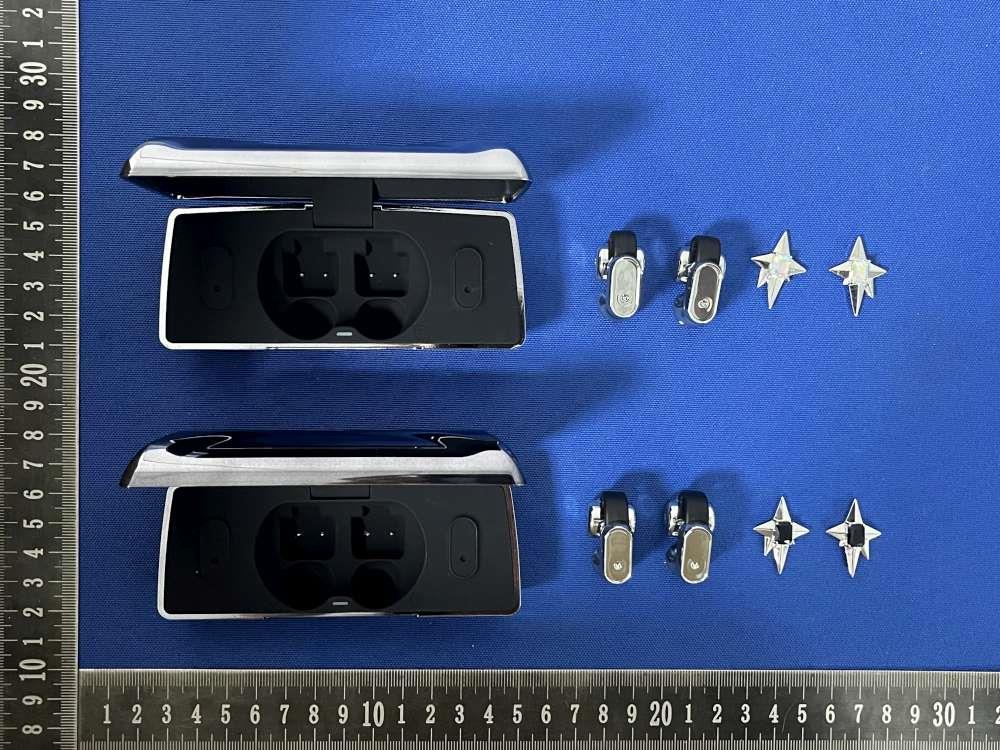

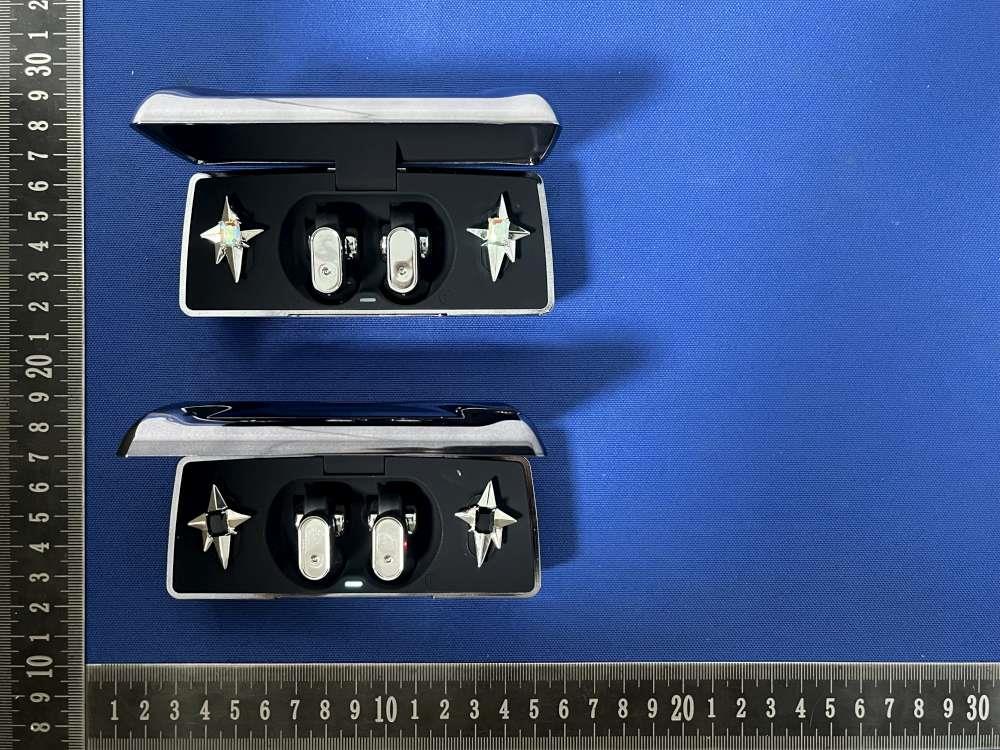

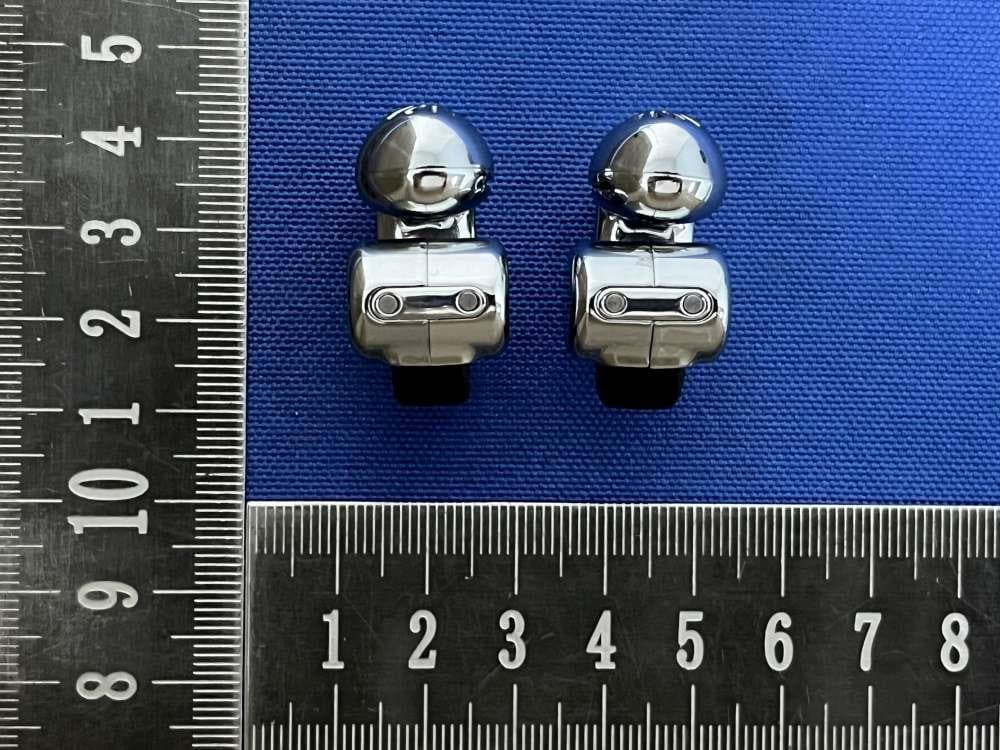

Report No: SSP25100281-1E FCC ID: 2BSTR-S8 Annex of Test Report Annex A. EUT External Photos EUT View 1 Model : S8 EUT View 2 Report No: SSP25100281-1E FCC ID: 2BSTR-S8 Annex of Test Report EUT View 3 EUT View 4 Report No: SSP25100281-1E FCC ID: 2BSTR-S8 Annex of Test Report EUT View 5 EUT View 6 Report No: SSP25100281-1E FCC ID: 2BSTR-S8 Annex of Test Report EUT View 7 EUT View 8

Report No: SSP25100281-1E FCC ID: 2BSTR-S8 Annex of Test Report Annex D. Label and Inf ormation FCC Label Sample Label Size: 1cm*0.5cm FCC Label Specifications Text is Black in color and is justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Where the EUT is constructed in two or more sections connected by wires and marketed together, the above statement is required to be affixed only to the main control unit. When the EUT is so small or for such use that it is not practicable to place the statement on it, the above information shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. FCC Label Location

Report No: SSP25100281-1E FCC ID: 2BSTR-S8 Annex of Test Report Annex B. EUT Internal Photos EUT Internal View 1 EUT Internal View 2 SMD Antenna SMD Antenna Report No: SSP25100281-1E FCC ID: 2BSTR-S8 Annex of Test Report EUT Internal View 3 EUT Internal View 4

FCC ID: 2BSTR-S8 RF Exposure Evaluation According to KDB 447498 D01 General RF Exposure Guidance v06 and part 2.1093，Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition(s), listed below, is (are) satisfied. For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Here, The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. For BR+EDR Max Conducted Power(dBm) Tune-up Power(dBm) Max Tune-up Power(dBm) Max Power(mW) Frequency(MHz) Min. distance(mm) Calc. thresholds limit 1.36 1(±1) 2 2 2480 5 0.49918 3.0 So a SAR test is not required

CCUT Testing & Certification Report No: SSP25100281-1E FCC Test Report Page 1 of 71 FCC TEST REPORT FCC ID: 2BSTR-S8 Report No. : SSP25100281-1E Applicant : Dongguan Danao Technology Co., Ltd. Product Name : EARCLIP ACCESSORY HEADPHONES Model Name : S8 Test Standard : FCC Part 15.247 Date of Issue : 2025-11-21 Shenzhen CCUT Quality Technology Co., Ltd. 1F, Building 35, Changxing Technology Industrial Park, Yutang Street, Guangming District, Shenzhen, Guangdong, China; (Tel.:+86-755-23406590 website: www.ccuttest.com) This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd. CCUT Testing & Certification Report No: SSP25100281-1E FCC Test Report Page 2 of 71 Test Report Basic Information Applicant..................................: Dongguan Danao Technology Co., Ltd. Address of Applicant...............: Room 205, No. 38, Wanjiang Section, Guansui Road, Wanjiang Street, Dongguan City, Guangdong Province, China Manufacturer..........................: DONGGUANG SIXIANG ZHE ELECTRONICS CO.,LTD Address of Manufacturer........: Floor 3, Building 2, Jizhi Chuangxin Industrial Park, Humen Town, Dongguan City, China Product Name.........................: EARCLIP ACCESSORY HEADPHONES Brand Name.............................: - Main Model..............................: S8 Series Models..........................: - Test Standard..........................: FCC Part 15 Subpart C ANSI C63.4-2014 ANSI C63.10-2020 + COR.1-2023 Date of Test .............................: 2025-10-24 to 2025-10-30 Test Result...............................: PASS Tested By ................................: (Tate Chen) Reviewed By............................: (Lorzix Luo) Authorized Signatory............: (Lahm Peng) Note : This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd.. All test data presented in this test report is only applicable to presented test sample. CCUT Testing & Certification Report No: SSP25100281-1E FCC Test Report Page 3 of 71 CONTENTS 1. General Information ....................................................................................................................................................5 1.1 Product Information .............................................................................................................................................5 1.2 Test Setup Information..........................................................................................................................................6 1.3 Compliance Standards ...........................................................................................................................................7 1.4 Test Facilities ........................................................................................................................................................7 1.5 List of Measurement Instruments ..........................................................................................................................8 1.6 Measurement Uncertainty .....................................................................................................................................9 2. Summary of Test Results ........................................................................................................................................... 10 3. Antenna Requirement ............................................................................................................................................... 11 3.1 Standard and Limit.............................................................................................................................................. 11 3.2 Test Result .......................................................................................................................................................... 11 4. Conducted Emissions ................................................................................................................................................ 12 4.1 Standard and Limit.............................................................................................................................................. 12 4.2 Test Procedure.................................................................................................................................................... 12 4.3 Test Data and Results .......................................................................................................................................... 13 5. Radiated Emissions ................................................................................................................................................... 16 5.1 Standard and Limit.............................................................................................................................................. 16 5.2 Test Procedure.................................................................................................................................................... 16 5.3 Test Data and Results .......................................................................................................................................... 18 6. Band-edge Emissions(Radiated) ............................................................................................................................... 22 6.1 Standard and Limit.............................................................................................................................................. 22 6.2 Test Procedure.................................................................................................................................................... 22 6.3 Test Data and Results ......................................................................…
