2BSUF-INS-LGW-100Wireless communication gateway

User Manual – INS-LGW-100 Wireless communication gateway(INS-LGW-100) User Manual User Manual – INS-LGW-100 Acknowledgment The following product names and trademarks are properties of their respective owners:  Microsoft Windows is a registered trademark of Microsoft Corp.  Intel is a registered trademark of Intel Corporation  ARM, Cortex, and Cortex-A8 are registered trademarks of Arm Limited (or its subsidiaries).  ITE is a trademark of Integrated Technology Express, Inc.  IBM, PC/AT, PS/2, and VGA are trademarks of International Business Machines Corporation. All other product names or trademarks are properties of their respective owners. No ownership is implied or assumed for products, names or trademarks not herein listed by the publisher of this document. User Manual – INS-LGW-100 Packing List Before setting up your product, please make sure the following items have been shipped: Item Quantity INS-LGW-100 1 If any of these items are missing or damaged, please contact your distributor or sales representative immediately. User Manual – INS-LGW-100 About this Document This User’s Manual contains all the essential information, such as detailed descriptions and explanations on the product’s hardware and software features (if any), its specifications, dimensions, jumper/connector settings/definitions, and driver installation instructions (if any), to facilitate users in setting up their product. Users may refer to the product page at InSynerger.com for the latest version of this document. Warning Statements Any changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and canradiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RF exposure statements 1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body or nearby persons. User Manual – INS-LGW-100 Safety Precautions Please read the following safety instructions carefully. It is advised that you keep this manual for future references. 1. All cautions and warnings on the device should be noted. 2. Make sure the power source matches the power rating of the device. 3. Position the power cord so that people cannot step on it. Do not place anything over the power cord. 4. Always completely disconnect the power before working on the system’s hardware. 5. No connections should be made when the system is powered as a sudden rush of power may damage sensitive electronic components. 6. If the device is not to be used for a long time, disconnect it from the power supply to avoid damage by transient over-voltage. 7. Always disconnect this device from any AC supply before cleaning. 8. While cleaning, use a damp cloth instead of liquid or spray detergents. 9. Make sure the device is installed near a power outlet and is easily accessible. 10. Keep this device away from humidity. 11. Place the device on a solid surface during installation to prevent falls 12. Do not cover the openings on the device to ensure optimal heat dissipation. 13. Watch out for high temperatures when the system is running. 14. Do not touch the heat sink or heat spreader when the system is running. 15. Never pour any liquid into the openings. This could cause fire or electric shock. 16. As most electronic components are sensitive to static electrical charge, be sure to ground yourself to prevent static charge when installing the internal components. Use a grounding wrist strap and contain all electronic components in any static-shielded containers. 17. If any of the following situations arises, please the contact our service personnel: i. Damaged power cord or plug ii. Liquid intrusion to the device iii. Exposure to moisture iv. Device is not working as expected or in a manner as described in this manual v. The device is dropped or damaged vi. Any obvious signs of damage displayed on the device 18. DO NOT LEAVE THIS DEVICE IN AN UNCONTROLLED ENVIRONMENT WITH TEMPERATURES BEYOND THE DEVICE’S PERMITTED STORAGE TEMPERATURES TO PREVENT DAMAGE. 19. RECOMMENDATION: THE WALL INSTALLATION HEIGHT SHOULD NOT EXCEED 2 METERS. 1 Table of Contents 1. INTRODUCTION .................................................................................................................. 2 1.1. INTRODUCTION AND FEATURES OF WIRELESS COMMUNICATION GATEWAY ............................... 2 1.2. PRODUCT SPECIFICATION .................................................................................................. 4 2. PRODUCT OVERVIEW ........................................................................................................ 5 2.1. WIFI GATEWAY PRECAUTIONS ........................................................................................ 5 2.1.1. Notes ...........................................................................................................…

Text truncated - open the document above for the full version.

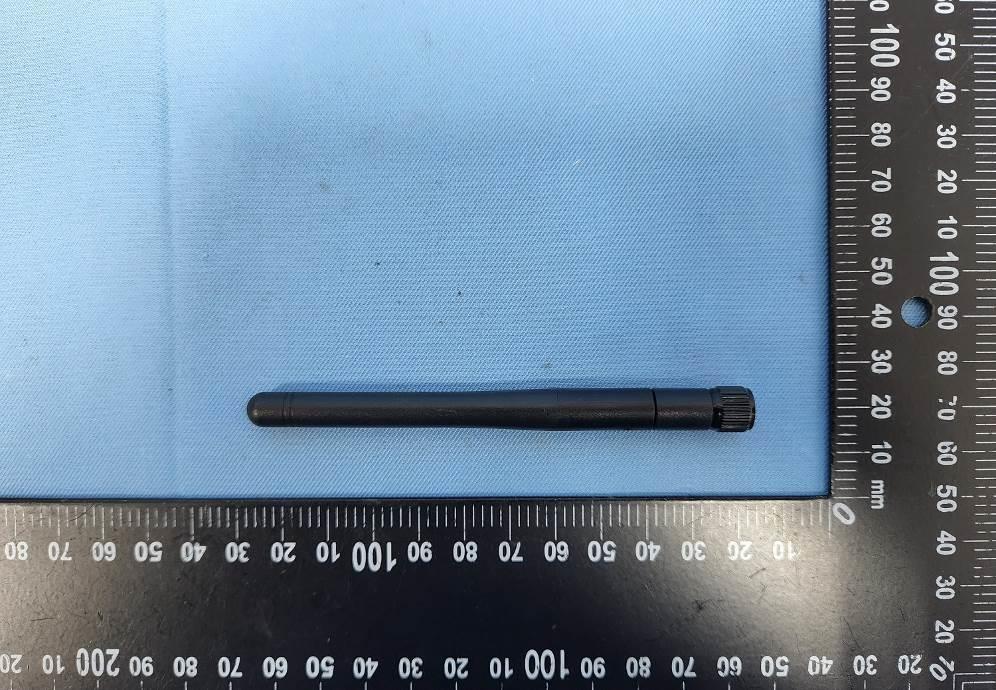

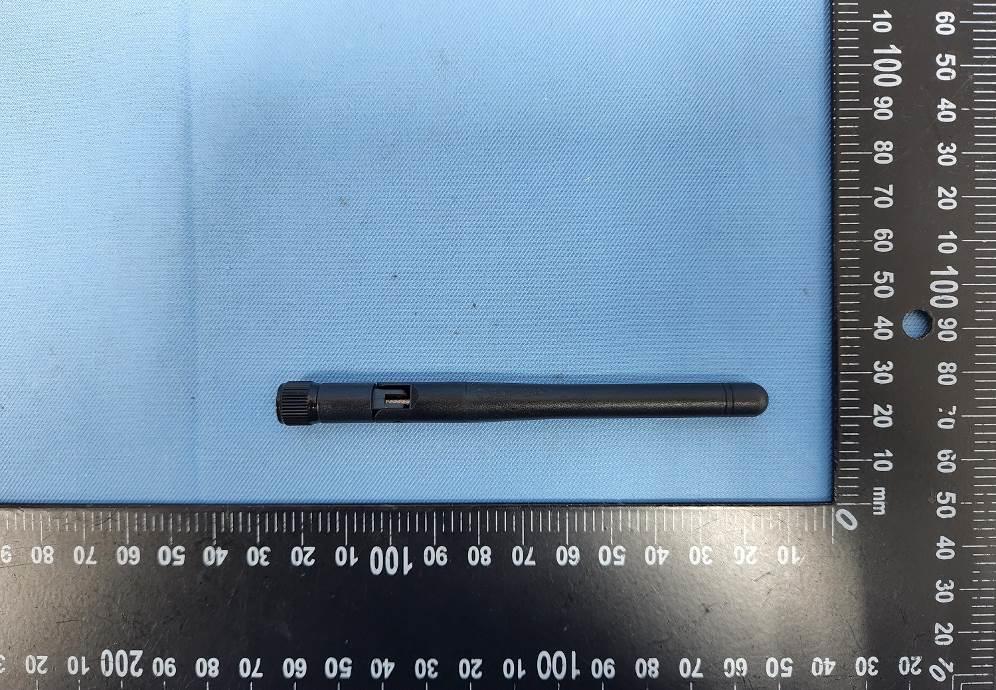

C259286_EUT External Photos Eurofins E&E Wireless Taiwan Co., Ltd. Page 1 of 9 External Photos Model Number: INS-LGW-100 C259286_EUT External Photos Eurofins E&E Wireless Taiwan Co., Ltd. Page 2 of 9 EUT Photo (1) EUT Photo (2) C259286_EUT External Photos Eurofins E&E Wireless Taiwan Co., Ltd. Page 3 of 9 EUT Photo (3) EUT Photo (4) C259286_EUT External Photos Eurofins E&E Wireless Taiwan Co., Ltd. Page 4 of 9 EUT Photo (5) EUT Photo (6) C259286_EUT External Photos Eurofins E&E Wireless Taiwan Co., Ltd. Page 5 of 9 EUT Photo (7) EUT Photo (8) C259286_EUT External Photos Eurofins E&E Wireless Taiwan Co., Ltd. Page 6 of 9 EUT Photo (9) EUT Photo (10) C259286_EUT External Photos Eurofins E&E Wireless Taiwan Co., Ltd. Page 7 of 9 EUT Photo (11) EUT Photo (12) WiFi ANT. C259286_EUT External Photos Eurofins E&E Wireless Taiwan Co., Ltd. Page 8 of 9 EUT Photo (13) EUT Photo (14) C259286_EUT External Photos Eurofins E&E Wireless Taiwan Co., Ltd. Page 9 of 9 EUT Photo (15) EUT Photo (16)

Back of the EUT Label Location

C259286_EUT Internal Photos Eurofins E&E Wireless Taiwan Co., Ltd. Page 1 of 8 Internal Photos Model Number: INS-LGW-100 C259286_EUT Internal Photos Eurofins E&E Wireless Taiwan Co., Ltd. Page 2 of 8 EUT Photo (1) EUT Photo (2) C259286_EUT Internal Photos Eurofins E&E Wireless Taiwan Co., Ltd. Page 3 of 8 EUT Photo (3) EUT Photo (4) C259286_EUT Internal Photos Eurofins E&E Wireless Taiwan Co., Ltd. Page 4 of 8 EUT Photo (5) EUT Photo (6) C259286_EUT Internal Photos Eurofins E&E Wireless Taiwan Co., Ltd. Page 5 of 8 EUT Photo (7) EUT Photo (8) C259286_EUT Internal Photos Eurofins E&E Wireless Taiwan Co., Ltd. Page 6 of 8 EUT Photo (9) EUT Photo (10) C259286_EUT Internal Photos Eurofins E&E Wireless Taiwan Co., Ltd. Page 7 of 8 EUT Photo (11) EUT Photo (12) C259286_EUT Internal Photos Eurofins E&E Wireless Taiwan Co., Ltd. Page 8 of 8 EUT Photo (13) EUT Photo (14)

MPE Evaluation Report for FCC Report No.: USSC259286001 Issued Date: Nov. 26, 2025 Eurofins E&E Wireless Taiwan Co., Ltd. Page 1 of 10 Template: v01.11 MPE Evaluation Report for FCC Applicant Name : InSynerger Technology Co., Ltd. Applicant Address : 10 F., No. 133, Sec. 4, Minsheng E. Rd., Songshan Dist., Taipei City 105412, Taiwan (R.O.C.) Product Name : Wireless communication gateway Brand Name : InSynerger Model Number : INS-LGW-100 FCC ID : 2BSUF-INS-LGW-100 Report Number : USSC259286001 Compliant Standards : FCC 47 CFR §2.1091 Sample Received Date : Sep. 23, 2025 Report Issued Date : Nov. 26, 2025 The above equipment has been tested by Eurofins E&E Wireless Taiwan Co., Ltd., and found compliance with the requirement of the above standards. The test record, data evaluation & Device Under Test (DUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s characteristics under the conditions specified in this report. Note: 1. The test results are valid only for samples provided by customers and under the test conditions described in this report. 2. This report shall not be reproduced except in full, without the written approval of Eurofins E&E Wireless Taiwan Co., Ltd. 3. The relevant information is provided by customers in this test report. According to the correctness, appropriateness or completeness of the information provided by the customer, if there is any doubt or error in the information which affects the validity of the test results, the laboratory does not take the responsibility. Approved By： Roy Wu / SAR Technical Director MPE Evaluation Report for FCC Report No.: USSC259286001 Issued Date: Nov. 26, 2025 Eurofins E&E Wireless Taiwan Co., Ltd. Page 2 of 10 Template: v01.11 Table of Contents Revision History ........................................................................................................................................................................... 3 1. Test Regulations .................................................................................................................................................................... 4 1.1. Reference Standard and Guidance .............................................................................................................................. 4 1.2. RF Exposure Limits ...................................................................................................................................................... 4 2. Information of Testing Laboratory ....................................................................................................................................... 6 3. DUT (Device Under Test) Information .................................................................................................................................. 7 3.1. Device Overview .......................................................................................................................................................... 7 4. Maximum Permissible Exposure (MPE) Assessment ......................................................................................................... 8 4.1. Introduction .................................................................................................................................................................. 8 4.2. Determination of Exemption for Low Power Devices ................................................................................................... 8 MPE Evaluation Report for FCC Report No.: USSC259286001 Issued Date: Nov. 26, 2025 Eurofins E&E Wireless Taiwan Co., Ltd. Page 3 of 10 Template: v01.11 Revision History Rev. Issued Date Description Revised by 00 Nov. 26, 2025 Initial Issue Emma Chao MPE Evaluation Report for FCC Report No.: USSC259286001 Issued Date: Nov. 26, 2025 Eurofins E&E Wireless Taiwan Co., Ltd. Page 4 of 10 Template: v01.11 1. Test Regulations 1.1. Reference Standard and Guidance The Maximum Permissible Exposure (MPE) evaluation documented in this report were performed in accordance with following FCC published KDB guidance and standard： 47 CFR Part 1.1307 47 CFR Part 1.1310 47 CFR Part 2.1091 KDB Publication 447498 D01 – General RF Exposure Guidance v06 KDB Publication 447498 D04 – Interim General RF Exposure Guidance v01 1.2. RF Exposure Limits According to 47 CFR §1.1310, for operations within the frequency range of 300 kHz and 6 GHz (inclusive), the limits for maximum permissible exposure (MPE), derived from whole-body SAR limits and listed in below table, may be used instead of whole-body SAR limits to evaluate the environmental impact of human exposure to RF radiation as specified in §1.1307(b), except for portable devices as defined in §2.1093 of this chapter as these evaluations shall be performed according to the SAR provisions in §2.1093. At operating frequencies above 6 GHz, the MPE limits listed in below table shall be used in all cases to evaluate the environmental impact of human exposure to RF radiation as specified in §1.1307(b). Limits for Maximum Permissible Exposure (MPE) to Radiofrequency Electromagnetic Fields Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) (i) Limits for Occupational / Controlled Exposure 0.3 – 3.0 614 1.63 *(100) ≤ 6 3.0 – 30 1842 / f 4.89 / f *(900 / f 2 ) < 6 30 – 300 61.4 0.163 1.0 < 6 300 – 1500 N/A N/A f / 300 < 6 1500 – 100000 N/A N/A 5 < 6 (ii) Limits for General Population / Uncontrolled Exposure 0.3 – 1.34 614 1.63 *(100) < 30 1.34 – 30 824 / f 2.19 / f *(180 / f 2 ) < 30 30 – 300 27.5 0.073 0.2 < 30 300 – 1500 N/A N/A f / 1500 < 30 1500 – 100000 N/A N/A 1.0 < 30 Notes: 1. f = frequency in MHz. * = Plane-wave equivalent power density. MPE Evaluation Report for FCC Report No.: USSC259286001 Issued Date: Nov. 26, 2025 Eurofins E&E Wireless Taiwan Co., Ltd. Page 5 of 10 Template: v01.11 2. Occupational / Controlled Exposure Limits ap…

Text truncated - open the document above for the full version.

Address:Building H, HongYongli Industrial Zone, Shabei Field, Longxin Community, Baolong Street, Longgang District, Shenzhen City, Guangdong Province 第 1 页 共 5 页 Specifications Recognized manufacturers ： Manufacturer： Shenzhen Kexin wireless Technology Co., LTD Description：2.4g small folding adhesive rod antenna (SMA male head) Model： JB24G0021 ( Product Type) Customer: Customer Approval Check Reviewer Approve Date Provider: Provider Approval Maker Check Approve Date Shawn Lee Fei Wong Bob Lee 2024.12.10 Address:Building H, HongYongli Industrial Zone, Shabei Field, Longxin Community, Baolong Street, Longgang District, Shenzhen City, Guangdong Province 第 2 页 共 5 页 1、Table of Product Performance Parameters Electrical Specifications Frequency Range (MHz) 2400-2500MHz Input Impendence (Ω) 50 V.S.W.R ≤ 2.0 Gain (peak)(dbi) 3 dbi Polarization Type Vertical Polarization Mechanical Specifications Material Rubber Radome Color Black（Default） Connect Type SMA Male Size Φ9.5*105mm Storage Temp -25 ~ +65 ̊C 2 、 Product images 3 、Electrical test report VSWR 4. Gain & Efficiency Freq (MHz) Effi (%) Gain (dBi) 2400 67.66 2.88 2450 54.80 1.47 2500 65.98 1.75

RF Test Report Report No.: USRC259286001 Issued Date: Nov. 26, 2025 Eurofins E&E Wireless Taiwan Co., Ltd. Page 1 of 83 Template : v05.00 RF Test Report Applicant ： InSynerger Technology Co., Ltd. Product Name ： Wireless communication gateway Trade Name ： InSynerger Model Number ： INS-LGW-100 Applicable Standard ： FCC 47 CFR PART 15 SUBPART C ANSI C63.10:2020 Received Date ： Sep. 23, 2025 Test Period ： Oct. 17, 2025 ~ Nov. 10, 2025 Issued Date ： Nov. 26, 2025 Issued by Eurofins E&E Wireless Taiwan Co., Ltd. No. 140-1, Changan Street, Bade District, Taoyuan City, Taiwan (R.O.C.) Tel：+886-3-2710188 / Fax：+886-3-2710190 Taiwan Accreditation Foundation accreditation number: 1330 Frequency Range: 9 kHz to 325 GHz Bade test site： Test Firm Registration Number: 226252 Test Firm Designation Number: TW0010 Wugu test site： Test Firm Registration Number: 191812 Test Firm Designation Number: TW0034 Note: 1.The test results are valid only for samples provided by customers and under the test conditions described in this report. 2.This report shall not be reproduced except in full, without the written approval of Eurofins E&E Wireless Taiwan Co., Ltd. 3.The relevant information is provided by customers in this test report. According to the correctness, appropriateness or completeness of the information provided by the customer, if there is any doubt or error in the information which affects the validity of the test results, the laboratory does not take the responsibility. RF Test Report Report No.: USRC259286001 Issued Date: Nov. 26, 2025 Eurofins E&E Wireless Taiwan Co., Ltd. Page 2 of 83 Template : v05.00 Revision History Rev. Issued Date Description Revised By 00 Nov. 26, 2025 Initial Issue Emma Chao RF Test Report Report No.: USRC259286001 Issued Date: Nov. 26, 2025 Eurofins E&E Wireless Taiwan Co., Ltd. Page 3 of 83 Template : v05.00 Verification of Compliance Applicant : InSynerger Technology Co., Ltd. Product Name : Wireless communication gateway Trade Name : InSynerger Model Number : INS-LGW-100 FCC ID : 2BSUF-INS-LGW-100 Applicable Standard : FCC 47 CFR PART 15 SUBPART C ANSI C63.10:2020 Test Result : Complied Issued By : Eurofins E&E Wireless Taiwan Co., Ltd. No. 140-1, Changan Street, Bade District, Taoyuan City, Taiwan (R.O.C.) Tel：+886-3-2710188 / Fax：+886-3-2710190 Taiwan Accreditation Foundation accreditation number: 1330 Eurofins E&E Wireless Taiwan Co., Ltd. tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by Eurofins E&E Wireless Taiwan Co., Ltd. based on interpretations and/or observations of test results. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Approved By ： RF Test Report Report No.: USRC259286001 Issued Date: Nov. 26, 2025 Eurofins E&E Wireless Taiwan Co., Ltd. Page 4 of 83 Template : v05.00 TABLE OF CONTENTS 1 General Information ........................................................................................................ 5 1.1. Summary of Test Result ............................................................................................ 5 1.2. Testing Location ........................................................................................................ 6 1.3. Measurement Uncertainty ......................................................................................... 6 1.4. Test Site Environment................................................................................................ 6 2 EUT Description............................................................................................................... 7 3 Test Methodology ............................................................................................................ 9 3.1. Mode of Operation ..................................................................................................... 9 3.2. EUT Test Step ......................................................................................................... 10 3.3. Configuration of Test System Details ....................................................................... 10 3.4. Test Instruments ...................................................................................................... 11 4 Measurement Procedure ............................................................................................... 13 4.1. AC Power Line Conducted Emission Measurement ................................................ 13 4.2. Radiated Emission Measurement ............................................................................ 15 4.3. Maximum Conducted Output Power Measurement ................................................. 18 4.4. 6 dB RF Bandwidth Measurement ........................................................................... 19 4.5. Maximum Power Spectral Density Measurement .................................................... 20 4.6. Out of Band Conducted Emissions Measurement ................................................... 21 4.7. Antenna Measurement ............................................................................................ 22 5 Test Results ................................................................................................................... 23 5.1. Conducted Emission................................................................................................ 23 5.2. Radiated Emission Measurement ............................................................................ 25 5.3. Conducted Test Results ........................................................................................... 83 Appendix A. Test Data Appendix B. Test Plots Appendix C. Test Setup Photographs RF Test Report Report No.: USRC259286001 Issued Date: Nov. 26, 2025 Eurofins E&E Wireless Taiwan Co., Ltd. Page 5 of 83 Template : v05.00 1 General Information 1.1. Summary …

Text truncated - open the document above for the full version.

Appendix A:Test Data Duty cycle 802.11b241230.00030.000100.0000.0000.010 802.11g241230.00030.000100.0000.0000.010 802.11n HT20241230.00030.000100.0000.0000.010 802.11n HT40242230.00030.000100.0000.0000.010 1/T Minimun VBW (kHz) Mode Frequency (MHz) On time (ms) On+off time (ms) Duty cycle (%) Duty Factor (dB) RF Test Report Report No.: USRC259286001 Eurofins E&E Wireless Taiwan Co., Ltd.Page 1 of 6 2.4 GHz Band Ant-0Ant-1Ant-2Ant-3 802.11b128.00--- 802.11b628.00--- 802.11b1128.00--- 802.11g126.00--- 802.11g626.00--- 802.11g1126.00--- 802.11n HT20126.00--- 802.11n HT20626.00--- 802.11n HT201126.00--- 802.11n HT40319.00--- 802.11n HT40622.00--- 802.11n HT40921.00--- Putty Test SW Version 2422 2437 2462 2452 2412 2437 RF power setting in Test SW 2437 2462 2412 2462 2412 2437 ChannelMode Freq. (MHz) RF Test Report Report No.: USRC259286001 Eurofins E&E Wireless Taiwan Co., Ltd.Page 2 of 6 2.4 GHz Band Avg Conducted Power (dBm) Peak Conducted Power (dBm) Conducted Power Limit (dBm) Ant-0Ant-0Ant-0 802.11b11M16.6218.3230.00 802.11b61M16.5618.2530.00 802.11b111M16.5518.2230.00 802.11g16M14.7622.9130.00 802.11g66M14.6622.8530.00 802.11g116M14.5922.7530.00 802.11n HT2016.5M14.6922.9530.00 802.11n HT2066.5M14.6522.8530.00 802.11n HT20116.5M14.5722.7830.00 802.11n HT40313.5M12.4120.9830.00 802.11n HT40613.5M14.5722.7630.00 802.11n HT40913.5M12.8921.7830.00 Mode 2462 2437 2412 2437 CH 2462 2437 2452 Data Rate 2412 2462 2437 Freq. (MHz) 2412 2422 RF Test Report Report No.: USRC259286001 Eurofins E&E Wireless Taiwan Co., Ltd.Page 3 of 6 6 dB Bandwidth 6 dB Bandwidth (kHz) Ant-0 802.11b241210050≧ 500 802.11b243710050≧ 500 802.11b246210050≧ 500 802.11g241216350≧ 500 802.11g243716350≧ 500 802.11g246216340≧ 500 802.11n HT20241217570≧ 500 802.11n HT20243717570≧ 500 802.11n HT20246217570≧ 500 802.11n HT40242235920≧ 500 802.11n HT40243735740≧ 500 802.11n HT40245235840≧ 500 6 dB Bandwidth Min.Limit (kHz) Mode Freq. (MHz) RF Test Report Report No.: USRC259286001 Eurofins E&E Wireless Taiwan Co., Ltd.Page 4 of 6 99 % Occupied BW 99 % Occupied BW (MHz) Ant-0 802.11b241214.281 802.11b243714.294 802.11b246214.256 802.11g241216.693 802.11g243716.699 802.11g246216.684 802.11n HT20241217.666 802.11n HT20243717.697 802.11n HT20246217.672 802.11n HT40242236.422 802.11n HT40243736.549 802.11n HT40245236.501 Freq. (MHz) Mode RF Test Report Report No.: USRC259286001 Eurofins E&E Wireless Taiwan Co., Ltd.Page 5 of 6 Maximum Power Spectral Density Measurement Measurement (dBm/3 kHz) Max.Limit (dBm/ 3 kHz) Ant-0Ant-0 802.11b-6.808.00 802.11b-7.078.00 802.11b-7.018.00 802.11g-9.678.00 802.11g-10.198.00 802.11g-10.338.00 802.11n HT20-10.118.00 802.11n HT20-9.848.00 802.11n HT20-10.768.00 802.11n HT40-14.968.00 802.11n HT40-13.058.00 802.11n HT40-13.568.00 Mode Freq. (MHz) 2412 2437 2462 2462 2412 2437 2412 2437 2462 2422 2437 2452 RF Test Report Report No.: USRC259286001 Eurofins E&E Wireless Taiwan Co., Ltd.Page 6 of 6

RF Test Report Report No.: USRC259286001 Eurofins E&E Wireless Taiwan Co., Ltd. Page 1 of 26 Appendix B. Test Plots Duty cycle 802.11b On+off time 802.11g On+off time RF Test Report Report No.: USRC259286001 Eurofins E&E Wireless Taiwan Co., Ltd. Page 2 of 26 802.11n HT20 On+off time 802.11n HT40 On+off time RF Test Report Report No.: USRC259286001 Eurofins E&E Wireless Taiwan Co., Ltd. Page 3 of 26 Out of Band Conducted Spurious Emission 802.11b_ANT-0 2412 MHz 2437 MHz 2462 MHz RF Test Report Report No.: USRC259286001 Eurofins E&E Wireless Taiwan Co., Ltd. Page 4 of 26 802.11g_ANT-0 2412 MHz 2437 MHz 2462 MHz RF Test Report Report No.: USRC259286001 Eurofins E&E Wireless Taiwan Co., Ltd. Page 5 of 26 802.11n HT20_ANT-0 2412 MHz 2437 MHz 2462 MHz RF Test Report Report No.: USRC259286001 Eurofins E&E Wireless Taiwan Co., Ltd. Page 6 of 26 802.11n HT40_ANT-0 2422 MHz 2437 MHz 2452 MHz RF Test Report Report No.: USRC259286001 Eurofins E&E Wireless Taiwan Co., Ltd. Page 7 of 26 Reference level 802.11b_ANT-0 2412 MHz 2437 MHz 2462 MHz RF Test Report Report No.: USRC259286001 Eurofins E&E Wireless Taiwan Co., Ltd. Page 8 of 26 802.11g_ANT-0 2412 MHz 2437 MHz 2462 MHz RF Test Report Report No.: USRC259286001 Eurofins E&E Wireless Taiwan Co., Ltd. Page 9 of 26 802.11n HT20_ANT-0 2412 MHz 2437 MHz 2462 MHz RF Test Report Report No.: USRC259286001 Eurofins E&E Wireless Taiwan Co., Ltd. Page 10 of 26 802.11n HT40_ANT-0 2422 MHz 2437 MHz 2452 MHz RF Test Report Report No.: USRC259286001 Eurofins E&E Wireless Taiwan Co., Ltd. Page 11 of 26 Conducted Band Edge 802.11b_ANT-0 2412 MHz 2462 MHz RF Test Report Report No.: USRC259286001 Eurofins E&E Wireless Taiwan Co., Ltd. Page 12 of 26 802.11g_ANT-0 2412 MHz 2462 MHz RF Test Report Report No.: USRC259286001 Eurofins E&E Wireless Taiwan Co., Ltd. Page 13 of 26 802.11n HT20_ANT-0 2412 MHz 2462 MHz RF Test Report Report No.: USRC259286001 Eurofins E&E Wireless Taiwan Co., Ltd. Page 14 of 26 802.11n HT40_ANT-0 2422 MHz 2452 MHz RF Test Report Report No.: USRC259286001 Eurofins E&E Wireless Taiwan Co., Ltd. Page 15 of 26 6 dB Bandwidth 802.11b_ANT-0 2412 MHz 2437 MHz 2462 MHz RF Test Report Report No.: USRC259286001 Eurofins E&E Wireless Taiwan Co., Ltd. Page 16 of 26 802.11g_ANT-0 2412 MHz 2437 MHz 2462 MHz RF Test Report Report No.: USRC259286001 Eurofins E&E Wireless Taiwan Co., Ltd. Page 17 of 26 802.11n HT20_ANT-0 2412 MHz 2437 MHz 2462 MHz RF Test Report Report No.: USRC259286001 Eurofins E&E Wireless Taiwan Co., Ltd. Page 18 of 26 802.11n HT40_ANT-0 2422 MHz 2437 MHz 2452 MHz RF Test Report Report No.: USRC259286001 Eurofins E&E Wireless Taiwan Co., Ltd. Page 19 of 26 99% Occupied Bandwidth 802.11b_ANT-0 2412 MHz 2437 MHz 2462 MHz RF Test Report Report No.: USRC259286001 Eurofins E&E Wireless Taiwan Co., Ltd. Page 20 of 26 802.11g_ANT-0 2412 MHz 2437 MHz 2462 MHz RF Test Report Report No.: USRC259286001 Eurofins E&E Wireless Taiwan Co., Ltd. Page 21 of 26 802.11n HT20_ANT-0 2412 MHz 2437 MHz 2462 MHz RF Test Report Report No.: USRC259286001 Eurofins E&E Wireless Taiwan Co., Ltd. Page 22 of 26 802.11n HT40_ANT-0 2422 MHz 2437 MHz 2452 MHz RF Test Report Report No.: USRC259286001 Eurofins E&E Wireless Taiwan Co., Ltd. Page 23 of 26 Maximum Power Spectral Density 802.11b_ANT-0 2412 MHz 2437 MHz 2462 MHz RF Test Report Report No.: USRC259286001 Eurofins E&E Wireless Taiwan Co., Ltd. Page 24 of 26 802.11g_ANT-0 2412 MHz 2437 MHz 2462 MHz RF Test Report Report No.: USRC259286001 Eurofins E&E Wireless Taiwan Co., Ltd. Page 25 of 26 802.11n HT20_ANT-0 2412 MHz 2437 MHz 2462 MHz RF Test Report Report No.: USRC259286001 Eurofins E&E Wireless Taiwan Co., Ltd. Page 26 of 26 802.11n HT40_ANT-0 2422 MHz 2437 MHz 2452 MHz

RF Test Report Report No.: USRC259286001 Eurofins E&E Wireless Taiwan Co., Ltd. Page 1 of 4 Appendix C. Test Setup Photographs Conducted Emissions Test Configuration: Front View Rear View RF Test Report Report No.: USRC259286001 Eurofins E&E Wireless Taiwan Co., Ltd. Page 2 of 4 Radiated Emissions Test Configuration: 9 kHz ~ 30 MHz RF Test Report Report No.: USRC259286001 Eurofins E&E Wireless Taiwan Co., Ltd. Page 3 of 4 Below 1 GHz _ Front View Below 1 GHz _ Rear View RF Test Report Report No.: USRC259286001 Eurofins E&E Wireless Taiwan Co., Ltd. Page 4 of 4 Above 1 GHz _ Front View Above 1 GHz _ Rear View
