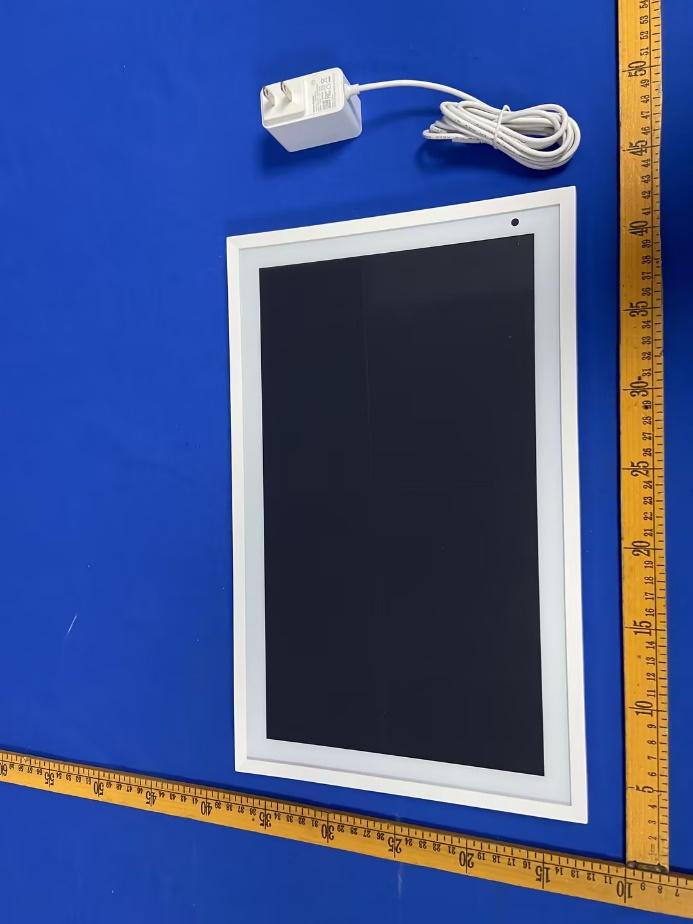

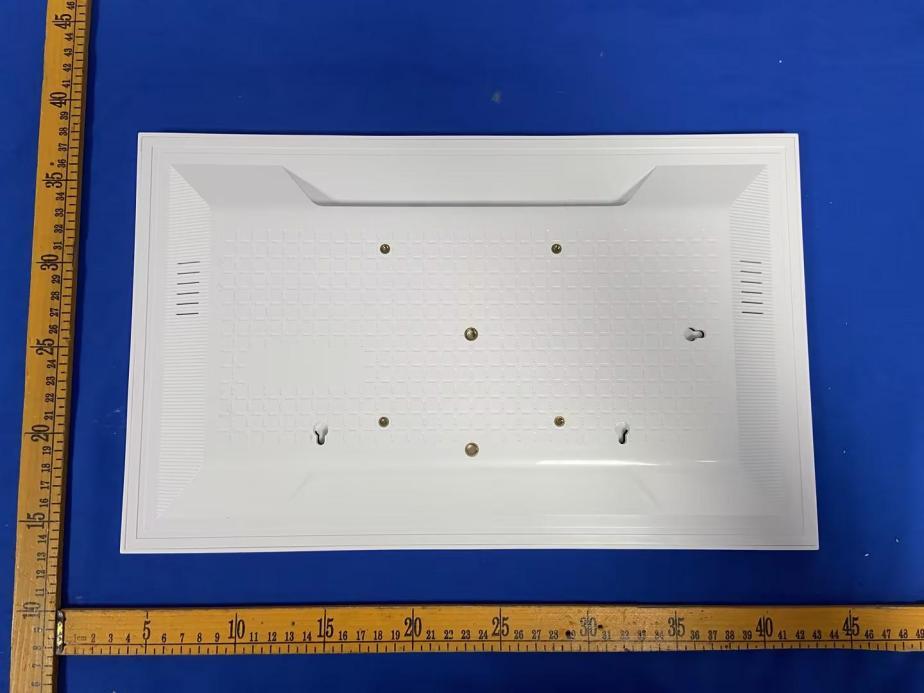

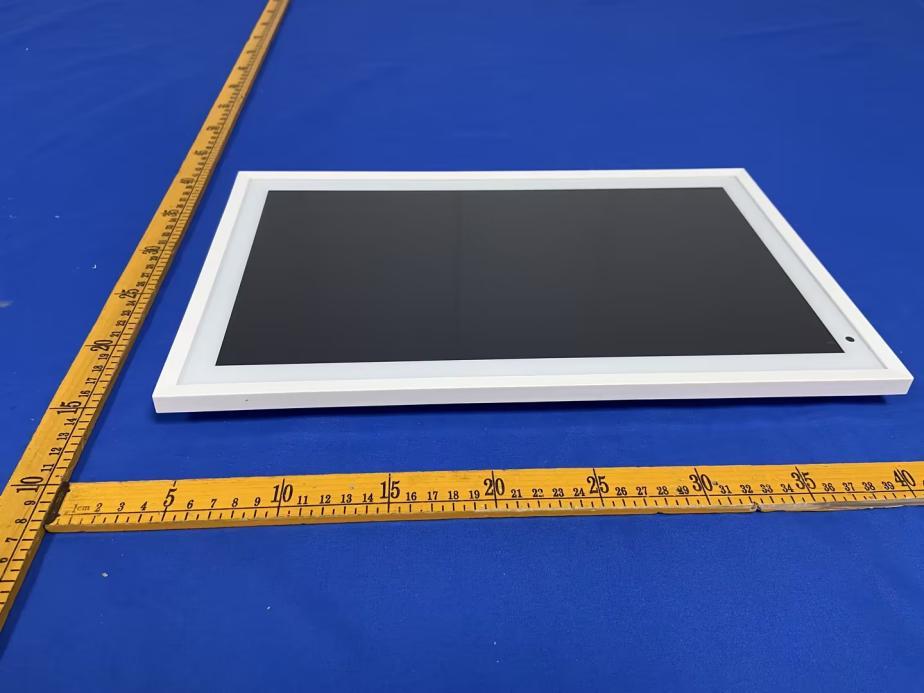

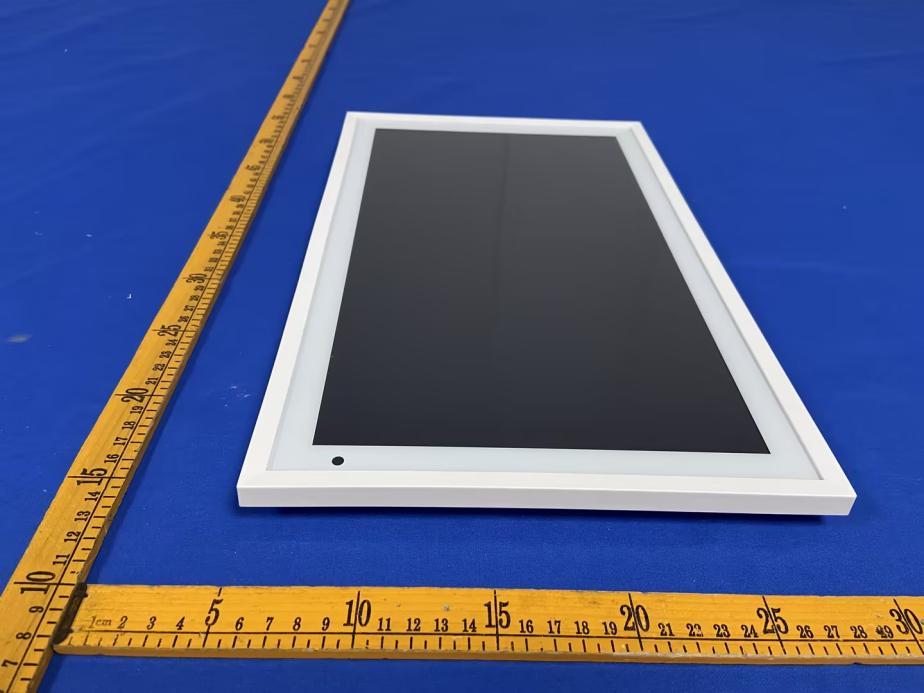

Report No.:PTC26060912402E-FC05 Page 1 of 7 FCC TEST REPORT FCC ID: 2BSW8-NEST15 Product : Digital Calendar Model Name : NEST 15 Brand : Blackview Report No. : PTC26060912402E-FC05 Prepared for HONG KONG LELEGAO TECHNOLOGY CO.,LIMITED 19H Maxgrand Plaza, No.3 Tai Yau Street, San Po Kong, Kowloon, HongKong Prepared by Precise Testing & Certification Co., Ltd. Building 1, No. 6, Tongxin Road, Dongcheng Street, Dongguan, Guangdong, China. Report No.:PTC26060912402E-FC05 Page 2 of 7 TEST RESULT CERTIFICATION Applicant’s name : HONG KONG LELEGAO TECHNOLOGY CO.,LIMITED Address : 19H Maxgrand Plaza, No.3 Tai Yau Street, San Po Kong, Kowloon, HongKong Manufacture's name : Shenzhen Doke Communication Co., Ltd Address : No. 1301-1302, Block B, Weidonglong Businness Building, No. 2113 Meilong Avenue, Qinghua Community Longhua Street, Longhua District, Shenzhen, China Product name : Digital Calendar Model name : NEST 15 Test procedure : FCC CFR47 Part 1.1307(b)(1) Test Date : Jun. 09, 2026 to Jun. 27, 2026 Date of Issue : Jun. 27, 2026 Test Result : PASS This device described above has been tested by PTC, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of PTC, this document may be altered or revised by PTC, personal only, and shall be noted in the revision of the document. Test Engineer: Jack zhou / Engineer Technical Manager: Simon Pu / Manager Report No.:PTC26060912402E-FC05 Page 3 of 7 Contents Page 2 TEST SUMMARY .............................................................................................................................................. 4 3 GENERAL INFORMATION ............................................................................................................................. 5 3.1 GENERAL DESCRIPTION OF E.U.T. ......................................................................................................... 5 4 RF EXPOSURE ................................................................................................................................................. 6 4.1 REQUIREMENTS ....................................................................................................................................... 6 4.2 THE PROCEDURES / LIMIT ........................................................................................................................ 6 4.3 MPE CALCULATION METHOD ................................................................................................................. 7 4.4 TEST RESULT .......................................................................................................................................... 7 Report No.:PTC26060912402E-FC05 Page 4 of 7 2 Test Summary Test Items Test Requirement Result Maximum Permissible Exposure (Exposure of Humans to RF Fields) FCC CFR47 Part 1.1307(b)(1) PASS Remark: N/A: Not Applicable Report No.:PTC26060912402E-FC05 Page 5 of 7 3 General Information 3.1 General Description of E.U.T. Product Name : Digital Calendar Model Name : NEST 15 Specification : BR+EDR+BLE 802.11b/g/n HT20/HT40 802.11a/g/n/ac/ax Operation Frequency : 2402-2480MHz 2412-2462MHz for 802.11b/g/ n(HT20/HT40) 2412-2462MHz for 802.11b/g/ n(HT20)/ax20 2422-2452MHz for 802.11 n(HT40)/ax40 U-NII-1 band:5180-5240 MHZ U-NII-3 band:5745MHZ-5825MHz Number of Channel : 11 channels for 802.11b/g/ n(HT20)/ax20 7 channels for 802.11n(HT40)/ax40 4 channels for 802.11a/n20/ac20/ax20 5150-5250 MHz 5 channels for 802.11a/n20/ac20/ax20 5725MHz~5850MHz 2 channels for 802.11n40/ac40/ax40 5150-5250 MHz 2 channels for 802.11n40/ac40/ax40 5725MHz~5850MHz 1 channels for 802.11 ac80/ax80 Type of Modulation : GFSK, Π/4-DQPSK,8DPSK For DSS GFSK, For DTS DSSS with DBPSK/DQPSK/CCK for 802.11b; OFDM with BPSK/QPSK/16QAM/64QAM for 802.11g/n; OFDM with BPSK/QPSK/16QAM/64QAM/1024QAM for 802.11a/n/ac/ax; Antenna installation : PIFA antenna Antenna Gain : 2.4G:3.78 dBi 5.2G:5.82 dBi 5.8G:5.32 dBi Power supply : Input: 100-240V AC, 50/60Hz, 0.6A Output: 12.0V⎓2.0A 24.0W Hardware Version : BND-F919 Software Version : NEST15_20260630V01 Report No.:PTC26060912402E-FC05 Page 6 of 7 4 RF Exposure Test Requirement : FCC Part 1.1307(b)(1) Evaluation Method : KDB 447498 D01 General RF Exposure Guidance v06 4.1 Requirements Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. 4.2 The procedures / limit (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm2) Averaging Time |E|2,|H|2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density Report No.:PTC26060912402E-FC05 Page 7 of 7 4.3 MPE Calculation Method E (V/m) ＝ d G P   30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d G P    From the peak EUT RF output po…

Text truncated - open the document above for the full version.

DK127 Antenna Test Report Room 205, Block B, Building 1, Qilife AI Digital Valley, No. 8 Queshan Road, Longhua District, Shenzhen City CONTENTS Project Overview Test Environment Passive Report Active Report Matching Circuit Environmental Treatment Conclusion 3 最近工作和生活都有 些懈怠，事情比较多 比较杂，搅在一起让 人丧失了动力 PART WO 看完了关于如何做科 学研究的几本书，只 是觉得像喝了几碗鸡 汤，然并卵罢了 Project Overview Main antenna design spectrum WIFI:2.4G/5G Type of antenna PIFA Report versionDateContent V1.02026.06.04Antenna test report 4 最近工作和生活都有 些懈怠，事情比较多 比较杂，搅在一起让 人丧失了动力 PART WO 看完了关于如何做科 学研究的几本书，只 是觉得像喝了几碗鸡 汤，然并卵罢了 Test Environment Darkroom system ：MVG SG24LT（Satmio） 5 最近工作和生活都有 些懈怠，事情比较多 比较杂，搅在一起让 人丧失了动力 PART WO Matching Circuit main antenna design ElementValue E1(0201): E2(0201): E3(0201): E4(0201): The antenna matching circuit remains unchanged. 6 这段时间，追完了一 部剧叫琅琊榜，看了 几部电影，其中推荐 Inside Out PART WO 看完了关于如何做科 学研究的几本书，只 是觉得像喝了几碗鸡 汤，然并卵罢了 Figure: The motherboard is grounded with a conductive sponge. Environmental treatment 7 最近工作和生活都有 些懈怠，事情比较多 比较杂，搅在一起让 人丧失了动力 这段时间，追完了一 部剧叫琅琊榜，看了 几部电影，其中推荐 Inside Out PART WO 看完了关于如何做科 学研究的几本书，只 是觉得像喝了几碗鸡 汤，然并卵罢了 Passive Report Measuring instrument ：Agilent Technologies E5071B 300kHz-8.5GHz ENA Series Network Analyzer Darkroom system ：MVG SG24LT（Satmio） SWR 8 最近工作和生活都有 些懈怠，事情比较多 比较杂，搅在一起让 人丧失了动力 这段时间，追完了一 部剧叫琅琊榜，看了 几部电影，其中推荐 Inside Out PART WO 看完了关于如何做科 学研究的几本书，只 是觉得像喝了几碗鸡 汤，然并卵罢了 Passive Report Measuring instrument ：Agilent Technologies E5071B 300kHz-8.5GHz ENA Series Network Analyzer Darkroom system ：MVG SG24LT（Satmio） WIFI passive Efficiency, Gain 9 PART WO 看完了关于如何做科 学研究的几本书，只 是觉得像喝了几碗鸡 汤，然并卵罢了 Passive Report Measuring instrument ：Agilent Technologies E5071B 300kHz-8.5GHz ENA Series Network Analyzer Darkroom system ：MVG SG24LT（Satmio） 2.4G Passive pattern 10 PART WO 看完了关于如何做科 学研究的几本书，只 是觉得像喝了几碗鸡 汤，然并卵罢了 Passive Report Measuring instrument ：Agilent Technologies E5071B 300kHz-8.5GHz ENA Series Network Analyzer Darkroom system ：MVG SG24LT（Satmio） 5.8G Passive pattern 11 最近工作和生活都有 些懈怠，事情比较多 比较杂，搅在一起让 人丧失了动力 这段时间，追完了一 部剧叫琅琊榜，看了 几部电影，其中推荐 Inside Out PART WO 看完了关于如何做科 学研究的几本书，只 是觉得像喝了几碗鸡 汤，然并卵罢了 Active Report 12 PART WO 看完了关于如何做科 学研究的几本书，只 是觉得像喝了几碗鸡 汤，然并卵罢了 Structural drawing 13 最近工作和生活都有 些懈怠，事情比较多 比较杂，搅在一起让 人丧失了动力 这段时间，追完了一 部剧叫琅琊榜，看了 几部电影，其中推荐 Inside Out PART WO 看完了关于如何做科 学研究的几本书，只 是觉得像喝了几碗鸡 汤，然并卵罢了 Conclusion 1. This report is the sample antenna test results 。 2. If you have any questions, please call. THANK YOU If you have any questions, please contact us Daily service hours ： Monday to Saturday 9:00-18:00 Switchboard Hotline ：0755-36615535 Fax：0755-82916227 website ：www.mayaant.com Confidentiality requirements Shenzhen Maya communication equipment Co., Ltd. has owned the information provided by the proprietary technology and is not allowed to disclose it to any person or company without the prior written consent of Shenzhen Maya communication equipment Co., Ltd.

Page 1 of 152 FCC TEST REPORT FCC ID: 2BSW8-NEST15 Product : Digital Calendar Model Name : NEST 15 Brand : Blackview Report No. : PTC26060912402E-FC04 Prepared for HONG KONG LELEGAO TECHNOLOGY CO.,LIMITED 19H Maxgrand Plaza, No.3 Tai Yau Street, San Po Kong, Kowloon, HongKong Prepared by Precise Testing & Certification Co., Ltd Building 1, No. 6, Tongxin Road, Dongcheng Street, Dongguan, Guangdong, China Report No.: PTC26060912402E-FC04 Page 2 of 152 1 TEST RESULT CERTIFICATION Applicant’s name : HONG KONG LELEGAO TECHNOLOGY CO.,LIMITED Address : 19H Maxgrand Plaza, No.3 Tai Yau Street, San Po Kong, Kowloon, HongKong Manufacture's name : Shenzhen Doke Communication Co., Ltd Address : No. 1301-1302, Block B, Weidonglong Businness Building, No. 2113 Meilong Avenue, Qinghua Community Longhua Street, Longhua District, Shenzhen, China Product name : Digital Calendar Model name : NEST 15 Standards : FCC CFR47 Part 15 Section 15.407 Test procedure : ANSI C63.10-2020 Test Date : Jun. 09, 2026 to Jun. 27, 2026 Date of Issue : Jun. 27, 2026 Test Result : Pass This device described above has been tested by PTC, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of PTC, this document may be altered or revised by PTC, personal only, and shall be noted in the revision of the document. Test Engineer: Jack zhou / Engineer Technical Manager: Simon Pu / Manager Report No.: PTC26060912402E-FC04 Page 3 of 152 Contents Page 1 TEST RESULT CERTIFICATION ................................................................................................................... 2 2 TEST SUMMARY ............................................................................................................................................ 5 3 GENERAL INFORMATION ............................................................................................................................. 6 3.1 GENERAL DESCRIPTION OF E.U.T. .......................................................................................................... 6 3.2 CHANNEL LIST ........................................................................................................................................ 7 3.3 TEST SITE ............................................................................................................................................ 27 4 EQUIPMENT DURING TEST ........................................................................................................................ 28 4.1 EQUIPMENTS LIST ................................................................................................................................ 28 4.2 MEASUREMENT UNCERTAINTY .............................................................................................................. 30 4.3 DESCRIPTION OF SUPPORT UNITS ......................................................................................................... 31 5 CONDUCTED EMISSION ............................................................................................................................. 32 5.1 E.U.T. OPERATION ............................................................................................................................... 32 5.2 EUT SETUP ......................................................................................................................................... 32 5.3 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ........................................................................... 33 5.4 MEASUREMENT PROCEDURE ................................................................................................................ 33 5.5 CONDUCTED EMISSION LIMIT ................................................................................................................ 33 5.6 MEASUREMENT DESCRIPTION ............................................................................................................... 33 5.7 CONDUCTED EMISSION TEST RESULT.................................................................................................... 33 6 RADIATED SPURIOUS EMISSIONS ........................................................................................................... 36 6.1 EUT OPERATION .................................................................................................................................. 37 6.2 TEST SETUP ......................................................................................................................................... 38 6.3 SPECTRUM ANALYZER SETUP ............................................................................................................... 39 6.4 TEST PROCEDURE ................................................................................................................................ 40 6.5 SUMMARY OF TEST RESULTS ................................................................................................................ 41 6.6 RESTRICTED BAND ............................................................................................................................... 70 7 EMISSION BANDWIDTH AND OCCUPIED BANDWIDTH .......................................................................... 72 7.1 TEST PROCEDURE ................................................................................................................................ 72 7.2 TEST SETUP ......................................................................................................................................... 73 7.3 TEST RESULT ....................................................................................................................................... 73 8 MAXIMUM CONDUCTED OUTPUT POWER..............................................................…

Text truncated - open the document above for the full version.

Report No.: PTC26060912402E-FC04 Page 102 of 152 11AX40SISO-Ant1-5795-PASS Report No.: PTC26060912402E-FC04 Page 103 of 152 8 Maximum Conducted Output Power Test Requirement : FCC CFR47 Part 15 Section 15.407(a) Test Method : ANSI C63.10-2020 Test Limit : For client devices in the 5.15-5.25 GHz band, the maximum conducted output power over the frequency band of operation shall not exceed 250 mW provided the maximum antenna gain does not exceed 6 dBi. In addition, the maximum power spectral density shall not exceed 11 dBm in any 1 megahertz band. If transmitting antennas of directional gain greater than 6 dBi are used, both the maximum conducted output power and the maximum power spectral density shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6 dBi. For the band 5.725-5.85 GHz, the maximum conducted output power over the frequency band of operation shall not exceed 1 W. In addition, the maximum power spectral density shall not exceed 30 dBm in any 500- kHz band. If transmitting antennas of directional gain greater than 6 dBi are used, both the maximum conducted output power and the maximum power spectral density shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6 dBi. However, fixed point-to- point U-NII devices operating in this band may employ transmitting antennas with directional gain greater than 6 dBi without any corresponding reduction in transmitter conducted power. Fixed, point-to- point operations exclude the use of point-to multipoint systems, omnidirectional applications, and multiple collocated transmitters transmitting the same information. The operator of the U-NII device, or if the equipment is professionally installed, the installer, is responsible for ensuring that systems employing high gain directional antennas are used exclusively for fixed, point-to-point operations. 8.1 Test Setup 8.2 Test Procedure According to KDB 789033 D02 General UNII Test Procedures New Rules v02r01, The use Power Meter 1. Place the EUT on a bench and set it in transmitting mode. 2. Remove the antenna from the EUT and then connect a low loss RF cable from the antenna port to a Power meter. EUT Power meter Attenuator Report No.: PTC26060912402E-FC04 Page 104 of 152 8.3 Test Result Test Mode Antenna Frequency[MHz] Channel Powert [dBm] Duty Cycle [%] DC Factor [dBm] Result [dBm] Limit [dBm] Verdict 11A Ant1 5180 14.49 52.08 2.83 17.32 ≤23.98 PASS 11A Ant1 5200 11.20 16.92 7.72 18.92 ≤23.98 PASS 11A Ant1 5240 11.00 16.83 7.74 18.74 ≤23.98 PASS 11A Ant1 5745 14.63 89.82 0.47 15.10 ≤30.00 PASS 11A Ant1 5785 15.36 89.43 0.49 15.85 ≤30.00 PASS 11A Ant1 5825 15.27 91.44 0.39 15.66 ≤30.00 PASS 11N20SISO Ant1 5180 18.33 94.03 0.27 18.60 ≤23.98 PASS 11N20SISO Ant1 5200 16.71 94.50 0.25 16.96 ≤23.98 PASS 11N20SISO Ant1 5240 16.87 87.50 0.58 17.45 ≤23.98 PASS 11N20SISO Ant1 5745 14.77 92.65 0.33 15.10 ≤30.00 PASS 11N20SISO Ant1 5785 15.65 93.56 0.29 15.94 ≤30.00 PASS 11N20SISO Ant1 5825 15.46 94.03 0.27 15.73 ≤30.00 PASS 11N40SISO Ant1 5190 16.34 58.86 2.30 18.64 ≤23.98 PASS 11N40SISO Ant1 5230 17.15 98.78 0.05 17.20 ≤23.98 PASS 11N40SISO Ant1 5755 13.99 79.49 1.00 14.99 ≤30.00 PASS 11N40SISO Ant1 5795 15.19 80.17 0.96 16.15 ≤30.00 PASS 11AC20SISO Ant1 5180 18.11 89.20 0.50 18.61 ≤23.98 PASS 11AC20SISO Ant1 5200 16.64 88.79 0.52 17.16 ≤23.98 PASS 11AC20SISO Ant1 5240 16.89 92.68 0.33 17.22 ≤23.98 PASS 11AC20SISO Ant1 5745 14.61 91.35 0.39 15.00 ≤30.00 PASS 11AC20SISO Ant1 5785 15.69 93.14 0.31 16.00 ≤30.00 PASS 11AC20SISO Ant1 5825 15.51 93.14 0.31 15.82 ≤30.00 PASS 11AC40SISO Ant1 5190 13.19 85.45 0.68 13.87 ≤23.98 PASS 11AC40SISO Ant1 5230 13.58 81.03 0.91 14.49 ≤23.98 PASS 11AC40SISO Ant1 5755 10.44 81.03 0.91 11.35 ≤30.00 PASS 11AC40SISO Ant1 5795 12.30 81.03 0.91 13.21 ≤30.00 PASS 11AX20SISO Ant1 5180 16.10 89.57 0.48 16.58 ≤23.98 PASS 11AX20SISO Ant1 5200 7.43 12.71 8.96 16.39 ≤23.98 PASS 11AX20SISO Ant1 5240 8.27 12.78 8.93 17.20 ≤23.98 PASS 11AX20SISO Ant1 5745 14.17 90.12 0.45 14.62 ≤30.00 PASS 11AX20SISO Ant1 5785 15.64 90.68 0.42 16.06 ≤30.00 PASS 11AX20SISO Ant1 5825 15.69 89.57 0.48 16.17 ≤30.00 PASS 11AX40SISO Ant1 5190 16.02 80.85 0.92 16.94 ≤23.98 PASS 11AX40SISO Ant1 5230 16.47 80.85 0.92 17.39 ≤23.98 PASS 11AX40SISO Ant1 5755 14.23 78.57 1.05 15.28 ≤30.00 PASS 11AX40SISO Ant1 5795 15.34 78.57 1.05 16.39 ≤30.00 PASS Report No.: PTC26060912402E-FC04 Page 105 of 152 9 Power Spectral density Test Requirement : FCC CFR47 Part 15 Section 15.2407(a) Test Method : ANSI C63.10-2020 Test Limit : For client devices in the 5.15-5.25 GHz band, the maximum conducted output power over the frequency band of operation shall not exceed 250 mW provided the maximum antenna gain does not exceed 6 dBi. In addition, the maximum power spectral density shall not exceed 11 dBm in any 1 megahertz band. If transmitting antennas of directional gain greater than 6 dBi are used, both the maximum conducted output power and the maximum power spectral density shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6 dBi.. For the band 5.725-5.85 GHz, the maximum conducted output power over the frequency band of operation shall not exceed 1 W. In addition, the maximum power spectral density shall not exceed 30 dBm in any 500-kHzband. If transmitting antennas of directional gain greater than 6 dBi are used, both the maximum conducted output power and the maximum power spectral density shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6 dBi. However, fixed point-to-point U-NII devices operating in this band may employ transmitting antennas with directional gain greater than 6 dBi without any corresponding reduction in transmitter conducted power. Fixed, point-to-point operations exclude the use of point-tomultipoint systems, omnidirectional applications, and multiple collocated transmitters transmitting the same information. The operator of the U-NII device, or if the equipment is profes…

Text truncated - open the document above for the full version.

FCC ID: 2BSW8-NEST15 Conducted Emissions Radiated Spurious Emissions From 30MHz-1000MHz FCC ID: 2BSW8-NEST15 Test frequency from Above 1GHz
