Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
INSTRUCTION MANUAL LEDHollywoodStyle VanityMirror LEDBULBS MIRROR BUTTOM CONTROLS Type-CPORT USBPORT DCPORT GeneralSafetyPrecautions 1.Pleasereadallinstructionscarefully. 2.Retaininstructionsforfuturereference. 3.Separateandcountallpartsandhardware. 4.Readthrougheachstepcarefullyandfollowtheproperorder. 5.Alwaysplacetheproductonaflat,steadyandstablesurface. 6.Keepallsmallpartsandpackagingmateriaisforthisproductawayfrom babiesandchildrenastheypotentiallyposeaseriouschokinghakzard. BACKBOARD BUTTONCONTROLS Mp MBUTTONPOWERPBUTTON Mshortpresstochangethelightcolor:warm/natural/cool shortpresstoturnon/offthelight PLongpresstoadjustthebrightness ACTIVATESPEAKERS(BLUETOOTHFUNCTION) Thebluetoothwillautomaticallyturnononcethelightsofyour hollywoodmirrorturnon.Tocontrolthemusicgotobluetoothsettings onyourphoneandconnectto"MusicMirror". Ifyouwanttostopthebluetoothconnection,turnoffyourdevice's bluetoothsothattheconnectiondisconnects. CONTAINEDITEMS 12VPowerAdapter Input110-240VOutput12V2A Pleaseuseincludedpoweradapter,Donotuseanunsuitablepower adapter,otherwiseit,coulddamagethemirrorelectronics. USBPortandtype-cforchargingtheelectronic advices,likemobilephone. ConnectthepowertouseLEDMirrorlights.Disconnect thepowertooffLEDMirrorlights. FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.
Jiangmen Tenya Technology Co., Ltd. 01-2#, NO.51, Xingye Road, Chaolian,Pengjiang District, Jiangmen City, Guangdong Province, P.R. China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2025/11/19 U.S. Agent Designation Jiangmen Tenya Technology Co., Ltd. acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BSWH-TY3001): Name and company of U.S. agent: GLOCERTS TECHNOLOGY INC Physical U.S. address of agent: 19784 SUNKISSED RIDGE DR RIVERSIDE, CA 92507 United States FRN of U.S. agent: 0036339737 Email address of U.S. agent: [email protected] GLOCERTS TECHNOLOGY INC acknowledges their obligation to accept service of process on behalf of Jiangmen Tenya Technology Co., Ltd. Jiangmen Tenya Technology Co., Ltd. with the FRN [0037625704] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Connie Chen Manager Jiangmen Tenya Technology Co., Ltd. Signature Huiying Fan Director GLOCERTS TECHNOLOGY INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

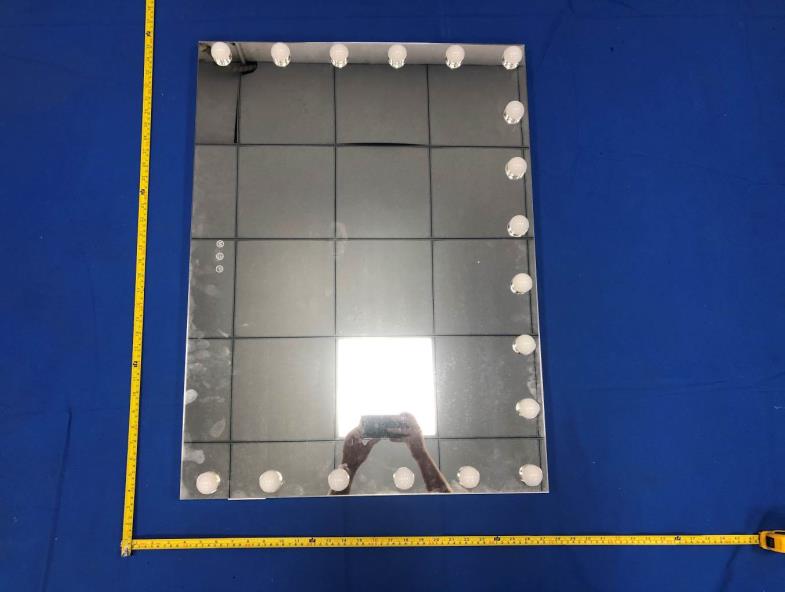

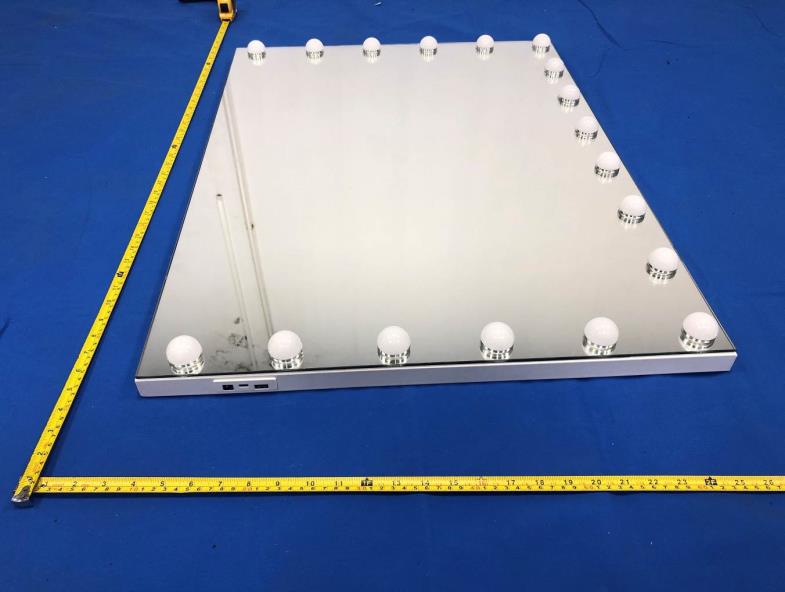

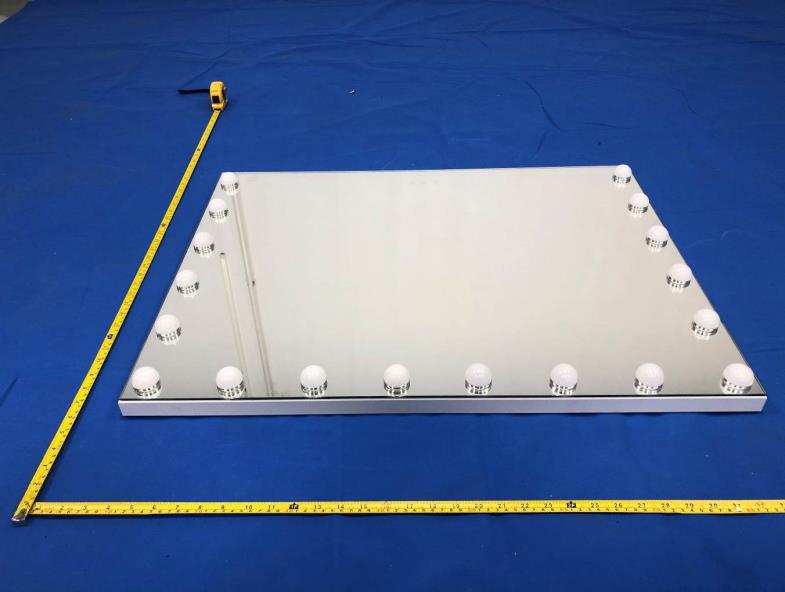

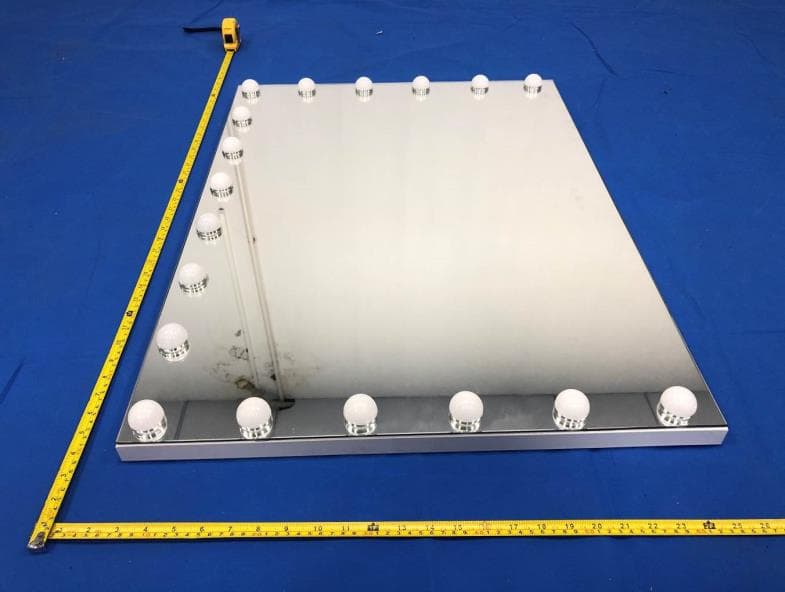

FCC ID: 2BSWH-TY3001 External Photos of the EUT FCC ID: 2BSWH-TY3001 FCC ID: 2BSWH-TY3001
Label and Location Size: L: 4.0cm*W: 3.0cm Label and Location FCC ID : 2BSWH-TY3001 This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.
FCC ID: 2BSWH-TY3001 Internal Photos of the EUT ANT FCC ID: 2BSWH-TY3001 FCC ID: 2BSWH-TY3001 FCC ID: 2BSWH-TY3001
Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure MPE Report Reference No. ..................... : FCC ID. ............................................ : CTA25101600202 2BSWH-TY3001 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Oct. 22, 2025 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : Jiangmen Tenya Technology Co., Ltd. Address ............................................ : 01-2#, NO.51, Xingye Road, Chaolian,Pengjiang District, Jiangmen City, Guangdong Province, P.R. China Standard ........................................... : 47CFR §1.1310 47CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : VANITY MIRROR Trade Mark ........................................ N/A Manufacturer .................................... : Jiangmen Tenya Technology Co., Ltd. Model/Type reference ...................... : TY3001 Listed Models ................................... : Refer to page 2 Rating ............................................... : DC 12.0V From external circuit Result ............................................... : PASS Report No.: CTA25101600202 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : VANITY MIRROR Model /Type : TY3001 Listed Models : TY3XXX, TY3002, TY3003, TY3004, TY3005, TY32005, TY3007, TY3008, DS8060, DS5846 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : Jiangmen Tenya Technology Co., Ltd. Address : 01-2#, NO.51, Xingye Road, Chaolian,Pengjiang District, Jiangmen City, Guangdong Province, P.R. China Manufacturer : Jiangmen Tenya Technology Co., Ltd. Address : 01-2#, NO.51, Xingye Road, Chaolian,Pengjiang District, Jiangmen City, Guangdong Province, P.R. China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25101600202 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 5 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 4 Test limit .............................................................................................................................. 7 4.1 Requirement ............................................................................................................ 7 4.2 MPE Calculation Method ......................................................................................... 7 4.3 Conducted Power Results ....................................................................................... 7 4.4 Manufacturing tolerance .......................................................................................... 8 4.5 Standalone MPE Result ........................................................................................... 8 4.6 Simultaneous Transmission for MPE Result ........................................................... 8 5 Conclusion ..................................................................................................…
Text truncated - open the document above for the full version.
Product specification Quick Reference Date Antenna module on the system board Frequenc Range 2400 ~ 2500MHz Ant. Port Input Pwr. (dBm) 0 (Typ. BT class 2 output power) Tot. Rad. Pwr. (dBm) -1.2 (Input pwr – loss pwr) Peak EIRP(dBm) 1.2 Directivity (dBi) 1 (all direction antenna) Efficiency (dB) 6 0.2 % Gain (dBi) 1.9 (Peak Gain XZ-plane) Maximum Power (dBm) 1.7 (XY-plane) Minimum Power (dBm) -4(XY-plane) Avg. Power (dBm) -0.5(XY-plane) Input Impendence(ohm) 50 Polarization Type V ertical & Horizontal V . S .W . R < 1.4 All the technical data and information contained herein are subject to change without prior notice Antenna Layout & module on the system board Antenna Gain Gain Table Unit in dBi @2.44GHz XY-plane XZ-plane YZ-plane Efficiency Peak Avg. Peak Avg. Peak Avg. Module Board 1.2 -0.51.9 -3.61.1 -3.06 0.2 % MORLAB Laboratory Manufacturer:Jiangmen Tenya Technology Co., Ltd. Address:01-2#, NO.51, Xingye Road, Chaolian,Pengjiang District, Jiangmen City, Guangdong Province, P.R. China Retum Loss MORLAB Laboratory The Environment of Antenna Radiation Pattem MORLAB Laboratory 3D radiation pattern diagram XY-plane XZ-plane YZ-plane MORLAB Laboratory
Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. ........................................... : CTA25101600201 2BSWH-TY3001 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Oct. 22, 2025 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Jiangmen Tenya Technology Co., Ltd. Address ............................................ : 01-2#, NO.51, Xingye Road, Chaolian,Pengjiang District, Jiangmen City, Guangdong Province, P.R. China Test specification ........................... : Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : VANITY MIRROR Trade Mark ....................................... : N/A Manufacturer .................................... : Jiangmen Tenya Technology Co., Ltd. Model/Type reference ...................... : TY3001 Listed Models ................................... : Refer to page 2 Modulation ....................................... : GFSK, Π/4DQPSK, 8DPSK Frequency ......................................... From 2402MHz to 2480MHz Ratings ............................................. : DC 12.0V From external circuit Result ............................................... : PASS Report No.: CTA25101600201 Page 2 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : VANITY MIRROR Model /Type : TY3001 Listed Models : TY3XXX, TY3002, TY3003, TY3004, TY3005, TY32005, TY3007, TY3008, DS8060, DS5846 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : Jiangmen Tenya Technology Co., Ltd. Address : 01-2#, NO.51, Xingye Road, Chaolian,Pengjiang District, Jiangmen City, Guangdong Province, P.R. China Manufacturer : Jiangmen Tenya Technology Co., Ltd. Address : 01-2#, NO.51, Xingye Road, Chaolian,Pengjiang District, Jiangmen City, Guangdong Province, P.R. China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25101600201 Page 3 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description ........................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 6 2.6 EUT operation mode ......................................................................................................................... 6 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ........................................................................................................... 7 3.2 Test Facility..............................................................................................…
Text truncated - open the document above for the full version.
1 FCC Appendix RF Test Data for BT FCC ID : 2BSWH-TY3001 Company : Jiangmen Tenya Technology Co., Ltd. EUT : VANITY MIRROR Model Number : TY3001 Report No. : CTA25101600201 Reviewed By : Eric Wang 2 Appendix A: 20dB Emission Bandwidth Test Result TestMode Antenna Freq(MHz) 20dB EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.954 2401.550 2402.504 --- --- 2441 0.954 2440.553 2441.507 --- --- 2480 0.945 2479.556 2480.501 --- --- 2DH5 Ant1 2402 1.323 2401.352 2402.675 --- --- 2441 1.278 2440.388 2441.666 --- --- 2480 1.284 2479.385 2480.669 --- --- 3DH5 Ant1 2402 1.311 2401.358 2402.669 --- --- 2441 1.335 2440.346 2441.681 --- --- 2480 1.332 2479.346 2480.678 --- --- 3 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 4 2DH5_Ant1_2402 2DH5_Ant1_2441 5 2DH5_Ant1_2480 3DH5_Ant1_2402 3DH5_Ant1_2441 6 3DH5_Ant1_2480 7 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.87284 2401.5768 2402.4497 --- --- 2441 0.86985 2440.5792 2441.4490 --- --- 2480 0.86590 2479.5804 2480.4463 --- --- 2DH5 Ant1 2402 1.1819 2401.4242 2402.6061 --- --- 2441 1.1884 2440.4199 2441.6083 --- --- 2480 1.1864 2479.4227 2480.6091 --- --- 3DH5 Ant1 2402 1.1892 2401.4212 2402.6104 --- --- 2441 1.1879 2440.4211 2441.6090 --- --- 2480 1.1936 2479.4199 2480.6135 --- --- 8 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 9 2DH5_Ant1_2402 2DH5_Ant1_2441 10 2DH5_Ant1_2480 3DH5_Ant1_2402 3DH5_Ant1_2441 11 3DH5_Ant1_2480 12 Appendix C: Maximum conducted output power Test Result Peak Test Mode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict DH5 Ant1 2402 0.23 ≤20.97 PASS 2441 0.15 ≤20.97 PASS 2480 0.15 ≤20.97 PASS 2DH5 Ant1 2402 -0.58 ≤20.97 PASS 2441 -0.70 ≤20.97 PASS 2480 -0.65 ≤20.97 PASS 3DH5 Ant1 2402 -0.56 ≤20.97 PASS 2441 -0.66 ≤20.97 PASS 2480 -0.67 ≤20.97 PASS 13 Appendix D: Carrier frequency separation Test Result TestMode Antenna Freq(MHz) Result[MHz] Limit[MHz] Verdict DH5 Ant1 Hop 1.02 ≥0.954 PASS 2DH5 Ant1 Hop 1.076 ≥0.882 PASS 3DH5 Ant1 Hop 1.16 ≥0.890 PASS 14 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 3DH5_Ant1_Hop 15 16 Appendix E: Time of occupancy Test Result TestMode Antenna Freq(MHz) BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH1 Ant1 Hop 0.390 319 0.124 ≤0.4 PASS DH3 Ant1 Hop 1.640 162 0.266 ≤0.4 PASS DH5 Ant1 Hop 2.890 111 0.321 ≤0.4 PASS 2DH1 Ant1 Hop 0.380 317 0.12 ≤0.4 PASS 2DH3 Ant1 Hop 1.650 153 0.252 ≤0.4 PASS 2DH5 Ant1 Hop 2.900 98 0.284 ≤0.4 PASS 3DH1 Ant1 Hop 0.390 316 0.123 ≤0.4 PASS 3DH3 Ant1 Hop 1.640 157 0.257 ≤0.4 PASS 3DH5 Ant1 Hop 2.900 101 0.293 ≤0.4 PASS 17 Test Graphs DH1_Ant1_Hop DH3_Ant1_Hop 18 DH5_Ant1_Hop 19 2DH1_Ant1_Hop 2DH3_Ant1_Hop 20 2DH5_Ant1_Hop 21 3DH1_Ant1_Hop 3DH3_Ant1_Hop 22 3DH5_Ant1_Hop 23 24 Appendix F: Number of hopping channels Test Result TestMode Antenna Freq(MHz) Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS 3DH5 Ant1 Hop 79 ≥15 PASS 25 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 3DH5_Ant1_Hop 26 27 Appendix G: Band edge measurements Test Result TestMode Antenna ChName Freq(MHz) RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 0.08 -58.72 ≤-19.92 PASS High 2480 -0.31 -58.68 ≤-20.31 PASS Low Hop_2402 -4.00 -63.58 ≤-24 PASS High Hop_2480 -3.50 -64.08 ≤-23.5 PASS 2DH5 Ant1 Low 2402 -4.81 -55.47 ≤-24.81 PASS High 2480 -4.43 -61.81 ≤-24.43 PASS Low Hop_2402 -6.44 -61.19 ≤-26.44 PASS High Hop_2480 -4.62 -63.87 ≤-24.62 PASS 3DH5 Ant1 Low 2402 -4.20 -57.27 ≤-24.2 PASS High 2480 -4.08 -62.55 ≤-24.08 PASS Low Hop_2402 -3.42 -62.74 ≤-23.42 PASS High Hop_2480 -5.19 -63.92 ≤-25.19 PASS 28 Test Graphs DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop_2402 29 DH5_Ant1_High_Hop_2480 2DH5_Ant1_Low_2402 30 2DH5_Ant1_High_2480 2DH5_Ant1_Low_Hop_2402 2DH5_Ant1_High_Hop_2480 31 3DH5_Ant1_Low_2402 3DH5_Ant1_High_2480 32 3DH5_Ant1_Low_Hop_2402 3DH5_Ant1_High_Hop_2480 33 Appendix H: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 Reference -0.19 -0.19 --- PASS 30~1000 -0.19 -66.96 ≤-20.19 PASS 1000~26500 -0.19 -42.3 ≤-20.19 PASS 2441 Reference -1.08 -1.08 --- PASS 30~1000 -1.08 -68.18 ≤-21.08 PASS 1000~26500 -1.08 -42.33 ≤-21.08 PASS 2480 Reference -1.06 -1.06 --- PASS 30~1000 -1.06 -68.38 ≤-21.06 PASS 1000~26500 -1.06 -42.6 ≤-21.06 PASS 2DH5 Ant1 2402 Reference -3.40 -3.40 --- PASS 30~1000 -3.40 -68.12 ≤-23.4 PASS 1000~26500 -3.40 -48.75 ≤-23.4 PASS 2441 Reference -5.59 -5.59 --- PASS 30~1000 -5.59 -68.12 ≤-25.59 PASS 1000~26500 -5.59 -48.52 ≤-25.59 PASS 2480 Reference -3.43 -3.43 --- PASS 30~1000 -3.43 -67.82 ≤-23.43 PASS 1000~26500 -3.43 -49.67 ≤-23.43 PASS 3DH5 Ant1 2402 Reference -5.50 -5.50 --- PASS 30~1000 -5.50 -67.85 ≤-25.5 PASS 1000~26500 -5.50 -48.26 ≤-25.5 PASS 2441 Reference -3.52 -3.52 --- PASS 30~1000 -3.52 -64.97 ≤-23.52 PASS 1000~26500 -3.52 -48.91 ≤-23.52 PASS 2480 Reference -5.41 -5.41 --- PASS 30~1000 -5.41 -67.39 ≤-25.41 PASS 1000~26500 -5.41 -49.11 ≤-25.41 PASS 34 Test Graphs DH5_Ant1_2402_0~Reference DH5_Ant1_2402_30~1000 DH5_Ant1_2402_1000~26500 35 DH5_Ant1_2441_0~Reference DH5_Ant1_2441_30~1000 36 DH5_Ant1_2441_1000~26500 DH5_Ant1_2480_0~Reference DH5_Ant1_2480_30~1000 37 DH5_Ant1_2480_1000~26500 2DH5_Ant1_2402_0~Reference
38 2DH5_Ant1_2402_30~1000 2DH5_Ant1_2402_1000~26500 2DH5_Ant1_2441_0~Reference 39 2DH5_Ant1_2441_30~1000 2DH5_Ant1_2441_1000~26500 40 2DH5_Ant1_2480_0~Reference 2DH5_Ant1_2480_30~1000 2DH5_Ant1_2480_1000~26500 41 3DH5_Ant1_2402_0~Reference 3DH5_Ant1_2402_30~1000 42 3DH5_Ant1_2402_1000~26500 3DH5_Ant1_2441_0~Reference 3DH5_Ant1_2441_30~1000 43 3DH5_Ant1_2441_1000~26500 3DH5_Ant1_2480_0~Reference 44 3DH5_Ant1_2480_30~1000 3DH5_Ant1_2480_1000~26500 45 Appendix I: Duty Cycle Test Result TestMode Antenna Freq(MHz) ON Time [ms] Period [ms] DC [%] xFactor Limit Verdict DH5 Ant1 2402 2.91 3.75 77.60 1.10 --- --- 2441 2.91 3.75 77.60 1.10 --- --- 2480 2.92 3.75 77.87 1.09 --- --- 2DH5 Ant1 2402 2.92 3.75 77.87 1.09 --- --- 2441 2.91 3.75 77.60 1.10 --- --- 2480 2.92 3.75 77.87 1.09 --- --- 3DH5 Ant1 2402 2.92 3.75 77.87 1.09 --- --- 2441 2.91 3.75 77.60 1.10 --- --- 2480 2.92 3.75 77.87 1.09 --- --- 46 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 47 2DH5_Ant1_2402 2DH5_Ant1_2441 48 2DH5_Ant1_2480 3DH5_Ant1_2402 3DH5_Ant1_2441 49 3DH5_Ant1_2480
FCC ID: 2BSWH-TY3001 Test Setup Photos of the EUT FCC ID: 2BSWH-TY3001
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 2.40 GHz - 2.48 GHz | 1.10 mW |
