2BSX4-S10Smart glasses

Instruction manual 使用指南 Smart Glasses Instruction manual Smart Glasses Instruction manual 装箱清单 Smart Glass x1 充电线 x1 说明书 x1 清洁布 x1 眼镜盒 x1 演示镜片 x2 LR 产品概括 1 2 3 4 5 6 7 8 充电接口 出音孔 补光灯（提示灯） 9 AI语音助手/录音开关 眼镜电源开关 触控区域 摄像头 摄影/拍照/通话开关 麦克风孔 多项功能 视频/照片拍摄 语音通话 单击按钮：拍照 双击按钮：录像 录像时，短按按钮一次结束 录音 长按按钮：录音 录音时，短按一次结束 来电中，短按接听，长按2S挂断; 通话中，短按1次挂断 右侧按钮 AI语音助手 1.单击左侧按钮激活 2.长按右侧触控区域激活 3.双击左侧按键AI快速识图 恢复出厂设置 长按右侧按钮10s 或者眼镜链接手机后 在设备设置中选择恢复出厂设置 音乐播放 播放/暂停音乐:双击触控区域 前/后滑动：调大/小音量 三击触控区域:切换下一首 触摸区域 Music playback Touch area 右侧按钮 产品名称：智能AI眼镜 存储空间：32G 摄像头：800w像素，支持1080P30帧视频拍摄 单次摄像时间：最长12分钟 产品参数 Made in China Instruction manual Packing list Smart Glasses x1 Charging cable x1 Instruction manual X1 Cleaning cloth x1 Glasses case x1 Demonstration lens x2 LR Product Overview 1 2 3 4 5 6 7 8 9 Charging interface Sound hole Photography/Camera/Call Switch Camera Fill light (indicator light) AI Voice Assistant/Recording Switch Glasses power switch Touch zone Microphone hole Product Name: Smart AI Glasses Storage Space: 32GB Camera: 800Wpixel, 1080P 30fps video shooting. Single - shot Video Duration: Up to 12 minutes Product parameters Made in China 快速入门 开/关机下载APP 佩戴眼镜后拨动开关,当开/关机 后会从两侧出音口发出开/关 机提示音 手机扫描上方二维码 根据提示安装APP 连接手机 打开APP点击“连接设备”并 根据提示操作选择眼镜配对即可 充电 将带有充电触点的镜腿放入 充电器并插上电源即可 Quick Start Power on/off Download the APP Connect to mobile phone Charge After wearing the glasses, toggle the switch. When powering on/off, a power - on/off prompt tone will be emitted from the two microphone ports. Scan the QR code above with your mobile phone and install the APP according to the prompts. Open the app, click on "Connect Device" and follow the prompts to select glasses pairing Simply insert the mirror legs with charging contacts into the charger and plug them in to the power source Multiple functions Video shootingVoice call Right Button AI Voice Assistant Single-click: Take Photo Double-click: Start Recording Short-press to End Recording During Video 1.Single-click the left button to activate 2.Long-press the right touch area to activate 3.Double-click the left button for AI quick image recognition Restore Long - press the right button for 10 seconds or after connecting the glasses to the phone. Select Factory Reset in Device Settings Right Button 50mm 50mm 50mm 50mm 50mm 50mm 160mm 尺寸：160x50mm 6折页(正反面) 160mm 左侧按钮 Recording Long-press the button : Record During recording, short-press once to end Play/Pause: Double-tap touch area Swipe forward/back: Volume up/down Triple-tap: Next track Left Button 3 9 3 3 9 3 反面正面 Single-click: Answer Call Long-press for 2 seconds: Reject Call During a call: short-press once to end the call FCC Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. NOTE 2: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

Shenzhen Shengshi Intelligent Technology Co., Ltd Covered Equipment Certification Attestation Letter 11/20/2025 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: 2BSX4-S10 Shenzhen Shengshi Intelligent Technology Co., Ltd (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. Shenzhen Shengshi Intelligent Technology Co., Ltd (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Shenzhen Shengshi Intelligent Technology Co., Ltd (“the applicant”) certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Signed: Printed name: Zukai Zhu Title: Manager Company Name: Shenzhen Shengshi Intelligent Technology Co., Ltd Date: 11/20/2025

Shenzhen Shengshi Intelligent Technology Co., Ltd U.S. Agent Letter of Attestation To: Federal Communications Commission 7435 Oakland Mills Road, Columbia, MD 21046, USA Date: November 20, 2025 Ref: Attestation Statement – Part 2.911(d)(7) filing FCC ID: 2BSX4-S10 Shenzhen Shengshi Intelligent Technology Co., Ltd (“the applicant”) certifies that, as of the date of the filing of the application, CLF Import and Export Limited (“the agent”) is our designated U.S. agent for service of process for the above reference FCC ID. The applicant accepts to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. The applicant further acknowledges it is our responsibility to inform the FCC whenever the agent information changes. CLF Import and Export Limited ("the agent) understand it is the agent's obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address. Designated U.S. Agent Company Name: CLF Import and Export Limited FRN: 0033489683 Address: 1312 17th Street #692, Denver, CO 80202, United States Signature: Contact Person: David Chen Tel: +1 949 254 2565 Email: [email protected] Applicant Company Name: Shenzhen Shengshi Intelligent Technology Co., Ltd FRN: 0037627619 Address: Room 21G, Ruijun Business Building, No. 108 Zhongxin Road, Baoan District, Shenzhen City, Guangdong Province, China Signature: Contact Person: Zukai Zhu Tel: +86-18928673267 Email: [email protected]

DATE: November 20, 2025 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2BSX4-S10 Product Name: Smart glasses Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name: Zukai Zhu Title: Manager Company: Shenzhen Shengshi Intelligent Technology Co., Ltd

Date: November 20, 2025 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Compliance Testing, LLC to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). Sincerely, <Signature> Name: Zukai Zhu Title: Manager Company: Shenzhen Shengshi Intelligent Technology Co., Ltd

DATE: November 20, 2025 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Shenzhen CCUT Quality Technology Co., Ltd. (1F, Building 35, Changxing Technology Indstrl Park Changzhen Community, Yutang Street,Shenzhen,China) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Shenzhen Shengshi Intelligent Technology Co., Ltd (Room 21G, Ruijun Business Building, No. 108 Zhongxin Road, Baoan District, Shenzhen City, Guangdong Province, China). <Signature> Name: Zukai Zhu Title: Manager Company: Shenzhen Shengshi Intelligent Technology Co., Ltd

Shenzhen Shengshi Intelligent Technology Co., Ltd Model Difference Statement FCC ID: 2BSX4-S10 DATE: November 20, 2025 Dear Sir/Madam, Added models S20, S30, S40, S50, S60, S70, S80, S90 basis of the original product S10. The color of appearance and model name of series models listed are different from the main model, but the circuit and the electronic construction are the same, declared by the manufacturer. Sincerely, Name: Zukai Zhu Company name: Shenzhen Shengshi Intelligent Technology Co., Ltd Address: Room 21G, Ruijun Business Building, No. 108 Zhongxin Road, Baoan District, Shenzhen City, Guangdong Province, China

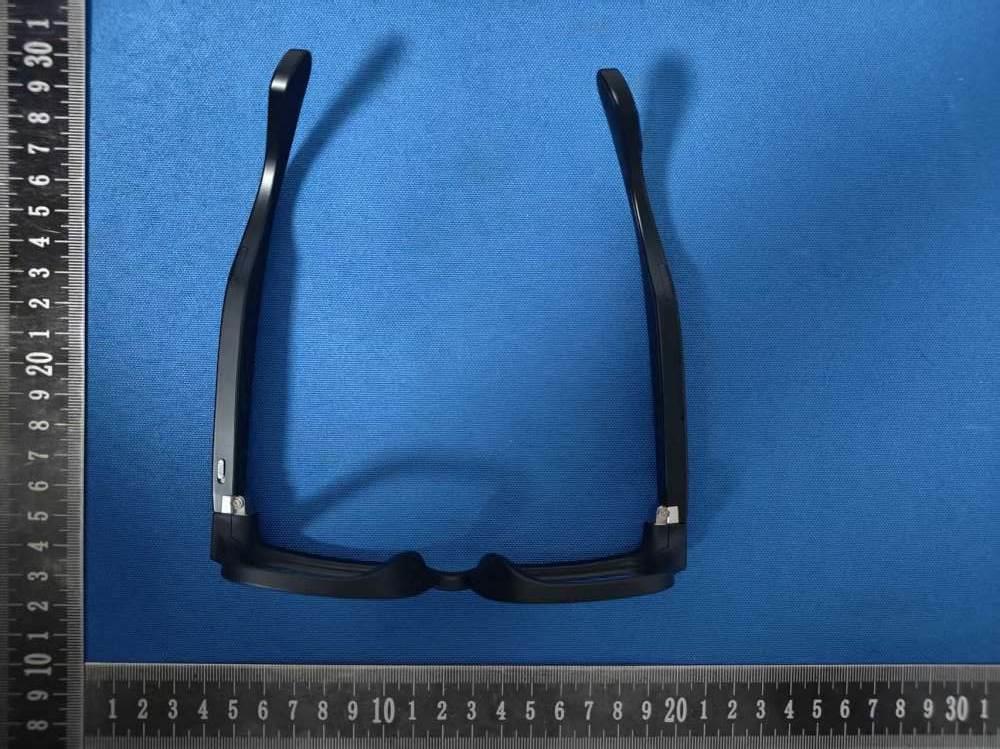

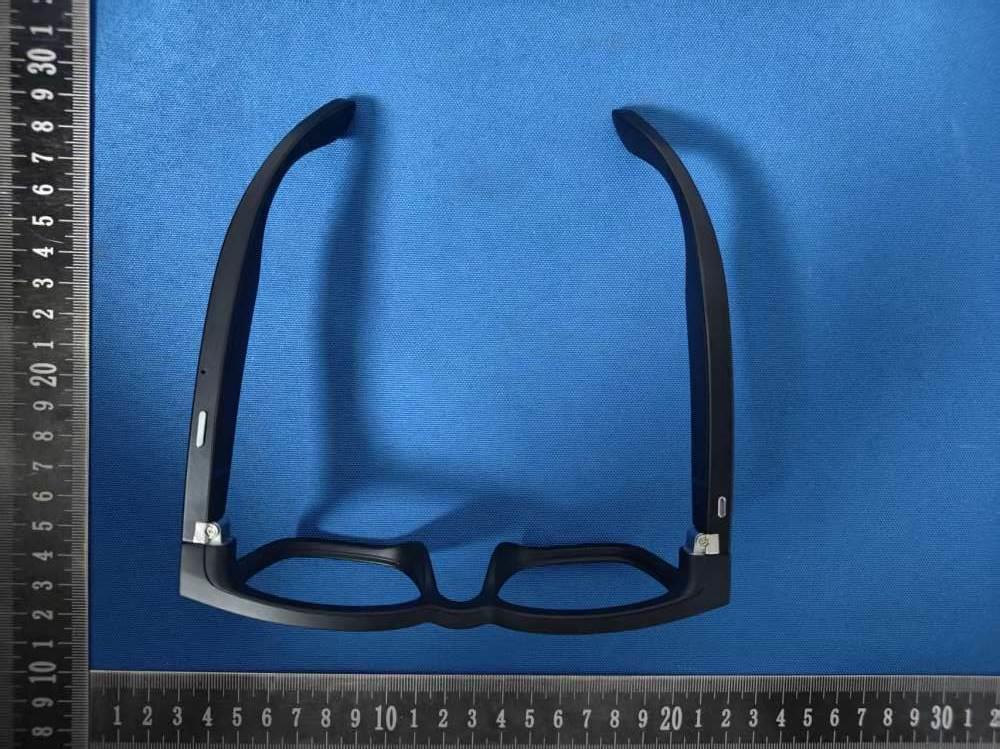

Report No: SSP25100209-1&2E FCC ID: 2BSX4-S10 Annex of Test Report Annex A. EUT External Photos Model: S10 EUT View 1 EUT View 2 Report No: SSP25100209-1&2E FCC ID: 2BSX4-S10 Annex of Test Report EUT View 3 EUT View 4 Report No: SSP25100209-1&2E FCC ID: 2BSX4-S10 Annex of Test Report EUT View 5 EUT View 6 Report No: SSP25100209-1&2E FCC ID: 2BSX4-S10 Annex of Test Report EUT View 7

Report No: SSP25100209-1&2E FCC ID: 2BSX4-S10 Annex of Test Report Annex D. Label and Inf ormation FCC Label Sample FCC Label Specifications Text is Black in color and is justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Where the EUT is constructed in two or more sections connected by wires and marketed together, the above statement is required to be affixed only to the main control unit. When the EUT is so small or for such use that it is not practicable to place the statement on it, the above information shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. FCC Label Location Label Location

Report No: SSP25100209-1&2E FCC ID: 2BSX4-S10 Annex of Test Report Annex B. EUT Internal Photos Model: S10 EUT Internal View 1 EUT Internal View 2 Report No: SSP25100209-1&2E FCC ID: 2BSX4-S10 Annex of Test Report EUT Internal View 3 EUT Internal View 4 WIFI ANT BT ANT Report No: SSP25100209-1&2E FCC ID: 2BSX4-S10 Annex of Test Report EUT Internal View 5 EUT Internal View 6

FCC ID: 2BSX4-S10 RF Exposure Evaluation According to KDB 447498 D01 General RF Exposure Guidance v06 and part 2.1093，Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition(s), listed below, is (are) satisfied. For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Here, The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. For BR+EDR Max Conducted Power(dBm) Tune-up Power(dBm) Max Tune-up Power(dBm) Max Power(mW) Frequency(MHz) Min. distance(mm) Calc. thresholds limit 2.19 2(±1) 3 1.995 2402 5 0.618386 3.0 For 2.4GWiFi Max Conducted Power(dBm) Tune-up Power(dBm) Max Tune-up Power(dBm) Max Power(mW) Frequency(MHz) Min. distance(mm) Calc. thresholds limit 7.96 7(±1) 8 6.31 2412 5 1.959964 3.0 Remark: BR+EDR antenna gain= 0.17dBi; 2.4GWiFi antenna gain= 0dBi The device can transmit with 2.4GWiFi and Bluetooth BR+EDR simultaneously. Calculations for simultaneously transmit Mode Ratios Result Limit Result BR+EDR 0.20613 0.85945 1 PASS 2.4G Wi-Fi 0.65332 Ratios = Power Density / Power density Limit So a SAR test is not required

Dongzhen Electronics Co., Ltd Antenna Specification for Approval Customer Name： Product Name： 2.4G antenna Product Name: Part NO.: 1332-22#19*0.15*1.3535mm Write By： Mr. zhou Issued Date: 2023-5-8 customer: R&D DeptBusiness DeptApproved By supplier R&D Dept Engineer Dept Approval Yangjiaqiao Village, Sandun Town, Xihu District, Hangzhou City, Zhejiang Province Product Specification A.Electrical Characteristics Frequency 2400MHz ~2500MHz VSWR <3.0 Efficiency >20% Impedance 50 Ohm Polarization Line Gain 0.17DBi B. Material & Mechanical Characteristics Material of Radiator Cu Cable Type 1.4 white Connector Type : NO Dimension C. Environmental Operation Temperature - 30 °C ~ + 80 °C Storage Temperature - 30 °C ~ + 85 °C Test Equipment & Conditions 1．Network Analyzers : Agilent 8753D 5071B 2． Communications Test Set: Agilent E5515C 3． 3D Chamber Test System Type of Antenna: Integral antenna Gain 2.40 -0.01 2.440 0.12 2.48 0.17 Radiation Pattern:

Report No: SSP25100209-1E FCC Test Report Page 1 of 45 FCC TEST REPORT FCC ID: 2BSX4-S10 Report No. : SSP25100209-1E Applicant : Shenzhen Shengshi Intelligent Technology Co., Ltd Product Name : Smart glasses Model Name : S10 Test Standard : FCC Part 15.247 Date of Issue : 2025-11-20 Shenzhen CCUT Quality Technology Co., Ltd. 1F, Building 35, Changxing Technology Industrial Park, Yutang Street, Guangming District, Shenzhen, Guangdong, China; (Tel.:+86-755-23406590 website: www.ccuttest.com) This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd. Report No: SSP25100209-1E FCC Test Report Page 2 of 45 Test Report Basic Information Applicant..................................: Shenzhen Shengshi Intelligent Technology Co., Ltd Address of Applicant...............: Room 21G, Ruijun Business Building, No. 108 Zhongxin Road, Baoan District, Shenzhen City, Guangdong Province, China Manufacturer..........................: Shenzhen Shengshi Intelligent Technology Co., Ltd Address of Manufacturer........: Room 21G, Ruijun Business Building, No. 108 Zhongxin Road, Baoan District, Shenzhen City, Guangdong Province, China Product Name.........................: Smart glasses Brand Name.............................: - Main Model..............................: S10 Series Models..........................: S20, S30, S40, S50, S60, S70, S80, S90 Test Standard..........................: FCC Part 15 Subpart C ANSI C63.4-2014 ANSI C63.10-2020/Cor 1-2023 Date of Test .............................: 2025-11-06 to 2025-11-13 Test Result...............................: PASS Tested By ................................: (Walker Wu) Reviewed By............................: (Lorzix Luo) Authorized Signatory............: (Lahm Peng) Note : This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd.. All test data presented in this test report is only applicable to presented test sample. Report No: SSP25100209-1E FCC Test Report Page 3 of 45 CONTENTS 1. General Information ....................................................................................................................................................5 1.1 Product Information .............................................................................................................................................5 1.2 Test Setup Information..........................................................................................................................................6 1.3 Compliance Standards ...........................................................................................................................................7 1.4 Test Facilities ........................................................................................................................................................7 1.5 List of Measurement Instruments ..........................................................................................................................8 1.6 Measurement Uncertainty .....................................................................................................................................9 2. Summary of Test Results ........................................................................................................................................... 10 3. Antenna Requirement ............................................................................................................................................... 11 3.1 Standard and Limit.............................................................................................................................................. 11 3.2 Test Result .......................................................................................................................................................... 11 4. Conducted Emissions ................................................................................................................................................ 12 4.1 Standard and Limit.............................................................................................................................................. 12 4.2 Test Procedure.................................................................................................................................................... 12 4.3 Test Data and Results .......................................................................................................................................... 13 5. Radiated Emissions ................................................................................................................................................... 16 5.1 Standard and Limit.............................................................................................................................................. 16 5.2 Test Procedure.................................................................................................................................................... 16 5.3 Test Data and Results .......................................................................................................................................... 18 6. Band-edge Emissions(Radiated) ............................................................................................................................... 22 6.1 Standard and Limit.............................................................................................................................................. 22 6.2 Test Procedure.................................................................................................................................................... 22 6.3 Test Data and Results ............................................................................…

Text truncated - open the document above for the full version.

Report No: SSP25100209-1&2E FCC ID: 2BSX4-S10 Annex of Test Report Annex C. Test Photos Conducted Emission Test View 1 Radiated Emission Test View Below 1GHz Report No: SSP25100209-1&2E FCC ID: 2BSX4-S10 Annex of Test Report Radiated Emission Test View Above 1GHz
