2BSX5-LR1Leep Smart Ring

RING 1 EN: QUICK START GUIDE FR: GUIDE DE DÉMARRAGE RAPIDE DE: SCHNELLSTARTANLEITUNG JA:クイックスタートガイド 1 34 2 “Leep Health” REGISTER DOWNLOAD CONNECT Thanks for choosing Leep Ring 1! Please read the user manual and safety instructions to get the most out of your new smart ring. • • • • • CHARGING TIME: 2.5 hours (case OPERATING TEMPERATURE RANGE:-20 –50ºC/ 4–122ºF BATTERYTYPE: RechargableLithium-Ion BATTERYLIFE: 10days (battery lifemayvarydue to usage) CHARGINGTIME: 1.5hours (ring) ) • CHARGING TEMPERATURE: min 0ºC / 32ºF - max 45ºC / 113ºF • BATTERY CAPACITY: 500 mAh, 1.85Wh (case •BATTERY CAPACITY: 16 mAh, 0.06272Wh (ring) ) • INPUT: 5V/1A, OUTPUT: 5V/16mA • BLUETOOTH RANGE: ≤10 •BLUETOOTH VERSION: 5.0 m •RF INTERFACE FREQUENCY RANGE: 2402-2480 MHz EN Leep Ring 1 is designed for your everyday activities. Leep Ring 1 is water resistant (IP68) up to 50m / 164ft. We recommend cleaning the ring regularly and keep it dry, to ensure good functionality of the ring and to reduce potential skin irritation. You can use a damp cloth to wipe the ring. Please ensure that the ring is fully dry before using it again. Leep Ring 1 charging case is not water resistant. Do not u se or store the charging case in humid environments like a bathroom for longer periods. The Leep Ring 1 may get scratched in regular use and may in direct contact with softer materials (metal, jewelry or other objects) cause scratches itself if it gets in close contact. The light-emitting diodes (LED) in the product are in the visible color range. They are safe for the person wearing the product and other people around. EN Website: www.leephealth.com Email: [email protected] GENERAL INFORMATION Product:Leep Smart Ring Brand: Leep Model number: Leep Ring 1 Manufacturer: Leep Health Ltd., 71-75 Shelton Street, Covent Garden, London, United Kingdom, WC2H 9JQ m LEEP RING 1 PRODUCT INFORMATION LEEP APP The Leep App is available in iOS App Store and Google Play. SECURITY Encrypted Bluetooth communication is used between Leep Ring 1 and Leep App. FACTORY RESET Instruction s can be found at leephealth.com/support. Always perform a factory reset before disposing the ring. WARRANTY DISCLAIMER leephealth.com/website-terms-of-use SUPPORT AND FAQs If you have questions about using your Leep Ring 1, our Leep App, or our online services, please do not hesitate to contact us. You will find our most Frequently Asked Questions (FAQs) at leephealth.com/support. For support you can contact us at [email protected] or via the Leep App. You can access Leep privacy policies at leephealth.com/ privacy-policy . LEEP RING 1 USAGE The Leep Ring is compatible with iPhones running iOS 14 or later and Android 6 or later. Sensor Area 1. Connect the supplied USB Type-C Charging Cable or another certified USB Type-C power cable to the Charging Case. 2. Connect the USB Type-C Charging Cable to a 5V/1A external power source. Avoid charging the Charging Case with Fast Chargers as they may impact the battery life. 3. When power is connected and the charging case is fully charged, the green light on the front of the case stays on. 4. When the charging case has a low battery, the green light will flash rapidly. When the charging case is charging, the green light will flash slowly. 5. To charge the Leep Ring 1 place the ring in the Charging Case, ensuring the contacts on the engraved “L” side of the ring align with the charging contacts in the charging case. 6. When the ring is charging, the green light inside the ring will flash slowly and the light on the front of the charging case will stay on. `You can charge the charging case with the lid open or closed. Note: The charging case is not water resistant. For indoor use only. LEEP RING 1 CHARGING INSTRUCTIONS HOW TO WEAR THE LEEP RING 1LEEP RING 1 TROUBLESHOOTING 1. Choose a ring size that fits your finger to avoid wearing it too tightly or too loosely. 2. For the best performance and accuracy, it is recommended to wear the ring on the index finger of the non-dominant hand. It can also be worn on any other finger as long as the ring sits securely and comfortably. 3. When wearing the ring, ensure that the ring sensor (the side with the engraved “L”) is facing the palm side of your finger for a more accurate measurement. If the ring does not pair with your smartphone: 1. Make sure the ring is charged 2. Check your smartphone to ensure Bluetooth is turned on. This should be in your Bluetooth settings. 3. Restart the Leep App and try pairing again If the ring is not measuring any data: Please contact our support team at [email protected] If the ring battery is draining too quickly: 1. Calibrate your battery by charging it for at least 3 hours 2. Start using your ring again as you normally would 3. If the problem persists, please contact our support team at [email protected] If you are experiencing an issue not mentioned here please contact our support team at [email protected] and report the issue in detail. EN EN GENERAL SAFETY Do not disassemble, modify, or expose the Leep Ring 1 to liquids, extreme heat, or open flames. Do not puncture, burn, or incinerate. Avoid handling batteries, working on machinery that contains batteries, or situations where there is a risk of electric shock. MEDICAL DEVICE WARNINGS Leep Ring 1 is not a medical device. It’s not intended to mitigate, prevent, treat, cure or diagnose any disease or condi tion. If you have any medical condition, you should always consult a licensed Physician. If you make any changes to your behavior based on data received from your Leep Ring 1 you agree that you do so at your own risk. The Leep Ring 1 surface materials are safe for skin contact according to the ISO 10993 standard. If you experience irritation on your skin due to the Leep Ring 1, remove the ring. Please contact a physician if the skin irritation persists after not using Leep Ring 1. Please be careful so that the Leep Ring 1 does not get caught on fixed structures or heavy objects.…

Text truncated - open the document above for the full version.

LeepHealthLimited Date:November21,2025 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:AttestationStatementsPart2.911(d)(5)(i)requestforFCCID:2BSX5-LR1 LeepHealthLimitedcertifiesthattheequipmentforwhichauthorizationissoughtisnot “covered”equipmentprohibitedfromreceivinganequipmentauthorizationpursuantto section2.903oftheFCCrules. Wealsocertifythat,asofthedateofthefilingoftheapplication,theequipmentdoes notutilizecyber-securityoranti-virussoftwarefromKasperskyLab,Inc,oranyofits successorsandassignees,whichisalsoonthe“coveredlist”. Sincerely, (Applicantsignature) (Applicantprintedname)：SimonNeave LeepHealthLimited Date:November21,2025 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:AttestationStatementsPart2.911(d)(5)(ii)requestforFCCID:2BSX5-LR1 LeepHealthLimitedcertifiesthat,asofthedateofthefilingoftheapplication,the applicantisnotidentifiedontheCoveredListasanentityproducing“covered” equipment. Sincerely, (Applicantsignature) (Applicantprintedname)：SimonNeave

LeepHealthLimited Date:November21,2025 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:CONFIDENTIALITYREQUEST Product:LeepSmartRing ModelNO.:LeepRing1 FCCID:2BSX5-LR1 ToWhomItMayConcern: Thisletterservesasanofficialrequestforconfidentialityundersections0.457and0.459 ofCFR47.Wehaverequestedthatthe(SchematicDiagram,BlockDiagram,Operational Description)requiredtobesubmittedwiththisapplicationbepermanentlywithheldfrom publicreview. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsidered asproprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthese documentsmightbeharmfultoourcompanyandwouldgivecompetitorsanunfair advantageinthemarket. Pleasecontactmeifthereisanyinformationyoumayneed. Sincerely, Signature: Name:SimonNeave Title:Co-Founder

LeepHealthLimited Date:November21,2025 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:LETTEROFAGENTAUTHORIZATION FCCID:2BSX5-LR1 ToWhomItMayConcern: We,theundersigned,herebyauthorizeShenzhenHuaxiaTestingTechnologyCo.,Ltd.toacton ourbehalfinallmattersrelatingtoapplicationforequipmentauthorization,includingthesigning ofalldocumentsrelatingtothesematters. Wealsoherebycertifythatnopartytotheapplicationauthorizedhereunderissubjecttothe denialofbenefits,includingFCCbenefits,pursuanttoSection5301oftheAnti-DrugAbuseAct of1988,21U.S.C.853(a). Thisagreementexpiresoneyearfromthecurrentdate. Sincerely, Signature: Name:SimonNeave Title:Co-Founder

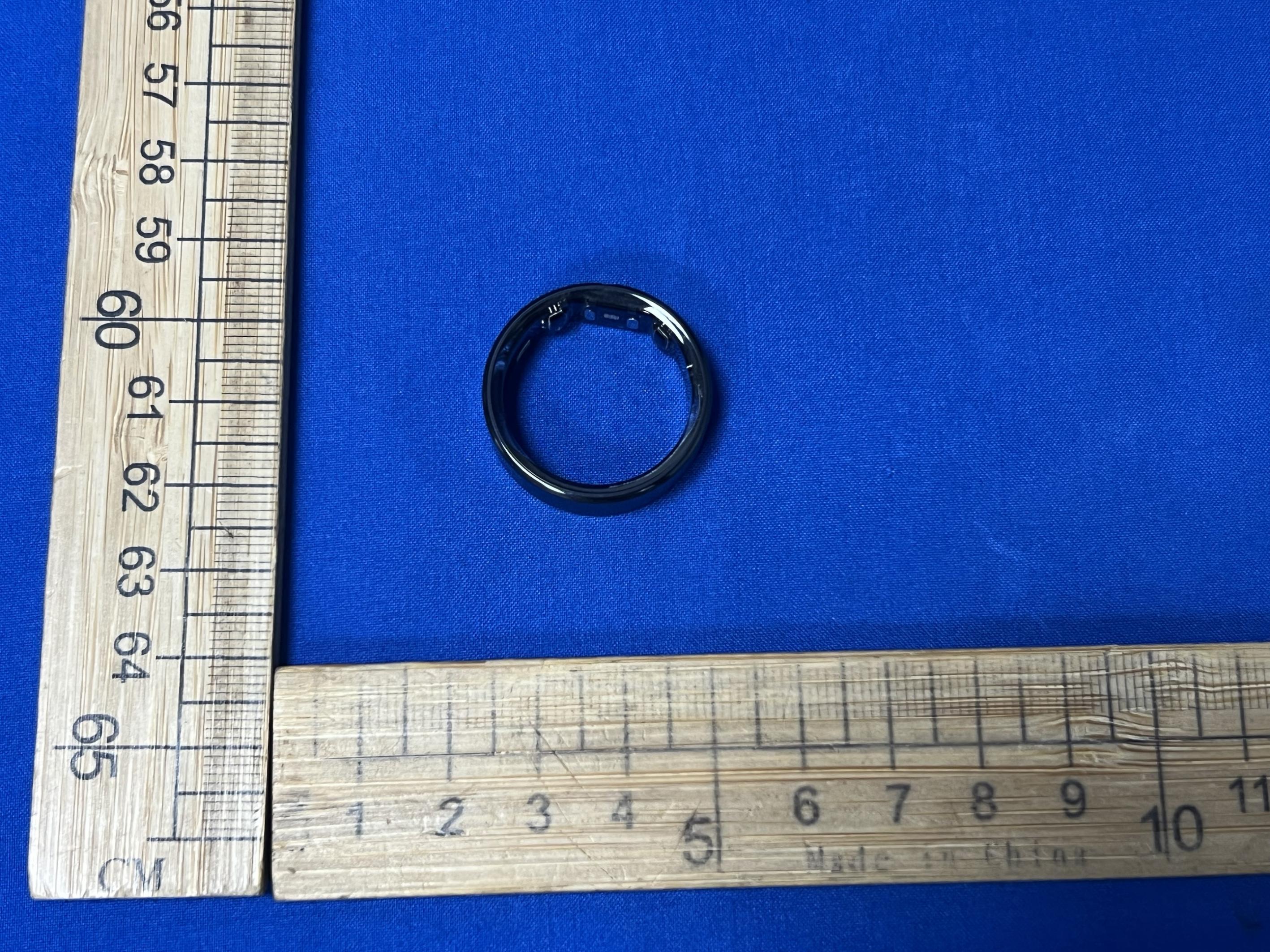

Externalphotos

LeepSmartRing Mode:LeepRing1 ChargingcaseInput:5V1A RingInput:5V16mA FCCID:2BSX5-LR1 BatchNo:LR1MB+250829468 Size:32.8*24.1mm Labellocation

Internalphotos

ShenzhenHuaxiaTestingTechnologyCo.,Ltd. 1F.,BlockAofTongshengTechnologyBuilding,HuahuiRoad,DalangStreet,LonghuaDistrict, Shenzhen,China Telephone:+86-755-26648640 Fax:+86-755-26648637 Website:www.cqa-cert.com ReportTemplateVersion:V05 ReportTemplateRevisionDate:2021-11-03 RFExposureEvaluationReport Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp,Theresult(s)showninthisreportreferonlyto thesample(s)tested.WithoutwrittenapprovalofCQA,thisreportcan’tbereproducedexceptinfull. ReportNo.:CQASZ20251002457E-02 Applicant: LeepHealthLimited AddressofApplicant: 71-75SheltonStreet,CoventGarden,WC2H9JQ,LondonUnitedKingdom EquipmentUnderTest(EUT): EUTName: LeepSmartRing TestModelNo.: LeepRing1 ModelNo.: LeepRing1 BrandName: N/A FCCID:2BSX5-LR1 Standards: 47CFRPart1.1307 47CFRPart2.1093 447498D04InterimGeneralRFExposureGuidancev01 DateofReceipt:2025-10-21 DateofTest: 2025-10-21to2025-11-25 DateofIssue:2025-11-25 TestResult:PASS* *Intheconfigurationtested,theEUTcompliedwiththestandardsspecifiedabove TestedBy: (LewisZhou) ReviewedBy: (TimoLei) ApprovedBy: (JackAi) ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20251002457E-02 Page:2of7 1Version RevisionHistoryOfReport ReportNo.Version Description IssueDate CQASZ20251002457E-02Rev.01 Initialreport 2025-11-25 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20251002457E-02 Page:3of7 2Contents Page 1VERSION............................................................................................................................................................................2 2CONTENTS........................................................................................................................................................................3 ..................................................................................................................................................................................................3 3GENERALINFORMATION..............................................................................................................................................4 3.1CLIENTINFORMATION...................................................................................................................................................4 3.2GENERALDESCRIPTIONOFEUT...................................................................................................................................4 3.3GENERALDESCRIPTIONOFBLE...................................................................................................................................4 4SAREVALUATION...........................................................................................................................................................5 4.1RFEXPOSURECOMPLIANCEREQUIREMENT.................................................................................................................5 4.1.1StandardRequirement......................................................................................................................................5 4.1.2Limits....................................................................................................................................................................5 4.1.3EUTRFExposure..............................................................................................................................................7 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20251002457E-02 Page:4of7 3GeneralInformation 3.1ClientInformation Applicant:LeepHealthLimited AddressofApplicant: 71-75SheltonStreet,CoventGarden,WC2H9JQ,LondonUnited Kingdom Manufacturer:JointChineseLtd AddressofManufacturer: Building4&6,HuafengTechPark,GuangtianRoad,LuotianIndustrial Area,SonggangTown,Bao’anDistrict,Shenzhen,China Factory:JointChineseLtd AddressofFactory: Building4&6,HuafengTechPark,GuangtianRoad,LuotianIndustrial Area,SonggangTown,Bao’anDistrict,Shenzhen,China 3.2GeneralDescriptionofEUT ProductName: LeepSmartRing ModelNo.: LeepRing1 TestModelNoLeepRing1 TradeMark: N/A EUTSupportsRadiosapplication: Bluetoothmode 2402-2480MHz SoftwareVersion: X6A01_V12 HardwareVersion: X6_MBV2.0 SampleType: MobilePortableFixLocation EUTPowerSupply: Li-ionbattery:DC3.92V16mAh,ChargebyDC5VforChargingcase 3.3GeneralDescriptionofBLE OperationFrequency: 2402MHz~2480MHz BluetoothVersion: V5.0 ModulationTechnique: NonFrequencyHoppingSpreadSpectrum(NFHSS) ModulationType: GFSK NumberofChannel: BLE:40 TransferRate:BLE:1Mbps TestSoftwareofEUT: nrfgostudio AntennaType:Chipantenna AntennaGain:0.9dBi ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20251002457E-02 Page:5of7 4SAREvaluation 4.1RFExposureComplianceRequirement 4.1.1StandardRequirement 447498D04InterimGeneralRFExposureGuidancev01 3.2.SARTestReductionGuidance SARtestreductionprocedures[Glossary]allowusingaparticularsetoftestdataas representativeofother,similar,testconditions.Thismaybeappliedfordatawithindifferenttest positions(e.g.body,head,extremity),wirelessmodes(e.g.Wi-Fi,cellular),andfrequencybands.This testreductionprocessprovidesfortheuseoftestdataforonespecificchannel,whilereferencingto thosedatafordemonstratingcomplianceinotherrequiredchannelsforeachtestpositionofan exposurecondition,withintheoperatingmodeofafrequencyband.Thisislimitedspecificallytowhen thereported1-gor10-gSARforthemid-bandorhighestoutputpowerchannelmeetsanyofthe followingconditions. 4.1.2Limits SAR-basedthresholdsarederivedbasedonfrequency,power,andseparationdistanceoftheRF source.Theformuladefinesthethresholdsingeneralforeitheravailablemaximumtime averaged powerormaximumtime-averagedERP,whicheverisgreater. IftheERPofadeviceisnoteasilydetermined,suchasforaportabledevicewithasmallform factor,theapplicantmayusetheavailablemaximumtime-averagedpowerexclusivelyifthe deviceantennaorradiatingstructuredoesnotexceedanelectricallengthofλ/4. Asfordeviceswithantennasoflengthgreaterthanλ/4wherethegainisnotwelldefined,but alwayslessthanthatofahalf-wavedipole(lengthλ/2),theava…

Text truncated - open the document above for the full version.

深圳市卓联微科技有限公司JTW2G45AN3216T100R www.jointwel.com.cnTEL:4008-515-3981 JTW2G45AN3216T100R MultilayerChipAntenna For2.45GHzWirelessCommunication SHENZHENJOINTWELTECHNOLOGY CO.. LTD Internet Industry, No. 1009, Baoyuan Road, Bao'an District, Shenzhen 3B02/3B06, 4th floor, Building 5, Zone A of the base www.jointwel.com.cnTEL:4008-515-3982 Features ※MonolithicSMDwithsmall,low-profileandlight-weighttype. ※Widebandwidth ※RoHScompliant Applications ※Bluetooth/WirelessLAN/HomeRF ※ISMband2.4GHzapplications Specifications Centerfrequency2.45GHz Bandwidth100MHz(typ.) Peakgain0.9dBi(typ.)(XZ-total) AverageGain-3.1dBi(typ.)(XZ-total) VSWR2(max) Impedance50Ω PowerCapacity3W(max) Operationtemperature-40~+85°C Storagetemperature-40~+85°C 深圳市卓联微科技有限公司JTW2G45AN3216T100R www.jointwel.com.cnTEL:4008-515-3983 TerminalConfiguration PinNo.PinassignmentPinNo.Pinassignment 12GND 3GND4GND DimensionsandRecommendedPCBoardPattern SymbolLWHab Dimensions(mm)3.2±0.21.6±0.20.5max0.3+0.1/-0.20.5±0.2     Unit : mm b H L a w b 深圳市卓联微科技有限公司JTW2G45AN3216T100R Feeding Ponit www.jointwel.com.cnTEL:4008-515-3984 TypicalElectricalCharacteristics(T=25oC) ※TestBoard ※WithMatchingCircuits-Unitinmm * Feeding line 1.02.01.0 0.6 0.7 0.6 4.1 4.0 2.7 nH Matching Circuits No ground Ground Land Solder Resist Via Ground Feeding Line Antenna No Ground 40mm 20mm Matching Circuits 深圳市卓联微科技有限公司JTW2G45AN3216T100R *Linewidthshouldbedesignedtomatch50characteristicimpedance,dependingonPCB materialandthickness. Ω www.jointwel.com.cnTEL:4008-515-3985 ※ReturnLoss-withmatchingcircuits 2314 -25 -20 -15 -10 -5 -30 0 freq, GHz dB(S(1,1)) m6 m7 m8 m6 freq= dB(S(1,1))=-14.609 2.500GHz m7 freq= dB(S(1,1))=-44.828 2.450GHz m8 freq= dB(S(1,1))=-13.086 2.400GHz 深圳市卓联微科技有限公司JTW2G45AN3216T100R www.jointwel.com.cnTEL:4008-515-3986 ※RadiationPatterns-(AntennaEfficiency65%@2.4GHz; 72%@2.45GHz;70%@2.5GHz) Y :Φ(Phi)=90 o X :Φ(Phi)=0 o Z : θ(Theta)=0 o XY-plane @2450MHz Total YZ-plane @2450MHz Total XZ-plane @2450MHz Total 深圳市卓联微科技有限公司JTW2G45AN3216T100R www.jointwel.com.cnTEL:4008-515-3987 Mechanical&EnvironmentalCharacteristics ItemRequirementsProcedure Solderability 1.Noapparentdamage 2.Morethan95%oftheterminal electrodeshallbecoveredwith newsolder 1.Preheat:120±5°C 2.Solder:245±5°Cfor5±1sec Solderingstrength (Termination Adhesion) 1.1kgminimum 1.Solderspecimenontotestjig. 2.Applypushforceat0.5mm/s untilelectrodepadsare peeledofforceramicarebroken. Pushingforceis appliedtolongitudedirection Deflection (Substrate Bending) 1.Noapparentdamage 1.Solderspecimenontotestjig (FR4,0.8mm)usingthe recommendsolderingprofile. 2.Applyabendingforceof2mm deflection 90mm Pressure Rod R230 深圳市卓联微科技有限公司JTW2G45AN3216T100R www.jointwel.com.cnTEL:4008-515-3988 Heat/Humidity Resistance 1.Noapparentdamage 2.Fulfilltheelectrical specification aftertest 1.Temperature:85±2°C 2.Humidity:90%~95%RH 3.Duration:1000±48hrs 4.Recovery:1-2hrs Thermalshock (Temperature Cycle) 1.Noapparentdamage 2.Fulfilltheelectrical specificationaftertest 1.Onecycle/step1：125±5°C for30min step2：-40±5°Cfor30min 2.Noofcycles：100 3.Recovery:1-2hrs LowTemperature Resistance 1.Noapparentdamage 2.Fulfilltheelectrical specificationaftertest 1.Temperature:-40±5°C 2.Duration:500±24hrs 3.Recovery:1-2hrs 深圳市卓联微科技有限公司JTW2G45AN3216T100R www.jointwel.com.cnTEL:4008-515-3989 SolderingConditions ※TypicalSolderingProfileforLead-freeProcess ReflowSoldering: Notes ※Thecontentsofthisdatasheetaresubjecttochangewithout notice.Pleaseconfirmthespecificationsanddeliveryconditions whenplacingyourorder. Temperature ( o C) Pre-heating 60-180s Time (s.) 20s max. 260 o C 150-200 o C 217 o C 60-150s. 深圳市卓联微科技有限公司JTW2G45AN3216T100R www.jointwel.com.cnTEL:4008-515-39810 RemindersforusersofJTWceramicchipantennas 1.Thischipantennaismadeofceramicmaterialswhichare relativelymorerigidandbrittlecomparedtoprintedcircuitboard materials.Bendingofcircuitboardatthelocationswherechip antennaismountedmaycausethecrackingofsolderjointsor antennaitself. 2.Punching/cuttingofthebreak-offtabofPCBpanelmaycause severebendingofthecircuitboardwhichmayresultincrackingof solderjointsorchipantennaitself.Thereforebreak-offtabshall belocatedawayfromtheinstallationsiteofchipantenna. 3.Becautiouswhenultrasonicweldingprocessneedstobeused nearthelocationswherechipantennasareinstalled.Strong ultrasonicvibrationmaycausethecrackingofchipantennasolder joints. PresenteddataweremeasuredonreferencePCB(ground)as showninthisspecification.Whentheantennaplacementorsize ofthePCBischanged,antennaperformanceandvaluesof matchingcomponentsmaydifferfromdatashownhere. 4.InformationpresentedinthisReferenceSpecificationisbelievedto becorrectasofthedateofpublishing.JointWelTechnologies CorporationreservestherightstochangetheReference Specificationwithoutnoticeduetotechnicalimprovements,etc. PleaseconsultwithJointWel’sengineeringteamaboutthelatest informationbeforeusingthisproduct.Perrequest,wemay provideadviceandassistanceinimplementingthisantennatoa customer’sdevicebysimulationorrealmeasurementofthe interesteddeviceinourtestingfacilities. 深圳市卓联微科技有限公司JTW2G45AN3216T100R

ShenzhenHuaxiaTestingTechnologyCo.,Ltd. 1F.,BlockAofTongshengTechnologyBuilding,HuahuiRoad,DalangStreet,LonghuaDistrict, Shenzhen,China Telephone:+86-755-26648640 Fax:+86-755-26648637 Website:www.cqa-cert.com ReportTemplateVersion:V05 ReportTemplateRevisionDate:2021-11-03 TestReport Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp,Theresult(s)showninthisreportreferonly tothesample(s)tested.WithoutwrittenapprovalofCQA,thisreportcan’tbereproducedexceptinfull. ReportNo.:CQASZ20251002457E-01 Applicant: LeepHealthLimited AddressofApplicant: 71-75SheltonStreet,CoventGarden,WC2H9JQ,LondonUnitedKingdom EquipmentUnderTest(EUT): Product: LeepSmartRing ModelNo.: LeepRing1 TestModelNo.: LeepRing1 BrandName: N/A FCCID:2BSX5-LR1 Standards:47CFRPart15,SubpartC KDB558074D0115.247MeasGuidancev05r02 ANSIC63.10:2020 DateofReceipt:2025-10-21 DateofTest: 2025-10-21to2025-11-25 DateofIssue:2025-11-25 TestResult:PASS* *Intheconfigurationtested,theEUTcompliedwiththestandardsspecifiedabove. TestedBy: (LewisZhou) ReviewedBy: (TimoLei) ApprovedBy: (JackAi) ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20251002457E-01 Page: 2 of 49 1Version RevisionHistoryOfReport ReportNo.Version Description IssueDate CQASZ20251002457E-01Rev.01Initialreport2025-11-25 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20251002457E-01 Page: 3 of 49 2TestSummary TestItemTestRequirementTestmethodResult AntennaRequirement 47CFRPart15,SubpartCSection 15.203/15.247(c) ANSIC63.102020PASS ACPowerLine Conducted Emission 47CFRPart15,SubpartCSection 15.207 ANSIC63.102020PASS ConductedPeakOutput Power 47CFRPart15,SubpartCSection 15.247(b)(3) ANSIC63.102020PASS 6dBOccupied Bandwidth 47CFRPart15,SubpartCSection 15.247(a)(2) ANSIC63.102020PASS PowerSpectralDensity 47CFRPart15,SubpartCSection 15.247(e) ANSIC63.102020PASS Band-edgeforRF ConductedEmissions 47CFRPart15,SubpartCSection 15.247(d) ANSIC63.102020PASS RFConductedSpurious Emissions 47CFRPart15,SubpartCSection 15.247(d) ANSIC63.102020PASS RadiatedSpurious Emissions 47CFRPart15,SubpartCSection 15.205/15.209 ANSIC63.102020PASS Restrictedbandsaround fundamentalfrequency (RadiatedEmission) 47CFRPart15,SubpartCSection 15.205/15.209 ANSIC63.102020PASS ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20251002457E-01 Page: 4 of 49 3Contents Page 1VERSION..........................................................................................................................................................................2 2TESTSUMMARY............................................................................................................................................................3 3CONTENTS......................................................................................................................................................................4 4GENERALINFORMATION...........................................................................................................................................5 4.1CLIENTINFORMATION.................................................................................................................................................5 4.2GENERALDESCRIPTIONOFEUT.................................................................................................................................5 4.3ADDITIONALINSTRUCTIONS........................................................................................................................................7 4.4TESTENVIRONMENT...................................................................................................................................................8 4.5DESCRIPTIONOFSUPPORTUNITS...............................................................................................................................8 4.6TESTCONFIGURATION................................................................................................................................................8 4.7STATEMENTOFTHEMEASUREMENTUNCERTAINTY....................................................................................................9 4.8TESTLOCATION........................................................................................................................................................10 4.9TESTFACILITY..........................................................................................................................................................10 4.10DEVIATIONFROMSTANDARDS................................................................................................................................10 4.11OTHERINFORMATIONREQUESTEDBYTHECUSTOMER..........................................................................................10 4.12EQUIPMENTLIST.....................................................................................................................................................11 5TESTRESULTSANDMEASUREMENTDATA.....................................................................................................12 5.1ANTENNAREQUIREMENT..........................................................................................................................................12 5.2CONDUCTEDEMISSIONS............................................................................................................................................13 5.3CONDUCTEDPEAKOUTPUTPOWER..........................................................................................................................17 5.46DBOCCUPYBANDWIDTH........................................................................................................................................22 5.5POWERSPECTRALDENSITY......................................................................................................................................25 5.6BAND-EDGEFORRFCONDUCTEDEMISSIONS..........................................................................................................28 5.7SPU…

Text truncated - open the document above for the full version.

Setupphotos 1Photographs-EUTTestSetup 1.1RadiatedSpuriousEmission 9kHz~30MHz: 30MHz~1GHz: Above1GHz: 1.2ConductedEmissionsTestSetup 1.3RFConductedmeasurement
