2BSXO-CG1Smart Grill

INSTRUCTION MANUAL MODEL: CG1 Read this booklet thoroughly before using and save it for future reference IMPORTANT SAFEGARDS When using electrical appliances, basic precautions should always be followed, including the following: 1.Read all instructions. 2.Do not touch hot surfaces. Use handles or knobs. 3.Before using, always check that the electrical rating of the power socket corresponds to that of the appliance. 4.To protect against fire, electric shock and injury to persons, do not immerse cord, plug, or the grill in water or other liquid. 5.If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. 6.Close supervision is necessary when any appliance is used by or near children. 7.Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance. 8.Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or adjustment. 9.The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock or injury to persons. 10.Do not use outdoors. 11.Do not let cord hang over edge of table or counter, or touch hot surface. 12.Do not place on or near a hot gas or electric burner, or in a heated oven. 13.Extreme caution must be used when moving an appliance containing hot oil or other hot liquids. 14.To disconnect, turn off any control, then remove plug from wall outlet. 15.Do not use appliance for other than intended use. 16.The appliance must not be used by an external timer or remote control system. Don’t use an accessory not recommended by the manufacturer. 17.Don’t wrap food with plastic film, polythene bags or metal foil. You’ll damage the grill and may cause a fire hazard. Don’t leave food to cool on the grill. Remove food while hot. 18.Don’t use metal or sharp utensils on the grill. They’ll damage the non-stick cooking surface. Use wooden or plastic spatulas or tongs. 19.This appliance is not intended for used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety. 20.Children should be supervised to ensure that they do not play with the appliance. 21.WARNING: charcoal or similar combustible fuels must not be used with this appliance. 22.CAUTION-‘hot surface’. The appliance generates heat and escaping steam during use. Take proper measures to prevent injury, burn or fire. 23.Never transport the appliance with handle. 24. This appliance is intended to be used in household and similar applications such as: – Staff kitchen areas in shops, offices and other working environments; – Farm houses; – By clients in hotels, motels and other residential type environments; – Bed and breakfast type environments 25. The appliance is not intended to be operated by means of an external timer or separate remote-control system. 26. Save these instructions. KNOW YOUR BARBEQUE GRILL UPPER RELEASE BUTTON INITIAL USE Unpack the package, take out all the accessories and clean them according to the section of “CLEAN AND MAINTENANCE”. ASSEMBLE THE ROASTING TRAYS Normally, the grill is opened at an angle of 105 degree .The top roasting tray can be level with the bottom roasting tray to create a large cooking surface and assemble the top roasting tray. DECORATIVE PLATE PUSH BUTTON Right Pole Left pole BUTTON upper /lower cooking plate PIN PLUG SILICON Handle BASE COVER BRACKET GLASS COVER Upper housing STORAGE BOX RIGHT HINGE BASE COVER BRACKET FRONT PANEL DRIP BOX LOWER RELEASE BUTTON BASE COVER MAGNET BOX First open the grill to a angle which is less than 105°, then push the pushing knob upward with the other hand and hold the handle with one hand to open the grill to 180°. Insert the trays into the clamps near the hinge and push down the front end of tray with a little force to snap the tray into place. Then close the grill, just pull the handle toward you directly. Control Panel Description: See figure below --------Memory button: Mainly used for manual mode grilling, users are satisfied with the previous grilling effect. Pressing this button can record three grilling parameters. During the process, it is possible to continuously update the parameters of the last roasted food needed. When saving for the second time, the previous parameters will be overwritten and the most recent parameters will prevail. And only three grilling parameters can be saved, Memory 1/Memory 2/Memory 3. -----The buttons for increasing and decreasing the machine time and temperature, the confirm/pause heating button, and the OK button for 2 seconds will automatically enter standby mode. Operation Description: 1.Close the entire machine and plug in the power plug. (Buzzer beeps once) 2.Press the power button to turn on: (Buzzer beeps once) OK,Buttom button Bacon Upper plate Temperature Power switch Steak Fish n M button (for manual setting） Sausage Probe temperature STORAGE lamp Time Chicke n －；Buttom button ＋；Buttom button Hamburger Lower plate Temperature Operation mode: intelligent grilling mode and M grilling mode (normal mode); M grilling mode: 1.The panel is a touch screen, which can be selected by tapping the corresponding menu on the panel. After turning on, the red light below will light up, continuously displaying gradient colors and food categories. The default M menu logo light will light up. 1）Close the lid and operate in M mode. When turned on, it defaults to M mode. Press the OK button to adjust the temperature of both the upper and lower plates simultaneously. The temperature indicator will flash when the light is on. You can press the “-” or “+” button to adjust the …

Text truncated - open the document above for the full version.

Local Representative Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(7), of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC ID Model name 2BSXO-CG1 CG1 We hereby acknowledge as follows: i. both signees confirm that the point of contact accepts responsibility to act as a US- American Representative on behalf of the applicant ii. the point of contact provides the physical U.S. address and email as listed below iii. both parties maintain the requirements of this agreement for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. iv. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. US-American Point of Contact Applicant/Approval Holder Signature Date: 2025-11-21 Signature Date: 2025-11-21 Company Name: GLOCERTS TECHNOLOGY INC Foneric Solutions Co.,Ltd. FRN: 0036339737 0037627346 Contact Name: Huiying Fan Jieliang Lin Address: 19784 SUNKISSED RIDGE DR, RIVERSIDE, CA 92507 501,Fuxing Bldg,Binglang Road,Futian Free Trade Zone, Shenzhen, China Phone: (626) 588-8039 +8613510204411 Email: [email protected] [email protected]

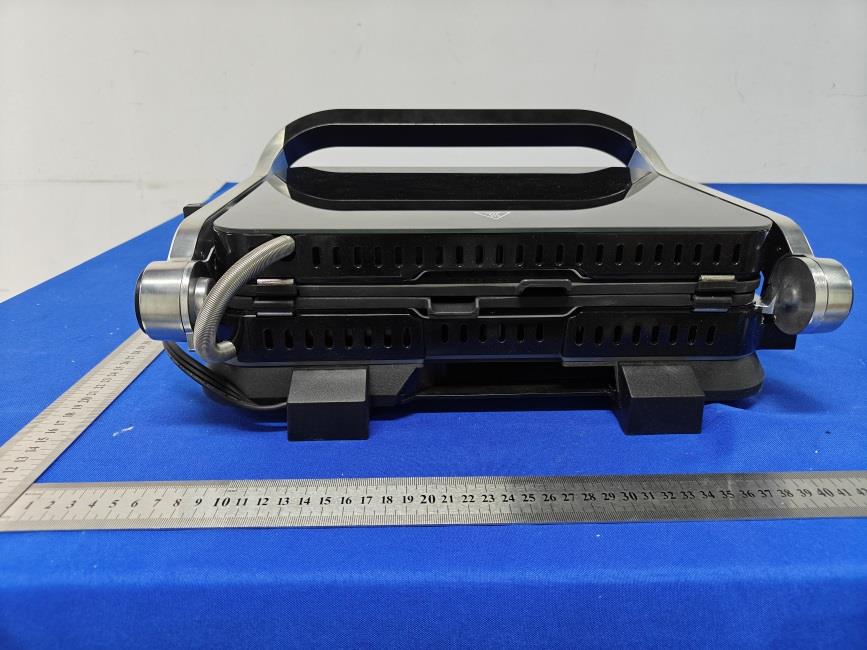

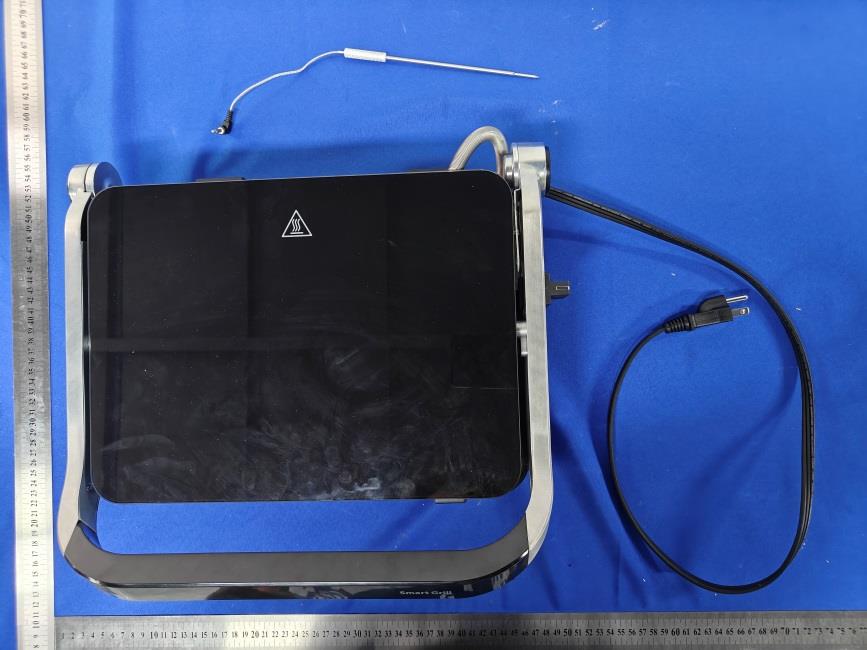

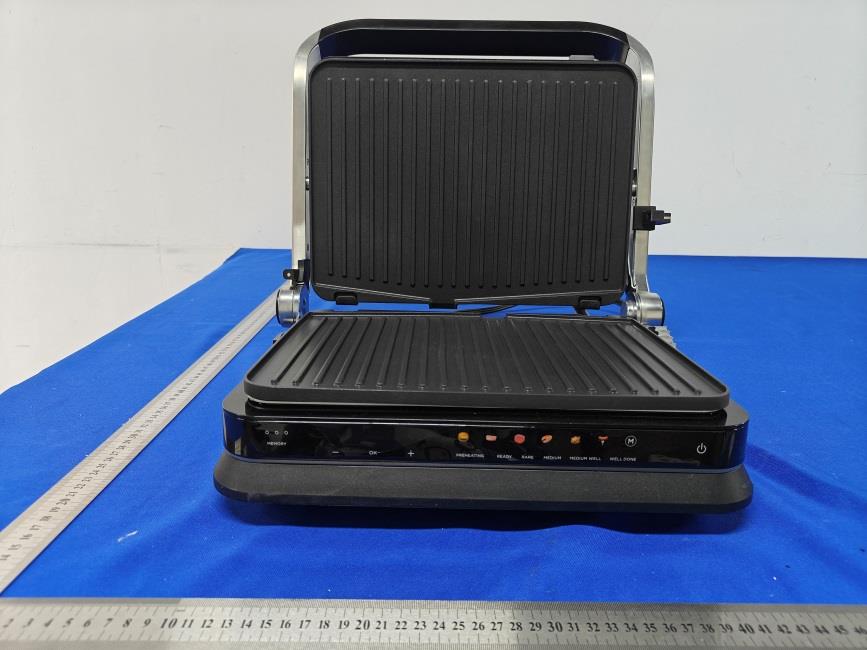

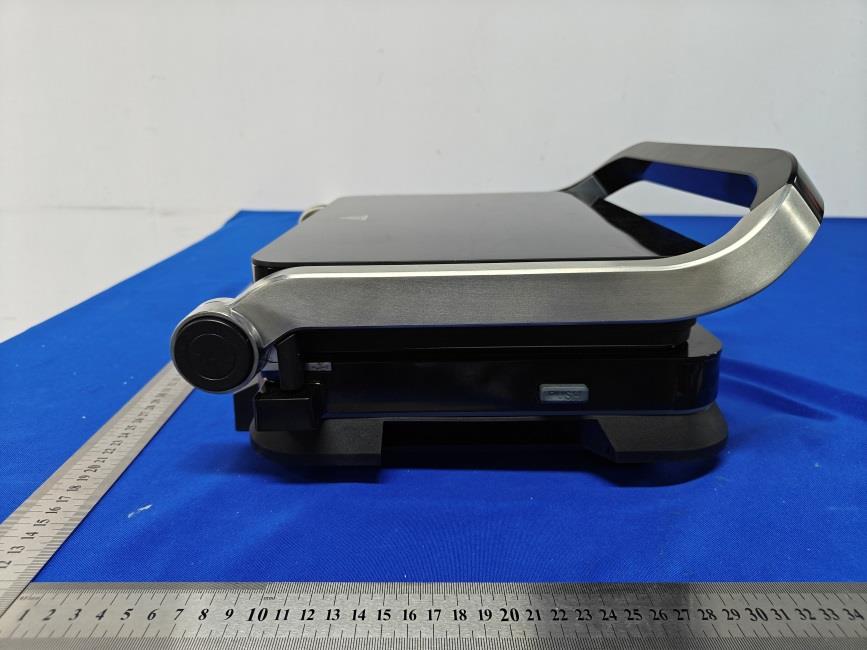

Page 1 of 3 FCC ID: 2BSXO-CG1 External Photos Page 2 of 3 FCC ID: 2BSXO-CG1 Page 3 of 3 FCC ID: 2BSXO-CG1

Label FCC ID: 2BSXO-CG1

Page 1 of 3 FCC ID: 2BSXO-CG1 Internal photos Page 2 of 3 FCC ID: 2BSXO-CG1 PCB ANT Page 3 of 3 FCC ID: 2BSXO-CG1

Page 2 of 8 Report No.: AiTSZ-251113002FW2 Report Revise Record Report VersionIssued DateNotes M0Nov.21, 2025Initial Release Page 3 of 8 Report No.: AiTSZ-251113002FW2 Contents 1GENERAL INFORMATION........................................................................................................................................4 1.1ENVIRONMENTAL CONDITIONS........................................................................................................................................4 1.2GENERAL DESCRIPTION OF EUT......................................................................................................................................4 1.3TEST FACILITY..............................................................................................................................................................6 1.4MEASUREMENT UNCERTAINTY........................................................................................................................................6 2METHOD OF MEASUREMENT..................................................................................................................................7 2.1APPLICABLE STANDARD.................................................................................................................................................7 2.2LIMIT.........................................................................................................................................................................7 2.3MPE CALCULATION METHOD........................................................................................................................................8 2.4ANTENNA INFORMATION...............................................................................................................................................8 2.5MANUFACTURING TOLERANCE.......................................................................................................................................8 2.6STANDALONE MPE RESULT.........................................................................................................................................11 2.7CONCLUSION.............................................................................................................................................................11 Page 4 of 8 Report No.: AiTSZ-251113002FW2 1GENERAL INFORMATION 1.1Environmental conditions During the measurement the environmental conditions were within the listed ranges: Normal Temperature:25°C Relative Humidity:55 % Air Pressure:101 kPa 1.2General Description of EUT Product Name:Smart Grill Model/Type reference:CG1 Serial Model:N/A Power Supply:AC 120V/60Hz Hardware Version: N/A Software Version: N/A Sample(s) Status: AiTSZ-251113002-1(Normal sample) AiTSZ-251113002-2(Engineer sample) Bluetooth LE: Supported type: Bluetooth LE 1M/2M Modulation: GFSK Operation frequency: 2402MHz~2480MHz Channel number: 40 Channel separation: 2MHz Antenna type: PCB antenna Antenna gain: 1.77 dBi Remark: The above DUT's information was declared by manufacturer. For more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. Page 5 of 8 Report No.: AiTSZ-251113002FW2 1.3Test Facility Test Laboratory: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China The test facility is recognized, certified or accredited by the following organizations: FCC-Registration No.: 251906 Designation Number: CN1376 Guangdong Asia Hongke Test Technology Limited has been registered and fully described in a report filed with the (FCC) Federal Communications Commission. The acceptance letter from the FCC is maintained in our files. IC —Registration No.: 31737 CAB identifier: CN0165 The 3m Semi-anechoic chamber of Guangdong Asia Hongke Test Technology Limited has been registered by Certification and Engineering Bureau of Industry Canada for radio equipment testing with Registration No.: 31737 A2LA-Lab Cert. No.: 7133.01 Guangdong Asia Hongke Test Technology Limited has been accredited by A2LA for technical competence in the field of electrical testing, and proved to be in compliance with ISO/IEC 17025: 2017 General Requirements for the Competence of Testing and Calibration Laboratories and any additional program requirements in the identified field of testing. 1.4Measurement uncertainty The data and results referenced in this document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment and facilities. The measurement uncertainty was calculated for all measurements listed in this test report according to CISPR 16 - 4 “Specification for radio disturbance and immunity measuring apparatus and methods – Part 4: Uncertainty in EMC Measurements” and is documented in the Guangdong Asia Hongke Test Technology Limited’s quality system according to DIN EN ISO/IEC 17025. Furthermore, component and process variability of devices similar to that tested may result in additional deviation. The manufacturer has the sole responsibility of continued compliance of the device. Hereafter the best measurement capability for Asia Hongke laboratory is reported: Test Measurement Uncertainty Notes Power Line Conducted Emission9KHz~30MHz ±1.20 dB(1) Radiated Emission9KHz~30MHz ±3.10dB(1) Radiated Emission30MHz~1GHz ±3.75dB(1) Radiated Emission1GHz~18GHz ±3.88 dB(1) Radiated Emission18GHz-40GHz ±3.88dB(1) RF power, conducted30MHz~6GHz ±0.16dB(1) RF power density, conducted±0.24dB(1) Spurious emissions, conducted±0.21dB(1) Temperature±1°C(1) Humidity±3%(1) DC and low frequency voltages±1.5%(1) Time±2%(1) Duty cycle±2%(1) The report uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty Multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95%. Page 6…

Text truncated - open the document above for the full version.

Page 2 of 31 Report No.: AiTSZ-251113002FW1 Report Revise Record Report VersionIssued DateNotes M0Nov.21, 2025Initial Release Page 3 of 31 Report No.: AiTSZ-251113002FW1 Contents 1TEST SUMMARY......................................................................................................................................................4 1.1TEST STANDARDS.........................................................................................................................................................4 1.2TEST SUMMARY...........................................................................................................................................................4 1.3TEST FACILITY..............................................................................................................................................................5 1.4MEASUREMENT UNCERTAINTY........................................................................................................................................5 2GENERAL INFORMATION ........................................................................................................................................6 2.1ENVIRONMENTAL CONDITIONS........................................................................................................................................6 2.2GENERAL DESCRIPTION OF EUT ......................................................................................................................................6 2.3DESCRIPTION OF TEST MODES AND TEST FREQUENCY.........................................................................................................7 2.4SPECIAL ACCESSORIES...................................................................................................................................................8 2.5EQUIPMENT LIST FOR THE TEST.......................................................................................................................................8 3TEST CONDITIONS AND RESULTS...........................................................................................................................10 3.1CONDUCTED EMISSIONS TEST.......................................................................................................................................10 3.2RADIATED EMISSIONS AND BAND EDGE..........................................................................................................................13 3.3MAXIMUM PEAK CONDUCTED OUTPUT POWER...............................................................................................................20 3.4POWER SPECTRAL DENSITY..........................................................................................................................................21 3.56DB BANDWIDTH......................................................................................................................................................22 3.6OUT-OF-BAND EMISSIONS...........................................................................................................................................23 3.7ANTENNA REQUIREMENT.............................................................................................................................................25 4TEST SETUP PHOTOGRAPHS OF EUT ......................................................................................................................26 5PHOTOS OF EUT ....................................................................................................................................................27 Page 4 of 31 Report No.: AiTSZ-251113002FW1 1 TEST SUMMARY 1.1 Test Standards The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz ANSI C63.10: 2020: American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 15.247 Meas Guidance v05r02: Guidance for Compliance Measurements on Digital Transmission System, Frequency Hopping Spreda Spectrum System, and Hybrid System Devices Operating Under Section 15.247 of the FCC Rules 1.2 Test Summary Test ItemSection in 47 CFRResult Antenna requirement§15.203Pass On Time and Duty Cycle// AC Power Line Conducted Emission §15.207(a) Pass Conducted Peak Output Power§15.247 (b)(3)Pass Channel Bandwidth §15.247 (a)(2)Pass Power Spectral Density§15.247 (e)Pass Transmitter Radiated Spurious Emission §15.205/15.209Pass Restricted Bands§15.205/15.209PASS Conducted Unwanted emissions and Bandedge §15.205, §15.247(d)Pass Page 5 of 31 Report No.: AiTSZ-251113002FW1 1.3 Test Facility Test Laboratory: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China The test facility is recognized, certified or accredited by the following organizations: FCC-Registration No.: 251906 Designation Number: CN1376 Guangdong Asia Hongke Test Technology Limited has been registered and fully described in a report filed with the (FCC) Federal Communications Commission. The acceptance letter from the FCC is maintained in our files. IC —Registration No.: 31737 CAB identifier: CN0165 The 3m Semi-anechoic chamber of Guangdong Asia Hongke Test Technology Limited has been registered by Certification and Engineering Bureau of Industry Canada for radio equipment testing with Registration No.: 31737 A2LA-Lab Cert. No.: 7133.01 Guangdong Asia Hongke Test Technology Limited has been accredited by A2LA for technical competence in the field of electrical testing, and proved to be in compliance with ISO/IEC 17025: 2017 General Requirements for the Competence of Testing and Calibration Laboratories and any additional program requirements in the identified field of testing. 1.4 Measurement uncertainty The data and results re…

Text truncated - open the document above for the full version.

致力于为客户提供专业级天线解决方案 CG1 Antenna Specification 致力于为客户提供专业级天线解决方案 射频：曾祥好 日期：2021-10-12 报告版次：V0.1 Project development environment Yusheng Communication's products almost cover all antenna applications for wireless terminal devices, including automotive antennas, high-precision measurement and mapping antennas, ground and satellite data navigation for unmanned aerial vehicles, high-precision positioning antennas, wireless transmission for medical equipment, consumer antennas (mobile phone antennas, PAD antennas, laptop antennas), base station/indoor distributed antennas Smart wearable antennas (smartwatches, TWS headphones), security home antennas, and various smart device antennas for wireless data transmission and wireless control, etc. We are moving from the Internet era to the intelligent era, and the country is building a digital society and smart cities. In the next 5 to 10 years, both the consumer electronics market and the Internet of Things market hold huge potential for development. The field of wireless communication is highly diversified. In the future, Yusheng, relying on the customer platform advantages of its antenna main business and its own comprehensive strength, will strive to provide customers with professional-level product solutions that are competitive in the market. 致力于为客户提供专业级天线解决方案 1 Project Commissioning Introduction Outline of the report version Antenna passive efficiency Antenna active data 2 3 4 5 Environmental treatment Match changes 5 致力于为客户提供专业级天线解决方案 Project Commissioning Introduction Watch Machine type Material quality Frequency band BT Frequency band and antenna material On-board antenna 2.4G-2.5G Execute as per the customer's requirements Performance requirements 致力于为客户提供专业级天线解决方案 Outline of the report version The problems solved in this antenna developmentReport time Report version Preliminary Antenna debugging report2025-4-17 V0.1 Antenna Optimization Report2025-4-22 V0.2 Antenna optimization data and active data2025-4-28 V0.3 Antenna Optimization Report2025-7-7 V0.4 致力于为客户提供专业级天线解决方案 Passive parameters of Bluetooth antenna 致力于为客户提供专业级天线解决方案 Passive parameters of Bluetooth antenna 致力于为客户提供专业级天线解决方案 Passive parameters of Bluetooth antenna 致力于为客户提供专业级天线解决方案 Antenna efficiency 1110987654321 Test Point ID 2500. 0 2490. 0 2480. 0 2470. 0 2460. 0 2450. 0 2440. 0 2430. 0 2420. 0 2410. 0 2400. 0 Freq. (MHz) 1.171.331.281.471.611.771.641.521.270.840.67 Gain (dBi) 40.6%41.9%42.3%43.8%44.6%44.1%44.5%44.8%43.7%43.1%41.9% Efficienc y (%) 致力于为客户提供专业级天线解决方案 Antenna active data Free space test data/L Channel No. TIS (dBm) TRP (dBm) -87.615.8 0 -88.716.6 39 -88.416.2 78 致力于为客户提供专业级天线解决方案 Antenna size 致力于为客户提供专业级天线解决方案 Address：4th Floor, Building 2, Nantaiyun Chuanggu, Guangming Avenue, Guangming New District, Shenzhen Tel：0755-23984257 Fax：0755-86090455

Page 1 of 30 Report No.: AiTSZ-251113002FW2 Appendix RF test data for BLE Page 2 of 30 Report No.: AiTSZ-251113002FW2 1. Duty Cycle 1.1 Test Result 1.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) T_on (ms) Period (ms) Duty Cycle (%) Duty Cycle Correction Factor (dB) Max. DC Variation (%) 24021.6791.87689.500.480.03 24401.6791.87589.550.480.03 1MSISO 24801.6791.87689.500.480.03 24020.8661.25069.281.590.07 24400.8661.25069.281.590.03 2MSISO 24800.8661.25069.281.590.03 Page 3 of 30 Report No.: AiTSZ-251113002FW2 1.2 Test Graph 1.2.1 Ant1 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 4 of 30 Report No.: AiTSZ-251113002FW2 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page 5 of 30 Report No.: AiTSZ-251113002FW2 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV Page 6 of 30 Report No.: AiTSZ-251113002FW2 2. Bandwidth 2.1 Test Result 2.1.1 OBW 99% Occupied Bandwidth (MHz) Mode TX Type Frequency (MHz) ANT ResultLimit Verdict 240211.015/Pass 244011.014/Pass 1MSISO 248011.016/Pass 240212.033/Pass 244012.034/Pass 2MSISO 248012.034/Pass 2.1.2 6dB BW 6dB Bandwidth (MHz) Mode TX Type Frequency (MHz) ANT ResultLimit Verdict 240210.665>=0.5Pass 244010.663>=0.5Pass 1MSISO 248010.669>=0.5Pass 240211.173>=0.5Pass 244011.160>=0.5Pass 2MSISO 248011.171>=0.5Pass Page 7 of 30 Report No.: AiTSZ-251113002FW2 2.2 Test Graph 2.2.1 OBW 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 8 of 30 Report No.: AiTSZ-251113002FW2 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page 9 of 30 Report No.: AiTSZ-251113002FW2 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV Page 10 of 30 Report No.: AiTSZ-251113002FW2 2.2.2 6dB BW 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 11 of 30 Report No.: AiTSZ-251113002FW2 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page 12 of 30 Report No.: AiTSZ-251113002FW2 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV Page 13 of 30 Report No.: AiTSZ-251113002FW2 3. Maximum Conducted Output Power 3.1 Test Result 3.1.1 Power Maximum Peak Conducted Output Power (dBm) Mode TX Type Frequency (MHz) ANT1Limit Verdict 24021.46<=30Pass 24401.61<=30Pass 1MSISO 24801.25<=30Pass 24021.47<=30Pass 24401.64<=30Pass 2MSISO 24801.30<=30Pass Note1: Antenna Gain: Ant1: 1.77dBi; Page 14 of 30 Report No.: AiTSZ-251113002FW2 3.2 Test Graph 3.2.1 Power 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 15 of 30 Report No.: AiTSZ-251113002FW2 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page 16 of 30 Report No.: AiTSZ-251113002FW2 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV Page 17 of 30 Report No.: AiTSZ-251113002FW2 4. Maximum Power Spectral Density 4.1 Test Result 4.1.1 PSD Maximum PSD (dBm) Mode TX Type Frequency (MHz) ANT1Limit Verdict 24020.97<=8Pass 24401.21<=8Pass 1MSISO 24800.85<=8Pass 24020.66<=8Pass 24400.96<=8Pass 2MSISO 24800.66<=8Pass Note1: Antenna Gain: Ant1: 1.77dBi; Page 18 of 30 Report No.: AiTSZ-251113002FW2 4.2 Test Graph 4.2.1 PSD 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 19 of 30 Report No.: AiTSZ-251113002FW2 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page 20 of 30 Report No.: AiTSZ-251113002FW2 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV Page 21 of 30 Report No.: AiTSZ-251113002FW2 5. Unwanted Emissions In Non-restricted Frequency Bands 5.1 Test Result 5.1.1 Ref Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) 240210.96 244011.20 1MSISO 248010.87 240210.66 244010.94 2MSISO 248010.64 Note1: Refer to FCC Part 15.247 (d) and ANSI C63.10-2020, the channel contains the maximum PSD level was used to establish the reference level. 5.1.2 CSE Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) Limit (dBm) Verdict 240210.96-19.04Pass 244011.20-18.80Pass 1MSISO 248010.87-19.13Pass 240210.66-19.34Pass 244010.94-19.06Pass 2MSISO 248010.64-19.36Pass Note1: Refer to FCC Part 15.247 (d) and ANSI C63.10-2020, the channel contains the maximum PSD level was used to establish the reference level. Page 22 of 30 Report No.: AiTSZ-251113002FW2 5.2 Test Graph 5.2.1 Ref 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 23 of 30 Report No.: AiTSZ-251113002FW2 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page 24 of 30 Report No.: AiTSZ-251113002FW2 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV Page 25 of 30 Report No.: AiTSZ-251113002FW2 5.2.2 CSE 1M_LCH_2402MHz_Ant1_NTNV 1M_LCH_2402MHz_Ant1_NTNV Page 26 of 30 Report No.: AiTSZ-251113002FW2 1M_MCH_2440MHz_Ant1_NTNV 1M_HCH_2480MHz_Ant1_NTNV Page 27 of 30 Report No.: AiTSZ-251113002FW2 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page 28 of 30 Report No.: AiTSZ-251113002FW2 2M_LCH_2402MHz_Ant1_NTNV 2M_MCH_2440MHz_Ant1_NTNV Page 29 of 30 Report No.: AiTSZ-251113002FW2 2M_HCH_2480MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV Page 30 of 30 Report No.: AiTSZ-251113002FW2 ********************** End of Report **********************

Page 1 of 2 FCC ID: 2BSXO-CG1 Conducted Emission Radiated Emission Page 2 of 2 FCC ID: 2BSXO-CG1 RF
