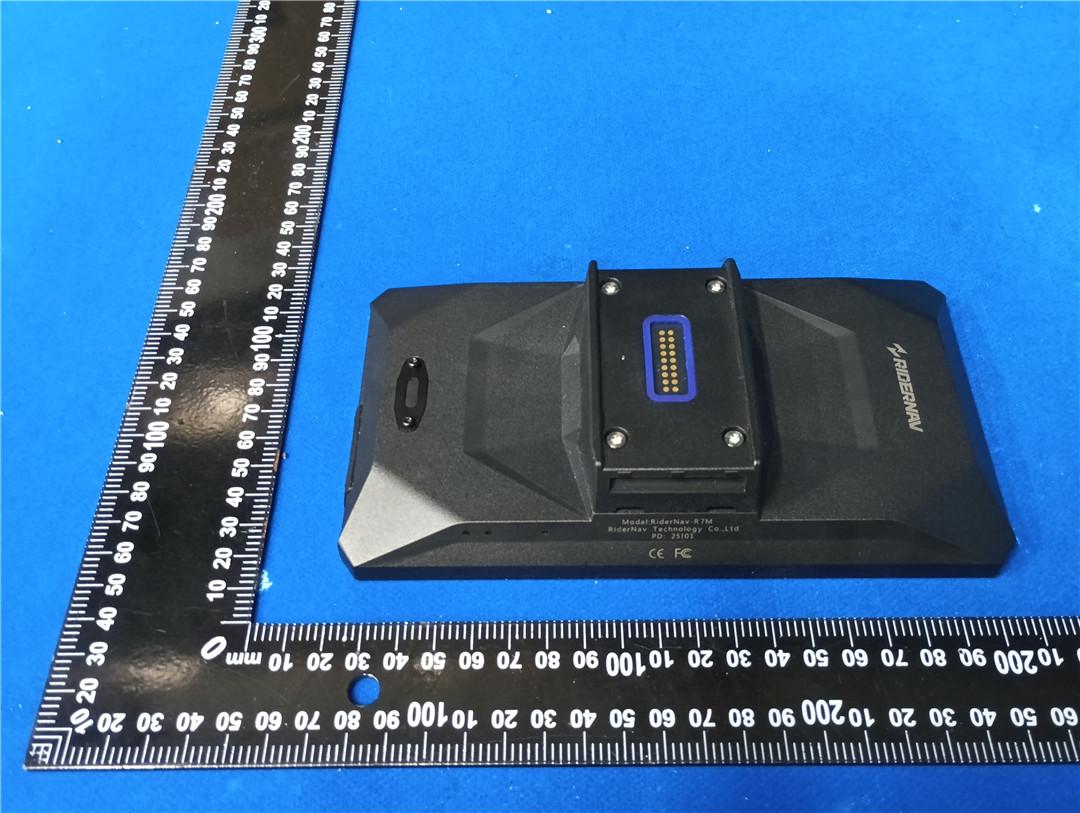

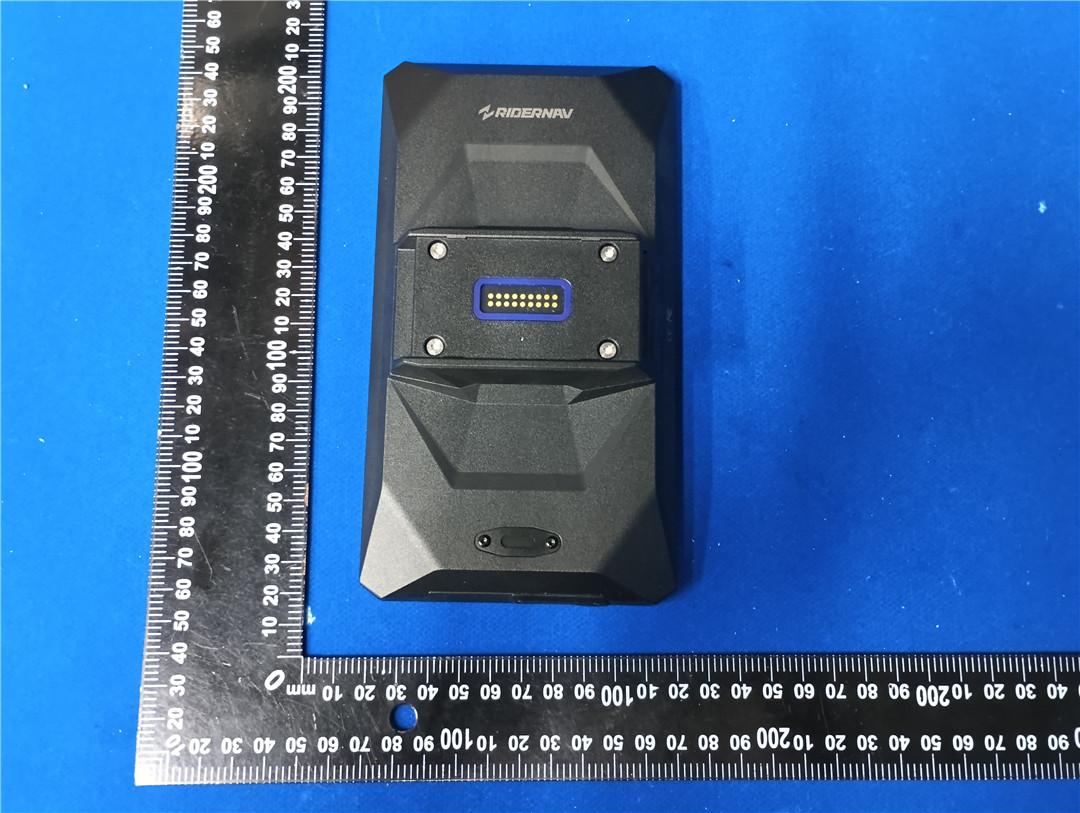

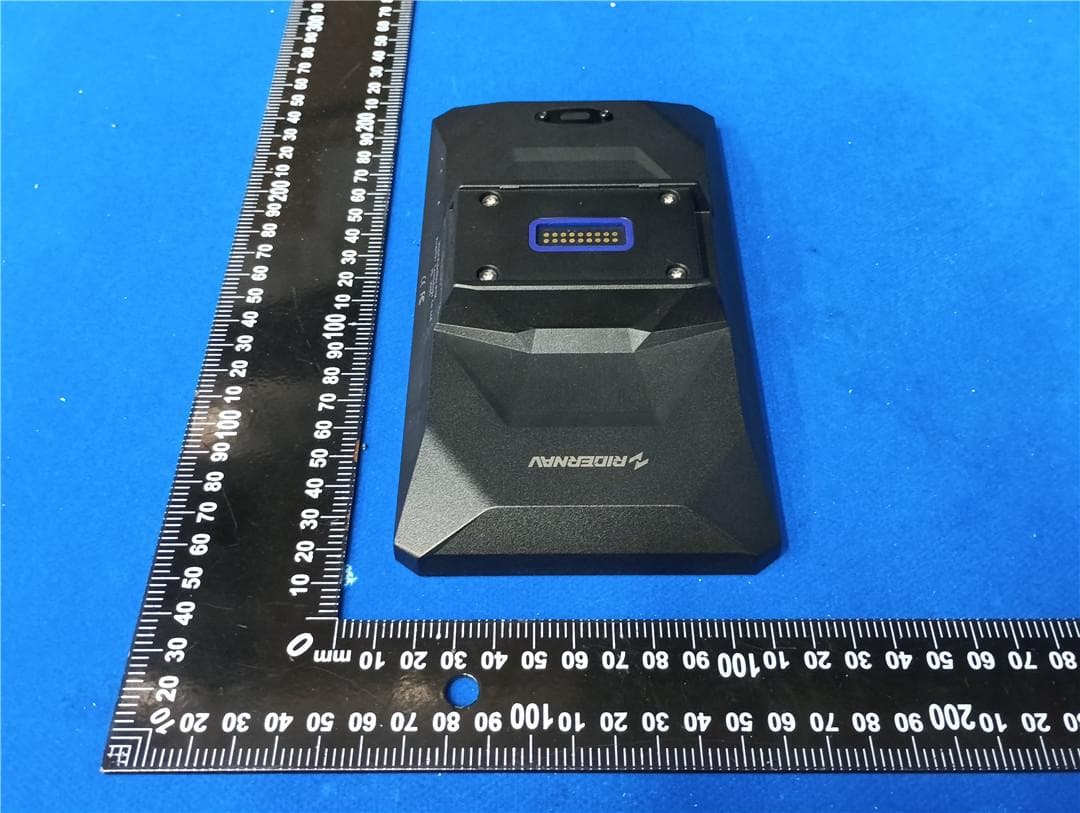

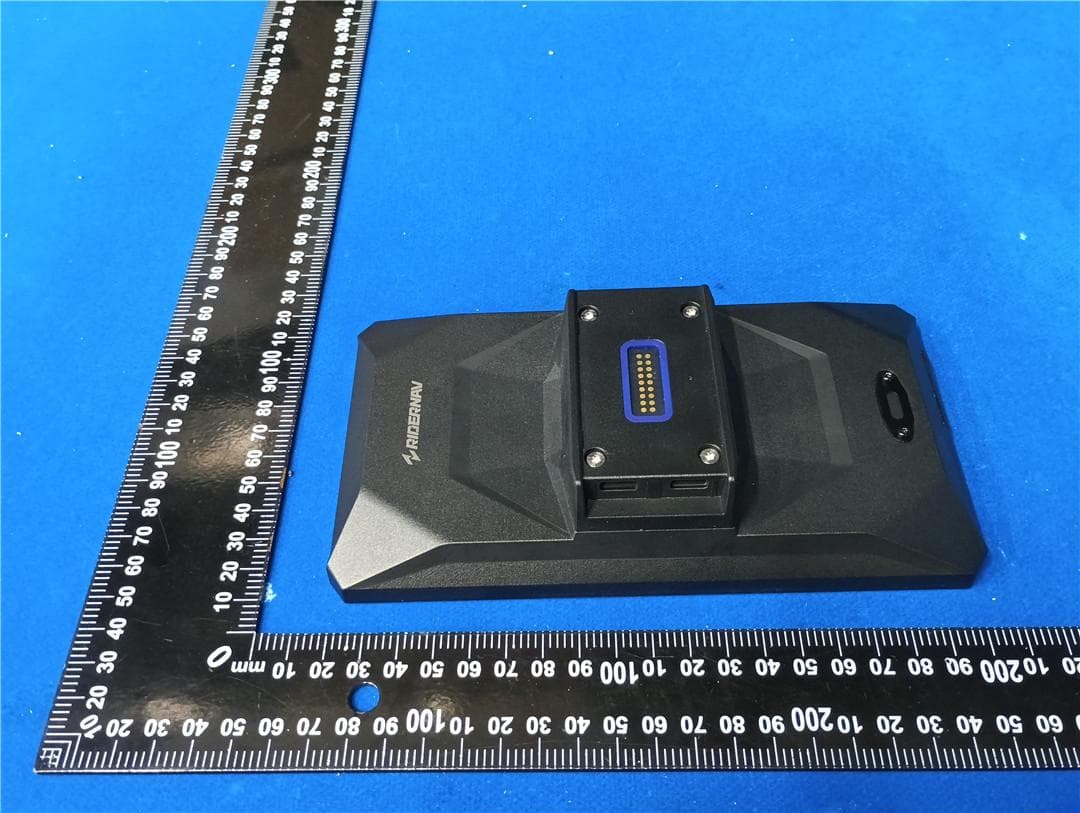

2BSY4-R7MMotorcycle Smart Riding System

FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

Shenzhen HTT Technology Co., Ltd. Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 1 of 11 RF Exposure MPE Report Reference No. ..................... : FCC ID............................................. : HTT2025101134F05 2BSY4-R7M Compiled by ( position+printed name+signature) . : File administrators Supervised by ( position+printed name+signature) . : Project Engineer Approved by ( position+printed name+signature) . : RF Manager Date of issue .................................... : Nov. 17, 2025 Testing Laboratory Name .............. : Shenzhen HTT Technology Co.,Ltd. Address............................................ : 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao’an District, Shenzhen, Guangdong, China Applicant’s name ............................ : Shenzhen RIDERNAV Technology Co., Ltd. Address............................................ : 11116, Building A, Shenzhen IUR Base HUST, Hi-Tech Zone, Yuehai St, Nanshan Shenzhen City Standard ........................................... : 47CFR §1.1310 47CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen HTT Technology Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HTT Technology Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HTT Technology Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Motorcycle Smart Riding System Manufacturer .................................... : Shenzhen RIDERNAV Technology Co., Ltd. Trade Mark ........................................ RIDERNAV Model/Type reference ...................... : R7M Listed Models ................................... : R7X Rating ............................................... : DC 5V/12-18V Result ............................................... : PASS Report No.: HTT2025101134F05 Page 2 of 11 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 2 of 11 T E S T R E P O R T Equipment under Test : Motorcycle Smart Riding System Model /Type : R7M Listed Models : R7X Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number is different for these model. Applicant : Shenzhen RIDERNAV Technology Co., Ltd. Address : 11116, Building A, Shenzhen IUR Base HUST, Hi-Tech Zone, Yuehai St, Nanshan Shenzhen City Manufacturer : Shenzhen RIDERNAV Technology Co., Ltd.. Address : 11116, Building A, Shenzhen IUR Base HUST, Hi-Tech Zone, Yuehai St, Nanshan Shenzhen City Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: HTT2025101134F05 Page 3 of 11 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 3 of 11 Contents 1 T E S T S T A N D A R D S ................................................... 4 2 S U M M A R Y .............................................................. 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Special Accessories 6 2.4 Modifications 6 3 T E S T E N V I R O N M E N T 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Statement of the measurement uncertainty 7 4 T E S T L I M I T 8 4.1 Requirement 8 4.2 MPE Calculation Method 8 4.3 Conducted Power Results 9 4.4 Manufacturing tolerance 10 4.5 Standalone MPE Result 10 4.6 Simultaneous Transmission for MPE Result 11 5 C O N C L U S I O N ........................................................ 11 Report No.: HTT2025101134F05 Page 4 of 11 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 4 of 11 1 T E S T S T A N D A R D S The tests were performed according to following standards: ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Device, RF Exposure, Equipment Authorization Procedures. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices Report No.: HTT2025101134F05 Page 5 of 11 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 5 of 11 2 S U M M A R Y 2.1 General Remarks Date of receipt of test sample : Oct. 29, 2025 Testing commenced on : Oct. 29, 2025 Testing concluded on : Nov. 17, 2025 2.2 Product Description Product description: Motorcycle Smart Riding System Model/Type reference: R7M Power supply: DC 5V/12-18V Adapter Information (Auxiliary test provided by the lab): Mode: GS-0500200 Input: AC100-240V, 50/60Hz, 0.3A max Output: DC 5V, 2A Testing sample ID： HTT2025101134-1# (Engineer sample) HTT2025101134-2# (Normal sample) Hardware version: / Software version: / WIFI 2.4G : Supported type: 802.11b/802.11g/802.11n(HT20)/ 802.11n(HT40) Modulation: 802.11b: DSSS 802.11g…

Text truncated - open the document above for the full version.

Shenzhen HTT Technology Co., Ltd. Report No.: HTT2025101134 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 2 Product Name: Motorcycle Smart Riding System Model No.: R7M Test Setup Photo Radiated Emission Report No.: HTT2025101134 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 2 Conducted Emission RF Test ------End------

Shenzhen HTT Technology Co., Ltd. Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ...................: FCC ID. ......................................... : HTT2025101134F02 2BSY4-R7M Compiled by ( position+printed name+signature) : File administrators Supervised by ( position+printed name+signature) : Project Engineer Approved by ( position+printed name+signature) : RF Manager Date of issue ...................................: Nov. 17, 2025 Testing Laboratory Name .............: Shenzhen HTT Technology Co.,Ltd. Address ..........................................: 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao’an District, Shenzhen, Guangdong, China Applicant’s name...........................: Shenzhen RIDERNAV Technology Co., Ltd. Address ...........................................: 11116, Building A, Shenzhen IUR Base HUST, Hi-Tech Zone, Yuehai St, Nanshan Shenzhen City Test specification ......................... : Standard ..........................................: FCC Part 15.247 Shenzhen HTT Technology Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HTT Technology Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HTT Technology Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Equipment description ................ : Motorcycle Smart Riding System Trade Mark ......................................: RIDERNAV Manufacturer ...................................: Shenzhen RIDERNAV Technology Co., Ltd. Model/Type reference .....................: R7M Listed Models ..................................: R7X Modulation ......................................: GFSK Frequency ........................................ From 2402MHz to 2480MHz Ratings ............................................: DC 5V/12-18V Result ..............................................: PASS Report No.: HTT2025101134F02 Page 2 of 27 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China T E S T R E P O R T Equipment under Test : Motorcycle Smart Riding System Model /Type : R7M Listed Models : R7X Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number is different for these model. Applicant : Shenzhen RIDERNAV Technology Co., Ltd. Address : 11116, Building A, Shenzhen IUR Base HUST, Hi-Tech Zone, Yuehai St, Nanshan Shenzhen City Manufacturer : Shenzhen RIDERNAV Technology Co., Ltd. Address : 11116, Building A, Shenzhen IUR Base HUST, Hi-Tech Zone, Yuehai St, Nanshan Shenzhen City Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: HTT2025101134F02 Page 3 of 27 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Contents 1 TEST STANDARDS .......................................................................................................................................... 4 2 SUMMARY ........................................................................................................................................................ 5 2.1 General Remarks .................................................................................................................................... 5 2.2 Product Description*................................................................................................................................ 5 2.3 Equipment Under Test ............................................................................................................................ 5 2.4 Short description of the Equipment under Test (EUT) ............................................................................ 5 2.5 EUT configuration .................................................................................................................................... 5 2.6 EUT operation mode ............................................................................................................................... 6 2.7 Block Diagram of Test Setup .................................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) .............................................................................................................. 6 2.9 Modifications ........................................................................................................................................... 6 3 TEST ENVIRONMENT ...................................................................................................................................... 7 3.1 Address of the test laboratory ................................................................................................................. 7 3.2 Test Facility ............................................................................................................................................. 7 3.3 Environmental conditions ........................................................................................................................ 7 3.4 Summary of measurement resu…

Text truncated - open the document above for the full version.

Shenzhen HTT Technology Co., Ltd. Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. .......................................... : HTT2025101134F01 2BSY4-R7M Compiled by ( position+printed name+signature) . : File administrators Supervised by ( position+printed name+signature) . : Project Engineer Approved by ( position+printed name+signature) . : RF Manager Date of issue .................................... : Nov. 17, 2025 Testing Laboratory Name ............. : Shenzhen HTT Technology Co.,Ltd. Address ............................................ : 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao’an District, Shenzhen, Guangdong, China Applicant’s name ........................... : Shenzhen RIDERNAV Technology Co., Ltd. Address ............................................ : 11116, Building A, Shenzhen IUR Base HUST, Hi-Tech Zone, Yuehai St, Nanshan Shenzhen City Test specification.......................... : Standard .......................................... : FCC Part 15.247 TRF Originator ................................. : Shenzhen HTT Technology Co.,Ltd. Shenzhen HTT Technology Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HTT Technology Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HTT Technology Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Motorcycle Smart Riding System Trade Mark ....................................... : RIDERNAV Manufacturer .................................... : Shenzhen RIDERNAV Technology Co., Ltd. Model/Type reference ...................... : R7M Listed Models ................................... : R7X Modulation Type .............................. : CCK/DSSS/OFDM Operation Frequency ....................... : From 2412 - 2462MHz Rating ............................................... : DC 5V/12-18V Result ............................................... : PASS Report No.: HTT2025101134F01 Page 2 of 27 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China T E S T R E P O R T Equipment under Test : Motorcycle Smart Riding System Model /Type : R7M Listed Models : R7X Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number is different for these model. Applicant : Shenzhen RIDERNAV Technology Co., Ltd. Address : 11116, Building A, Shenzhen IUR Base HUST, Hi-Tech Zone, Yuehai St, Nanshan Shenzhen City Manufacturer : Shenzhen RIDERNAV Technology Co., Ltd. Address : 11116, Building A, Shenzhen IUR Base HUST, Hi-Tech Zone, Yuehai St, Nanshan Shenzhen City Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: HTT2025101134F01 Page 3 of 27 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Contents 1 TEST STANDARDS .......................................................................................................................................... 4 2 SUMMARY ........................................................................................................................................................ 5 2.1 General Remarks .................................................................................................................................... 5 2.2 Product Description ................................................................................................................................. 5 2.3 Equipment Under Test ............................................................................................................................ 5 2.4 Short description of the Equipment under Test (EUT) ............................................................................ 5 2.5 EUT configuration .................................................................................................................................... 6 2.6 EUT operation mode ............................................................................................................................... 6 2.7 Block Diagram of Test Setup .................................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) .............................................................................................................. 6 2.9 Modifications ........................................................................................................................................... 6 3 TEST ENVIRONMENT ...................................................................................................................................... 7 3.1 Address of the test laboratory ................................................................................................................. 7 3.2 Test Facility ............................................................................................................................................. 7 3.3 Environmental conditions ..................................…

Text truncated - open the document above for the full version.

1 Appendix RF Test Data for BLE Company: : Shenzhen RIDERNAV Technology Co., Ltd. EUT : Motorcycle Smart Riding System FCC ID: : 2BSY4-R7M Model Number : R7M Report No. : HTT2025101134F02 Reviewed By : Heber He 2 1. Duty Cycle 1.1 Test Result 1.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) T_on (ms) Period (ms) Duty Cycle (%) Duty Cycle Correction Factor (dB) Max. DC Variation (%) 1M SISO 2402 2.124 2.501 84.93 0.71 0.03 2440 2.123 2.500 84.92 0.71 0.03 2480 2.124 2.501 84.93 0.71 0.03 2M SISO 2402 1.065 1.874 56.83 2.45 0.03 2440 1.065 1.874 56.83 2.45 0.03 2480 1.066 1.876 56.82 2.45 0.02 3 1.2 Test Graph 1.2.1 Ant1 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV 4 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV 5 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV 6 2. Bandwidth 2.1 Test Result 2.1.1 OBW Mode TX Type Frequency (MHz) ANT 99% Occupied Bandwidth (MHz) Verdict Result Limit 1M SISO 2402 1 1.030 / Pass 2440 1 1.029 / Pass 2480 1 1.033 / Pass 2M SISO 2402 1 2.064 / Pass 2440 1 2.067 / Pass 2480 1 2.067 / Pass 2.1.2 6dB BW Mode TX Type Frequency (MHz) ANT 6dB Bandwidth (MHz) Verdict Result Limit 1M SISO 2402 1 0.671 >=0.5 Pass 2440 1 0.676 >=0.5 Pass 2480 1 0.675 >=0.5 Pass 2M SISO 2402 1 1.212 >=0.5 Pass 2440 1 1.192 >=0.5 Pass 2480 1 1.217 >=0.5 Pass 7 2.2 Test Graph 2.2.1 OBW 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV 8 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV 9 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV 10 2.2.2 6dB BW 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV 11 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV 12 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV 13 3. Maximum Conducted Output Power 3.1 Test Result 3.1.1 Power Mode TX Type Frequency (MHz) Maximum Peak Conducted Output Power (dBm) Verdict ANT1 Limit 1M SISO 2402 8.19 <=30 Pass 2440 8.19 <=30 Pass 2480 7.86 <=30 Pass 2M SISO 2402 8.20 <=30 Pass 2440 8.19 <=30 Pass 2480 7.88 <=30 Pass 14 4. Maximum Power Spectral Density 4.1 Test Result 4.1.1 PSD Mode TX Type Frequency (MHz) Maximum PSD (dBm) Verdict ANT1 Limit 1M SISO 2402 7.96 <=8 Pass 2440 4.27 <=8 Pass 2480 7.68 <=8 Pass 2M SISO 2402 6.91 <=8 Pass 2440 6.89 <=8 Pass 2480 6.58 <=8 Pass 15 4.2 Test Graph 4.2.1 PSD 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV 16 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV 17 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV 18 5. Unwanted Emissions In Non-restricted Frequency Bands 5.1 Test Result 5.1.1 Ref Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) 1M SISO 2402 1 7.98 2440 1 8.00 2480 1 7.70 2M SISO 2402 1 6.91 2440 1 6.89 2480 1 6.57 Note1: Refer to FCC Part 15.247 (d) and ANSI C63.10-2020, the channel contains the maximum PSD level was used to establish the reference level. 5.1.2 CSE Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) Limit (dBm) Verdict 1M SISO 2402 1 7.98 -12.02 Pass 2440 1 8.00 -12.00 Pass 2480 1 7.70 -12.30 Pass 2M SISO 2402 1 6.91 -13.09 Pass 2440 1 6.89 -13.11 Pass 2480 1 6.57 -13.43 Pass Note1: Refer to FCC Part 15.247 (d) and ANSI C63.10-2020, the channel contains the maximum PSD level was used to establish the reference level. 19 5.2 Test Graph 5.2.1 Ref 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV 20 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV 21 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV 22 5.2.2 CSE 1M_LCH_2402MHz_Ant1_NTNV 1M_LCH_2402MHz_Ant1_NTNV 23 1M_MCH_2440MHz_Ant1_NTNV 1M_HCH_2480MHz_Ant1_NTNV 24 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV 25 2M_LCH_2402MHz_Ant1_NTNV 2M_MCH_2440MHz_Ant1_NTNV 26 2M_HCH_2480MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV

1 Appendix RF Test Data for 2.4G WIFI Company: : Shenzhen RIDERNAV Technology Co., Ltd. EUT : Motorcycle Smart Riding System FCC ID: : 2BSY4-R7M Model Number : R7M Report No. : HTT2025101134F01 Reviewed By : Heber He 2 1. Duty Cycle 1.1 Test Result 1.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) T_on (ms) Period (ms) Duty Cycle (%) Duty Cycle Correction Factor (dB) Max. DC Variation (%) 802.11b SISO 2412 0.828 1.850 44.76 3.49 0.10 2437 0.828 1.850 44.76 3.49 0.04 2462 0.829 3.884 21.34 6.71 23.65 802.11g SISO 2412 0.175 1.202 14.56 8.37 0.03 2437 0.174 1.198 14.52 8.38 0.03 2462 0.175 1.987 8.81 10.55 5.83 802.11n (HT20) SISO 2412 0.162 1.190 13.61 8.66 0.00 2437 0.163 1.190 13.70 8.63 0.00 2462 0.163 1.190 13.70 8.63 0.03 802.11n (HT40) SISO 2422 0.097 1.125 8.62 10.64 0.03 2437 0.098 1.126 8.70 10.60 0.03 2452 0.098 3.212 3.05 15.16 5.75 3 1.2 Test Graph 1.2.1 Ant1 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV 4 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV 5 802.11g_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV 6 802.11n(HT20)_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant1 (SISO)_NTNV 7 802.11n(HT20)_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_LCH_2422MHz_Ant1 (SISO)_NTNV 8 802.11n(HT40)_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_HCH_2452MHz_Ant1 (SISO)_NTNV 9 2. Bandwidth 2.1 Test Result 2.1.1 OBW Mode TX Type Frequency (MHz) ANT 99% Occupied Bandwidth (MHz) Verdict Result Limit 802.11b SISO 2412 1 12.060 / Pass 2437 1 12.678 / Pass 2462 1 12.846 / Pass 802.11g SISO 2412 1 17.427 / Pass 2437 1 17.466 / Pass 2462 1 17.357 / Pass 802.11n (HT20) SISO 2412 1 18.459 / Pass 2437 1 18.571 / Pass 2462 1 18.437 / Pass 802.11n (HT40) SISO 2422 1 36.715 / Pass 2437 1 36.742 / Pass 2452 1 36.903 / Pass 2.1.2 6dB BW Mode TX Type Frequency (MHz) ANT 6dB Bandwidth (MHz) Verdict Result Limit 802.11b SISO 2412 1 7.974 >=0.5 Pass 2437 1 8.196 >=0.5 Pass 2462 1 8.099 >=0.5 Pass 802.11g SISO 2412 1 16.184 >=0.5 Pass 2437 1 16.203 >=0.5 Pass 2462 1 16.272 >=0.5 Pass 802.11n (HT20) SISO 2412 1 16.934 >=0.5 Pass 2437 1 17.513 >=0.5 Pass 2462 1 17.318 >=0.5 Pass 802.11n (HT40) SISO 2422 1 35.464 >=0.5 Pass 2437 1 35.642 >=0.5 Pass 2452 1 35.697 >=0.5 Pass 10 2.2 Test Graph 2.2.1 OBW 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV 11 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV 12 802.11g_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV 13 802.11n(HT20)_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant1 (SISO)_NTNV 14 802.11n(HT20)_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_LCH_2422MHz_Ant1 (SISO)_NTNV 15 802.11n(HT40)_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_HCH_2452MHz_Ant1 (SISO)_NTNV 16 2.2.2 6dB BW 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV 17 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV 18 802.11g_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV 19 802.11n(HT20)_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant1 (SISO)_NTNV 20 802.11n(HT20)_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_LCH_2422MHz_Ant1 (SISO)_NTNV 21 802.11n(HT40)_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_HCH_2452MHz_Ant1 (SISO)_NTNV 22 3. Maximum Conducted Output Power 3.1 Test Result 3.1.1 Power Mode TX Type Frequency (MHz) Maximum Peak Conducted Output Power (dBm) Verdict ANT1 Limit 802.11b SISO 2412 22.96 <=30.0 Pass 2437 24.78 <=30.0 Pass 2462 23.95 <=30.0 Pass 802.11g SISO 2412 22.10 <=30.0 Pass 2437 21.92 <=30.0 Pass 2462 21.88 <=30.0 Pass 802.11n (HT20) SISO 2412 21.96 <=30.0 Pass 2437 21.71 <=30.0 Pass 2462 21.69 <=30.0 Pass 802.11n (HT40) SISO 2422 21.62 <=30.0 Pass 2437 21.52 <=30.0 Pass 2452 21.39 <=30.0 Pass 23 4. Maximum Power Spectral Density 4.1 Test Result 4.1.1 PSD Mode TX Type Frequency (MHz) Maximum PSD (dBm) Verdict ANT1 Limit 802.11b SISO 2412 5.39 <=8.0 Pass 2437 5.70 <=8.0 Pass 2462 5.33 <=8.0 Pass 802.11g SISO 2412 4.37 <=8.0 Pass 2437 4.15 <=8.0 Pass 2462 3.93 <=8.0 Pass 802.11n (HT20) SISO 2412 4.49 <=8.0 Pass 2437 3.92 <=8.0 Pass 2462 3.52 <=8.0 Pass 802.11n (HT40) SISO 2422 1.48 <=8.0 Pass 2437 1.04 <=8.0 Pass 2452 1.02 <=8.0 Pass 24 4.2 Test Graph 4.2.1 PSD 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV 25 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV 26 802.11g_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV 27 802.11n(HT20)_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant1 (SISO)_NTNV 28 802.11n(HT20)_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_LCH_2422MHz_Ant1 (SISO)_NTNV 29 802.11n(HT40)_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_HCH_2452MHz_Ant1 (SISO)_NTNV 30 5. Unwanted Emissions In Non-restricted Frequency Bands 5.1 Test Result 5.1.1 Ref Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) 802.11b SISO 2412 1 10.33 2437 1 10.90 2462 1 10.23 802.11g SISO 2412 1 4.45 2437 1 3.61 2462 1 4.24 802.11n (HT20) SISO 2412 1 4.48 2437 1 3.66 2462 1 4.21 802.11n (HT40) SISO 2422 1 1.46 2437 1 1.05 2452 1 0.98 Note1: Refer to FCC Part 15.247 (d) and ANSI C63.10-2020, the channel contains the maximum PSD level was used to establish the reference level. 5.1.2 CSE Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) Limit (dBm) Verdict 802.11b SISO 2412 1 10.33 -9.67 Pass 2437 1 10.90 -9.10 Pass 2462 1 10.23 -9.77 Pass 802.11g SISO 2412 1 4.45 -15.55 Pass 2437 1 3.61 -16.39 Pass 2462 1 4.24 -15.76 Pass 802.11n (HT20) SISO 2412 1 4.48 -15.52 Pass 2437 1 3.66 -16.34 Pass 2462 1 4.21 -15.79 Pass 802.11n (HT40) SISO 2422 1 1.46 -18.54 Pass 2437 1 1.05 -18.95 Pass 2452 1 0.98 -19.02 Pass Note1: Refer to FCC Part 15.247 (d) and ANSI C63.10-2020, the channel contains the maximum PSD level was used to establish the reference level. 31 5.2 Test Graph 5.2.1 Ref 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV 32 802.11b_HCH_246…

Text truncated - open the document above for the full version.
