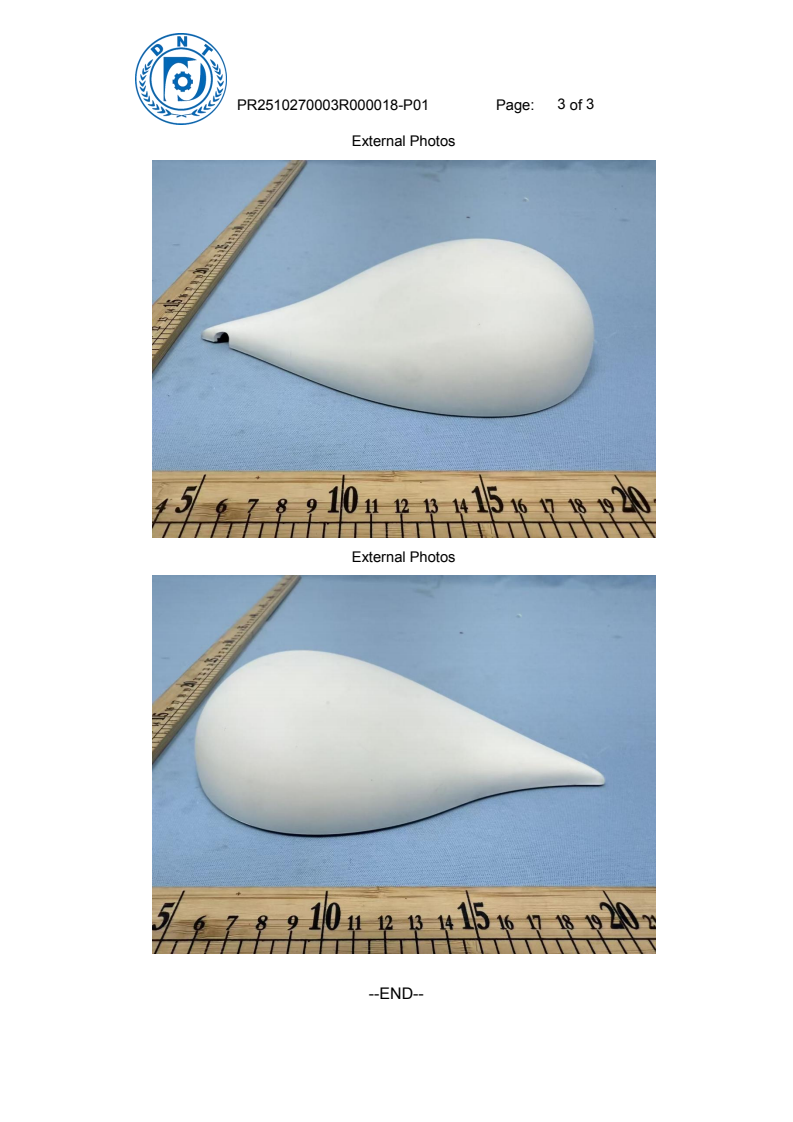

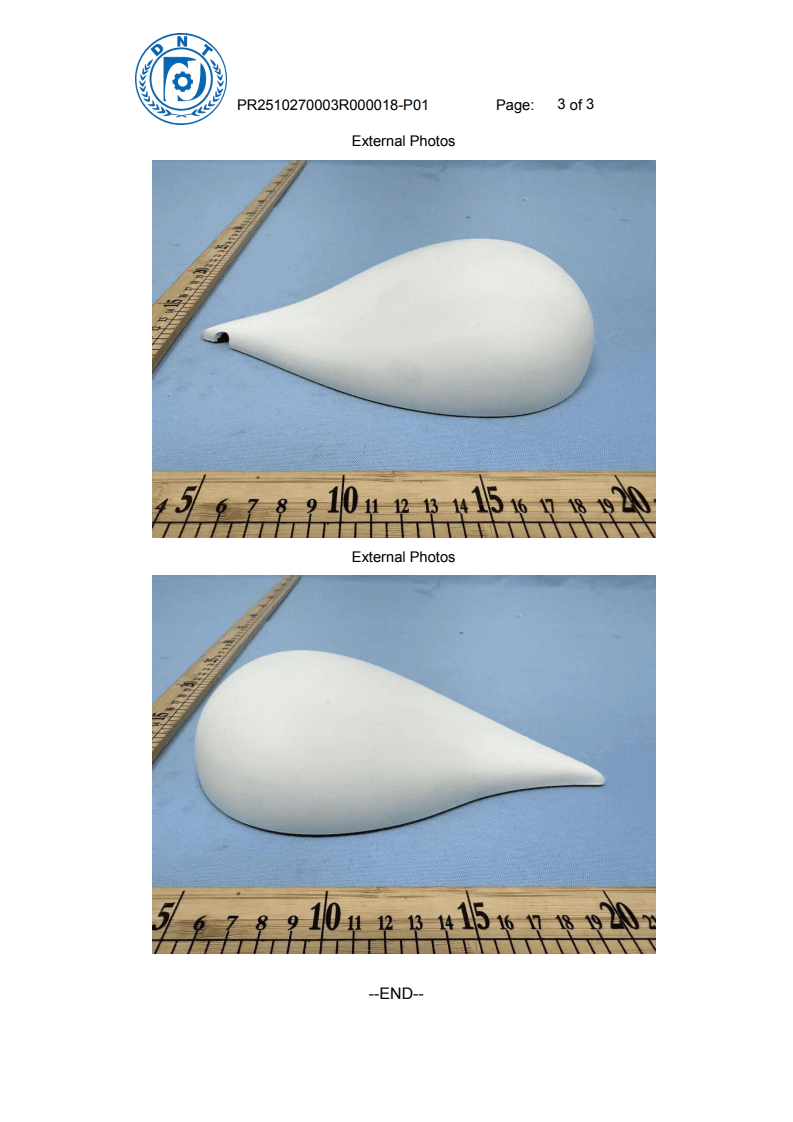

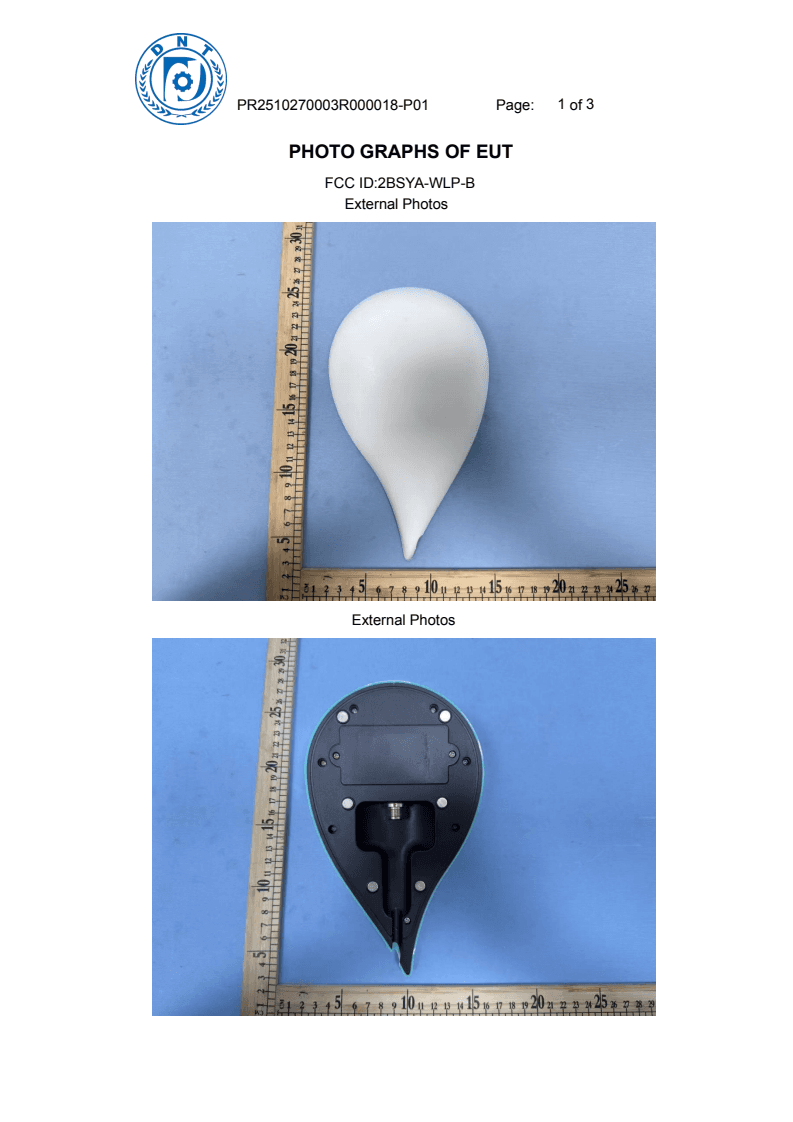

2BSYA-WLP-BWater Level Sensor

ABRACON IS ISO9001-2015 CERTIFIED Hidden Creek Ln Spicewood TX 78669 5101 Phone: 512-371-6159 | Fax: 512-351-8858 REVISED: 07-19-21 For terms and conditions of sales, please visit: www.abracon.com 2.4 GHz - Wi-Fi/BT/BLE Stamped Metal Antenna PRO-OB-440 13.75 x 5.23 x 3.53 mm RoHS/RoHS II Compliant MSL Level = 1 Request Samples Check Inventory Reflection Characteristics - Return Loss Total Radiation Efficiency Maximum Radiation Gain ABRACON IS ISO9001-2015 CERTIFIED Hidden Creek Ln Spicewood TX 78669 5101 Phone: 512-371-6159 | Fax: 512-351-8858 REVISED: 07-19-21 For terms and conditions of sales, please visit: www.abracon.com 2.4 GHz - Wi-Fi/BT/BLE Stamped Metal Antenna PRO-OB-440 13.75 x 5.23 x 3.53 mm RoHS/RoHS II Compliant MSL Level = 1 Request Samples Check Inventory Radiation Characteristics - 2D Pattern (2400 MHz) ABRACON IS ISO9001-2015 CERTIFIED Hidden Creek Ln Spicewood TX 78669 5101 Phone: 512-371-6159 | Fax: 512-351-8858 REVISED: 07-19-21 For terms and conditions of sales, please visit: www.abracon.com 2.4 GHz - Wi-Fi/BT/BLE Stamped Metal Antenna PRO-OB-440 13.75 x 5.23 x 3.53 mm RoHS/RoHS II Compliant MSL Level = 1 Request Samples Check Inventory Radiation Characteristics - 2D Pattern (2500 MHz) ABRACON IS ISO9001-2015 CERTIFIED Hidden Creek Ln Spicewood TX 78669 5101 Phone: 512-371-6159 | Fax: 512-351-8858 REVISED: 07-19-21 For terms and conditions of sales, please visit: www.abracon.com 2.4 GHz - Wi-Fi/BT/BLE Stamped Metal Antenna PRO-OB-440 13.75 x 5.23 x 3.53 mm RoHS/RoHS II Compliant MSL Level = 1 Request Samples Check Inventory The antenna should have nominal tuning in most applications when C1 = 0 Ohm (measured with coaxial cable on the evaluation board). However, the user may like to elaborate with the tuning if the implementation causes a resonant frequency shift. This part shows two examples of how a simple frequency tuning can be implemented. Tune 50 MHz down C1 = 2.7 nH (Murata LQW15AN2N7G80D) C2 = 0.75pF (Murata GJM1555C1HR75WB01) C3 = N/A Tune 50 MHz up C1 = 1.0 nH (Murata LQP15MN1N0W02) C2 = N/A C3 = 1.0pF (Murata GJM1555C1H1R0WB01) Antenna Tuning & Impedance Matching ABRACON IS ISO9001-2015 CERTIFIED Hidden Creek Ln Spicewood TX 78669 5101 Phone: 512-371-6159 | Fax: 512-351-8858 REVISED: 07-19-21 For terms and conditions of sales, please visit: www.abracon.com 2.4 GHz - Wi-Fi/BT/BLE Stamped Metal Antenna PRO-OB-440 13.75 x 5.23 x 3.53 mm RoHS/RoHS II Compliant MSL Level = 1 Request Samples Check Inventory The antenna can be positioned in many ways, although there are some positions which are more beneficial. Below picture shows a typical PCB with six possible antenna positions. The positions have been arranged according to the best general fit. = feed section (pin 1 & pin 2) The antenna should be aligned with the PCB edge if possible. It is also important to align pin 1 & 2 along the outer side of the PCB, and even more preferably close to a corner. This fact makes position 2, 3 and 6 difficult to define, why these positions are less optimal. The OnBoard SMD 2400 antenna enables that small electrical components are mounted inside the antenna keep-out block. This may have an impact on the antenna tuning and radiated performance but is fully possible if there is limited space on the PCB. Another general aspect on surface mounted antennas is regarding the PCB population. If other electrical components are positioned in the surrounding area of the antenna, some impact on the antenna tuning and radiated performance may be expected. It is recommended that such components are distributed below a topographical slope that starts on PCB level at the antenna keep-out block, and slowly increases the height. It shall also be highlighted that plastic and metal parts in the near proximity of antennas may influence the antenna tuning and/or performance. This aspect should be noted as a general guideline for all antennas. The effects are difficult to estimate without detailed information, but it is common that a plastic housing above the antenna shifts the resonant frequency down. It is recommended to measure the antenna in the actual device after implementation. Optimal 4 & 1 5 6 3 2 General Implementation Guidelines ABRACON IS ISO9001-2015 CERTIFIED Hidden Creek Ln Spicewood TX 78669 5101 Phone: 512-371-6159 | Fax: 512-351-8858 REVISED: 07-19-21 For terms and conditions of sales, please visit: www.abracon.com 2.4 GHz - Wi-Fi/BT/BLE Stamped Metal Antenna PRO-OB-440 13.75 x 5.23 x 3.53 mm RoHS/RoHS II Compliant MSL Level = 1 Request Samples Check Inventory The top marking of the antenna is arranged according to the following illustration . Part number Part name Details PRO-OB-440 OnBoard SMD 2400 Antenna for 2.4 GHz ISM band. PRO-EB-450 Evaluation board, Onboard SMD 2400 Evaluation board with PRO-OB-440 for WLAN/Wifi, Bluetooth, Zigbee, RFID, WirelessHART applications. Park Marking Example top marking Ordering Information ABRACON IS ISO9001-2015 CERTIFIED Hidden Creek Ln Spicewood TX 78669 5101 Phone: 512-371-6159 | Fax: 512-351-8858 REVISED: 07-19-21 For terms and conditions of sales, please visit: www.abracon.com 2.4 GHz - Wi-Fi/BT/BLE Stamped Metal Antenna PRO-OB-440 13.75 x 5.23 x 3.53 mm RoHS/RoHS II Compliant MSL Level = 1 Request Samples Check Inventory Number of pcs/ reel = 1000 Packaging ATTENTION: Abracon LLC’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applications. Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependent Medical applications or any application requiring high reliability where component failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment, written consent and authorization from Abracon LLC is required. Please contact Abracon LLC for more information.

Report No.: PR2510270003R000018-00009 Date：Nov.14, 2025 Page：7 / 53 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.com Tel:+86-769-88087383 E-mail: [email protected] 2.5 Power Setting of Test Software Software Name sscom Frequency(MHz) 2402 2440 2480 BLE 1M Setting default default default BLE 2M Setting default default default 2.6 Assistant equipment used for test Code Equipment Manufacturer Model No. Equipment No. 1 Computer acer N22C8 EMC notebook01 2.7 Description of Support Units The EUT has been tested independent unit 2.8 Test Facility The test facility is recognized, certified, or accredited by the following organizations: Lab A: • FCC, USA Designation Number: CN1348 • A2LA (Certificate No. 7050.01) DONGGUAN DN TESTING CO., LTD. is accredited by the American Association for Laboratory Accreditation(A2LA). Certificate No. 7050.01. • Innovation, Science and Economic Development Canada DONGGUAN DN TESTING CO., LTD. EMC Laboratory has been recognized by ISED as an accredited testing laboratory. CAB identifier is CN0149. IC#: 30755. Report No.: PR2510270003R000018-00009 Date：Nov.14, 2025 Page：8 / 53 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.com Tel:+86-769-88087383 E-mail: [email protected] 2.9 Equipment List For Connect EUT Antenna Terminal Test Description Manufacturer Model Serial Number Cal date Due date Signal Generator Keysight N5181A-6G MY48180415 2025-10-21 2026-10-20 Signal Generator Keysight N5182B MY57300617 2025-10-21 2026-10-20 Power supply Keysight E3640A ZB2022656 2025-10-21 2026-10-20 Radio Communication Tester R&S CMW500 105082 2025-10-21 2026-10-20 Spectrum Analyzer Aglient N9010A MY52220200 2025-10-21 2026-10-20 BT/WIFI Test Software Tonscend JS1120 V3.1.83 NA NA NA RF Control Unit Tonscend JS0806-2 22F8060581 NA NA Power Sensor Anritsu ML2495A 2129005 2025-10-21 2026-10-20 Pulse Power Sensor Anritsu MA2411B 1911397 2025-10-21 2026-10-20 temperature and humidity box SCOTEK SCD-C40-80PRO 6866682020008 2025-10-21 2026-10-20 RF Cable ETS-LINDGREN RFC-NMS-100- NMS-350-IN NA 2025-10-21 2026-10-20 Test Equipment for Conducted Emission Description Manufacturer Model Serial Number Cal Date Due Date Receiver R&S ESCI3 101152 2025-10-21 2026-10-20 LISN R&S ENV216 102874 2025-10-21 2026-10-20 ISN R&S ENY81-CA6 1309.8590.03 2025-10-21 2026-10-20 RF Cable ETS-LINDGREN Cable-CE TS01 / 2025-10-21 2026-10-20 Test Equipment for Radiated Emission(30MHz-1000MHz) Description Manufacturer Model Serial Number Cal Date Due Date Receiver R&S ESR7 102497 2025-10-21 2026-10-20 Test Software ETS-LINDGREN TiLE-FULL NA NA NA RF Cable ETS-LINDGREN RE Cable-TS01 NA 2025-10-21 2026-10-20 Report No.: PR2510270003R000018-00009 Date：Nov.14, 2025 Page：9 / 53 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.com Tel:+86-769-88087383 E-mail: [email protected] Log periodic antenna ETS-LINDGREN VULB 9168 01475 2022-11-28 2025-11-27 Pre-amplifier Schwarzbeck BBV9743B 00423 2025-10-21 2026-10-20 Attenuator 1 Shanghai Huaxiang TS2-6-18-A 22061803 2025-5-6 2026-5-5 Attenuator 2 Shanghai Huaxiang TS2-6-6-A 230927163 2025-5-6 2026-5-5 Test Equipment for Radiated Emission(Above 1000MHz) Description Manufacturer Model Serial Number Cal Date Due Date Frequency analyser Keysight N9010A MY52221458 2025-10-21 2026-10-20 RF Cable ETS-LINDGREN RE Cable-TS02 NA 2025-10-21 2026-10-20 Horn Antenna ETS-LINDGREN 3117 00252567 2022-11-28 2025-11-27 Double ridged waveguide antenna ETS-LINDGREN 3116C 00251780 2022-11-28 2025-11-27 Test Software ETS-LINDGREN TiLE-FULL NA NA NA Pre-amplifier ETS-LINDGREN 3117-PA 252567 2025-10-21 2026-10-20 Pre-amplifier ETS-LINDGREN 3116C-PA 251780 2025-10-21 2026-10-20 Report No.: PR2510270003R000018-00009 Date：Nov.14, 2025 Page：10 / 53 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.com Tel:+86-769-88087383 E-mail: [email protected] 2.10 Measurement Uncertainty (95% confidence levels, k=2) No. Item Measurement Uncertainty 1 DTS Bandwidth ±0.0196% 2 Maximum Conducted Output Power ±0.686 dB 3 Maximum Power Spectral Density Level ±0.743 dB 4 Band-edge Compliance ±1.328 dB 5 Unwanted Emissions In Non-restricted Freq Bands 9KHz-1GHz:±0.746dB 1GHz-26GHz: ±1.328dB No. Item Measurement Uncertainty 1 Conduction Emission ± 3.0dB (150kHz to 30MHz) 2 Radiated Emission ± 4.8dB (Below 1GHz) ± 4.8dB (1GHz to 6GHz) ± 4.5dB (6GHz to 18GHz) ± 5.02dB (Above 18GHz) Report No.: PR2510270003R000018-00009 Date：Nov.14, 2025 Page：11 / 53 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.com Tel:+86-769-88087383 E-mail: [email protected] 3 Test results and Measurement Data 3.1 Antenna Requirement Standard requirement: 47 CFR Part 15C Section 15.203 /247(c) 15.203 requirement: An intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. The use of a permanently attached antenna or of an antenna that uses a unique coupling to the intentional radiator, the manufacturer may design the unit so that a broken antenna can be replaced by the user, but the use of a standard antenna jack or electrical connector is prohibited. 15.247(b) (4) requirement: The conducted output power limit specified in paragraph (b) of this section is based on the use of antennas with directional gains that do not exceed 6 dBi. Except as shown in paragraph (c) of this section, if transmitting antennas of directional gain greater than 6 dBi are…

Text truncated - open the document above for the full version.

Report No.: PR2510270003R000018-00009 Date：Nov.14, 2025 Page：42 / 53 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.com Tel:+86-769-88087383 E-mail: [email protected] Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Report No.: PR2510270003R000018-00009 Date：Nov.14, 2025 Page：43 / 53 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.com Tel:+86-769-88087383 E-mail: [email protected] BLE_2M_Ant1_2402 BLE_2M_Ant1_2440 BLE_2M_Ant1_2480 Report No.: PR2510270003R000018-00009 Date：Nov.14, 2025 Page：44 / 53 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.com Tel:+86-769-88087383 E-mail: [email protected] Appendix E: Band edge measurements Test Result TestMode Antenna ChName Freq(MHz) RefLevel[dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 Low 2402 1.94 -47.87 ≤-18.06 PASS High 2480 1.89 -46.25 ≤-18.11 PASS BLE_2M Ant1 Low 2402 1.99 -46.05 ≤-18.01 PASS High 2480 1.93 -46.13 ≤-18.07 PASS Report No.: PR2510270003R000018-00009 Date：Nov.14, 2025 Page：45 / 53 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.com Tel:+86-769-88087383 E-mail: [email protected] Test Graphs BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 BLE_2M_Ant1_Low_2402 Report No.: PR2510270003R000018-00009 Date：Nov.14, 2025 Page：46 / 53 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.com Tel:+86-769-88087383 E-mail: [email protected] BLE_2M_Ant1_High_2480 Report No.: PR2510270003R000018-00009 Date：Nov.14, 2025 Page：47 / 53 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.com Tel:+86-769-88087383 E-mail: [email protected] Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 Reference 0.79 0.79 --- PASS 30~1000 0.79 -58.83 ≤-19.21 PASS 1000~26500 0.79 -37.12 ≤-19.21 PASS 2440 Reference 0.36 0.36 --- PASS 30~1000 0.36 -59 ≤-19.64 PASS 1000~26500 0.36 -36.22 ≤-19.64 PASS 2480 Reference 0.67 0.67 --- PASS 30~1000 0.67 -58.35 ≤-19.33 PASS 1000~26500 0.67 -39.8 ≤-19.33 PASS BLE_2M Ant1 2402 Reference 1.83 1.83 --- PASS 30~1000 1.83 -59.21 ≤-18.17 PASS 1000~26500 1.83 -40.01 ≤-18.17 PASS 2440 Reference 1.86 1.86 --- PASS 30~1000 1.86 -59.23 ≤-18.14 PASS 1000~26500 1.86 -42.05 ≤-18.14 PASS 2480 Reference -1.00 -1.00 --- PASS 30~1000 -1.00 -59.26 ≤-21 PASS 1000~26500 -1.00 -42.48 ≤-21 PASS Report No.: PR2510270003R000018-00009 Date：Nov.14, 2025 Page：48 / 53 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.com Tel:+86-769-88087383 E-mail: [email protected] Test Graphs BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 BLE_1M_Ant1_2402_1000~26500 Report No.: PR2510270003R000018-00009 Date：Nov.14, 2025 Page：49 / 53 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.com Tel:+86-769-88087383 E-mail: [email protected] BLE_1M_Ant1_2440_0~Reference BLE_1M_Ant1_2440_30~1000 BLE_1M_Ant1_2440_1000~26500 Report No.: PR2510270003R000018-00009 Date：Nov.14, 2025 Page：50 / 53 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.com Tel:+86-769-88087383 E-mail: [email protected] BLE_1M_Ant1_2480_0~Reference BLE_1M_Ant1_2480_30~1000 BLE_1M_Ant1_2480_1000~26500 Report No.: PR2510270003R000018-00009 Date：Nov.14, 2025 Page：51 / 53 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.com Tel:+86-769-88087383 E-mail: [email protected] BLE_2M_Ant1_2402_0~Reference BLE_2M_Ant1_2402_30~1000 BLE_2M_Ant1_2402_1000~26500 Report No.: PR2510270003R000018-00009 Date：Nov.14, 2025 Page：52 / 53 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.com Tel:+86-769-88087383 E-mail: [email protected] BLE_2M_Ant1_2440_0~Reference BLE_2M_Ant1_2440_30~1000 BLE_2M_Ant1_2440_1000~26500 Report No.: PR2510270003R000018-00009 Date：Nov.14, 2025 Page：53 / 53 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.com Tel:+86-769-88087383 E-mail: [email protected] BLE_2M_Ant1_2480_0~Reference BLE_2M_Ant1_2480_30~1000 BLE_2M_Ant1_2480_1000~26500 The End Report
