2BSZ7-FC02ANC Wireless Earbuds

Little Koi ZOOYO Little Koi ANC Wireless Earbuds Shenzhen Zooyo Electronic Techno logy Co., Ltd WWW.ZOOYO.CLUB ZOOYO Little Koi wireless earbuds Tap twice(R) Tap twice(L or R) Next track Tap 3 times(R) 3 2 Wake up the voice assistant Tap twice(L) Previous track Tap 3 times(L) Answer a third-party call (during an active call) Tap twice(L or R) Charging: the orange light will turn on for 20 seconds and then turn off. Fully charged: the white light will stay on. Battery > 25%: The white light stays on for 10 seconds and then turns off. Battery < 25%: The orange light flashes for 10 seconds and then turns off. a.Close the case Place the earbuds into the charging case and close the case to start charging. Press and hold BOTH unpaired earbuds for 5 secondsto clear TWS pairing records and automatically re-pair them as a left-right pair. When using both earbuds Press and hold BOTH earbuds for 5 seconds to clear all pairing records with previously connected devices. When the earbuds are unpaired (not connected as a pair) Little Koi ZOOYO Little Koi ANC Wireless Earbuds Shenzhen Zooyo Electronic Techno logy Co., Ltd WWW.ZOOYO.CLUB Auto-reconnect (after initial pairing) When the earbuds are in the charging case, open the case, the earbuds will automatically reconnect to the last paired device. BLUETOOTH PAIRING First-time use Open the charging case, keep the earbuds in it ,the earbuds will automatically enter pairing mode. Pair with your phone Enable Bluetooth on your phone, search for "ZOOYO-FC02" , select it, and complete the pairing. ZOOYO-FC02 Musician Poster FCC STATEMENT This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Shenzhen Zooyo Electronic Technology Co., Ltd Add: 543-A,R2-B,High-Tech Village,206 S 7th Rd,Nanshan,Shenzhen,China. Tel: +86-18516920743 Fax: N/A Email: [email protected] Date: 2025-11-21 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir/Madam, We, Shenzhen Zooyo Electronic Technology Co., Ltd, hereby authorize Bay Area Compliance Laboratories Corp(Dongguan). to act as a laboratory for testing and test report generation for the following project(s): (Product description: ANCWireless Earbuds, Model name: FC02, FCC ID: 2BSZ7-FC02) The product supports BT(GFSK, π/4-DQPSK), The other functions, bands and modes were disabled to use by manufacturer in the software, the end user has no capability to activate it. The right headset and left headset have the same circuit diagram, PCB layout and key components. Front Board Back Board Sincerely, Sig nature: Printed name: Xiao Chen Title: CEO

Shenzhen Zooyo Electronic Technology Co., Ltd Add: 543-A,R2-B,High-Tech Village,206 S 7th Rd,Nanshan,Shenzhen,China. Tel: +86-18516920743 Fax: N/A Email: [email protected] A tte station Letter Date: 2025-11-21 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(i)(ii) Filing FCC ID:2BSZ7-FC02 Shenzhen Zooyo Electronic Technology Co., Ltd(“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Shenzhen Zooyo Electronic Technology Co., Ltd(“the applicant”) certifies that as of date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Shenzhen Zooyo Electronic Technology Co., Ltd (“the applicant”) certifies that our product does not use Kaspersky's software information. Sincerely, Signature Printed Name: Xiao Chen Title: CEO CFR 47 §2.911(d)(5)(i)(ii) Attestation Letter

U.S. AGENT LETTER OF ATTESTATION Date: 2025-11-21 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(7) Filing FCC ID: 2BSZ7-FC02 Shenzhen Zooyo Electronic Technology Co., Ltd certifies that, as of the date of the filing of the application, Iconsigh Inc is our designated U.S. agent for service of process for the above referenced FCC ID.Shenzhen Zooyo Electronic Technology Co., Ltd accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Iconsigh Inc. accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Company Name: Iconsigh Inc. Address: 2310 Homestead Road, Suite C1, Los Altos, CA, 94024, USA FRN: 0033398652 Tel.: +1 (408) 320-9867 Email: [email protected] Signed by (printed name): Benjamin Kaur Signature: Shenzhen Zooyo Electronic Technology Co., Ltd Add: 543-A,R2-B,High-Tech Village,206 S 7th Rd,Nanshan,Shenzhen,China. Tel:+86-18516920743 FRN:0037635976 Email:[email protected] Printed name: Xiao Chen Printed Name: CEO Signature:

Shenzhen Zooyo Electronic Technology Co., Ltd Add: 543-A,R2-B,High-Tech Village,206 S 7th Rd,Nanshan,Shenzhen,China. Tel: +86-18516920743 Fax: N/A Email: [email protected] FCC Authorization Date: 2025-11-21 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, Shenzhen Zooyo Electronic Technology Co., Ltd, Hereby authorizes Bay Area Compliance Laboratories Corp.(Dongguan) to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corp. (Dongguan) on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely, signature QA-FR-170-B Printed Name: Xiao Chen Title: CEO

Shenzhen Zooyo Electronic Technology Co., Ltd Add: 543-A,R2-B,High-Tech Village,206 S 7th Rd,Nanshan,Shenzhen,China. Tel: +86-18516920743 Fax: N/A Email: [email protected] FCC Confidential Authorization Date: 2025-11-21 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2BSZ7-FC02， In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, (Shenzhen Zooyo Electronic Technology Co., Ltd) hereb y requests long-term confidential treatment of information accompanying this application as outlined below: •Block Diagram •Schematics •Operation Description The above ma terials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely , Signature: Printed Name: Xiao Chen Title: CEO QA-FR-171- A

Shenzhen Zooyo Electronic Technology Co., Ltd Add: 543-A,R2-B,High-Tech Village,206 S 7th Rd,Nanshan,Shenzhen,China. Tel: +86-18516920743 Fax: N/A Email:[email protected] label placement Date: 2025-11-21 Sincerely, Signature: Printed Name: Xiao Chen Title: CEO FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7 435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, Shenzhen Zoo yo Electronic Technology Co., Ltd , FCC ID: 2BSZ7-FC02 , hereby submits justification for placing the ID label to the charging box. Because the surface of this device is very smooth, the processing technology is difficult and the device is too small so the ID label cannot to be printed on this device. The measurement of Earphone: Length (36.66mm)*Width (21.65mm)*High (24.83mm), The Charging box: Length (61.98mm)*High (53.44mm), so the label will be moved to the Charging Case. Below photo will show the detail: Unit:mm Label Bluetooth headset Charging box

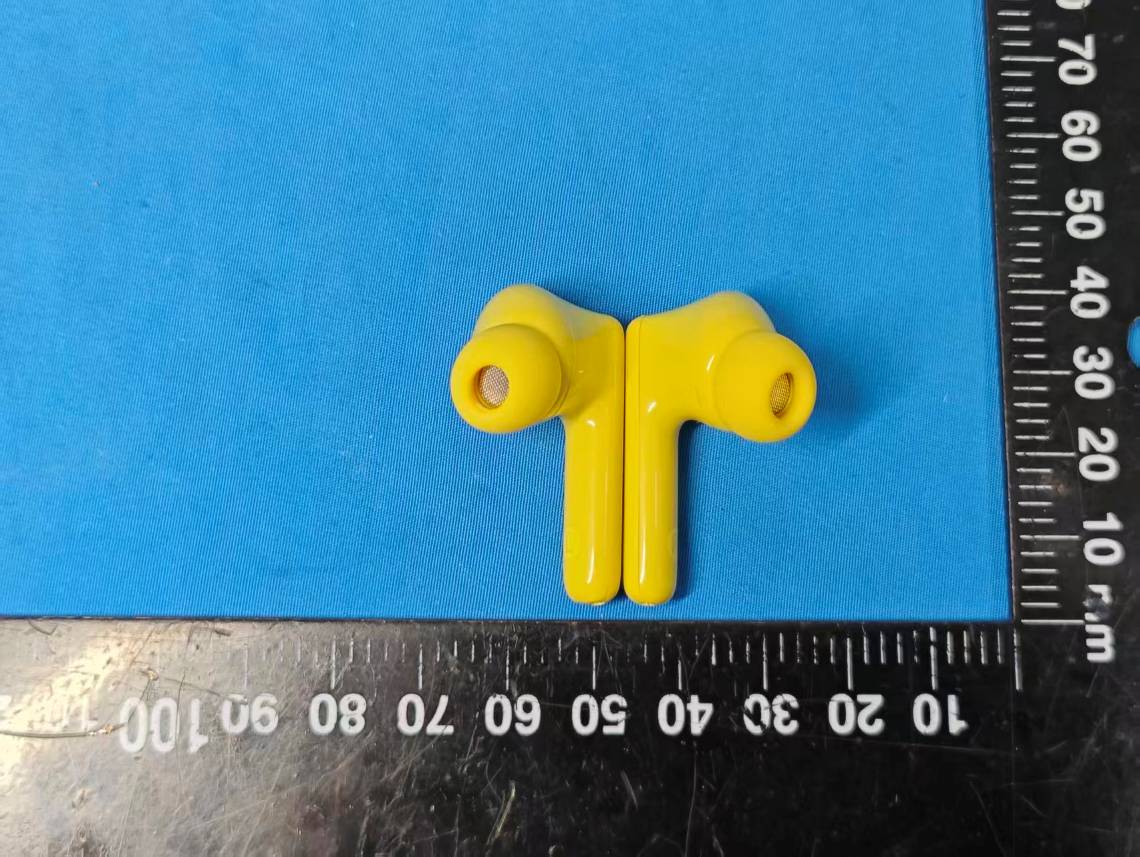

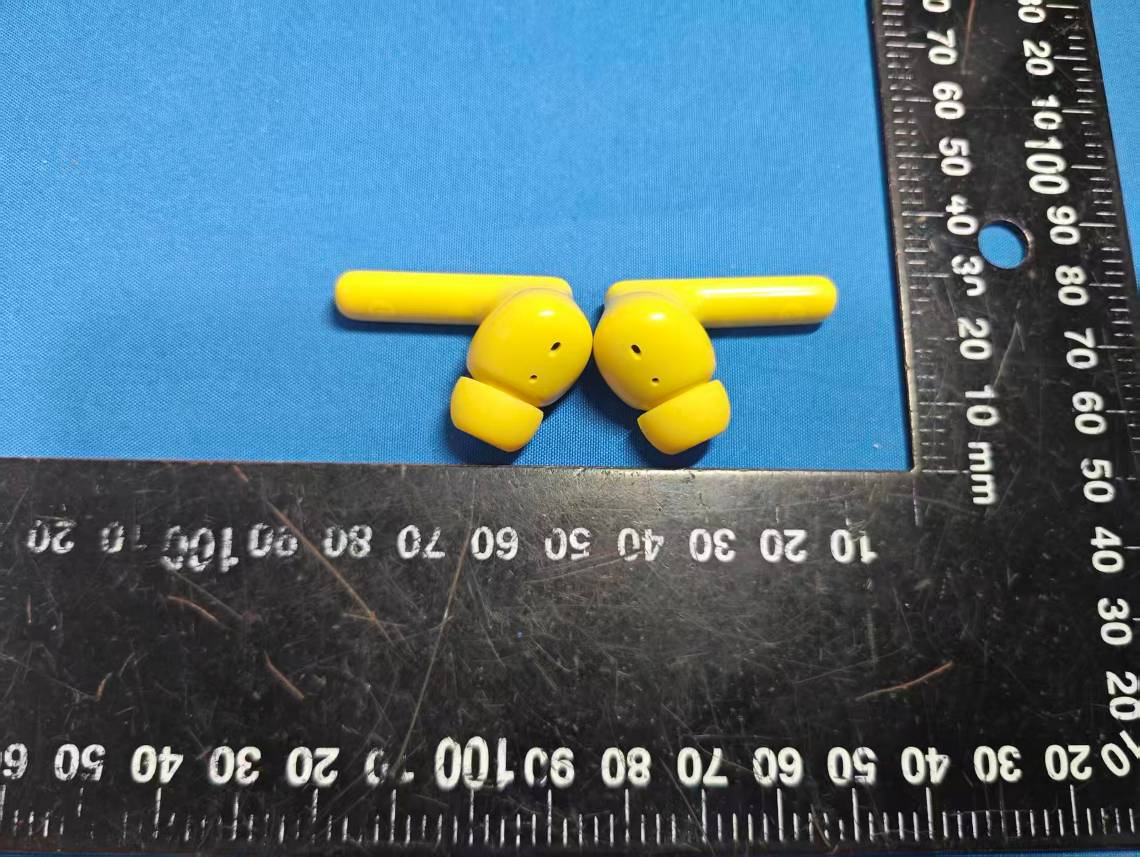

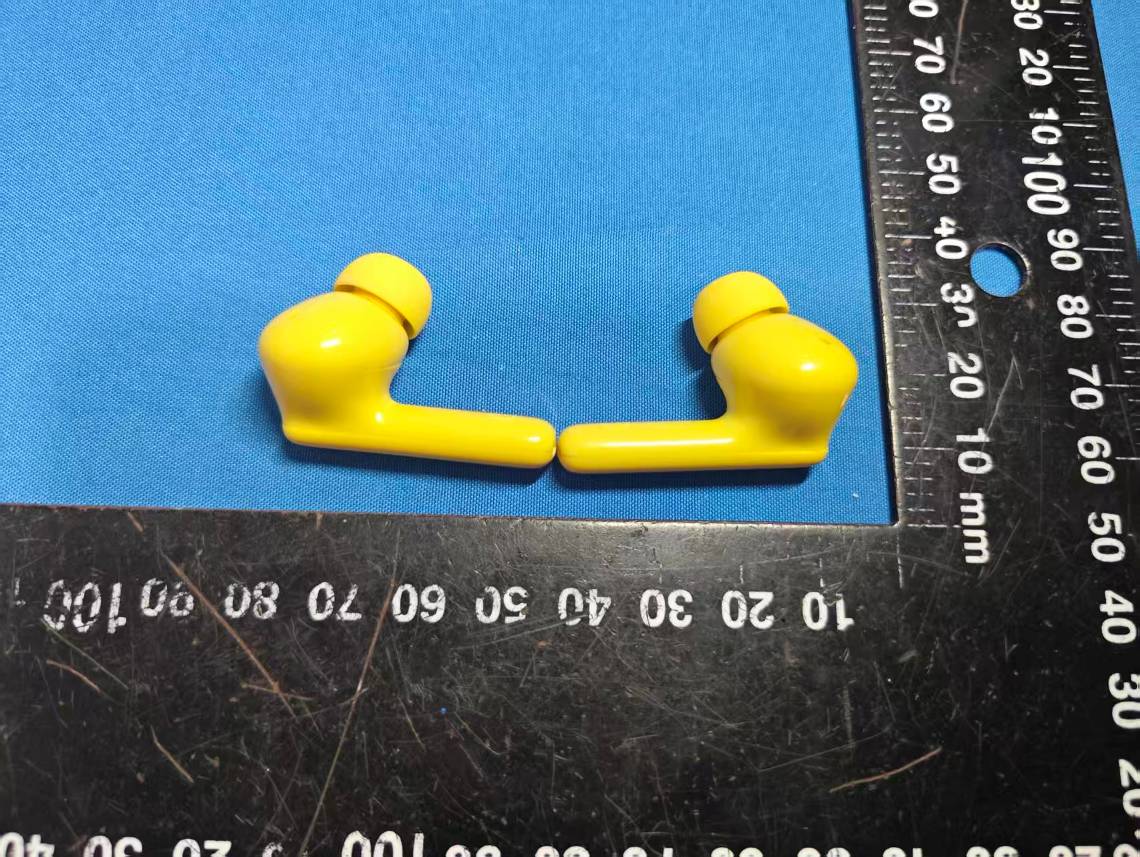

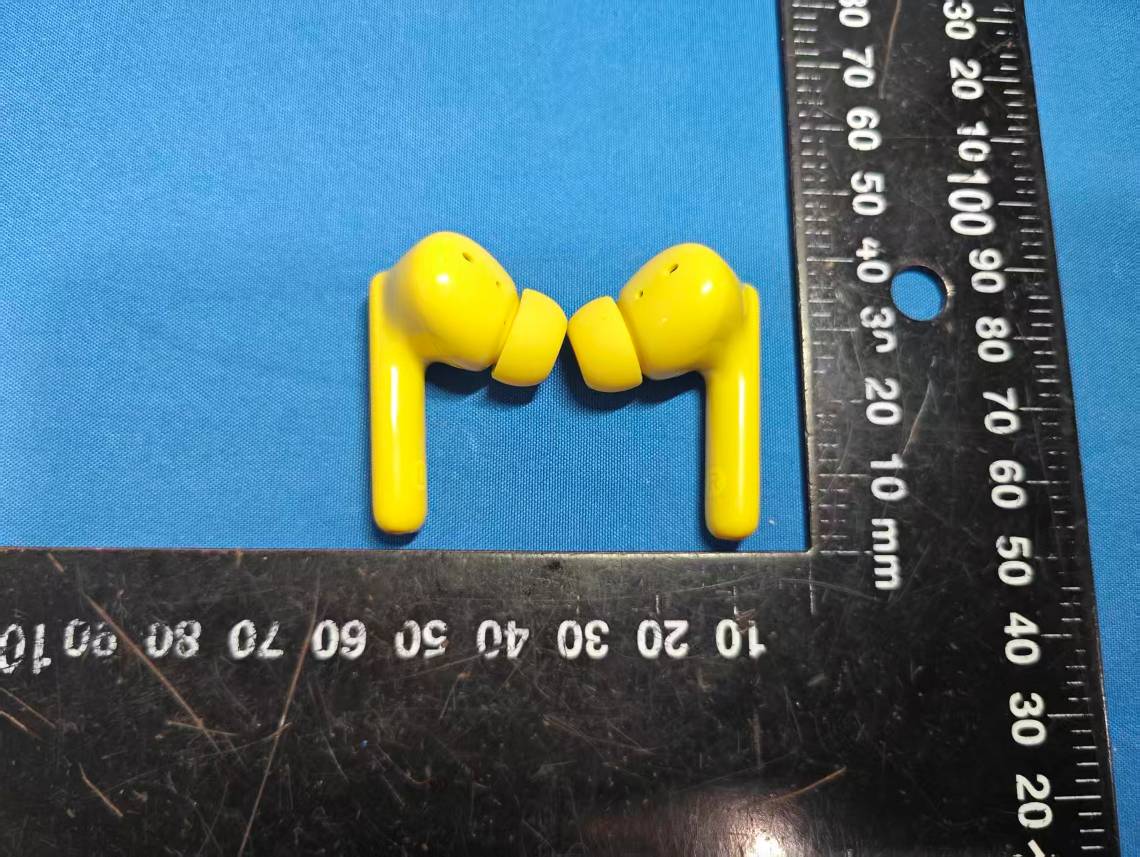

Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502X23270E-RF-EXP Page 1 / 4 EUT EXTERNAL PHOTOS Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502X23270E-RF-EXP Page 2 / 4 Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502X23270E-RF-EXP Page 3 / 4 Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502X23270E-RF-EXP Page 4 / 4 *****END *****

Model:FC02 FCC ID:2BSZ7-FC02 Capacity:450mAh-1.665Wh INPUT: 5V-1A Made in China Shenzhen Shenzhen Zooyo Electronic Technology Co., Ltd 543-A,R2-B,High-Tech Village,206S 7th Rd,Nanshan,Shenzhen,China. 14.0 5 mm 10 . 77 mm

Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502X23270E-RF-INP Page 1 / 3 EUT INTERNAL PHOTOS Left Right Left Right Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502X23270E-RF-INP Page 2 / 3 Antenna Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502X23270E-RF-INP Page 3 / 3 *****END *****

Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: 2502X23270E-RF-00A Report Template Version: FCC-BT-V2.1 Page 59 of 59 EXHIBIT C - RF EXPOSURE EVALUATION Applicable Standard According to§15.247(i) and §1.1310, systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. According to KDB447498 D01 General RF Exposure Guidance v06: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. Measurement Result The max conducted power including tune-up tolerance is 4.0 dBm (2.51 mW). [(max. power of channel, mW)/(min. test separation distance, mm)][√f(GHz)] =2.51/5*(√2.480) = 0.8< 3.0 Note: the max conducted power including tune-up tolerance was declared by manufacturer. Result: Compliant. The stand-alone SAR evaluation is not necessary. ***** END OF REPORT *****
