2BT48-MS02Wireless display adapter

FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipme nt and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RF Exposure Information The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

Shenzhen Fotorgear Techonolgy Co.,Ltd. No.12, Area A, 6th Floor, Shenzhou Computer Building, Bantian Street, Longgang District, Shenzhen, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2026/01/07 U.S. Agent Designation Shenzhen Fotorgear Techonolgy Co.,Ltd. acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BT48-MS02): Name and company of U.S. agent: GLOCERTS TECHNOLOGY INC Physical U.S. address of agent: 19784 SUNKISSED RIDGE DR RIVERSIDE, CA 92507 United States FRN of U.S. agent: 0036339737 Email address of U.S. agent: [email protected] GLOCERTS TECHNOLOGY INC acknowledges their obligation to accept service of process on behalf of Shenzhen Fotorgear Techonolgy Co.,Ltd. Shenzhen Fotorgear Techonolgy Co.,Ltd. with the FRN [0037835204] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. An expiration date for this letter does not exist. Sincerely, Signature Xiansheng Jin Manager Shenzhen Fotorgear Techonolgy Co.,Ltd. Signature Huiying Fan Director GLOCERTS TECHNOLOGY INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

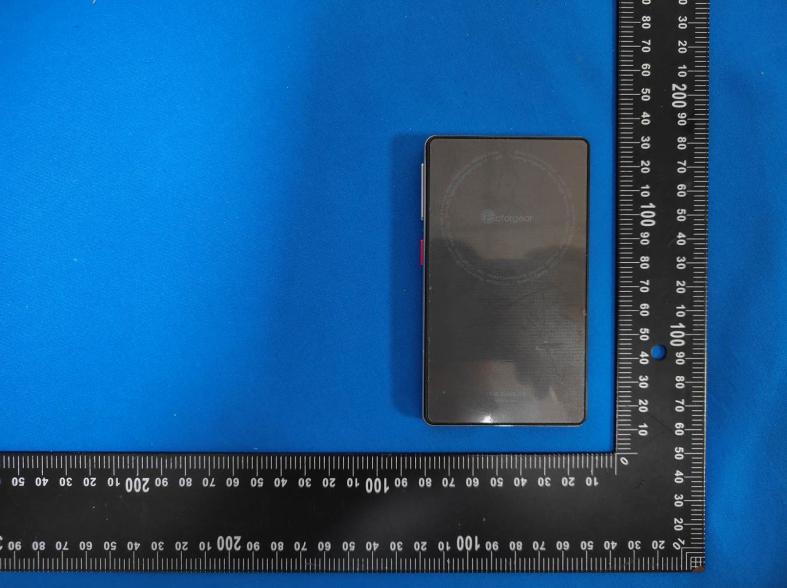

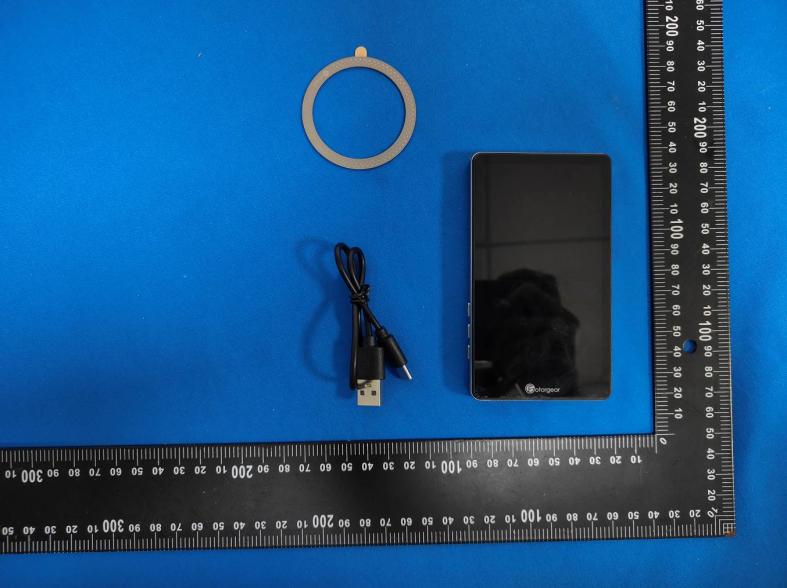

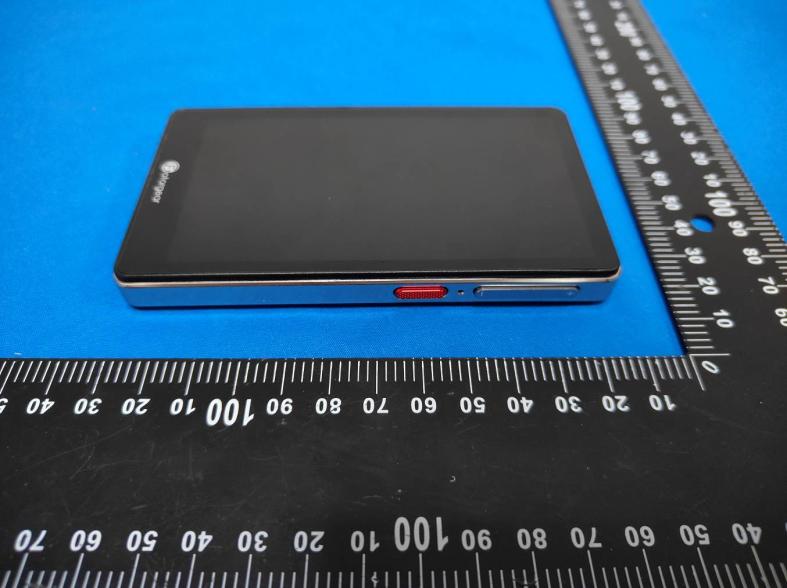

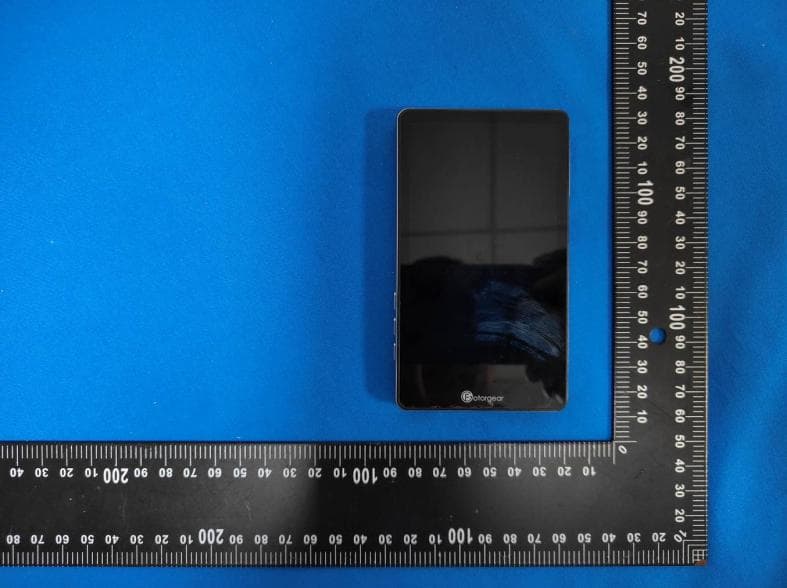

FCC ID: 2BT48-MS02 External Photos of the EUT FCC ID: 2BT48-MS02 FCC ID: 2BT48-MS02

Label and Location Size: L: 1.0cm*W: 0.5cm Label and Location FCC ID : 2BT48-MS02

FCC ID: 2BT48-MS02 Internal Photos of the EUT FCC ID: 2BT48-MS02 FCC ID: 2BT48-MS02 ANT FCC ID: 2BT48-MS02

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure evaluation Report Reference No...................... : FCC ID. ........................................... : CTA25123000504 2BT48-MS02 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Jan. 06, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ........................................... : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : Shenzhen Fotorgear Techonolgy Co.,Ltd. Address ........................................... : No.12, Area A, 6th Floor, Shenzhou Computer Building, Bantian Street, Longgang District, Shenzhen, China Standard ........................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Wireless display adapter Trade Mark ....................................... : Fotorgear Manufacturer .................................... : Shenzhen Fotorgear Techonolgy Co.,Ltd. Model/Type reference ...................... : MS02 Listed Models ................................... : Refer to page 2 Rating ............................................... : DC 3.7V From battery and DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA25123000504 Page 2 of 9 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Wireless display adapter Model /Type : MS02 Listed Models : MS01, MS02pro, MS02Ultra, MS03, MS03pro, MS03Ultra, MS04, MS04pro, MS04Ultra, FL01, FL02, MS05, MS06 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : Shenzhen Fotorgear Techonolgy Co.,Ltd. Address : No.12, Area A, 6th Floor, Shenzhou Computer Building, Bantian Street, Longgang District, Shenzhen, China Manufacturer : Shenzhen Fotorgear Techonolgy Co.,Ltd. Address : No.12, Area A, 6th Floor, Shenzhou Computer Building, Bantian Street, Longgang District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25123000504 Page 3 of 9 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 6 2.4 Modifications ............................................................................................................ 6 3 TEST ENVIRONMENT ....................................................................................................... 7 3.1 Address of the test laboratory .................................................................................. 7 3.2 Test Facility .............................................................................................................. 7 3.3 Statement of the measurement uncertainty ............................................................. 7 4 Test limit .............................................................................................................................. 8 4.1 Requirement ............................................................................................................ 8 4.2 Conducted Power Results ....................................................................................... 8 4.3 Manufacturing tolerance .......................................................................................... 9 4.4 Evaluation Result ..................................................................................................... 9 4.5 Simultaneous Transmission for SAR Exclusion ...................................................... 9 5 Conclusion .........................................................................................................................…

Text truncated - open the document above for the full version.

1. Antenna Description: Antenna type PCB antenna Model MS02 Frequency range 2400-2500MHz, 5745-5825MHz Manufacturer Shenzhen Fotorgear Techonolgy Co.,Ltd. Address No.12, Area A, 6th Floor, Shenzhou Computer Building, Bantian Street, Longgang District, Shenzhen, China ANT Peak Gain 2400-2500MHz: 0.93 dBi 5745-5825MHz: 0.97 dBi 2. Antenna Photo: Length :8.50mm Width:4.31mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz 5745MHz 5785MHz 5825MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn TEST REPORT FCC PART 15 SUBPART E 15.407 Report Reference No. ..................... : FCC ID. ........................................... : CTA25123000503 2BT48-MS02 Compiled by ( position+printed name+signature) .. : File administrators Zoey Cao Supervised by ( position+printed name+signature) .. : Project Engineer Ace Chai Approved by ( position+printed name+signature) .. : RF Manager Eric Wang Date of issue ..................................... : Jan. 06, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : Shenzhen Fotorgear Techonolgy Co.,Ltd. Address ............................................. : No.12, Area A, 6th Floor, Shenzhou Computer Building, Bantian Street, Longgang District, Shenzhen, China Test specification .......................... : Standard ........................................... : FCC Part 15 Subpart E 15.407 TRF Originator .................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Wireless display adapter Trade Mark ....................................... : Fotorgear Manufacturer..................................... : Shenzhen Fotorgear Techonolgy Co.,Ltd. Model/Type reference ....................... : MS02 Listed Models.................................... : Refer to page 2 Modulation ....................................... : OFDM Frequency ......................................... : From 5745MHz-5825MHz Rating ............................................... : DC 3.7V From battery and DC 5.0V From external circuit Result ................................................ : PASS Report No.: CTA25123000503 Page 2 of 32 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Wireless display adapter Model /Type : MS02 Listed Models : MS01, MS02pro, MS02Ultra, MS03, MS03pro, MS03Ultra, MS04, MS04pro, MS04Ultra, FL01, FL02, MS05, MS06 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : Shenzhen Fotorgear Techonolgy Co.,Ltd. Address : No.12, Area A, 6th Floor, Shenzhou Computer Building, Bantian Street, Longgang District, Shenzhen, China Manufacturer : Shenzhen Fotorgear Techonolgy Co.,Ltd. Address : No.12, Area A, 6th Floor, Shenzhou Computer Building, Bantian Street, Longgang District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25123000503 Page 3 of 32 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description .......................................................................................................................... 5 2.3 Equipment Under Test ...................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ..................................................................... 5 2.5 EUT configuration ............................................................................................................................. 5 2.6 EUT operation mode......................................................................................................................... 6 2.7 Block Diagram of Test Setup ............................................................................................................ 6 2.8 Related Submittal(s) / Grant (s) ........................................................................................................ 6 2.9 Modifications ..................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory .....................................................…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for 5GWIFI FCC ID : 2BT48-MS02 Company : Shenzhen Fotorgear Techonolgy Co.,Ltd. EUT : Wireless display adapter Model Number : MS02 Report No. : CTA25123000503 Reviewed By : Eric Wang 2 Appendix A1: Emission Bandwidth Test Result TestMode Antenna Freq(MHz) 26db EBW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5745 23.960 5733.200 5757.160 --- --- 5785 23.800 5773.000 5796.800 --- --- 5825 24.160 5812.680 5836.840 --- --- 11N20SISO Ant1 5745 24.880 5732.280 5757.160 --- --- 5785 26.080 5771.920 5798.000 --- --- 5825 24.880 5812.280 5837.160 --- --- 11N40SISO Ant1 5755 44.800 5733.000 5777.800 --- --- 5795 44.960 5772.760 5817.720 --- --- 3 Test Graphs 11A_Ant1_5745 11A_Ant1_5785 11A_Ant1_5825 4 11N20SISO_Ant1_5745 11N20SISO_Ant1_5785 5 11N20SISO_Ant1_5825 11N40SISO_Ant1_5755 11N40SISO_Ant1_5795 6 7 Appendix A2: Occupied channel bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5745 17.628 5736.2496 5753.8776 --- --- 5785 17.607 5776.2217 5793.8287 --- --- 5825 17.664 5816.1754 5833.8394 --- --- 11N20SISO Ant1 5745 18.685 5735.6526 5754.3376 --- --- 5785 18.612 5775.6943 5794.3063 --- --- 5825 18.671 5815.6437 5834.3147 --- --- 11N40SISO Ant1 5755 36.959 5736.6321 5773.5911 --- --- 5795 36.913 5776.5788 5813.4918 --- --- 8 Test Graphs 11A_Ant1_5745 11A_Ant1_5785 11A_Ant1_5825 9 11N20SISO_Ant1_5745 11N20SISO_Ant1_5785 10 11N20SISO_Ant1_5825 11N40SISO_Ant1_5755 11N40SISO_Ant1_5795 11 12 Appendix A3: Min emission bandwidth Test Result B4 TestMode Antenna Freq(MHz) 6db EBW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5745 16.320 5736.840 5753.160 0.5 PASS 5785 16.320 5776.840 5793.160 0.5 PASS 5825 16.320 5816.840 5833.160 0.5 PASS 11N20SISO Ant1 5745 17.520 5736.240 5753.760 0.5 PASS 5785 17.520 5776.240 5793.760 0.5 PASS 5825 17.520 5816.240 5833.760 0.5 PASS 11N40SISO Ant1 5755 36.320 5736.840 5773.160 0.5 PASS 5795 36.320 5776.840 5813.160 0.5 PASS 13 Test Graphs B4 11A_Ant1_5745 11A_Ant1_5785 11A_Ant1_5825 14 11N20SISO_Ant1_5745 11N20SISO_Ant1_5785 15 11N20SISO_Ant1_5825 11N40SISO_Ant1_5755 11N40SISO_Ant1_5795 16 17 Appendix B: Duty Cycle Test Result TestMode Antenna Freq(MHz) Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] Duty factor(dB) Limit Verdict 11A Ant1 5745 0.15 0.19 78.95 1.03 --- --- 5785 0.15 0.20 75.00 1.25 --- --- 5825 0.15 0.20 75.00 1.25 --- --- 11N20SISO Ant1 5745 0.18 0.23 78.26 1.06 --- --- 5785 0.18 0.23 78.26 1.06 --- --- 5825 0.18 0.22 81.82 0.87 --- --- 11N40SISO Ant1 5755 0.18 0.23 78.26 1.06 --- --- 5795 0.18 0.22 81.82 0.87 --- --- 18 Test Graphs 11A_Ant1_5745 11A_Ant1_5785 11A_Ant1_5825 19 11N20SISO_Ant1_5745 11N20SISO_Ant1_5785 20 11N20SISO_Ant1_5825 11N40SISO_Ant1_5755 11N40SISO_Ant1_5795 21 22 Appendix C: Maximum conducted output power Test Mode Antenna Freq(MHz) Channel Power [dBm] Duty Cycle [%] DC Factor [dBm] Result [dBm] Limit [dBm] Verdict 11A Ant1 5745 0.38 78.95 1.03 1.41 ≤30.00 PASS 5785 0.66 75.00 1.25 1.91 ≤30.00 PASS 5825 0.43 75.00 1.25 1.68 ≤30.00 PASS 11N20SISO Ant1 5745 0.73 78.26 1.06 1.79 ≤30.00 PASS 5785 0.87 78.26 1.06 1.93 ≤30.00 PASS 5825 0.77 81.82 0.87 1.64 ≤30.00 PASS 11N40SISO Ant1 5755 0.84 78.26 1.06 1.90 ≤30.00 PASS 5795 1.21 81.82 0.87 2.08 ≤30.00 PASS 23 Appendix D: Maximum power spectral density Test Result TestMode Antenna Freq(MHz) Result [dBm/300KHz ] RBW Factor (dB) Duty factor (dB) Result [dBm/500KHz ] Limit [dBm/500KΗz ) Verdict 11A Ant1 5745 -14.654 2.22 1.03 -11.40 ≤30.00 PASS 5785 -14.756 2.22 1.25 -11.29 ≤30.00 PASS 5825 -14.529 2.22 1.25 -11.06 ≤30.00 PASS 11N20SISO Ant1 5745 -14.658 2.22 1.06 -11.38 ≤30.00 PASS 5785 -14.772 2.22 1.06 -11.49 ≤30.00 PASS 5825 -15.058 2.22 0.87 -11.97 ≤30.00 PASS 11N40SISO Ant1 5755 -17.901 2.22 1.06 -14.62 ≤30.00 PASS 5795 -17.624 2.22 0.87 -14.53 ≤30.00 PASS Note：1.The Result and Limit Unit is dBm/500 kHz in the band 5.725−5.85 GHz. P.S.D(dBm/500KHz)= P.S.D(dBm/300KHz)+10 log (500 kHz/300KHz). 2. RBW factor= 10 log (500 KHz /300 KHz) = 2.22 dB 24 Test Graphs 11A_Ant1_5745 11A_Ant1_5785 11A_Ant1_5825 25 11N20SISO_Ant1_5745 11N20SISO_Ant1_5785 26 11N20SISO_Ant1_5825 11N40SISO_Ant1_5755 11N40SISO_Ant1_5795 27 28 Appendix E: Band edge measurements Test Result B4 TestMode Antenna ChName Freq(MHz) FreqRange [MHz] Result [dBm] Limit [dBm] Verdict 11A Ant1 Low 5745 5650~5700 -51.37 ≤-26.27 PASS 5700~5720 -51.16 ≤10.02 PASS 5720~5725 -51.44 ≤16.08 PASS 5760~5650 -50.48 ≤-27 PASS High 5825 5850~5855 -49.97 ≤16.03 PASS 5855~5875 -50.29 ≤10.85 PASS 5875~5925 -49.58 ≤-25.81 PASS 5925~5935 -49.54 ≤-27 PASS 11N20SI SO Ant1 Low 5745 5650~5700 -52.08 ≤-26.96 PASS 5700~5720 -50.3 ≤10.93 PASS 5720~5725 -51.06 ≤16.87 PASS 5760~5650 -50.2 ≤-27 PASS High 5825 5850~5855 -51.95 ≤15.73 PASS 5855~5875 -50.01 ≤10.13 PASS 5875~5925 -49.82 ≤-26.51 PASS 5925~5935 -50.4 ≤-27 PASS 11N40SI SO Ant1 Low 5755 5650~5700 -51.2 ≤-26.70 PASS 5700~5720 -51.6 ≤10.17 PASS 5720~5725 -50.45 ≤16.97 PASS 5780~5650 -51.43 ≤-27 PASS High 5795 5850~5855 -51.11 ≤15.66 PASS 5855~5875 -50.07 ≤11.54 PASS 5875~5925 -51.68 ≤-26.95 PASS 5925~5935 -49.05 ≤-27 PASS 29 Test Graphs B4 11A_Ant1_Low_5745 11A_Ant1_High_5825 11N20SISO_Ant1_Low_5745 30 11N20SISO_Ant1_High_5825 11N40SISO_Ant1_Low_5755 31 11N40SISO_Ant1_High_5795 32 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] Max. Fre [MHz] Max. Level [dBm] Limit [dBm] Verdict 11A Ant1 5745 30~5650 3045.32 -67.6 ≤-27 PASS 5925~40000 25683.52 -55.31 ≤-27 PASS 27000~40000 27000 -55.12 ≤-27 PASS 5785 30~5650 3176.26 -67.6 ≤-27 PASS 5925~40000 26533.54 -55.42 ≤-27 PASS 5825 30~5650 3167.27 -66.88 ≤-27 PASS 5925~40000 25739.72 -55.16 ≤-27 PASS 11N20SISO Ant1 5745 30~5650 2539.14 -68.2 ≤-27 PASS 5925~40000 26988.76 -55.59 ≤-27 PASS 5785 30~5650 3140.86 -66.91 ≤-27 PASS 5925~40000 26619.95 -55.57 ≤-27 PASS 5825 30~5650 3235.27 -67.56 ≤-27 PASS 5925~40000 25646.28 -54.88 ≤-27 PASS 11N40SISO Ant1 5755 30~5650 2664.28 -68.09 ≤-27 PASS 5925~40000 25748.…

Text truncated - open the document above for the full version.

35 11A_Ant1_5825_30~5650 11A_Ant1_5825_5925~40000 11N20SISO_Ant1_5745_30~5650 36 11N20SISO_Ant1_5745_5925~40000 11N20SISO_Ant1_5785_30~5650 37 11N20SISO_Ant1_5785_5925~40000 11N20SISO_Ant1_5825_30~5650 11N20SISO_Ant1_5825_5925~40000 38 11N40SISO_Ant1_5755_30~5650 11N40SISO_Ant1_5755_5925~40000 39 11N40SISO_Ant1_5795_30~5650 11N40SISO_Ant1_5795_5925~40000 40 Appendix G: Emissions in Restricted Bands Test Result TestMod e Antenn a ChNam e Freq(MH z) Detector Freq [MHz] Result [dBm] Gain [dB] EIRP [dBm] Limit [dBm] Verdict 11A Ant1 Low 5745 Peak 5650.0 -53.249 2.00 -51.249 ≤-27.00 PASS Peak 5700.0 -53.55 2.00 -51.55 ≤10.00 PASS Peak 5720.0 -54.28 2.00 -52.28 ≤15.60 PASS Peak 5725.0 -54.42 2.00 -52.42 ≤27.00 PASS High 5825 Peak 5850.0 -53.826 2.00 -51.826 ≤27.00 PASS Peak 5855.0 -51.73 2.00 -49.73 ≤15.60 PASS Peak 5875.0 -53.13 2.00 -51.13 ≤10.00 PASS Peak 5925.0 -54.03 2.00 -52.03 ≤-27.00 PASS 11N20SI SO Ant1 Low 5745 Peak 5650.0 -53.535 2.00 -51.535 ≤-27.00 PASS Peak 5700.0 -53.28 2.00 -51.28 ≤10.00 PASS Peak 5720.0 -53.38 2.00 -51.38 ≤15.60 PASS Peak 5725.0 -52.57 2.00 -50.57 ≤27.00 PASS High 5825 Peak 5850.0 -52.902 2.00 -50.902 ≤27.00 PASS Peak 5855.0 -53.92 2.00 -51.92 ≤15.60 PASS Peak 5875.0 -53.06 2.00 -51.06 ≤10.00 PASS Peak 5925.0 -53.22 2.00 -51.22 ≤-27.00 PASS 11N40SI SO Ant1 Low 5755 Peak 5650.0 -53.221 2.00 -51.221 ≤-27.00 PASS Peak 5700.0 -53.79 2.00 -51.79 ≤10.00 PASS Peak 5720.0 -52.35 2.00 -50.35 ≤15.60 PASS Peak 5725.0 -52.3 2.00 -50.3 ≤27.00 PASS High 5795 Peak 5850.0 -53.521 2.00 -51.521 ≤27.00 PASS Peak 5855.0 -51.12 2.00 -49.12 ≤15.60 PASS Peak 5875.0 -54.01 2.00 -52.01 ≤10.00 PASS Peak 5925.0 -53.2 2.00 -51.2 ≤-27.00 PASS Note： 1. For transmitters operating in 5150-5350 GHz band and 5470-5725 GHz band: The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. 41 Test Graphs 11A_Ant1_Low_5745_Peak 11A_Ant1_High_5825_Peak 11N20SISO_Ant1_Low_5745_Peak 42 11N20SISO_Ant1_High_5825_Peak 11N40SISO_Ant1_Low_5755_Peak 43 11N40SISO_Ant1_High_5795_Peak

FCC ID: 2BT48-MS02 Test Setup Photos of the EUT FCC ID: 2BT48-MS02
