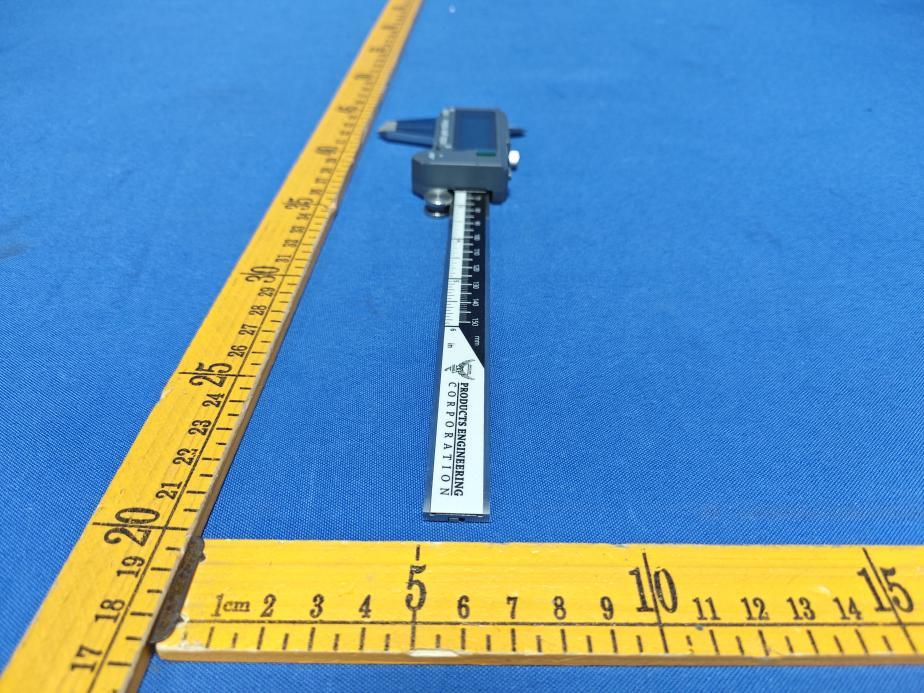

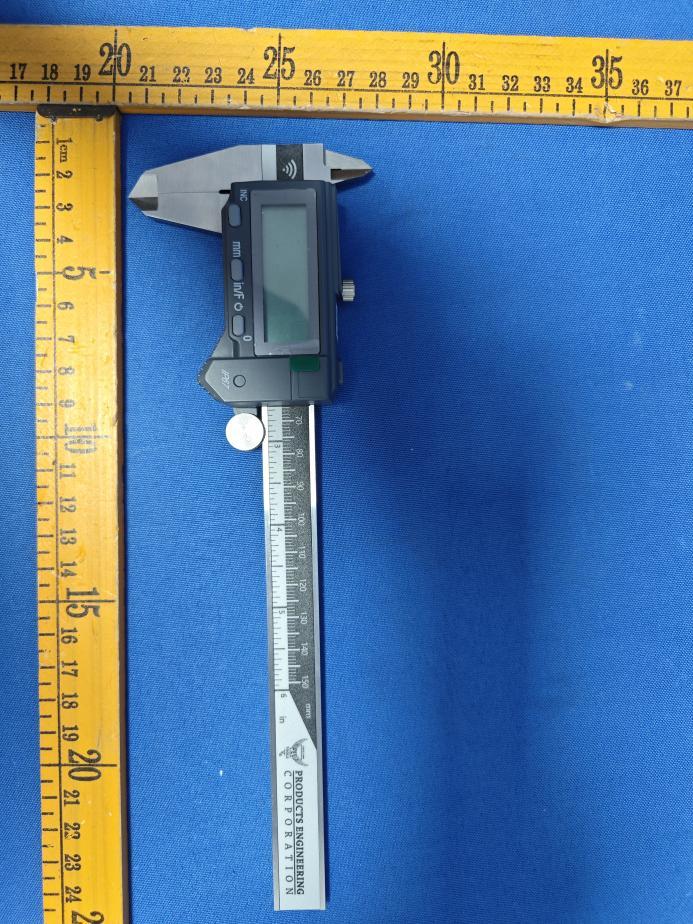

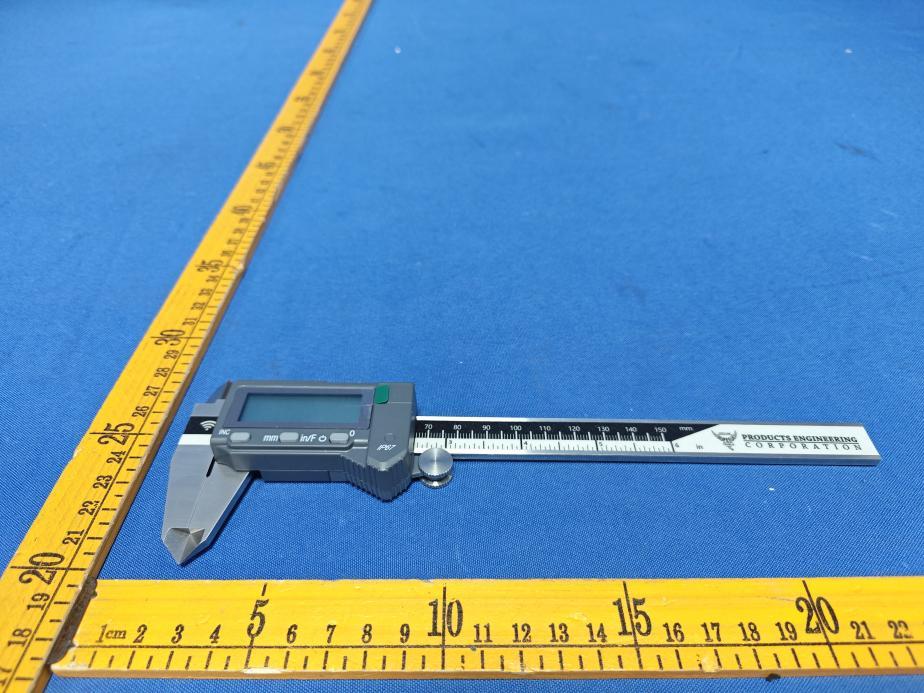

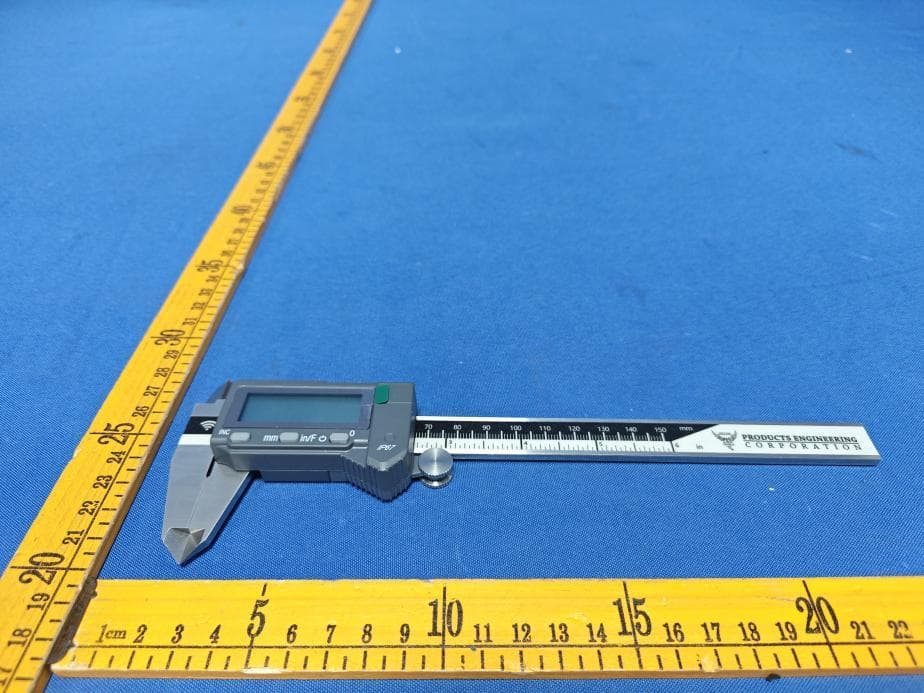

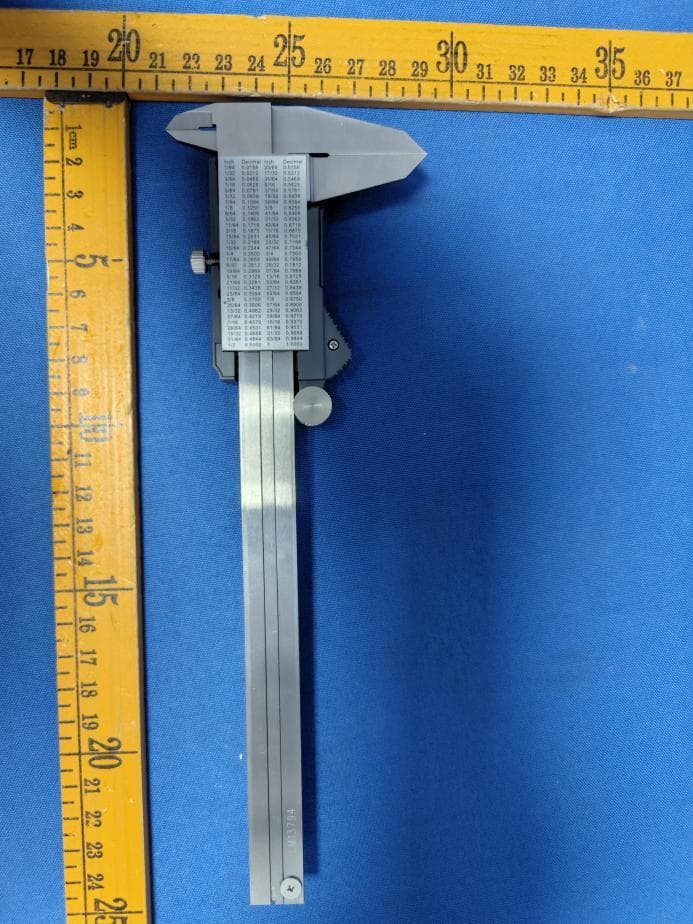

2BT4E-2020-1005digital caliper

1 .Rotate to right to loosen the locking screw of the caliper and release the lock of the caliper, then hand- pushed roller caliper can be moved 2 .Turn on to check if the caliper display and keys work. 3 .Clean the measuring surfaces of the measuring tool. Close the measuring claw with appropriate force, shortly-press /0 to turn on and set a.Press the switch or pull the caliper frame to light up the display. b.According to the measurement requirements, press the Metric/inch button to select the measurement unit. c.Move the caliper frame so that the measuring surfaces of the two calipers are in close contact with the surfaces of the measured object, and then read the value shows on screen. Normal mode Turn on the power supply, the display shows the position of the ruler frame before turning off the power supply, and the zero position (origin) of the caliper is the last set zero position (origin) before turning off the power supply. When using the absolute measurement mode, there is no need to adjust the origin position. When using the relative measurement mode, Press INC to adjust the zero position (non origin) according to the demand. Power saving mode (shutdown time is more than 8 hours): turn on the power supply, and the absolute measurement zero position (origin) of the caliper is the position of the caliper frame when starting up. After the measuring surface needs to be cleaned, move the ruler frame to close the measuring surface, and long press the /0key for five seconds to reset the zero position (origin) of the absolute measurement mode. d.Switching between absolute measurement and relative measurement Product features 1.Set zero at any position. 2.The measurement unit can be set to mm/in/F. 3.Can maintain the consistency of the origin. 4.Whenever it is turned on, the LCD will display the current ruler frame position at any time 5.The absolute origin is adopted, and there is no need to adjust the zero position repeatedly. 6.Minute automatic screen shutdown, 8-hour automatic power failure, low power consumption design 7.No response speed limit, no error due to average speed change Product Figure and Buttons Parameter 0-150mm（0-6")/0-200mm(0-8")/0-300mm(0-12") 0.01 mm/0.0005" /1/128" CR2032 lithium battery 0-80% 0-40°C (32-104°F) Instruction manual IP67 DIGITAL CALIPER 4.mm/in/F button: Press this button can change measuring standard. 5.Locking screw: Left twist for fixing caliper position, right twist for unlock. 6.Battery cover: replace battery. 7.Thumb roller:used to push measurement. 8.Scale 9.Beam 10.Depth measurement rod: measuring depth. 11.lnternal jaws: measuring Internal dimension. 12.Step measurement: measuring step dimension. 1 14.Bluetooth 3.External jaw: measuring external dimension. 2.LCD screen: display measurement value. 1. /0 button: Press and release Poweron/ o ff , S ystem will work under absolute measuring mode when power on.If "SET"shows on the screen, pls long press this button to set ZERO. 3.INC button: Press and release the button:at any position. LCD will display"0.00"and "INC",the caliper is ready for relative measurement. Press and can turn back the absolute measurement. This time the symbol "INC" disappear. Long press the button:LCD will` display"0.00",The origin is set at this position. Relative measurement: briefly press the INC button, the Inc indicator appears in the left corner of the LCD display, and the caliper enters the Inc memory measurement. At the same time, clear to zero, and start counting from the position of the caliper frame to zero when pressing the INC key. Absolute measurement: press the INC button in the relative measurement mode, the Inc indicator will disappear and return to the absolute mode, and the counting will start from the zero position (origin) set by the startup. a) Remove and immediately recyce or dispose of used batteres according to local regulations and keep away from children. Do NOT dispose of batteries in household trash or incinerate. b) Even used batteries may cause severe njury or death. c) Calla local poison control center for treatment information. d) Battery type: CR2032 e) Nominal battery voltage: 3V f) Non-rechargeable batteres are not to be recharged. g) Do not force discharge, recharge, disassemble, heat above (manufacturer's specified temperature rating)or incinerate.Doing so may result n njury due to venting,leakage or explosion resulting in chemical burns. h) Ensure the batteries areinstalled correctly according to polarity (+ and-). i) Do not mix old and new batteries, different brands or types of batteries, such as alkaline, carbon-zinc, or rechargeable batteries. j) Remove and immediately recycle or dispose of batteries from equipment not used for an extended period of time according to local regulations. k) Always completely secure the battery compartment. If the battery compartment does not close securely, stop using the product, remove the batteries,and keep them away from children. Operation mode Steps Depth Nternal External Instruction manual -20~70°C(18-140°F) �� � � � �� �� �� � � � �� � mm INC in/F �� � SXKC-0016-0513-A2 INGESTION HAZARD: This product contains a button cell or coin battery. DEATH or serious injury can occur if ingested. A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours. KEEP new and used batteries OUT OF REACH Of CHILDREN Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body. WARNING The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. This device complies with part �� of the FCC Rules. Operation is subject to the following two conditions: (�) This device may not cause harmful interference, and (�) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party respon…

Text truncated - open the document above for the full version.

ProductsEngineeringCorporation. CoveredEquipmentCertificationAttestationLetter 1/21/2026 NemkoNorthAmerica,Inc. 303RiverRoad Ottawa K1V1H2 Canada ATTN.:ReviewingEngineer FCCID:2BT4E-2020-1005 ProductsEngineeringCorporation.(“theapplicant”)certifiesthattheequipmentforwhich authorizationissoughtisnot“covered”equipmentprohibitedfromreceivingan equipmentauthorizationpursuanttosection2.903oftheFCCrules. Note:Iftheequipmentforwhichtheapplicantseeksauthorizationisproducedby anyoftheentitiesidentifiedonthecurrentCoveredList,theapplicantshould includeanexplanationonwhytheequipmentisnot“covered”equipment. ProductsEngineeringCorporation.(“theapplicant”)certifiesthat,asofthedateofthe filingoftheapplication,theapplicantisnotidentifiedontheCoveredListasanentity producing“covered”equipment. ProductsEngineeringCorporation.(“theapplicant”)certifiesthattheequipmentfor whichauthorizationissoughtdoesnotincludecybersecurityoranti-virussoftware producedorprovidedbyKasperskyLab,Inc.oranyofitssuccessorsandassignees, includingequipmentwithintegratedKasperskyLab,Inc.(oranyofitssuccessorsand assignees)cybersecurityoranti-virussoftwarepursuanttoDA-24-886andKDB986446 D01CoveredEquipmentGuidancesectionB(2a). Signed: Printedname:JuneAo Title:SalesManager CompanyName:ProductsEngineeringCorporation. Date:1/21/2026

ProductsEngineeringCorporation. 1/21/2026 NemkoNorthAmerica,Inc. 303RiverRoad Ottawa,Ontario,Canada K1V1H2 REQUESTFORCONFIDENTIALITY-FCC FCCID:2BT4E-2020-1005 PursuanttoSections0.457(d)(1)(ii)and0.459oftheCommission’sRulesandFCCGuidance document726920,weherebyrequestconfidentialtreatmentofinformationaccompanyingthis applicationasoutlinedbelow: PERMANENTLONG-TERMCONFIDENTIALITY: Schematics BlockDiagrams TheoryofOperation Theaboveinformationcontainstradesecretsandproprietaryinformationnotcustomarilyreleasedto thepublic.Thepublicdisclosureofthisinformationmightbeharmfultotheapplicantandprovide unjustifiedbenefitstoitscompetitors.TheApplicantunderstandsthatpursuanttoRule 0.457(d)(1)(ii),disclosureofthisApplicationandallaccompanyingmaterialswillnotbemadebefore thedateoftheGrantforthisApplication. Sincerely, Signed: Printedname:JuneAo Title:SalesManager

FCCID:2BT4E-2020-1005 FCCID:2BT4E-2020-1005 FCCID:2BT4E-2020-1005 FCCID:2BT4E-2020-1005

LabelandLabelLocation

FCCID:2BT4E-2020-1005 FCCID:2BT4E-2020-1005 FCCID:2BT4E-2020-1005 FCCID:2BT4E-2020-1005

Page1of3 RFEXPOSUREEVALUATION FCCID:2BT4E-2020-1005 ProductName:digitalcaliper Modelname:2020-1005 Specification:BLE Operatingfrequency:2402-2480MHz Modulation:GFSK NumberofChannel:40channels Antennainstallation:PCBAntenna AntennaGain:1.5dBi Powersupply: DC3V Battery:CR2032 HardwareVersion:N/A SoftwareVersion:N/A Page2of3 StandardRequirement Accordingto§15.247(i)and§1.1307b(1),systemsoperatingundertheprovisionsofthis sectionshallbeoperatedinamannerthatensuresthatthepublicisnotexposedtoradio frequencyenergylevelsinexcessoftheCommission’sguidelines.SeeKDB447498D01 GeneralRFExposureGuidancev06,section4.3.1. The1-gand10-gSARtestexclusionthresholdsfor100MHzto6GHzattestseparation distances≤50mmaredeterminedby: [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance, mm)]*[√f(GHz)]≤3.0for1-gSARand≤7.5for10-gSARextremitySAR,where f(GHz)istheRFchanneltransmitfrequencyinGHz PoweranddistanceareroundedtothenearestmWandmmbeforecalculation Theresultisroundedtoonedecimalplaceforcomparison. Thetestexclusionsareapplicableonlywhentheminimumtestseparationdistanceis≤ 50mmandfortransmissionfrequenciesbetween100MHzand6GHz.Whentheminimumtest separationdistanceis<5mm,adistanceof5mmisappliedtodetermineSARtestexclusion. RoutineSARevaluationreferstothatspecificallyrequiredby§2.1093,usingmeasurements orcomputersimulation.WhenroutineSARevaluationisnotrequired,portabletransmitters withoutputpowergreaterthantheapplicablelowthresholdrequireSARevaluationtoquality forTCBapproval. Page3of3 Channel (MHz) Maximum output power (dBm) Tuneup tolerance (dBm) MaxTune UpPower (mW) Distance (mm) Calculation results Limit Operating Mode 24022.67 2.67±1 2.32809150.7216333BLE AccordingtoKDB447498,nostand-alonerequiredantenna,andnosimultaneousSAR measurementisrequired. Signature SimonPu EMCManager Date:2025-12-31

Page1of54 FCCTESTREPORT FCCID:2BT4E-2020-1005 Product: digitalcaliper ModelName: 2020-1005 Brand:N/A ReportNo.:PTC25120908806E-FC01 Preparedfor ProductsEngineeringCorporation. 2645MARICOPAST,TORRANCE,CA90503-5144,US Preparedby PreciseTesting&CertificationCo.,Ltd Building1,No.6,TongxinRoad,DongchengStreet,Dongguan,Guangdong,China ReportNo.:PTC25120908806E-FC01 Page2of54 1TESTRESULTCERTIFICATION Applicant’sname: ProductsEngineeringCorporation. Address: 2645MARICOPAST,TORRANCE,CA90503-5144,US Manufacture'sname: DASQUATECHNOLOGYLTD. Address: No.99,WestSectionofHupanRoad,ChengduCity,SichuanProvince, China Productname: digitalcaliper Modelname:2020-1005 Standards:FCCCFR47Part15Section15.247 Testprocedure:ANSIC63.10-2020 TestDate:December23,2025toDecember31,2025 DateofIssue:December31,2025 TestResult:Pass ThisdevicedescribedabovehasbeentestedbyPTC,andthetestresultsshowthatthe equipmentundertest(EUT)isincompliancewiththeFCCrequirements.Anditisapplicableonlyto thetestedsampleidentifiedinthereport. Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofPTC,thisdocument maybealteredorrevisedbyPTC,personalonly,andshallbenotedintherevisionofthedocument. TestEngineer: Jackzhou/Engineer TechnicalManager: SimonPu/Manager ReportNo.:PTC25120908806E-FC01 Page3of54 Contents Page 1TESTRESULTCERTIFICATION...............................................................................................................................2 2TESTSUMMARY..........................................................................................................................................................5 2.1TESTSITE............................................................................................................................................................6 3GENERALINFORMATION.......................................................................................................................................7 3.1GENERALDESCRIPTIONOFE.U.T.....................................................................................................................7 3.2CHANNELLIST.....................................................................................................................................................8 4EQUIPMENTDURINGTEST....................................................................................................................................9 4.1EQUIPMENTSLIST.............................................................................................................................................9 4.2MEASUREMENTUNCERTAINTY.........................................................................................................................11 4.3DESCRIPTIONOFSUPPORTUNITS...................................................................................................................12 5CONDUCTEDEMISSION..........................................................................................................................................13 5.1E.U.T.OPERATION............................................................................................................................................13 5.2EUTSETUP.......................................................................................................................................................13 5.3TESTSET-UP(BLOCKDIAGRAMOFCONFIGURATION).................................................................................14 5.4MEASUREMENTPROCEDURE............................................................................................................................14 5.5CONDUCTEDEMISSIONLIMIT...........................................................................................................................14 5.6MEASUREMENTRECEIVERPARAMETERS:.......................................................................................................15 5.7CONDUCTEDEMISSIONTESTRESULT.............................................................................................................15 6RADIATEDSPURIOUSEMISSIONS......................................................................................................................16 6.1EUTOPERATION...............................................................................................................................................16 6.2TESTSETUP......................................................................................................................................................17 6.3SPECTRUMANALYZERSETUP..........................................................................................................................18 6.4TESTPROCEDURE.............................................................................................................................................19 6.5SUMMARYOFTESTRESULTS...........................................................................................................................21 7CONDUCTBANDEDGEANDSPURIOUSEMISSIONSMEASUREMENT....................................................28 7.1TESTPROCEDURE.............................................................................................................................................28 7.2TESTSETUP......................................................................................................................................................28 7.3TESTRESULT....................................................................................................................................................29 ReportNo.:PTC25120908806E-FC01 Page4of54 86DBBANDWIDTHMEASUREMENT......................................................................................................................36 TESTPROCEDURE...................................................................................................................................................36 TESTSETUP.................................................................…

Text truncated - open the document above for the full version.

Day line sex can measuring APPlications ※Bluetooth Home RF ※ISM band 2.4GHz applications 1.Dimensions 2.Specifications number ItemSpecifications 1Working Central Frequency2441 MHz 2Band Width(2402-2480)MHz 3Gain1.5 dBi 4VSWR≤2.0 5Antenna typePCB antenna 6Azimuth Beam width0mni-directional 7Impedance50 ohm 8Modulation modeGFSK Manufacture's name: Shenzhen Haide Zhilian Electronics Co., Ltd. Address: Room 3A22, 4th Floor, Building C, Baoyuan Huafeng Headquarters Economic Building, Xixiang Avenue, Laodong Community, Xixiang Street, Bao'an District, Shenzhen City 3.Instrument testing, software simulation parameters ① VSWR Mkr1:2397MHz 1.47 Mkr2:2450MHz 1.51 Mkr3:2482MHz 1.59 ② Smith Char Mkr1:2397MHz 73.4 Mkr2: 2450MHz 62.7 Mkr3: 2482MHz 66.8 ③ Return Loss Mkr1: 2397MHz -15 Mkr2:2450MHz -18 Mkr3: 2482MHz -16 ④ Smith Char The simulation Mkr1:2400MHz 1.234 Mkr2: 2500MHz 1.051 Mkr3: 2600MHz 1.322 ⑤ Return Loss The simulation Mkr1: 2400MHz -19.59 MHz2: 2450MHz -27.70 MHz3:2500MHz -31.97 MKz4: 2550MHz -21.83 ⑥ Phase The simulation MHz1: 2400MHz -54.89 Mkr2: 2500MHz -82.03 Mkr3: 2600MHz -102.6 4. Radiation Pattems XY-plane XZ-plane YZ-plane 3D Radiation field type

FCCID:2BT4E-2020-1005 RadiatedSpuriousEmissions TestFrequencyFrom30MHz-1GHz TestfrequencyfromAbove1GHz
