2BT4L-M5-CXPortable WIFI

M5 Global WiFi User Manual Version：QH02 All products are subject to the actual item I. Product Features ①Mobile WiFi High-Speed Internet Access ②No SIM Card Required ③Three-Network Switching ④Provides Data Traffic Services ⑤12-48 Hours Continuous Operation Time ⑥Multi-User Sharing & Simultaneous Online Access ⑦One-Button Power-On, Simple and Easy to Use II. Product Specifications Dimensions 88*61*26mm Weight 120g/1259 Transmission Rate Downlink 300Mbps, Uplink 150Mbps WiFi 802.11b/g/n/ax Battery Capacity 6000mAh USB-C Input/Output 5V/2A Type-C Cable Output 5V/2A Charging Time Approx. 2-4 hours (with 18W charger) Operating Temperature -10°Cto+35°C Operating Humidity 5%~95% III.Product Diagram Type-C Cable Output WiFi Indicator Light Power Button Side View Front View Type-C Cable Input/Output IV.Product Indicator Light Description Light State Function Red Light On Power On Red Light Blinking Process of reading card, searching for network, registering on network Red Light Steady Card not real-name activated, card suspended, no network signal, network registration failed Green Light Steady Device status normal, WiFi hotspot available Blue Light Steady Device connected to WiFi Green Light Blinking No data plan / Plan expired / Platform disabled WiFi hotspot White Light Steady FOTA Updating V.Quick Start Guide Scan the QR code to view the [Video Operation Tutorial]. VI.Activation Steps 1. Follow the Official Account After unboxing and taking out the device, use WeChat to scan the QR code on the back of the device. WeChat will automatically redirect you to the activation guide page. Long press to follow the Official Account, then you can proceed to the next step to activate the device. 2. Device Activation ① Click the activation link in the Official Account. It will jump to the device binding page, which can automatically recognize and input the device number. ② Enter your mobile number, then click "Next" to jump to the device main page. Scan the QR code to bind the device Long press to follow the Official Account. Click to activate the device VII. Frequently Asked Questions 1. What is this product? This device is a new generation of smart portable WiFi. It can emit a WiFi signal anytime, anywhere, requires no SIM card, and is for use with mobile phones, laptops, and iPads. You only need to purchase a suitable data plan, and it can be used immediately after powering on. It supports the three major carriers and intelligently selects the optimal network. 2. What is the coverage range of the WiFi signal? The WiFi signal coverage range is 10 meters. 3. Why can't I successfully connect to the WiFi signal? (1) Check if the device is powered on. (2) Verify if the WiFi password is correct. If you have forgotten the password, you can press the reset button to restore the default password. (3) Check if the number of simultaneously connected devices has reached the upper limit. If the limit is reached, new devices cannot connect. (4) Check the WiFi signal in the usage environment. If the signal is poor or there are too many WiFi hotspots, try changing locations. 4. Why does the internet speed sometimes become slow? Mobile network bandwidth is limited. Carriers in various regions follow local telecommunications laws and regulations and generally adopt the Fair Use Policy, which, to varying degrees, restricts a user from consuming large amounts of mobile data in a short period. The possible impact on users is slower network speeds or temporary inability to access the internet. When this happens, you can contact customer service for assistance. It is also recommended to use the network normally and avoid unrestricted video streaming or downloading large files. 5. How to bind multiple devices? Please click the "Activate WiFi" link on the Official Account homepage to start binding and activating the device. Refer to the device activation page on page 3 for the remaining steps. VIII. Precautions Please carefully observe the following precautions to avoid accidental injury, fire, or product damage: 1. Do not use the device while it is charging. 2. Do not drop or impact this product. 3. Do not expose this product to the following environments: high- temperature environments or direct sunlight, humid or potentially condensing environments, environments with strong electromagnetic waves or high magnetic fields. 4. Initial device registration upon first power-on takes 1-5 minutes. Please wait patiently. After initial authentication, the device is in production line mode and requires about 5 minutes to connect to the network successfully, indicated by a steady green light. After the first successful network connection, the device switches to user mode. Subsequent power-ons will allow internet access in about 1 minute. 5. Strictly prohibit disassembling the device by yourself. 6. Please read the data usage rules before purchasing a data plan. Once recharged, you are deemed to have accepted the carrier's data plan rules and cannot apply for a refund based on these rules. The device is for personal use only. Commercial use, background running, or heavy downloading is prohibited. If abnormal traffic is detected, the carrier has the right to forcibly limit speed or suspend service. IX. Special Notes * When the device is charging, or maintains a high-speed data connection for a long time after power-on, the power consumption is relatively high. If the ambient temperature is high, or the device is placed on bedding or inside a travel bag which is not conducive to heat dissipation, the device may become slightly warm. This is a normal working condition. If the device becomes too hot to touch, immediately disconnect the charging power and turn off the device. To maintain good working condition, it is recommended to place the device in a well- ventilated area for heat dissipation. * To safely and efficiently use the power adapter and data cable for charging or power supply, consumers should purchase power adapters and data cab…

Text truncated - open the document above for the full version.

       !"#$"# %&'()*+&,-./011102033045670899:;,9-//&<&=&>?&1@(A)&BC DEFGHIJKL MNGEOOMINP Q RQIHKJ HS TJ RNFMUKOOIQFMRQNSVFNEIKNNE VQFNN MRRQIWOIUXYZ[DE FMUIQLNFIMJIMNFM HE Q FMFGNIP KG H IMO\UIQNE RKQRIG UIQVEFJEFNFGGKPLFNN HMHFGMINNIP Q O G HFMVEIO IQRQNVFNEIKNVQFNN MRRQIWOIUXYZ[ ]  ^_ ` abcdefghijcffklmjnggi opqrstuv twxyqrvqzu `{up|{xvpyty} `z~t ~tuvq|qx{vqzuz€ pyytuv {qy{vqzu {vt t‚v{qy{vqzu {vt jƒ„…nkhi†f „‡ˆ j‰Š‹ŒŽjƒ„ ‡k‘d’kig’“‰†”k‘ lgbcdlg’“ ‡k‘d’kig’“ ‰†”k‘ lgbcdlg’“ •–„ –jƒ—˜g™išgh”n‡gl™d†h‹‰ƒ ‡k‘d’kig’“‰†”k‘ lgbcdlg’“ ‡k‘d’kig’“ ‰†”k ‘ lgbcdlg’“ ‰gi›†lœƒhk‘mgl —†n’gžj”n›kl Ÿ‡„ Š ‹Œ  ŠŒ  ¡ ‰gi›†lœƒhk‘mglƒ¢d‘ghi£¤‹aj„¥¡‹ ŠŠŒ  ‰gi›†lœƒhk‘mgl¦ •k‘d§lkid†hœdi —†n’gžj”n›kl Ÿ‡ ̈Ÿ ‹¤ ŠŠ ‹¤Œ  ‰gi›†lœƒhk‘mgl¦ •k‘d§lkid†hœdi ©…¤‹‹ª‹¡ ‹ƒŠŒ  ŠŒ  £ •k‘degl™„dici†m†j‰Ž£‹ —g«glgh”g…l†§g„‡ˆ j‰¡ŠŒŠa…ˆ–‹‹‹ŠŒ  „c‘idfgigl¬gdin‘gm ŠŠ £Š Œ  jd¢hk‘ˆghglki†l —†n’gžj”n›kl j„š Š¤Ž¡Œ  ƒfe‘d«dgl„‡ˆ „ –ª­ ̈ ‹ ̈• ̈ •nklk”igldg’eld†li† ig™i“‰†”k‘lgbcdlg’“ •nklk”igldg’eld†li† ig™i“‰†”k‘lgbcdlg’“ …†›gl„gigl‰® ̈­jš¤Š£ŠŠ‹Œ  ŠŒ  ¡ …†›gl„gigl —†n’gžj”n›kl ‰—‡ª ‹ ‹Ž ̈¤ŠŠŒ  ªdlg”id†hk‘•†ce‘gl¬lmiklŠ¤ Š‹Š¡£ •nklk”igldg’eld†li† ig™i“‰†”k‘lgbcdlg’“ •nklk”igld g’eld†li† ig™i“‰†”k‘lgbcdlg’“ ˜gfeglkiclgŒ©cfd’dim jgh™†l ˜g™i†Š¡©Š¡¡ ¤‹ Œ  ŠŒ  ¡ ŠŒ  ¤ ¤Œ  ¤ ŠŒ  Œ  ¤ Š Œ  Š ‹ ¡Œ    Œ  ‹  ŠŠŒ  ¤ 3 9       !"#$"#%&'%()* $+$',-./012 34/54 06789$#'$$' :;<= '!& !+#>?@A**= '?B* C&@$A**DBBA 'EFEGEHIEJK(LEMLJNGMOJ(HEK(GO PQRRSTUV WXYZ[\X]^_X]`ab cdedfghijklmngfofliphg qgrsmkjthguvgwnevklwgxyz{i|gmog}hg~lwfg krskm yzy€‚ƒ„…c}†‡xˆ}†‰‡ ‰ihlpvinlkmfingŠ ‹SŒVŽ ‘ ’ “””•–—˜™š™˜›œžŸ ¡¢£¤šœ—žŸ ¡£¥¦ §”› ̈–š©š˜ªš«ª–›œ¬¬¬­”›®•š”­®• ̄°± ̄²±³ ̄³ ́ μ¶· ̧¹º»¼½¾¿ÀÁ¾ ̧¾¿À ̧À¶¾½¾À¶º¹Ã¿¹Â¾ ̧¼ÄÀ ̧ź½Ã¿Ã»»Â¾¹·À¾¹ÆÇȾž¾¿»¾¹·ÁºÄ¾»ÃÄ·ÉÂÃÀ·º¿ Á¾Âź½¾¹·¿ÊË̼ ̧·¿ÍÀ¶¾ÎÏÊÏÆÇÈÀ¾ ̧Àɾ¿»¶ÐÇÄÄ»ÃÄ·ÉÂÃÀ·º¿Â¾ ̧¼ÄÀ ̧þÀÂû¾ÃÉľÀº ¿Ã À·º¿ÃĽ¾ÀºĺÍÑ·¿ ̧À·À¼À·º¿ ̧Ð        !"#$%&'($)&!*'+$&#,! -,!.,!/0123456789:;<=>?@A>BCDEFEG85 HI!%J!/0123456789:;<=>?@A>BCDEFEG85 K..,(L!/01MNB@@<OPQBA@RBSOTBQOTUVAT=>QOT H#W&( !, ! )'W&,'0#&'($2 XY8FZY8FX[X[8\] X85^_`8\;abc9]db eWW#!)&!f(/'g'%&'($W hiF_]_Ej58j8E\8  ! 3456789:; klmnopqrr stuvwxytz{|}~~€~~‚ƒ„…~†‡‡ˆ‰z|Š‚Š‡{}‹vŒwtŽ ‘’“”•–—n˜™’lšš˜”™›nœnœ”“–•n“žnŸ•n™‘˜ –šš”œ‘˜lœ™ž¡‘™”–™™n¡œ‘™™n˜lœ”¢lš” £¤¥¦s§t‹ ̈©Œªuxy‹Œ ̈«Œ ̈yx‹ ̈t¬§tªt‹ ̈‹­yŒ®t ̄­t¬ Œ ̈w°©Œªy§tv ̄ªvŒ­t©Œª± §‹«§‹y‹­­ ̄®u‹yyt¬x ̈¬‹­ ̈ŒyyŒ®tªtwtx­t¬‹ ̈±§ŒwtŒªvxªy±‹y§Œ ̄y±ª‹yyt ̈xvvªŒxwŒ©‚ƒ„~ ²³ ́³μ ́¶ · ̧ ²³ ́³μ ́¶ · ̧ ²³ ́³μ ́¶ · ̧ ¹º»º¼»½ ¾ ¿ À Á             !"#$% &"'  ()&%*#!+, ' - .!"#$% (,%!&/ &"' - 0!12"!31 &"4444444444444444444444444444444444444444444444444444444' ' 51,$!3 5 6"#7 '  $!8",,9$&!3 ,444444444444444444444444444444444444444444444444447 ' 5%61&%129$&!3 ,4444444444444444444444444444444444444444444444444447 7 51,$!3 *%! 1& :7 7  $!8",,444444444444444444444444444444444444444444444444444444444444447 7 (&3,&"51,$!3 4444444444444444444444444444444444444444444444444447 7- ;12&#1 &"51,$!3 44444444444444444444444444444444444444444444444444447  12&<!1 &"51,$!3 ,$2 ,   $!8",,1#3/#1%=1#8&9$&#444444444444444444444444444444444444   $!8",,1#3/#1%>"#:8&9$&#444444444444444444444444444444444444 - 5%61&%12(&3,&",4444444444444444444444444444444444444444444444444444 ? ;12&#1 &"31,$!3 ? ? =1#8&9$&#51,$!3 44444444444444444444444444444444444444444444444444? ? @51,$!3 ,$2 A& 6=1#8&9$&#444444444444444444444444444444444444B ?- >"#:8&9$&#51,$!3 44444444444444444444444444444444444444444444444444C ?' @51,$!3 ,$2 A& 6>"#:8&9$&#4444444444444444444444444444444444D B 8&, "E9$&/3 …

Text truncated - open the document above for the full version.

SAR Setup photos for FCC ID: 2BT4L-M5-CX Front side(separation distance is 0mm) Back Side (separation distance is 0mm) Left side(separation distance is 0mm) Right side(separation distance is 0mm) Top side(separation distance is 0mm) Bottom side(separation distance is 0mm)

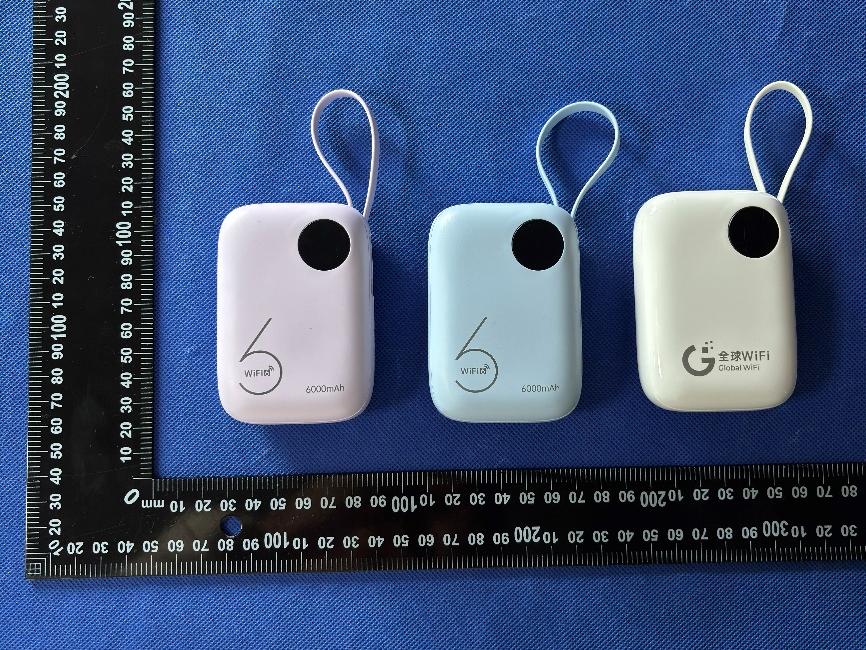

FCC ID: 2BT4L-M5-CX Test Setup Photos of the EUT FCC ID: 2BT4L-M5-CX

54 11AX20SISO_Ant1_2437_30~1000 11AX20SISO_Ant1_2437_1000~26500 11AX20SISO_Ant1_2462_0~Reference 55 11AX20SISO_Ant1_2462_30~1000 11AX20SISO_Ant1_2462_1000~26500 56 11AX40SISO_Ant1_2422_0~Reference 11AX40SISO_Ant1_2422_30~1000 11AX40SISO_Ant1_2422_1000~26500 57 11AX40SISO_Ant1_2437_0~Reference 11AX40SISO_Ant1_2437_30~1000 58 11AX40SISO_Ant1_2437_1000~26500 11AX40SISO_Ant1_2452_0~Reference 11AX40SISO_Ant1_2452_30~1000 59 11AX40SISO_Ant1_2452_1000~26500 60 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] 11B Ant1 2412 20.00 20.00 100.00 2437 20.00 20.00 100.00 2462 20.00 20.00 100.00 11G Ant1 2412 20.00 20.00 100.00 2437 20.00 20.00 100.00 2462 20.00 20.00 100.00 11N20SISO Ant1 2412 20.00 20.00 100.00 2437 20.00 20.00 100.00 2462 20.00 20.00 100.00 11N40SISO Ant1 2422 20.00 20.00 100.00 2437 20.00 20.00 100.00 2452 20.00 20.00 100.00 11AX20SISO Ant1 2412 20.00 20.00 100.00 2437 20.00 20.00 100.00 2462 20.00 20.00 100.00 11AX40SISO Ant1 2422 20.00 20.00 100.00 2437 20.00 20.00 100.00 2452 20.00 20.00 100.00 61 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 62 11G_Ant1_2412 11G_Ant1_2437 63 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 64 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 65 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 11AX20SISO_Ant1_2412 66 11AX20SISO_Ant1_2437 11AX20SISO_Ant1_2462 67 11AX40SISO_Ant1_2422 11AX40SISO_Ant1_2437 11AX40SISO_Ant1_2452 68

31 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 32 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 33 11N20SISO_Ant1_High_2462 11N40SISO_Ant1_Low_2422 11N40SISO_Ant1_High_2452 34 11AX20SISO_Ant1_Low_2412 11AX20SISO_Ant1_High_2462 35 11AX40SISO_Ant1_Low_2422 11AX40SISO_Ant1_High_2452 36 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference 3.35 3.35 --- PASS 30~1000 3.35 -66.93 ≤-16.65 PASS 1000~26500 3.35 -53.6 ≤-16.65 PASS 2437 Reference 2.28 2.28 --- PASS 30~1000 2.28 -68.09 ≤-17.72 PASS 1000~26500 2.28 -53.47 ≤-17.72 PASS 2462 Reference 3.26 3.26 --- PASS 30~1000 3.26 -67.3 ≤-16.74 PASS 1000~26500 3.26 -52.99 ≤-16.74 PASS 11G Ant1 2412 Reference -1.70 -1.70 --- PASS 30~1000 -1.70 -67.92 ≤-21.7 PASS 1000~26500 -1.70 -54.09 ≤-21.7 PASS 2437 Reference -2.06 -2.06 --- PASS 30~1000 -2.06 -67.62 ≤-22.06 PASS 1000~26500 -2.06 -54.62 ≤-22.06 PASS 2462 Reference -1.59 -1.59 --- PASS 30~1000 -1.59 -67.79 ≤-21.59 PASS 1000~26500 -1.59 -54.94 ≤-21.59 PASS 11N20SISO Ant1 2412 Reference -1.93 -1.93 --- PASS 30~1000 -1.93 -67.59 ≤-21.93 PASS 1000~26500 -1.93 -54.76 ≤-21.93 PASS 2437 Reference -1.94 -1.94 --- PASS 30~1000 -1.94 -67.08 ≤-21.94 PASS 1000~26500 -1.94 -54.87 ≤-21.94 PASS 2462 Reference -1.84 -1.84 --- PASS 30~1000 -1.84 -67.67 ≤-21.84 PASS 1000~26500 -1.84 -55.03 ≤-21.84 PASS 11N40SISO Ant1 2422 Reference -5.21 -5.21 --- PASS 30~1000 -5.21 -67.44 ≤-25.21 PASS 1000~26500 -5.21 -55.03 ≤-25.21 PASS 2437 Reference -4.80 -4.80 --- PASS 30~1000 -4.80 -67.57 ≤-24.8 PASS 1000~26500 -4.80 -54.57 ≤-24.8 PASS 2452 Reference -4.60 -4.60 --- PASS 30~1000 -4.60 -67.8 ≤-24.6 PASS 1000~26500 -4.60 -54.77 ≤-24.6 PASS 11AX20SISO Ant1 2412 Reference -2.51 -2.51 --- PASS 37 30~1000 -2.51 -67.97 ≤-22.51 PASS 1000~26500 -2.51 -54.27 ≤-22.51 PASS 2437 Reference -2.09 -2.09 --- PASS 30~1000 -2.09 -67.53 ≤-22.09 PASS 1000~26500 -2.09 -54.87 ≤-22.09 PASS 2462 Reference -2.33 -2.33 --- PASS 30~1000 -2.33 -67.72 ≤-22.33 PASS 1000~26500 -2.33 -54.98 ≤-22.33 PASS 11AX40SISO Ant1 2422 Reference -4.92 -4.92 --- PASS 30~1000 -4.92 -67.19 ≤-24.92 PASS 1000~26500 -4.92 -53.92 ≤-24.92 PASS 2437 Reference -4.96 -4.96 --- PASS 30~1000 -4.96 -38.12 ≤-24.96 PASS 1000~26500 -4.96 -54.98 ≤-24.96 PASS 2452 Reference -5.11 -5.11 --- PASS 30~1000 -5.11 -67.99 ≤-25.11 PASS 1000~26500 -5.11 -54.71 ≤-25.11 PASS 38 Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 39 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 40 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 41 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference 42 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference 43 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 44 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 45 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000 46 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000 47 11N20SISO_Ant1_2437_1000~26500 11N20SISO_Ant1_2462_0~Reference 48 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 11N40SISO_Ant1_2422_0~Reference 49 11N40SISO_Ant1_2422_30~1000 11N40SISO_Ant1_2422_1000~26500 50 11N40SISO_Ant1_2437_0~Reference 11N40SISO_Ant1_2437_30~1000 11N40SISO_Ant1_2437_1000~26500 51 11N40SISO_Ant1_2452_0~Reference 11N40SISO_Ant1_2452_30~1000 52 11N40SISO_Ant1_2452_1000~26500 11AX20SISO_Ant1_2412_0~Reference 11AX20SISO_Ant1_2412_30~1000 53 11AX20SISO_Ant1_2412_1000~26500 11AX20SISO_Ant1_2437_0~Reference

1 FCC Appendix RF Test Data for 2.4GWIFI FCC ID : 2BT4L-M5-CX Company : Infinity Mobile Limited EUT : Portable WIFI Model Number : M5-CX Report No. : CTA25103000214 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 10.240 2406.920 2417.160 0.5 PASS 2437 10.240 2431.920 2442.160 0.5 PASS 2462 10.240 2456.920 2467.160 0.5 PASS 11G Ant1 2412 15.880 2404.040 2419.920 0.5 PASS 2437 16.000 2429.000 2445.000 0.5 PASS 2462 15.800 2454.040 2469.840 0.5 PASS 11N20SISO Ant1 2412 17.000 2403.560 2420.560 0.5 PASS 2437 17.280 2428.360 2445.640 0.5 PASS 2462 17.000 2453.440 2470.440 0.5 PASS 11N40SISO Ant1 2422 35.600 2404.320 2439.920 0.5 PASS 2437 35.760 2419.160 2454.920 0.5 PASS 2452 35.760 2434.160 2469.920 0.5 PASS 11AX20SISO Ant1 2412 17.120 2403.400 2420.520 0.5 PASS 2437 17.280 2428.360 2445.640 0.5 PASS 2462 17.320 2453.400 2470.720 0.5 PASS 11AX40SISO Ant1 2422 35.360 2404.480 2439.840 0.5 PASS 2437 35.440 2419.400 2454.840 0.5 PASS 2452 35.760 2434.160 2469.920 0.5 PASS 3 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 4 11G_Ant1_2412 11G_Ant1_2437 5 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 6 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 7 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 11AX20SISO_Ant1_2412 8 11AX20SISO_Ant1_2437 11AX20SISO_Ant1_2462 9 11AX40SISO_Ant1_2422 11AX40SISO_Ant1_2437 11AX40SISO_Ant1_2452 10 11 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 13.403 2405.3405 2418.7435 --- --- 2437 13.377 2430.3411 2443.7181 --- --- 2462 13.393 2455.3156 2468.7086 --- --- 11G Ant1 2412 16.700 2403.7616 2420.4616 --- --- 2437 16.715 2428.6821 2445.3971 --- --- 2462 16.751 2453.6723 2470.4233 --- --- 11N20SISO Ant1 2412 17.845 2403.1001 2420.9451 --- --- 2437 17.768 2428.1406 2445.9086 --- --- 2462 17.812 2453.0804 2470.8924 --- --- 11N40SISO Ant1 2422 36.051 2404.0911 2440.1421 --- --- 2437 36.002 2419.1041 2455.1061 --- --- 2452 35.938 2434.1060 2470.0440 --- --- 11AX20SISO Ant1 2412 17.809 2403.1477 2420.9567 --- --- 2437 17.859 2428.0838 2445.9428 --- --- 2462 17.801 2453.1240 2470.9250 --- --- 11AX40SISO Ant1 2422 36.077 2404.0841 2440.1611 --- --- 2437 36.050 2419.0549 2455.1049 --- --- 2452 36.076 2434.0803 2470.1563 --- --- 12 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 13 11G_Ant1_2412 11G_Ant1_2437 14 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 15 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 16 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 11AX20SISO_Ant1_2412 17 11AX20SISO_Ant1_2437 11AX20SISO_Ant1_2462 18 11AX40SISO_Ant1_2422 11AX40SISO_Ant1_2437 11AX40SISO_Ant1_2452 19 20 Appendix C: Maximum conducted output power Test Result Peak Test Mode Antenna Frequency[MHz] Peak power [dBm] Limit [dBm] Verdict 11B Ant1 2412 15.77 ≤30.00 PASS 2437 15.81 ≤30.00 PASS 2462 16.04 ≤30.00 PASS 11G Ant1 2412 14.31 ≤30.00 PASS 2437 14.46 ≤30.00 PASS 2462 14.59 ≤30.00 PASS 11N20SISO Ant1 2412 14.16 ≤30.00 PASS 2437 14.39 ≤30.00 PASS 2462 14.53 ≤30.00 PASS 11N40SISO Ant1 2422 14.63 ≤30.00 PASS 2437 14.68 ≤30.00 PASS 2452 14.84 ≤30.00 PASS 11AX20SISO Ant1 2412 14.13 ≤30.00 PASS 2437 14.24 ≤30.00 PASS 2462 14.70 ≤30.00 PASS 11AX40SISO Ant1 2422 14.47 ≤30.00 PASS 2437 14.65 ≤30.00 PASS 2452 14.92 ≤30.00 PASS 21 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -10.60 ≤8.00 PASS 2437 -10.08 ≤8.00 PASS 2462 -9.70 ≤8.00 PASS 11G Ant1 2412 -16.75 ≤8.00 PASS 2437 -16.50 ≤8.00 PASS 2462 -16.63 ≤8.00 PASS 11N20SISO Ant1 2412 -16.23 ≤8.00 PASS 2437 -16.66 ≤8.00 PASS 2462 -15.00 ≤8.00 PASS 11N40SISO Ant1 2422 -19.59 ≤8.00 PASS 2437 -18.77 ≤8.00 PASS 2452 -18.56 ≤8.00 PASS 11AX20SISO Ant1 2412 -15.01 ≤8.00 PASS 2437 -16.16 ≤8.00 PASS 2462 -16.30 ≤8.00 PASS 11AX40SISO Ant1 2422 -19.09 ≤8.00 PASS 2437 -19.14 ≤8.00 PASS 2452 -18.95 ≤8.00 PASS 22 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 23 11G_Ant1_2412 11G_Ant1_2437 24 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 25 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 26 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 11AX20SISO_Ant1_2412 27 11AX20SISO_Ant1_2437 11AX20SISO_Ant1_2462 28 11AX40SISO_Ant1_2422 11AX40SISO_Ant1_2437 11AX40SISO_Ant1_2452 29 30 Appendix E: Band edge measurements Test Result TestMode Antenn a ChNam e Frequency[MH z] RefLevel[dB m] Result[dB m] Limit[dB m] Verdic t 11B Ant1 Low 2412 3.58 -48.9 ≤-16.42 PASS High 2462 3.92 -51.71 ≤-16.08 PASS 11G Ant1 Low 2412 -1.42 -33.43 ≤-21.42 PASS High 2462 -1.02 -56.2 ≤-21.02 PASS 11N20SISO Ant1 Low 2412 -1.67 -33.51 ≤-21.67 PASS High 2462 -1.20 -56.93 ≤-21.2 PASS 11N40SISO Ant1 Low 2422 -4.56 -32.41 ≤-24.56 PASS High 2452 -4.29 -56.95 ≤-24.29 PASS 11AX20SIS O Ant1 Low 2412 -1.31 -33.05 ≤-21.31 PASS High 2462 -1.31 -56.66 ≤-21.31 PASS 11AX40SIS O Ant1 Low 2422 -4.69 -32.43 ≤-24.69 PASS High 2452 -4.35 -56.75 ≤-24.35 PASS

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. .......................................... : CTA25103000214 2BT4L-M5-CX Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Dec. 18, 2025 Testing Laboratory Name ............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Infinity Mobile Limited Address ............................................ : UNIT 1022A, BEVERLEY COMMERCIAL CENTRE, 87-105 CHATHAM ROAD SOUTH, Tsim Sha Tsui Hong Kong Test specification.......................... : Standard .......................................... : FCC Part 15.247 TRF Originator ................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Portable WIFI Trade Mark ....................................... : 闪猫 Manufacturer .................................... : Infinity Mobile Limited Model/Type reference ...................... : M5-CX Listed Models ................................... : Refer to page 2 Modulation Type .............................. : CCK/DSSS/OFDM/ OFDMA Operation Frequency ....................... : From 2412 - 2462MHz Ratings ............................................. : Input: 5V 2.0A Battery: 3.6V 6000mAh 21.6Wh USB-C output: 5V 2.0A, Type-C line output: 5V 2.0A USB-C output + Type-C line output: 5V 2.0A Result ............................................... : PASS Report No.: CTA25103000214 Page 2 of 28 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Portable WIFI Model /Type : M5-CX Listed Models : IM-WF01, IM-WF02, IM-WF03, IM-CPE01, IM-CPE02, IM-CPE03, IM-MX01, IM-MX02, IM-MX03 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : Infinity Mobile Limited Address : UNIT 1022A, BEVERLEY COMMERCIAL CENTRE, 87-105 CHATHAM ROAD SOUTH, Tsim Sha Tsui Hong Kong Manufacturer : Infinity Mobile Limited Address : UNIT 1022A, BEVERLEY COMMERCIAL CENTRE, 87-105 CHATHAM ROAD SOUTH, Tsim Sha Tsui Hong Kong Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25103000214 Page 3 of 28 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description ........................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 6 2.6 EUT operation mode ......................................................................................................................... 6 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory............................................................................................................ 7 3.2 Test Facil…

Text truncated - open the document above for the full version.

Address: Room 308, 3rd Floor, Building B, No. 19, Keji Zhongyi Road, High-tech Industrial Park, Shenzhen Telephone/Fax: 0755-86525983 / 0755-86539353 Directory/目录 Cover/封面--------------------------------------------------------------------------------------------------------1 Directory/目录---------------------------------------------------------------------------------------------------2 Antenna Specification/天线技术参数--------------------------------------------------------------------3 Antenna Picture and Installation Instructions/天线图片及安装说明--------------------------4 Test Report/测试报告-----------------------------------------------------------------------------------------5 Finished Product Drawing/成品图-------------------------------------------------------------------------6 Package Drawing/包装图-------------------------------------------------------------------------------------7 ROHS Report/ROHS报告--------------------------------------------------------------------------------------8 1.Antenna Specification/天线技术参数 1.1: Electrical Specification/电气特性 Freq.Range/频段范围（MHz）2400-2500MHz Impedance/阻抗（Ω）50 VSWR/驻波比＜3 Directional/辐射方向Omni directional Polarization/极化方式Linear Gain/增益（dBi） 2400-2500MHz：2.57 1.2: Mechanical Specification/机械指标 Material/材质FPC RF Cable Type/射频线型号N/A Connector Type/连接器类型N/A 1.3: Environmental Specification/环境指标 Operation temp/工作温度-40°C～+85°C storage temperature/储存温度-40°C～+85°C 2.Antenna Picture and Installation Instructions/天线图片及安装说明 2.1: Antenna Picture/天线图片 2.2: Installation Instructions/安装说明（下图天线仅作安装参考） 3.Test Report/测试报告 …

Text truncated - open the document above for the full version.
