X2 Industrial PC User Manual 1. Product Introduction The X2 Industrial PC is a fully integrated industrial computer system based on the Intel® Celeron™ J4125 platform. It is designed for industrial automation, network communication, edge computing, and embedded control applications that require high reliability, long-term stability, and flexible I/O expansion. The system integrates motherboard, power management, storage, network, and I/O interfaces into a compact aluminum alloy fanless enclosure. All descriptions in this manual are derived from the motherboard specification, complete system user manual, and system circuit/block diagram provided for the X2 series. This document is prepared specifically to support FCC certification and laboratory testing. 2. Product Features Intel® Celeron™ J4125 quad-core processor (Gemini Lake Refresh) Fanless aluminum alloy enclosure for silent operation Low power consumption (10W TDP) Dual DDR4 SO-DIMM memory support Multiple storage interfaces: SATA, mSATA, M.2 2280 Up to four Intel® 2.5GbE Ethernet ports Rich industrial I/O including USB, COM, SIM, Mini PCIe Supports Auto Power On, PXE Boot, Wake-on-LAN, Watchdog Wide temperature operating capability Designed for CE / FCC / RoHS compliance 3. System Block Diagram (Functional Overview) Below is a functional block representation of the X2 Industrial PC architecture, based on the system circuit diagram: +---------------------------------------------------+ | Intel Celeron J4125 CPU | | Quad-Core / UHD Graphics / Memory Controller | +----------------------+----------------------------+ | +--------------+--------------+ | | • • • • • • • • • • 1 DDR4 SO-DIMM x2 SPI BIOS ROM | +-------+-----------------------------+-------------+ | System I/O Hub (SoC) | +-------+----------+----------+----------+----------+ | | | | SATA USB 3.0 USB 2.0 PCIe | | | | SATA HDD/ Front/Rear Internal +------------------+ SSD USB Ports Devices | Mini PCIe Slot | | (WiFi / 4G) | +---------+--------+ | SIM Card PCIe Lanes: +---------------------------------------------------+ | Intel I225 / I226 Ethernet Controllers (x4) | | → RJ45 LAN Ports | +---------------------------------------------------+ Display Outputs: +-------------------+------------------+-------------+ | HDMI | DP / VGA | Audio | +-------------------+------------------+-------------+ 4. Hardware Specifications 4.1 Processor Model: Intel® Celeron™ J4125 Architecture: Gemini Lake Refresh Cores / Threads: 4 / 4 Base Frequency: 2.0 GHz Cache: 4 MB Package: FCBGA1090 TDP: 10W 4.2 Memory 2 × DDR4 260-pin SO-DIMM slots Memory voltage: 1.2V Supported speed: up to 2400 MT/s Maximum capacity: 8 GB 4.3 Storage Interfaces 1 × SATA 2.0 (7-pin) data connector 1 × SATA power connector (12V / 5V) • • • • • • • • • • • • • 2 1 × mSATA (via Mini PCIe) 1 × M.2 2280 SSD slot (PCIe 2.0 x1) 4.4 Network 4 × RJ45 Ethernet ports Controller: Intel® I225 / I226 Speed: 10/100/1000/2500 Mbps adaptive Supports PXE Boot and Wake-on-LAN 4.5 USB Interfaces 2 × USB 2.0 2 × USB 3.0 4.6 Display Interfaces 1 × HDMI (with audio output) 1 × DisplayPort or VGA (model dependent) 4.7 Serial Communication 1 × COM port header Supports RS-232 / RS-485 (jumper selectable) 4.8 Expansion Interfaces 1 × Mini PCIe slot (WiFi / Bluetooth / 4G module) 1 × SIM card slot (for 4G module) 5. Mechanical Specifications Enclosure: Aluminum alloy Cooling: Fanless passive cooling Dimensions: 136 × 126 × 40 mm Net weight: approx. 0.75 kg Gross weight: approx. 1.25 kg 5.1 External Appearance Diagram (Reference) +--------------------------------------+ | [LAN][LAN][LAN][LAN] | | [USB][USB][HDMI][DP/VGA] | | | | DC IN RESET POWER LED | +--------------------------------------+ • • • • • • • • • • • • • • • • • • • 3 6. Power Specifications Input voltage: DC 12V Recommended adapter: DC 12V / 4A Connector size: 5.5 mm × 2.5 mm 7. Environmental Specifications Operating temperature: Commercial HDD: 0°C ~ +50°C Industrial SSD: -20°C ~ +50°C Storage temperature: -20°C ~ +70°C Relative humidity: 5% ~ 90% (non-condensing) 8. Installation Instructions 8.1 Anti-Static Precautions Always disconnect power before installation Wear an anti-static wrist strap when handling components Hold PCB by edges only 8.2 Memory Installation Power off the system and disconnect DC input Insert DDR4 SO-DIMM at 30° angle Press down until side clips lock 8.3 Storage Installation Secure SATA or M.2 SSD properly Ensure SATA power polarity (+12V / +5V) is correct 8.4 SIM Card Installation Insert SIM card with chip facing downward 9. Jumper and Switch Settings 9.1 CLR_CMOS Pin 1-2: Normal operation (default) Pin 2-3: Clear CMOS 9.2 AUTO_PWRON Pin 1-2: Auto power on after power recovery • • • • • • • • • • • 1. 2. 3. • • • • • • 4 Pin 2-3: Normal power on mode 9.3 COM Mode Selection RS-232 / RS-485 selectable via jumpers 10. System Operation Flow Power Input → BIOS Initialization → Device Detection → OS Boot Press DEL during boot to enter BIOS Configure boot device, PXE, and power management 11. Troubleshooting No power: Check DC adapter and input voltage No display: Verify display cable and output mode Network failure: Check BIOS and driver installation System reboot: Check cooling and power stability • • • • • • • • 5 FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one o…

Text truncated - open the document above for the full version.

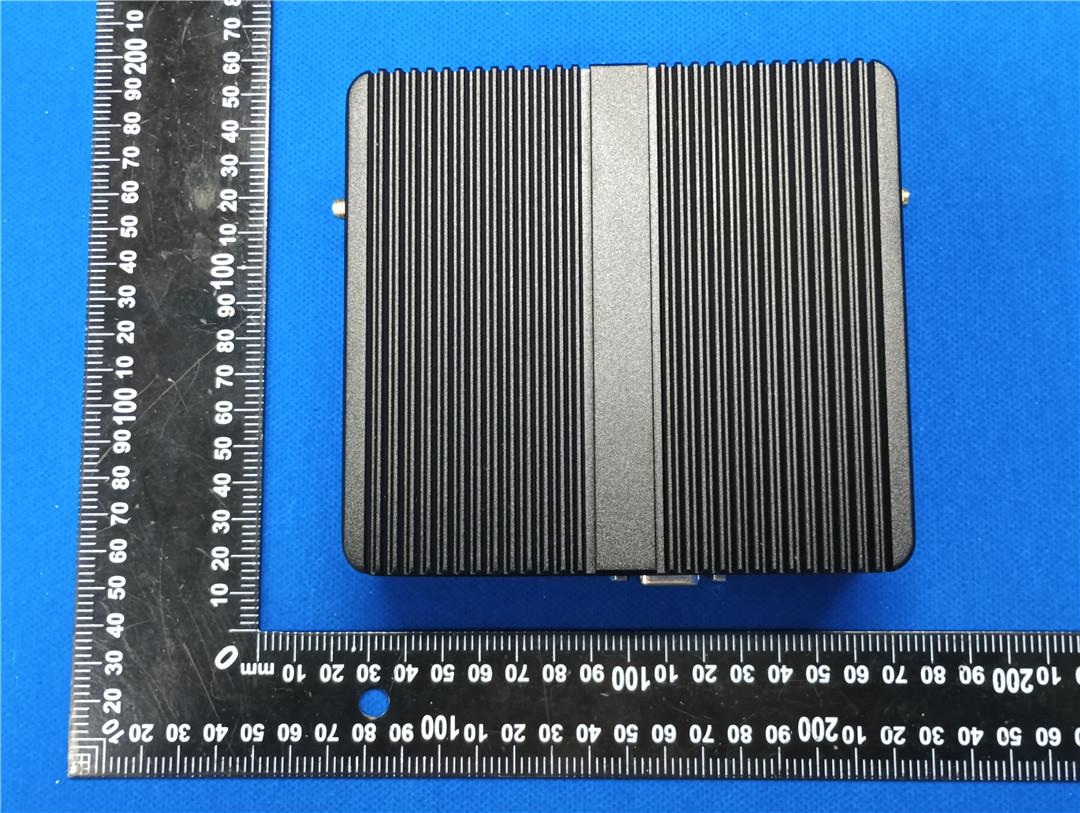

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202512771 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 5 Product Name: Mini pc case Model No.: X2 EUT Constructional Details External Photo 2.4G WIFI ANT1 2.4G WIFI ANT2 Report No.: HTT202512771 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 5 Report No.: HTT202512771 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 3 of 5 Report No.: HTT202512771 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 4 of 5 Report No.: HTT202512771 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 5 of 5 ------End------

Label and Location Size: L: 3.0cm*W: 2.0cm Label and Location FCC ID : 2BT5Z-X2

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202512771 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 4 Product Name: Mini pc case Model No.: X2 EUT Constructional Details Internal Photo Report No.: HTT202512771 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 4 Report No.: HTT202512771 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 3 of 4 Report No.: HTT202512771 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 4 of 4 ------End------

Shenzhen HTT Technology Co., Ltd. Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 1 of 8 RF Exposure MPE Report Reference No. ..................... : FCC ID............................................. : HTT202512771F02 2BT5Z-X2 Compiled by ( position+printed name+signature) . : File administrators Supervised by ( position+printed name+signature) . : Project Engineer Approved by ( position+printed name+signature) . : RF Manager Date of issue .................................... : Jan. 08, 2026 Testing Laboratory Name .............. : Shenzhen HTT Technology Co.,Ltd. Address............................................ : 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao’an District, Shenzhen, Guangdong, China Applicant’s name ............................ : Dongguan Chuyang Trading CO., Ltd Address............................................ : No. 144 Changheng Road ,Room 106, Changping Town, Dongguan City, Guangdong Province China Standard ........................................... : 47CFR §1.1310 47CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen HTT Technology Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HTT Technology Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HTT Technology Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Mini pc case Manufacturer .................................... : Dongguan Chuyang Trading CO., Ltd Trade Mark ........................................ CYMINILMDPC Model/Type reference ...................... : X2 Modulation Type ............................... : 802.11b: DSSS 802.11g/802.11n(HT20)/ 802.11n(HT40): OFDM Operation Frequency ........................ : From 2412-2462MHz Rating ............................................... : DC 12V from adapter Result ............................................... : PASS Report No.: HTT202512771F02 Page 2 of 8 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 2 of 8 T E S T R E P O R T Equipment under Test : Mini pc case Model /Type : X2 Applicant : Dongguan Chuyang Trading CO., Ltd Address : No. 144 Changheng Road ,Room 106, Changping Town, Dongguan City, Guangdong Province China Manufacturer : Dongguan Chuyang Trading CO., Ltd Address : No. 144 Changheng Road ,Room 106, Changping Town, Dongguan City, Guangdong Province China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: HTT202512771F02 Page 3 of 8 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 3 of 8 Contents 1 T E S T S T A N D A R D S ................................................... 4 2 S U M M A R Y .............................................................. 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Special Accessories 5 2.4 Modifications 5 3 T E S T E N V I R O N M E N T 6 3.1 Address of the test laboratory 6 3.2 Test Facility 6 3.3 Statement of the measurement uncertainty 6 4 T E S T L I M I T 7 4.1 Requirement 7 4.2 MPE Calculation Method 7 4.3 Conducted Power Results 7 4.4 Manufacturing tolerance 8 4.5 Standalone MPE Result 8 4.6 Simultaneous Transmission for MPE Result 8 5 C O N C L U S I O N .......................................................... 8 Report No.: HTT202512771F02 Page 4 of 8 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 4 of 8 1 T E S T S T A N D A R D S The tests were performed according to following standards: ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Device, RF Exposure, Equipment Authorization Procedures. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices Report No.: HTT202512771F02 Page 5 of 8 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 5 of 8 2 S U M M A R Y 2.1 General Remarks Date of receipt of test sample : Dec. 15, 2025 Testing commenced on : Dec. 15, 2025 Testing concluded on : Jan. 08, 2026 2.2 Product Description Product description: Mini pc case Model/Type reference: X2 Power supply: DC 12V from adapter Adapter Information: Mode: PA-1480-5M04 Input: 100-240V~1.3A 50-60Hz Output: 12V4A 48W Testing sample ID： HTT202512771-1# (Engineer sample) HTT202512771-2# (Normal sample) Hardware version: / Software version: / WIFI : Supported type: 802.11b/802.11g/802.11n(HT20)/ 802.11n(HT40) Modulation: 802.11b: DSSS 802.11g/802.11n(HT20)/ 802.11n(HT40): OFDM Operation frequency: 802.11b/802.11g/802.11n(H20): 2412MHz~2462MHz 802.11n(H40): 2422MHz~2452MHz Channel number: 802.11b/802.11g/802.11n(HT2…

Text truncated - open the document above for the full version.

0 customer name name of material APPELLATION: 2.4G Foldable Rubber Rod Antenna product model PART NUMBER： YXS-2400-WZ108W Company Name Shenzhen YXS Electronic Co.,Ltd Company Address No. 146-1, Jingbei New Village, Jingbei Community, Xixiang Street, Bao'an District, Shenzhen s p e c i f i c a t i o n PRODUCT SPECIFICATION SHEET 0 give birth to give birth to Fang craft checking Technical quality audit Quality Review Project Review visitor one-panell ed door Fang Materials Engineer design engineer Engineer Supervisory Approval R&D system R & D System 0 1、Product Technical Specifications PART NUMBER： YXS-2458-WZ108W Electrical Performance Indicators Frequency Range 2400-2500MHz 4900-5900MHz Bandwidth (MHz) 100 Input Impedance Input Impendence (Ω) 50 Voltage Standing Wave Ratio (V.S.W.R.) ≤1.7 Gain (dBi) 3dBi Polarization Type Vertical Lightning Protection DC grounding Power Capacity (w) 50 Mechanical Indicators Antenna Length 108 Radiator copper Cuprum Connector Model RP-SMA-J (SMA internal thread and hole) Working Temperature -40~60 Storage Temperature -20~40 Shell Color Radome Color black Shell Material TPEE Weight 8 0 2、Product Specification Chart 0 3、test parameter diagram 0 0

1 Appendix RF Test Data for 2.4G WIFI Company: : Dongguan Chuyang Trading CO., Ltd EUT : Mini pc case FCC ID: : 2BT5Z-X2 Model Number : X2 Report No. : HTT202512771F01 Reviewed By : Heber He 2 1. Duty Cycle 1.1 Test Result 1.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) T_on (ms) Period (ms) Duty Cycle (%) Duty Cycle Correction Factor (dB) Max. DC Variation (%) 802.11b SISO 2412 8.196 8.700 94.21 0.26 0.04 2437 8.196 8.700 94.21 0.26 0.04 2462 8.197 8.700 94.22 0.26 0.04 802.11g SISO 2412 1.362 1.863 73.11 1.36 0.03 2437 1.361 1.862 73.09 1.36 0.03 2462 1.362 1.863 73.11 1.36 0.03 802.11n (HT20) MIMO 2412 1.273 1.774 71.76 1.44 0.01 2437 1.273 1.774 71.76 1.44 0.03 2462 1.274 1.775 71.77 1.44 0.02 802.11n (HT40) MIMO 2422 0.634 1.134 55.91 2.53 0.03 2437 0.634 1.134 55.91 2.53 0.01 2452 0.634 1.134 55.91 2.53 0.01 3 1.2 Test Graph 1.2.1 Ant1 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV 4 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV 5 802.11g_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV 6 802.11n(HT20)_LCH_2412MHz_Ant1 (MIMO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant1 (MIMO)_NTNV 7 802.11n(HT20)_HCH_2462MHz_Ant1 (MIMO)_NTNV 802.11n(HT40)_LCH_2422MHz_Ant1 (MIMO)_NTNV 8 802.11n(HT40)_MCH_2437MHz_Ant1 (MIMO)_NTNV 802.11n(HT40)_HCH_2452MHz_Ant1 (MIMO)_NTNV 9 2. Bandwidth 2.1 Test Result 2.1.1 OBW Mode TX Type Frequency (MHz) ANT 99% Occupied Bandwidth (MHz) Verdict Result Limit 802.11b SISO 2412 1 14.644 / Pass 2 14.563 / Pass 2437 1 14.609 / Pass 2 14.608 / Pass 2462 1 14.684 / Pass 2 14.622 / Pass 802.11g SISO 2412 1 17.208 / Pass 2 16.858 / Pass 2437 1 17.158 / Pass 2 16.864 / Pass 2462 1 17.203 / Pass 2 16.852 / Pass 802.11n (HT20) MIMO 2412 1 18.344 / Pass 2 18.274 / Pass 2437 1 18.293 / Pass 2 18.309 / Pass 2462 1 18.310 / Pass 2 18.296 / Pass 802.11n (HT40) MIMO 2422 1 36.527 / Pass 2 36.475 / Pass 2437 1 36.478 / Pass 2 36.455 / Pass 2452 1 36.508 / Pass 2 36.412 / Pass 2.1.2 6dB BW Mode TX Type Frequency (MHz) ANT 6dB Bandwidth (MHz) Verdict Result Limit 802.11b SISO 2412 1 10.347 >=0.5 Pass 2 10.342 >=0.5 Pass 2437 1 10.341 >=0.5 Pass 2 10.345 >=0.5 Pass 2462 1 10.352 >=0.5 Pass 2 10.346 >=0.5 Pass 802.11g SISO 2412 1 16.375 >=0.5 Pass 2 16.357 >=0.5 Pass 2437 1 16.361 >=0.5 Pass 2 16.415 >=0.5 Pass 2462 1 16.416 >=0.5 Pass 2 16.399 >=0.5 Pass 802.11n (HT20) MIMO 2412 1 17.623 >=0.5 Pass 2 17.622 >=0.5 Pass 2437 1 17.589 >=0.5 Pass 2 17.602 >=0.5 Pass 2462 1 17.669 >=0.5 Pass 10 2 17.543 >=0.5 Pass 802.11n (HT40) MIMO 2422 1 36.241 >=0.5 Pass 2 36.284 >=0.5 Pass 2437 1 36.095 >=0.5 Pass 2 36.049 >=0.5 Pass 2452 1 36.336 >=0.5 Pass 2 36.016 >=0.5 Pass 11 2.2 Test Graph 2.2.1 OBW 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_LCH_2412MHz_Ant2 (SISO)_NTNV 12 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant2 (SISO)_NTNV 13 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11b_HCH_2462MHz_Ant2 (SISO)_NTNV 14 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant2 (SISO)_NTNV 15 802.11g_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11g_MCH_2437MHz_Ant2 (SISO)_NTNV 16 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant2 (SISO)_NTNV 17 802.11n(HT20)_LCH_2412MHz_Ant1 (MIMO)_NTNV 802.11n(HT20)_LCH_2412MHz_Ant2 (MIMO)_NTNV 18 802.11n(HT20)_MCH_2437MHz_Ant1 (MIMO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant2 (MIMO)_NTNV 19 802.11n(HT20)_HCH_2462MHz_Ant1 (MIMO)_NTNV 802.11n(HT20)_HCH_2462MHz_Ant2 (MIMO)_NTNV 20 802.11n(HT40)_LCH_2422MHz_Ant1 (MIMO)_NTNV 802.11n(HT40)_LCH_2422MHz_Ant2 (MIMO)_NTNV 21 802.11n(HT40)_MCH_2437MHz_Ant1 (MIMO)_NTNV 802.11n(HT40)_MCH_2437MHz_Ant2 (MIMO)_NTNV 22 802.11n(HT40)_HCH_2452MHz_Ant1 (MIMO)_NTNV 802.11n(HT40)_HCH_2452MHz_Ant2 (MIMO)_NTNV 23 2.2.2 6dB BW 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_LCH_2412MHz_Ant2 (SISO)_NTNV 24 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant2 (SISO)_NTNV 25 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11b_HCH_2462MHz_Ant2 (SISO)_NTNV 26 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant2 (SISO)_NTNV 27 802.11g_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11g_MCH_2437MHz_Ant2 (SISO)_NTNV 28 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant2 (SISO)_NTNV 29 802.11n(HT20)_LCH_2412MHz_Ant1 (MIMO)_NTNV 802.11n(HT20)_LCH_2412MHz_Ant2 (MIMO)_NTNV 30 802.11n(HT20)_MCH_2437MHz_Ant1 (MIMO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant2 (MIMO)_NTNV 31 802.11n(HT20)_HCH_2462MHz_Ant1 (MIMO)_NTNV 802.11n(HT20)_HCH_2462MHz_Ant2 (MIMO)_NTNV 32 802.11n(HT40)_LCH_2422MHz_Ant1 (MIMO)_NTNV 802.11n(HT40)_LCH_2422MHz_Ant2 (MIMO)_NTNV 33 802.11n(HT40)_MCH_2437MHz_Ant1 (MIMO)_NTNV 802.11n(HT40)_MCH_2437MHz_Ant2 (MIMO)_NTNV 34 802.11n(HT40)_HCH_2452MHz_Ant1 (MIMO)_NTNV 802.11n(HT40)_HCH_2452MHz_Ant2 (MIMO)_NTNV 35 3. Maximum Conducted Output Power 3.1 Test Result 3.1.1 Power Mode TX Type Frequency (MHz) Maximum Peak Conducted Output Power (dBm) Verdict ANT1 ANT2 MIMO Limit 802.11b SISO 2412 11.09 10.69 / <=30 Pass 2437 12.78 11.15 / <=30 Pass 2462 13.22 9.01 / <=30 Pass 802.11g SISO 2412 18.25 19.89 / <=30 Pass 2437 20.03 20.29 / <=30 Pass 2462 19.95 18.10 / <=30 Pass 802.11n (HT20) MIMO 2412 18.12 19.43 21.83 <=30 Pass 2437 19.93 19.83 22.89 <=30 Pass 2462 19.83 17.53 21.84 <=30 Pass 802.11n (HT40) MIMO 2422 18.45 19.72 22.14 <=30 Pass 2437 20.20 20.26 23.24 <=30 Pass 2452 20.26 20.09 23.19 <=30 Pass 36 4. Maximum Power Spectral Density 4.1 Test Result 4.1.1 PSD Mode TX Type Frequency (MHz) Maximum PSD (dBm) Verdict ANT1 ANT2 MIMO Limit 802.11b SISO 2412 -0.93 -1.30 / <=8 Pass 2437 0.94 -0.77 / <=8 Pass 2462 1.30 -2.97 / <=8 Pass 802.11g SISO 2412 -0.10 0.70 / <=8 Pass 2437 1.29 1.38 / <=8 Pass 2462 1.61 -0.96 / <=8 Pass 802.11n (HT20) MIMO 2412 -0.34 0.85 3.10 <=8 Pass 2437 1.74 1.25 4.34 <=8 Pass 2462 1.72 -0.82 3.64 <=8 Pass 802.11n (HT40) MIMO 2422 -3.00 -1.73 0.68 <=8 Pass 2437 -1.10 -1.06 1.81 <=8 Pass 2452 -1.22 -1.02 1.74 <=8 Pass 37 4.2 Test Graph 4.2.1 PSD 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_LCH_2412MHz_Ant2 (SISO)_NTNV 38 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11…
